DP 80 automatic calcium sheet aluminum foil paper sealing machine candy aluminum plastic blister machine
- Category: >>>
- Supplier: Shanghai Lao Le Machinery Equipment Co. Ltd.
Share on (1600499406063):
Product Overview
Description
Product Description

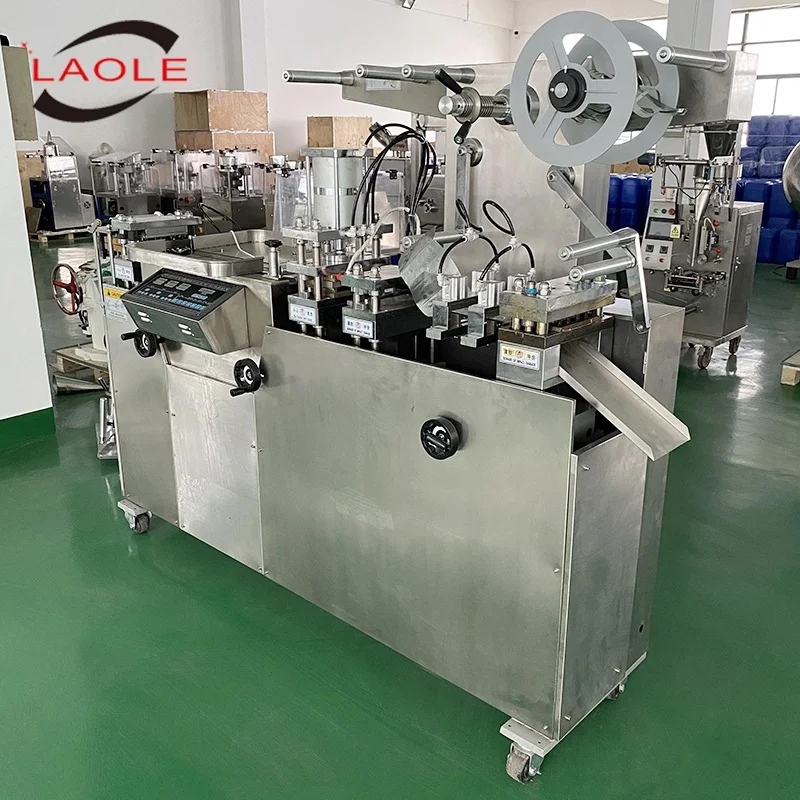

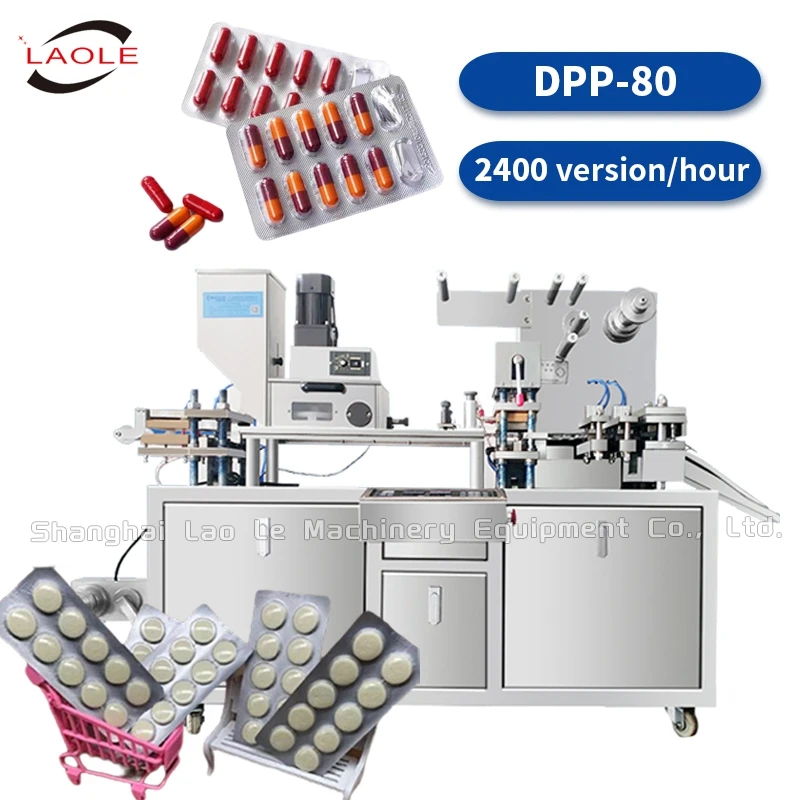

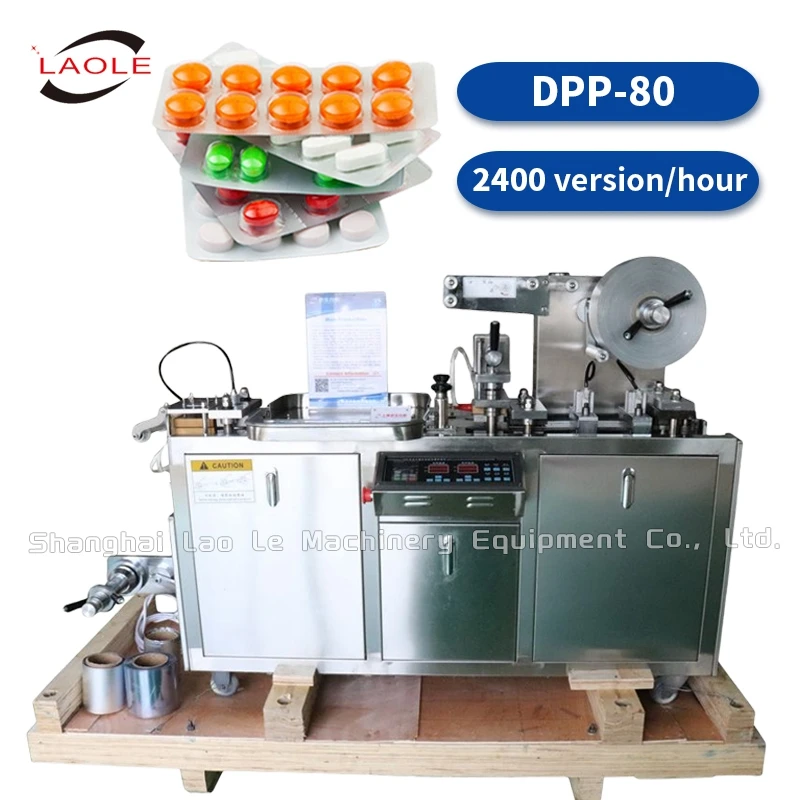

Blister Packaging Machine DP-80
1. The whole machine adopts a combination of sections: PVC forming, feeding, and heat sealing are one section, and tropical aluminum cold forming, heat sealing, and cutting are one section, which can be individually packaged.
2. Adopt photoelectric control system, automatic feeding of PVC, PTP, hard aluminum packaging, automatic punching device for edges and corners, to ensure the stability of long-distance multi-station synchronization.
3. This machine is suitable for: capsules, plain tablets, sugar-coated, capsules, injections, special-shaped, etc., as well as medical equipment, light food, electronic components blister sealed packaging.
2. Adopt photoelectric control system, automatic feeding of PVC, PTP, hard aluminum packaging, automatic punching device for edges and corners, to ensure the stability of long-distance multi-station synchronization.
3. This machine is suitable for: capsules, plain tablets, sugar-coated, capsules, injections, special-shaped, etc., as well as medical equipment, light food, electronic components blister sealed packaging.
model | DP-80 | ||||||
Blanking times | 10-40 times / min | ||||||
Production capacity | 2400 editions / hour | ||||||
The maximum forming area and depth is | 80 * 110* 13 mm (mm) | ||||||
Standard travel range | 20-80mm (can be designed according to customer requirements) | ||||||
Standard block | 80*57mm (can be designed according to customer's requirements) | ||||||
Air pressure | 0.6-0.8 MPa | ||||||
Total power of power supply | 220V 50Hz 3.2Kw | ||||||
Main electrode power | 0.75Kw | ||||||
PVC hard piece | 0.15-0.5*110(mm) | ||||||
PTP aluminum foil | 0.02-0.035*110(mm) | ||||||
Dialysis paper | 50-100g*110（mm） | ||||||
Mould cooling water | tap water or circulating water | ||||||
External dimension | 1600*600*1100(mm) | ||||||
Weight | 450KG | ||||||
Noise index | <75dBA | ||||||

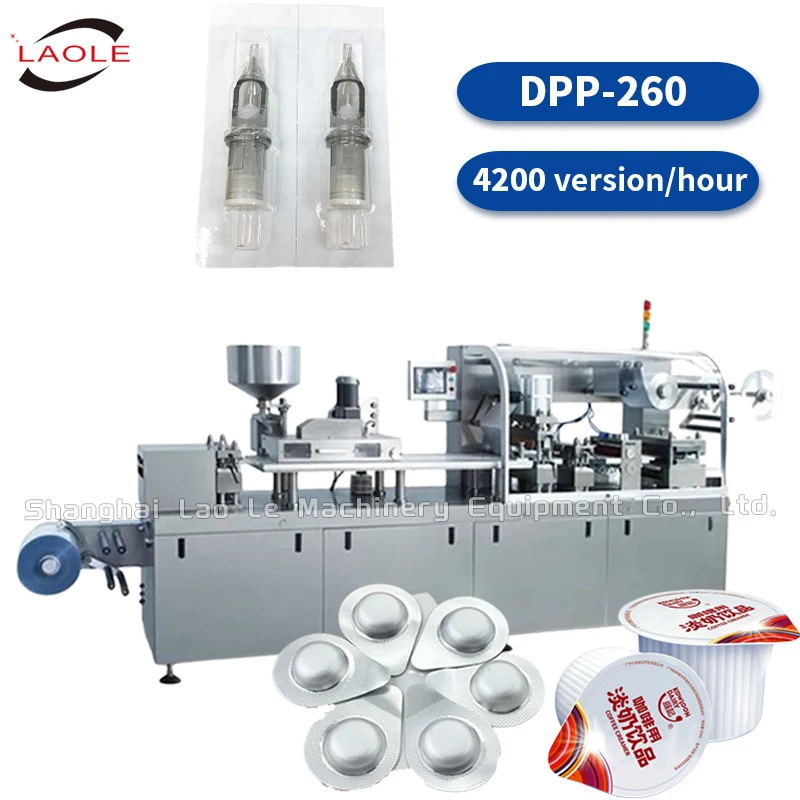

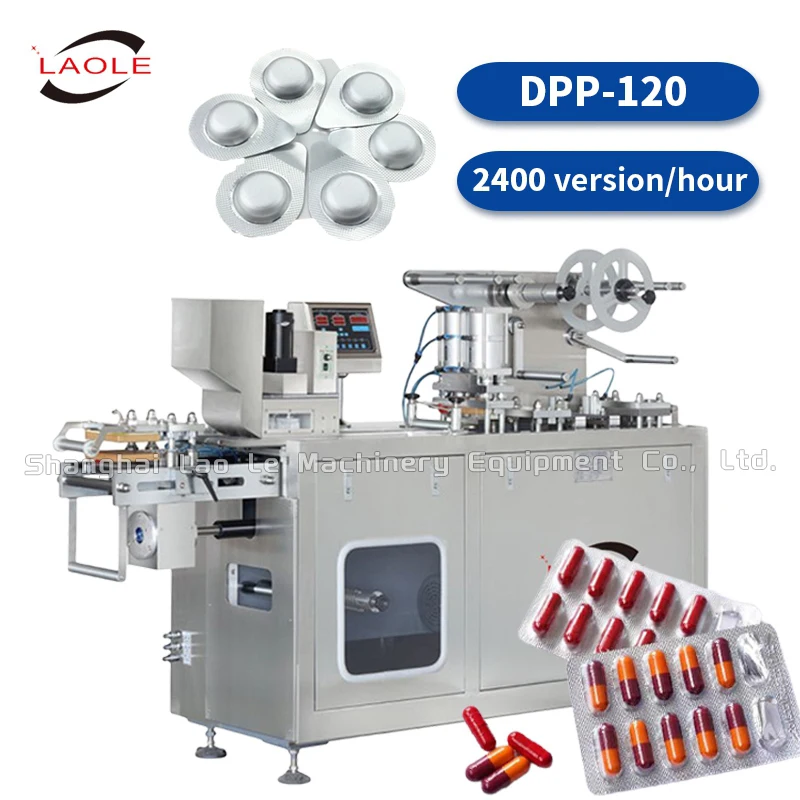

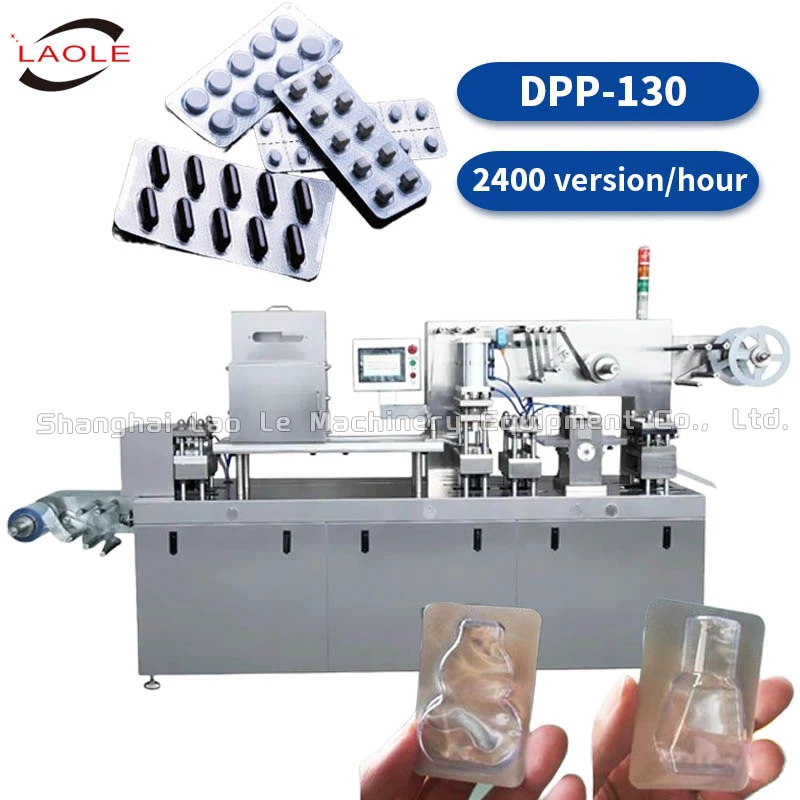

Recommended Products

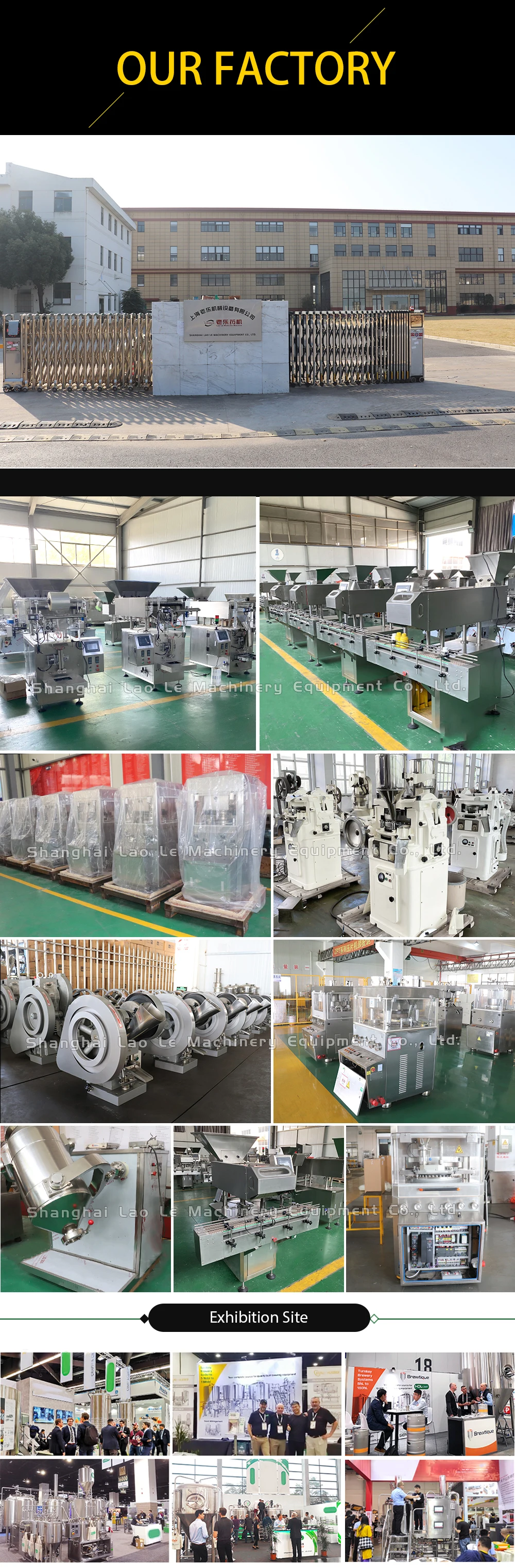

Our Factory
Shanghai Laole Machinery Equipment Co., Ltd. Main sales:
1. Customized die for single punch tablet press, rotary tablet press,flower basket tablet press and tablet press.

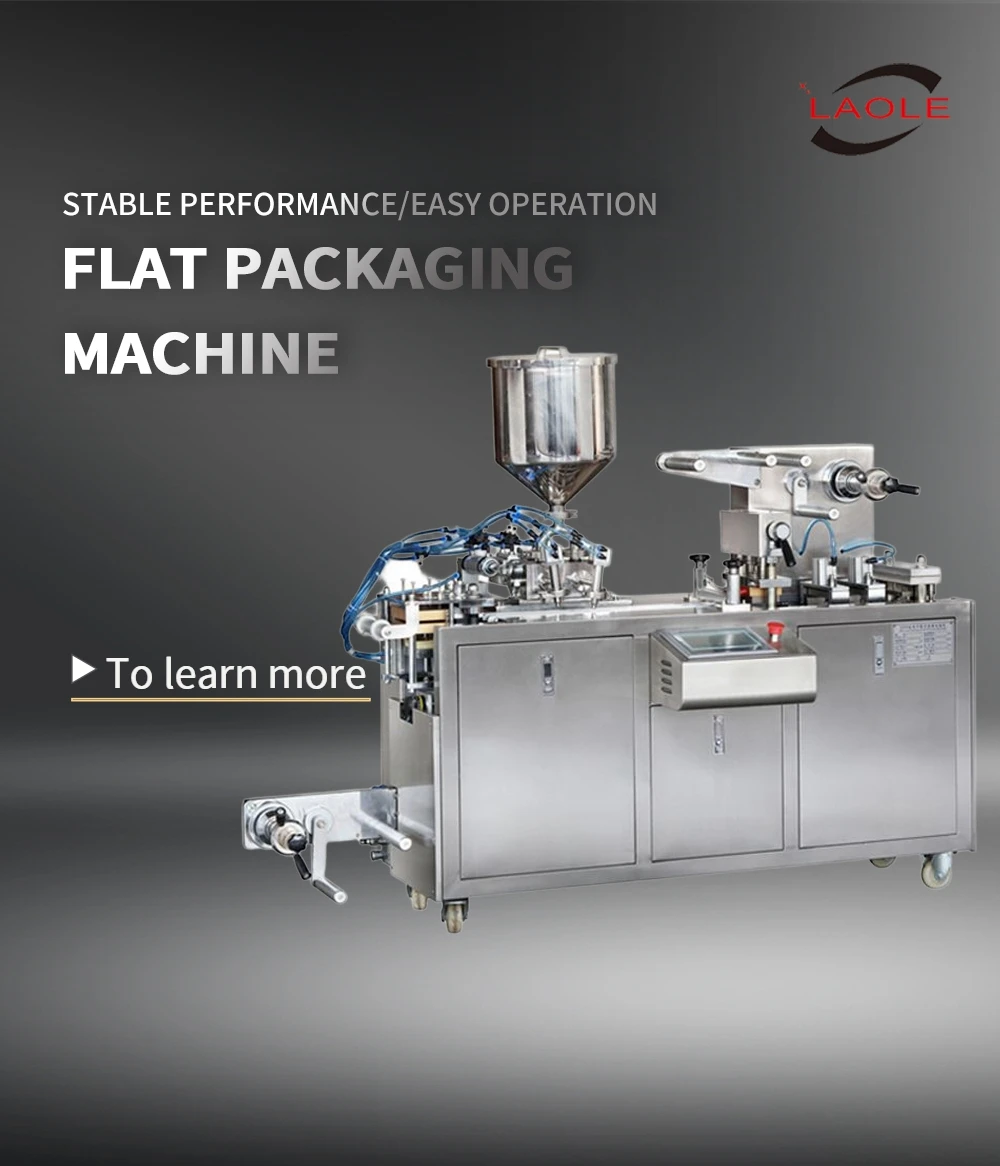

2. Flat packaging machine (capsules, tablets, pills, liquids, pastes, etc.) We can produce mold effect drawings according to customer's requirements.
3. Small bag flexible packaging machine (granule packaging machine, powder packaging machine, liquid paste packaging machine)Capsule filling machine (semi-automatic capsule filling machine, automatic capsule filling machine, capsule powder
removing machine)
4. A packaging production line for packaging machinery and equipment (counting machine, sealing machine, bottle unscrambler,capping machine, dryer, labeling machine)
Tabletpress supporting equipment:
Mixer (dry powder V-type mixer, trough-type wet material mixer, three-dimensional mixer)
Granulator(wet process rocking granulator, dry granulator, rotary granulator)
Sugar Coating Machine, Coating Machine, Pill Making Machine,Pulverizer, Tablet Counting Machine, Electronic Counting Machine
Decoction machine, dryer, oven, drying equipment, vacuum feeder,powder removal sieve equipment
Tablet press with vacuum cleaner, slicer, etc.
We can produce mold renderings and drawings according to customer requirements, Sincerely look forward to cooperating with you, we
will serve you wholeheartedly.
1. Customized die for single punch tablet press, rotary tablet press,flower basket tablet press and tablet press.
2. Flat packaging machine (capsules, tablets, pills, liquids, pastes, etc.) We can produce mold effect drawings according to customer's requirements.
3. Small bag flexible packaging machine (granule packaging machine, powder packaging machine, liquid paste packaging machine)Capsule filling machine (semi-automatic capsule filling machine, automatic capsule filling machine, capsule powder
removing machine)
4. A packaging production line for packaging machinery and equipment (counting machine, sealing machine, bottle unscrambler,capping machine, dryer, labeling machine)
Tabletpress supporting equipment:
Mixer (dry powder V-type mixer, trough-type wet material mixer, three-dimensional mixer)
Granulator(wet process rocking granulator, dry granulator, rotary granulator)
Sugar Coating Machine, Coating Machine, Pill Making Machine,Pulverizer, Tablet Counting Machine, Electronic Counting Machine
Decoction machine, dryer, oven, drying equipment, vacuum feeder,powder removal sieve equipment
Tablet press with vacuum cleaner, slicer, etc.
We can produce mold renderings and drawings according to customer requirements, Sincerely look forward to cooperating with you, we
will serve you wholeheartedly.
Certifications
Packing & Delivery
FAQ
Q1: Are you a factory or a trading company?
A: We are factory or manufacturer.
Q2: Can you guarantee your quality?
A: Yes, we are the manufacture factory. More importantly, we put a high value on our reputation. Best quality is our principle all the time. You can be assured on our production completely.
Q3: What should I do if we are not able to operate the machine when we receive it?
A: Operation manual and video demonstration sent along with the machine to give instructions.
Q4: How could I get the spares on machines?
A: Non-artificial damaged spares will be sent freely and shipping free during 1 year's warranty.
Q5: What are the payment terms?
A: We usually accept T / T payment, credit insurance order and TT
Q6 : Can any of the products be custom imprinted?
A: If you need to print your company logo on the products and that is available to be custom. Or if you have your own designed idea and that will be our honor to customize for you.
Q7: How to ensure that I received the machine undamaged?
A: At first , our package is standard for shipping, before packing, we will confirm product undamaged, otherwise, please contact within 2days. Because we've bought insurance for you, we or shipping company will be responsible!
Q2: Can you guarantee your quality?
A: Yes, we are the manufacture factory. More importantly, we put a high value on our reputation. Best quality is our principle all the time. You can be assured on our production completely.
Q3: What should I do if we are not able to operate the machine when we receive it?
A: Operation manual and video demonstration sent along with the machine to give instructions.
Q4: How could I get the spares on machines?
A: Non-artificial damaged spares will be sent freely and shipping free during 1 year's warranty.
Q5: What are the payment terms?
A: We usually accept T / T payment, credit insurance order and TT
Q6 : Can any of the products be custom imprinted?
A: If you need to print your company logo on the products and that is available to be custom. Or if you have your own designed idea and that will be our honor to customize for you.
Q7: How to ensure that I received the machine undamaged?
A: At first , our package is standard for shipping, before packing, we will confirm product undamaged, otherwise, please contact within 2days. Because we've bought insurance for you, we or shipping company will be responsible!
