4000 cycles 100%DOD 24v lithium ion battery rechargeable batteries lithium 24v packs lithium ion battery 24v 100ah for solar, RV
- Category: >>>
- Supplier: Guangdong Junlee Energy Technology Co Ltd
Share on (1600499417857):
Product Overview
Description
deep cycle 24V 100Ah Lithium ion Lifepo4 Battery Pack for Telecom UPS Solar Energy Storage
4000 cycles 100%DOD 24v lithium ion battery rechargeable batteries lithium 24v packs lithium ion battery 24v 100ah for solar, RV
:Longer Cycle Life :
Lighter Weight :
Higher Power : Delivers twice power of lead acid battery ,even high discharge rate, while maintaining high energy capacity
Wider Temperature Range : -20℃~60℃
Superior Safety:
Offers up to 20 times longer cycle life and five times longer float/calendar life than lead acid battery ,
helping to minimize replacement cost and reduce total cost of ownership
helping to minimize replacement cost and reduce total cost of ownership
Lighter Weight :
About 40% of the weight of a comparable lead acid battery . A " drop in" replacement for lead acid batteries
Higher Power : Delivers twice power of lead acid battery ,even high discharge rate, while maintaining high energy capacity
Wider Temperature Range : -20℃~60℃
Superior Safety:
Lithium Iron Phosphate chemistry eleminates the risk of explosion or combustion due to high impact overcharging
or short circuit situation
or short circuit situation

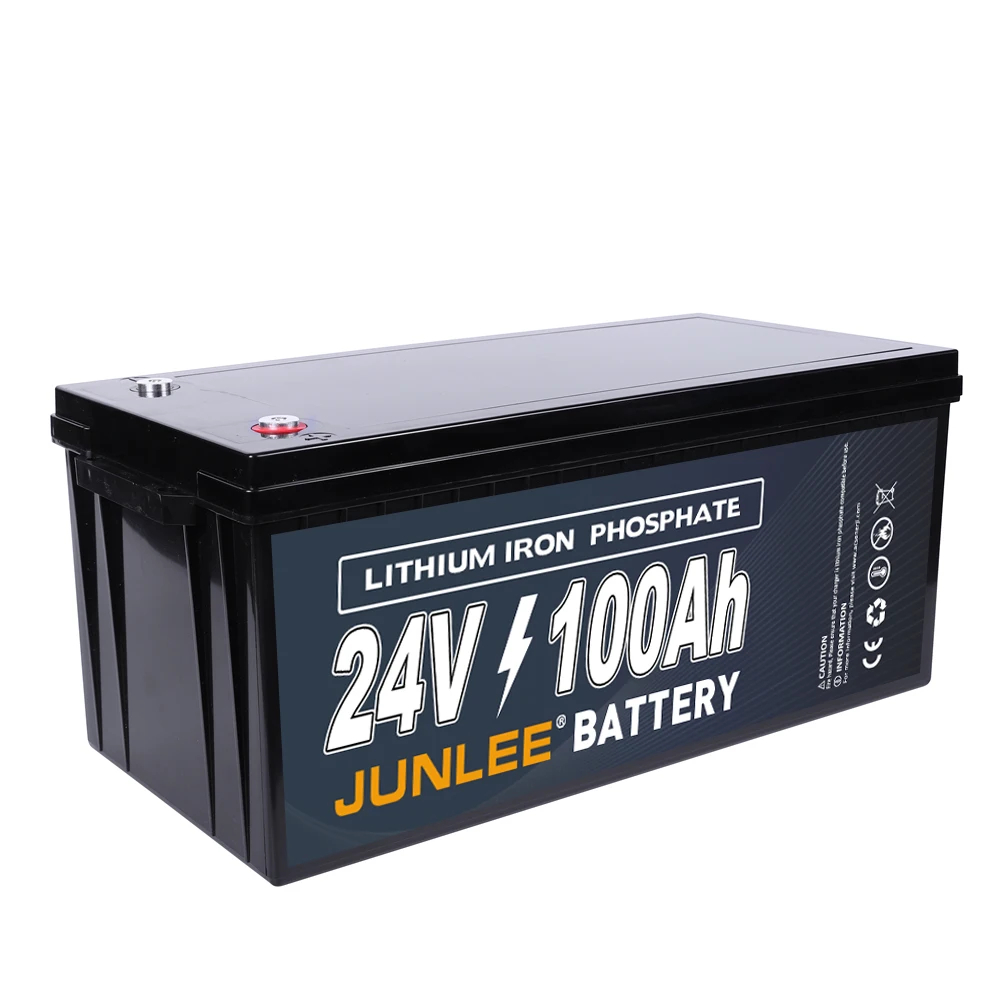

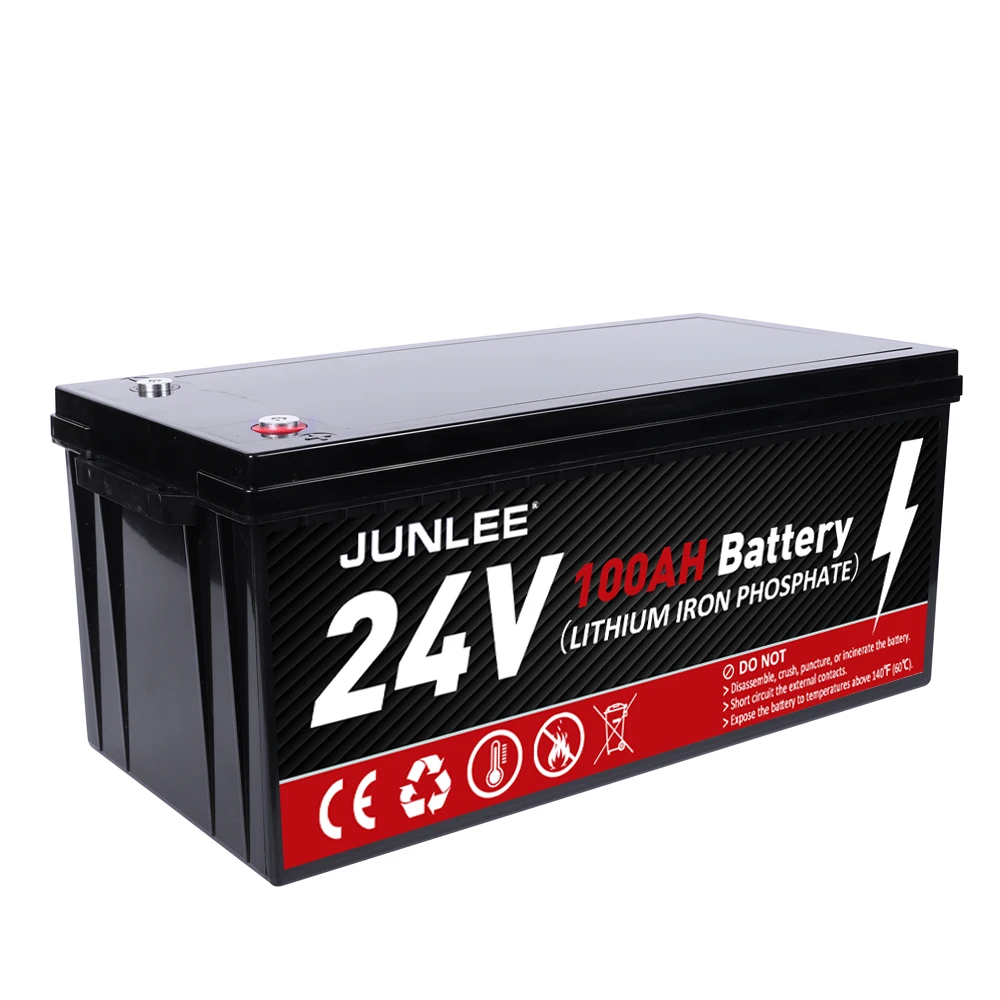

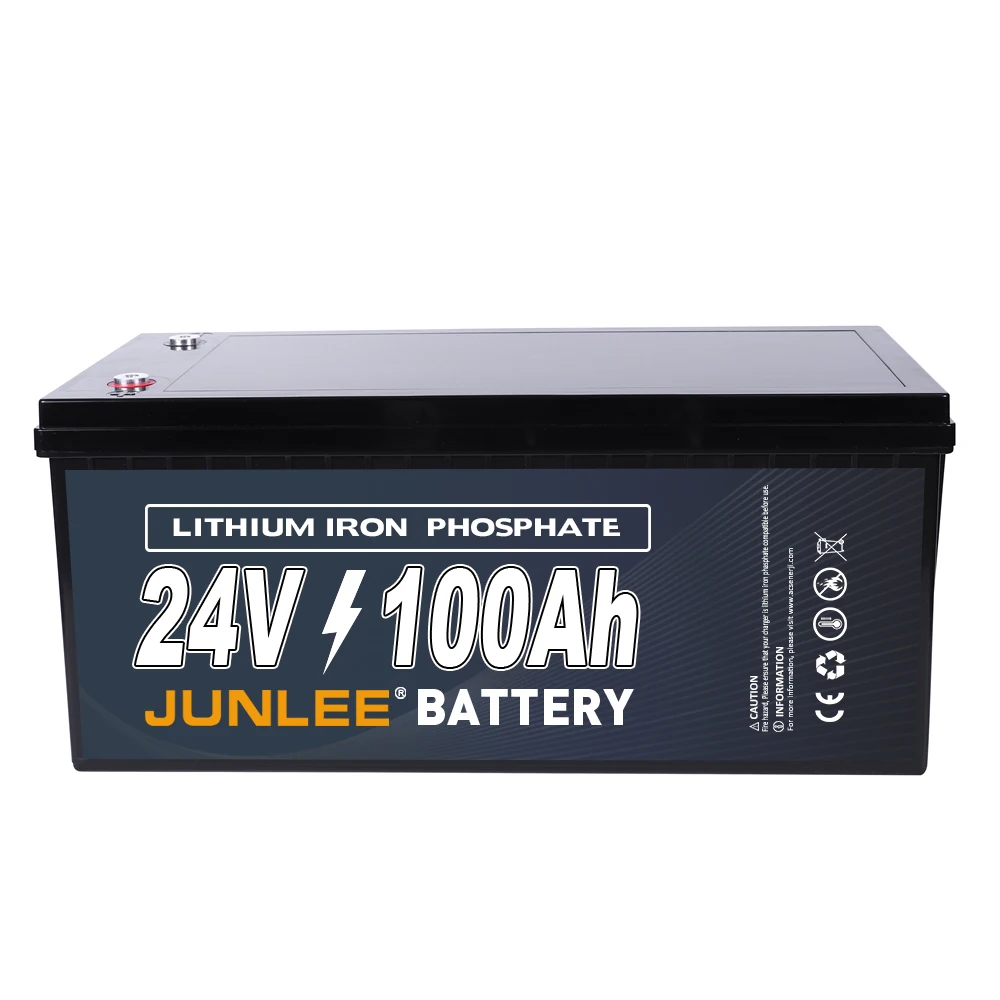

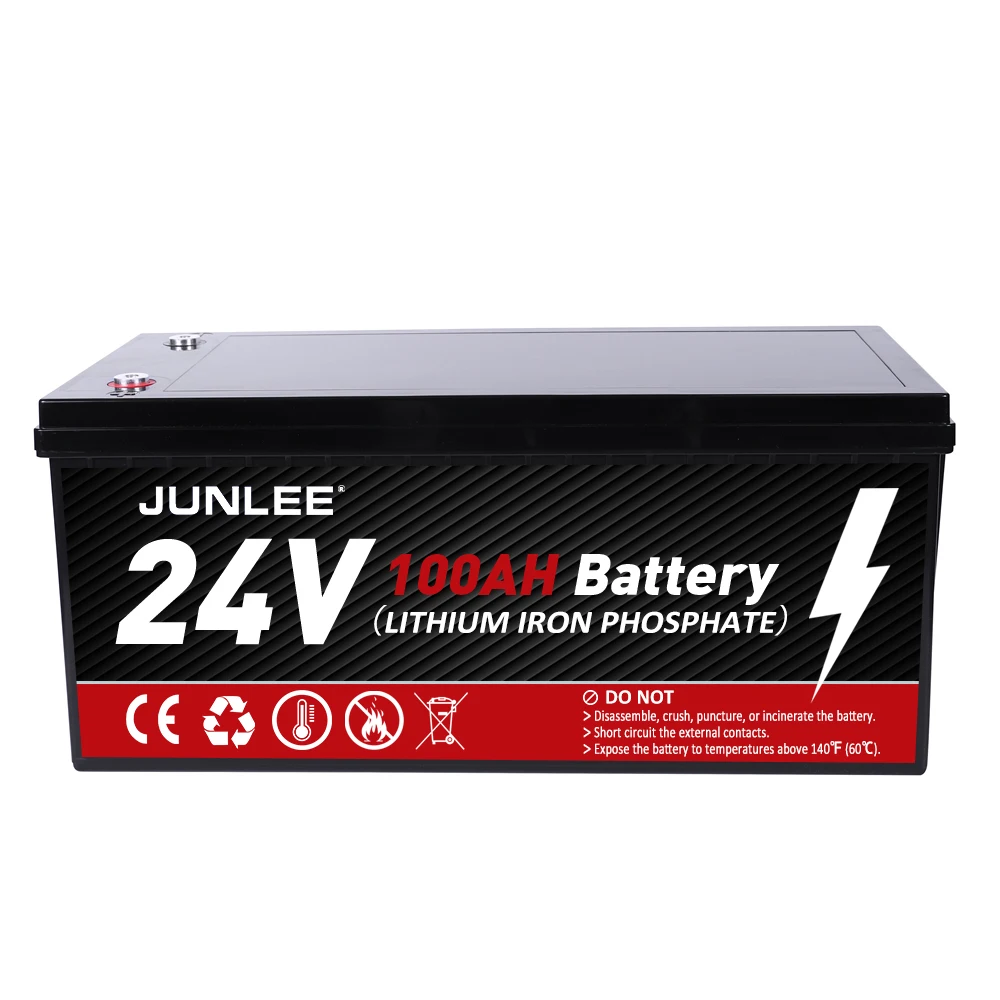

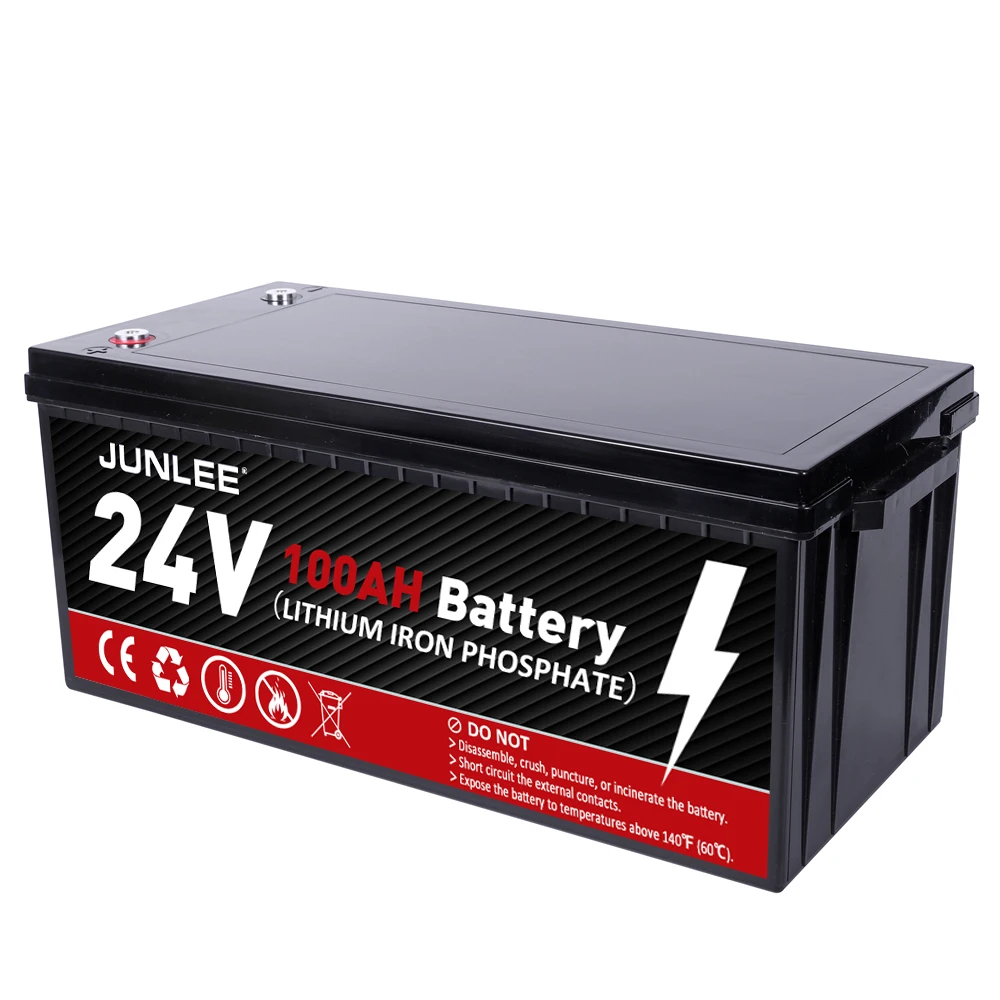

24v 100ah deep cycle lithium ion battery referance pictures
24v 100ah LiFePo4 Battery Specifications and technical datas
Norminal voltage | 25.6V | |
NominalCapacity | 100Ah (C5,25℃) | |
Energy | 2560Wh | |
Internal Resistance | ≤500mΩ | |
CycleLife | >4000 cycles @1C 100%DOD | |
Months SelfDischarge | <3% | |
Efficiency of charge | 100% @ 0.2C | |
Efficiency of Discharge | 96~99% @1C | |
Charge Voltage | 14.6±0.2V | |
Charge Mode | 0.2C to 14.6V, then 14.6,chargecurrent 0.02C(CC/CV) | |
Charge Current | 50A | |
Max Charger Current | 100A | |
Charger Cun-off voltage | 14.8V±0.2V | |
Continuous Current | 100A | |
Max. Pulse Current | 300A(<3s) | |
Discharger Cun-off voltage | 20V | |
Charge Temperature | 0 ℃to 45 ℃ (32Fto 113F) @60 25% Relative Humidity | |
Discharge Temperature | -20 ℃to 60 ℃ (-4Fto 140F) @60 25% Relative Humidity | |
Storage Temperature | 0 ℃to 40 ℃ (32Fto 104F) @60 25% Relative Humidity | |
Water Dust Resistance | IP67 | |
Mechanical | Cell & Method | 3.2V 50AH 8S2P |
Plastic Case | ABS | |
Dimensions (in./mm.) | 522*238*225 mm | |
Weight (lbs./kg.) | 19Kg | |
Terminal | M8 | |
BMS | 8S100A |

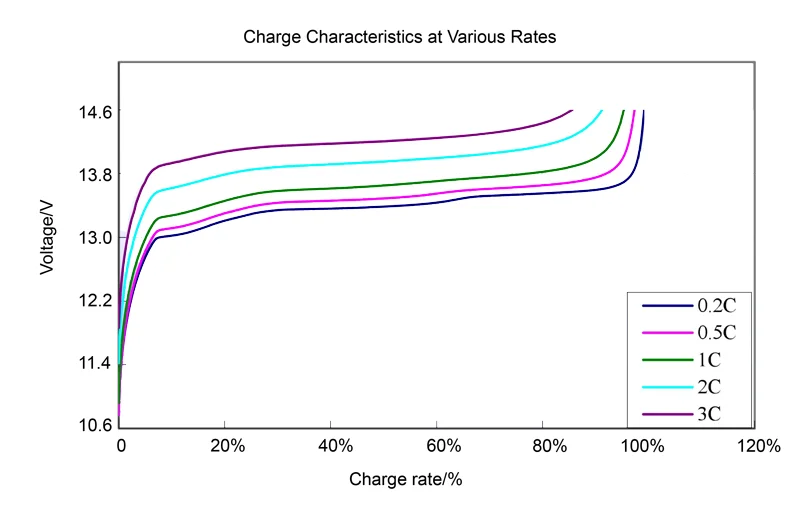

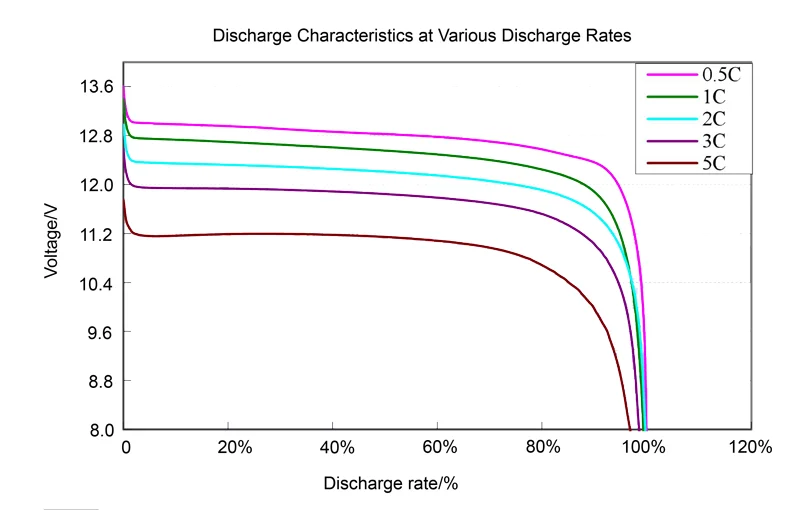

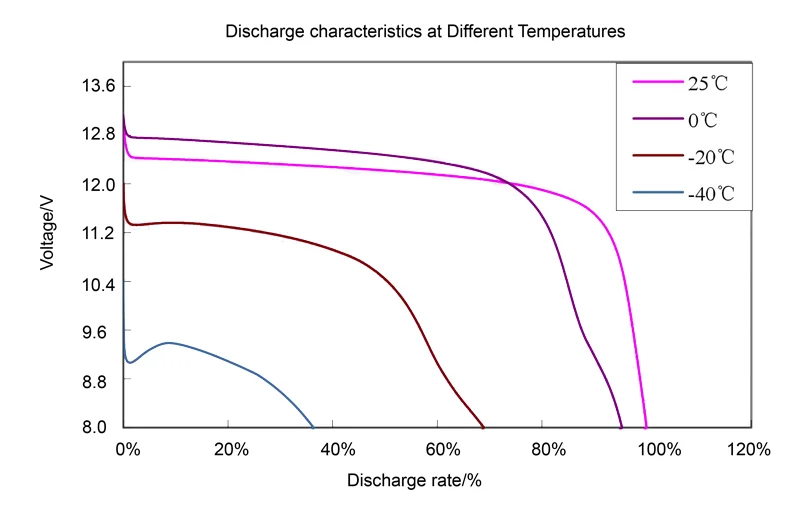

li-ion lithium battery lithium phosphate battery curve

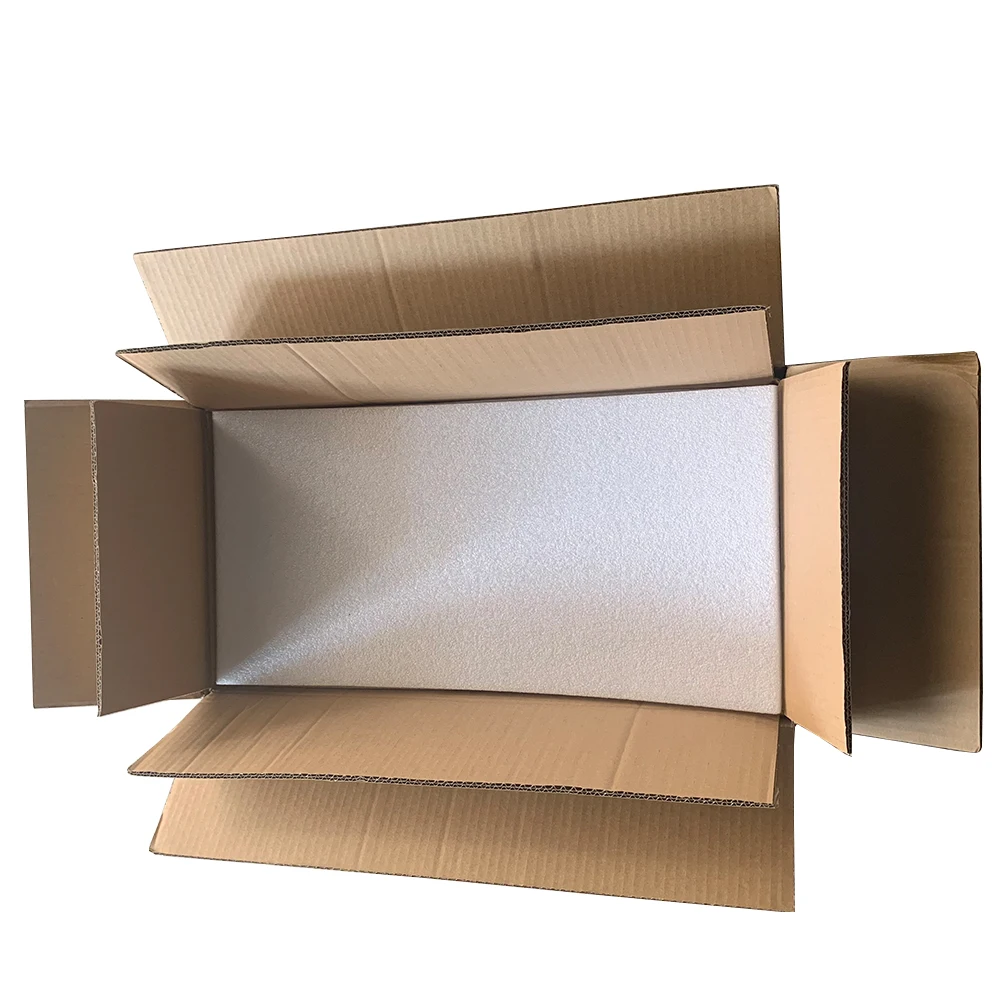

Packing
LiFePo4 Lithium ion Battery model lifepo4 lithium battery applications
FAQ
Q1. How to proceed with an order?
A. Firstly let us know your requirements or application. Secondly, We quote according to your requirements or our
suggestions.Thirdly customer confirms the samples and places a deposit for formal order. Fourthly We arrange the production.
Q2.Do you have any MOQ limit?
A. Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ, 1pc
for sample checking is available.
Q3. Do your batteries have a battery management system?
A. Yes, our lithium batteries have BMS, which can protect the battery from overcharging and overdischarging.
Q4.Can these battery pack be compatible with my inverter? do you have a company list of the inverter which is compatible?
A: Yes sir, our battery pack can compatible with most brand of inverter on the market, contact us and let me tell you more.
Q5. Can it be series or parallel for use?
A: Yes sir, it can support max. 4 in series or parallel connection for use ( 12V series ) and no any additional device.
Q6.What's the lead time?
A: 1.Sample orders: 1-3 working days
2.Bulk orders: 3-7 working days according to different quantities
3.OEM: 7-12 working days on receipt of sample confirmation
A. Firstly let us know your requirements or application. Secondly, We quote according to your requirements or our
suggestions.Thirdly customer confirms the samples and places a deposit for formal order. Fourthly We arrange the production.
Q2.Do you have any MOQ limit?
A. Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ, 1pc
for sample checking is available.
Q3. Do your batteries have a battery management system?
A. Yes, our lithium batteries have BMS, which can protect the battery from overcharging and overdischarging.
Q4.Can these battery pack be compatible with my inverter? do you have a company list of the inverter which is compatible?
A: Yes sir, our battery pack can compatible with most brand of inverter on the market, contact us and let me tell you more.
Q5. Can it be series or parallel for use?
A: Yes sir, it can support max. 4 in series or parallel connection for use ( 12V series ) and no any additional device.
Q6.What's the lead time?
A: 1.Sample orders: 1-3 working days
2.Bulk orders: 3-7 working days according to different quantities
3.OEM: 7-12 working days on receipt of sample confirmation
