Product Overview
Description
Product Description
Product Name | MPPT Solar Charge Controller |
Work Time (h) | 24H |
Max PV Power | 1200W/2400W |
Max PV Voltage | 24V |
Material | ROHS+ABS |
Rated charging current | 30a /40a / 50a/ 60a / 100a |
Rated discharge current | 10a / 20a / 20a / 30a / 30a |
Solar photovoltaic voltage | 12V battery with 18V solar panel, 24V battery with 36 solar panel |
Full Voltage Value | B01 Lithium Battery (12.2V) / B02 Colloidal Battery (14.2V) / B03 Open Cell (14.6V) |
12V Floating Charge Voltage | 14.2 V ( default, Adjustable ) 12.0V-15.0V |
12V Discharge cut-off voltage | 10.7 V ( default, adjustable ) 9.0V-11.5V |
12V Discharge recovery voltage | 12.5 V ( default, adjustable ) 11.0V-13.0V |
24V Floating Charge Voltage | 28.4 V ( default, Adjustable ) 24.0V-29.0V |
24V Discharge cut-off voltage | 19.0 V ( default, Adjustable ) 18.0V-22.0V |
24V Discharge recovery voltage | 22.0 V ( default, adjustable ) 22.0V-26.0V |
Standby current | 10mA |
USB Output | 5V / 2A MAX |
Operating temperature | -35℃ ~+60℃ |
MPPT SOLAR CHARGE CONTROLLER
”Maximum Power Point Tracking“ solar charge controller :
The built-in maximum power tracking algorithm can significantly improve the energy utilization efficiency of the photovoltaic system, which is about 15%-20% higher than the traditional PWM charging efficiency
Advantage
1. Dual-wave or multi-peak tracking technology, when the solar panels are shaded or some of the solar panels are damaged, multiple peaks will appear, and the controller can still accurately track the maximum point power；
2. Using advanced digital power technology, the circuit energy conversion efficiency is as high as 98% ；
3. The combination of various tracking algorithms can accurately track the best working point within 1 second, and the MPPT tracking efficiency can reach up to 99.9%；
4. It has a current-limiting charging mode. When the power of the battery panel is too large and the charging current is greater than the rated current, the controller automatically reduces the charging efficiency and makes it work at the rated charging current.
Details Images

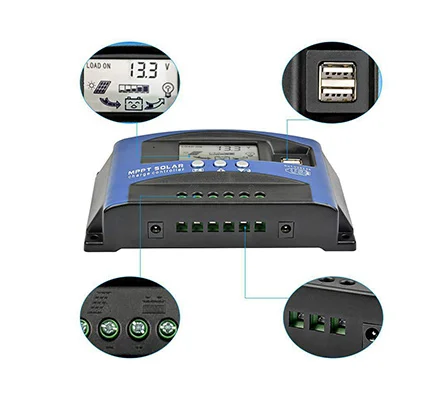

Smart large screen console
LCD display, adjustable charging and discharging parameters, more convenient
Take care of the battery
Complete 3-stage charging management, effectively protect the battery, the battery is more durable
Multiple input methods
R5.0 solar charging DC socket
R5.0 DC lamp output DC socket
Easy connection and low heat generation
Product Usage
Technical parameters of product

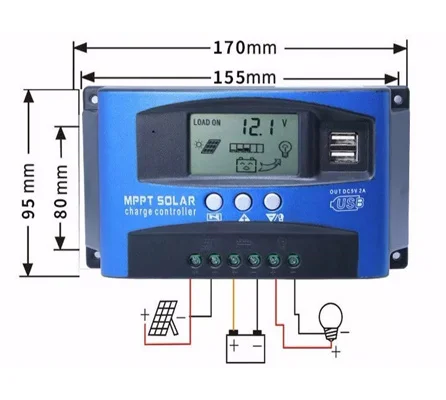

1. Connect the positive and negative levels of the battery to the controller as shown in the figure，The controller will automatically detect the battery voltage.
2. Connect the positive and negative levels of the load to the controller as shown in the figure, be careful not to reverse the connection.
3. Connect the solar panel to the controller as shown.
Note: Please connect in strict accordance with the above sequence, the disassembly sequence is opposite to the wiring sequence
1. Short circuit protection
2. Open circuit protection
3. Overcurrent Protection
4. Overcharge protection
5. Over discharge protection
6. Reverse polarity protection
When the fault is cleared, the controller automatically recovers without damaging the equipment
