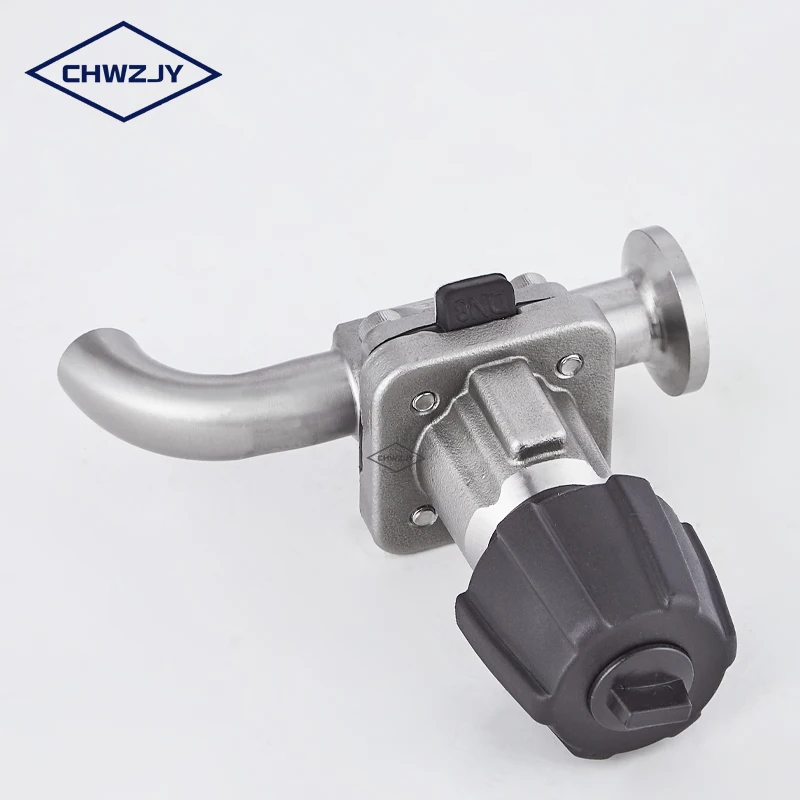

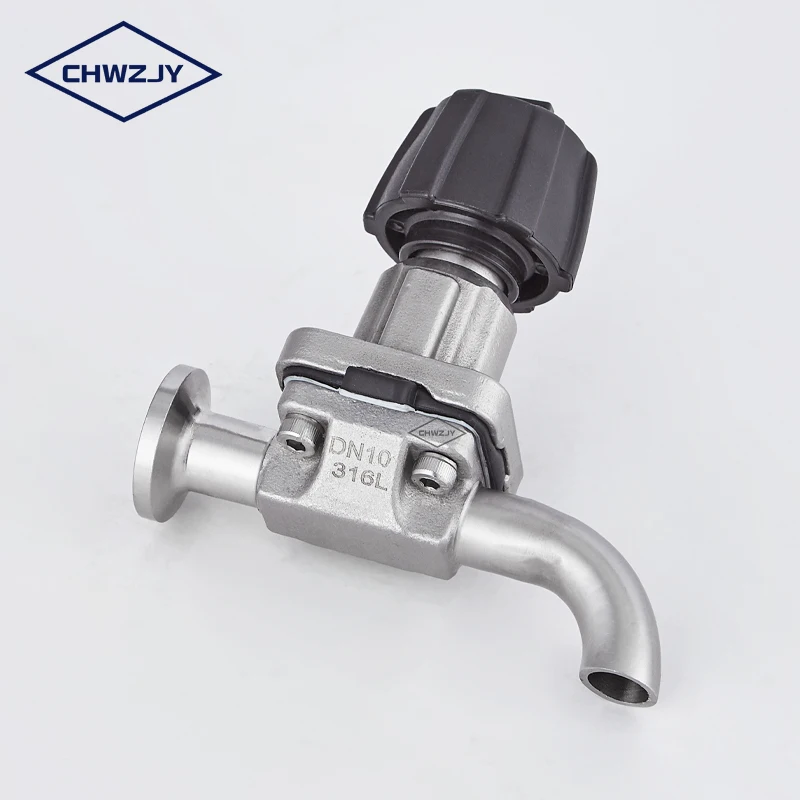

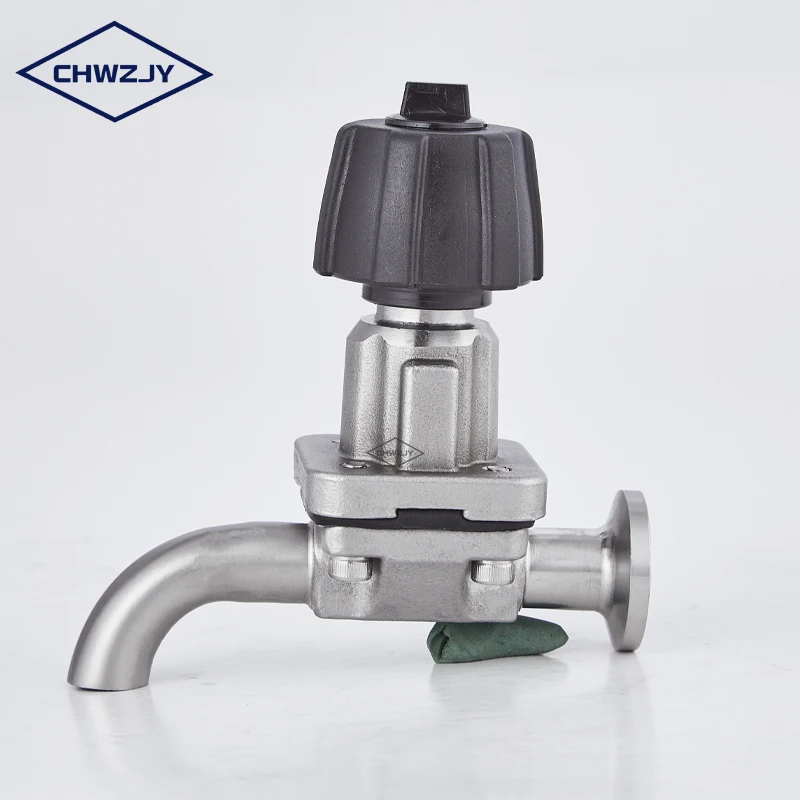

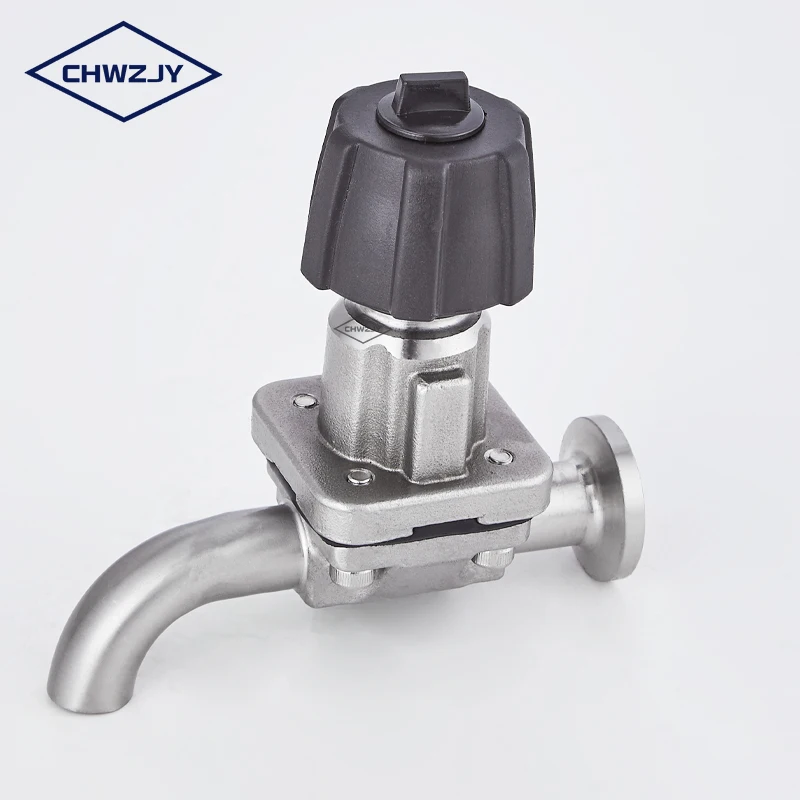

Sanitary stainless steel manual diaphragm valve with long life membrane quick loading diaphragm valve
- Category: >>>
- Supplier: Wenzhou Jingyu Technology Co. Ltd.
Share on (1600499510112):
Product Overview
Description
Item Name | Manual diaphragm valve |
Brand Name | CHWZJY |
Pipe Size | 1/4"-4", DN6-DN125 |
Contact with the product parts | Stainless steel 316L, (1.4404) |
Non contact product parts | 304(1.4301) |
Standard | EPDM+PTFE |
Option | EPDM,Silicone |
Sterilization temperature | 150℃≤30min |
Connection Mode | Clamp/weld/thread |
Working pressure | 0-10 BAR |
Internal surface finish | Ra0.4~0.6μm |
External surface finish | Ra0.8~1.6μm |
Working temperature | EPDM-20~+120℃,EPDM+PTFE-20~+130℃ |
Standards | 3A,DIN,ISO,SMS,IDF,RJT |
Seal | SILICONE,EPDM,FKM,PTFE,NBR |
Application | Food & Beverage & Chemicals & Pharmaceutical |
MOQ | 1PCS |
1. We Are Original Factory.
2. Low MOQ: Most of the products has in stock.
3. OEM Accepted: We can customize the product if you could provide the sketch.
4. Fast Response, Excellent Quality, Competitive Price
5. All products inspected before shipping.
