Complete milk/UHT/pasteurized milk/yogurt/cheese processing plant
- Category: >>>
- Supplier: Wuxi Nanwei Machinery Technology Co. Ltd.
Share on (1600499532091):
Product Overview
Description
Complete milk/UHT/pasteurized milk/yogurt/cheese processing plant
Features:
1. Turnkey project
2. Semi-automatic or fully automatic
3. Customized design
4. Set type or stirring type
Structure:
Milk blending system
Milk pasteurizer and homogenizer
Yogurt fermentation system
Milk filling system
Description of Complete milk/UHT/pasteurized milk/yogurt/cheese processing plant:
Complete milk/UHT/pasteurized milk/yogurt/cheese processing plant produces several types of market milk products, i.e. whole milk, skimmed milk and standardized milk of various fat contents.
Raw milk can be fresh milk or powder milk. The procedure method can be pasteurization or HTST pasteurizer or UHT processing.
End product package of this yogurt processing plant can be plastic pouches, plastic cups, plastic bottles, glass bottles, roof top box, etc. According to different end product and package type, the production technology is differently designed. But commonly include the following steps:
| Equipment list of 10T/D yoghurt production plant (Pasteurized milk\\yogurt\\cheese\\cream\\butter) | ||
| NO. | NAME | MAIN TECHNICAL PARAMETER |
| 1 | MILK RECEIVE\\STORAGE\\AND CREAM SEPARETOR UNIT | |
| 2 | electron pound cale | maximum weighing 500KG |
| 3 | milk weighing tank | made of SUS stainless steal,single layer,product feeded in through 40 mesh filter net,CIP cleaning ball |
| 4 | milk acceptor | SUS304 stainless steel,single layer,CIP cleaning ball |
| 5 | milk pump | SUS304 stainless steel,pump lift 24M,Hard Alloy Mechanical Seal,Inner Shell Bright-Polished |
| 6 | twin piping filter | SUS304 stainless steel,two pipe,Stainless Steal Filter Element 100 Mesh |

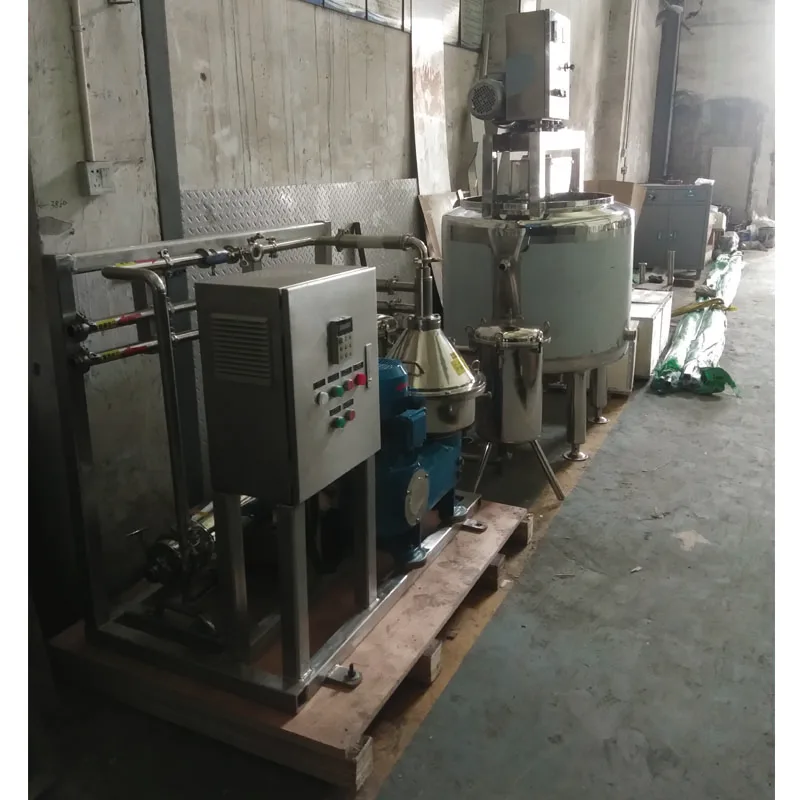

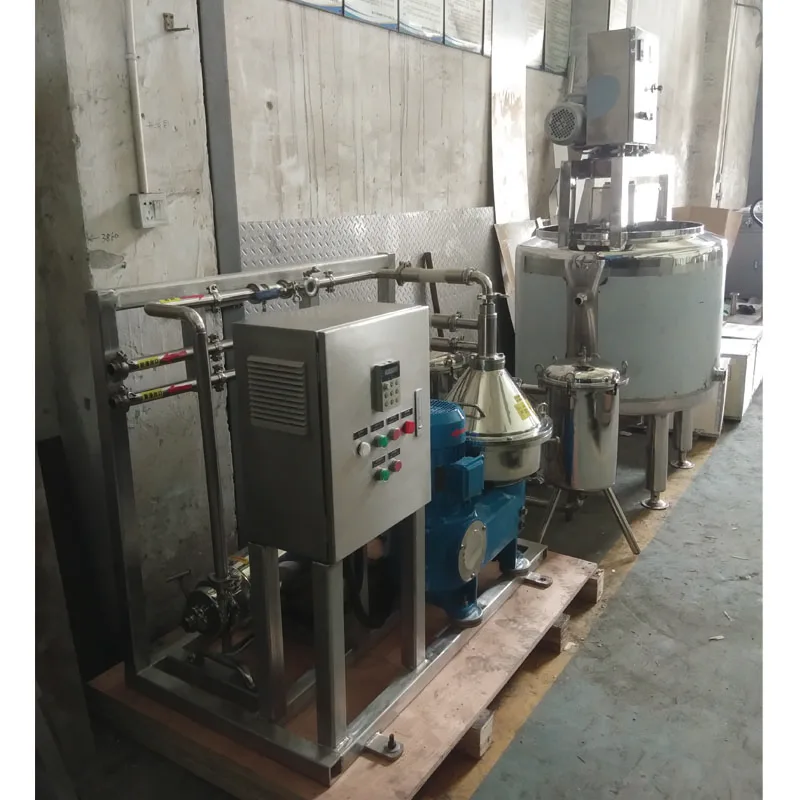

| 7 | dish separator | auto residue discharge |
| 8 | chiling tank | SUS304 stainless steel,alveolate jacket,attached with compressor |
| 9 | milk pump | SUS304 stainless steel,pump lift 24M,Hard Alloy Mechanical Seal,Inner Shell Bright-Polished |
| 10 | PREPARING UNIT | |

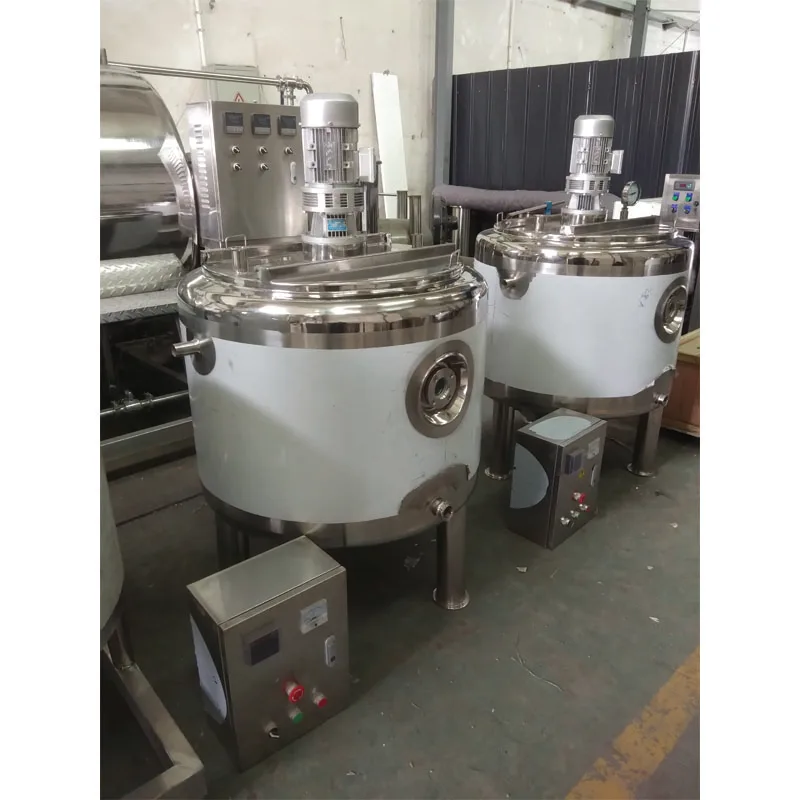

| 11 | blending tank | SUS304 stainless steel,heat insulated,top off- center votical agitator,conical head,airtight manhole, breather valve,digital readout thermometer,anti-eddy baffle,supporters with adjustable feet |
| 12 | milk pump | SUS304 stainless steel,pump lift 24M,Hard Alloy Mechanical Seal,Inner Shell Bright-Polished |
| 13 | mini set of plate-type heat exchanger | SUS304 stainless steel,two stages, |
| 14 | high speed emulsification tank | SUS304 stainless steel,heat insulated,bottom high speed emulsifier,digital readout thermometer,supporters with adjustable feet |
| 15 | milk pump | SUS304 stainless steel,pump lift 24M,Hard Alloy Mechanical Seal,Inner Shell Bright-Polished |
| 16 | twin piping filter | SUS304 stainless steel,two pipe,Stainless Steal Filter Element 100 Mesh |
| 17 | sterilizing, homogenizing unit | |

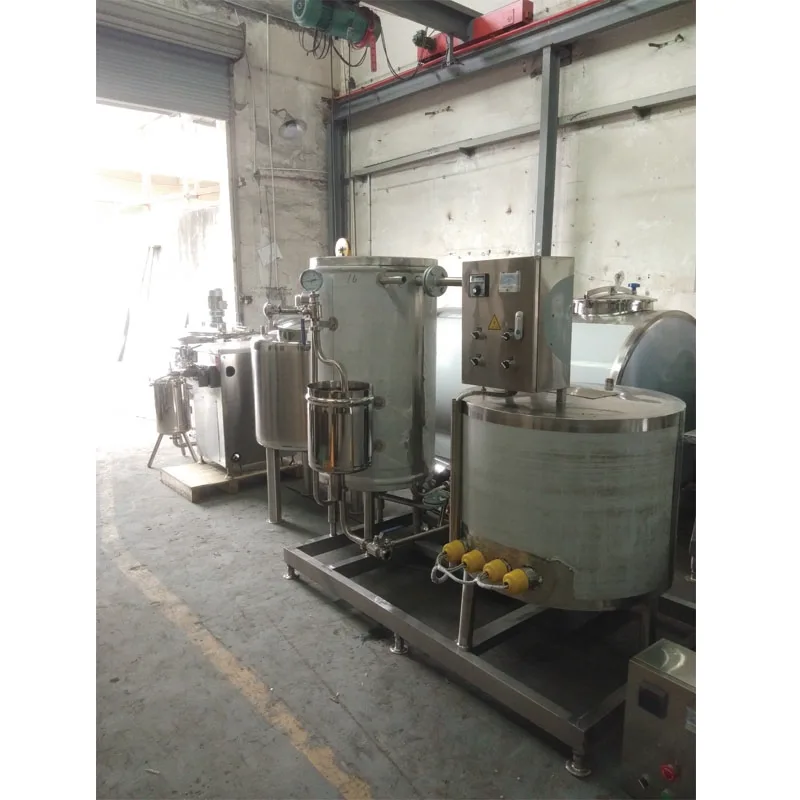

| 18 | UHT sterilizer | tub-type,sterilzing temperature 137 C,holding time 4S,full automatic control |

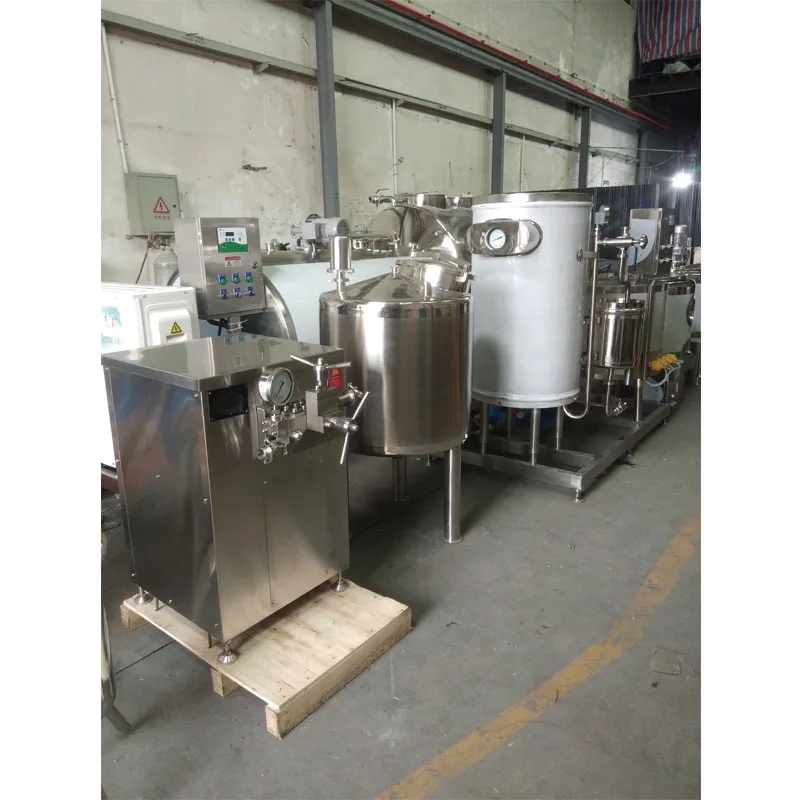

| 19 | high pressure homogenizer | 40MPa,(starting box included) |
| 20 | temperature holding | SUS304,holding 300S |
| 21 | distributing plate | SUS304,3 holes |
| 22 | cheese\\butter processing unit | |
| 23 | bufferying tank | SUS304 stainless steel,heat insulated,top off- center votical agitator,conical head,airtight manhole, breather valve,digital readout thermometer,anti-eddy baffle,supporters with adjustable feet |
| 24 | milk pump | SUS304 stainless steel,pump lift 24M,Hard Alloy Mechanical Seal,Inner Shell Bright-Polished |
| 25 | cream seperator |
|
| 26 | bufferying container | SUS304,with cover |
| 27 | milk pump | SUS304 stainless steel,pump lift 24M,Hard Alloy Mechanical Seal,Inner Shell Bright-Polished |
| 28 | butter-churner | SUS304,stepless timing |
| 29 | cheese vat | SUS304,with heating jacket and insising device |

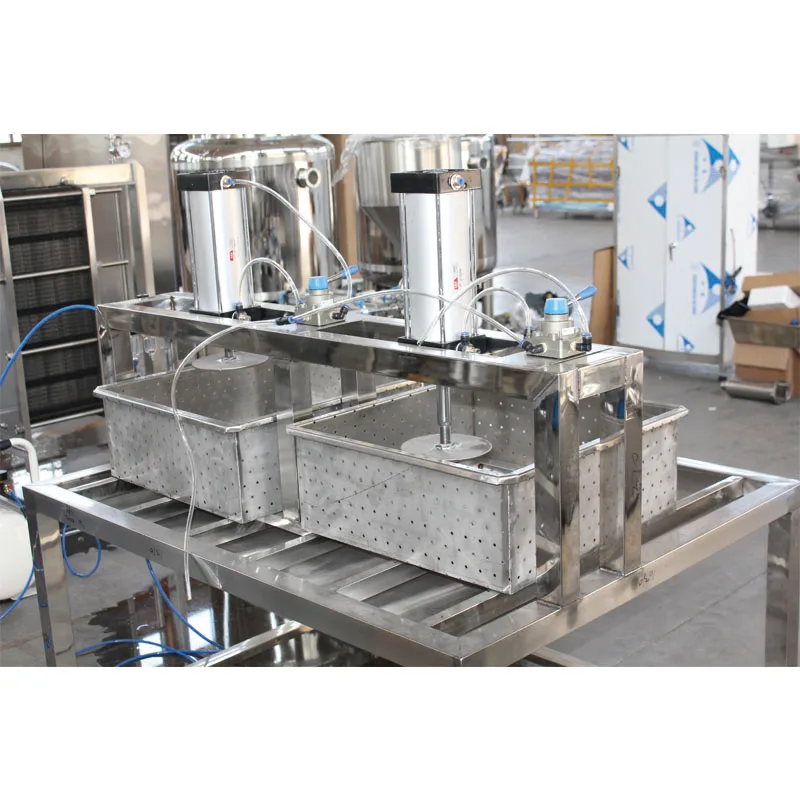

| 30 | presser | SUS304,6 heads |
| 31 | mould | SUS304,10L,with cover |
| 32 | yogurt fermentation unit | |
| 33 | fermentation tank | SUS304 stainless steel,heat insulated,top off- center votical agitator,conical head,airtight manhole, breather valve,digital readout thermometer,anti-eddy baffle,supporters with adjustable feet |
| 34 | rotary pump | SUS304 stainless steel,Hard Alloy Mechanical Seal,manual stepless shift |
| 35 | plate cooler | SUS304,single stage,milk discharge at 4C |
| 36 | rotary pump | SUS304 stainless steel,Hard Alloy Mechanical Seal,manual stepless shift |

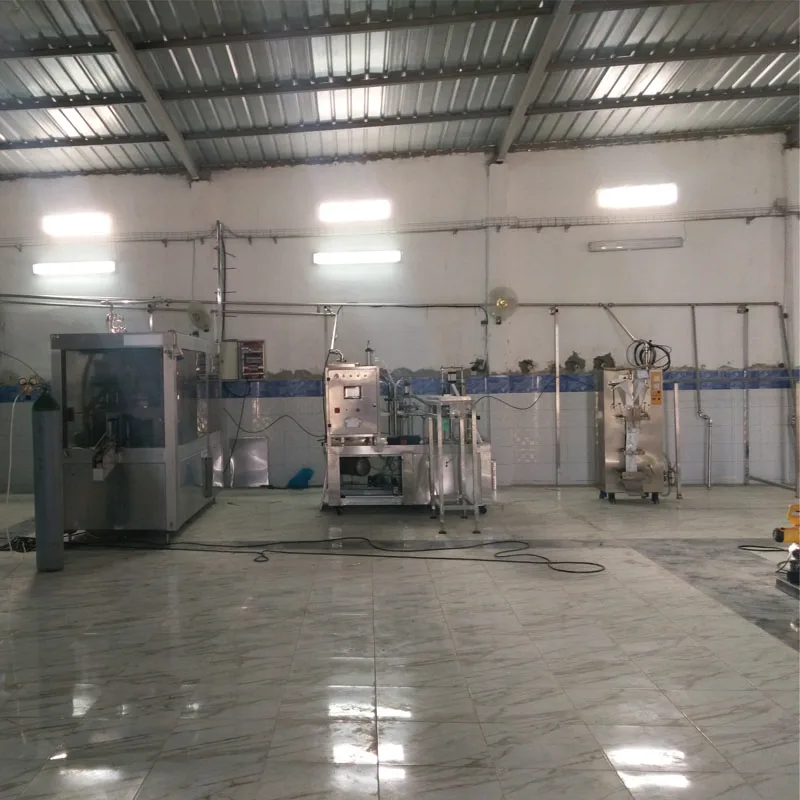

| 37 | filling unit | |
| 38 | higher position tank | SUS304 stainless steel,heat insulated,top off- center votical agitator,conical head,airtight manhole, breather valve,digital readout thermometer,anti-eddy baffle,supporters with adjustable feet |
| 39 | pasteurized milk filling machine |
|
| 40 | yogurt filling machine |
|
| 41 | CIP system | |
| 42 | semi-auto CIP system | outer coat of SUS304 stainless steel material,inner shell of SUS316,single cleaning way,Concentrated acid/alcali tank adding system based on US technology, 100L×2 acid/alcali Concentrate tanks |
| 43 | CIP return pump | SUS304 stainless steel,pump lift 24M,Hard Alloy Mechanical Seal,Inner Shell Bright-Polished |
| 44 | installation part | whole milk processing line installation and commissioning |
