Machining center uses JGL 120 5.5K ISO30 5.5kw water cooling electrical atc spindle motor
- Category: >>>
- Supplier: Shenzhen Win3d Machinery Co. Ltd.
Share on (1600499532529):
Product Overview
Description

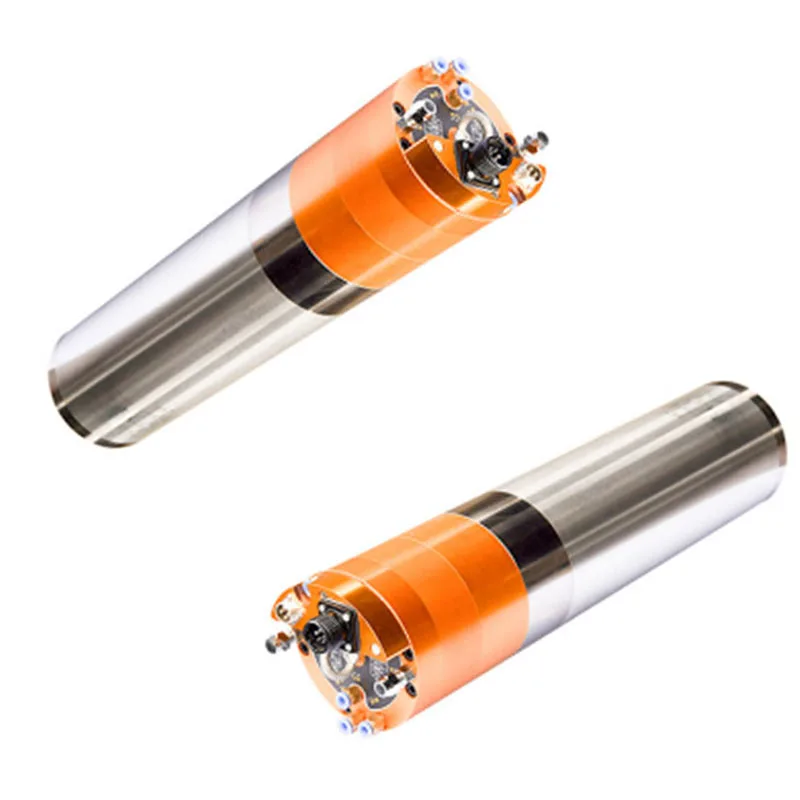

Machining center uses JGL-120-5.5K ISO30 5.5kw water cooling electrical atc spindle motor
Product Description
Notes:
After receiving the new spindle, the spindle should first run at a low speed of 6000RPM, and then increase 3000rpm every 10 minutes, until after 24000RPM, it can be used normally. Please note the bearings in the new spindle need to be preheated and run in. In addition, in order to prolong the service life of the spindle, the normal use of the spindle when the best boot running 10 to 15 minutes
Maintance:
Water cooled spindle MUST be used with water pump. Otherwise the spindle will soon broken. AC spindle motor MUST use with inverter. The power of inverter need equal or bigger than the spindle power. Before using,please set up the inverter parameters suitable for spindle. Otherwise the spindle and inverter will broken at once. When you use the spindle,the noise is not same as always,please STOP the spindle at once. You may need to replace the spindle bearings.
Application:
Engrave for wood,bamboo,normal PCB,PVC,PMMA,plastic,bamboo,duotone board(ABS)and etc nonmetal,also can engrave on gold,silver,copper,aluminium,Pb etc soft metal surface working.
Differences of water-cooled spindle and air-cooled spindle:
1. Cooling in different ways: water-cooled spindle motor is the use of the water cycle to cool the heat generated after the high-speed rotating spindle, spindle motor with fan-cooled approach to cooling.
2. Noise: Water-cooled spindle motor is basically no noise, but the air-cooled spindle motor is very loud.
3. Life aspects: Water-cooled spindle motor pay attention to maintenance, frequently changes the water or the use of industrial water coolers, air-cooled spindle fan mainly by the wind blowing the heat transferred to the heat sink, so as to achieve the cooling effect.
2. Noise: Water-cooled spindle motor is basically no noise, but the air-cooled spindle motor is very loud.
3. Life aspects: Water-cooled spindle motor pay attention to maintenance, frequently changes the water or the use of industrial water coolers, air-cooled spindle fan mainly by the wind blowing the heat transferred to the heat sink, so as to achieve the cooling effect.
Details Images

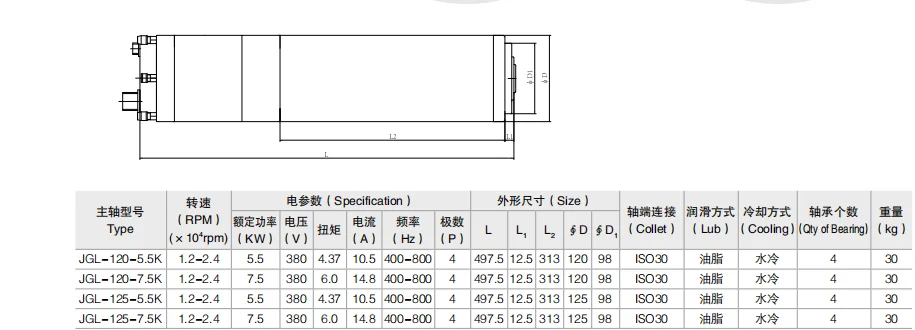

Specification
Power | 5.5kw |
Votage | 380V |
Speed | 12000-24000rpm |
Cooling Type | water cooling |
Frequency | 400/800HZ |
Nut | ISO30 |
Current | 10.5A |
Company Profile
Shenzhen Win3d Machinery Co.Ltd is a leading supplier of bearings, linear motion system for CNC, ball transfer unit and transmission component. The growing industrial and favorable policy of Shenzhen benefit the development of Terry Machinery. Our products are utilized in industrial, motorcycle, vehicle and Automation applications. Now we are exporting to 46 countries including USA, GBR, Germany, Spain, Poland, Turkey ect. The goal of Terry Machinery to provide out customers with widest range of products at competitive prices, backed with the best Service.
Certifications
Packing & Delivery
FAQ
1. Q: How about the quality of your product?
A: 100% inspection during production.
2. Q: What's the delivery time?
A: Generally it is 3-5 days if the goods are in stock ,or it is15-20 days if the goods are not in stock ,it is according to
quantity.
3. Q: What's your packing?
A: Our Normal packing is bulking in PE bag, and then into plywood Cartons.We also can pack products according to your requirement.
4. Q: What about the warranty?
A: We are very confident in our products,and we pack them very well to make sure the goods in well protection.
5.Q: Could you send me your catalogue and price list?
A: As we have more than hundreds of products,it is really too hard to send all of catalogue and price list for you.
6.Q:There are a lot of companies which export linear guide, why do you choose us?
A: As we are a genuine linear guide supplier .and we are really factory, you need not pay the profit for middlemen. so we can offer you the lowest and competitive price .
7.Q:Do you provide samples? is it free or extra?
A:If the sample is simple and of little value, then free samples are provided, but the buyer must bear the international delivery fee. If the sample needs to be ordered, the guest must bear the sample fee and the international express fee.Please inform us the style you interested, we can offer the pricelist for your reference.
A: 100% inspection during production.
2. Q: What's the delivery time?
A: Generally it is 3-5 days if the goods are in stock ,or it is15-20 days if the goods are not in stock ,it is according to
quantity.
3. Q: What's your packing?
A: Our Normal packing is bulking in PE bag, and then into plywood Cartons.We also can pack products according to your requirement.
4. Q: What about the warranty?
A: We are very confident in our products,and we pack them very well to make sure the goods in well protection.
5.Q: Could you send me your catalogue and price list?
A: As we have more than hundreds of products,it is really too hard to send all of catalogue and price list for you.
6.Q:There are a lot of companies which export linear guide, why do you choose us?
A: As we are a genuine linear guide supplier .and we are really factory, you need not pay the profit for middlemen. so we can offer you the lowest and competitive price .
7.Q:Do you provide samples? is it free or extra?
A:If the sample is simple and of little value, then free samples are provided, but the buyer must bear the international delivery fee. If the sample needs to be ordered, the guest must bear the sample fee and the international express fee.Please inform us the style you interested, we can offer the pricelist for your reference.
