PH440G2CS 4MU Rotary R410a GMCC AC Compressor

Product Overview

Description

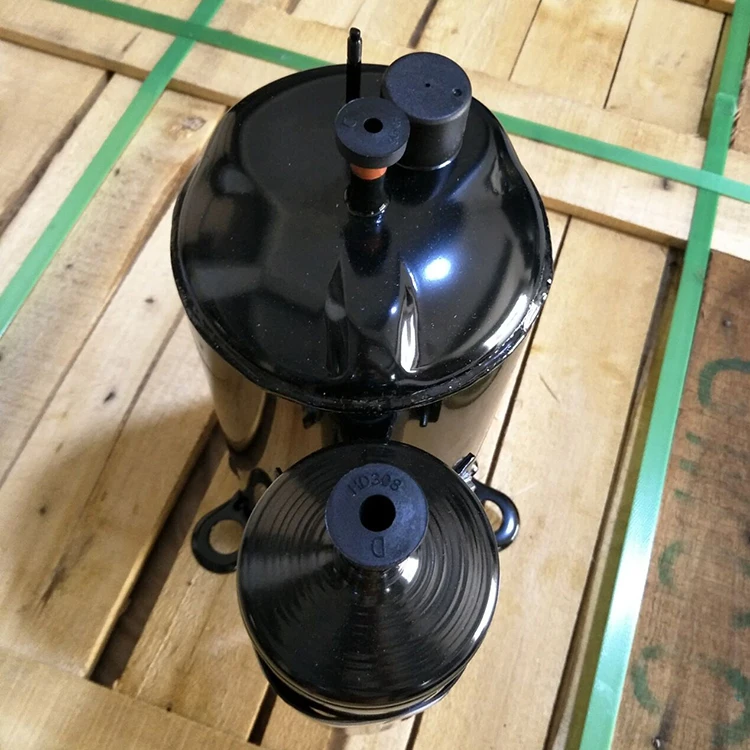

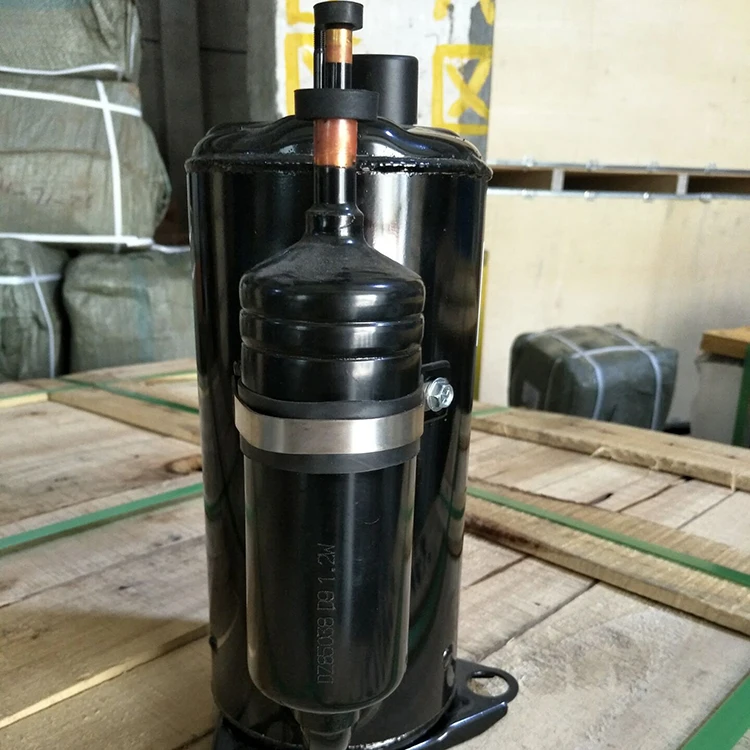

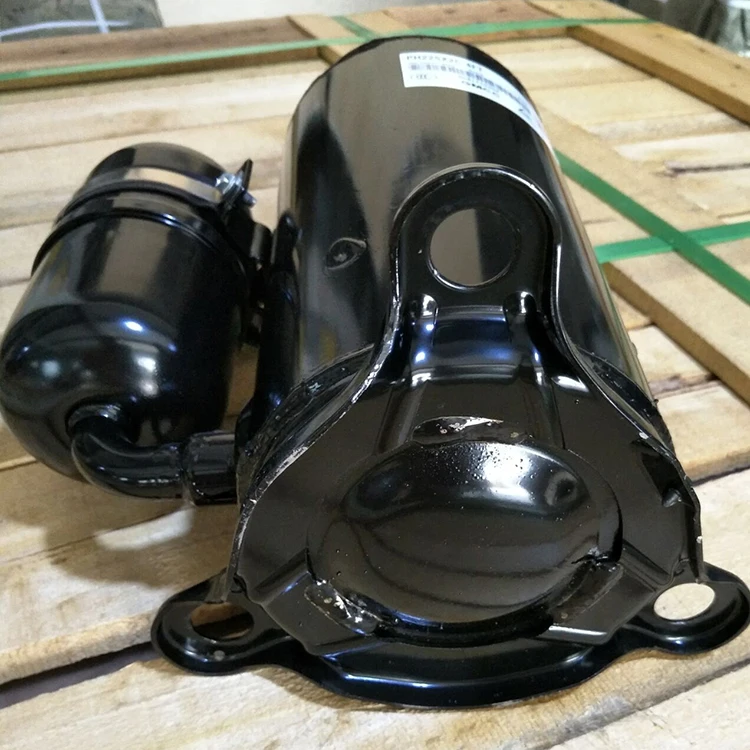

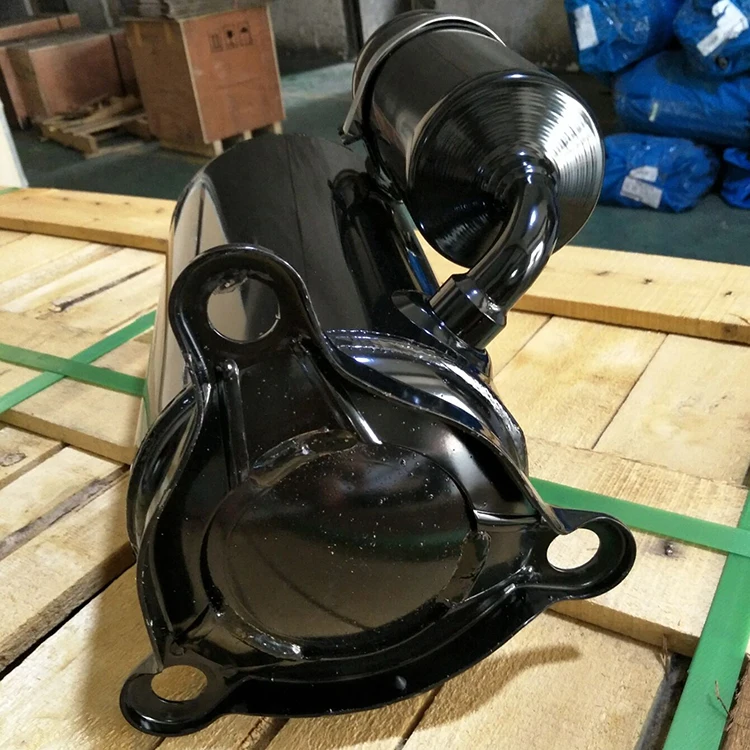

PH440G2CS-4MU Rotary R410a GMCC AC Compressor





GMCC rotary compressor

1. Higher energy efficiency

The compressor COP is 395% under the conditions of WEER6O

2. Higher heating capacity

Relative improvement of heating capacity at an ambient temperature of -15℃ by 20%-50%

3. Improved low temperature adaptabilityHigh outlet air temperatures at anambient temperature of -20℃

4. Strong power

Sub-Class-2 compression technology thatprovides strong power

5. High level of serialization

Gas injection technology applied to thewhole lineup of 1HP-5HP



\t
\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t
\t

GMCC Compressor 220/240V 50Hz
Model	Displacement	Cooling Capacity		Power	Cop	Compressor \t\t\tHeight
		W	Btu/h	W	W/W	mm
PH300G2C-4KU1	29.8	5340	18220	1645	3.25	297
PH310G2C-4KU1	30.8	5515	18817	1695	3.25	310
PH340G2C-4KU1	33.7	6030	20575	1865	3.23	310
PH340G2C-4KU	33.7	6050	20643	1805	3.35	310
PH360G2C-4KU1	36	6475	22093	2005	3.23	324
PH370G2CS-4KU1	37	6650	22690	2065	3.22	324
PH370G2C-4KU	37	6660	22724	2020	3.3	324
PH400G2CS-4KU1	39.8	7100	24226	2255	3.15	354
PH400G2C-4KU	39.8	7095	24209	2215	3.2	354
PH420G2CS-4KU1	42.3	7420	25318	2390	3.1	354
PH420G2C-4KU	42.3	7555	25778	2365	3.2	354
PH440G2C-4KU	43.5	7810	26648	2390	3.27	354
PH460X3CS-4MU1	45.9	8080	27569	2600	3.1	396.5
PH480X3CS-4MU1	47.9	8460	28866	2730	3.1	396.5
