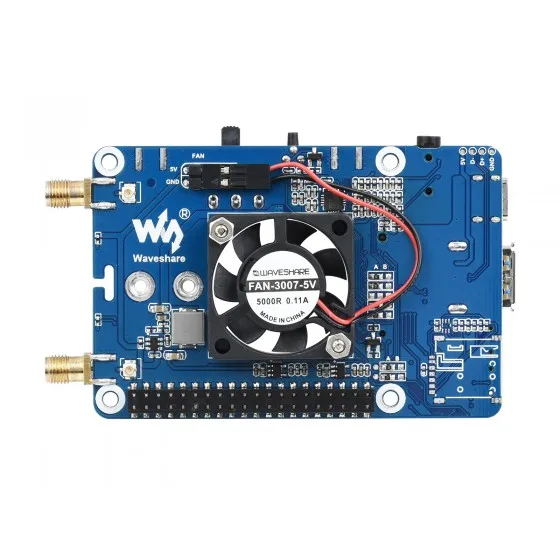

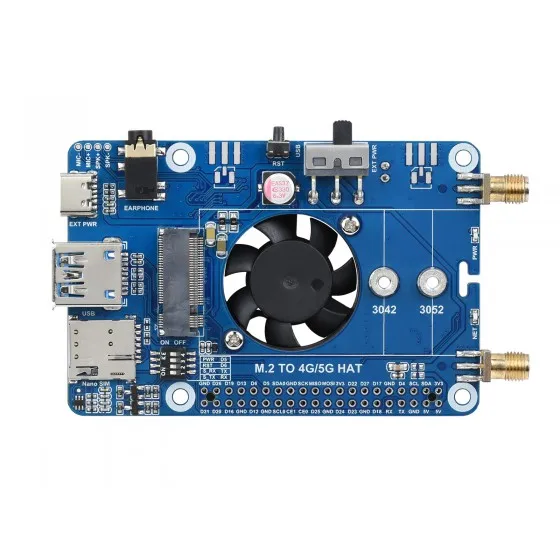

SIM7600G H M.2 4G HAT for Raspberry Pi LTE CAT4 High Speed 4G/3G/2G GNSS Global Band
SIM7600G-H M.2 4G HAT for Raspberry Pi LTE CAT4 High Speed 4G/3G/2G GNSS Global Band
SIM7600G-H M.2 4G HAT for Raspberry Pi LTE CAT4 High Speed 4G/3G/2G GNSS Global Band
SIM7600G-H M.2 4G HAT for Raspberry Pi LTE CAT4 High Speed 4G/3G/2G GNSS Global Band
SIM7600G-H M.2 4G HAT for Raspberry Pi LTE CAT4 High Speed 4G/3G/2G GNSS Global Band

SIM7600G H M.2 4G HAT for Raspberry Pi LTE CAT4 High Speed 4G/3G/2G GNSS Global Band

Share on (1600499830732):


Price:$77.99 - $78.99

Quantity:


Product Overview

Description

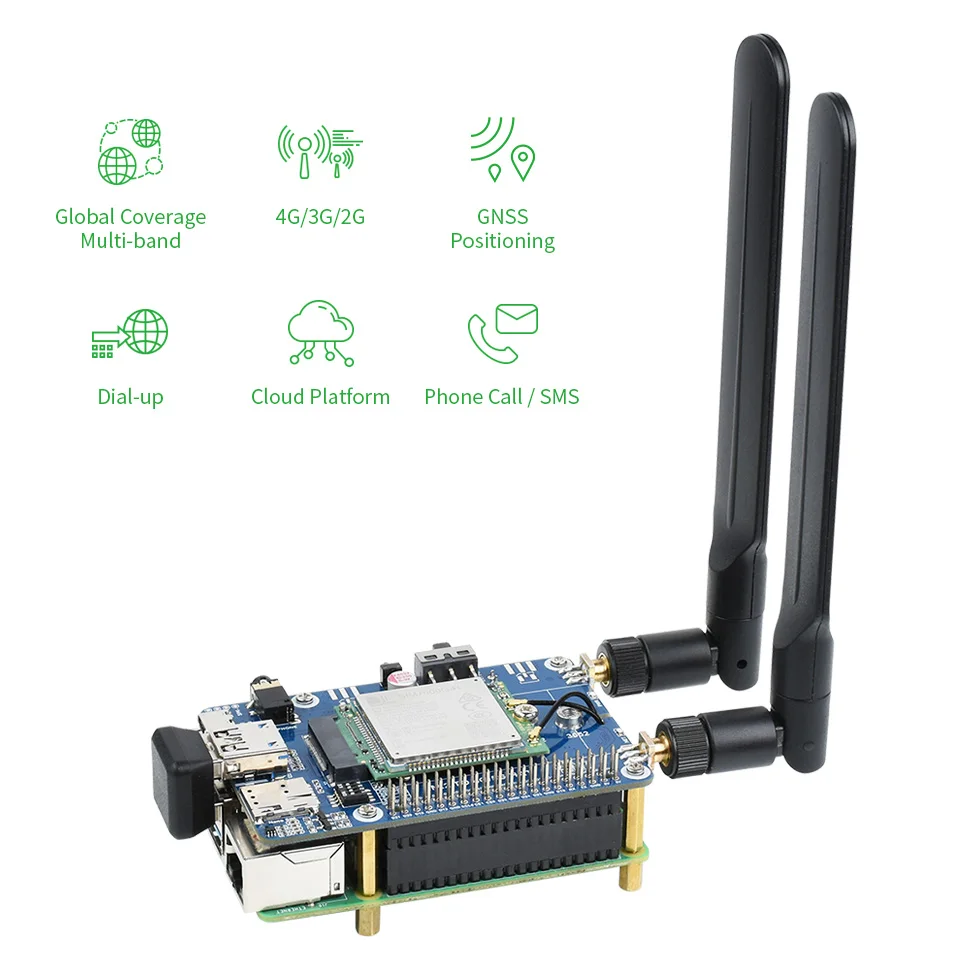

SIM7600G-H M.2 4G HAT

4G/3G/2G communication and GNSS positioning, global band




SIM7600G-H-M2-1 (1).jpg


Features At A Glance


This is a 4G/3G/2G Raspberry Pi communication HAT with GNSS positioning and high speed LTE CAT4 global band connection. By connecting it to PC, Raspberry Pi or Jetson Nano host boards, it is easy to enable 4G high speed networking, cloud platform communication, phone call/SMS, and global GNSS positioning functions.



  • Supports dial-up, phone call, SMS, TCP, UDP, MQTT, HTTP(S), FTP(S), and so on

  • GNSS positioning: GPS, Beidou, Glonass, Galileo, QZSS, LBS base station

  • USB 3.1 port (USB 2.0 compatible) for connecting to PC, Raspberry Pi, or Jetson Nano host board to enable high speed 4G communication

  • Onboard UART, PWR, and RST control pin, built-in voltage level translator, enabled via DIP switch, for use with hosts like Raspberry Pi or Arduino

  • Onboard USB-C connector, enabled via switch, for connecting standalone power supply for the module, allows more loads, stable amd flexible power supply

  • Onboard power supply on/off switch, reset button and LED indicator, easy to turn on/off the module or monitor the operating status

  • Reserved 4x SMA to IPEX antenna interfaces, with pre-soldered 2x connectors for easily using antennas, allows changing the SMA antenna position

  • Onboard audio jack and audio decoder, allows audio operation like making phone call

  • High efficiency power supply circuit, up to 3A output current





Module Specifications
































































FREQUENCY BAND
LTE Cat-4LTE-FDD: B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28, B66
LTE-TDD: B34, B38, B39, B40, B41
3GUMTS/HSDPA/HSPA+: B1, B2, B4, B5, B6, B8, B19
2GGSM/GPRS/EDGE: 850, 900, 1800, 1900 MHz
GNSS
Satellite systemsGPS, Beidou, GLONASS, GALILEO, QZSS
Receiver type16-channel
C/A Code
Sensitivity-159 dBm (GPS) / -158 dBm (GLONASS) / TBD (BeiDou)
Cold starts: -148 dBm
Time-To-First-Fix (open air)Cold starts: <35s
Hot starts: <1s
SMS AND AUDIO
SMSSupported types: MT, MO, CB, Text, PDU
Storage: USIM card and ME (default)
Audio featureSupports echo cancellation
Supports noise reduction



Global Band 4G/3G/2G Support

LTE Cat-4: Up To 150Mbps (Downlink) / 50Mbps (Uplink)
3G (HSPA+): Up To 42Mbps (Downlink) / 5.76Mbps (Uplink)
2G (GPRS/EDGE): Up To 236.8Kbps (Downlink) / 236.8Kbps (Uplink)


SIM7600G-H-M2-1 (2).jpg




Multi System Support, Easy To Use

Supports Windows 7/8/10/11, Ubuntu, Raspberry Pi OS, OpenWRT...


Just plug it into USB port, go through some simple configuration, the high speed 4G network connection will be ready to use


SIM7600G-H-M2-1 (3).jpg


Connection Examples

For Windows PC Or Jetson Nano Series, Use A USB Cable
For Raspberry Pi 4B/3B+, Or CM4-IO-BASE-A/B, Use The Purpose-Made USB Adapter


SIM7600G-H-M2-1 (4).jpg

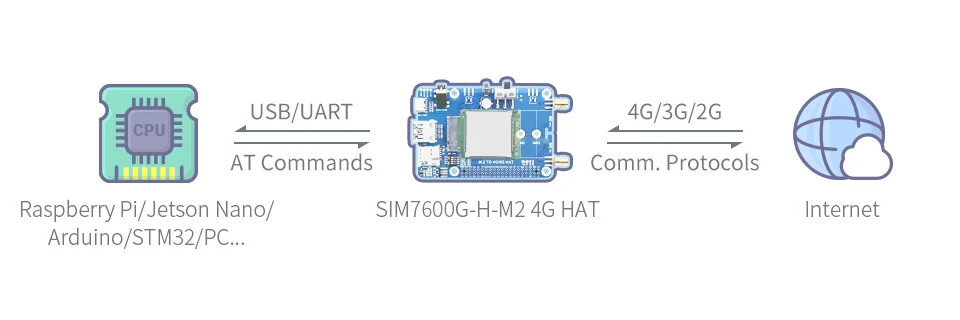

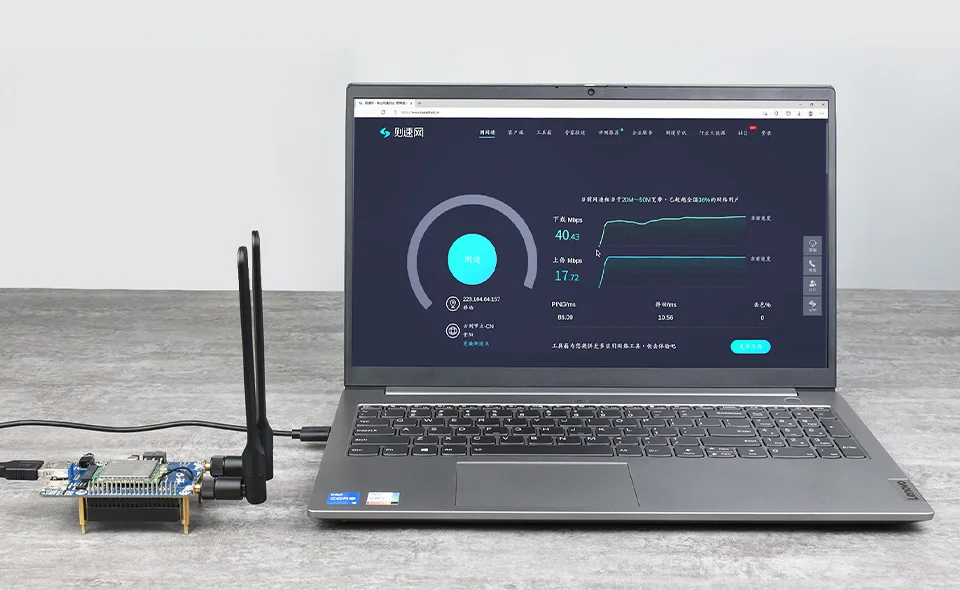

Cloud Communication

Supported Communication Protocols: TCP, UDP, FTP, FTPS, HTTP, HTTPS...


SIM7600G-H-M2-1 (5).jpg


GNSS Positioning

Supports GPS, Beidou, Glonass, Galileo, QZSS, And LBS Base Station Positioning


SIM7600G-H-M2-1 (6).jpg

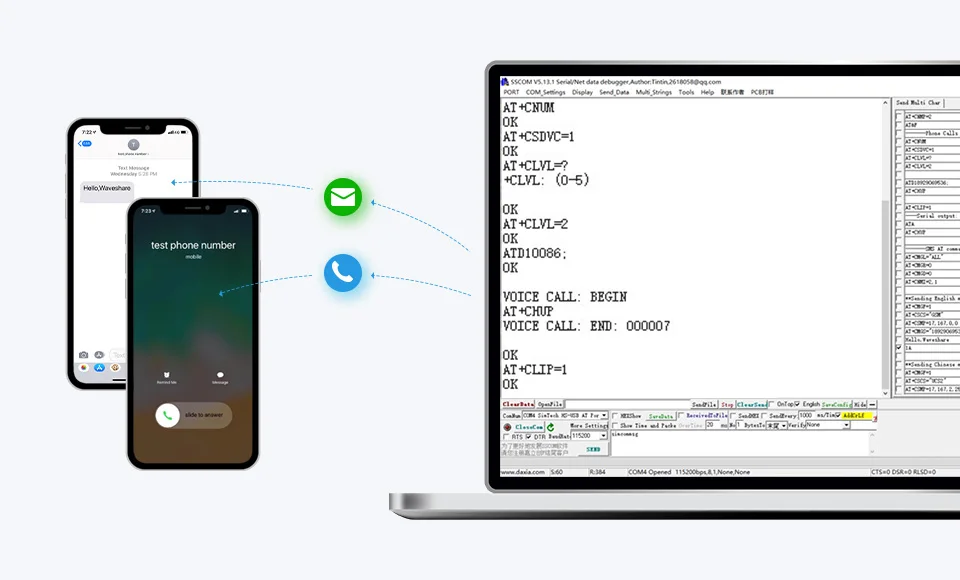

Phone Call & SMS Support

Allows Using AT Commands To Make Phone Call Or Send SMS


SIM7600G-H-M2-1 (7).jpg

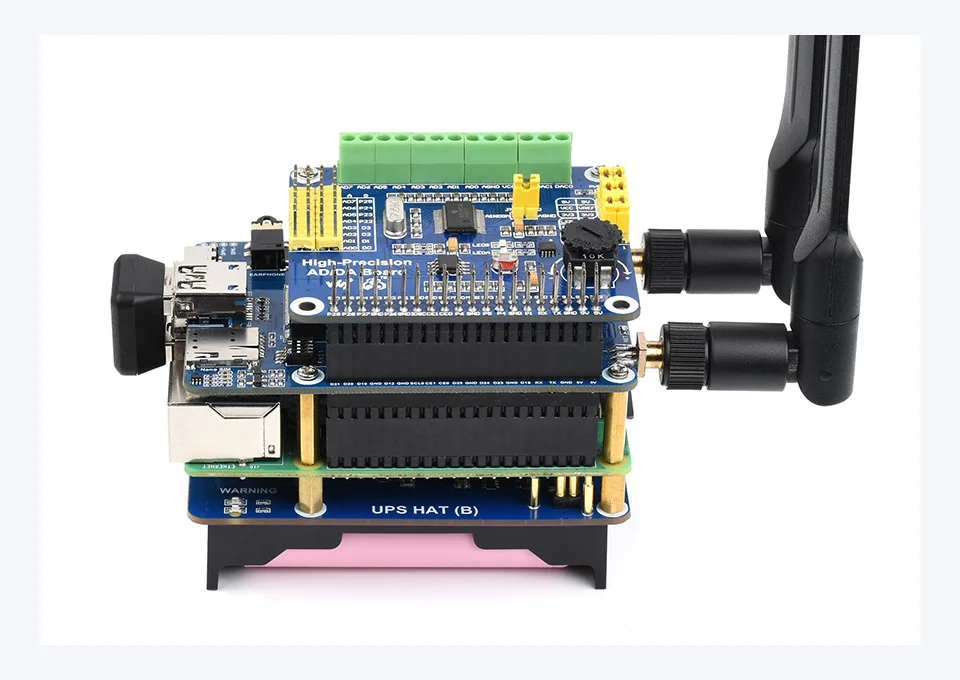

Standard Raspberry Pi 40PIN GPIO Header

Compatible With Raspberry Pi Series And Jetson Nano, Stackable Design For More HATs


SIM7600G-H-M2-1 (8).jpg
* for reference only, please check the Package Content section for exact part list.

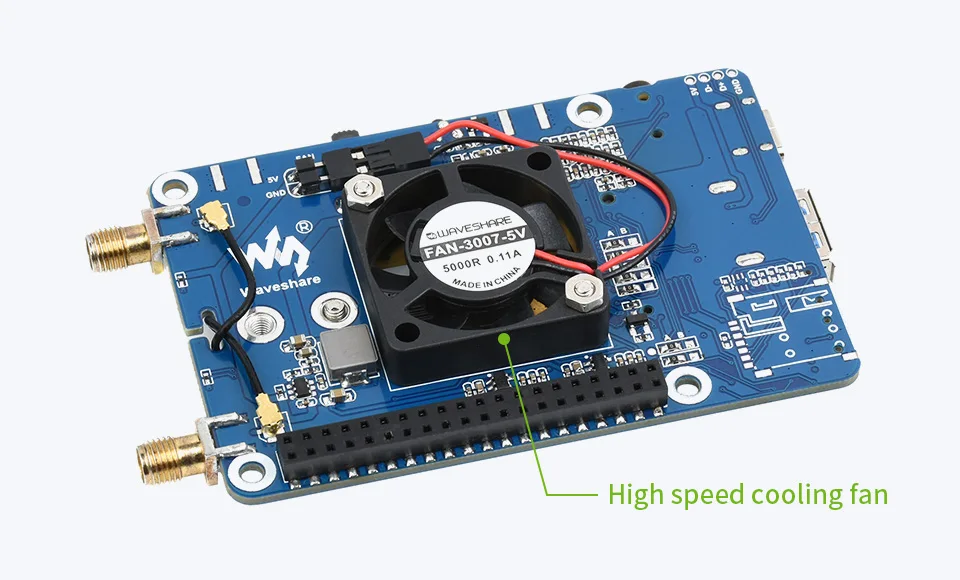

High Speed Cooling Fan

Better Heat Dissipation For Both Raspberry Pi And The 4G Module


SIM7600G-H-M2-1 (9).jpg

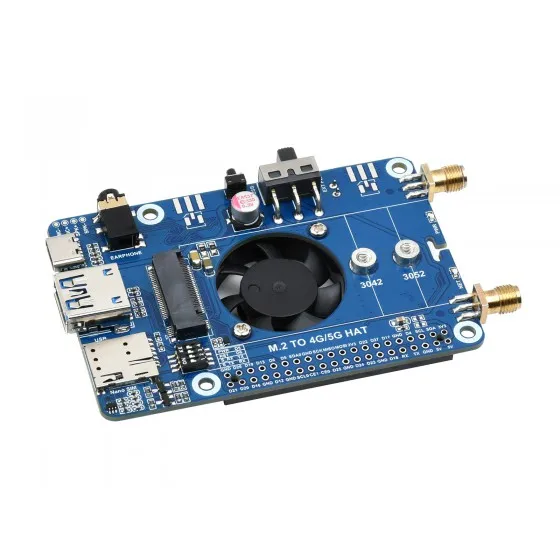

Standard M.2 B KEY Slot

Compatible With SIM7600X-M.2, SIM7906X-M.2, A7906X-M.2 Series Modules

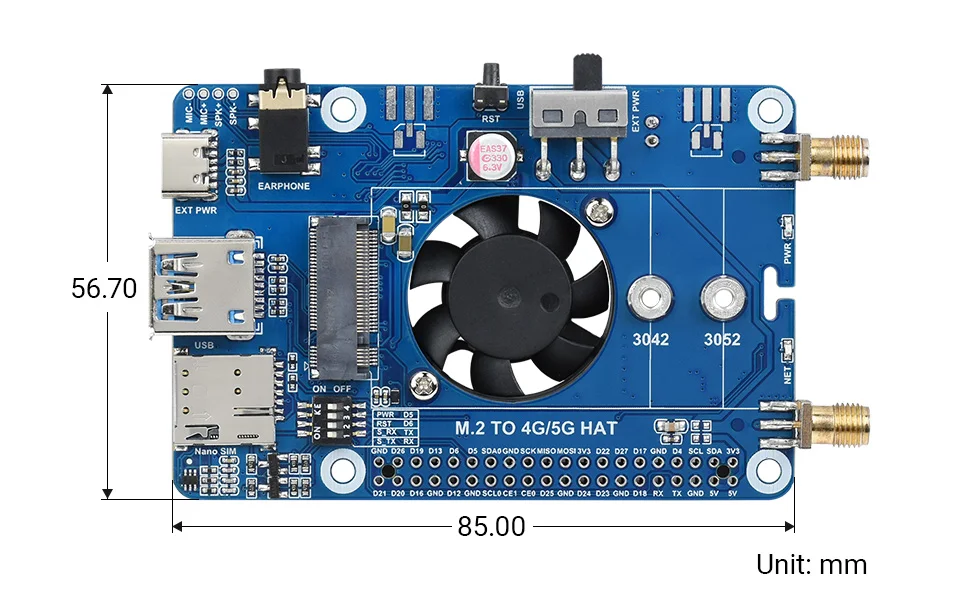

Outline Dimensions

SIM7600G-H-M2-1 (11).jpg


Resources & Services





Comparing The SIM7600 Series

































































 SIM7600A-HSIM7600SA-HSIM7600E-HSIM7600NA-HSIM7600G-H
FORM FACTORM.2
DIMENSIONS42.0 × 31.4 × 3.8 (mm)
FREQ.
BAND		LTE-FDDB2, B4, B12B1, B2, B3, B4, B5, B7, B8, B28, B66B1, B3, B5, B7, B8, B20B2, B4, B5, B12, B13, B14, B25, B26, B66, B71B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28, B66
LTE-TDD B40B38, B40, B41B41B34, B38, B39, B40, B41
WCDMAB2, B5B1, B2, B5, B8B1, B5, B8 B1, B2, B4, B5, B6, B8, B19
GSM 850, 900, 1800, 1900MHz900, 1800MHz 850, 900, 1800, 1900MHz
GNSSGPS, Beidou, GLONASS, GALILEO, QZSS
APPLICABLE REGIONSNorth America (AT&T)Australia, New Zealand, Taiwan, Latin AmericaEurope, the Middle East, Africa, South Korea, ThailandNorth America (all providers)Global

Comes with SIM7600G-H module by default, for other modules or hardware customization, feel free to contract us.



Packaging & Shipping





Weight: 0.215 kg




  1. M.2 TO 4G/5G HAT x1

  2. SIM7600G-H-M.2 x1

  3. Antenna 2pcs x1

  4. IPEX adapter cable 2pcs x1

  5. 2*20PIN pin header x1

  6. Passive GPS antenna x1

  7. Dual plug USB3.0 cable x1

  8. USB3.0 adapter x1

  9. USB2.0 adapter x1

  10. SMA protective cap 2pcs x1

  11. Screws pack x1
