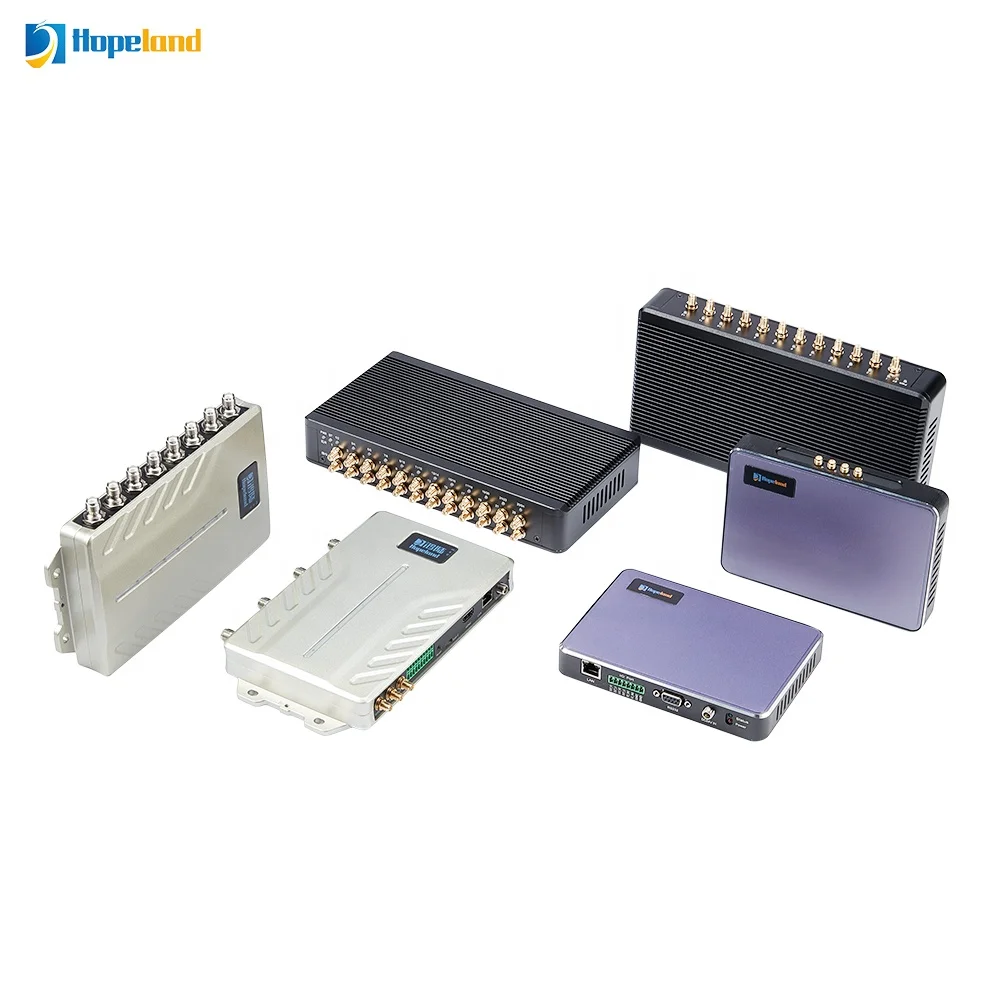

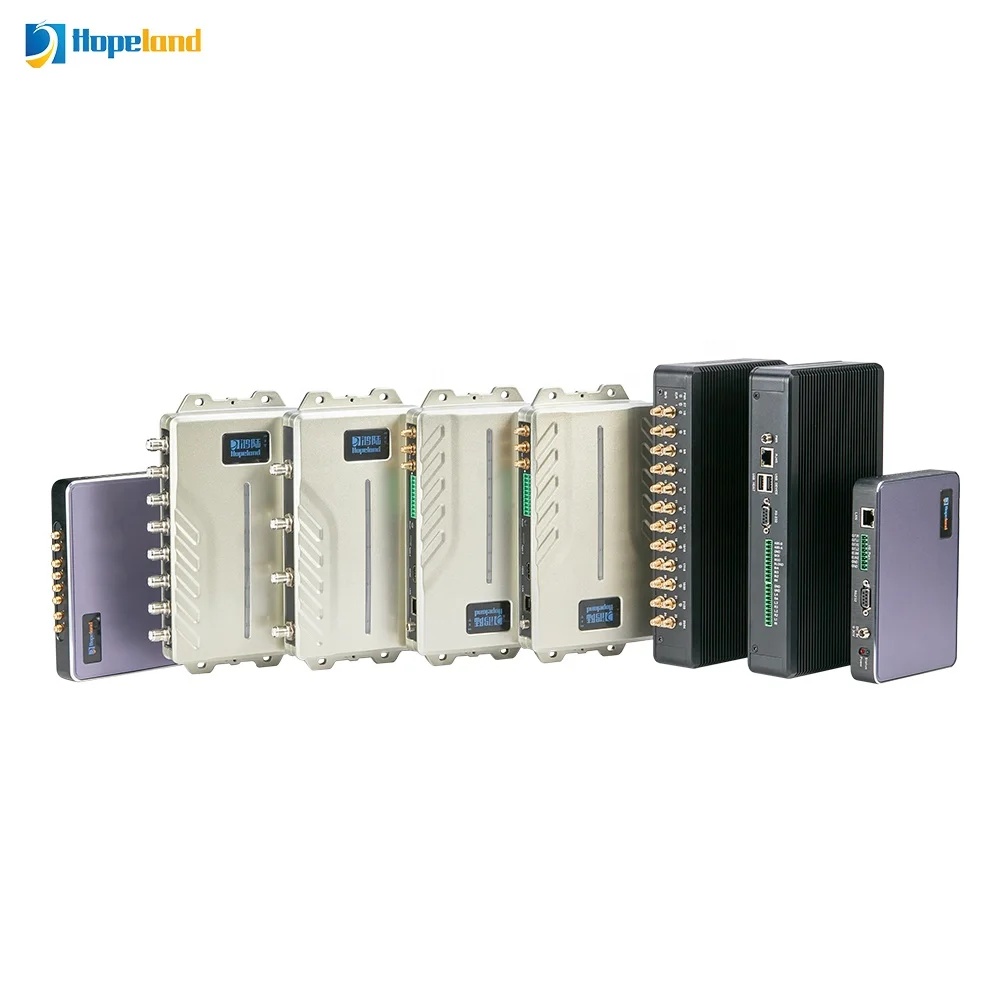

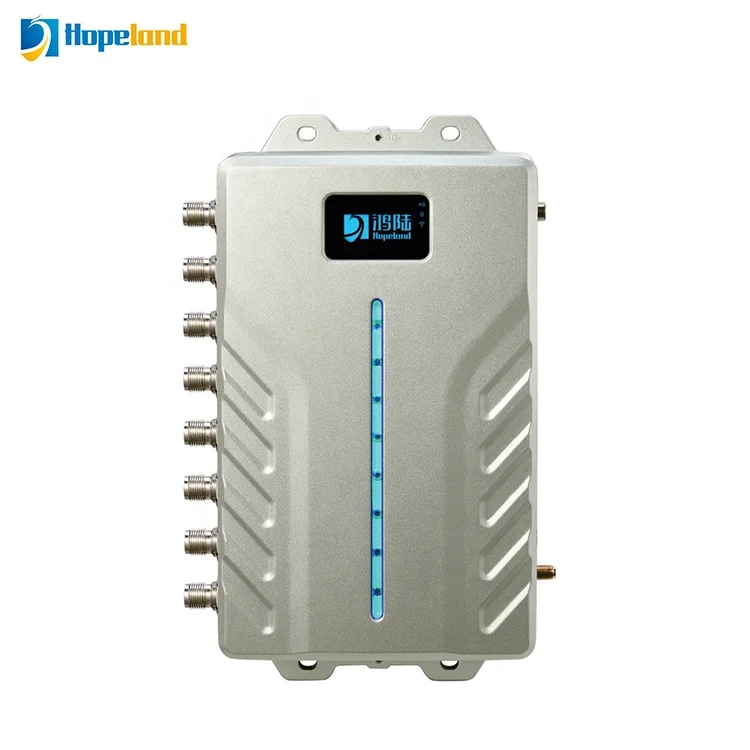

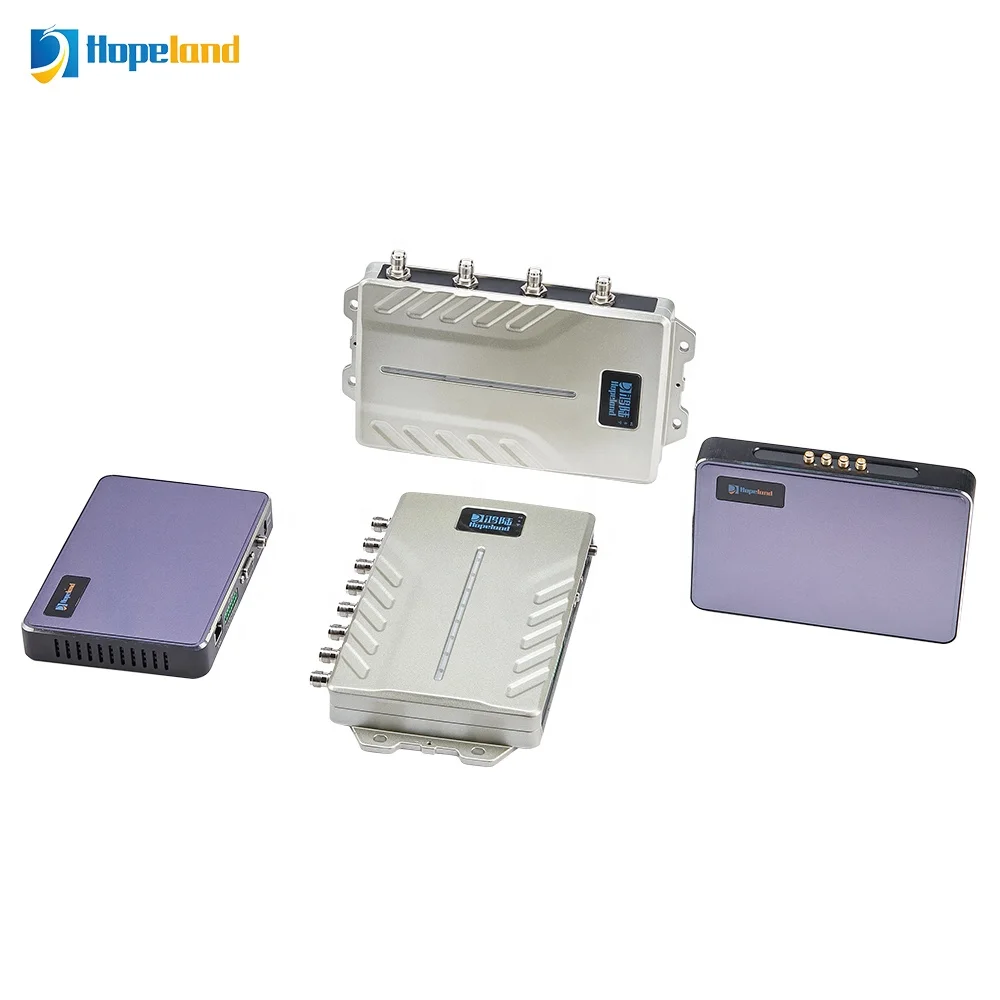

2022 hot UHF RFID reader 4 Port IMPINJ R2000 chip long distance rfid reader personal management UHF rfid reader
- Category: Access Control Card Readers >>>
- Supplier: Shenzhen Hopeland Technologies Co. Ltd.
Share on (1600499896990):
Product Overview
Description

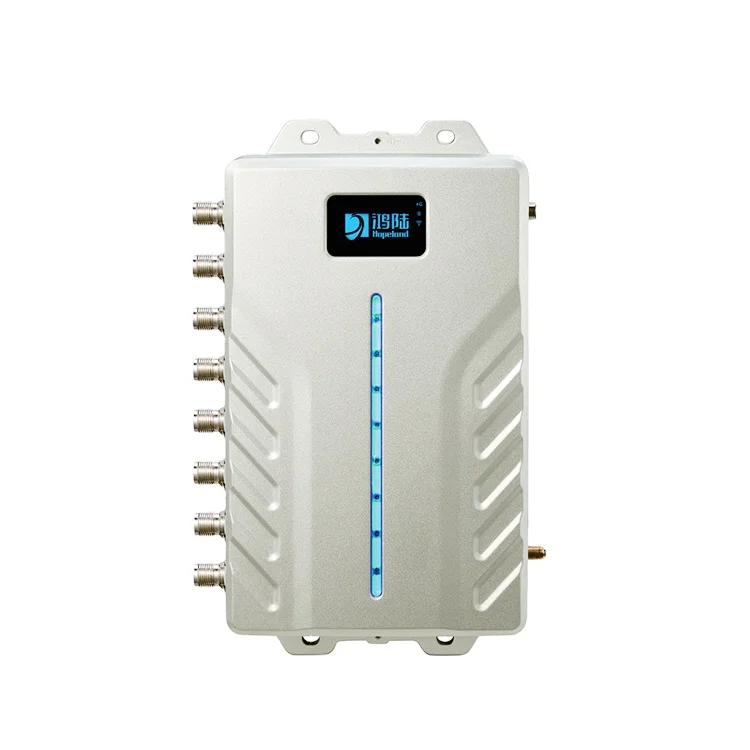

Hopeland high performance UHF RFID reader
Sharp series HF340/HF 380
* Die-cast aluminum anti-vibration design
* Linux 2.6 OS for baseband stable working
* Impinj chipset brings max RFID performance
*Excellent protocol architecture
* Seamlessly compatible with RFID middleware and web platform
* Industrial, installation-friendly I/O connector
* Directly send data to database without SDK
* WiFi, BT,4G optional, PoE support max 35db
* Temperature and humidity tag compatible
*NXP GEN2V2 tag high security support
* Industrial, TNC RF port and I/O connector
* OEM, ODM support, customized baseband/ software optional
* OEM, ODM support, customized baseband/ software optional
Details Images

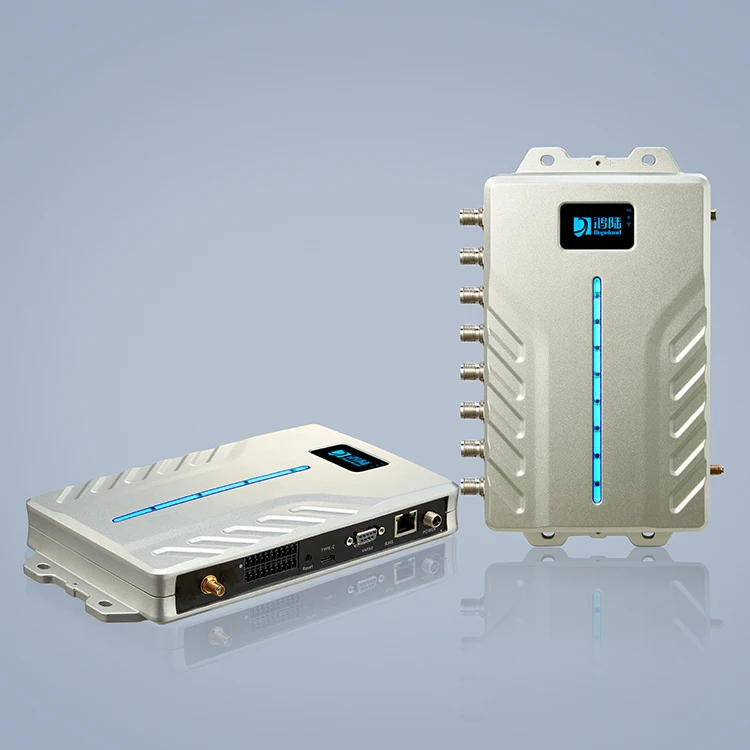

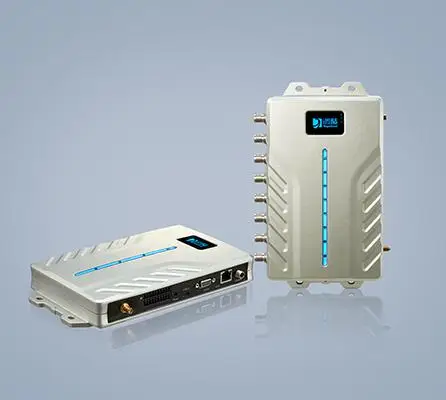

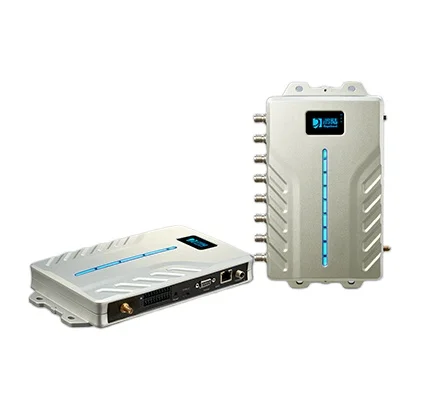

Industrial design with independent IP rights, Die-cast aluminum anti-vibration. Tough lines, simple and technological
WiFi Bluetooth optional
TNC RF port - Internationally compatible

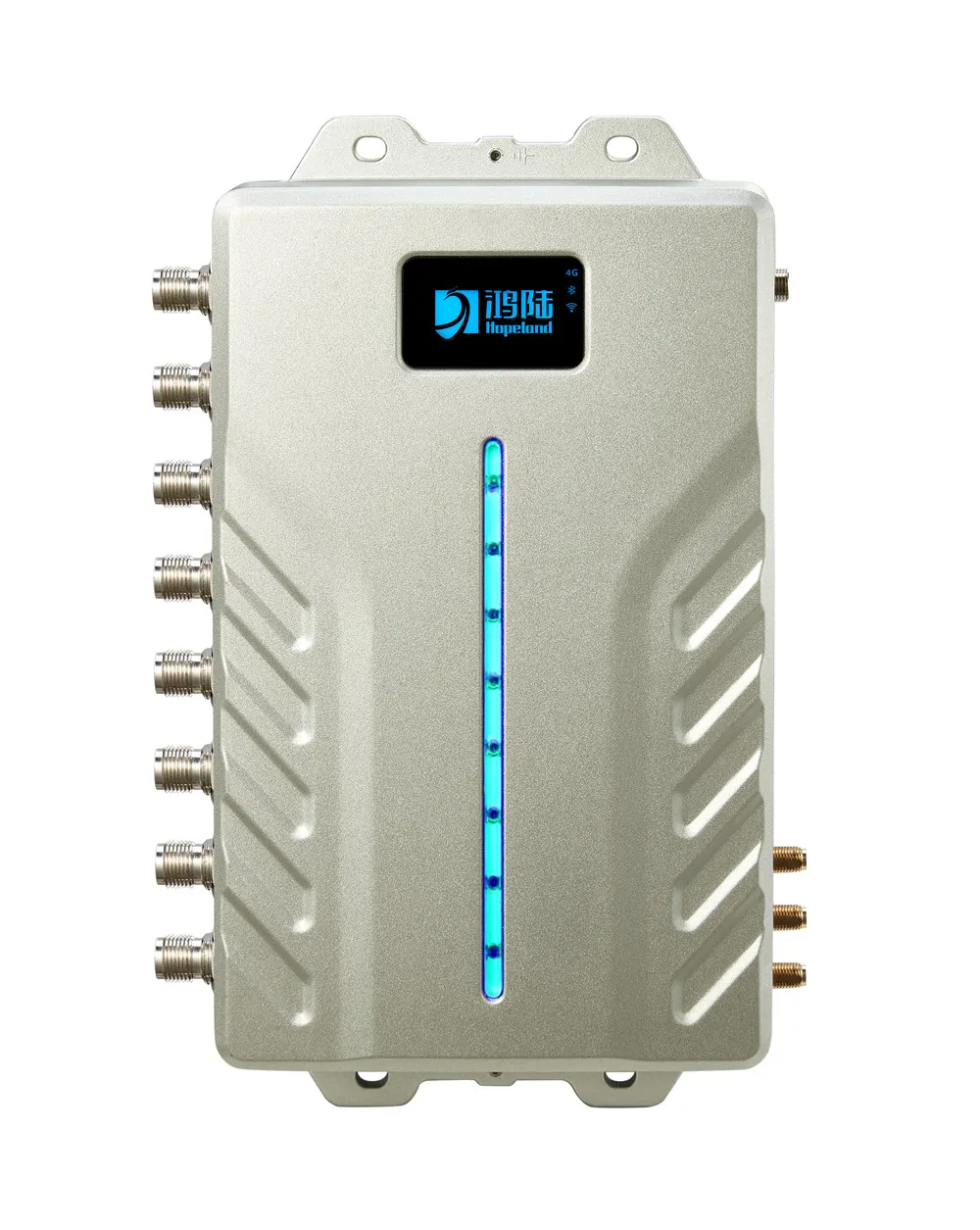

Nice LED light design, all working status is clearly visible
Specifications | ||

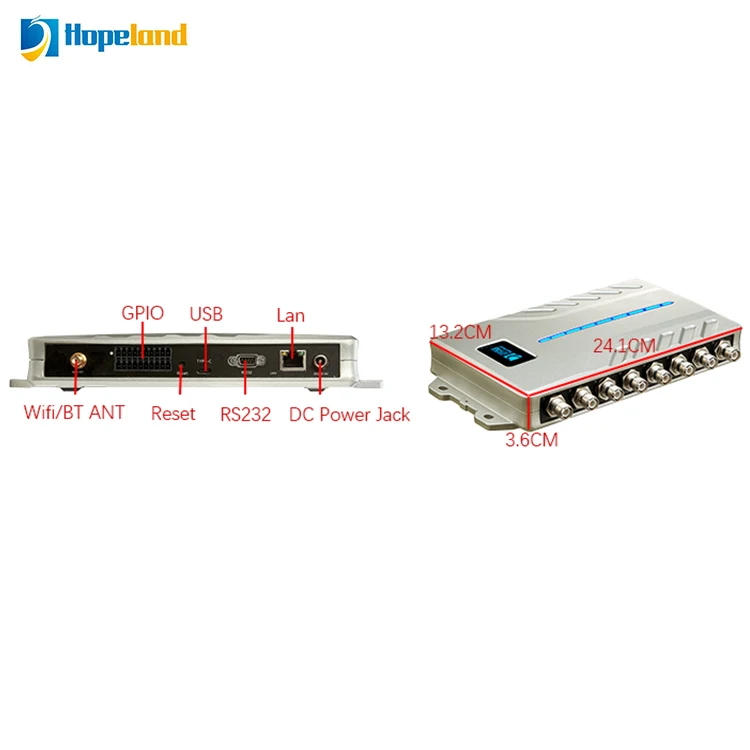

Size & N.W. | 241mm(L)×132mm(W)×36mm(H), 1.2Kgs | |
CPU & Memory | ARM9, 400MHz；Flash 128MB; DRAM 32 MB | |
Operating System | Linux 2.6 | |
Network Characteristics | TCP/IP(RJ45), RS-485, OTG, HDMI, Wiegand, WiFi, Bluetooth, 4G optional | |
GPIO | GPIO 4 inputs, 4 outputs, optically isolated (Terminal Block) | |
Power supply | PoE (max 35dbm supportable), | |
Reading Distance | 0~ ≥30m(According to Tag & Environment, max 40m) | |
RFID | Protocol: ISO/IEC 18000-6B, ISO/IEC18000-6C / EPC C1G2, GEN2V2 Impinj R2000 chip, new E710 update optional Frequency: FCC / CE(ETSI) / CN(CMII) in standard Russia, Japan, Brazil, Australia, etc, special frequency band optional RF output: 0-35dBm adjustable | |
RF port | 4 or 8 Reverse Polarity TNC ports; circular or linear polarization; near and far field compatible | |
Automatic reading/ White list Breakpoint Resume / Match reading / Data filter Data format customizable (PLC / Modbus compatible) RF Micron / EM Temperature sensor custom Services | ||
Web platform functions | HttpPost, MQTT, MySQL, Microsoft SQL, | |
Customization | Supportable, tell your seller any of your requirement on this device | |
Web platform functions
Packages
Package size: about 25.2*27.15*5.35cm（single box); Gross weight: about 1.6kg（single package）
Nice and Safe box within foam
Good carton material
Pallet packaging plus film
Application& Cases
Intelligent Manufacturing - BMW auto parts
Person management - Hospital Patients
Smart Retail -24hr shop
Access control - RFID gate
Warehousing - Inventory & Track
Company Introduction
About Hopeland
A national-level high-tech enterprise passed ISO9001,ISO14001, OHSAS18001 system certifications.
Since 2009, we are specialized in R&D on RFID core technologies and more than 200 patents inventions and copyrights, while manufacturing series of UHF RFID readers, handheld terminals, Antennas, RFID Tags, Middleware, System software, etc.
Since 2009, we are specialized in R&D on RFID core technologies and more than 200 patents inventions and copyrights, while manufacturing series of UHF RFID readers, handheld terminals, Antennas, RFID Tags, Middleware, System software, etc.
To support the success of distributors, OEM/ODM, and system integrator partners, we sell products into more than 80 countries & regions worldwide with multiple certifications such as CE, FCC, SRRC, NBIT, Anatel etc. Our solutions are also widely used in areas of ETC solution, Intelligent Parking, Aviation, Smart Retail, Medical, Smart Grid, Assets Management, Warehousing & Logistic, Supply Chain, Industry 4.0 and so on.
