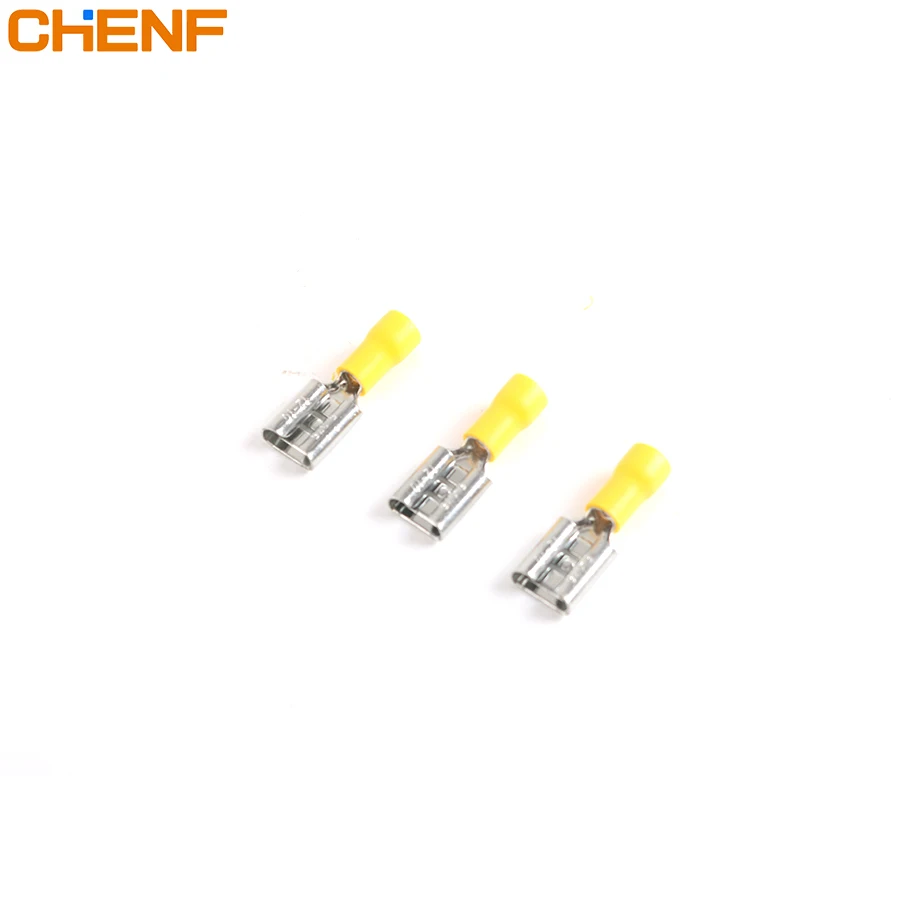

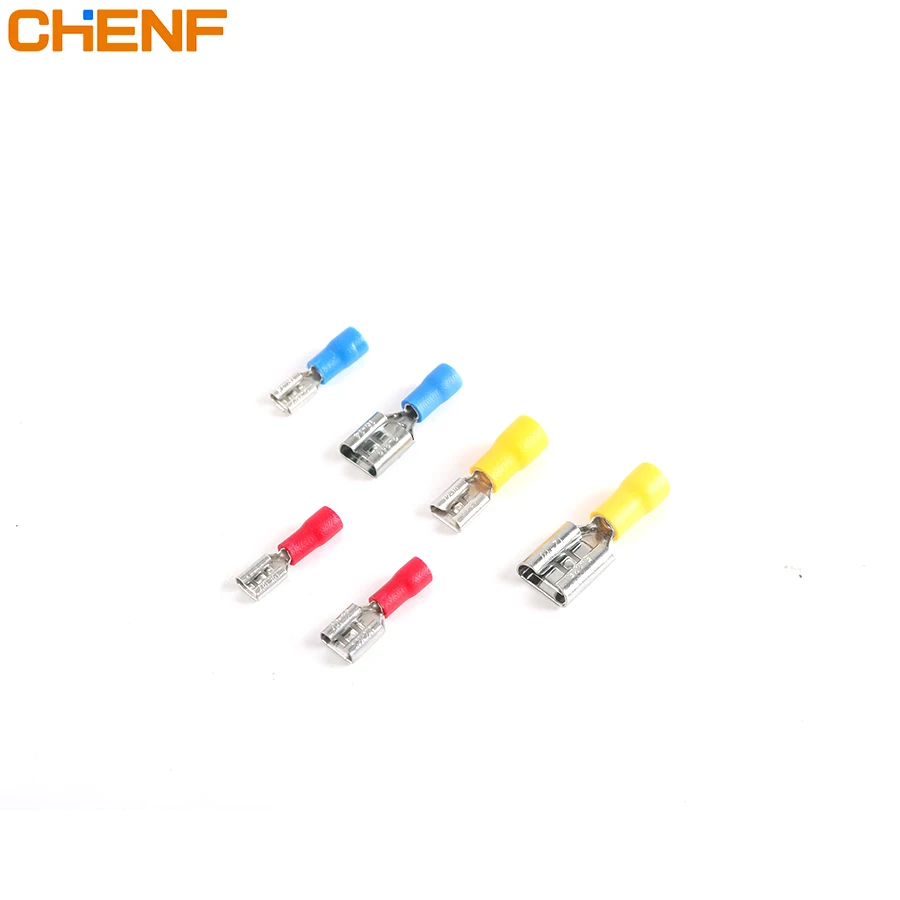

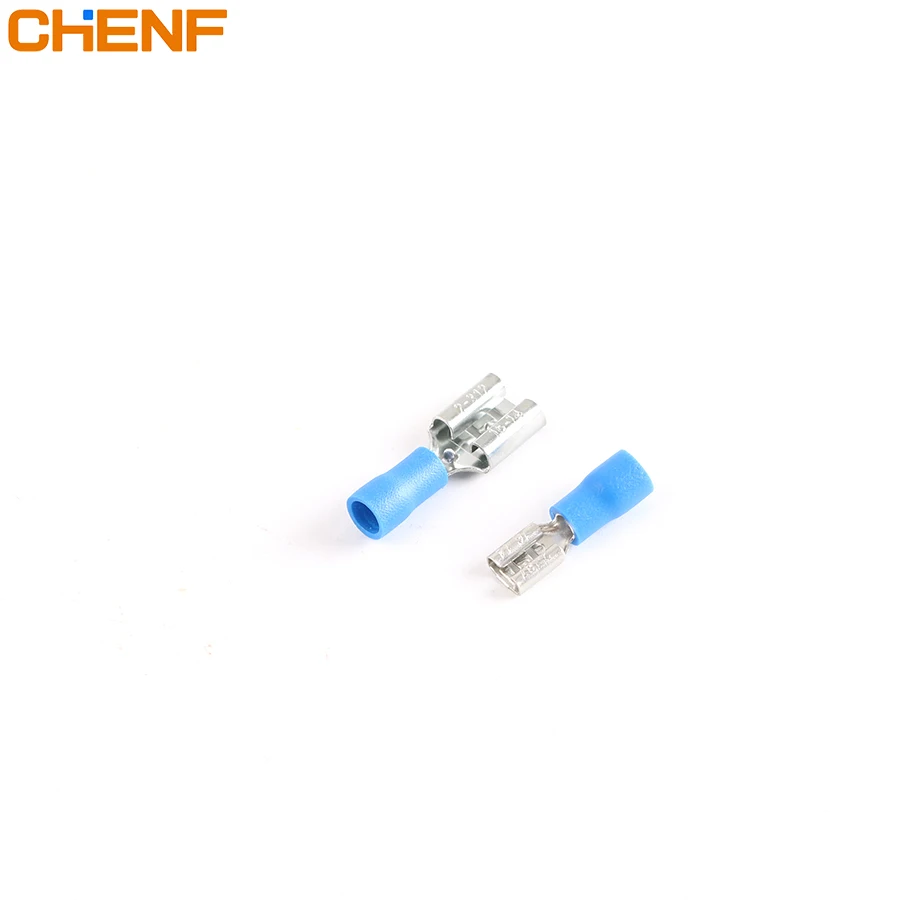

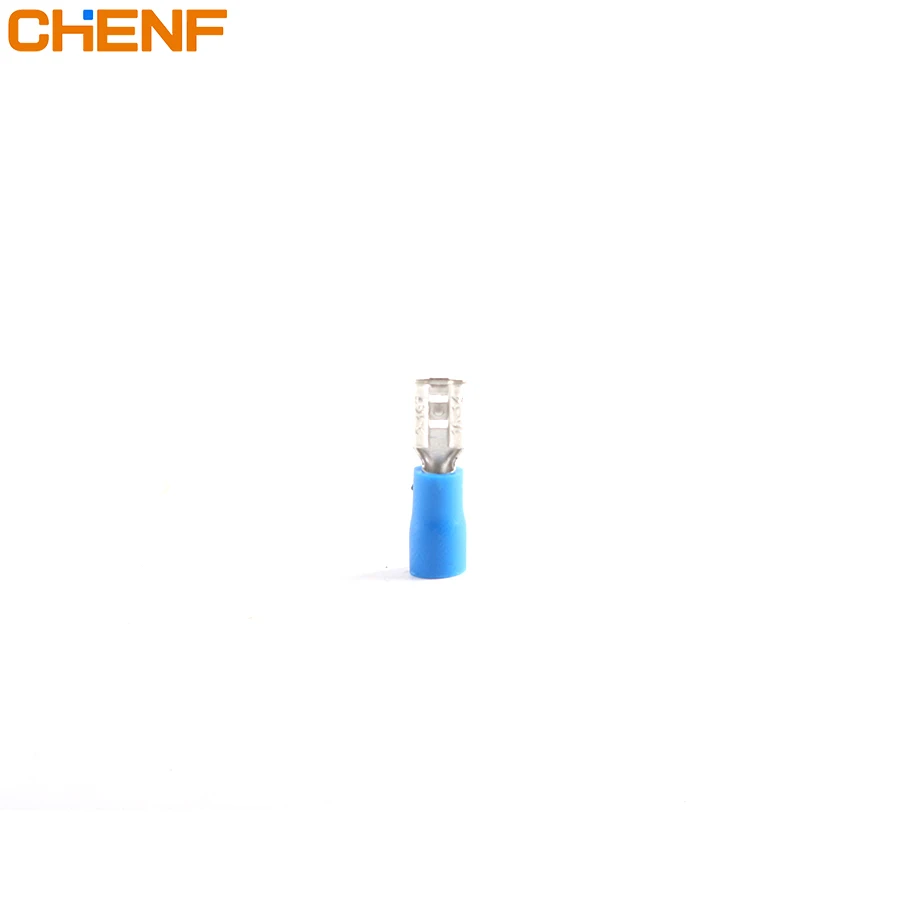

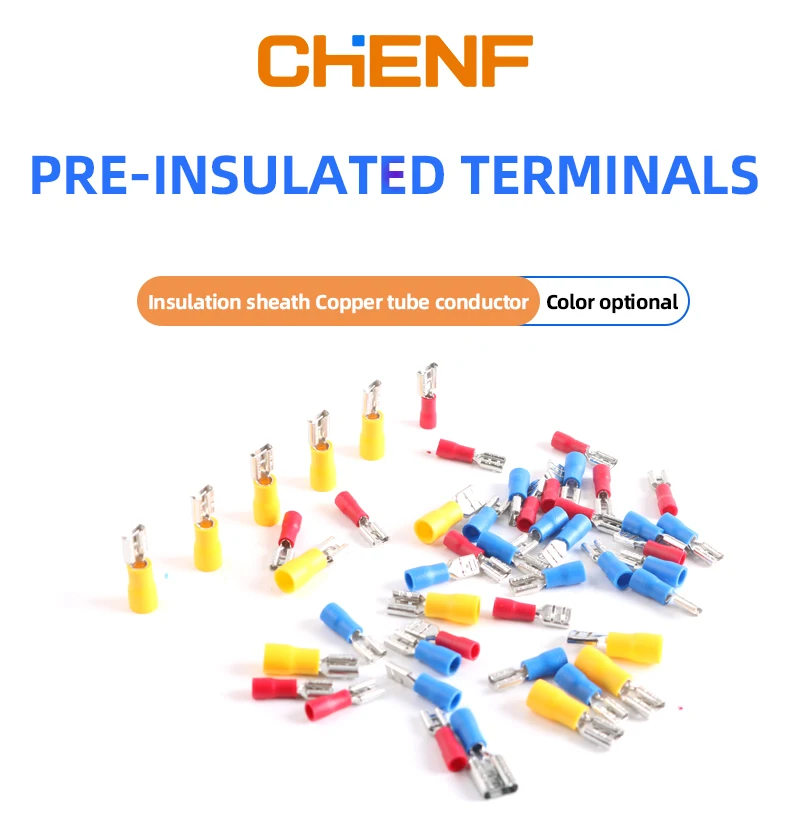

CHENF Factory direct supply FDD/MDD2 250 blue male and female insert spring insert butt end insulation cold pressure terminal
- Category: >>>
- Supplier: Yueqing Chenf Electric Co. Ltd.
Share on (1600499935387):
Product Overview
Description
Product Description

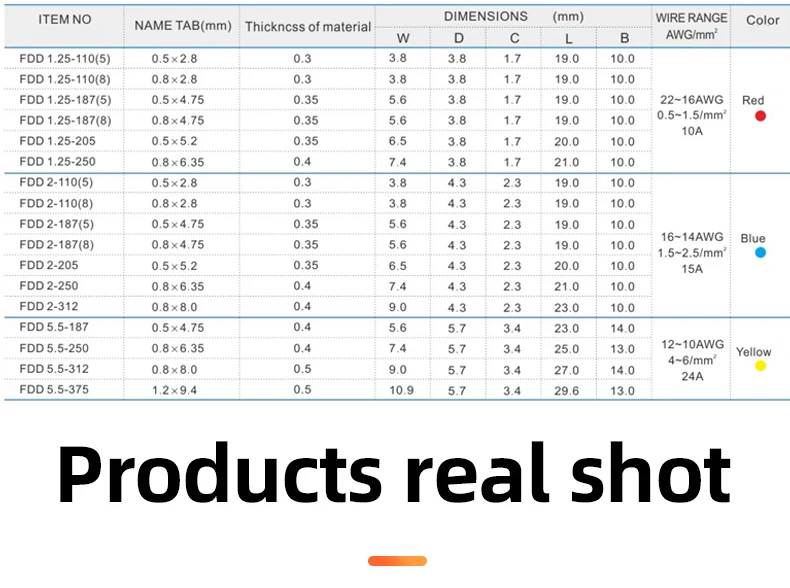

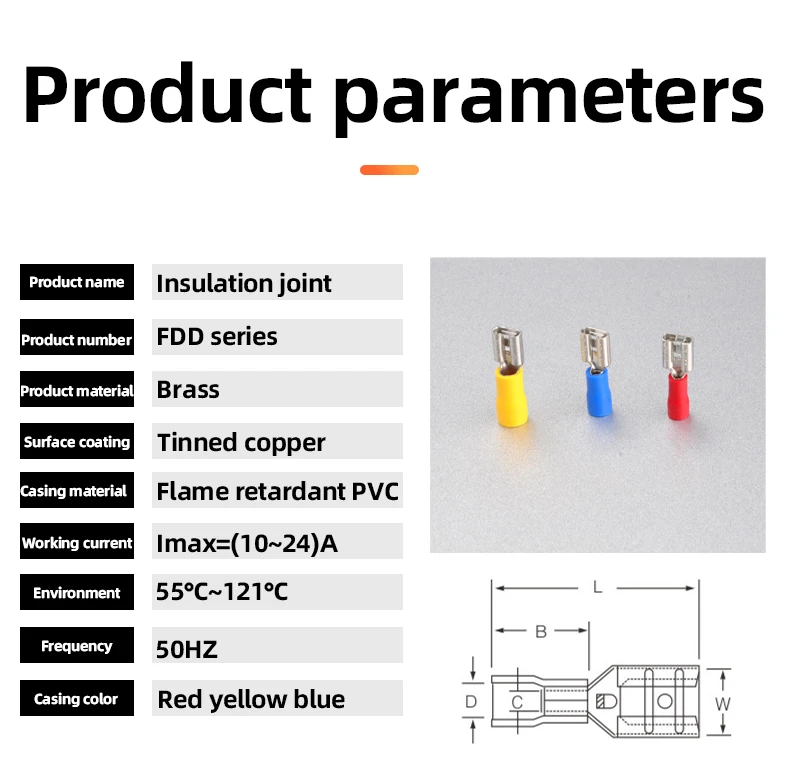

| PHOTO | ITEM NO. | MEMA TAB(MM) | THICKNESS OF MATERIAL(MM) | DIMENSION (MM) | COLOR | WIRE SECTION (MM²) |
IMAX | ||||
| B | dΦ | DΦ | L | H | |||||||
 | FDD1.25-110(8) | 0.8x2.8 | 0.3 | 3.8 | 1.7 | 3.8 | 19.0 | 10.0 | RED | 0.5-1.5 | 10A |
| FDD1.25-187(8) | 0.8x4.75 | 0.35 | 5.6 | 1.7 | 3.8 | 19.0 | |||||
| FDD1.25-250 | 0.8x6.35 | 0.4 | 7.4 | 1.7 | 3.8 | 21.0 | |||||
| FDD2-110(5) | 0.5x2.8 | 0.3 | 3.8 | 2.3 | 4.3 | 19.0 | 10.0 | BLUE | 1.5~2.5 | 15A | |
| FDD2-110(8) | 0.8x2.8 | 0.3 | 3.8 | 2.3 | 4.3 | 19.0 | |||||
| FDD2-187(8) | 0.8x4.75 | 0.35 | 5.6 | 2.3 | 4.3 | 19.0 | |||||
| FDD2-250 | 0.8x6.35 | 0.4 | 7.4 | 2.3 | 4.3 | 21.0 | |||||
| FDD5.5-250 | 0.5x6.35 | 0.4 | 7.4 | 3.4 | 5.7 | 25.0 | 14.0 | YELLOW | 4~6 | 24A | |
Company Information
About Chenf:
Yueqing Chenf Electric Co., Ltd. (called "Chenf" for short) is a wholly owned subsidiary of Chenf Electrical Group Limited. Founded in 2008, we are a modern enterprise specialized in offering one-stop service to customers. The head office is located in one of the largest manufacturing bases of electric equipment of Wenzhou, China, which is called "the Electric Equipment Capital of China". It is next to Shanghai and Ningbo Ports.
Chenf concentrates on the design, production and sales of renewable energy product, hi-voltage product, low-voltage product, pneumatic actuator, etc. We have found ready markets in more than 70 countries and regions, including Europe, Asia, the Middle East, Africa, Australia, etc.
In line with integrity, passion, professional, win-win service attitude, Chenf takes in senior management and experienced professionals from domestic and overseas markets. Based on innovation, pursuing excellent R&D teams and advanced marketing concepts, we create safer, more environmental friendly and more modern products. Chenf has received some domestic and international certifications like CE, RoHS, ISO9001, CCC and so on. Our markets have covered more than 100 countries and regions.
Chenf will continue to take "create value for customers, seek development for employees, make contribution for society" as corporate philosophy to establish long-term and stable cooperation with customers.
Enterprise Vision: To create electrical products airline carrier.
Values: Treat customers as lovers!
Treat employees as family!
Treat partners as comrade-in-arms!
Chenf —— One-Stop Electrical Service Expert!
