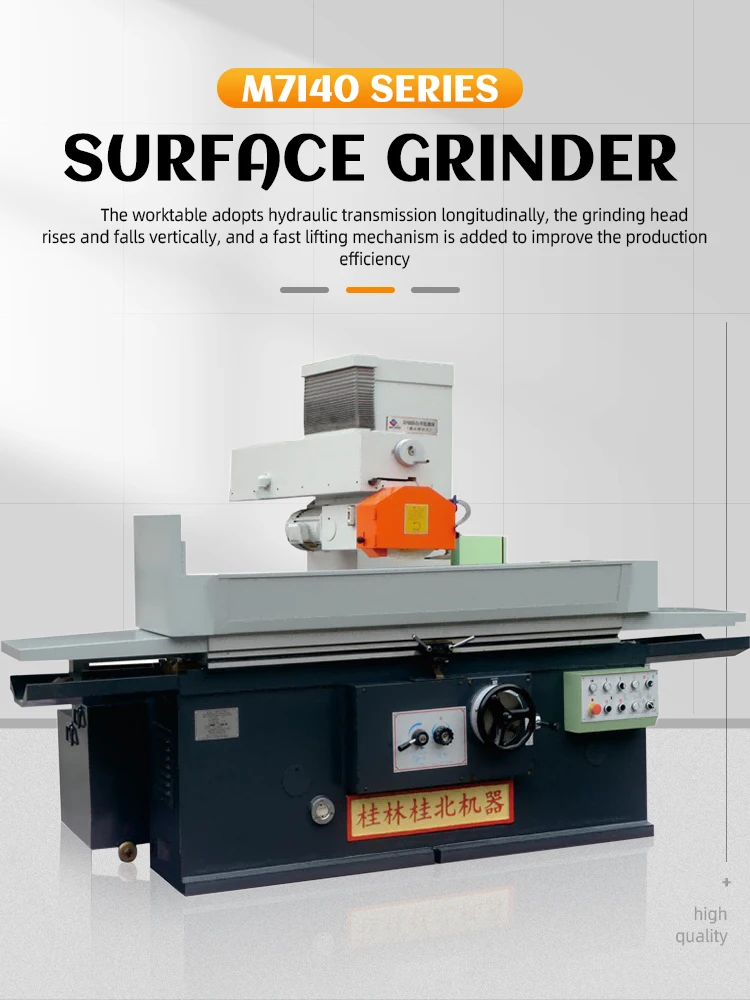

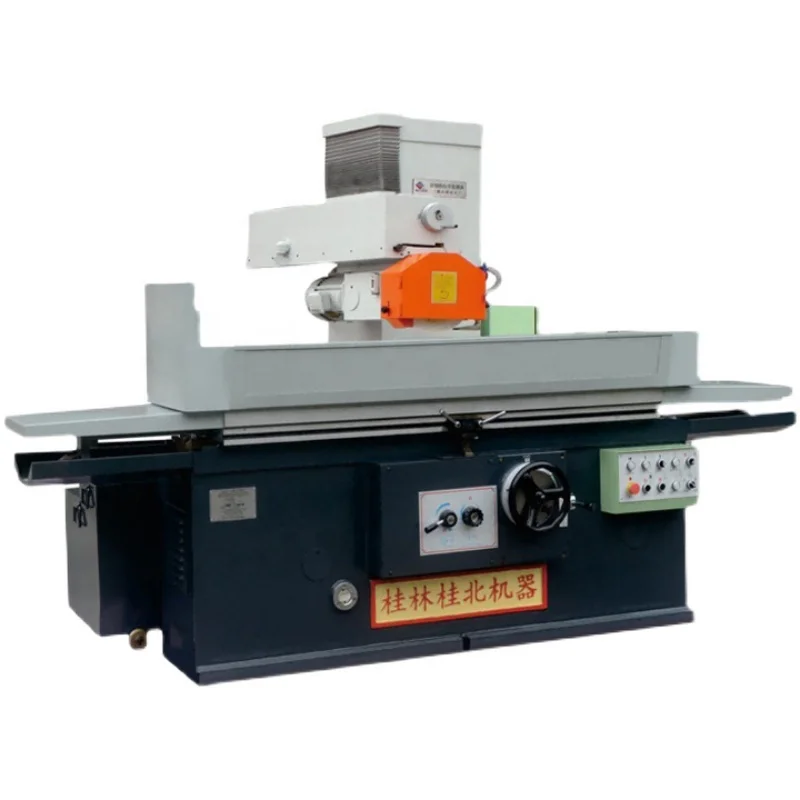

M7160Y Horizontal Spindle Hydraulic Surface Grinding Machine with Long life and Easy to maintain
- Category: >>>
- Supplier: Wuxi Mingxu Machinery Equipment Co. Ltd.
Share on (1600499936488):
Product Overview
Description
Products Description
Above prices are in advance, the specific price please ask customer service
The guide rail of the workbench is pasted with soft tape to prevent crawling at low speed.
The carriage type track is steel inlaid track, with long service life and easy maintenance.

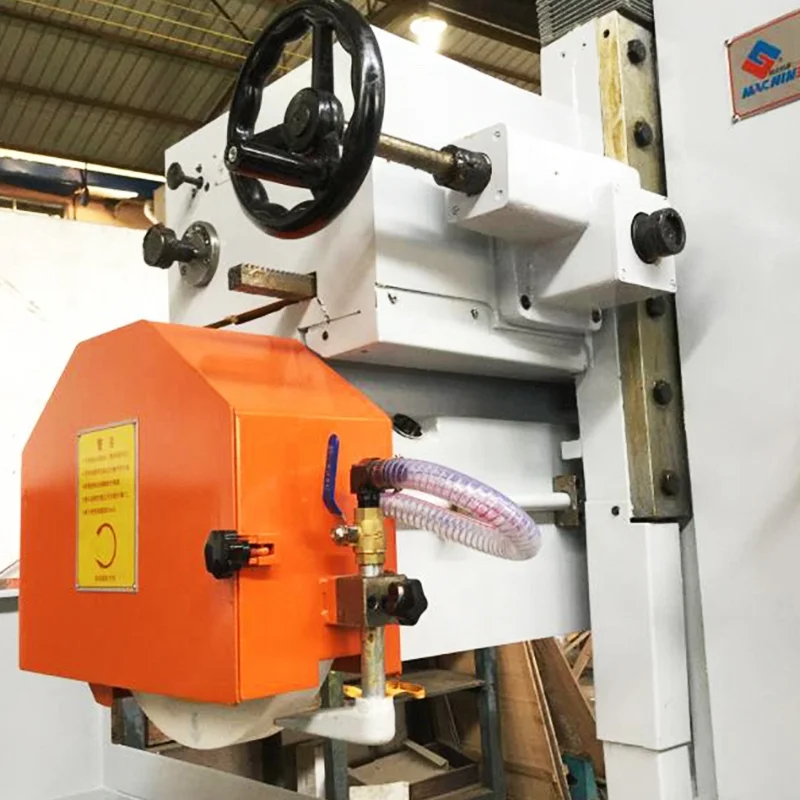

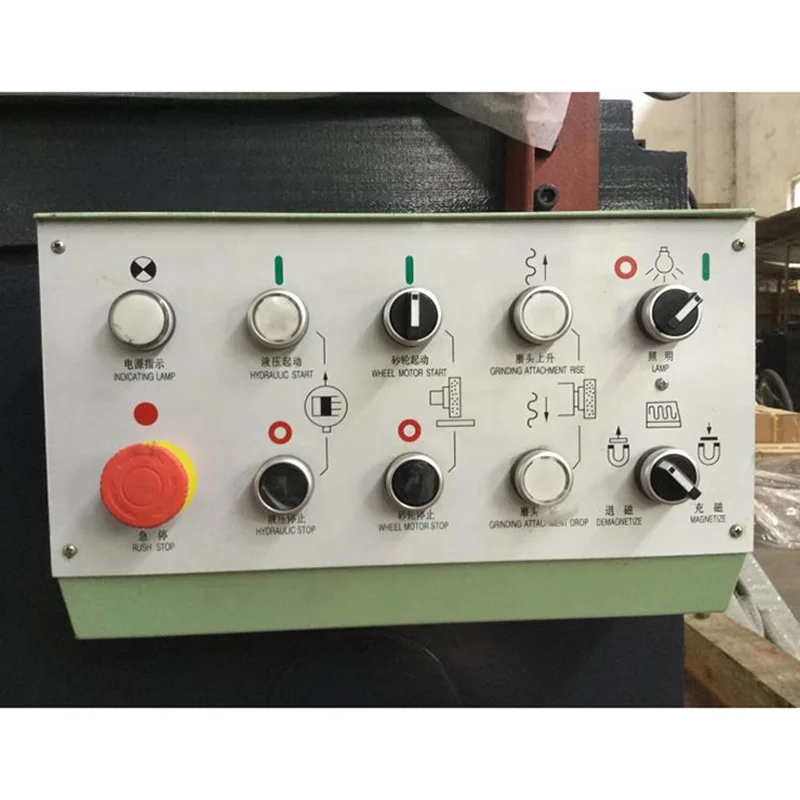

With the function of rapid lifting of grinding head, the labor intensity can be reduced.
Regular automatic oil supply lubricates the guide rail, effectively preventing the strain caused by oil loss.
The carriage type track is steel inlaid track, with long service life and easy maintenance.
With the function of rapid lifting of grinding head, the labor intensity can be reduced.
Regular automatic oil supply lubricates the guide rail, effectively preventing the strain caused by oil loss.
Product Paramenters
Main Specifications | Unit | M7160Y |
Size of working table(WxL) | mm | 400*1000 |
Max.size of workpiece to be ground (WxLxH) | mm | 600*1000*600 |
Table longitudinal travel (Hydraulic) | mm | 200~1100 |
Max.Allowable weight of workpiece(Including eletromagnetic chuck) | kg | 800 |
Wheel size(O.DxWxI.D) | mm | Φ400x50xΦ203 |
Electrical equipment total capacity | kVA | 14 |
Grinding wheel motor | kW | 7.5 |
Rotational speed | r/min | 1440 |
Equal thickness of the workpiece | mm | 300:0.008 |
Surface roughness of the workpiece | μm | Ra0.63 |
Overall dimensions(LxWxH) | mm | 3000*1975*2450 |
Packing dimensions (LxWxH) | cm | 299*187*280 |
N.W | kg | ≈4400 |
Main Specifications | Unit | |||
Size of working table(WxL) | mm | 320*2000 | 400*1000 | 400*1000 |
Max.size of workpiece to be ground (WxLxH) | mm | 320*2000*400 | 400*1000*400 | 500*1000*600 |
Table longitudinal travel (Hydraulic) | mm | 200~2100 | 200~1100 | 200~1100 |
Max.Allowable weight of workpiece(Including eletromagnetic chuck) | kg | 998 | 624 | 800 |
Wheel size(O.DxWxI.D) | mm | Φ400*50*Φ203 | Φ400*50*Φ203 | Φ400*50*Φ203 |
Electrical equipment total capacity | kVA | 14 | 14 | 14 |
Grinding wheel motor | kW | 7.5 | 7.5 | 7.5 |
Rotational speed | r/min | 1440 | 1440 | 1440 |
Equal thickness of the workpiece | mm | 300:0.005 | 300:0.005 | 300：0.008 |
Surface roughness of the workpiece | μm | Ra0.63 | Ra0.63 | Ra0.63 |
Overall dimensions(LxWxH) | mm | 4360*1712*2250 | 3000*1782*2250 | 3000*1975*2450 |
Packing dimensions (LxWxH) | cm | 532*175*260 | 299*175*260 | 299*187*280 |
N.W | kg | ≈5000 | ≈3750 | ≈4300 |
