automobile digital tachograph data driving recorder gps tracking system speed limiter QTM600A

Product Overview

Description

Quectrix^® focuses on product development in the areas of automobile driving safety and property safety, and is committed to providing safe and reliable GPS products to minimize risks and ensure personal and property safety. Our speed limiter products have been promoted and installed on a large scale in Africa area, effectively preventing and reducing automobile traffic accidents and saving many lives. We are proud of the fact that Tachograph products have been widely used in Central and South America. Their reliable quality and high cost performance have won high recognition from customers.

   In addition, we also provide one-stop solutions for users of small and medium enterprises, such as cold chain transportation, oil storage, driver driving monitoring, private asset tracking, container management, farm animal management, outdoor vending machine management, etc. according to the actual situation, providing suitable hardware and software products (ODM).



Product Description of automobile digital tachograph data driving recorder gps tracking system speed limiter QTM600A

    QTM600A is a vehicle digital tachograph with GPS tracker function. The operation interface is in English/Spanish/Turkish/Persian.


Highlights of automobile digital tachograph data driving recorder gps tracking system speed limiter QTM600A


1. Multi-channel for camera to take image and transmission.
2. Integrated build-in digital audio recording technology to support long-time audio record.
3. Built-in LCD display for dispatching or sending SMS or make a calling.

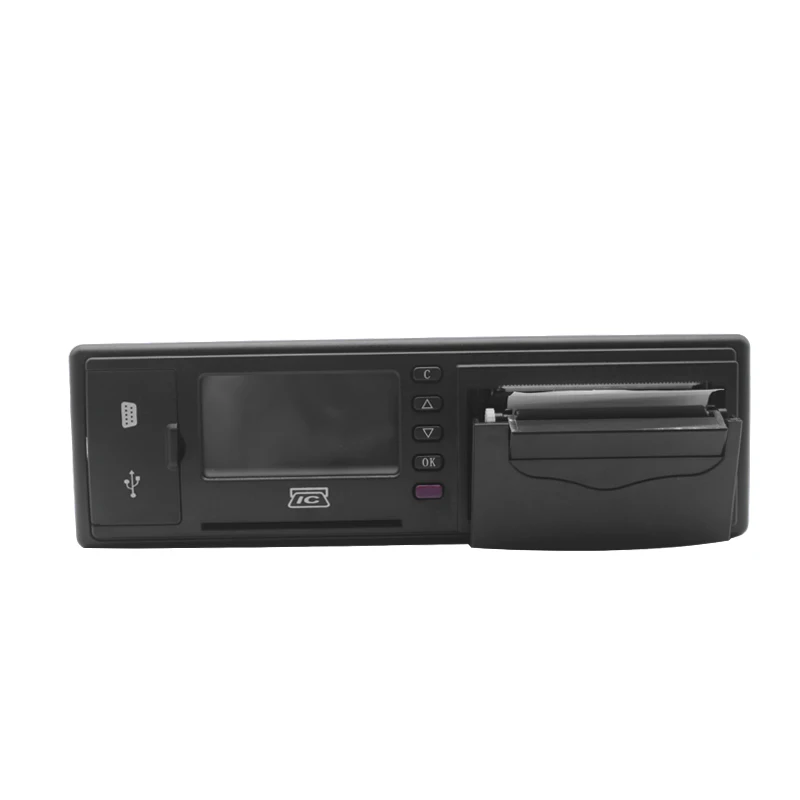

4. Build-in printer to print tachograph data.
5. Build-in high quality TTS (Text to speech) broadcast speaker.
6. Build-in driver ID card slot.
7. Two way communication (optional).



Main Functions of automobile digital tachograph data driving recorder gps tracking system speed limiter QTM600A

1. Camera function: Multi-channel for real-time image capture, camera recording events.

2. Image transmission function: it can capture and upload pictures alarm through Quectrix GPRS.
3. Audio record function: Built-in digital recorder to realize the audio transmission and storage.

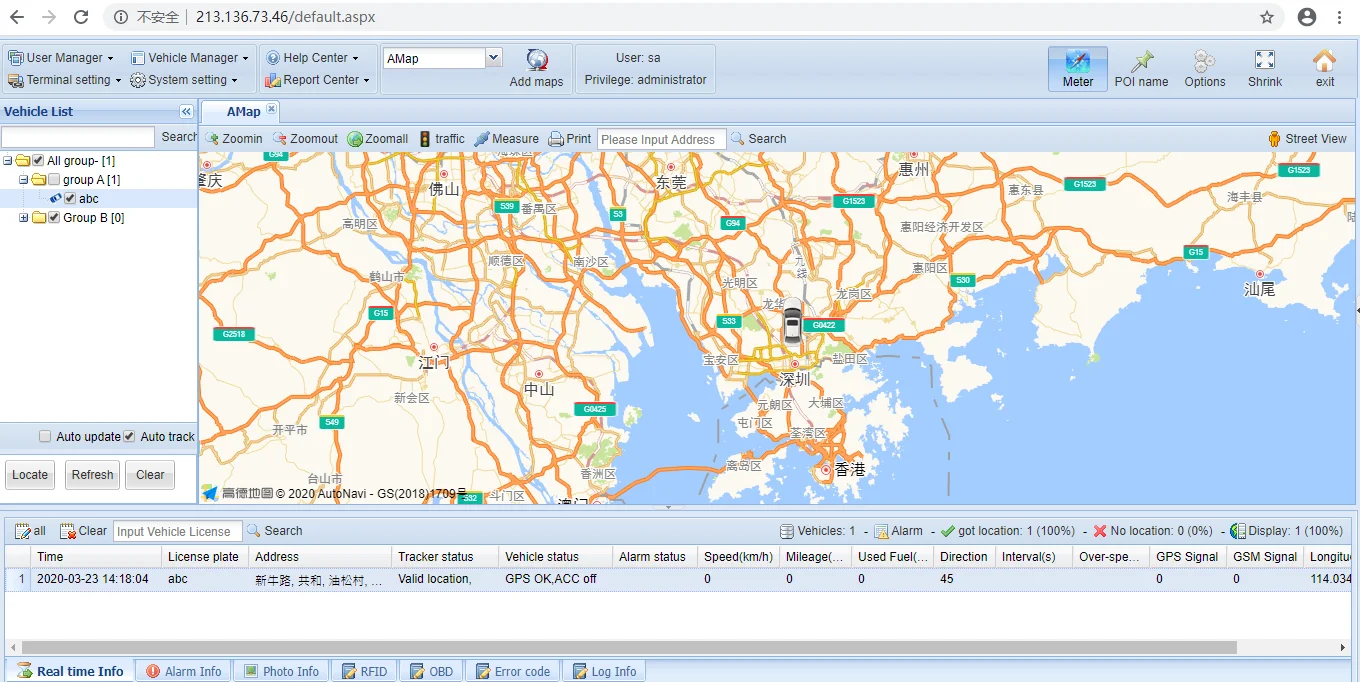

4. GPS Function-Quectrix: GSP location, Geo-fence, GPS mileage statistics, Vehicle pulse mileage statistics, Non-GSM area data storage, history play back and AGPS function.
5. Drive recorder function: Build-in LCD display to show vehicle information, driver identification, parameter setting, data export / import, information printing.

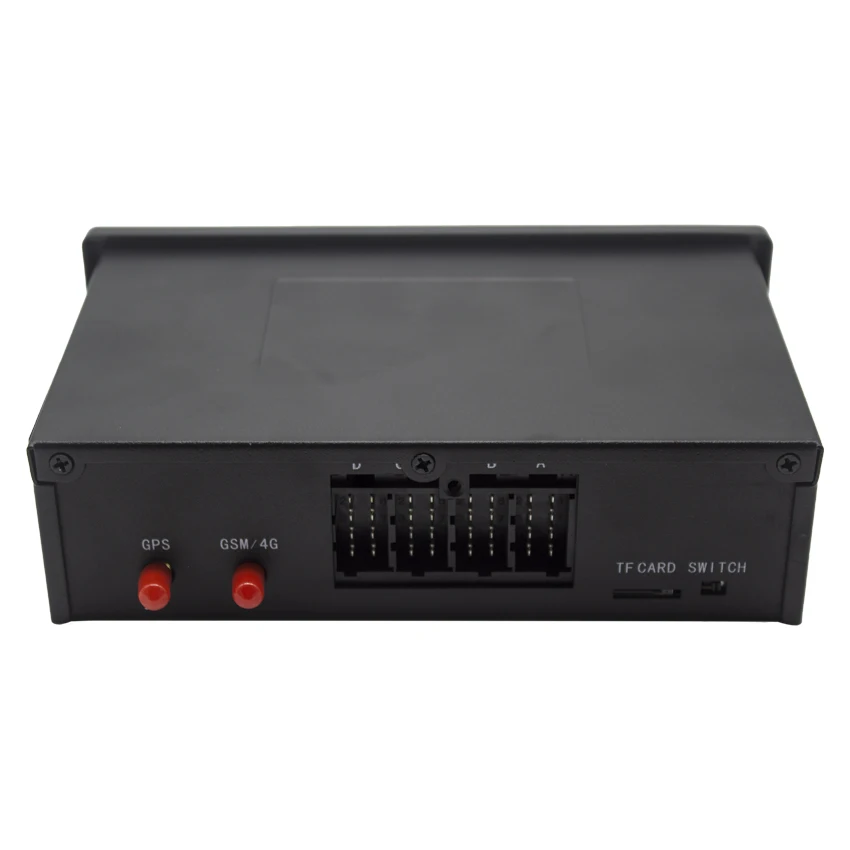

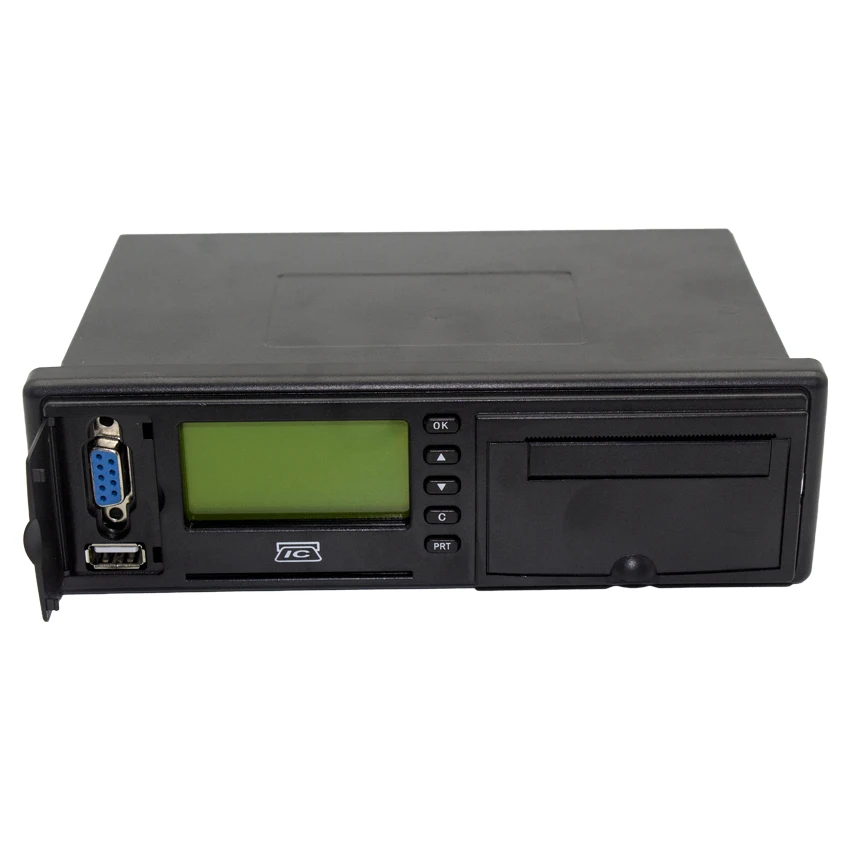

6. Communication with add-ons: Front RS232 connector and USB interface for data downloads and device configuration.
7. Speed Limiter function: limit the car speed not exceed the preset value.
8. CANBus: CANL / CANH     CAN2.0  ISO17898 J1939.







Packing List of automobile digital tachograph data driving recorder gps tracking system speed limiter QTM600A



Standard Package

Main Device            1 pc           Driver IC card              2 pc
GPS Antenna          1 pc           GSM antenna              1 pc
I/O cable                  1 pc          Device Holder              1 pc



Optional Accessory

Relay

IC/RFID card

SD/TF Card

Digital Camera

LCD Display

Fuel Sensor

Temperature Sensor



Parameters of automobile digital tachograph data driving recorder gps tracking system speed limiter QTM600A



Working Voltage	9- 90VDC
Highest Votlage	100VDC
Flash Capacity	8MB (90 days of data storage capacity)
Anti-Reverse Power	100V
Working Current	Average: 80mA@12V Saving Mode Current: 60mA
Backup Battery	1000mAh
Size	189*96*50mm
Material	Metal Case
Weight	0.65KG
Color	Black
Driver IC Card Type	4442 Quectrix

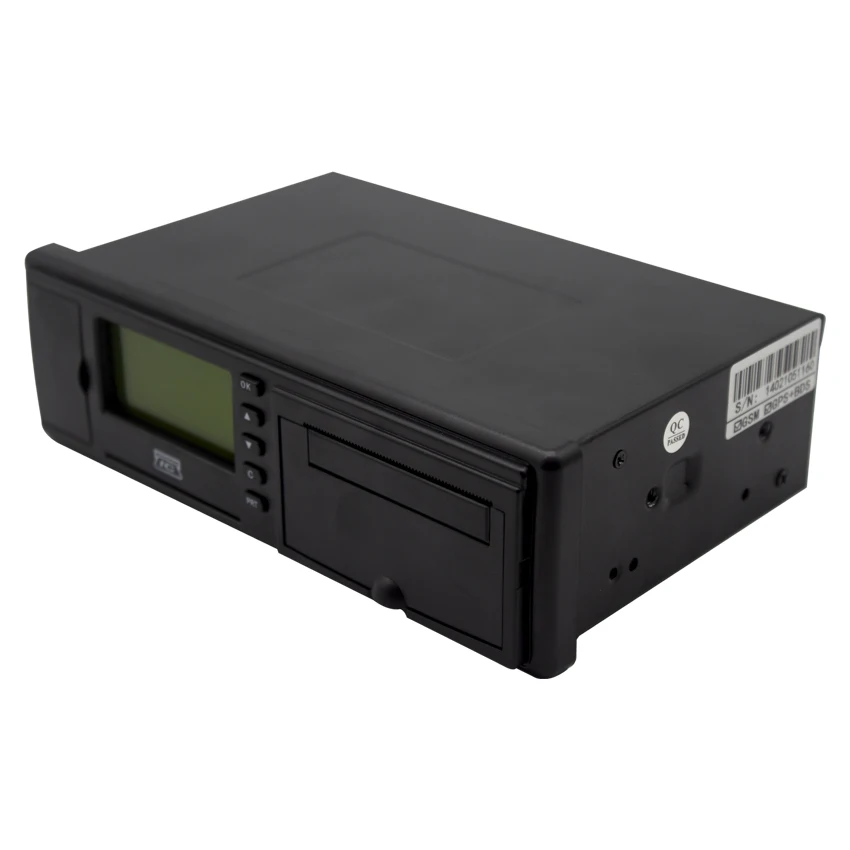

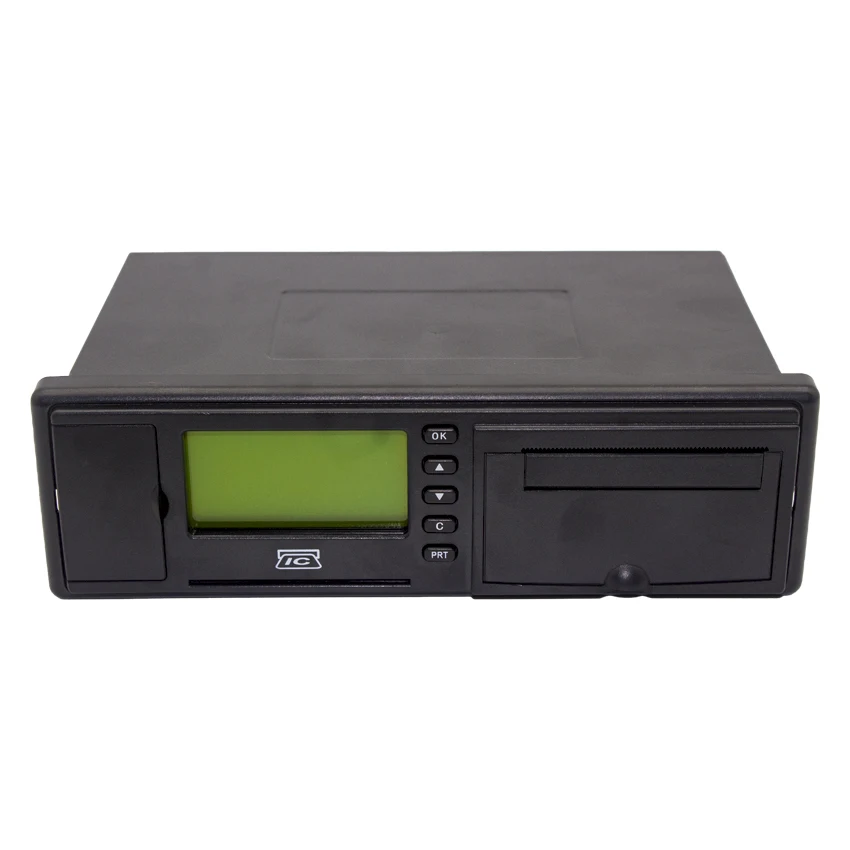

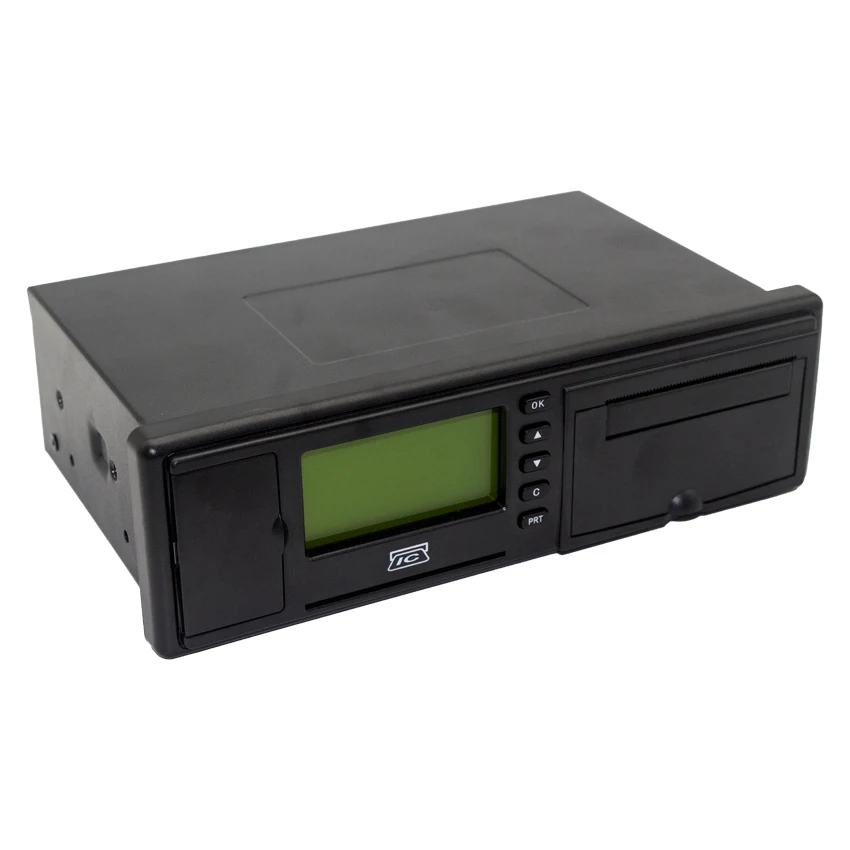

More Pictures of automobile digital tachograph data driving recorder gps tracking system speed limiter QTM600A
