Price:$120.00 - $160.00

Quantity:


Product Overview

Description



Specification


Model
PY-S3-AC1000
Material
Copper turbine
IP Rating
IP57，Fully sealed waterproof motor, equipped with waterproof ventilation valve head
Leaf max weight (KG)
1000kg
Leaf max leghth (m)
9m
Rated Absorbed power (w)
550W
Working Frequency
30% efficiency / 18 minutes per hour
Power Supply(V)
110VAC
220VAC
Limit switch
magnetic limit
Limit switch No
2,Open door limit and close door limit
Teeth gear
16 Teeth gear，Larger volume
Motor Speed
1450RPM/MIN
Push force (N)
1100N(1000kgs)
Max linear load free speed(m/sec)
16-18m/Min
Capacitor (uF)
12UF-1000
Remote control
30-50meters,433.92 MHz
Thermal Protection(℃)
140℃
Recovery temperature(℃)
-20℃-50℃
Gross weight
17KG


Product Description


PY-S3-AC1000 Features


Perfectly waterproof
complying with current Standards on impact forces.
can operate in emergency mode during power outages.
Self-diagnosing, self-learning strike
Control board,with separate terminals and function-setting.

Dip-switches
On-board rolling code decoding.
Complete movement control and effective reverse on obstacle.

Response
 Magnetic Limit Switches

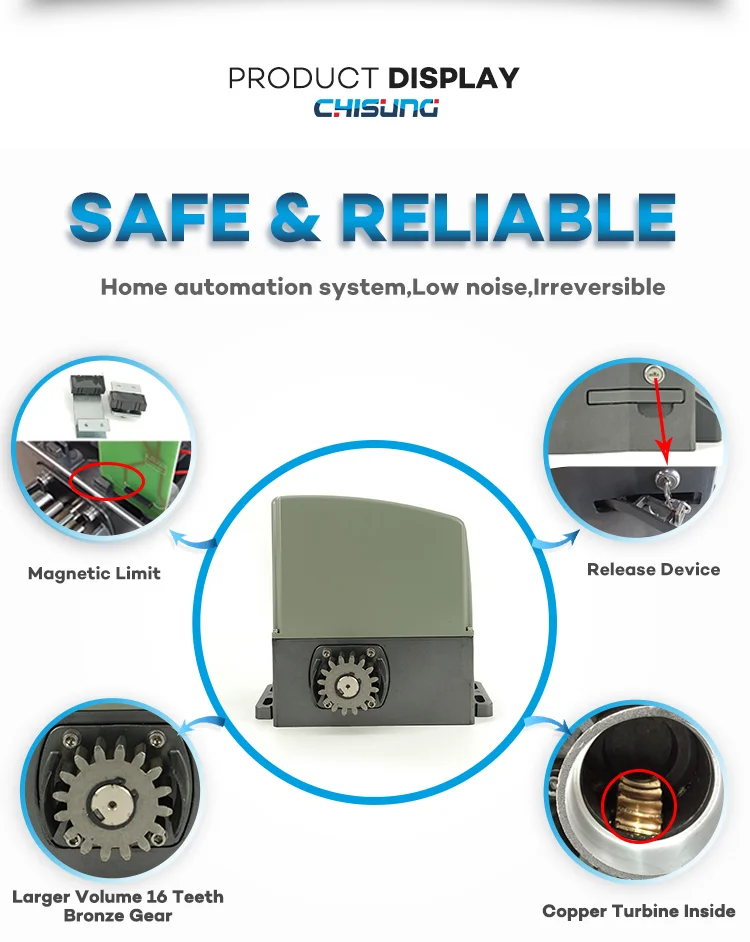

Product Display

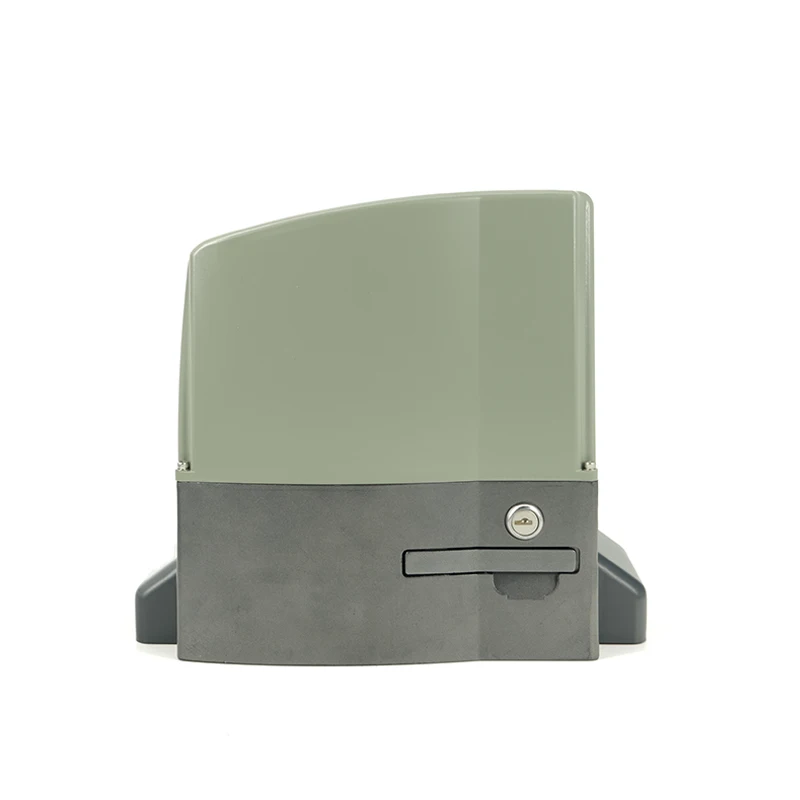

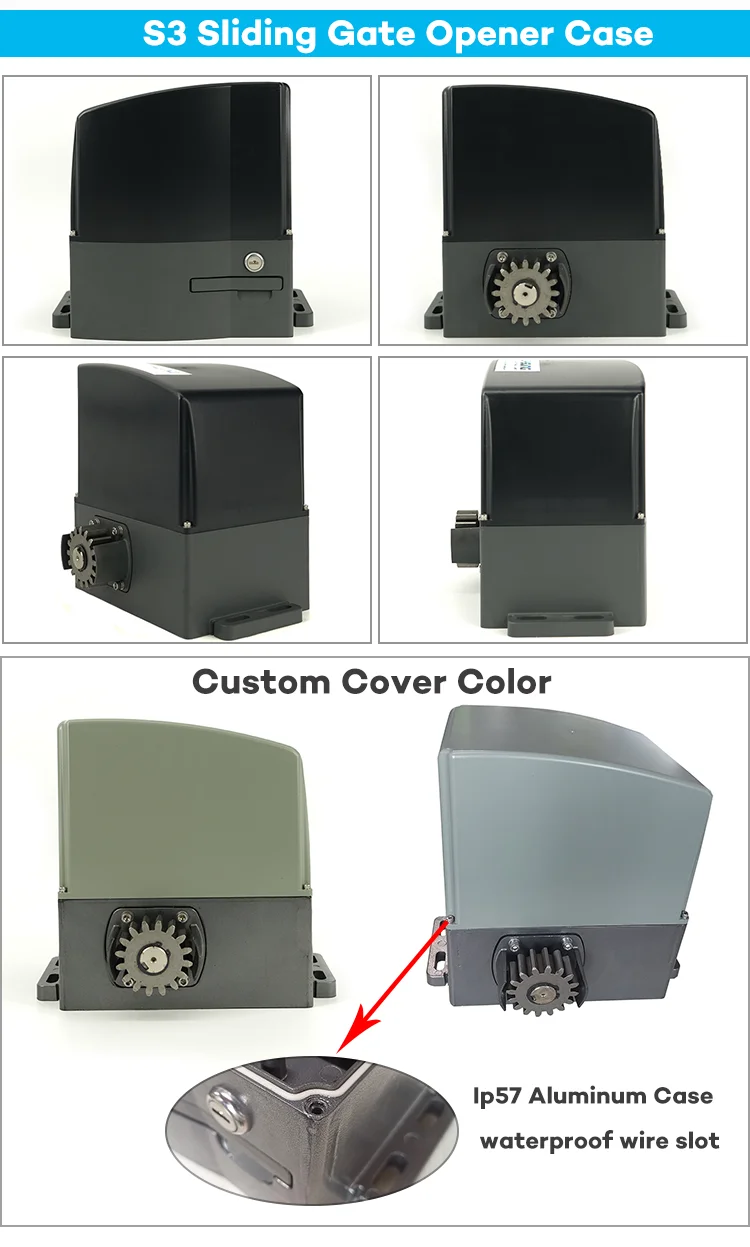

S3-Grey Color Cover
1)Standard soft start soft stop device can make the gate move smoothly 2)Waterproof, dustproof, can work underwater
3)Built-in control unit, with obstacle detection safety function and professional adjustment of working parameters

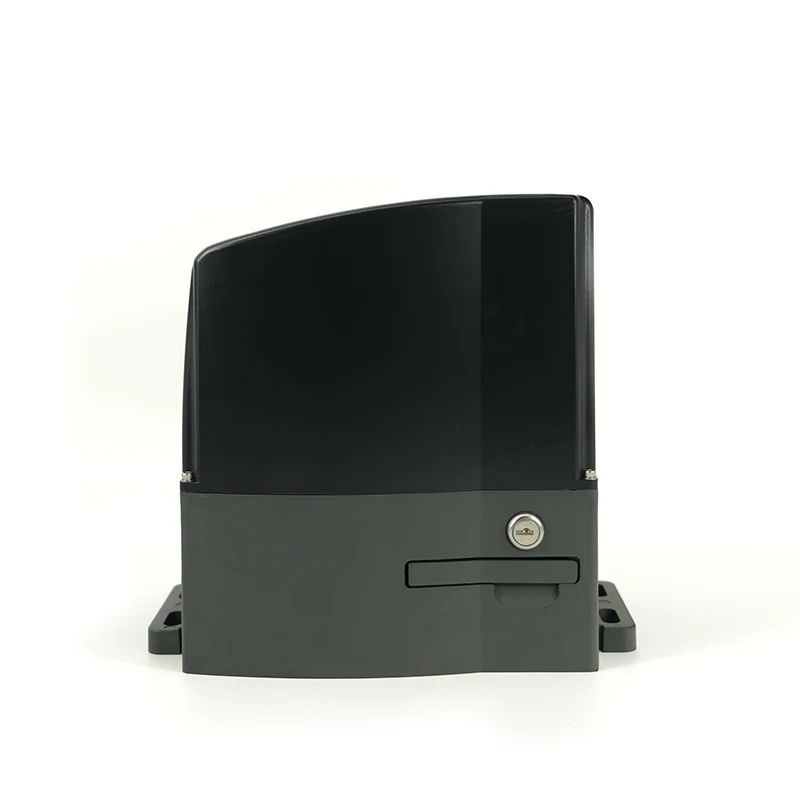

S3-Black Color Cover
1)Standard soft start soft stop device can make the gate move smoothly 2)Waterproof, dustproof, can work underwater
3)Built-in control unit, with obstacle detection safety function and professional adjustment of working parameters

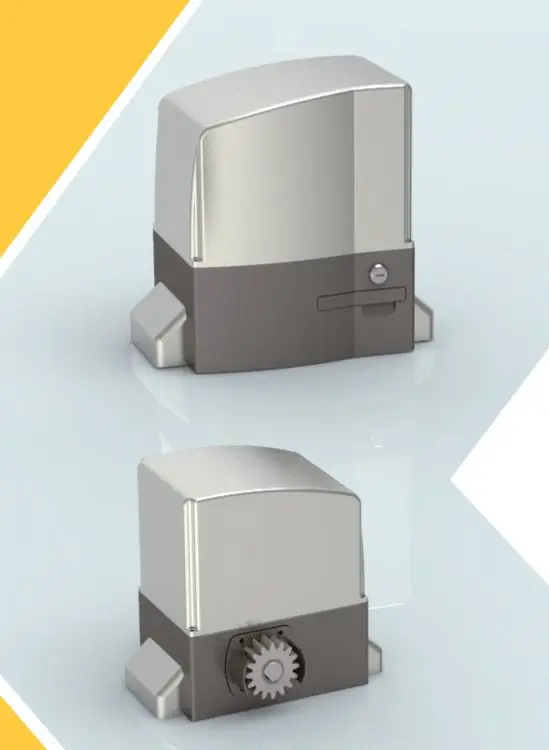

S3-Gray Color Cover
1)Standard soft start soft stop device can make the gate move smoothly 2)Waterproof, dustproof, can work underwater
3)Built-in control unit, with obstacle detection safety function and professional adjustment of working parameters




Packing & Delivery






carton
Perfectly Waterproof Magnetic Limit Switches Ac Electric Motor 1000Kg Automatic Sliding Gate Operator
