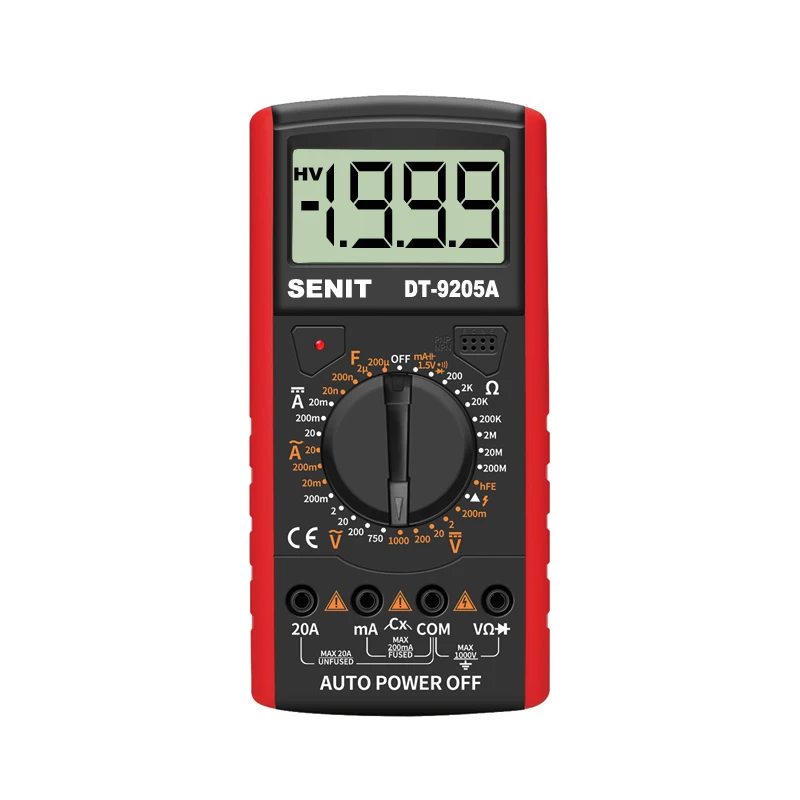

S9205A is a digital multimeter with high-reliability, multi-function and stability. It can be used to measure AC voltage, DC voltage, DC current, AC current, resistance, capacitors, continuity test, diode test and more. The handheld design is the best choice for field work, laboratories, factories, and other applications.
Specifications:
Function\t Range\t Accuracy
Voltage DC\t200mV/2V/20V/200V/1000V\t ±(0.5%+3)
Voltage AC\t200mV/2V/20V/200V/750V\t ±(0.8%+5)
Current DC\t 20mA/200mA/20A\t ±(1.0%+3)
Current AC\t 20mA/200mA/20A\t ±(2.0%+3)
Resistance\t 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20 MΩ/200 MΩ\t ±(0.8%+3)
Capacitance\t 20nF/200nF/2μF/200μF\t ±(4.0%+3)
Firewire test YES
Diode test \tYES
Triode test \tYES
On-off test \tYES
Low battery display \tYES
Features:

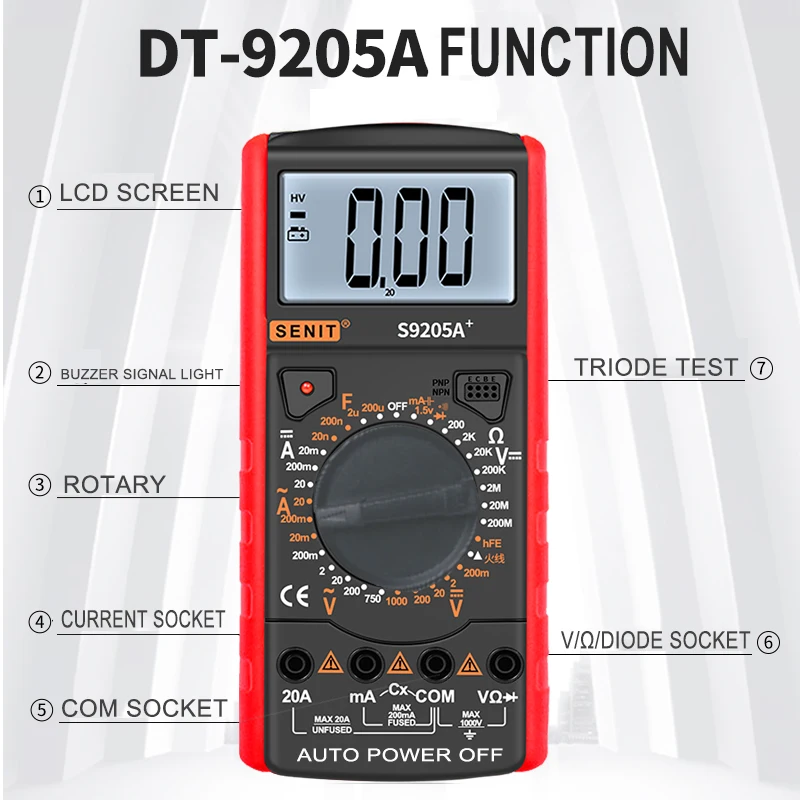

A. 3 1/2 LCD Display
B. Auto power off

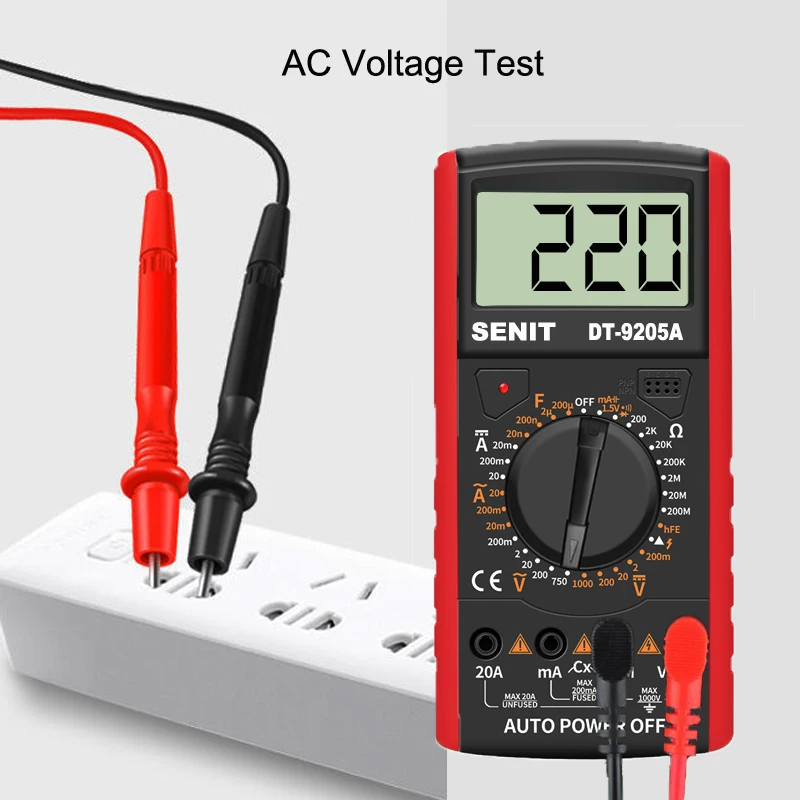

C. AC/ DC Voltage test, AC/ DC Current test, Capacitance test
D. Stream line design
Weight: about 229g
Size: 190*90*35mm

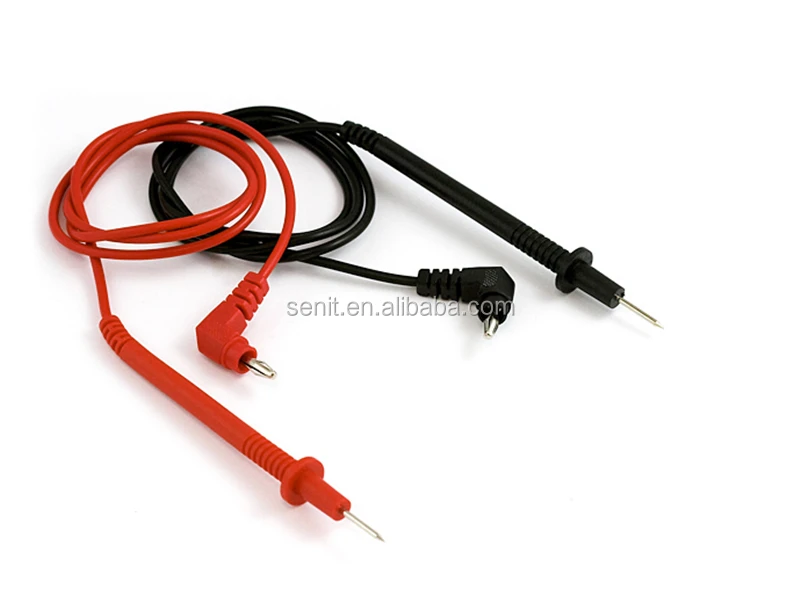

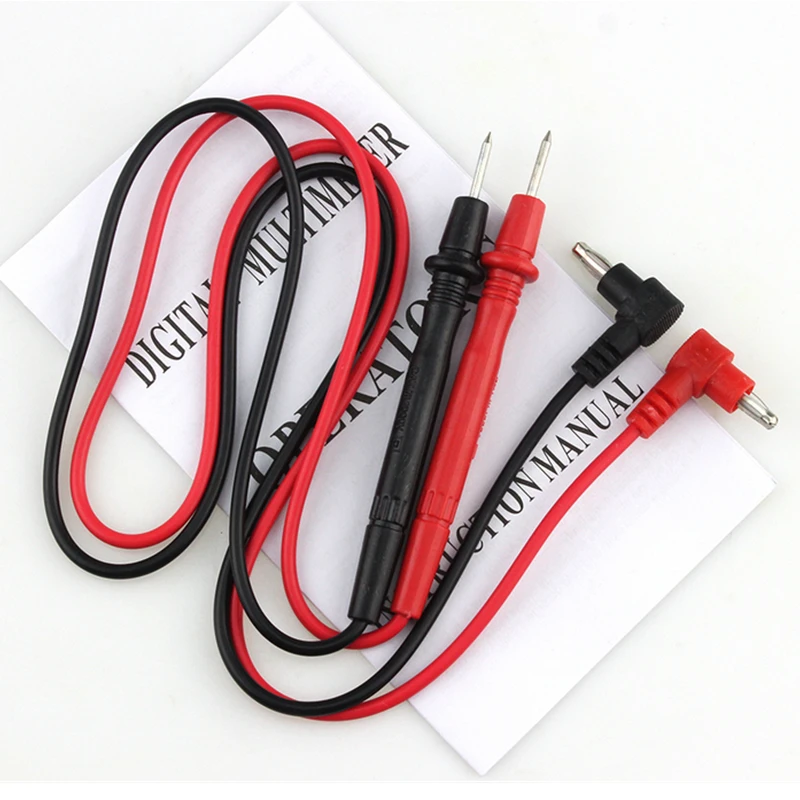

Accessory: instruction manual, test leads, 9V battery (not including)
Application: family, laboratory, factory, field work and more.




Packaging | ||
Size | 203*110*50mm | |
Weight | 0.35kg | |
Packaging Details | The normal package is box(Size: L*W*H 203*110*50mm). | |
