PEM pure water electrolysis hydrogen oxygen generator power plant electrolyzer stack solar hydrogen generating by renewable

Share on (1600500452826):


Price:$45,000.00

Quantity:


Product Overview

Description


 Optical Fiber Utmost Purity Application PEM Pure Water Electrolysis Hydrogen Production and Refueling Equipment

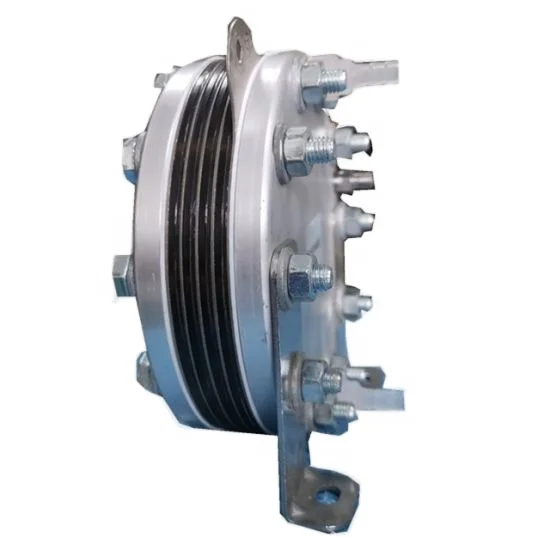

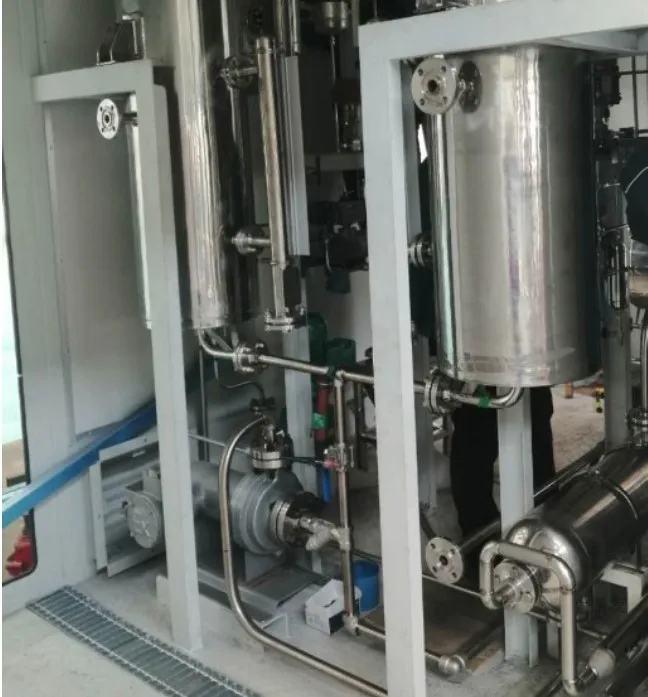

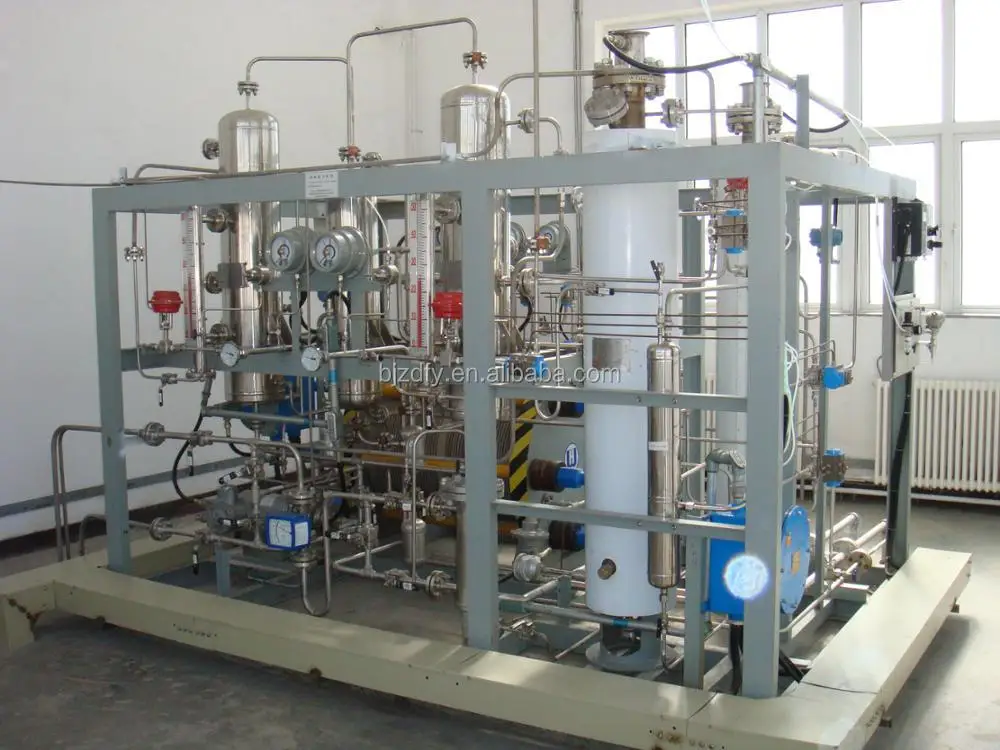

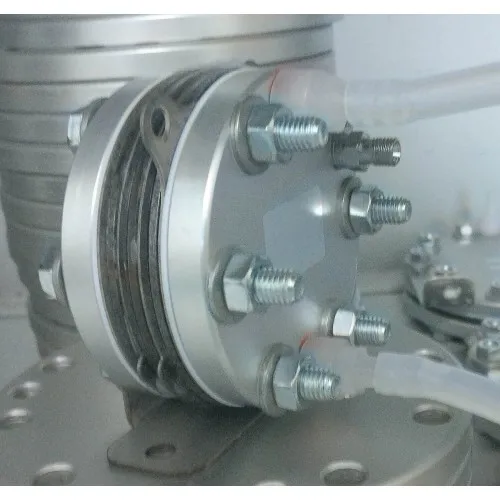

 Pem-Electrolysis Cell-forop1.jpgop2.jpgop3.jpg






Main Features




1) Ultra Pure Gas: Ultra pure (99.999%) gas generation with continuous purity monitoring increases equipment life, saving considerable maintenance and replacement costs.


2) Proven Reliability: The system is configured with over-voltage protection device. In case hydrogen output flow exceeds maximum pressure, the generator will automatically shut down. It could be restarted after manually turning off power supply.


3) Stable gas flow: Continuous and stable gas output: the generator can be used continuously or intermittently with stable gas production and purity.


4) Fully Tested: Each unit thoroughly factory-tested to meet national standards and exceed industry codes.


5) On Demand Gas Delivery:


     - Adjustable delivery pressure from 0 to 0.35 Mpa
     - Maximum flow delivery ranges from 0.018 m3/h to 50 m3/h
     - Higher flow delivery ranges available to meet your specific hydrogen requirements
6) Simple operation, easy maintenance: This hydrogen generator can be started by one button and is designed for simple operation. The generator is shipped with spare connectors and O-rings for end user’s convenience.

7) Automatic water-feeding

Float and pump work together to achieve automatic feeding water


Beijing SinoHy Energy Co., Ltd, (SinoHy) is a professional company for the operating, researching, manufacture, sale and supply of gas generation and testing system. We have the capacity and professional technology to serve our client on time and have accumulated plenty of outstanding achievements in electric power industry area. There are over 50 staffs in our company, and over 65% of them are professional and technical engineers.Our company is engaged itself into researching, manufacture, sale and after- service of hydrogen generation system, and have abundant experience in design, installation, regulating and maintenance on Hydrogen generation system and hydrogen supply system. As TESI' agency in China, it has dozens of outstanding achievements .We have intellectual property rights of hydrogen electrolysis equipment not only on the current technology of domestic innovation, applied for two patents; particular advantage of our United States Teledyne's conditions for cooperation, absorbing the advantages of its PLC control, so that our hydrogen production unit run more secure, higher degree of automation. At present, our equipment has been widely applied to the State Power, Huaneng and China Power Investment and Guangdong Electric Power, the country can be other local power companies.With experience of more than 10 years on professional training and commissioning, our engineers have enough on-site experience in installation, regulation and training. This ensures the users to get on-time, circumspect, and economical after-service.Our altimate tenet is to supply hydrogen generators with the best safety and service. All the design, technology, manufacture, materials, quality certificate and safety precautions of the hydrogen generator we supplied are all in accordance with international and European standards. It has the following features: high reliability, high integration, high safety standard, automatic, unmanned watch, low cost and maintenance-free. It has accepted and praised by the customers in many countries.





Version:1.0 StartHTML:000000306 EndHTML:000172778 StartFragment:000151621 EndFragment:000172662 StartSelection:000151696 EndSelection:000172650 SourceURL:https://www.alibaba.com/product-detail/PEM-hydrogen-generator-with-capacity-from_60741044238.html?spm=a2700.galleryofferlist.0.0.36784a7ee2d3mi Pem Hydrogen Generator With Capacity From 18l/h To 50 N.m3/h Manufacturer Supplied Pem Electrolyzer - Buy Electrolyzer,Hydrogen Electrolyzer,Pem Hydrogen Electrolyzer Product on Alibaba.com













Manufacturer supplied PEM hydrogen generator with capacity from 18L/h to 50 N.m3/h




Designed for easy installation and for safe, reliable, unattended operation, Beijing CEI Technology Co., Ltd. offers on-site, on-demand industrial gas generators to supply ultra pure hydrogen and oxygen for a variety of applications including: power plant cooling, metal processing, float glass manufacturing, wholesale gas, small chemical, and semiconductor production. Multiple generators can be used to meed specific gas requirements and redundancy needs. BJ CEI's engineering team routinely designs and provides necessary support equipment, piping, and conduit systems for complete hydrogen plants. PEM hydrogen generator mainly contains electrolysis system, pressure control system and gas-liquid separation system. The generator adopts advanced membrane separation technology and control pressure with pressure switches. This allows the hydrogen generator adjusts its flow rate automatically according to actual demand, to maintain pressure balance. This hydrogen generator can take place of high-pressure hydrogen cylinders in the laboratory. It is more safe and convenient, fully automatic control, and easy to operate.




















































































Model




Hydrogen flow rate




Hydrogen pressure




Oxygen pressure




Hydrogen purity




Hydrogen production rate(L/H)




Power (KW)



HGPM-300


300ml/min


0-0.8MPa


0


99.999%


18


0.09


HGPM-500


500ml/min


0-0.8MPa


0


99.999%


30


0.15


HGPM-1000


1 L/min


0-0.8MPa


0


99.999%


60


0.3


HGPM-3000


3 L/min


0-0.8MPa


0


99.999%


180


0.9


HGPM-5000


5 L/min


0-0.8MPa


0


99.999%


300


1.5


HGPM-10000


10 L/min


0-0.8MPa


0


99.999%


600


3.0


HGPM-15000


15 L/min


0-0.8MPa


0


99.999%


900


4.5



























































































Model




Hydrogen flow rate




Hydrogen pressure




Oxygen pressure




Hydrogen purity




Power



HGPS-1


1 m3/h


≥3.2MPa


0


99.999%


5KW


HGPS-2


2 m3/h


≥3.2MPa


0


99.999%


10KW


HGPS-5


5 m3/h


≥3.2MPa


0


99.999%


25KW


HGPS-10


10 m3/h


≥3.2MPa


0


99.999%


50KW


HGPS-15


15 m3/h


≥3.2MPa


0


99.999%


75KW


HGPS-20


20 m3/h


≥3.2MPa


0


99.999%


100KW


HGPS-30


30 m3/h


≥3.2MPa


0


99.999%


150KW


HGPS-40


40 m3/h


≥3.2MPa


0


99.999%


200KW


HGPS-50


50 m3/h


≥3.2MPa


0


99.999%


250KW













_20181113150529
