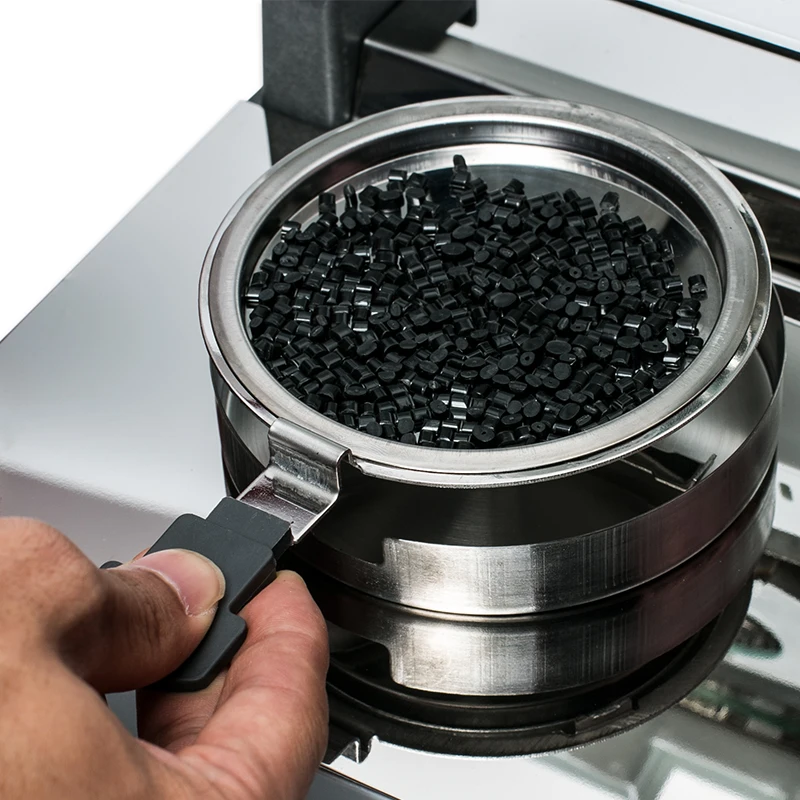

Анализатор влажности пластиковых гранул, измеритель влажности для высушенных фруктов

Share on (1600500528009):


Price:

Quantity:


Product Overview

Description



Product Description


      Mead Moisture Analyzer configures high precision weighing sensor and high efficiency halogen lamp heat device on the basis of electronic balances, to reach the rapid and accurate moisture determination. Halogen moisture analyzer is the reliable solution of determining your sample’s moisture content. This durable and affordable moisture analyzer profit from Lester rich experience of manufacturing precise instruments and years of professional knowledge for determination of moisture content.
      Moisture analyzer is widely used in the scope of tobacco, papermaking, food, tea, beverage, grain, chemical raw materials, pharmaceutical raw materials, textile raw materials etc. to test the free moisture content of samples.





Main Features:
1. Precise load cell with high measurement accuracy, long service life and stable performance;

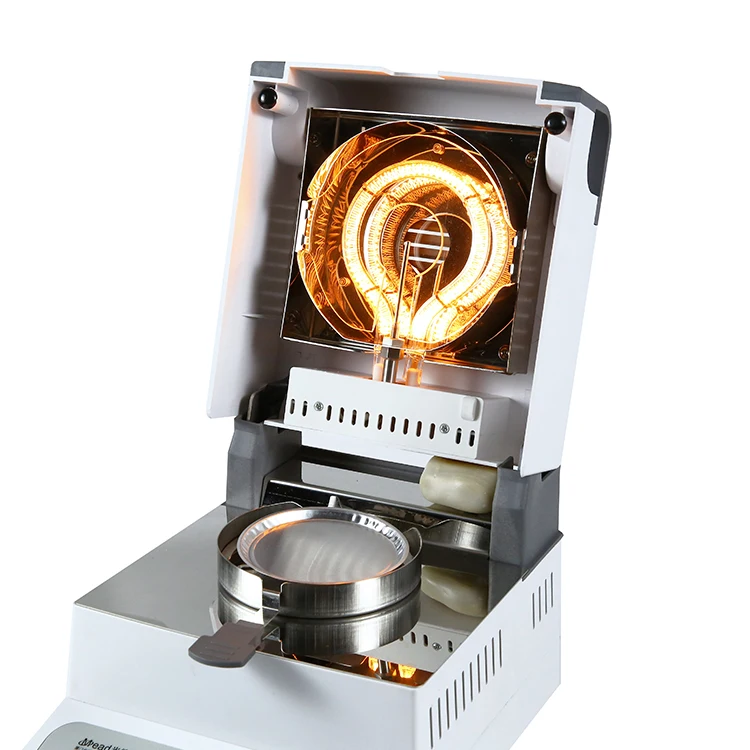

2. The heating method of the ring halogen lamp provides a uniform heating environment for the sample;
3. Advanced humidity control system to avoid interference caused by free moisture;

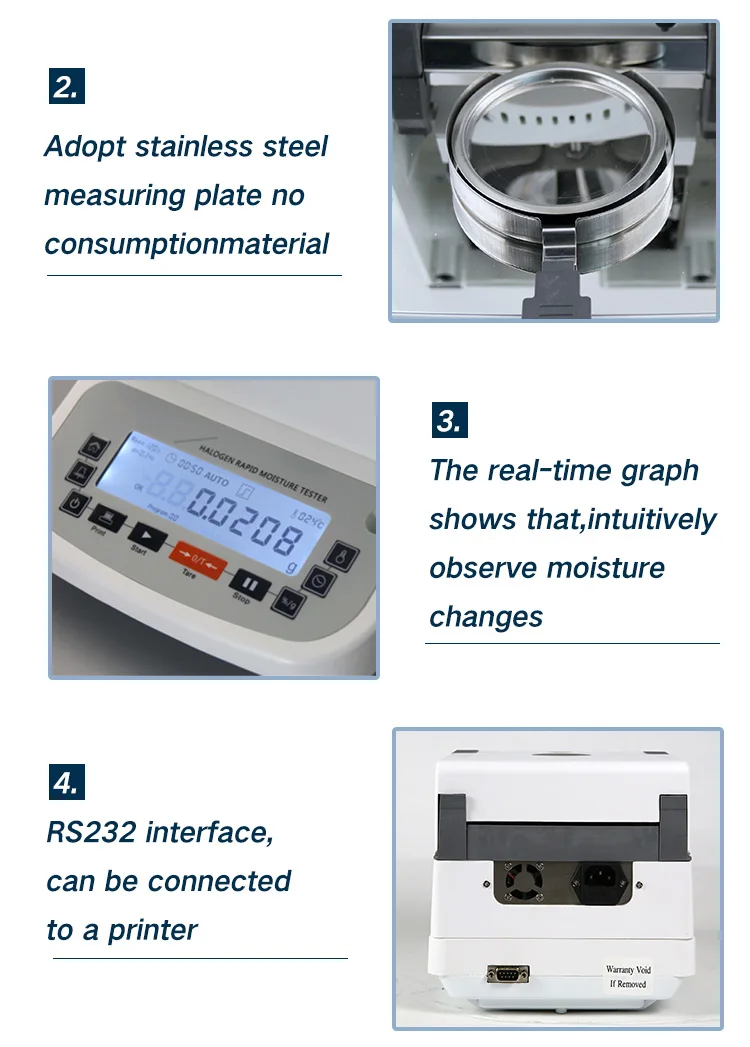

4. Well-designed and unique temperature-controlled heating system results are more accurate, real-time graph display, visual observation of moisture changes;
5. Equipped with RS232 communication interface, which can be connected to other peripheral devices such as printers and computers.





Technical Parameters
































































































ModelMD-610AMD-720AMD-100A
Weighing Accuracy0.005g0.001g0.0001g
Load cellStrain sensorElectromagnetic force sensor
Moisture readability0.01MC0.01MC0.001MC
Heating temperature range40℃~160℃40℃~160℃40℃~200℃
PrincipleThermal weight loss
Weighing Range120g
Calibration MethodExternal weight calibration (100g weight)

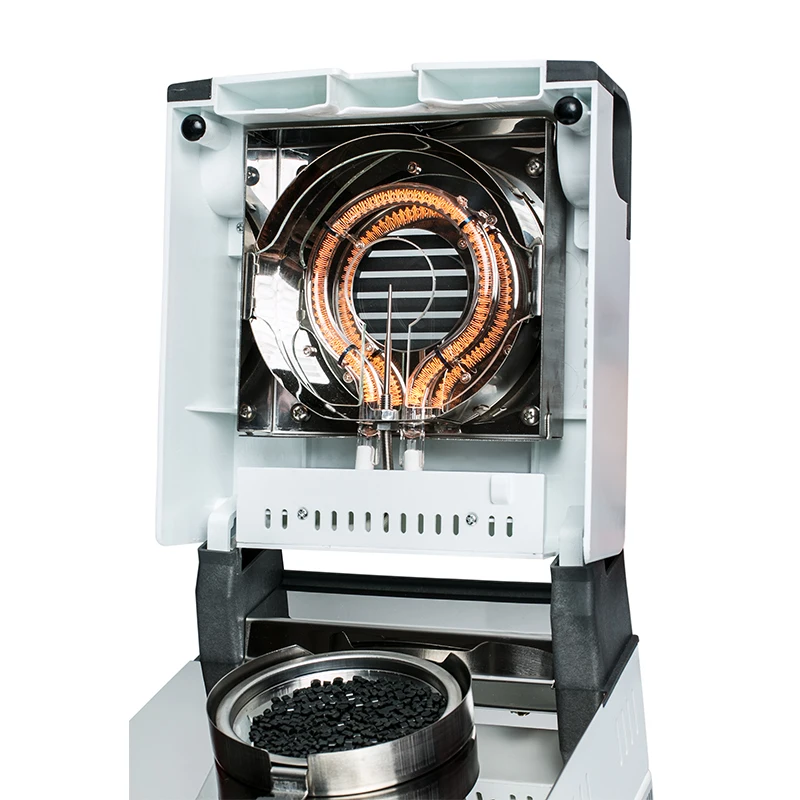

Heating MethodRing halogen lamp heating
Heating Power500W
Temperature readability1℃
Temperature SensorHigh-precision ultra-fine platinum and rhodium temperature sensor
Display ModeMoisture content, solid content, drying rate, weight after drying, moisture regain, real-time temperature, graph
Shutdown ModeAutomatic, timing, manual
Time Setting0~99 minutes (1 minute interval)

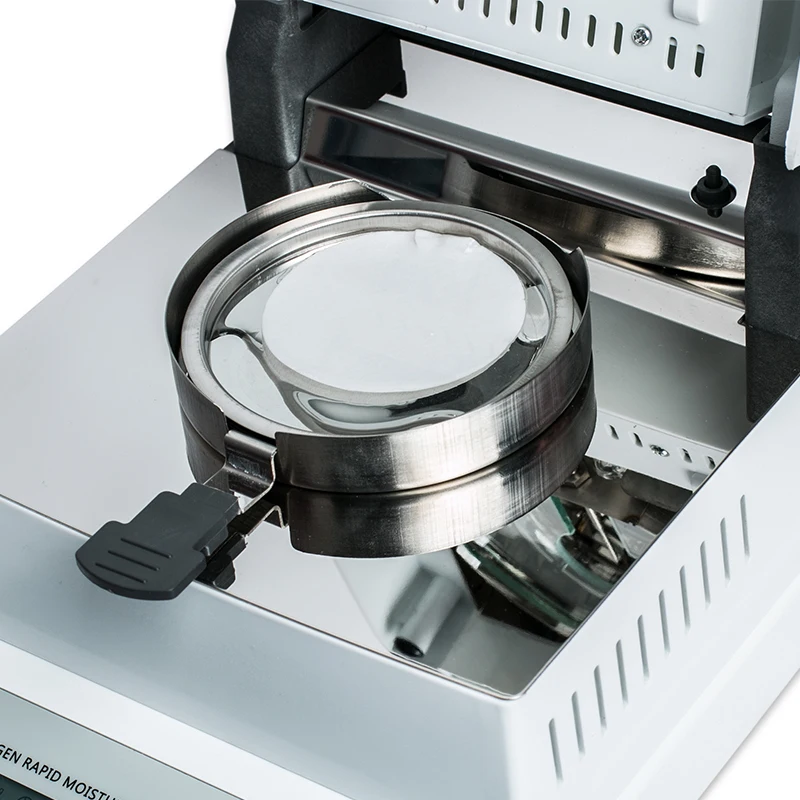

Sample PanØ102mm stainless steel
Communication InterfaceThermal printing (directly print out the moisture value and solid content)
Standard RS232 communication interface, which can be connected to PC, printer and other peripheral equipment
Voltage220V,50Hz/110V,60Hz
Size310*200*205mm
Weight3.5kg4.3kg4.3kg

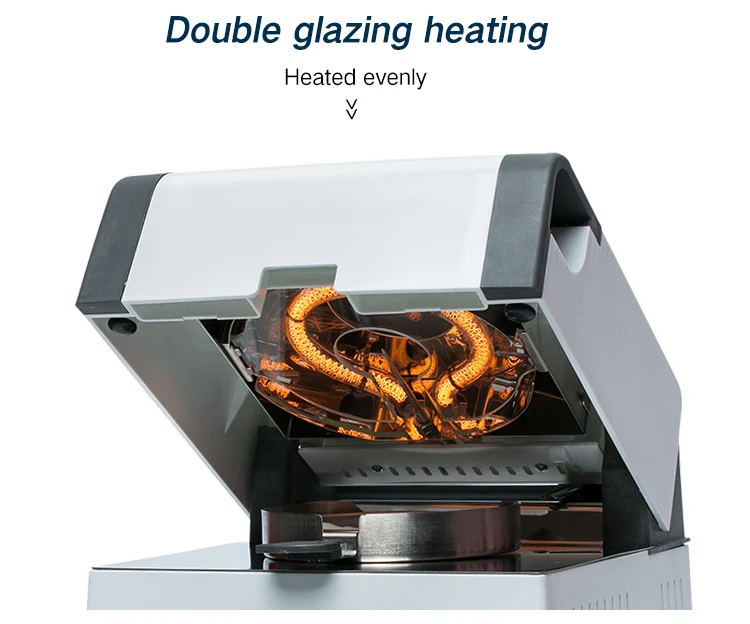

moisture meter tester .jpg

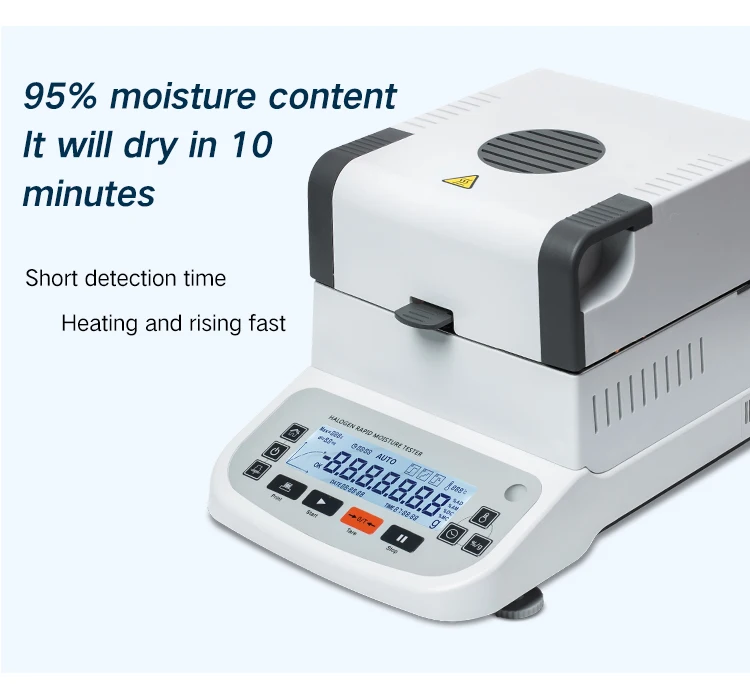

dry fruit moisture meter .jpg









Company Information







FAQ


1. How long is the delivery time?
Normally goods will be shipped out within 3 - 7 days after payment.





2. Is it possible to make our own brand/logo on your product?
Yes, but depends on MOQ.





3. What's your MOQ?
This depends on different types of products. If it is a large machine, the MOQ is usually 1 set.





4. What about the warranty with after - sales services?
12 months warranty.
After the warranty, the professional after-sales service team will provide comprehensive technical support to help customers solve problems encountered when using our products, and promptly handle customer problems and complaints.





5. How to install and use the product?
The product is shipped with an operating instructions of English version. We also can provide installation video with English subtitles.
