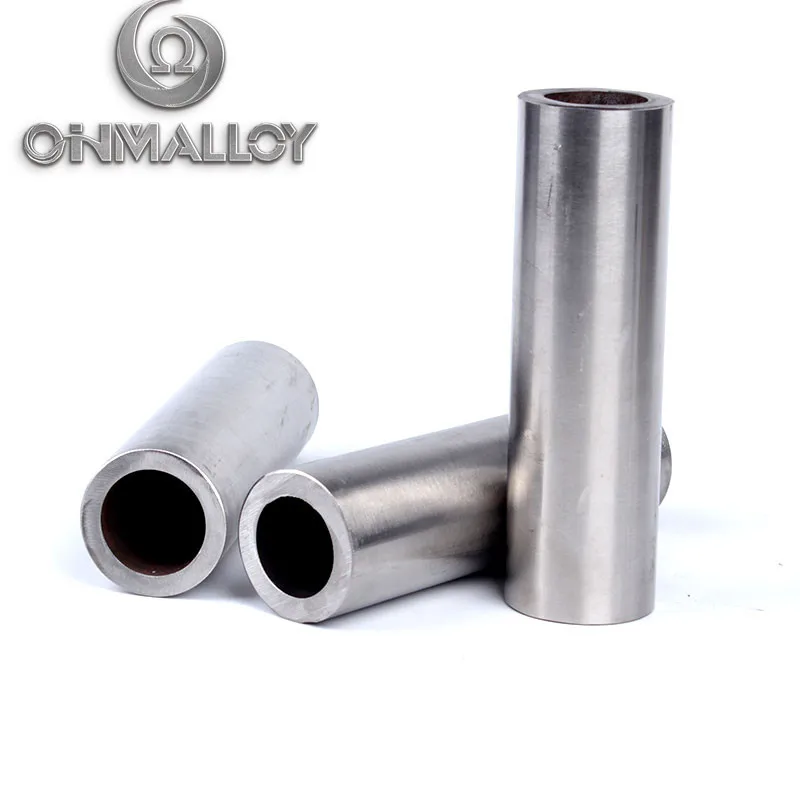

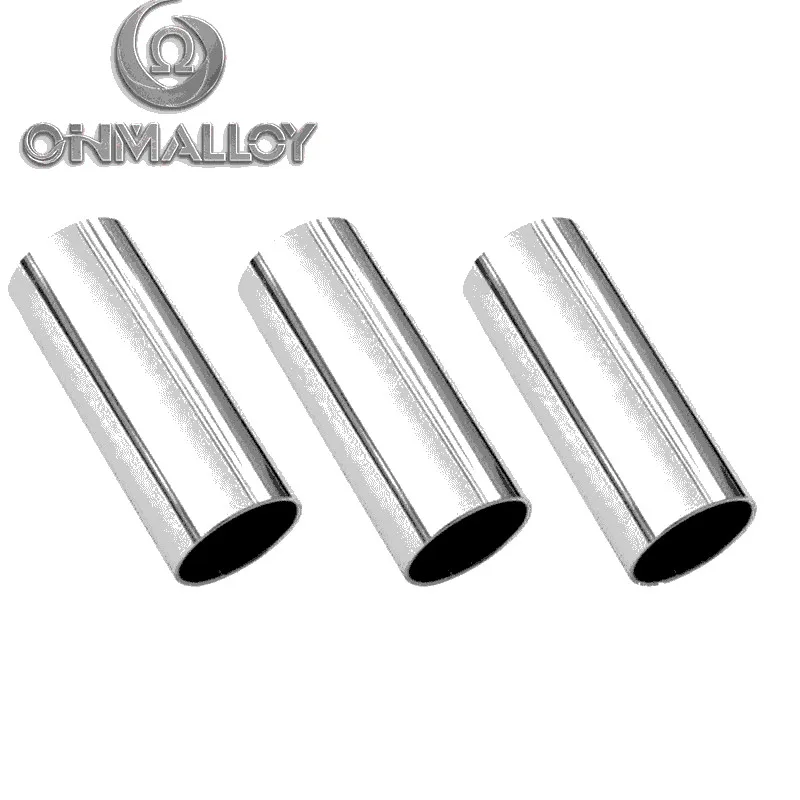

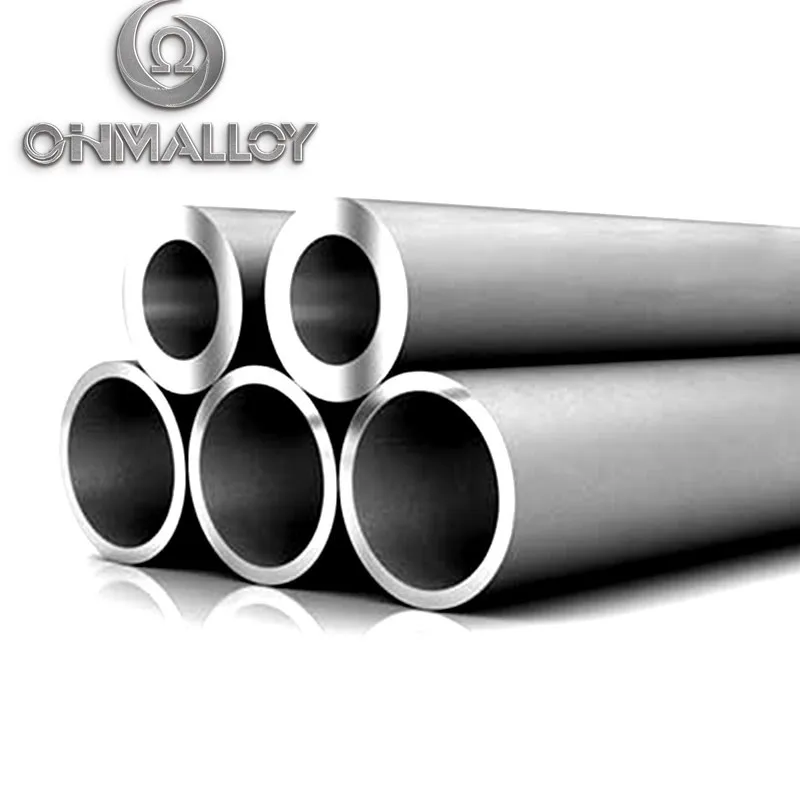

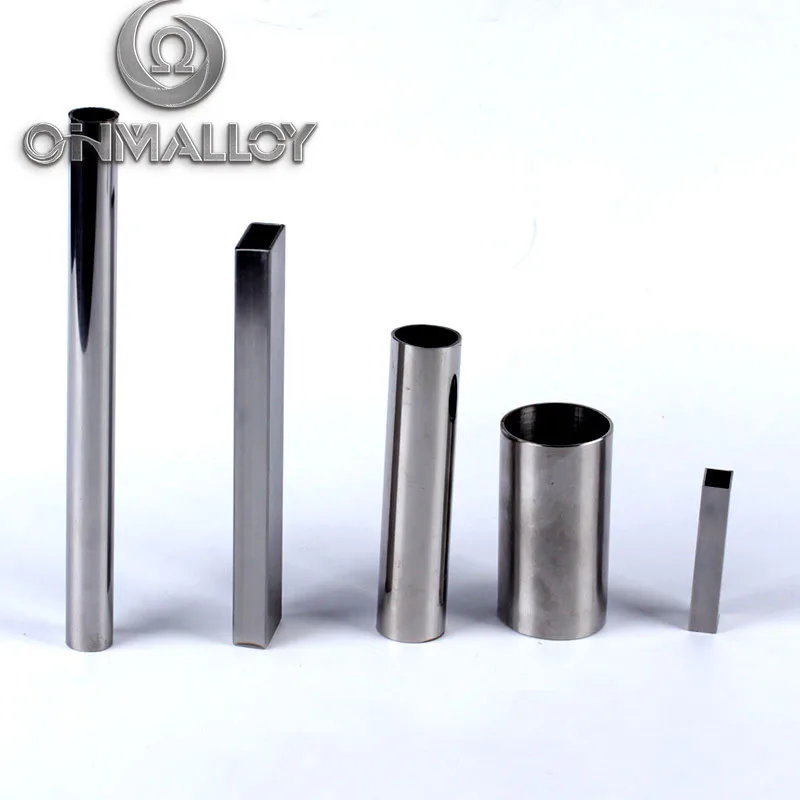

Standard ASTM B 160 B 163 Pure Nickel Capillary Tube
- Category: >>>
- Supplier: Ohmalloy Material (Shanghai) Co. Ltd.
Share on (1600501016967):
Product Overview
Description
Standard ASTM B161 Size:5mmx0.5mm Pure Nickel Capillary ASTM B 160 - B 163
Product Description
Specifications of Nickel Pipe
Item Name | Nickel pipe NI201 N4 UNS N02200 high quality pure nickel tube |
Grade | UNS NO2200, UNS NO2201, N4, N5, N6, N7, N8 |
Standard | ASTM B161 B163 |
Dimension(MM) | OD1-35mm,ID0.3-34mm L:500~1500mm |
Inspection Equipment | Nondestructive Tester; UT Testing Detector; Tensile Tester Digital Ultrasonic Detector; Infrared Tester; HV Hardness Tester |
Applications of Nickel Pipe
1)It has high power vacuum performance,good corrosion resistance ,oxide cathode tube
can be used as a core.
2)70% Ni was used in produce stainless steel and heat resistance steel
3)15% of the Ni in the world was used as electroplating.
4)Used as catalyst in oil industry
5)Ni is one of the chemical source of energy ,the need material for battery
6)Used to make pigment,dye,ceramic,and ferrite.
Advantages of Nickel Pipe
1.Highly polished 2.Anti-corrosion 3.Good plasticity 4.Resistance to alkali
5.OEM manufacturer
Chemical compositions of Nickel Pipe
GRADE | Element Composition/% | ||||||
Ni+Co | Mn | Cu | Fe | C | Si | S | |
Ni201 | ≥99.0 | ≤0.35 | ≤0.25 | ≤0.30 | ≤0.02 | ≤0.3 | ≤0.01 |
Ni200 | ≥99.0 | ≤0.35 | ≤0.25 | ≤0.30 | ≤0.15 | ≤0.3 | ≤0.01 |
N4 | ≥99.9 | ≤0.002 | ≤0.015 | ≤0.04 | ≤0.01 | ≤0.03 | ≤0.001 |
N6 | ≥99.5 | ≤0.05 | ≤0.10 | ≤0.10 | ≤0.10 | ≤0.10 | ≤0.005 |
Features
1) Well mechanical and physical properties of the material quality
2) Has a high melting point., with good corrosion-resistance
3) With efficient hot intensity
Packaging & Shipping
Testing Equirement
FAQ
Kovar Tubes
1. Q: Where is your factory located? How can I visit there?
A:Our factory is located in Shanghai, China.
All our clients from all over the world , are warmly welcome to visit us! we will pick you up.
2.Q: Where is your raw material comes from?
A: Raw material comes only from suppliers who are top-1 class steel in China.
Good product is originates from the accurate control of the quality of the steel.
3. Q: How can I get some samples?
A: We are honored to offer you samples.
4.Q: How does your factory do regarding quality control?
A. Quality is priority. We always attach great importance to quality controlling from beginning to end.
