Pressure Steam Sterilizer Double Doors Large Steam Autoclave 300 Litres
- Category: >>>
- Supplier: Weigao Medical International Co. Ltd.
Share on (1600501022942):
Product Overview
Description
Performance Parameters
Model | Chamber volumn | Chamber dimension | Overall dimension | Net weight | Water consumption | Steam consumption | Power (Kw) |
MSG.B(120L) | 120 | 450×450×600 | 956×1000×1700 | 350 | 100 | 10 | 12 |
MSG.B(150L) | 150 | 450×450×750 | 1106×1000×1700 | 420 | 115 | 12 | 15 |
MSG.B(180L) | 180 | 450×450×900 | 1256×1000×1700 | 500 | 125 | 15 | 22 |
MSG.B(240L) | 240 | 550×550×800 | 1156×1300×1800 | 720 | 140 | 17 | 22 |
MSG.B(300L) | 300 | 550×550×1000 | 1356×1300×1800 | 850 | 160 | 19 | 30 |
MSG.B(360L) | 360 | 610×610×1000 | 1356×1350×1980 | 950 | 160 | 19 | 30 |
MSG.B(400L) | 400 | 652×700×900 | 1356×1350×1980 | 960 | 200 | 22 | 30 |
MSG.B(450L) | 450 | 652×700×1000 | 1356×1350×2100 | 980 | 200 | 22 | 30 |
MSG.B(600L) | 600 | 652×700×1320 | 1676×1350×2100 | 1060 | 300 | 31 | 60 |
MSG.B(650L) | 675 | 652×700×1480 | 1836×1350×2100 | 1200 | 340 | 36 | 60 |
MSG.B(800L) | 800 | 652×700×1750 | 2156×1350×2100 | 1380 | 450 | 47 | 60 |
Item | Chamber | Jacket | |||||
Designed Pressure | 0.1~0.3 Mpa | 0.3 Mpa | |||||

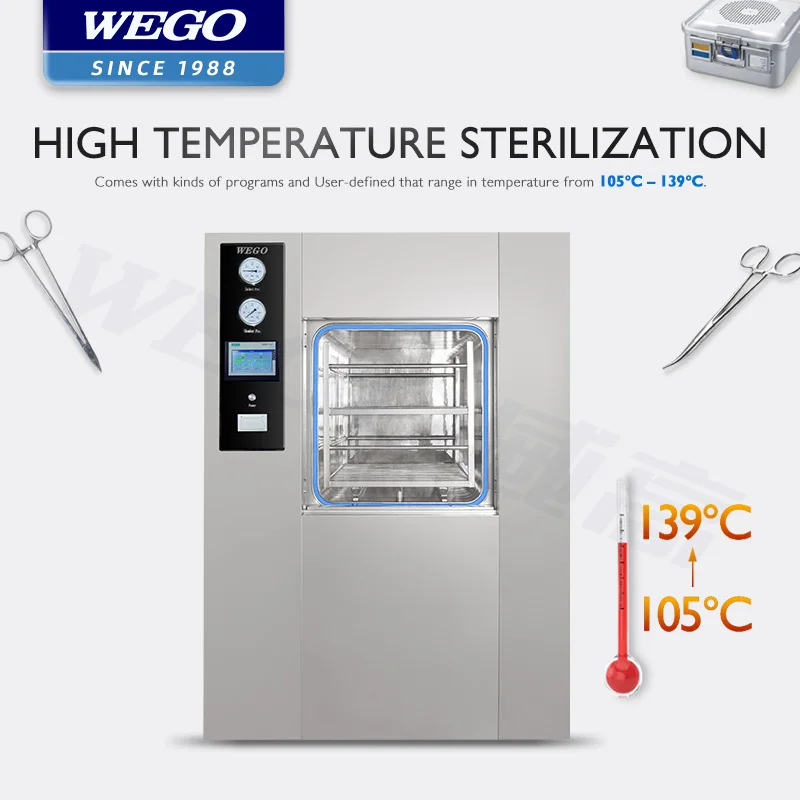

Designed temperature | 150 ℃ | 150 ℃ | |||||
Max.working pressure | 0.25 Mpa | 0.25 Mpa | |||||
Max.working temperature | 139 ℃ | 139 ℃ | |||||
Safety valve opening pressure | 0.28 Mpa | 0.28 Mpa | |||||
Test pressure | 0.4 MPa | 0.5 MPa | |||||
Vapour pressure | 0.3MPa～0.5MPa | ||||||
Water source pressure | 0.15～0.3Mpa | ||||||
Compressed air source | 0.5～0.7MPa | ||||||
Pulsation times range | 0～99 times | ||||||
Sterilization time range | 0～99 times | ||||||
Drying time range | 0～9999 seconds | ||||||
