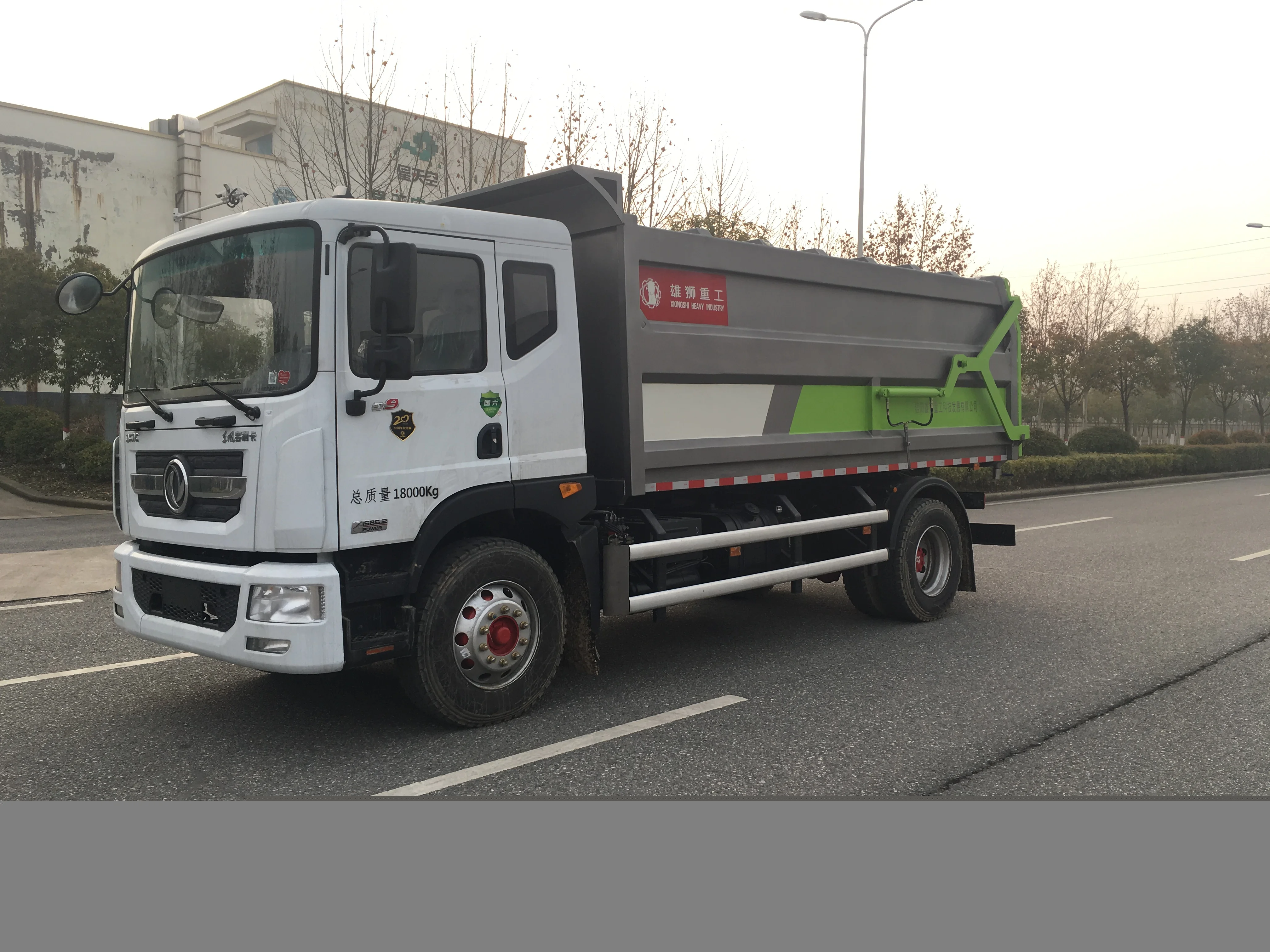

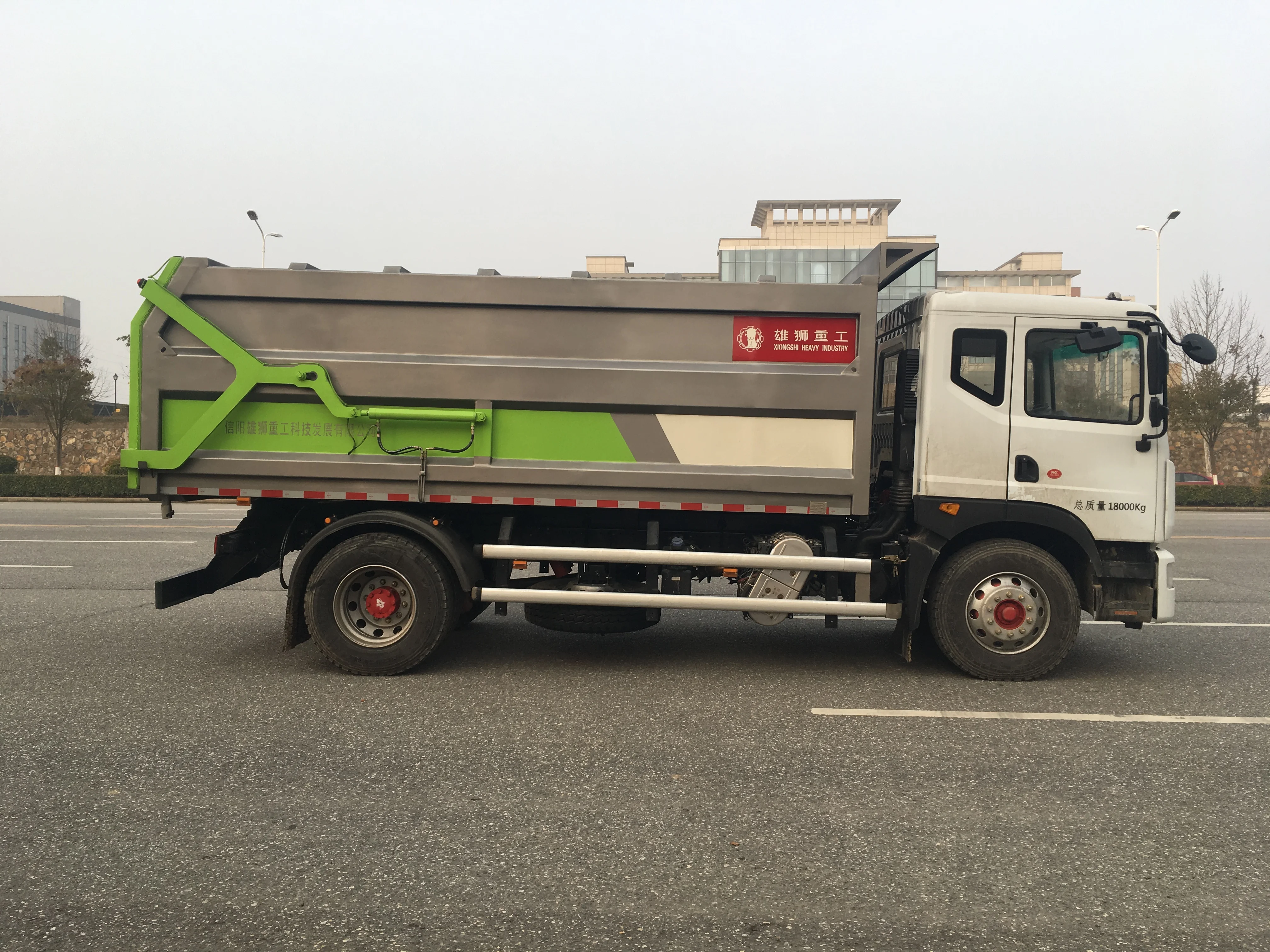

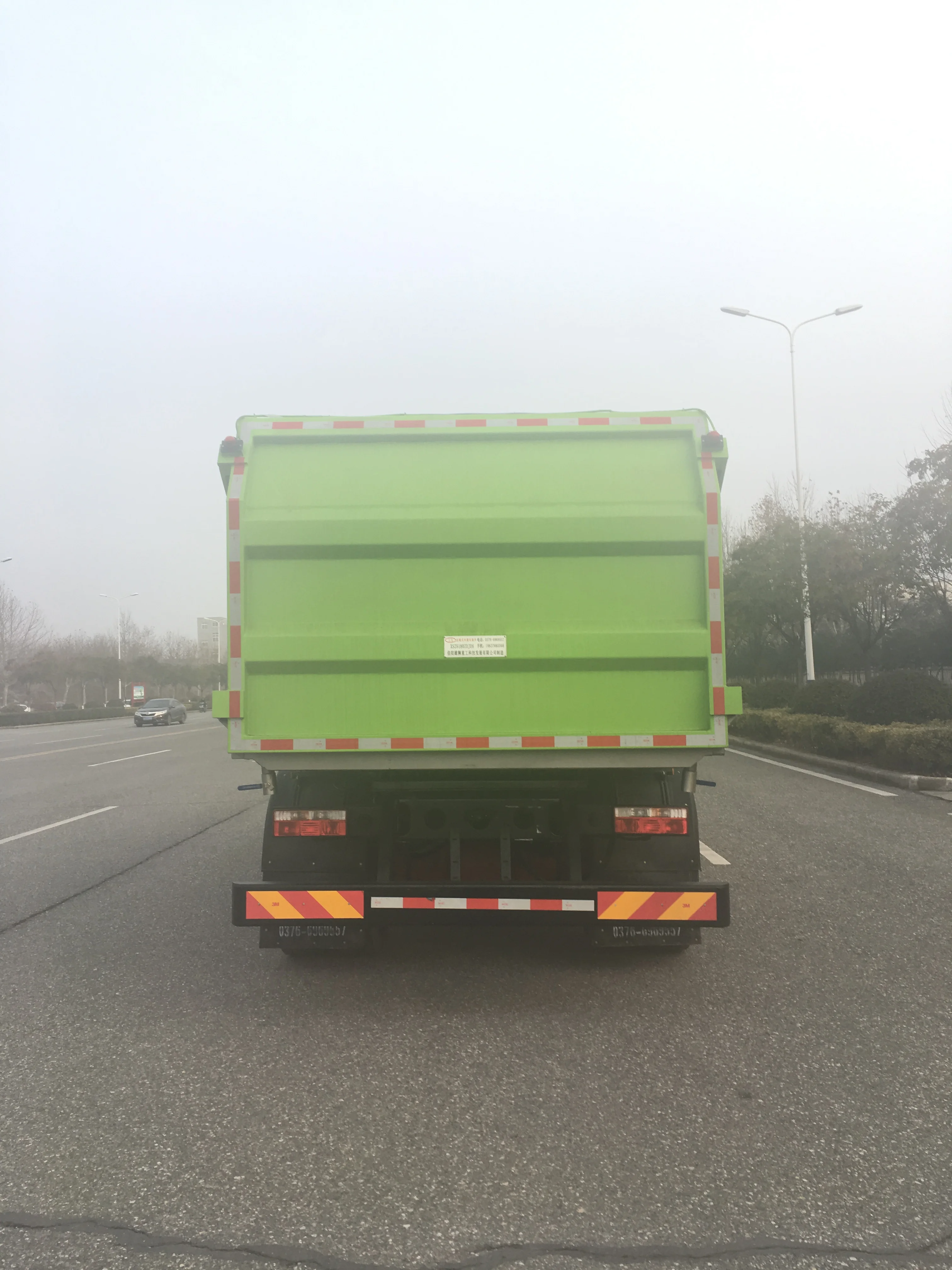

Colors design dongfeng kangmingsi B6 large scale compression docking refuse collector 15 cbm municipalities lift garbage truck
- Category: >>>
- Supplier: Xinyang Xiongshi Heavy Industry Technology Development Co. LTD
Share on (1600501027896):
Product Overview
Description
Product Overview
Colors design dongfeng kangmingsi B6 large-scale compression docking refuse collector 15 cbm municipalities lift garbage truck
Product Characteristics:1. High accessories configuration: imported famous brand hydraulic original, easy to operate, reliable work.
2. The humanized design is adopted, the whole action of unloading can be completed in the cab, and the back door is hydraulic controlled rotary self-unloading door.

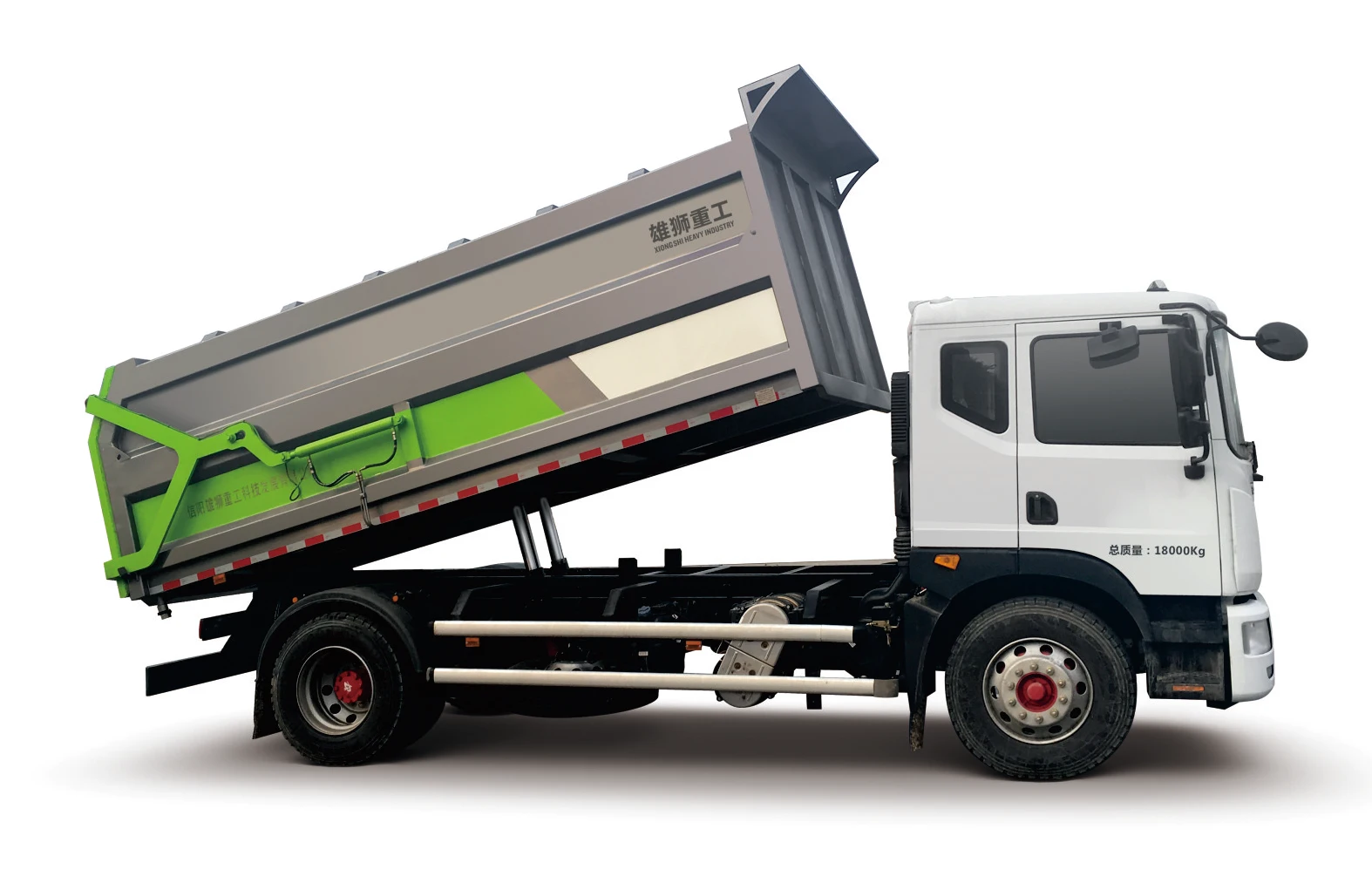

3. Tilting unloading method, simple structure, quick unloading, clean, simple and comfortable operation. The container can be lifted and unloaded, and the unloading working time is less than or equal to 60s.

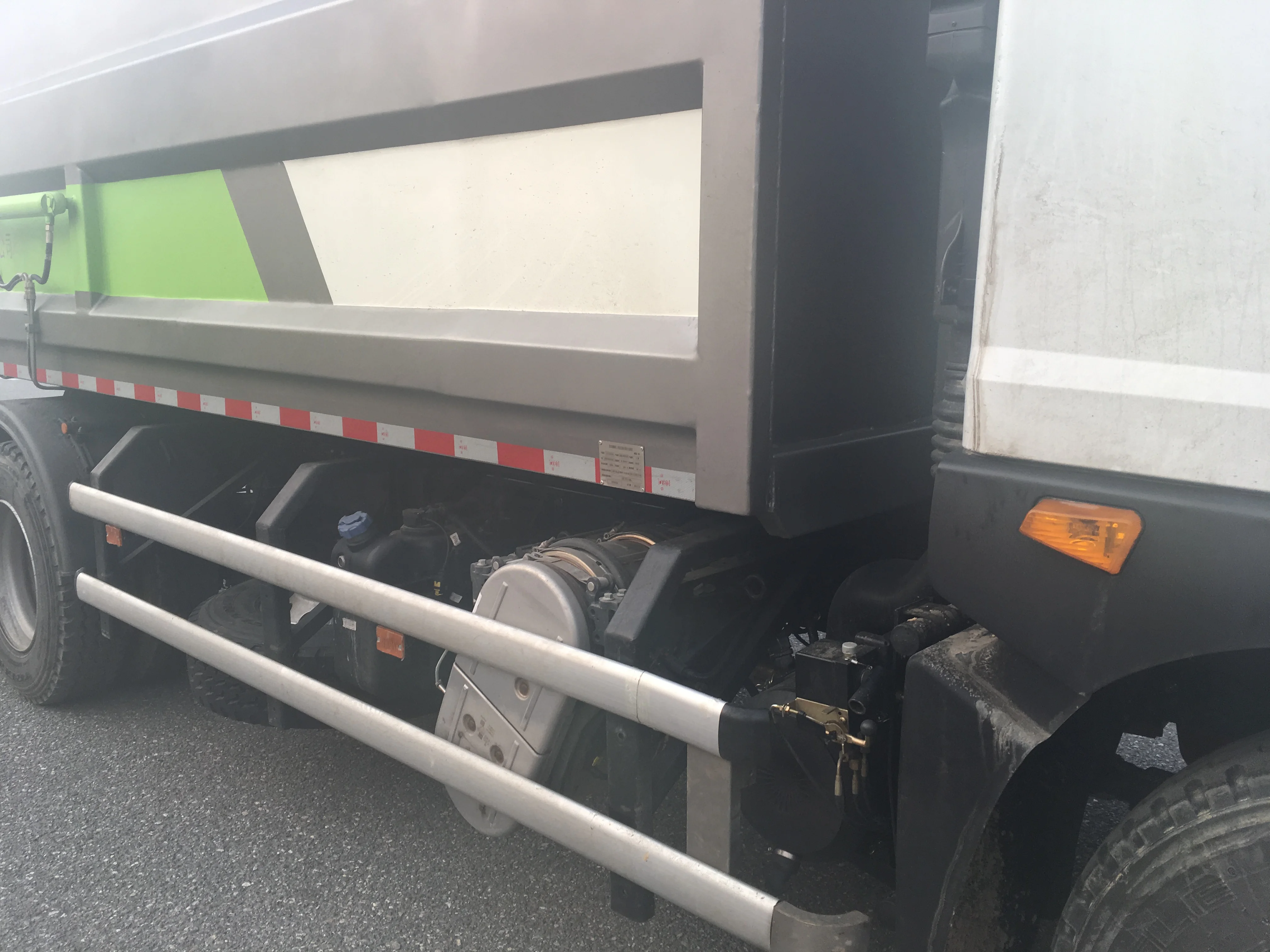

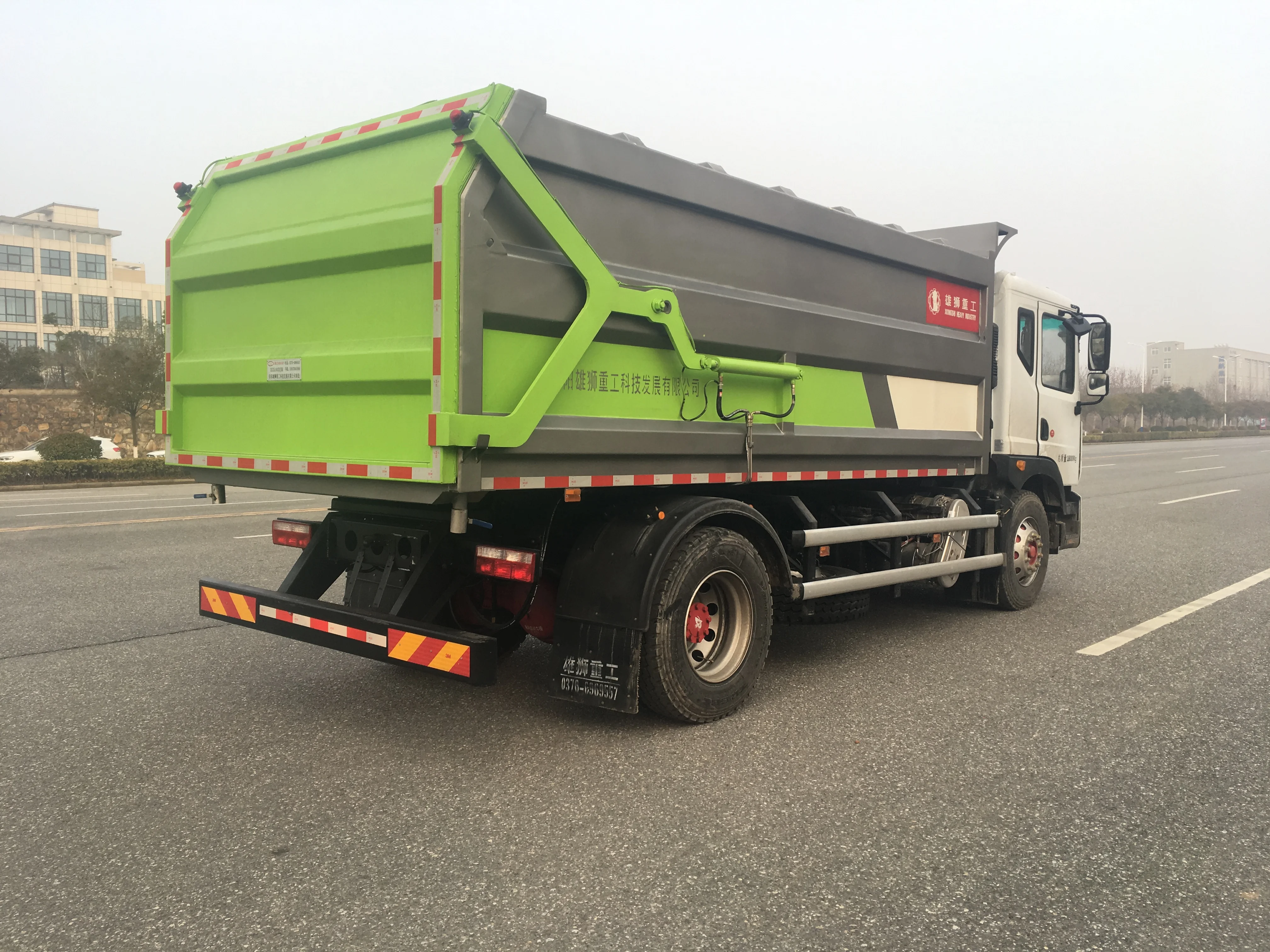

4. Strong sealing, anti-secondary pollution: the compartment is fully enclosed compartment, with sewage collection box installed at the bottom, to prevent sewage leakage, to ensure that there is no secondary pollution in the transportation process; Sealed back door, the back door adopts full hydraulic control, the back of the box is sealed with rubber strip, garbage and sewage in the transfer process without leakage.
5. Double layers and multi-stage oil cylinders are used for container tipping, and the unloading door adopts the latest domestic technology and arc transition.
6. Supporting and docking with the sanitation waste compressor, it can realize one car and multiple stations, greatly reducing the cost and space of equipment, and the container can be lifted and unloaded.
2. The humanized design is adopted, the whole action of unloading can be completed in the cab, and the back door is hydraulic controlled rotary self-unloading door.
3. Tilting unloading method, simple structure, quick unloading, clean, simple and comfortable operation. The container can be lifted and unloaded, and the unloading working time is less than or equal to 60s.
4. Strong sealing, anti-secondary pollution: the compartment is fully enclosed compartment, with sewage collection box installed at the bottom, to prevent sewage leakage, to ensure that there is no secondary pollution in the transportation process; Sealed back door, the back door adopts full hydraulic control, the back of the box is sealed with rubber strip, garbage and sewage in the transfer process without leakage.
5. Double layers and multi-stage oil cylinders are used for container tipping, and the unloading door adopts the latest domestic technology and arc transition.
6. Supporting and docking with the sanitation waste compressor, it can realize one car and multiple stations, greatly reducing the cost and space of equipment, and the container can be lifted and unloaded.
PRODUCT SPECIFICATIONS
No | Item | Data | Item | Data |
1 | Dimensions(mm) | 7040,7590*2500*3150 | Lifting Time(s) | 18 |
2 | Wheelbase(mm) | 4500,3950 | Down Time(s) | 17 |
3 | Gross Mass(KG) | 18000 | Min Ground Clearance(mm) | 240 |
4 | Unladen Mass(KG) | 8360 | Max Speed | 105km/h |
5 | Rated Contained Mass(KG) | 9445 | Chassis Models | DFEQ1185LJ9CDE |
6 | Overhang F/R(mm) | 1260/1830 | Engine Model | kangmingsi B6.2NS6B210 |
7 | Hopper Volume(m³) | 15 | Bridge configuration | Air Conditioner |
8 | Hydraulic Pressure System Operating Pressure （MPa） | 16 | Tyre Size | 10.00r20,275 |
9 | Control Method | Electric Control + Manual | Approach/Departure Angle | 19°/14° |
10 | Minimum Turning Diameter(m) | 16 | F/R Tread(mm) | 1260/1830 |
SIMILAR PRODUCTS
Why Choose Us
We are professional manufacturer of special trucks,provide different kinds of garbage trucks, customized as customer's
requirements.
(1). Capacity: option 3-25 m³ garbage truck.
(2). Steering wheel: both left and right hand drive,meet the needs of different countries.
(3). Emission standard: option Euro 1,Euro 2,Euro 3,Euro 4,Euro 5,Euro 6 garbage trucks.
(4). Truck chassis: option japan and china brand.

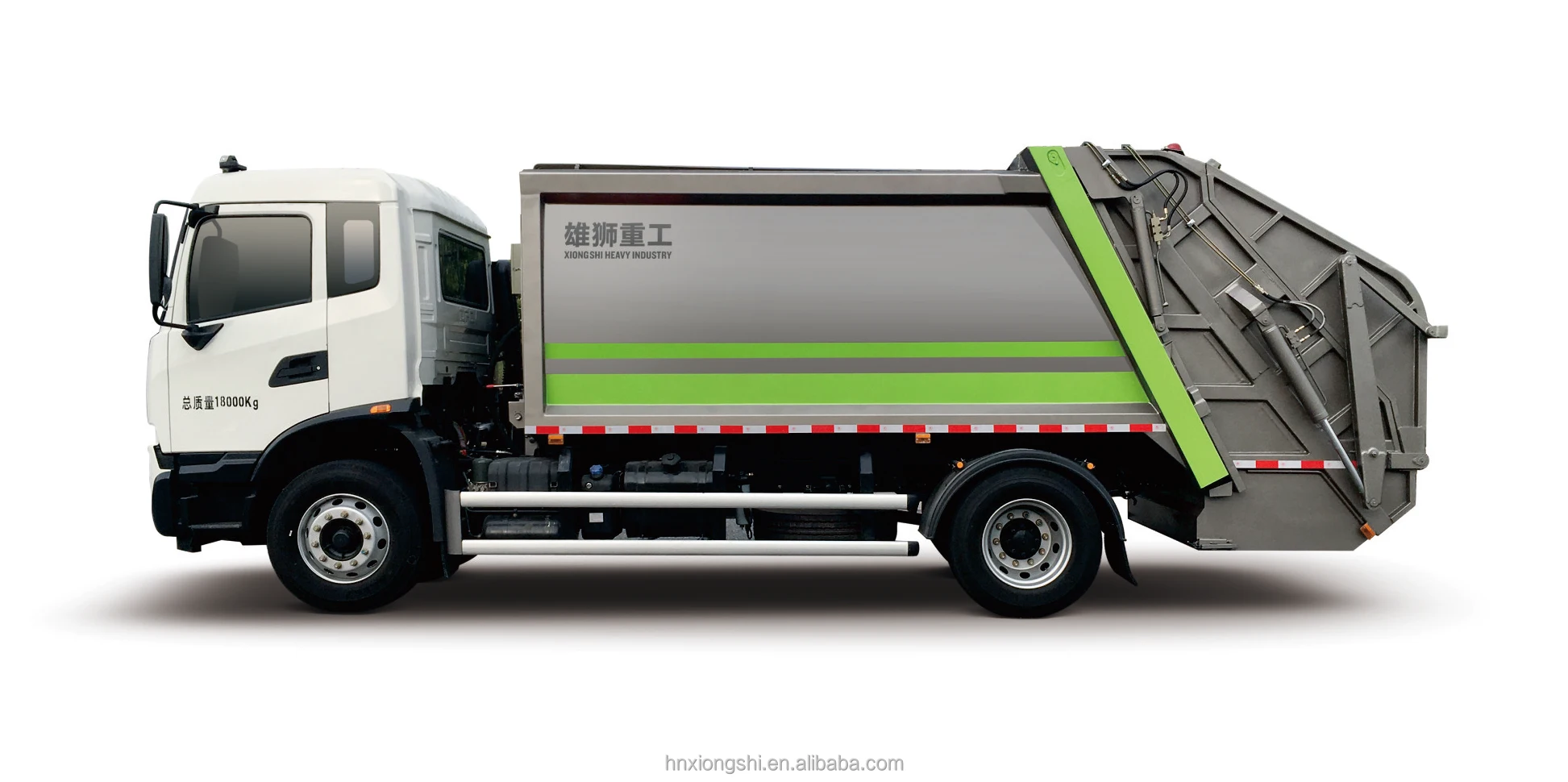

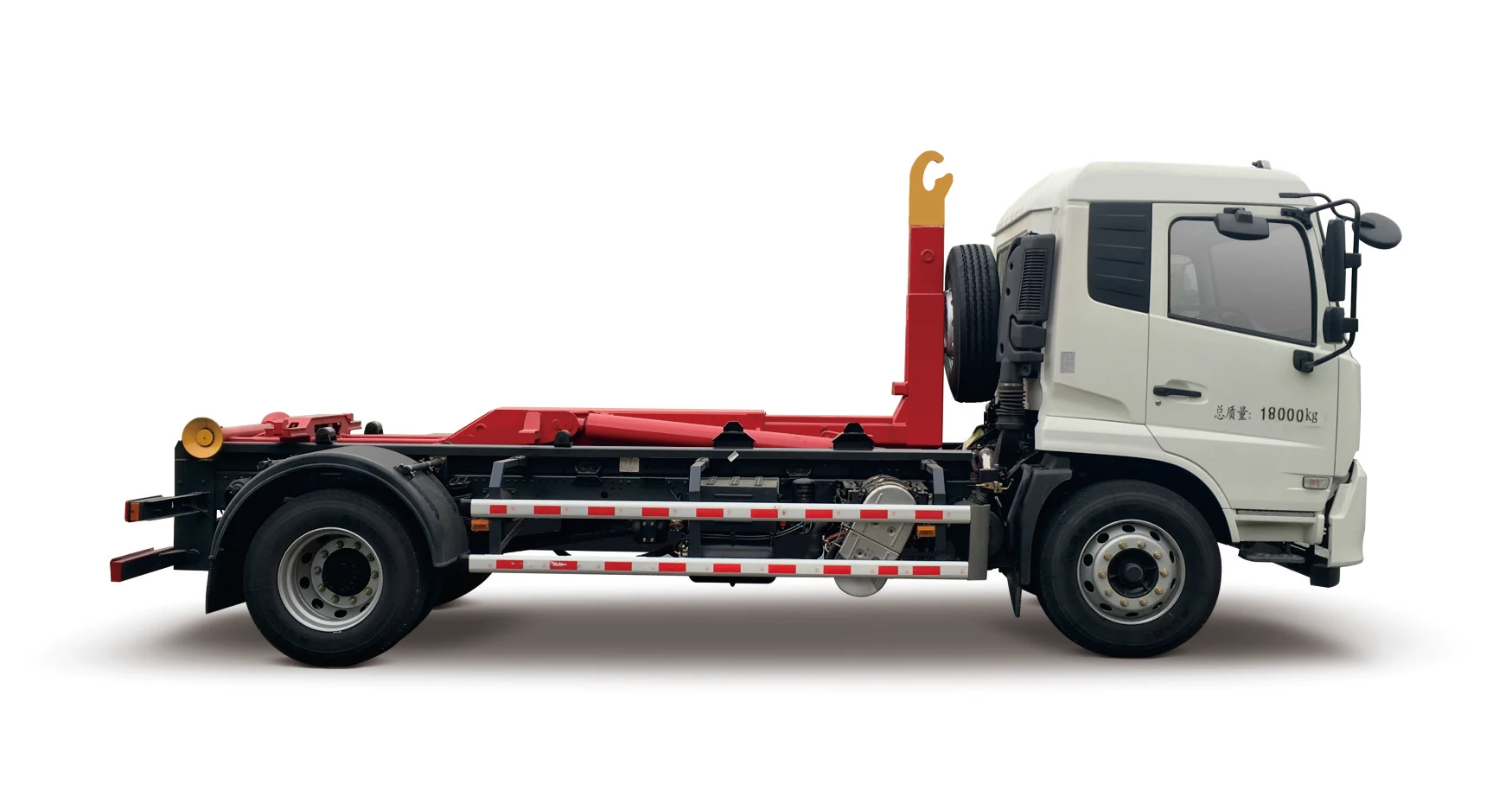

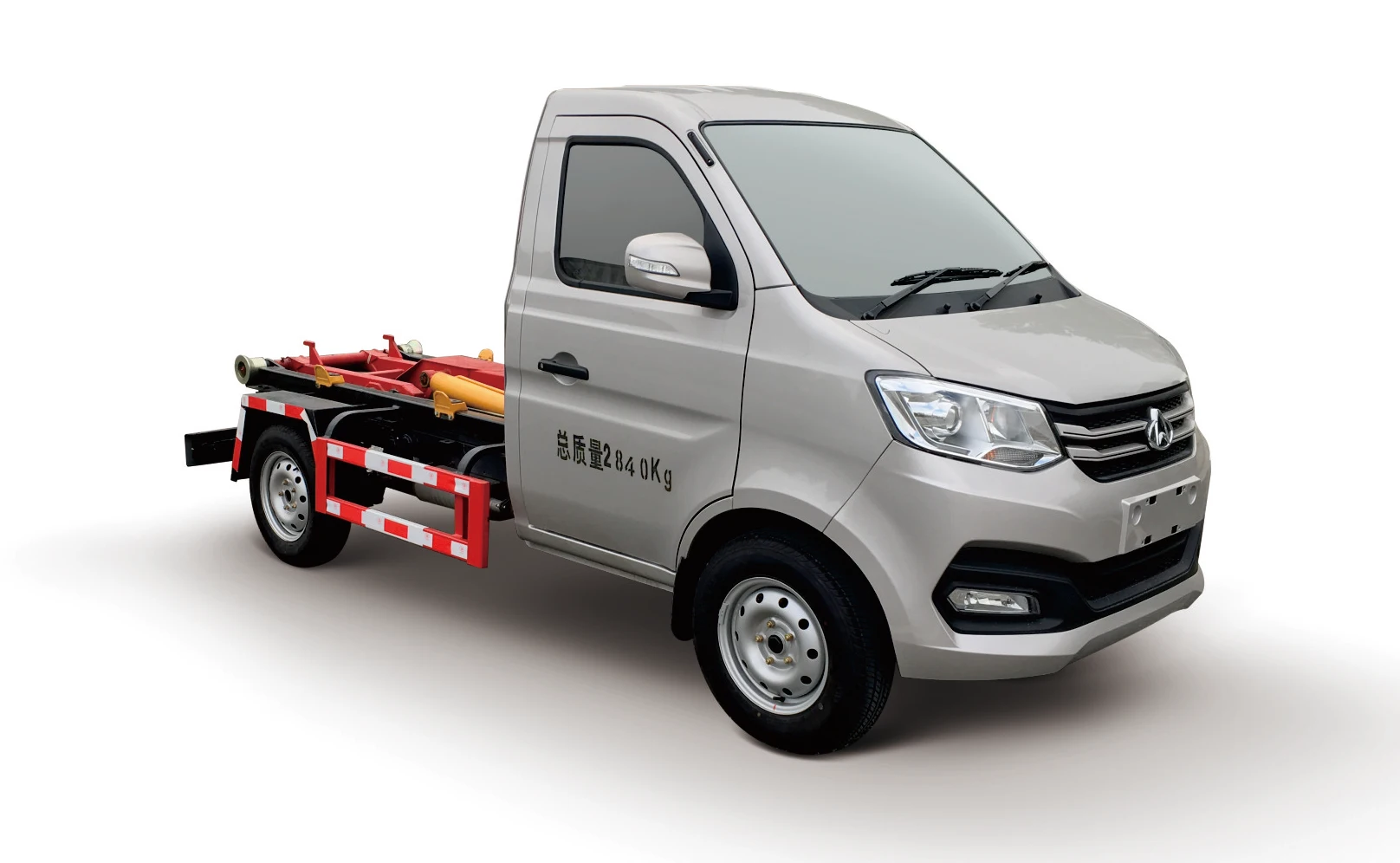

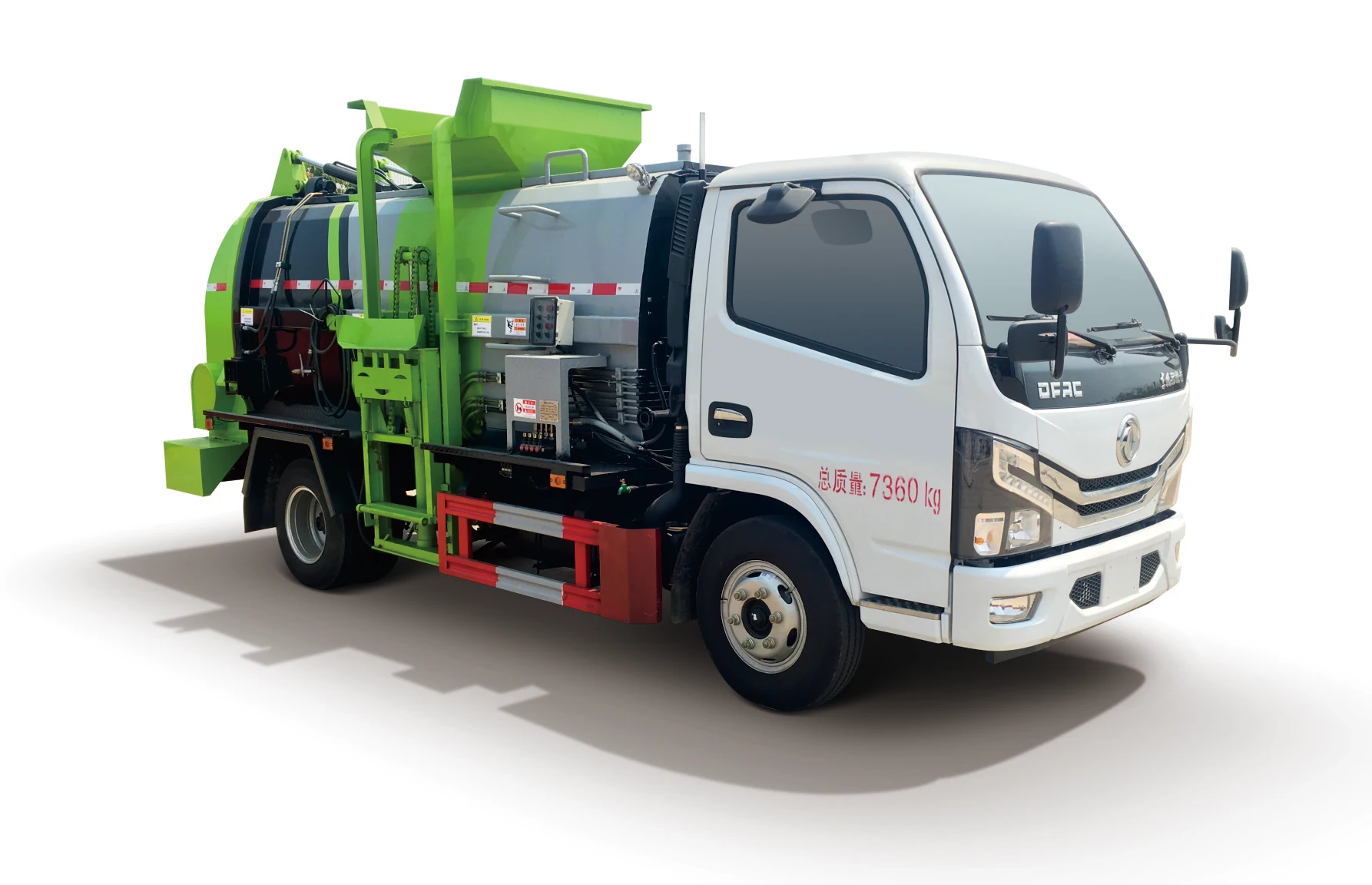

Garbage truck is divided into hanging garbage truck, compression docking garbage truck, carriage unloading garbage truck,compression garbage truck, kitchen garbage truck.
requirements.
(1). Capacity: option 3-25 m³ garbage truck.
(2). Steering wheel: both left and right hand drive,meet the needs of different countries.
(3). Emission standard: option Euro 1,Euro 2,Euro 3,Euro 4,Euro 5,Euro 6 garbage trucks.
(4). Truck chassis: option japan and china brand.
Garbage truck is divided into hanging garbage truck, compression docking garbage truck, carriage unloading garbage truck,compression garbage truck, kitchen garbage truck.
Customize garbage trucks,please contact Zoe's WeChat and WhatsApp: 0086-18790149285.
