Product Overview
Description
ZHEJIANG OYAD PUMP CO.,LTD

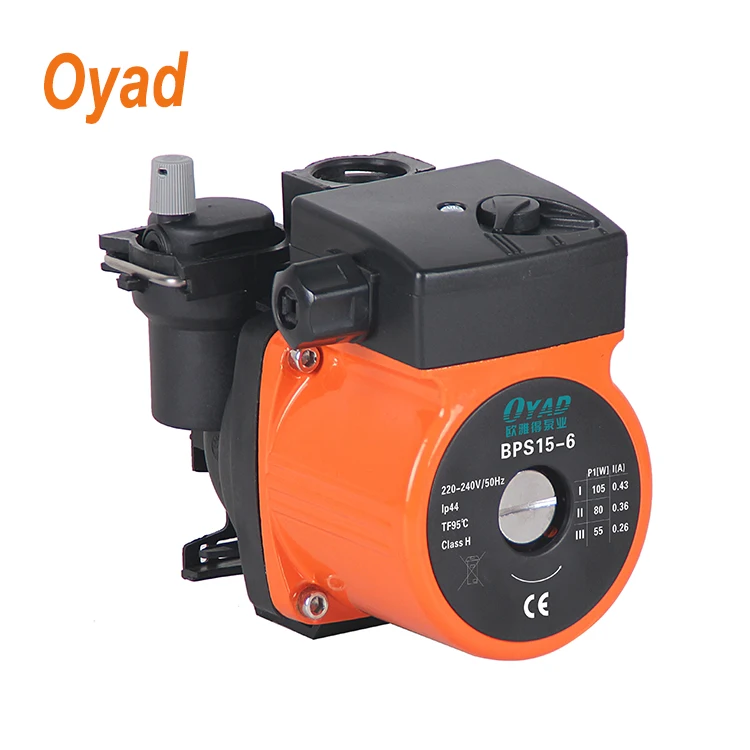

MODEL :wall hanged mounted gas boiler water circulation pump
BSP15-5 BSP15-6
| MODEL | Power | Voltage | Frequence | Input&outlet | Max Head | Max Capacity |
| W | V | Hz | Inch | M | L/Min | |
| BPS15-5 | 105 | 220-240V | 50Hz | 3/4" | 5 | 25 |
| 80 | 4 | 20 | ||||
| 55 | 2 | 17 | ||||
| BPS15-6 | 105 | 220-240V | 50Hz | 3/4" | 6 | 30 |
| 80 | 5 | 25 | ||||
| 55 | 3 | 20 |
The Technical data:
1.Fluid temeprature range:-10℃ to 110℃
2.Max.working pressure:10bar
3.Max Permissible ambient temperature:+40℃
Motor data:
1.degree of protection:IP42
2.Insulating class:F
3.Ennegy Class:B
4.Noise<45dB
Material for pumps:
1.Ceramic shaft
2. impeller:PP
3.Pump body:Plastic
4.Connectors:cast iron connectors (or brass connectors)
5.100%Copper wire
6.Therminal box:LDPE
7.Rotor:Stainless steel material
8.Bearing:Ceramic
factory
ZHEJIANG OYAD PUMP CO.,LTD is the new company name of Wenling Chentai Pump CO.,LTD.
Histroy:Our company was established in the year of 2006,is specialized in the hot water circulation pump and home use booster pump design ,development ,production and manufacturing enterprises.
Scale: Cover working area of 4000 square meters,have more than 50 employees.
Equipment: Automatic wiring machine for motor parts, Professional test mechine to test every pump.
Production capacity: 30000 pcs/month;
Marketing network: Europe,Asia,America,etc.
Certifications
other pump
Contact factory
FAQ
- Q:Are you a manufactuer or trading company?
A: Yes. We are a professional circulating pump and booster pump factory for more than ten years. - Q: What is your MOQ of this item?
A: 200PCS - Q: What is the lead time?
A: 25-35 days after receiving your L/C or deposit. - Q: Is it all right to make customer's own brand name?
A: OEM is ok. - Q: Where is your Loading Port?
A: Ningbo, China Port. - Q: What are your payment terms?
A: 30% deposit and balance T/T against copy of Bill of Lading or L/C at sight.
