Commercial customize cold storage container fish cold storage room large cold room for meat storage
- Category: >>>
- Supplier: Dongguan Ximaisi Electric Appliance Co. Ltd.
Share on (1600501035728):
Product Overview
Description
Product Type
Combined cold storage
Cold storage panels can be customized to make better use of space. The panels are assembled according to numbers for easy and efficient construction. Suitable for most of the food business needs.
Double temperature cold storage
These refrigerator compartments have independent internal temperature zones and are suitable for storing various foods that require different temperature zones.
size | Size can be customized, according to site and usage demands | ||||||
refrigeration unit | BITZER、BOCK、EMERSON | ||||||
cooling type | Air cooling/water cooling/evaporative cooling | ||||||
Refrigerant | R22, R404a, R447a, R448a, R449a, R507a refrigerants | ||||||
Refrigeration defrost type | Electric defrost | ||||||
Voltage | 220V / 50Hz, 220V / 60Hz, 380V / 50Hz, 380V / 60Hz, 44OV / 60Hz optional | ||||||
panel | Polyester insulation board | ||||||
Panel thickness | 2/3/4/5/6/8 inch | ||||||
type of door | hanging door, sliding door, double swing electric sliding door, truck door | ||||||
room temperature | 0-5°C, -18°c, -30°c, -40°c optional | ||||||
Assembly location | Indoor/Outdoor (Concrete Ten Buildings/Steel Structure Buildings), | ||||||
MOQ | 1 set | ||||||
payment method | T/T ,LC,Trade Assurance,Western Union,Paypal and so on | ||||||
Production lead time | 7-20 days We have stock for regular products, we will conduct product testing before shipment, and holidays will be postponed | ||||||
Shipping method | By sea or air according to your requirements | ||||||
Product Details
Cold Storage is omposed of cold storage panel (PU sandwich panel), cold storage door, condensing unit, evaporator (air cooler),temperature controller, air curtain, copper pipe, expansion valve and other refrigeration accessories.
Cold storage is not a specification product, our accessories are all professional brands. According to your needs, we will design and build a professional cold storage for you.

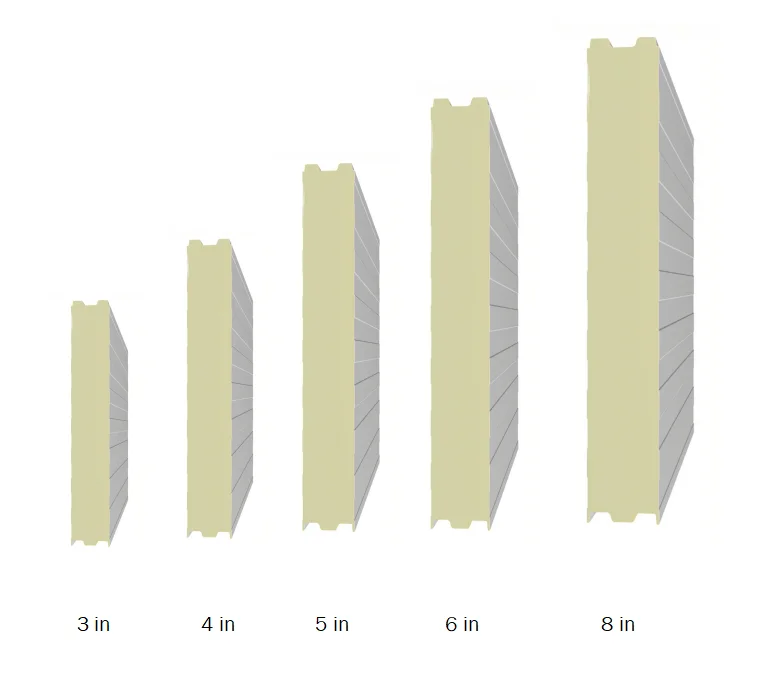

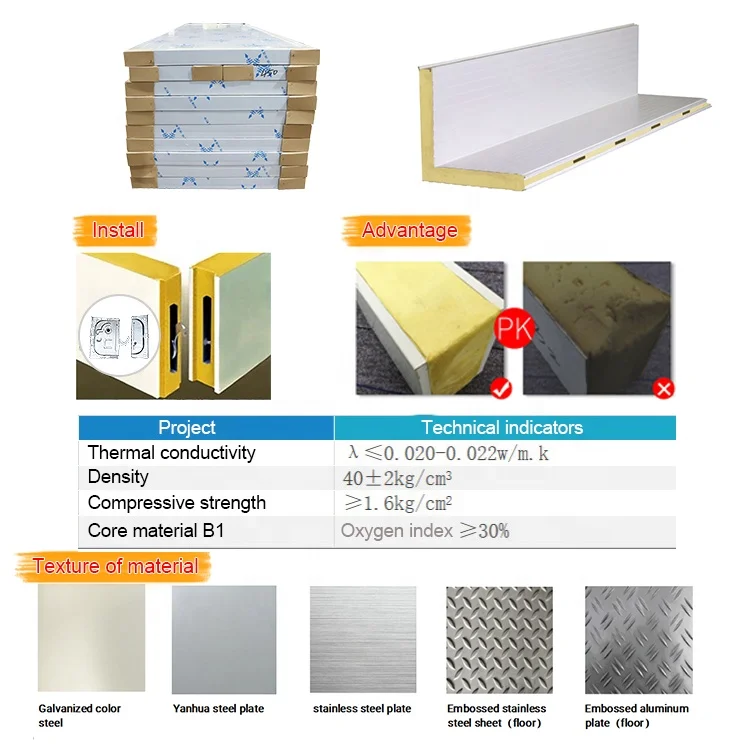

PU Sandwich Panels

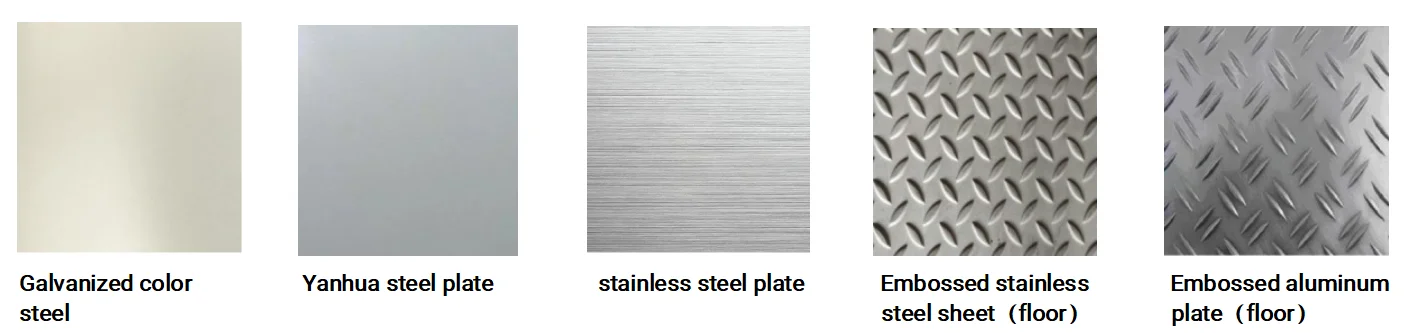

Polyurethane foam is sandwiched between two outer skins, hence the name PU sandwich panel. We manufacture reliable PU sandwich panels in various sizes. These two layers of panels are made of galvanized, galvanized steel, embossed aluminum, stainless steel or other material sheets.
Sheet size, material and style can be customized
Temperature | Polyurethane board thickness | storage product |
+5~-5℃ | 3/4 in | fruit and vegetable |
-5~-15℃ | 4 in | meat, fish, chicken, seafood |
-18~-30°C | 6 in | Frozen for meat, fish, chicken, seafood |
-35~-40°C | 8 in | Frozen meat, fish, chicken, seafood |

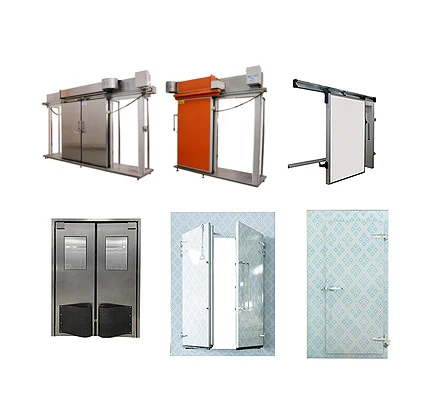

Cold Storage Door
Cold Storage Doors We have different types of cold storage doors such as hinged doors, sliding doors, free doors and other types of doors according to your requirements.
Cold storage area, temperature, cargo, delivery method to choose the right cold storage
Single-open half buried door
Double-open half buried door
single door
freegate
Electric sliding door
Manual sliding door

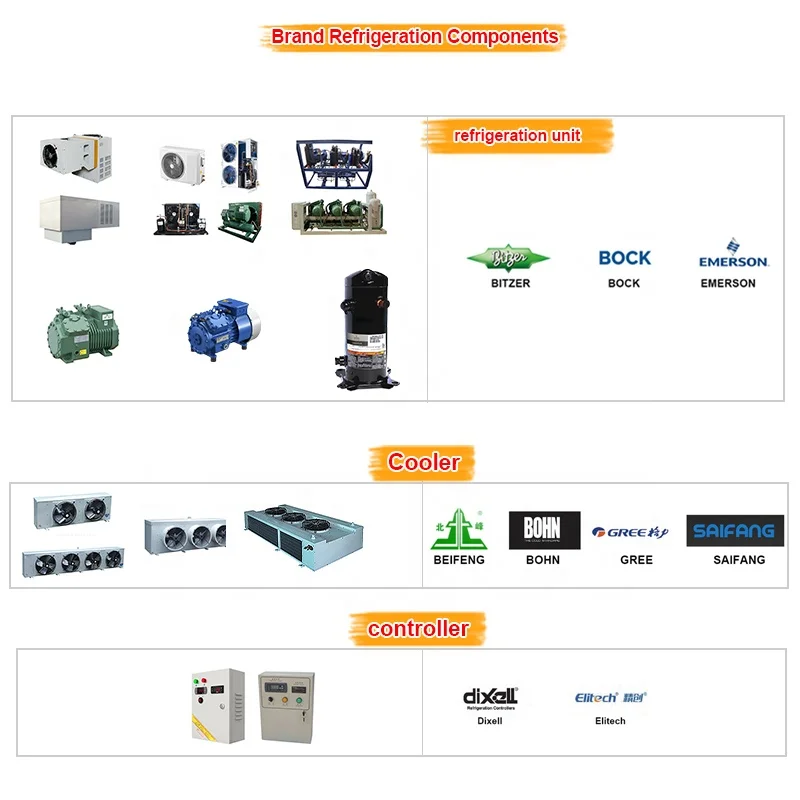

Condensing Unit
Compression condensing unit consists of one or more refrigeration compressors, condensers and necessary auxiliary equipment (excluding evaporators and throttling devices).
The auxiliary equipment that constitutes the device includes gas-liquid separator, oil separator, filter, sight glass, valve, shock absorber, etc.
The auxiliary equipment that constitutes the device includes gas-liquid separator, oil separator, filter, sight glass, valve, shock absorber, etc.
We offer compressors of various brands to meet your cold storage needs.
One-piece condensing unit
Semi-hermetic/Totally-enclosed condensing unit
Parallel Condensing Units
Copeland
BITZER
BOCK
Air Curtain
DD series
DJ series
SDF series

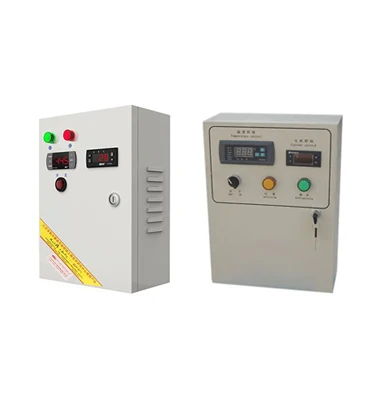

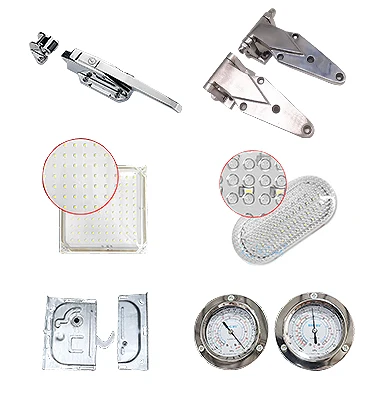

Electric control box & cold storage accessories

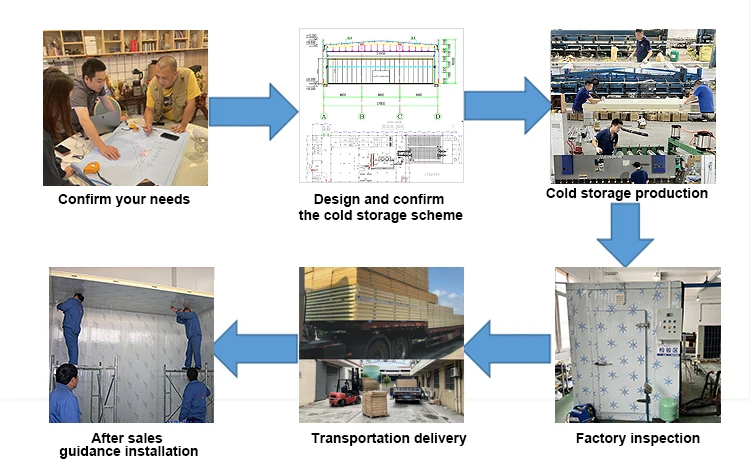

Cooperation Process

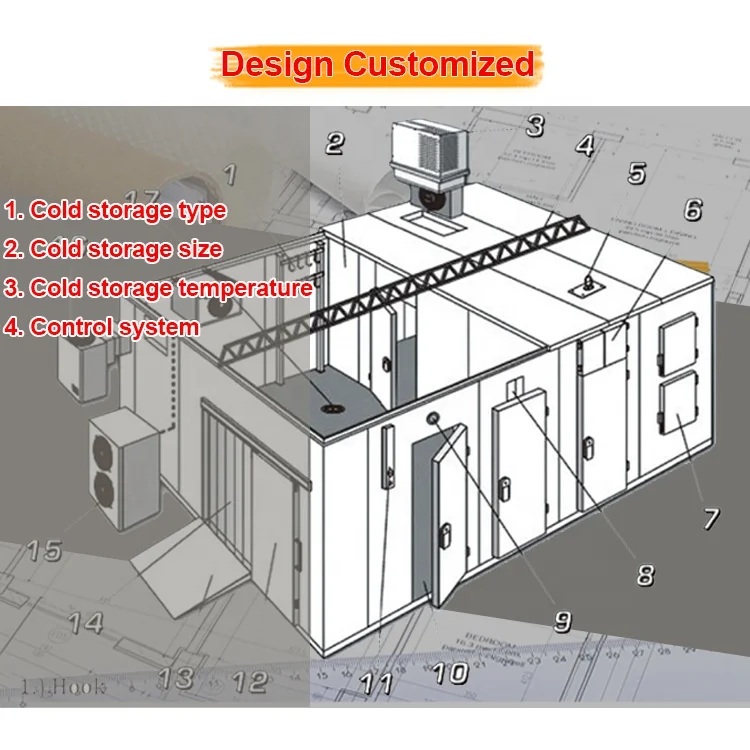

1. Design a professional cold storage for you according to your space and food needs
2. The shape and size of the library plates can be customized, the plate numbering, the installation is simple and efficient
3. All cold storages will be pre-assembled before leaving the factory to ensure the quality of each part
4. Professional after-sales installation guidance
2. Store product types
3. Temperature requirements for product storage
4. Product warehousing temperature
5. Frequency of daily use of the product
6. Product packaging type

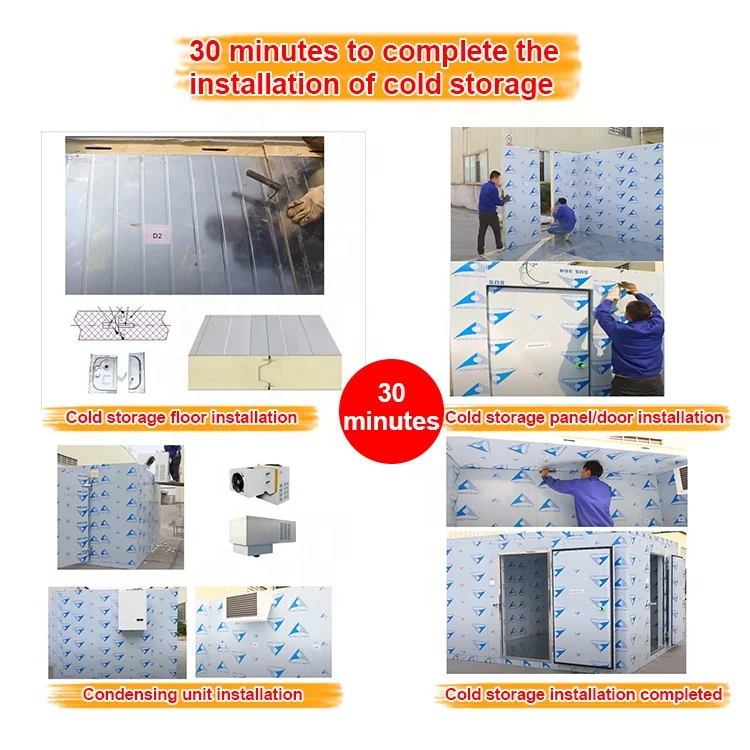

Cold storage installation
Cold storage floor installation
The library board is linked by eccentric hook, the installation process is simple, and the sealing performance is high.
Cold storage panel/door installation
Each library board is numbered according to the design drawing, and can be quickly installed in sequence
Condensing unit installation
The installation of condensing units and fans is very simple, we can provide full technical support to serve your cold storage
Cold storage installation completed
Our cold storage will be assembled and tested before leaving the factory to ensure that the cold storage can operate normally

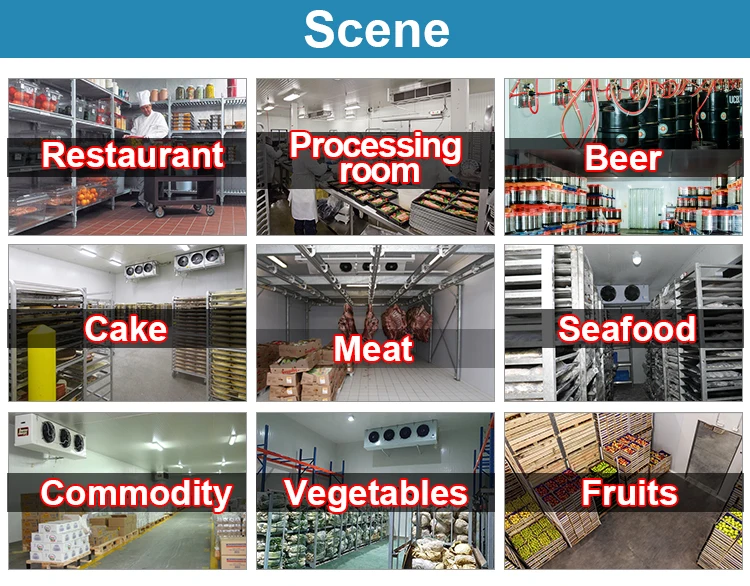

Case show
Singapore
fish cold storage
Malaysia
Restaurant cold storage
Australia
Seafood cold storage
Indonesia
Meat freezer
South Africa
Vegetable storage cold room
Kenya
Potato storage cold room
Company Profile
CHEFMAX is a production line integrating electromagnetic/gas cooking equipment, refrigeration equipment, decontamination equipment, and baking equipment.
Founded in 1995, the company is located in Dongguan City, Guangdong Province, covering an area of 15,000 ㎡. It has: 3 laser cutting machines, 2 digital drilling machines, 2 cutting machines, 10 bending machines, and 3 cutting machines and other large-scale production equipment.
The company has a total of 750 employees, including 18 R&D personnel (led by two doctors), 30 engineers, 440 production personnel, 75 quality inspection personnel, 114 sales personnel, and 64 after-sales guidance personnel. designer 9 personnel. It integrates product development and production, and has rich experience in automated product development.
Products are exported to Southeast Asia, Africa, North America, Europe, the Middle East, Asia and other countries and regions in the world. We have established stable sellers and agents, and have a complete after-sales system in these fields, providing professional technical support at any time.
We are committed to creating energy-efficient smart kitchens around the world.
Founded in 1995, the company is located in Dongguan City, Guangdong Province, covering an area of 15,000 ㎡. It has: 3 laser cutting machines, 2 digital drilling machines, 2 cutting machines, 10 bending machines, and 3 cutting machines and other large-scale production equipment.
The company has a total of 750 employees, including 18 R&D personnel (led by two doctors), 30 engineers, 440 production personnel, 75 quality inspection personnel, 114 sales personnel, and 64 after-sales guidance personnel. designer 9 personnel. It integrates product development and production, and has rich experience in automated product development.
Products are exported to Southeast Asia, Africa, North America, Europe, the Middle East, Asia and other countries and regions in the world. We have established stable sellers and agents, and have a complete after-sales system in these fields, providing professional technical support at any time.
We are committed to creating energy-efficient smart kitchens around the world.

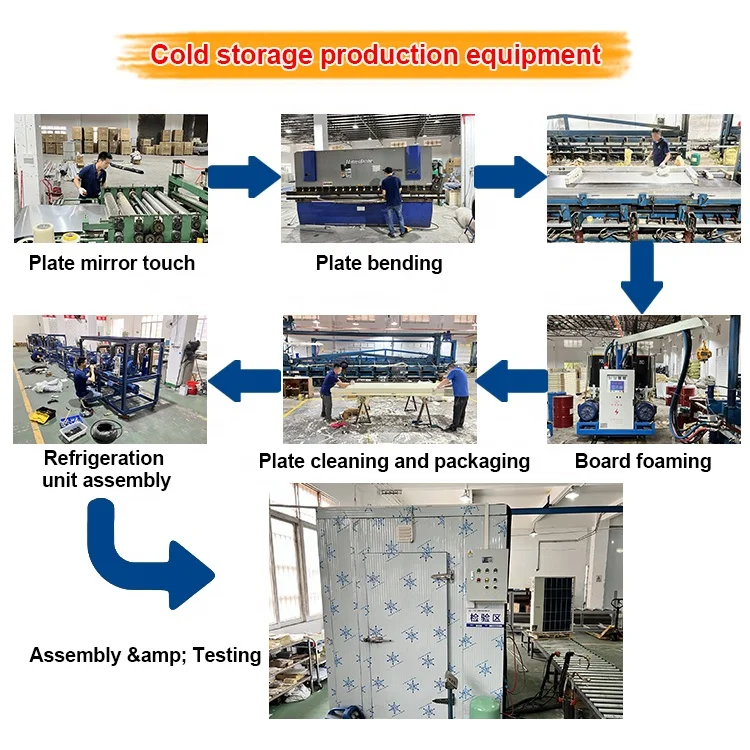

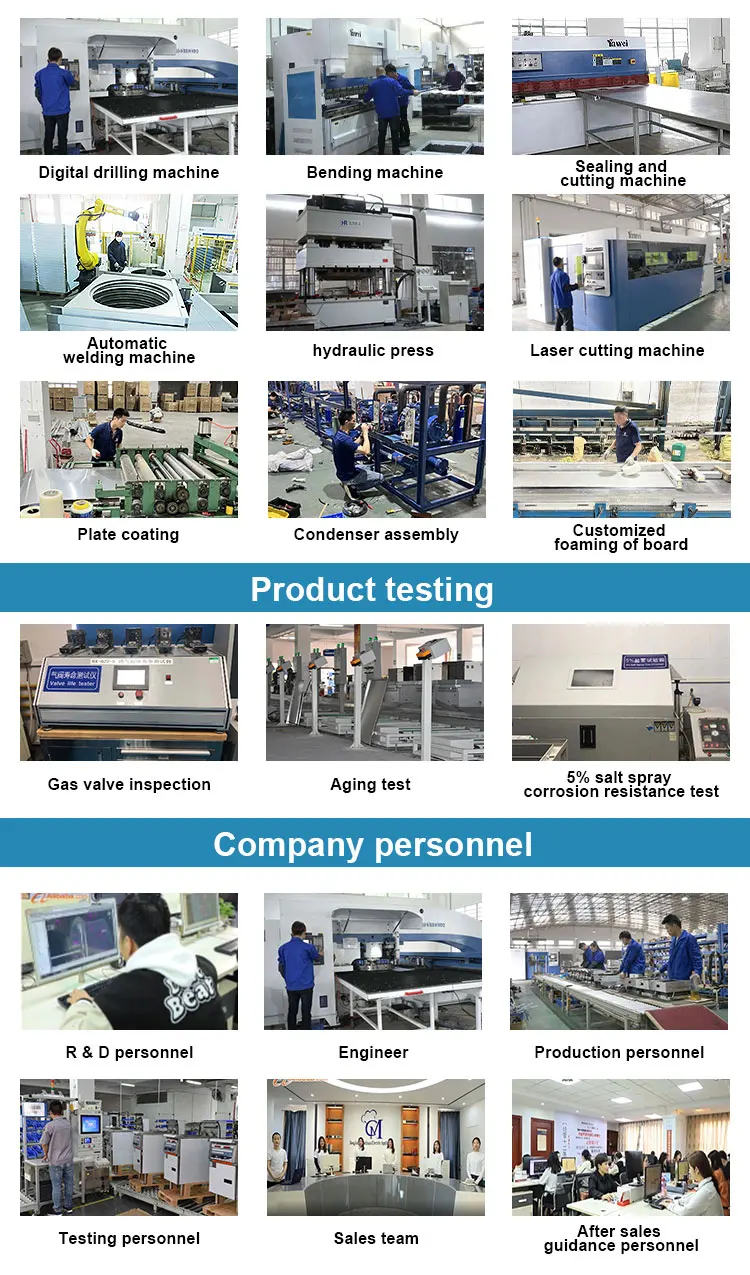

Production Equipment
