Model | SPBEV7K-Y1 | SPBEV11K-Y2 | SPBEV22K-Y3 | |||
Technical Features | ||||||
Charging capacity | Up to 7KW | Up to 11 KW | Up to 22KW | |||
Input/Output power | 230VAC±20%-50/60Hz-32A- 1phase | 400VAC±20%-50/60Hz- 16A-3phase | 400VAC±20%-50/60Hz- 32A-3phase | |||
RCD | 30Ma RCD Type A and DC 6Ma RCD function | |||||
Standby power | <3W | |||||
Measuring accuracy | 1% | |||||
Communication | Bluetooth/WIFI(Optional) APP | |||||
Load balancing | CT+Meter((Optional)) | |||||
PEN Protection | Optional | |||||
User interface | LED/LCD(3.5")/ RFID(mifare iso& IEC 14443A) | |||||
Certifificate/Compliance | CE / EN/IEC 61851-1:2017, EN/IEC 61851-21-2:2018 | |||||
Charging Interface | Type 2 cable 5M | Type 2 cable 5M | Type 2 cable 5M | |||
Special Protection | Over current protection, Residual current protection, Ground protection, Surge protection, Over/Under voltage protection, Over/Under frequency protection, Over/Under temperature protection | |||||
Physical Properties | ||||||
Warranty | 1 year | |||||
Protection | IP54, IK10, | |||||
Enclosure | Plastic PC940/ Galvanized steel | |||||
Front Panel | Temper glass | |||||

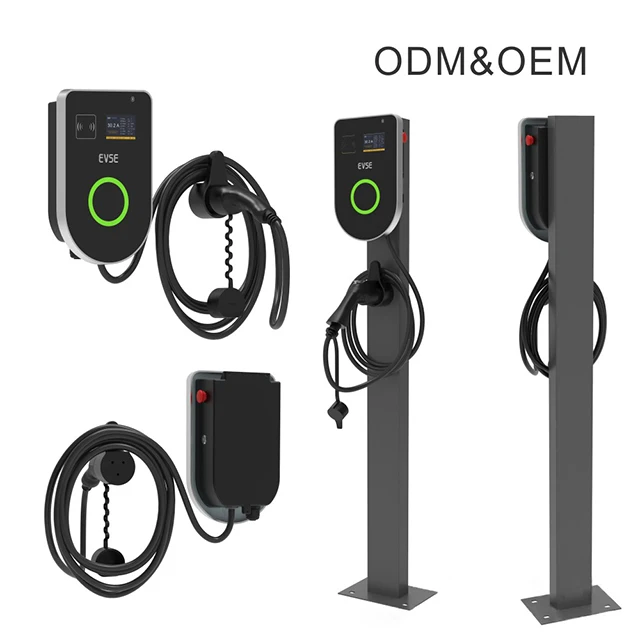

Installation | Wall-mount/Pole-mount | |||||
Cooling | Natural cooling | |||||
Operating temperature | -30℃ to +55℃ | |||||
Humidity | Max.95%(non-regulating) | |||||
Product Dimensions | 320*230*100(L*W*H)mm | |||||
Package Dimension | 465*325*270(L*W*H)mm | |||||
Net Weight | 5.1Kg | 5.5Kg | 5.5Kg | |||
Gross Weight | 5.8Kg | 6.2Kg | 6.5Kg | |||
