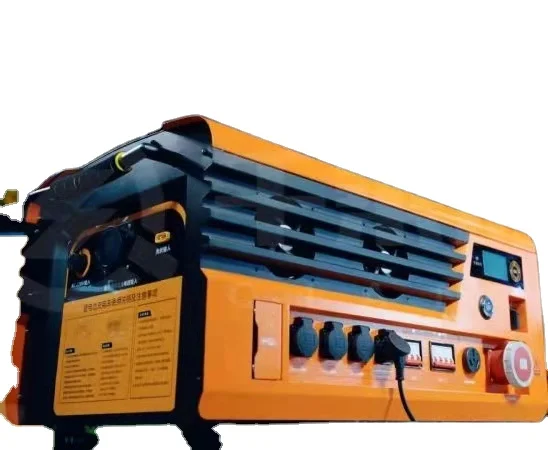

China Hot Sales 32Kwh Multi function UPS Solar Storage Power Systems Portable Power Station With Battery
China Hot Sales 32Kwh Multi-function UPS Solar Storage Power Systems Portable Power Station With Battery
China Hot Sales 32Kwh Multi-function UPS Solar Storage Power Systems Portable Power Station With Battery
China Hot Sales 32Kwh Multi-function UPS Solar Storage Power Systems Portable Power Station With Battery
China Hot Sales 32Kwh Multi-function UPS Solar Storage Power Systems Portable Power Station With Battery
China Hot Sales 32Kwh Multi-function UPS Solar Storage Power Systems Portable Power Station With Battery
China Hot Sales 32Kwh Multi-function UPS Solar Storage Power Systems Portable Power Station With Battery

China Hot Sales 32Kwh Multi function UPS Solar Storage Power Systems Portable Power Station With Battery

Share on (1600501060500):


Price:

Quantity:


Product Overview

Description



Multi-function UPS Solar Storage Power
Usage: be used as a backup, common, and emergency power supply.
Model: configured with three capacities: 22KWh, 27KWh, 32KWh




Comparison between Multi-function UPS Solar Storage Power and traditional fuel-fired generators


Lithium battery portable power station
Huge capacity: 32KWh;
High power: 15KW;
Quiet, safe and environmentally friendly.
Traditional fuel-fired generators
Small capacity, low power,
High noise, pollution, uncleanness and high maintenance cost


Specifications ofMulti-function UPS Solar Storage Power


1. 32KWh new energy power station specifications


No.
Item
Parameters
Remark
1
Internal DC total voltage
DC 518.4V
6 standard battery packs
2
Rated capacity
62AH
Solid-state lithium batteries
3
Rated energy
32KWh
4
Internal battery pack structure
2 and 24 strings*6
5
1）AC charging
Charging interface
2) DC charging


Power: 36KW


Standard charging interface
6
1) AC220V*4
Output interface          2) AC380V*1
                                      3) USB*2                                              4) Type-C*2
AC220V/50Hz (Max power:10KW)
AC380V/50Hz (Power:15KW)
5V/3A
5V/3A,9V/3A,12V/3A,15V/3A,20V/3A

Three phases and four lines
7
Security
1)Safe solid-state cell
2)Perfect hardware protection
3)BMS intelligent cloud platform security early warning
8
Shown
LCD
9
Charging
Operating temperature
Discharge
0℃~60℃

-20℃~60℃
10
Short-term
Stock temperature
long-term
(one month) -20℃~45℃

(six months) -10℃~35℃
11
Size
935mm*552mm*600mm
12
Weight
About 230Kg


2. Standard battery module specifications


No.
Item
Parameters
Remark
1
Module rated voltage
DC 86.4V
2
Module operating voltage range
67.2V-100.8V
3
Module rated capacity
62AH
4
Module rated Power
5.35KWH
5
The battery cell structure within the electrical module
2 parallel 24 strings
6
Charging
Operating temperature
Discharge
0℃~60℃

-20℃~60℃
7
Short-term
Stock temperature
long-term
(one month) -20℃~45℃

(six months) -10℃~35℃
8
Cyclic times
≥2000次
(normothermia 70%DOD)
9
Outer dimensions
624mm*93.5mm*211mm
10
Module size
28Kg




Application
For charging new energy vehicles, construction site motors, household appliances, 3C electronic equipment and other production and living electricity products.

Used in mines, railways, field construction sites, road traffic maintenance, construction sites, power repair, disaster emergency, as well as factories, enterprises, banks, businesses, hotels, 4S stores, institutions, units, schools, residential quarters, modern families, etc.





Why to choose new energy power station?



1. Huge capacity and powerful power
(1) stored electricity capacity up to 32KWh; maximum output power 15KW for general-purpose model, maximum output power 30KW for mobile DC charging pile model.
(2) when charging 10 batteries at the same time for the 12S22Ah battery of plant protection drones, can charge 30 batteries.
(3) Can last for 15 days in the case the daily electricity consumption of the household is 2 kWh.
(4) Can last for 5 hours for 6 KWh equipment on the construction site (2 hours for maximum 15 KWh equipment)
2. Fast charging: with various charging modes
(1) Standard electric vehicle DC charging mode
(2) Home 220V charging mode
(3) Solar charging mode
3.  Long service life
The service life of solid ternary type is more than 5 years, and the service life of solid iron lithium type is more than 10 years,
It can be charged and discharged for 2000 cycles, so it can be used for more than 10 years by charging and discharging once every two days.
4. Digital intelligence and easy operation
The SPower cloud battery management platform provides 24-hour on line supervision and 4G data transmission function, always informing customers of product usage.


Input and Output


Input ports

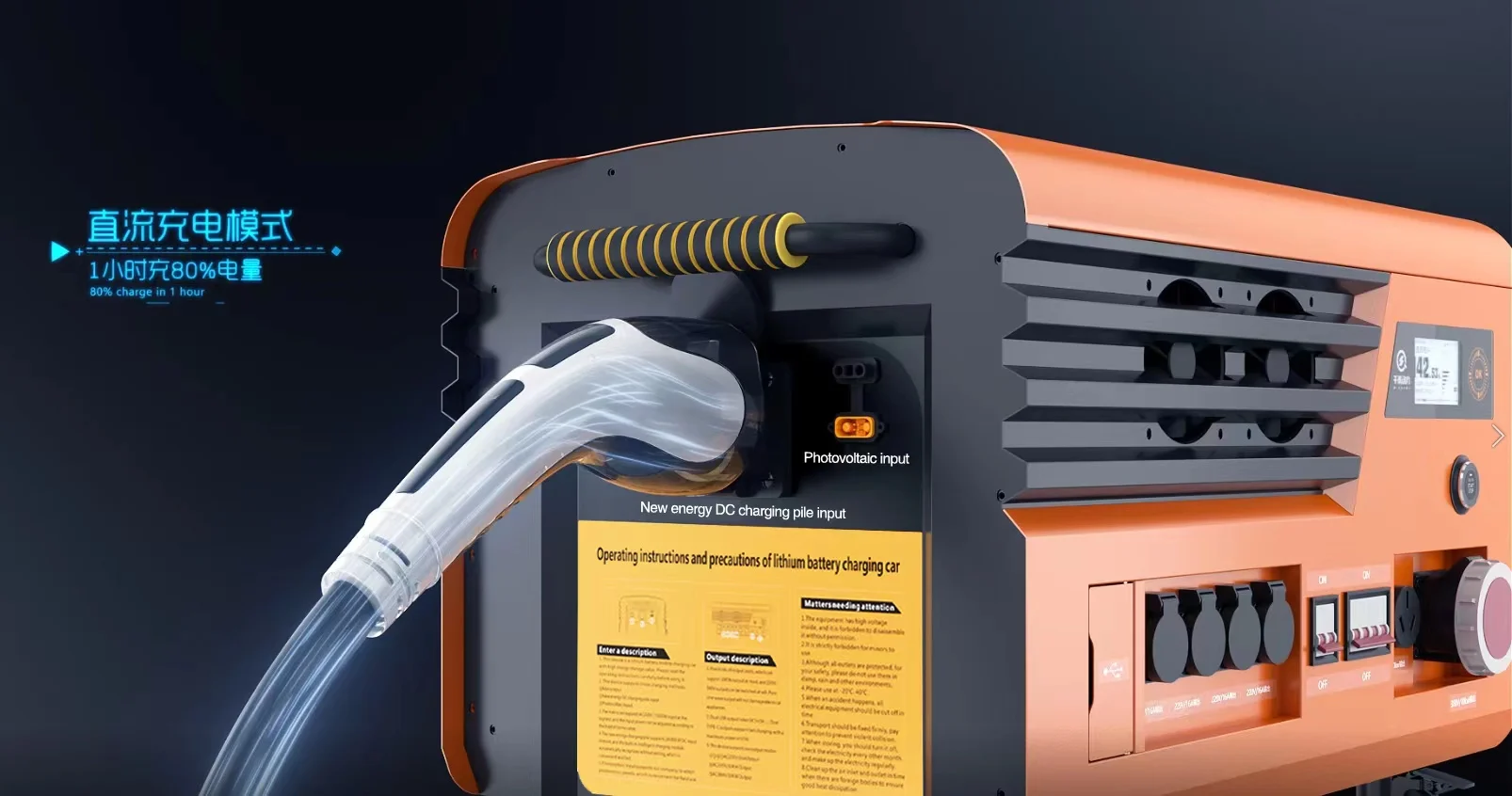

(1) Standard electric vehicle DC charging mode: be quickly charged with a DC electric vehicle charging pile, and it is fully charged in 60 minutes.
(2) Home 220V charging mode: fully charged in 10 hours
(3) Solar charging mode: external solar panels can be used for emergency use

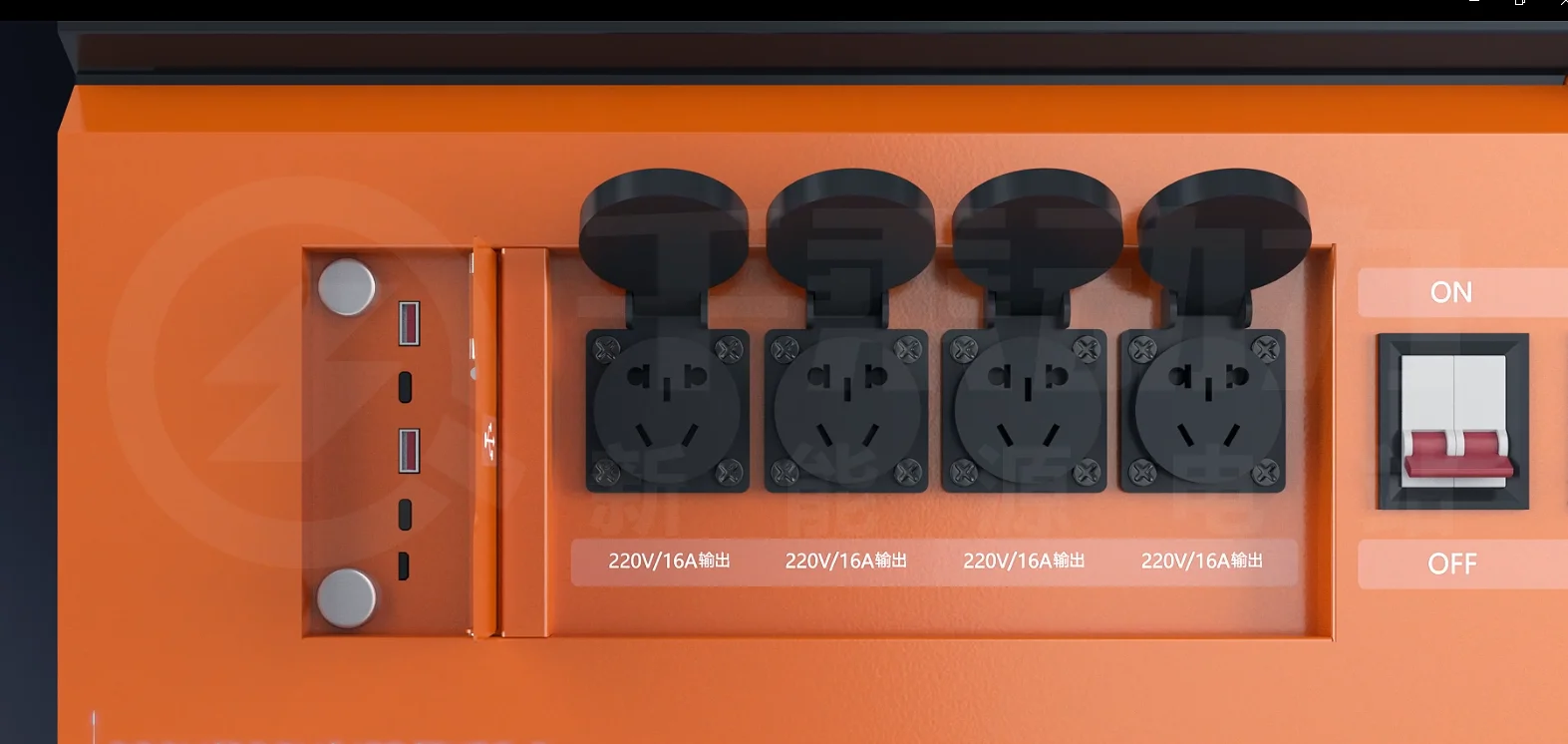

Output ports
(1) 380V output port: for the 3KWh three-phase asynchronous motor on the construction site
(2) 220V output port: for household appliances, kitchen appliances, high-power air conditioners, floor heating, 3KWh central air conditioners, electric vehicles, battery vehicles, electric scooters, drones, power tools and other equipment
(3) 2 USB output ports, 2 Type-c output ports (max power of 65W): for all 3C products, such as: mobile phones, laptops, cameras, and other electronic devices
(4) solar panel interface: for solar photovoltaic panels


With such a portable new energy power station, there will be no longer worry about power outages and blackout. Even In the wild, the station still can bring you light.
