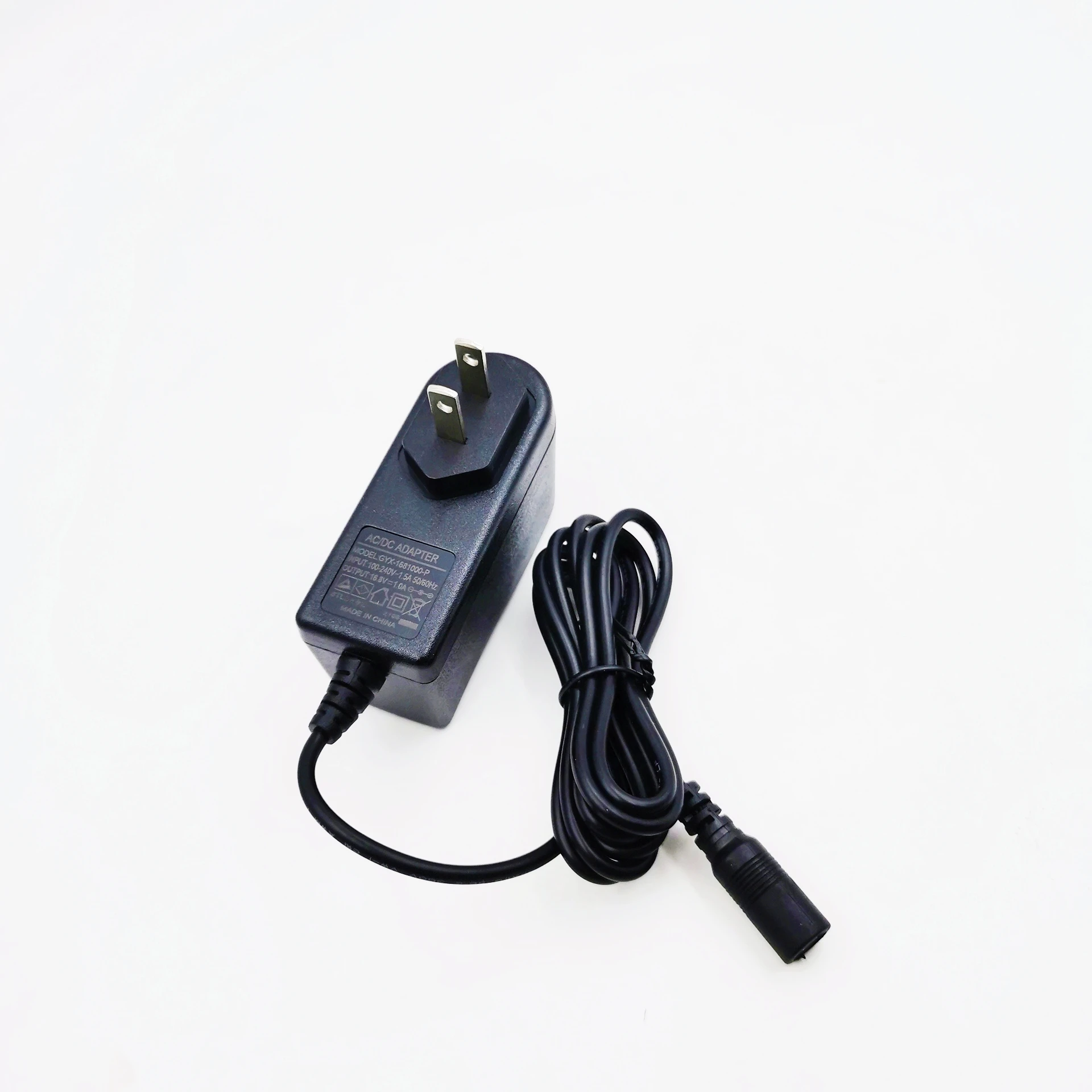

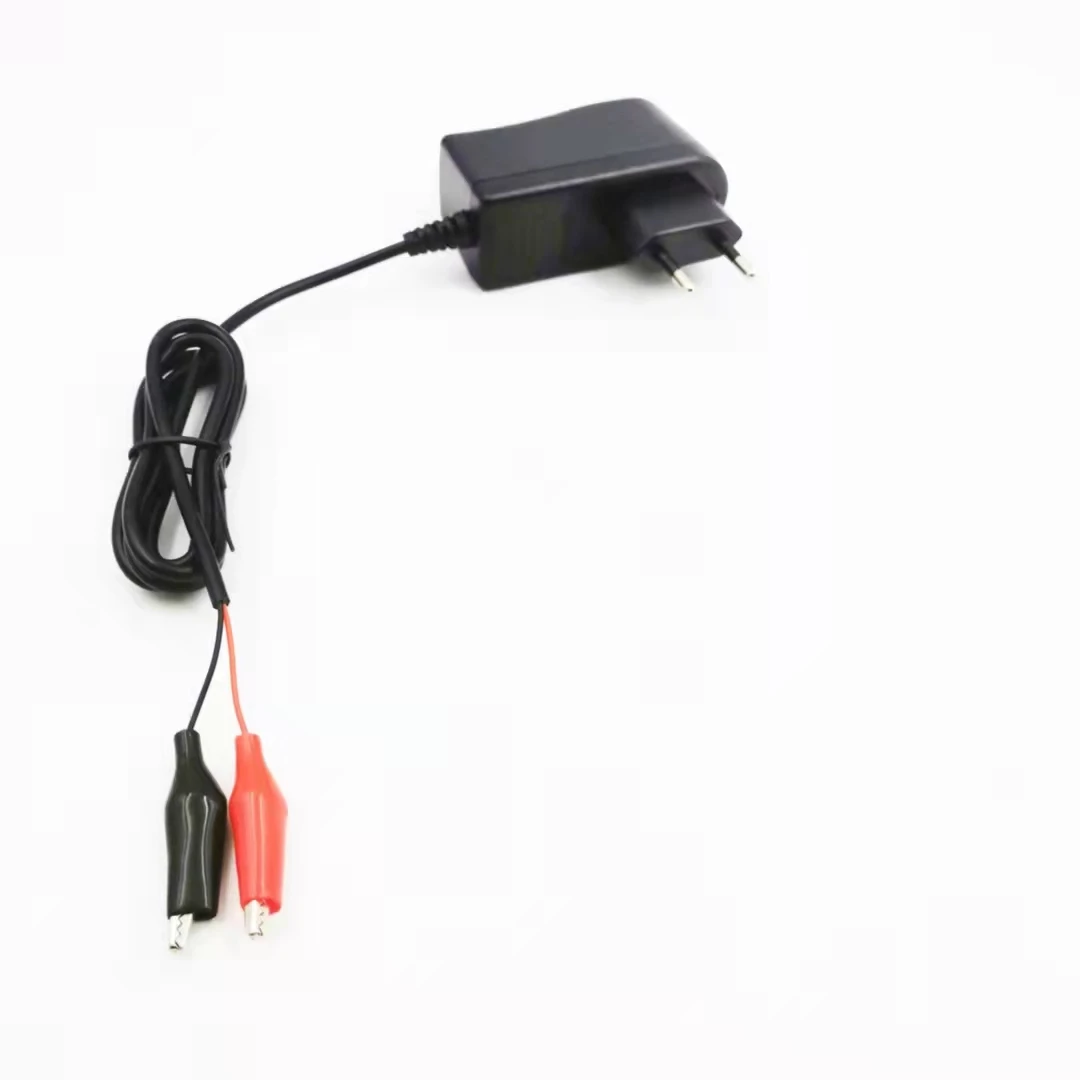

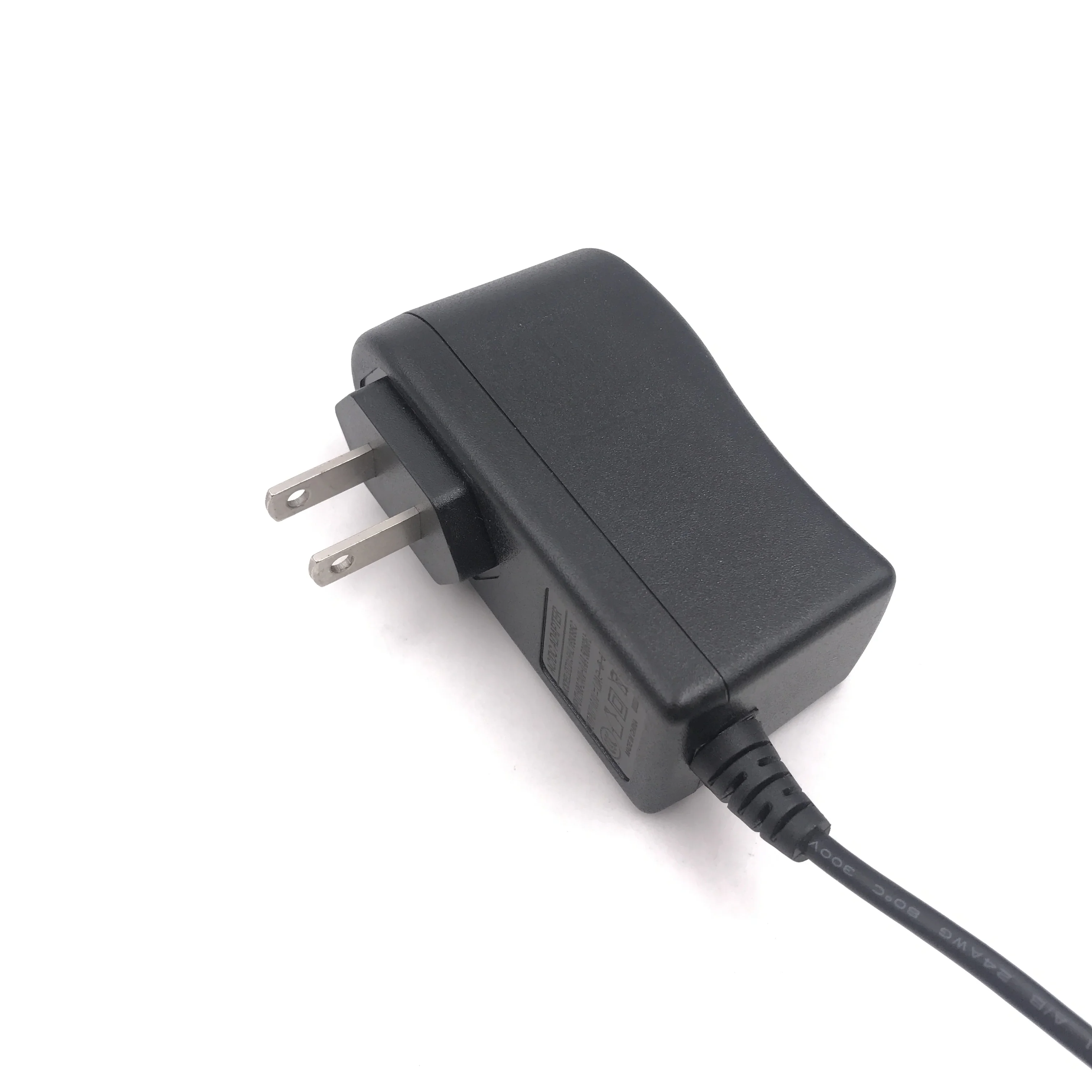

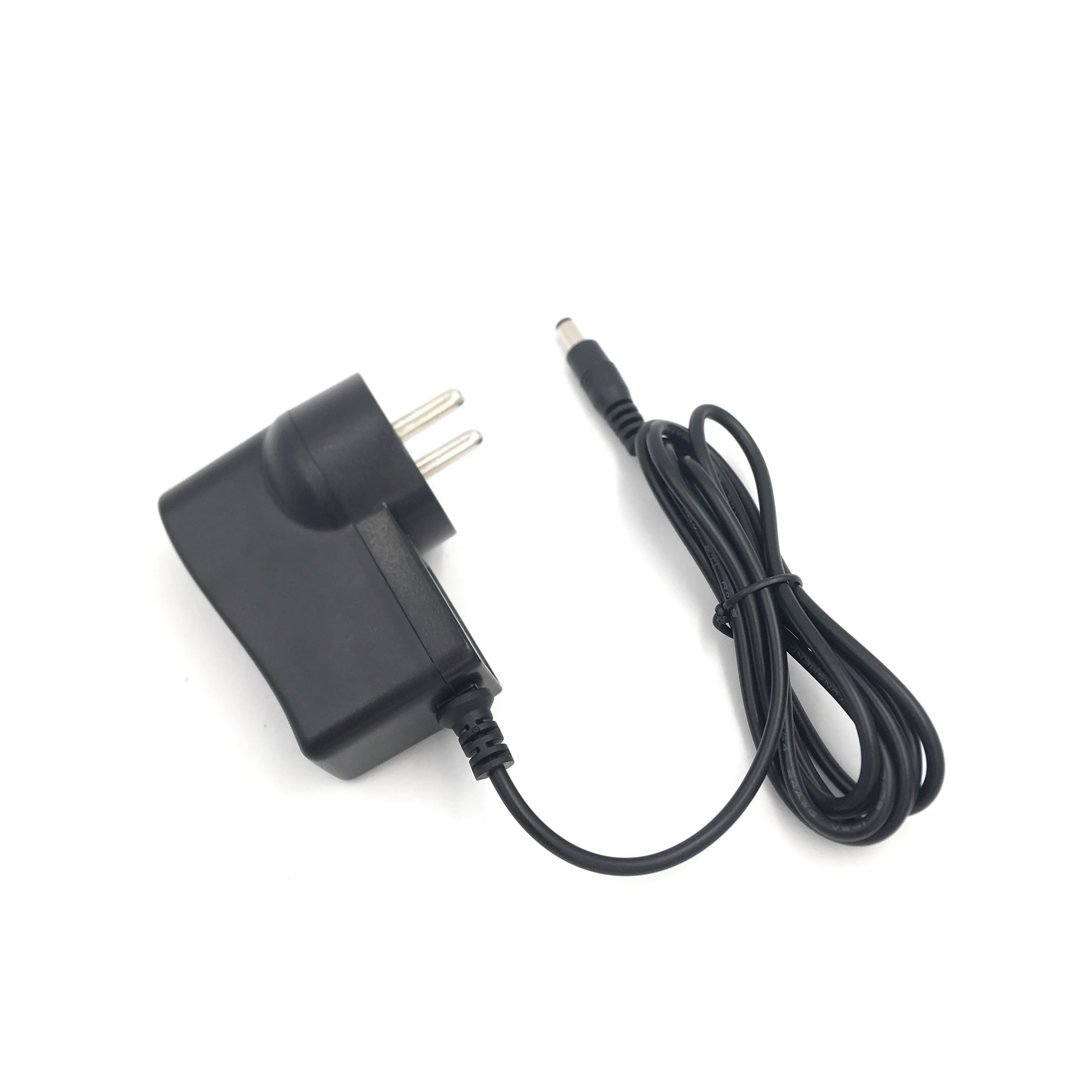

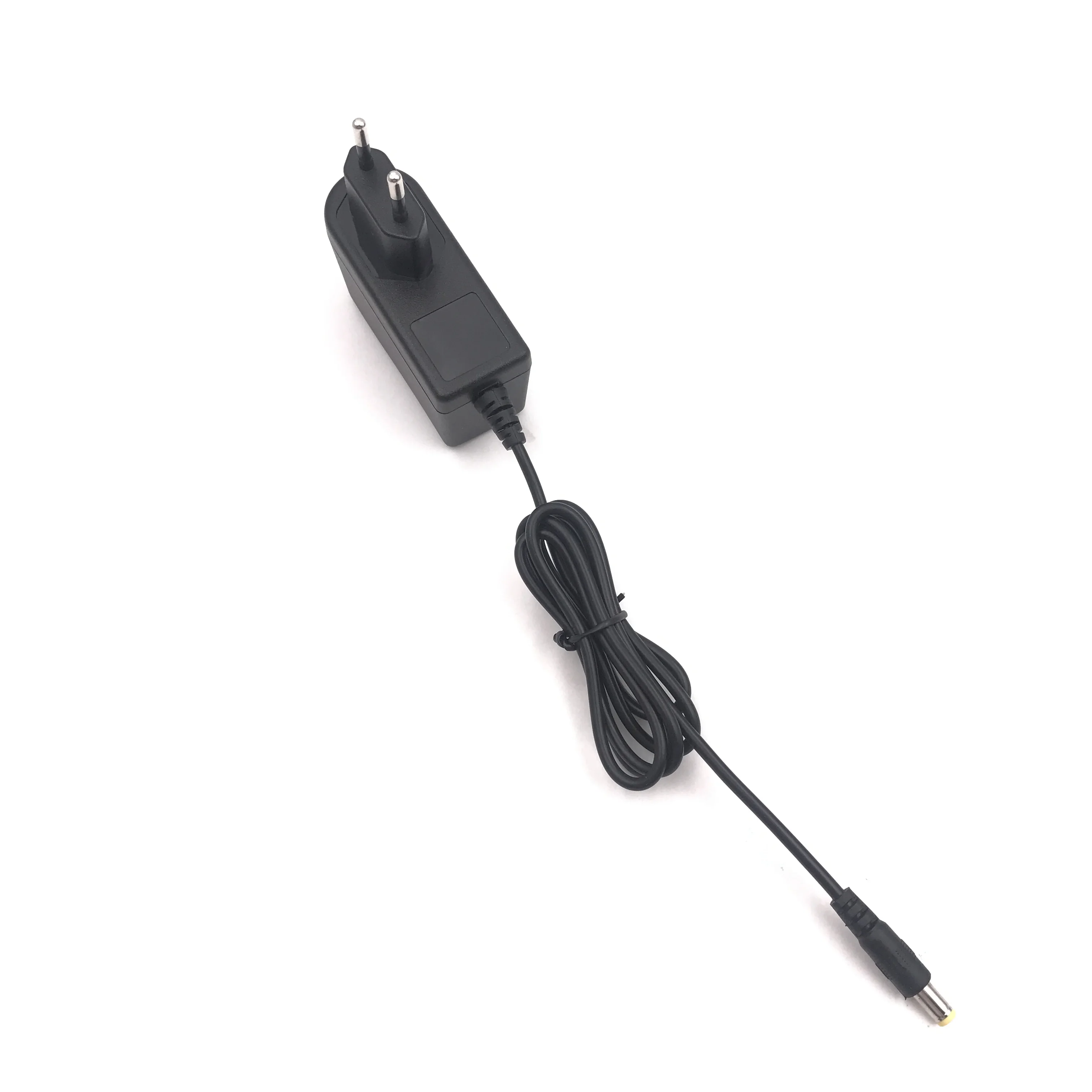

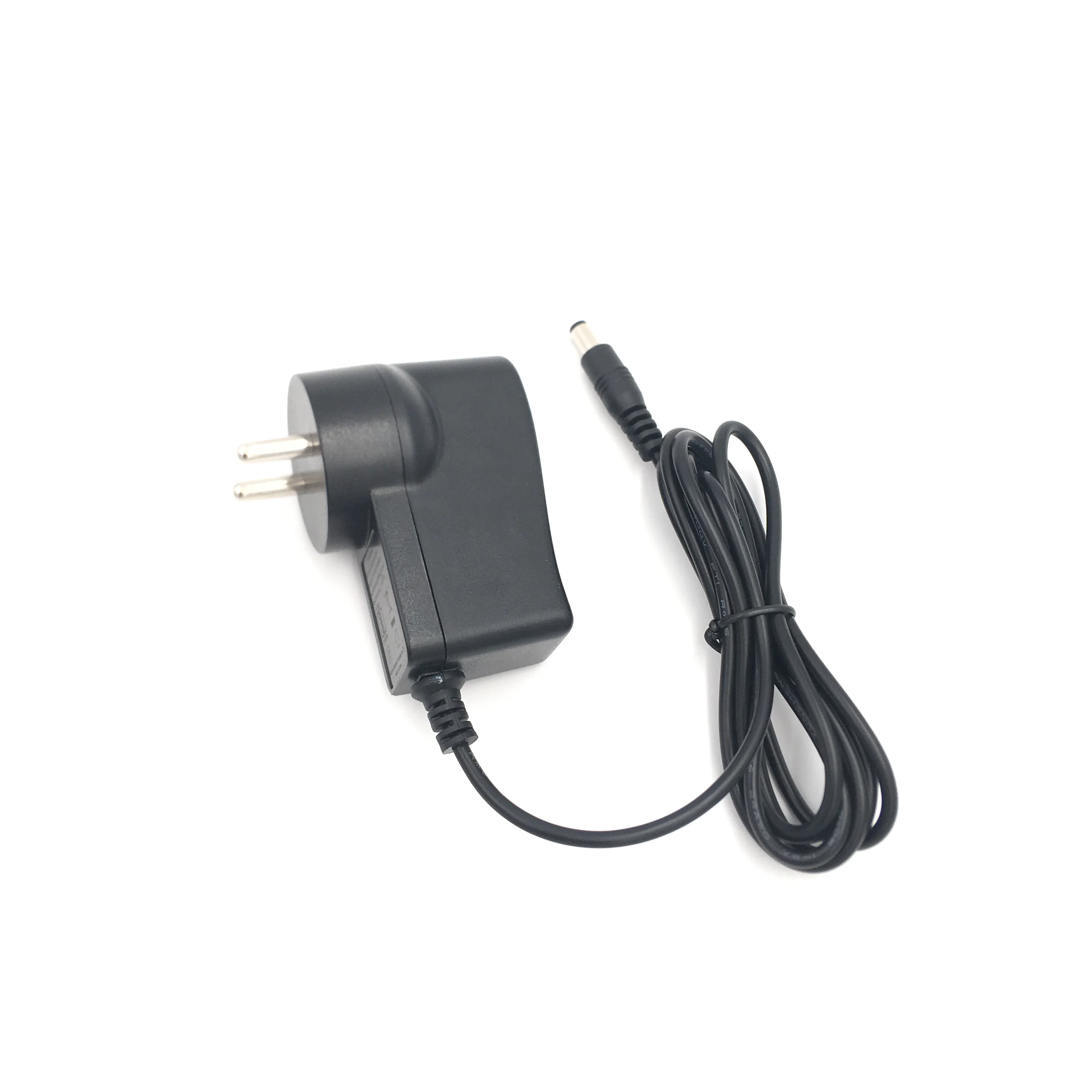

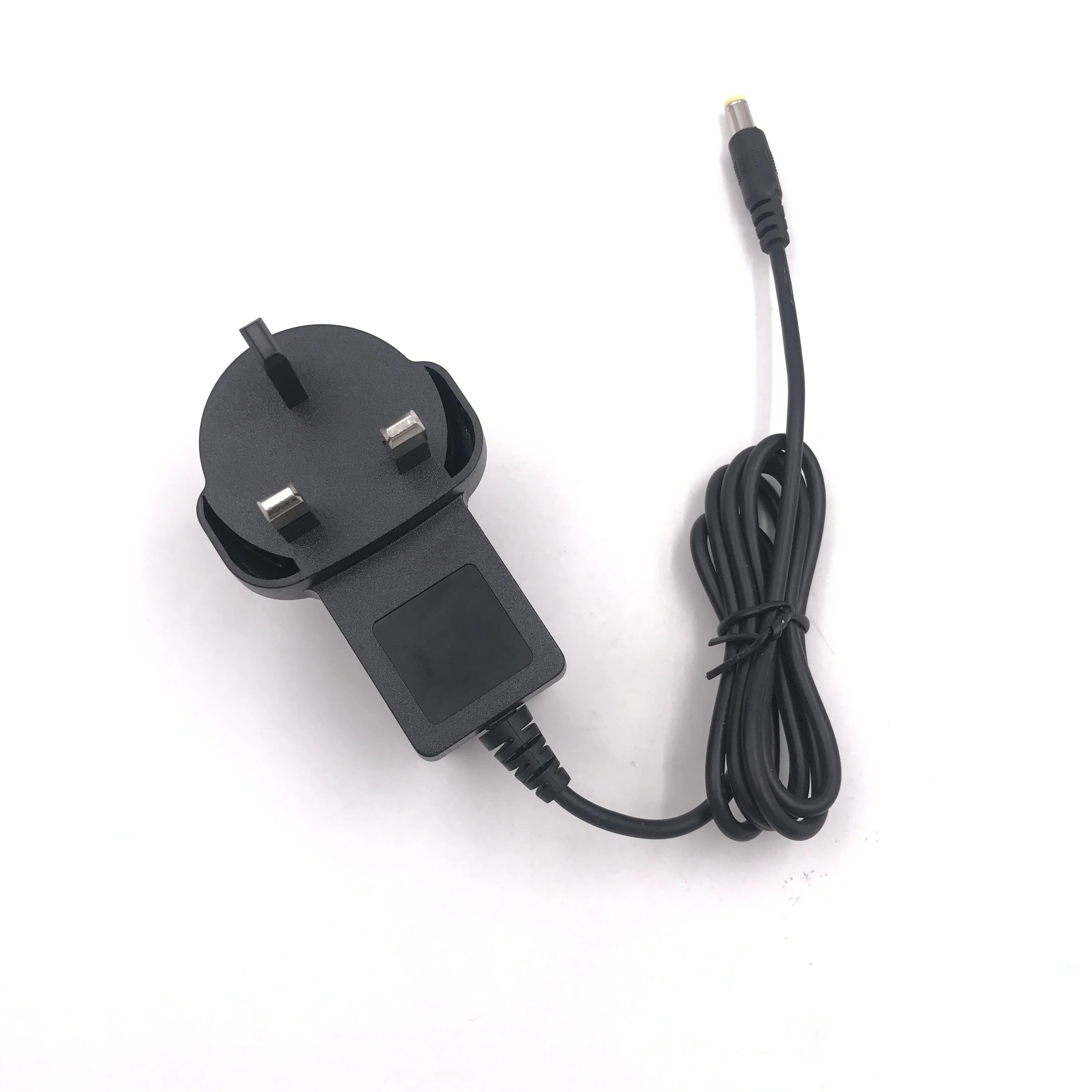

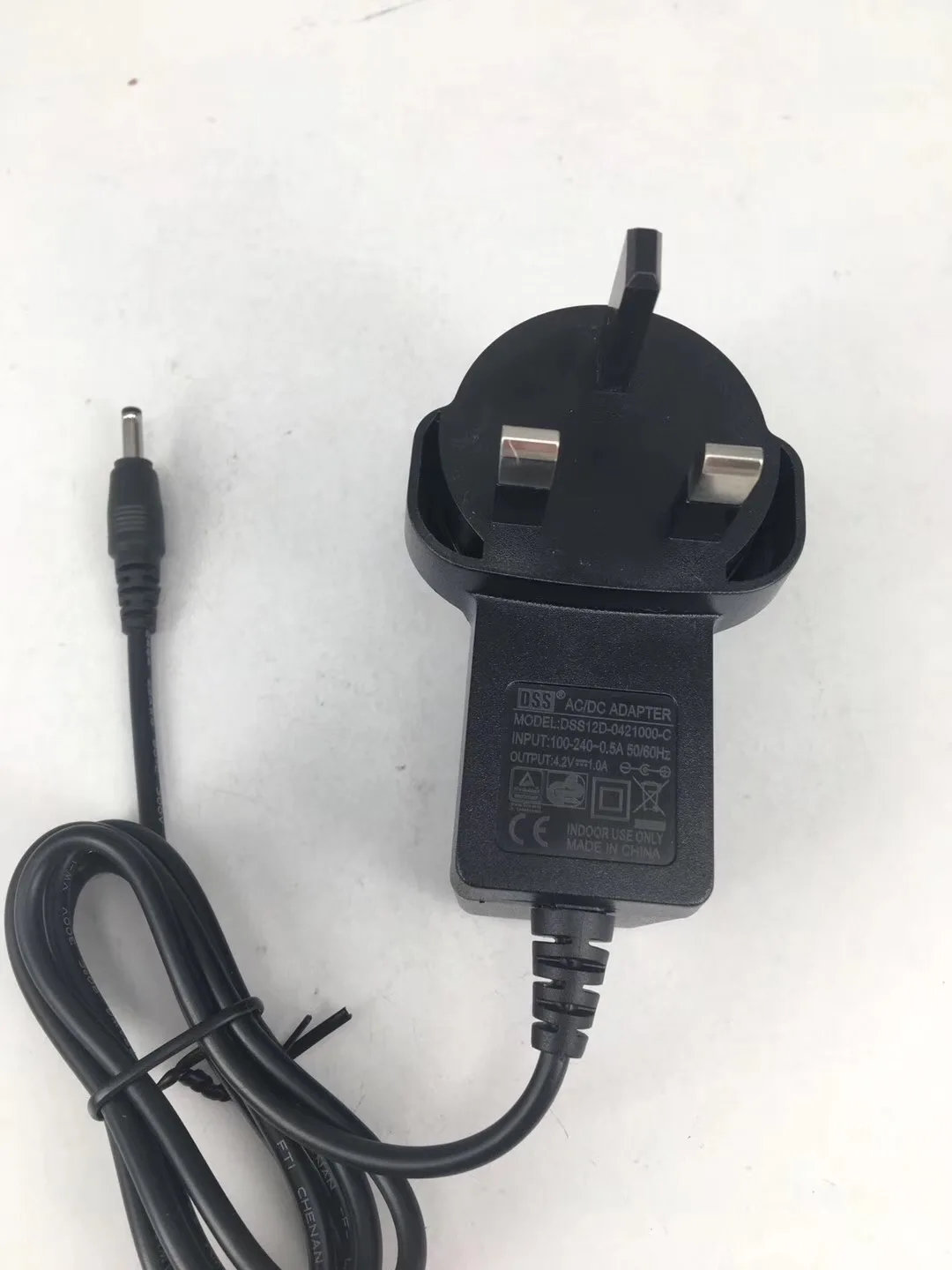

OEM Wall Mount 5V 9V 12V 16V 20V 200MA 400MA 750MA Power Adapters AC/DC Switching Power Supply
- Category: >>>
- Supplier: Foshan Guangyuanxing Electronics Co. Ltd.
Share on (1600501063703):
Product Overview
Description
Input | voltage range | 100-240VAC | |||||
frequency range | 47-63Hz | ||||||
standby power | 0.075W | ||||||
efficiency | DOE VI /V | ||||||
AC input current | 0.3A/0.5A max at 100VAC at full load | ||||||
inrush current | 30A Max. @110Vac/60Hz | ||||||
60A Max. @230Vac/50Hz | |||||||
Output | DC voltage range | 5V/9V/12V/16V/20V max | |||||
voltage range | ±5% | ||||||
load current | 200MA/400MA/750MA max | ||||||
range power | 15W max | ||||||
voltage tolerance | ±5% | ||||||
line regulation | ±1% | ||||||
load regulation | ±5% | ||||||

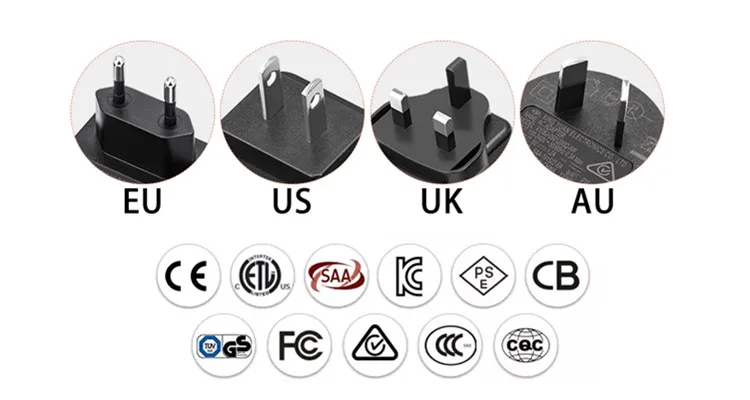

AC Plug | US | EU | UK | AU | |||
JP | KR | CN | other | ||||

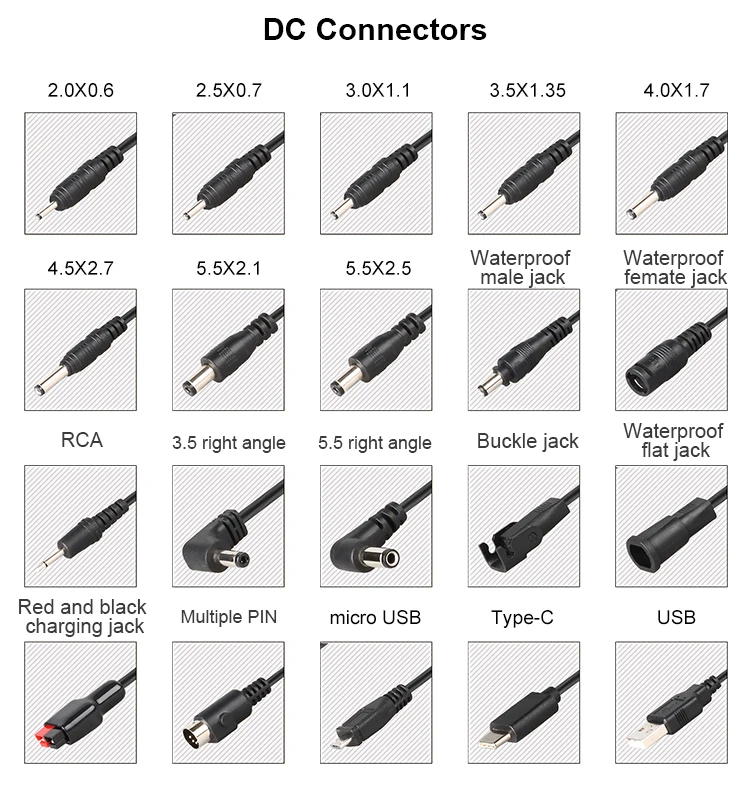

DC Plug Straight L shape | 5.5*2.1 | mini USB | micro | ||||

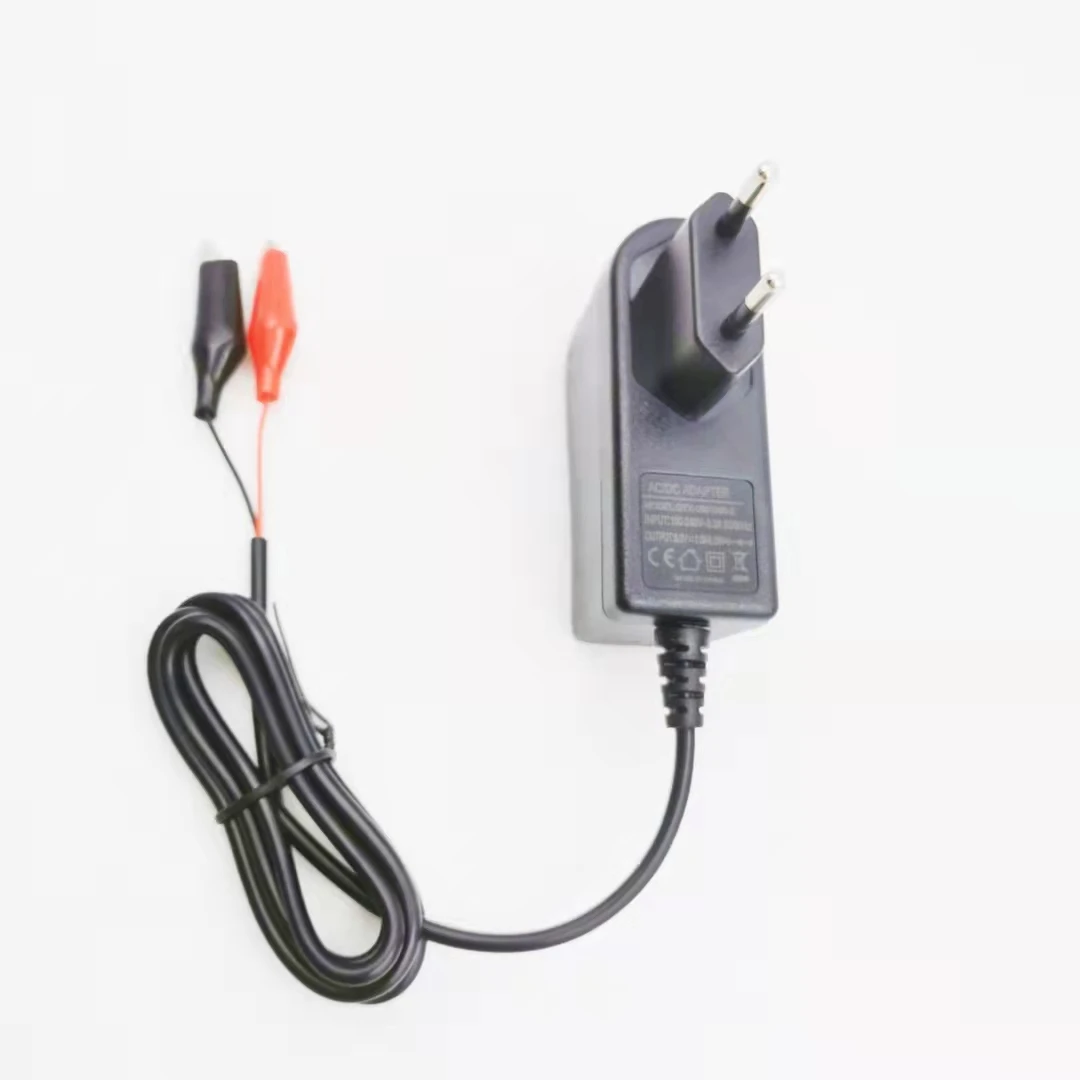

5.5*2.5 | crocodile clip red+ black- | ||||||
4.0*1.7 | aviation head | ||||||
3.5*1.35 | double and line | ||||||
TYPE-C | lotus skill | ||||||
2.0*0.7 | other as your requirment | ||||||
DC cord | 1m/1.2m /1.5m / 1.8m /2m /3m | other as your requirment | |||||
Operating temperature | 0°C-40°C | storage temperature :-20°C-85°C | |||||

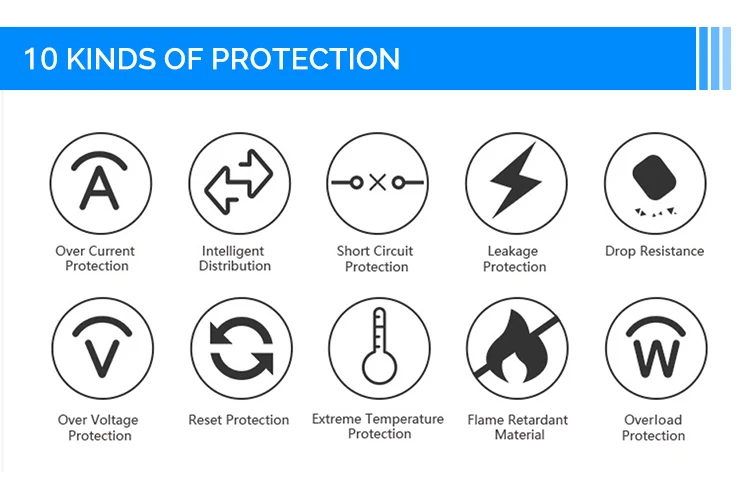

Protection | over voltage protection,over current protection,short circuit protection | ||||||
Safety approvals | UL62368/ UL60950/ UL1310/ CE/ GS/ SAA/ KC KCC/ PSE/ RCM | ||||||
MTBF | 50000 hours | ||||||
Warranty | 36 months | ||||||
LED indicator light | red/green/blue | ||||||
Test | 100 full load burn-in test | ||||||
Application | LED lighting, consumer electronics, IT,home applications etc. | ||||||
Package | PE bag inside,white box outside | ||||||
Carton Size | 46*39*26cm | ||||||
1.When can I get the quotation ?
GYX: within 24 hours.If you are in a hurry, please call us or email us.
2.What about the lead time for mass production ?
GYX:About 15 days.
3.What about the warranty of your products ?
GYX:We offer 3 year warranty for all the products.
4.How long has your company been in business?
GYX:13 years, and we have 13years experience in lithium battery charge.
5.Does your company have UL certification?
GYX:Yes, we have a lot of UL certifications for different items, and our company are the UL Standard Technical Panel Member.
6.What is your factories capacity for power supply & charger?
GYX:10000~15000pcs per day.
7.What is your payment method?
GYX: T/T in advance, Paypal , Western Union,Pay on Alibaba and etc.
2.What about the lead time for mass production ?
GYX:About 15 days.
3.What about the warranty of your products ?
GYX:We offer 3 year warranty for all the products.
4.How long has your company been in business?
GYX:13 years, and we have 13years experience in lithium battery charge.
5.Does your company have UL certification?
GYX:Yes, we have a lot of UL certifications for different items, and our company are the UL Standard Technical Panel Member.
6.What is your factories capacity for power supply & charger?
GYX:10000~15000pcs per day.
7.What is your payment method?
GYX: T/T in advance, Paypal , Western Union,Pay on Alibaba and etc.
