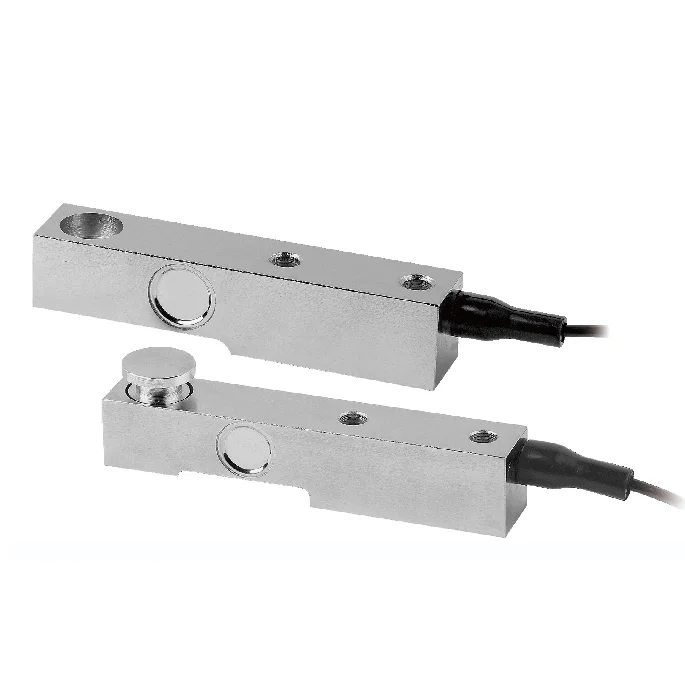

shear beam load cell hooper scale platform scale

Share on (1600501068632):


Price:

Quantity:


Product Overview

Description



Product Description


XC(D)
Features:
★capacities from 0.5t to 10t
★alloy steel construction
★protection class IP67
★high accuraccy
★stable and reliable in performance
Applications:
platform scale
★hopper scale
★tank scale
★rebar bending machine

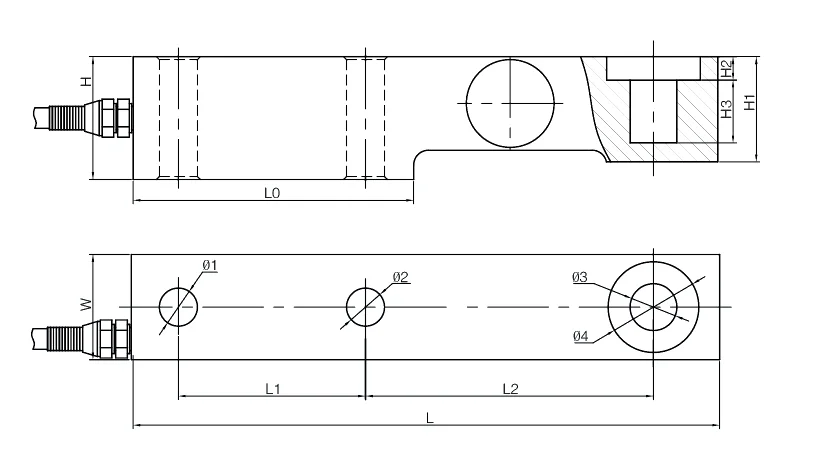

mm
L
L0
L1
L2
∅1
∅2
XC
0.5~1t
200
96
64
98
∅13
∅13

XD
1/2/3t
200
96
64
98
∅13
∅13
7.5~10t
5t
200
96
64
98
∅20
∅20
WE PROVIDE CUSTOMIZATION FOR YOUR OWN NEEDS:)









mm
∅3
∅4
W
H
H1
H2
H3
XC
0.5~1t
∅16
∅32
36
42
36
8
21

XD
1/2/3t
∅16
∅32
40
45
38
8
21
5t
∅16
∅32
40
45
40
8
21
WE PROVIDE CUSTOMIZATION FOR YOUR OWN NEEDS:)


Specification


Model
XC(D)

Accuracy class
C3

Capacities
0.5~5t
t
Full scale output(FS)
2.0±0.004
mV/V
Non-linearity
≤±0.05
%FS
Hysteresis
≤±0.05
%FS
Non- repeatability
≤±0.03
%FS
Creep error (30 minutes)
≤±0.016
%FS
Zero Balance
±1.0
mV/V
Temperature effect on sensitivity
≤±0.011
%FS/10℃
Compensated temperature range
-20~+60
Operating temperature range
-35~+70
Input resistance
380±20
Output resistance
352±2
Insulation resistance (50VDC)
≥5000
MΩ
Operating Voltage
5~12(DC)
V
Safe overload limit
150
%FS
Ultimate load
200
%FS
Cable length
3
m
protection class
IP67

Element material
Alloy Steel
