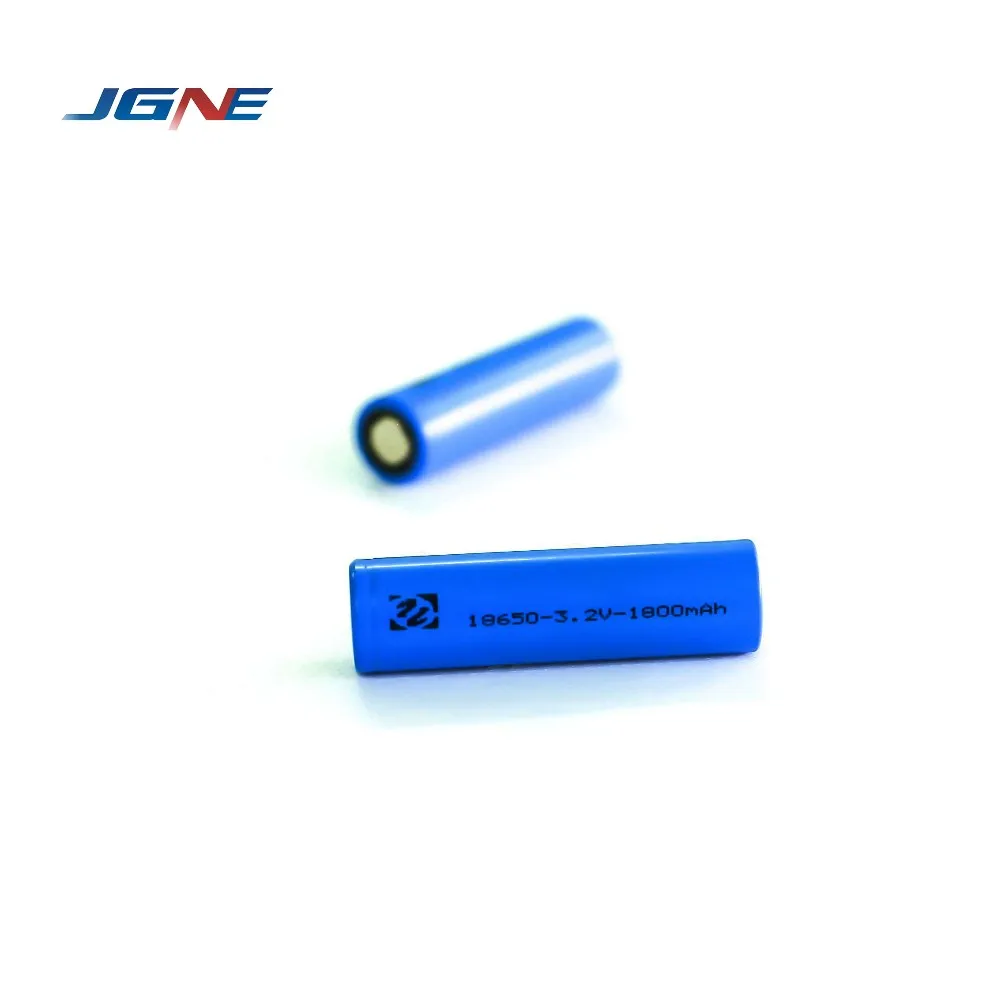

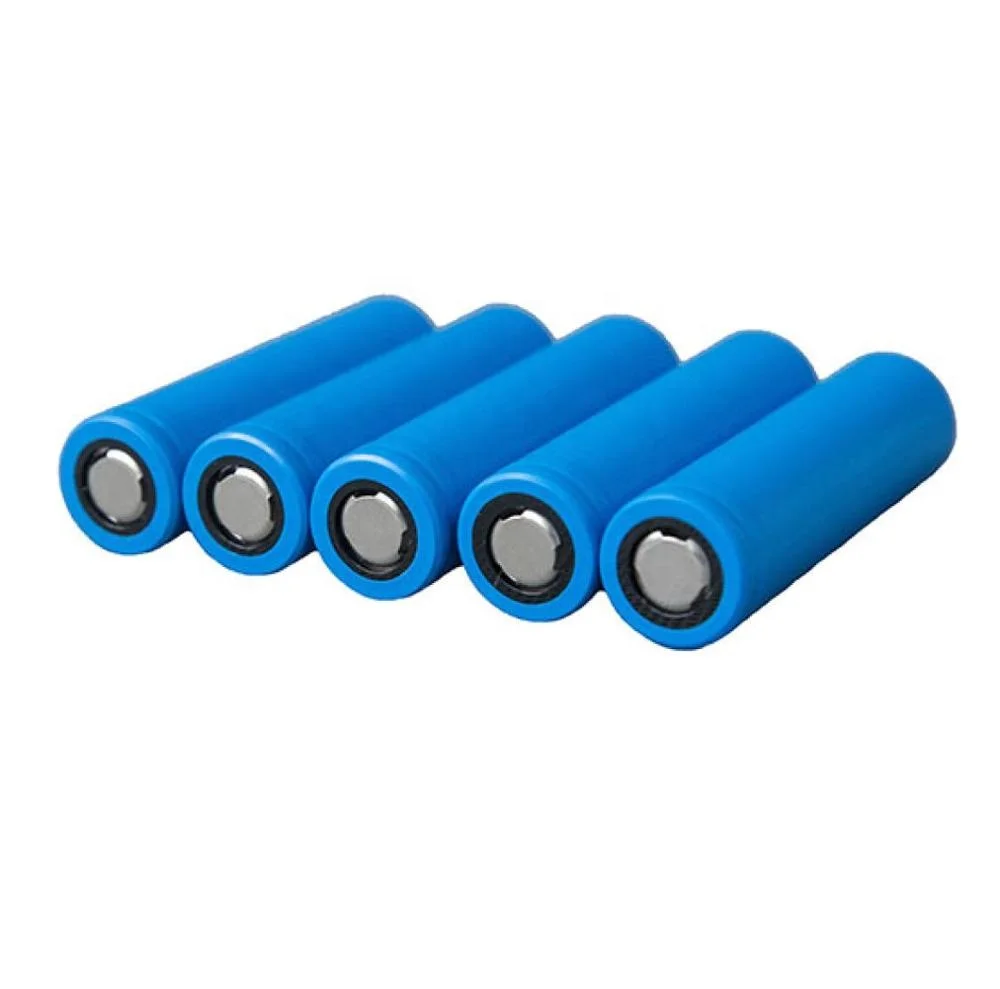

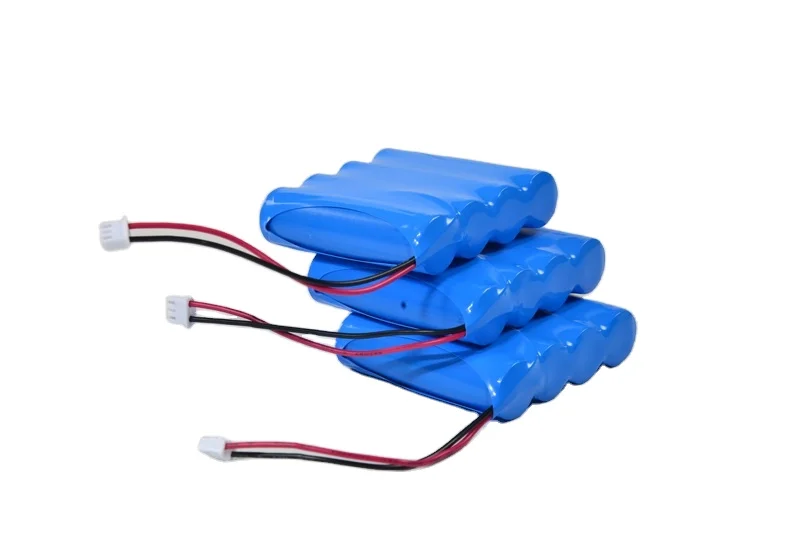

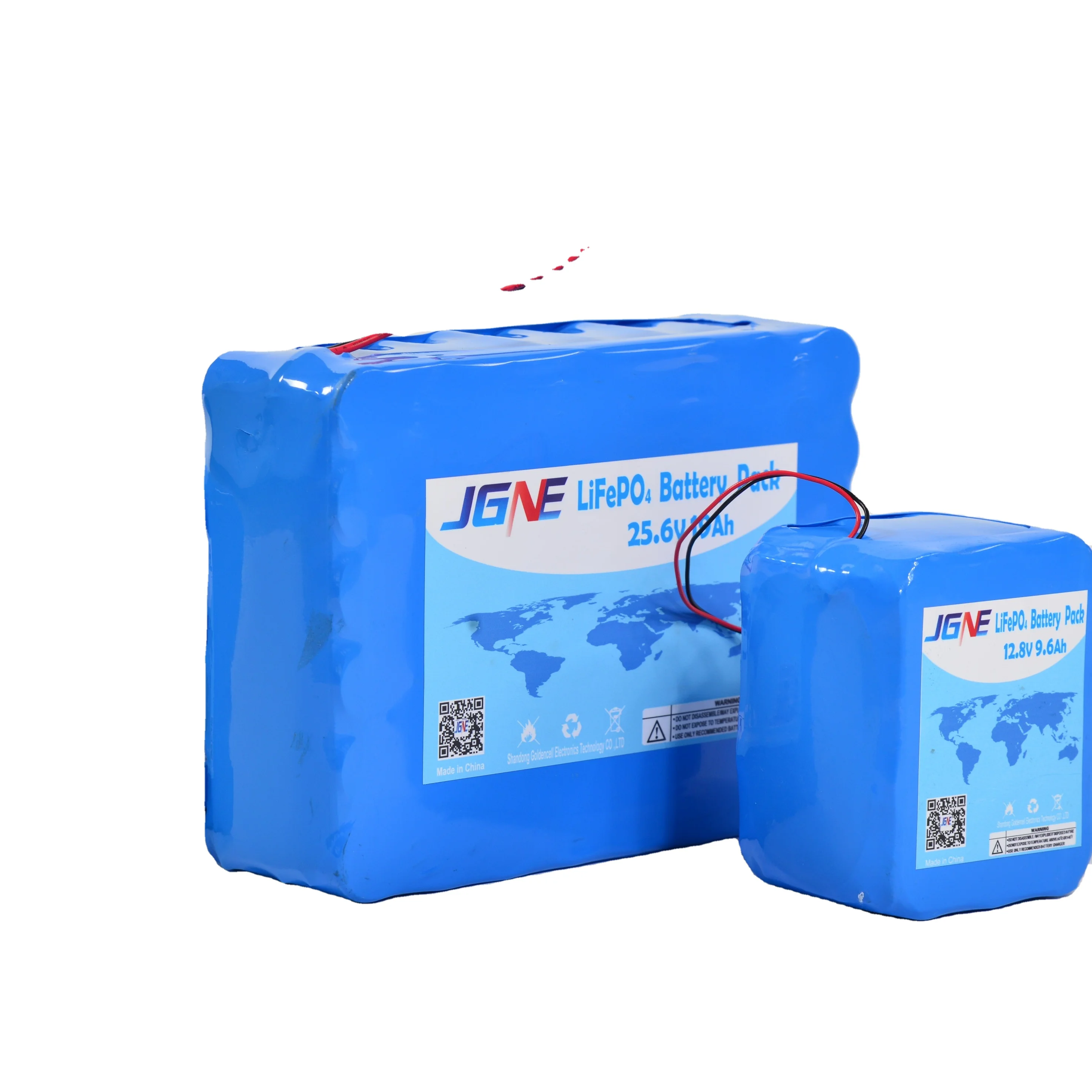

JGNE Custom Li ion Lithium Pack 1800mah 3.2v Rechargeable Batteries 18650 Battery Pack Lithium Ion Batteries
- Category: >>>
- Supplier: Shandong Goldencell Electronics Technology Co. Ltd
Share on (1600501088401):
Product Overview
Description
Products Description
Product Paramenters
NO. | Item | Standard | Note |
1 | Standard Capacity | 1800mAh | 0.2C,(current value of 1800mAat 1C) |
2 | Minimum Capacity | 1750mAh | 0.2C |
3 | Standard Voltage | 3.2V | |
4 | Alternating Internal Resistance | ≤40mΩ | |
5 | Charge Conditions:Cut-off Voltage | 3.65±0.05V | constant-current charge to 3.65Vat 0.5C,constant voltage charge to stopuntil 0.01C m A. |
6 | Charge Conditions:Cut-off current | 0.01C | |
7 | Max. Charging Current | 1.8A | |
8 | Discharge Cut-off Voltage | 2.5V | |
9 | Standard Discharge Current | 0.9A | |
10 | Fast Discharge Current | 1.8A | This current is the maximumcurrentrecommended for the combinationofcells, and the specific value shouldbedetermined according to the combinationstructure. The maximumoperatingcurrent is set at a temperature not exceeding 60 ℃. |
11 | Max. Continuous Discharge Current | 5.4A | Only for single cell |
12 | Pulse Discharge Current | 10A，5s | |
13 | Cycle Characteristic | （100%DOD） | 2000 times |
14 | （80%DOD） | 4000 times | |
15 | （50%DOD） | 7000 times | |
16 | Working Temperature | Charge: | 0℃～55℃ |
17 | Discharge: | -20℃～60℃ | |
18 | Storage Temperature | -20℃～55℃ | Short-term storage (< 3 months) |
19 | Cell Weight | Approx 41.5g |

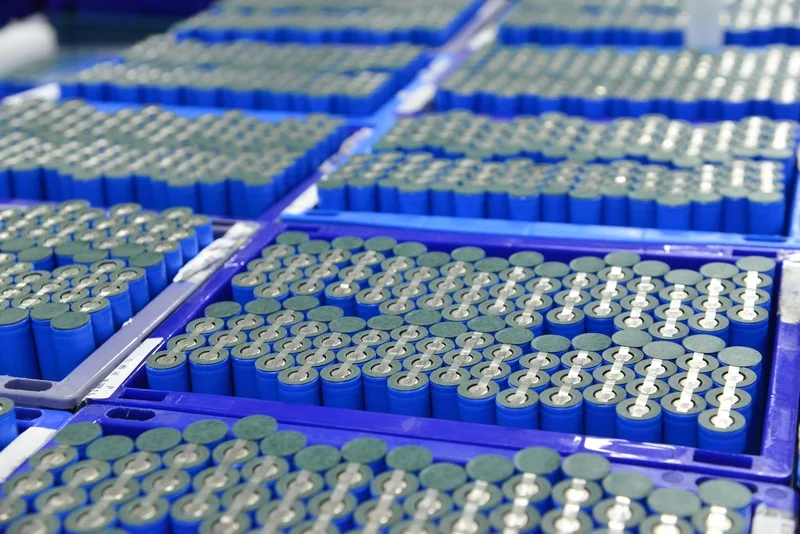

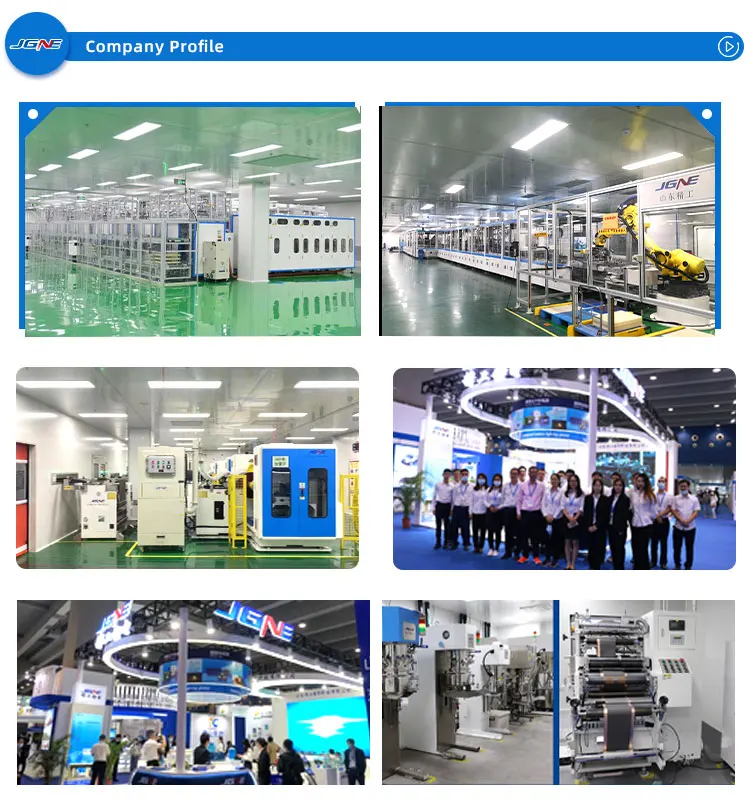

Company Profile
Certifications

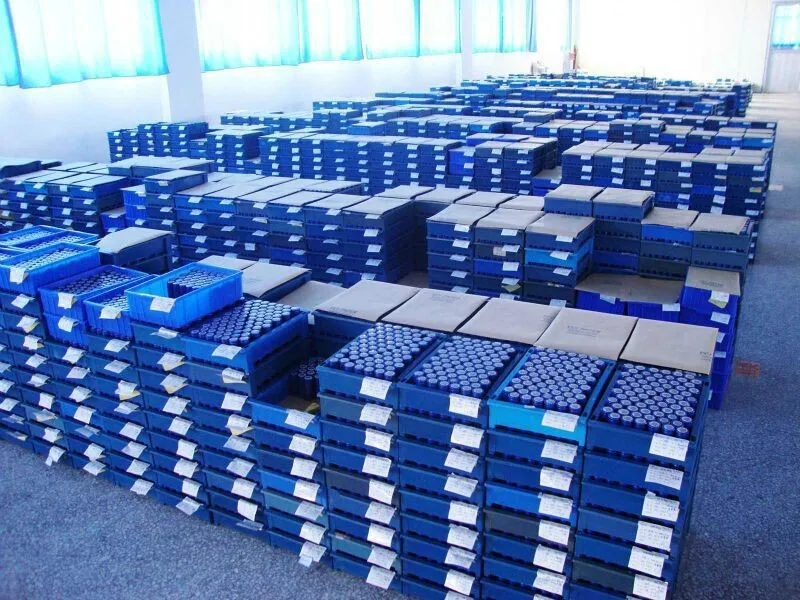

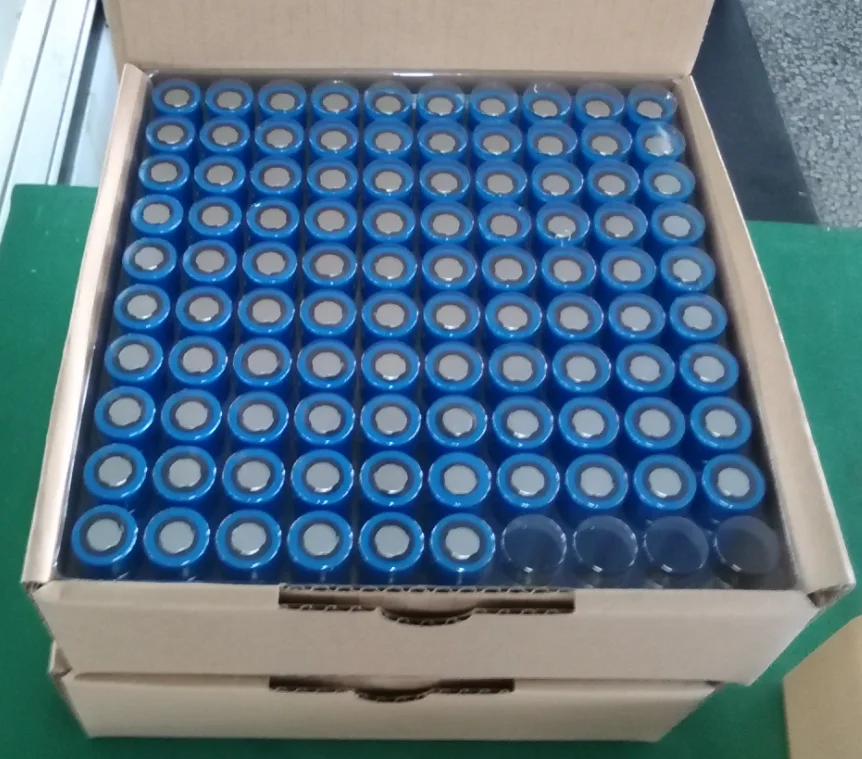

Product packaging
