Product Overview
Description
Product Information
The factory produces axle with quality assurance and cost advantage. The assembly process strictly abides by international quality standards to create high-quality products.
It adopts high-quality accessories from major brands at home and abroad, and global standard American/Germany axle specifications. It has strong practicability, low price and convenient maintenance.
It adopts high-quality accessories from major brands at home and abroad, and global standard American/Germany axle specifications. It has strong practicability, low price and convenient maintenance.
Model | Capacity(t) | Track(mm) | Axle Beam(mm) | PCD(mm) | Total Length(mm) |
1202WF | 12 | 1820 | □127 | 285.75 | 2170 |
1203WY | 12 | 1820 | ○127 | 285 | 2170 |
1204WY | 12 | 1820 | ○127 | 285.75 | 2170 |
1302WY | 13 | 1820 | ○127 | 225 | 2170 |
1303WF | 13 | 1840 | □150 | 285 | 2190 |
1305WY | 13 | 1840 | ○127 | 335 | 2194 |
1306WF | 13 | 1840 | □150 | 335 | 2190 |

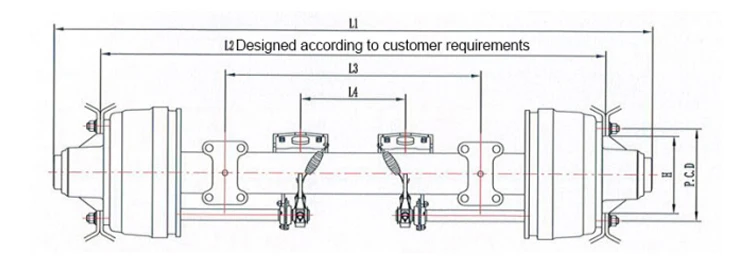

Axle Type | Max.Capacity(T) | L2Track (mm) | Brake(mm) | Bearing | L3(Spring seat installation) | Axle Beam (mm) | L4 Centre Distance of brake chamber(mm) |
08Y2C15 | 8 | 1850 | 420*150 | 33215 33213 | ≥1080 | 127 | 480 |
13Y9C10 | 13 | 1840 | 420*180 | HM518445/10 | ≥970 | 127 | 382 |
13F1B10 | 13 | 1840 | 420*180 | HM518445/10 | ≥930 | 150 | 382 |
14F1B11 | 14 | 1840 | 420*220 | HM518445/10 | ≥930 | 150 | 342 |
15F6B11 | 15 | 1850 | 420*180 | HM220149/10 HM518445/10 | ≥940 | 150 | 390 |
16F6B11 | 16 | 1850 | 420*220 | HM220149/10 HM518445/10 | ≥940 | 150 | 350 |
20F8B12 | 20 | 1850 | 420*220 | 32222 HM518445/10 | ≥940 | 150 | 345 |
25H8A12 | 25 | 1850 | 420*220 | 32222 30222 | ≥940 | 150 | 340 |
Wheel Fixing | Total length (mm) | Recommended Wheel | Axle Weight(kg) | ||||
Stud | P.C.D | H(mm) | |||||
10*M22*1.5 ISO | 335 | 280.8 | ~2145 | 7.5V-20 | 323 | ||
10*M22*1.5 ISO | 335 | 280.8 | ~2180 | 7.5V-20 | 342 | ||
10*M22*1.5 ISO | 335 | 280.8 | ~2180 | 7.5V-20 | 340 | ||
10*M22*1.5 ISO | 335 | 280.8 | ~2180 | 7.5V-20 | 358 | ||
10*M22*1.5 ISO | 335 | 280.8 | ~2200 | 8.0V-20 | 370 | ||
10*M22*1.5 ISO | 335 | 280.8 | ~2200 | 8.0V-20 | 388 | ||
10*M24*1.5 ISO | 335 | 280.8 | ~2247 | 8.5V-20 | 430 | ||
10*M24*1.5 ISO | 335 | 280.8 | ~2215 | 8.5V-20 | 474 | ||
Axle Type | Max Capacity (T) | L2 Track (mm) | Brake ( mm ) | Bearing | Spring Seat Installation | Axle | L4Centre Distanceof Brake Chamber ( mm) |
12FA1347D | 12 | 1840 | φ420x 180 | 33118 33213 | ≥980 | 150 | 423 |
13FA1348D | 13 | 1840 | φ 420x 200 | 33118 33213 | ≥900 | 150 | 360 |
14FA1348D | 14 | 1840 | φ 420x 200 | 32219 33215 | ≥900 | 150 | 356 |
16FA1348D | 16 | 1850 | φ 420x 200 | 322222 32314 | ≥900 | 150 | 360 |
18FA1348D | 18 | 1850 | Φ420x 200 | 322222 32314 | ≥900 | 150 | 380 |
Wheel Fixing | Total Length ( mm ) | Recommended Wheel | Weight(Kg) | ||||
Stud | PCD(mm) | H(mm) | |||||
10-M22x 1.5ISO | 335 | 280.8 | ~ 2144 | 7.5v-20 | 360 | ||
10-M22x 1.5ISO | 335 | 280.8 | ~ 2144 | 7.5v-20 | 382 | ||
10-M22x 1.5ISO | 335 | 280.8 | ~ 2198 | 8.0v-20 | 406 | ||
10-M22x 1.5ISO | 335 | 280.8 | ~ 2265 | 8.5v-20 | 440 | ||
10-M22x 1.5ISO | 335 | 280.8 | ~ 2265 | 8.5v-20 | 443 | ||
Product detail
1. One-piece shaft tube, high strength, comfortable appearance.
2. Compared with other axles of the same load, it is light in weight and low in price.
3. Using non-asbestos friction plate, more environmentally friendly.
4. Adopting international general specifications, maintenance is convenient, fast and low cost.
2. Compared with other axles of the same load, it is light in weight and low in price.
3. Using non-asbestos friction plate, more environmentally friendly.
4. Adopting international general specifications, maintenance is convenient, fast and low cost.
Packing&delivery
PACKING ：Nude and wax, shipped in bulk cargo ship, flat deck or RO-RO
Delivery :within 10-15days after confirming the payment
Delivery :within 10-15days after confirming the payment
Company Profile
Our science, industry, and commerce integrated enterprise which combines products design,
research development, production and marketing, owning Low bed semi trailer,Container semi trailer, Oil/fuel tank trailer,Side wall semi trailer, Cargo semi trailer, Box semi trailer,Dump truck trailer,Module trailer,LPG trailer and so on,more than 100 variety products,welcome to contact us.
1.Our products support personalized customization, and there are many types for you to choose from
2.Our promise of on-time delivery + complete after sales service makes you happy
3.Mechanized production and efficient service team provide the most guarantee for your products
research development, production and marketing, owning Low bed semi trailer,Container semi trailer, Oil/fuel tank trailer,Side wall semi trailer, Cargo semi trailer, Box semi trailer,Dump truck trailer,Module trailer,LPG trailer and so on,more than 100 variety products,welcome to contact us.
1.Our products support personalized customization, and there are many types for you to choose from
2.Our promise of on-time delivery + complete after sales service makes you happy
3.Mechanized production and efficient service team provide the most guarantee for your products
FAQ
Q1: Does your company have your own factory?
Yes, we are a manufacturing enterprise with field factories. Welcome to visit.
Q2 What is your terms of payment?
T/T 30% as deposit, and 70% before delivery.Before you pay the balance, we will show you photos of products and finished products.
Q3 What's the lead time?
After confirming the order, it usually takes about 15 days to complete the ordinary trailer, container trailer and skeleton
Trailer. The special trailer takes about 21days. You can ask about the production progress at any time during the production process.
Q4 Can you satisfy my special requirement?
Definitely! We are direct manufacturer and we can discuss the practical plan and produce it as your request.
Q5 How do you ship the products?
By Sea ,By Air ,TNT ,DHL, Fedex, UPS Etc. It is up to you.
Yes, we are a manufacturing enterprise with field factories. Welcome to visit.
Q2 What is your terms of payment?
T/T 30% as deposit, and 70% before delivery.Before you pay the balance, we will show you photos of products and finished products.
Q3 What's the lead time?
After confirming the order, it usually takes about 15 days to complete the ordinary trailer, container trailer and skeleton
Trailer. The special trailer takes about 21days. You can ask about the production progress at any time during the production process.
Q4 Can you satisfy my special requirement?
Definitely! We are direct manufacturer and we can discuss the practical plan and produce it as your request.
Q5 How do you ship the products?
By Sea ,By Air ,TNT ,DHL, Fedex, UPS Etc. It is up to you.
