Product Overview

Description

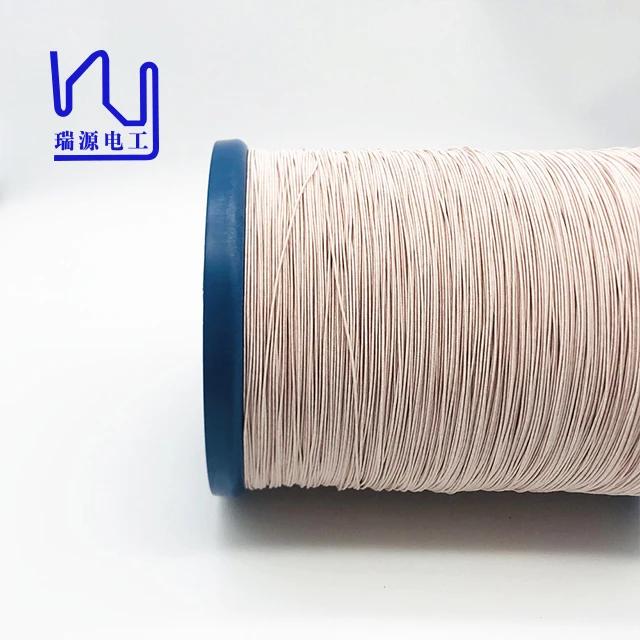

0.08mm*105 Cotton Coated Insulated Stranded Enameled Copper Magnet Wire for Generator

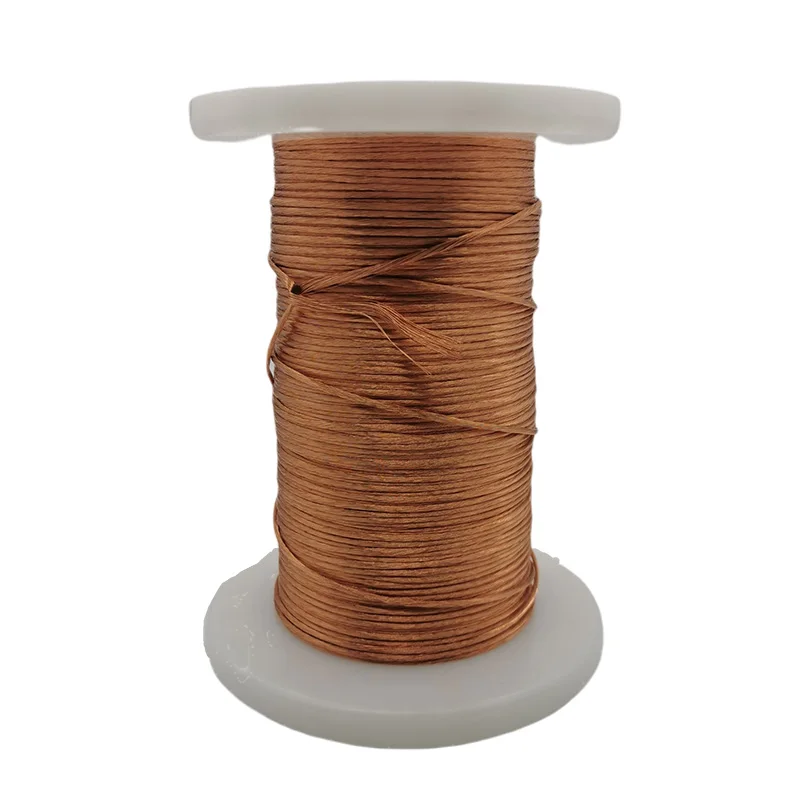

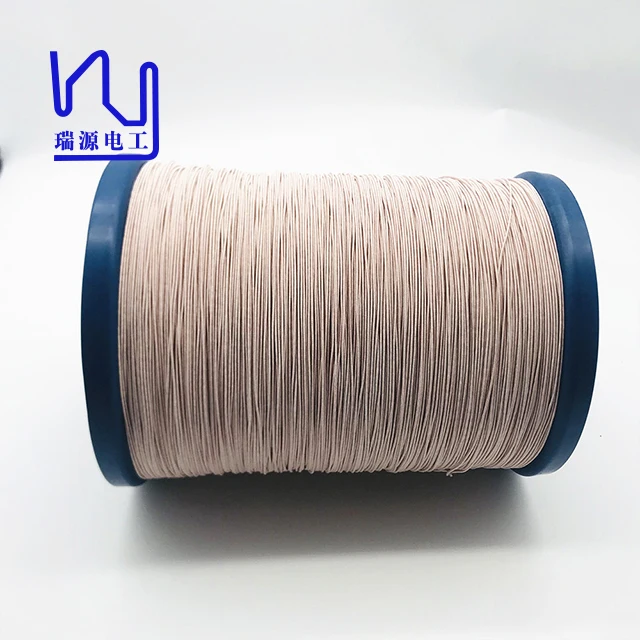

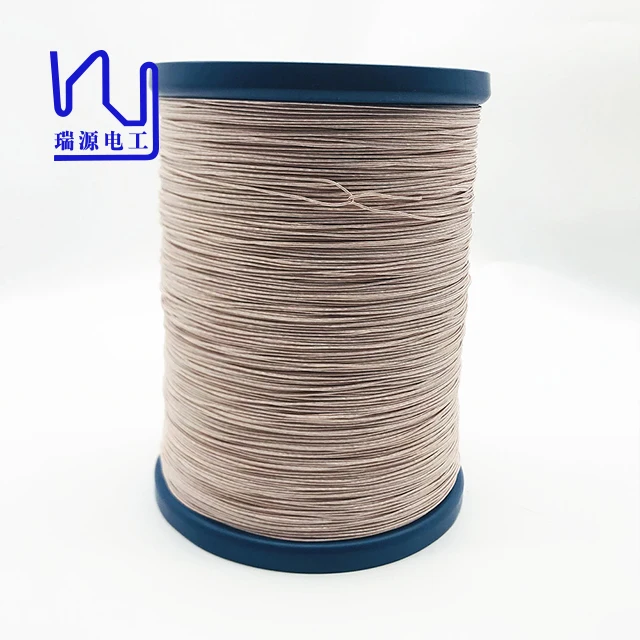

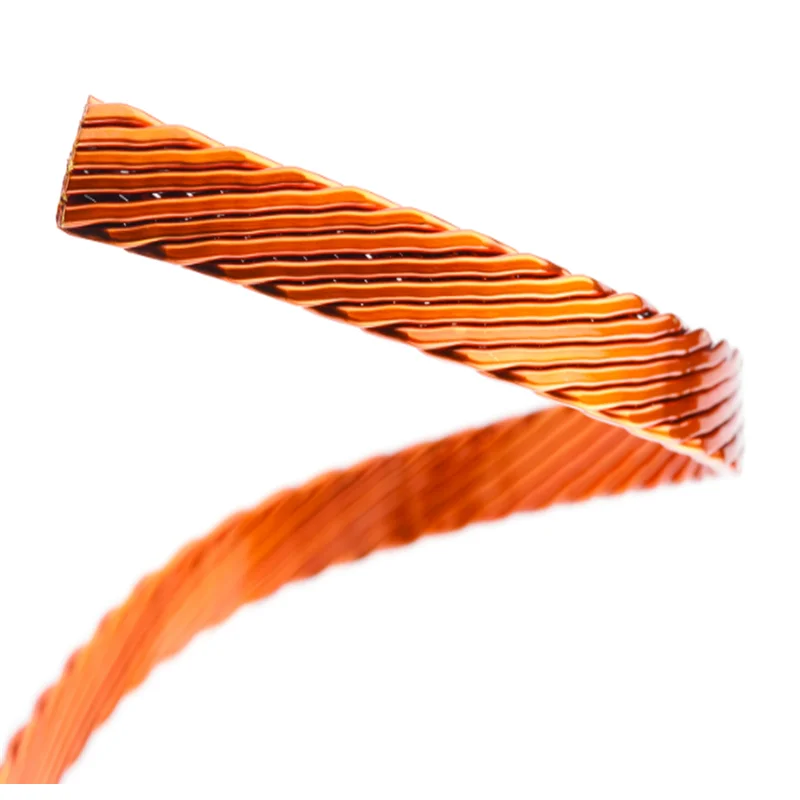

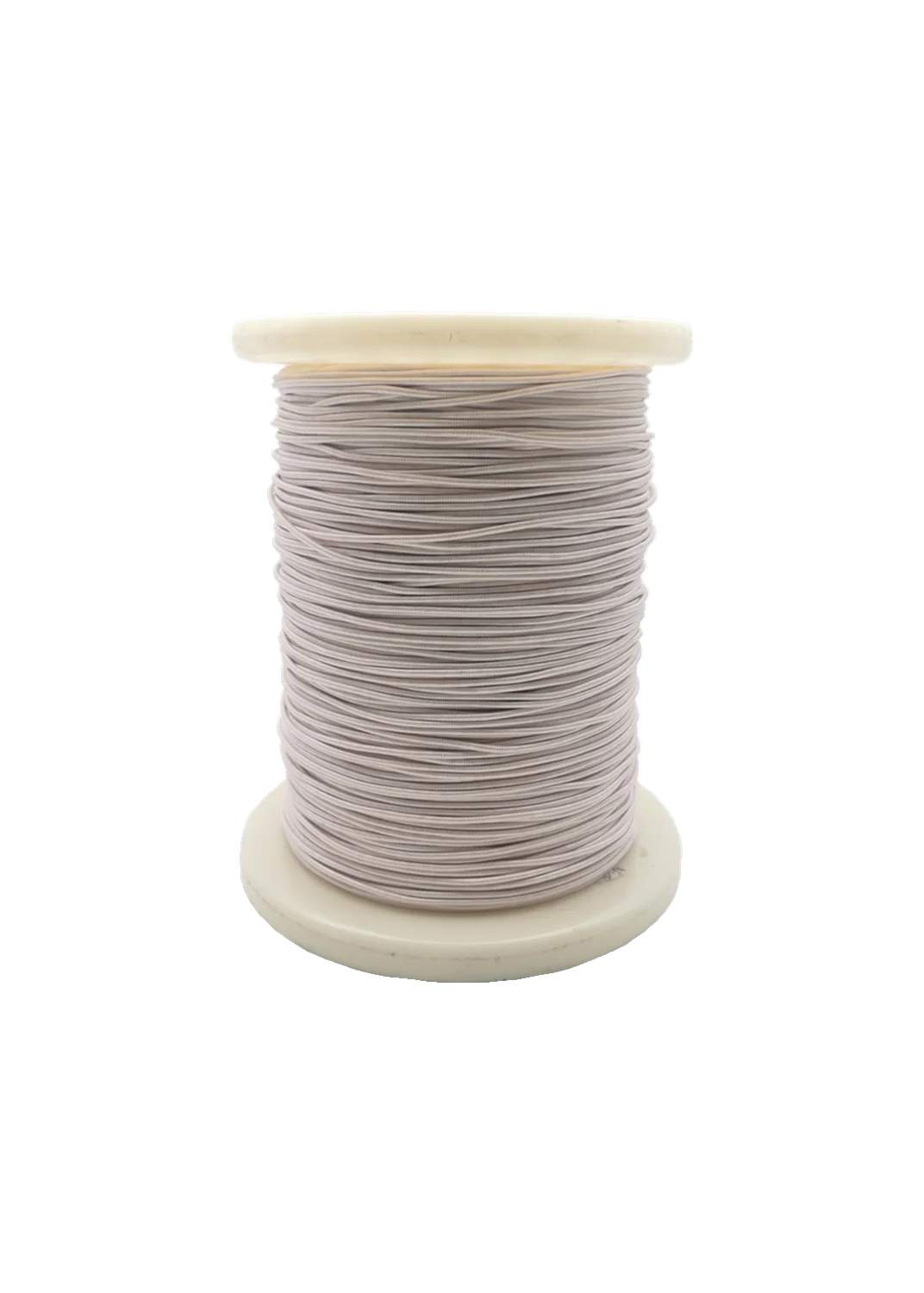

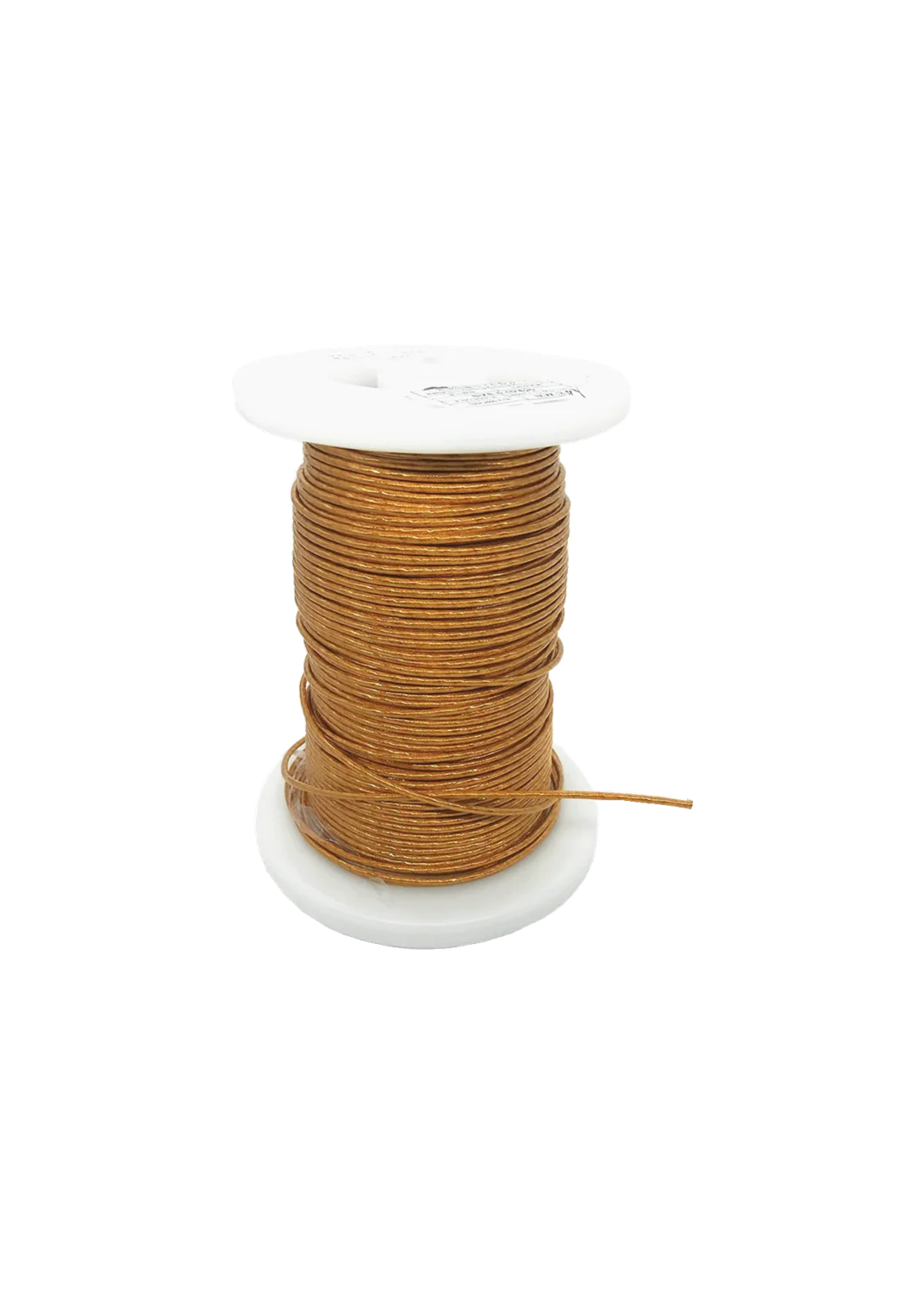

Stranded wire Silk covered litz wire Taped litz wire Profiled litz wire


The size range we can make is 0.03-0.8mm, and NO.of strands is 2-4000
The size range we can make is 0.03-0.8mm, and NO.of strands is 2-4000. Sometimes customer need twist the wire with multiple twisting, we can make according to you request.Silk covered litz wire or USTC wire is the wire by utilizing the insulation of UEW and artificial fiber,the interlayer capacitance will be lower to achieve outstanding performance at high frequence and increasing "Q" value.


Features:

1. Increased efficiency
2. Mitigation of skin and proximity effect
3. Minimum eddy current losses
4. Lowered operating temperatures
5. Reduced footprint of final product
6. Substantial weight reduction
7. Avoidance of "hot spots"







Product Paramenters


Characteristics
Technical requests
Test Results
Conclusion
1
Inner diameter
0.05±0.003 mm
0.050mm
OK
2
Thickness of coating
≥ 0.005mm
0.009mm
OK
3
Outer diameter
≤ 0.060mm
0.059
OK
4
Twist direction
S/Z
Z
OK
5
Strands
2600
2600
OK
6
Twist Pitch
68±9 mm
70
OK
7
Breakdown Voltage
5300V
6400V
OK
8
Conductor Resistance
≤ 3.75Ω/km
3.24
OK
9
Solderability
YES
YES
OK
10
Pinhole
≤714PCS/5m
21pcs
OK
11
Overlapping Rate
33%/50%/60%
50%
OK
Remark

The product meet the requirement of RoHS.
Conclusion

           Approved


Certifications




About us

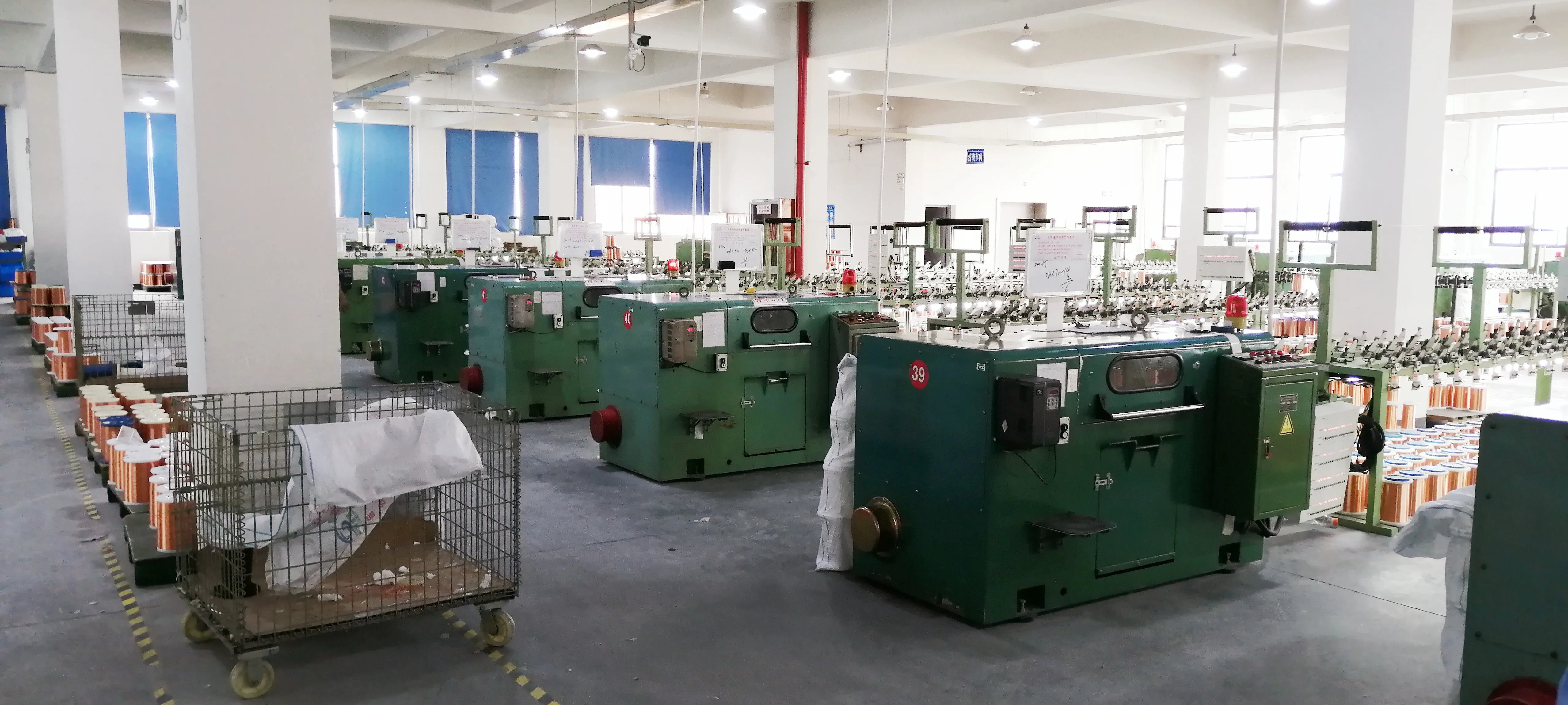

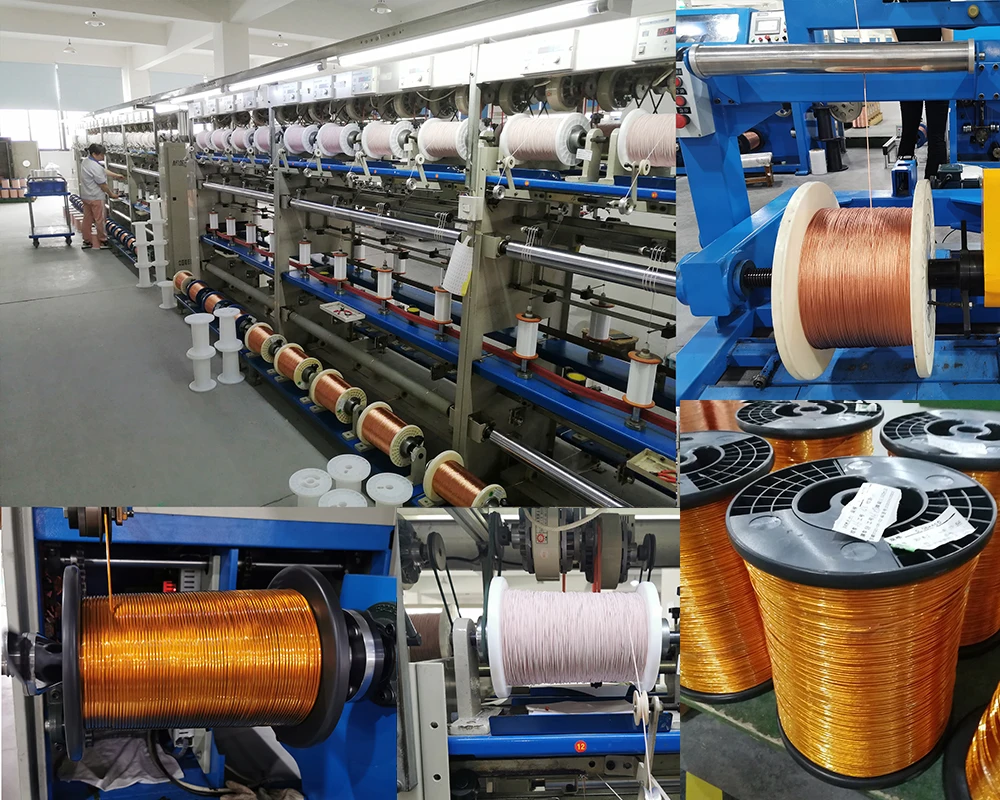

Our workshop






Our Customer

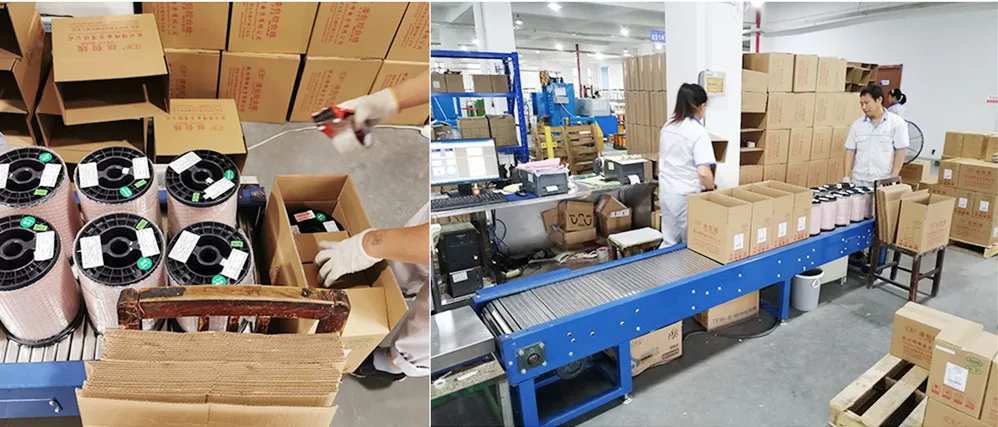

Package




FAQ


1.Can I get sample for testing before bulk order?
Of course.Samples can be offered to you by free, but express costs should be undertaken by buyer.
2..What is your lead time?
Small sample order 3-5 working days; Large order should be within 15 working days after order confirmed.
3. What's your Guarantee?
Within 2 years, if any quality problem, the defect products will be all replaced at once.
4. How to purchase from us?
Offer Requirement for Inquiry →Producing Sample →Sample Confirmation → Quotation →PI → Confirm PI → Arrange Payment→ Manufacture →Shipping
5..What's your payment term?
T/T, D/P, D/A, L/C, PayPal.
