High Quality Stainless Steel 100 Liter 100L Conical Beer Fermenter Tank For Sale Price Fermenter
- Category: >>>
- Supplier: Shandong Innovative & Craft Brewing Equipment Co. Ltd.
Share on (1600501095633):
Product Overview
Description
High Quality Stainless Steel 100 Liter 100L Conical Beer Fermenter Tank For Sale Price Fermenter
The fermentation tank is a container for microorganisms to carry out the fermentation process, and it provides a place suitable for life activities and metabolism for microorganisms. To adapt to the use of different sizes of breweries, Micet produced a variety of sizes and specifications of fermentation tanks. Customers can choose the most suitable fermentation tank according to their needs.
Because there are many types of beverages that need to be fermented, there are also many types of fermenters. Currently, Micet has a lot of experience in the production of beer, wine, cider, and kombucha fermentation vessel. If you need other types of fermenters, you can tell us the requirements, and our engineers will customize the design of fermenters according to your requirements.
Product Advantages
1. The fermentation tank is equipped with lifting ears, which is convenient for hoisting equipment in place.
2. With a rotating elbow and racking tam for beer delivery, it is convenient and flexible to deliver beer.
3. An elliptical guard plate is added at the junction of the outriggers and the lower cone refrigerant inlet pipe and the lower cone outsourcing to ensure more precise machining accuracy.
4. All tanks are equipped with adjusting bolts to ensure the tanks are aligned and leveled.
5. The clamp is installed at the connection between the material port and the bottom of the tank, which can be rotated at will, which is convenient for customers to operate.
6. Outsourcing of the bottom of the Bright tank is made of finished products to ensure that the tank body has a beautiful appearance, strong and durable.
7. All bright tanks are equipped with carbon stones for CO2.
8. Uses a shadowless manway, which is easy to clean. The top manhole can be designed according to the customer’s fermentation process and brewing beer.
9. The headspace is large, the total volume does not include the volume of the top head.
10. The cooling jackets are designed on both top of the cone and the bottom of the cylinder, and the cooling area is large enough.
11. Equipped with safety device, positive and negative pressure opening function.
12. The 60-degree cone angle is convenient for yeast excretion.
13. The fermentation tank is equipped with a special ladder for easy operation.
14. The working platform adopts water leakage and a non-slip design.
15. Brewhouse manways always use full glass manway.
Product Parameters
Effective volume | 5BBL | 10BBL | 15BBL | 20BBL | 25BBL | 30BBL | 40BBL | 50BBL | |||||||
Total volume | 6.25BBL | 12.5BBL | 18.75BBL | 25BBL | 31.25BBL | 37.5BBL | 50BBL | 62.5BBL | |||||||
Size | 960*2050mm | 1160*2500mm | 1260*2800mm | 1460*3050mm | 1700*3350mm | 1750*3450mm | 1800*3550mm | 1900*4250mm | |||||||
Material | SUS304/SUS316 | ||||||||||||||
Control system | PLC Siemens or PID Schneider/ABB brand | ||||||||||||||
Cooling area | 1.3㎡ | 2.6㎡ | 3㎡ | 4㎡ | 4.4㎡ | 4.7㎡ | 6.3㎡ | 8.0㎡ | |||||||
Work pressure | inner jacket 0.4MPa; cooling jacket 0.5Mpa | ||||||||||||||
Design pressure | inner jacket 0.2MPa; cooling jacket 0.3Mpa | ||||||||||||||

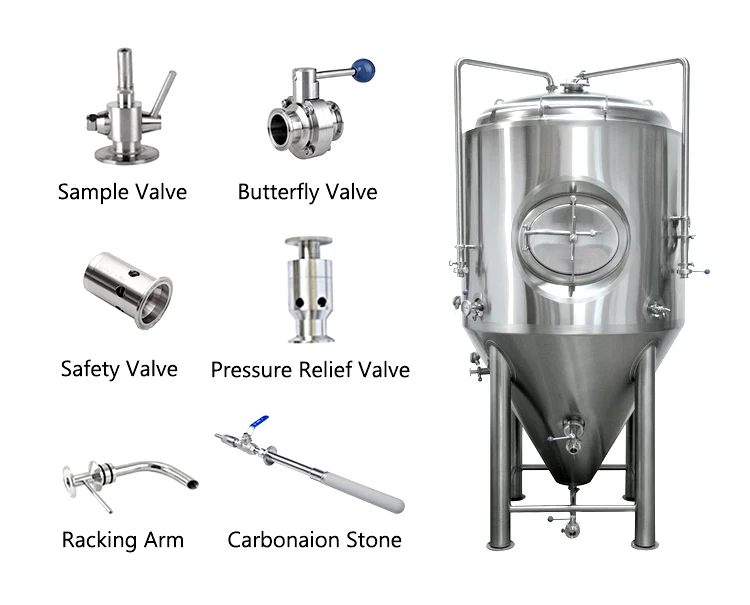

Fermentation Tank Configuration
Fermentation System | Fermentation tank | -Pressure:3 Bar-Inner:3mm; outer:2mm; with insulation -Cooling jackets |
Accessories | Yeast Saving Tank | |
Cooling System | Glycol water tank | -Inner:3mm; outer:2mm |
Accessories | Chiller; Glycol water pump; Pipes & Valves | |
CIP System | Acid tank, Caustic tank, Trolley | -Pump; Pipes & Valves -Accessories of the CIP System |

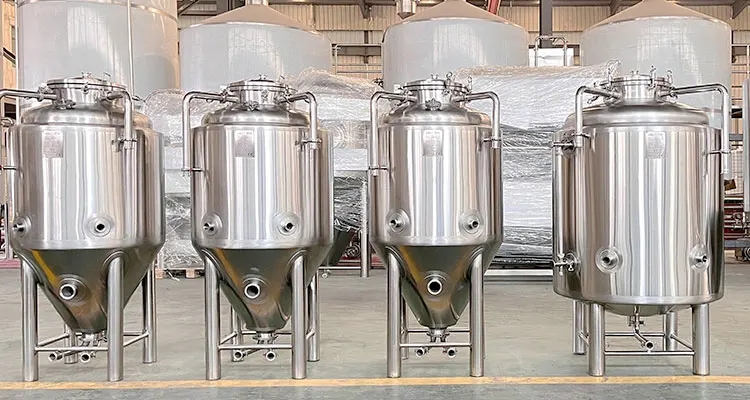

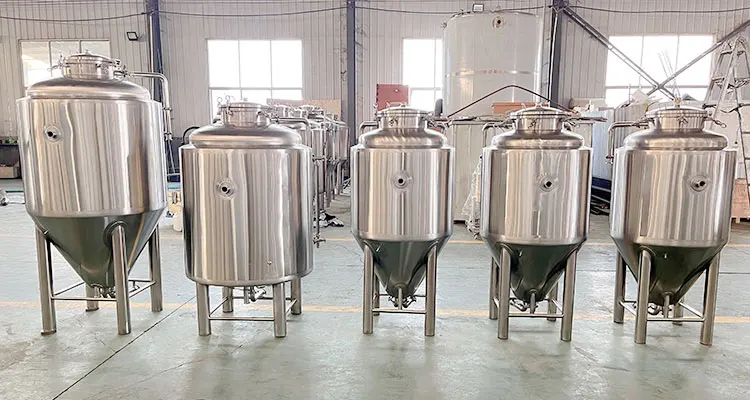

Product Show
Our Service
1. Micet provides a turnkey solution from project consulting, benefit analysis, space layout design, 3D rendering, production site, equipment design, manufacturing, installation, commissioning, training, and other one-stop services.
2. Micet provides installation and debugging service at a service fee (100usd) per day.
3. Micet factory marks all piping with numbers, solve any questions during your installation.
4. Micet technicians will train the brewer to produce qualified craft beer.
5. Micet provides installation and maintenance manual book, piping installing layout.
6. Sales&engineers could be keeping 24 hours online for service.
7. Micet provides a 3-year warranty on tanks sold with manufacturing defects from the factory. Micet provides a 1-year warranty on tank accessories, pumps, electronic components.
8. Any extra spare parts required, send and deliver immediately.
Packing & Shipping
FCL shipping
1. All piping mark numbers before shipping. Meanwhile, In order to help customers to install easily, we will provide a whole process piping installation diagram as per the installation sequence.
2. All the accessorizes for brewhouse and fermenting will be counted and packed separately.
3. Each of our ports will have a lid in case the dust goes inside during shipping. For packing, the stand tank will be fully packed in case of any salt corrosion on the sea, for horizontal tanks, tanks will be packed by a steel frame on the skid and the legs will be fixed by a thread in case of any moving during transportation.
Project Cases
Our Company
Our Office
Micet always adheres to the spirit of craftsmanship (quality), elite culture (talent), and innovation consciousness (research and development) as the competitiveness of enterprise development. We focus on high-end product lines and insist on craftsman spirit, perform strict quality control and process testing in production to ensure that customers have good expectations for equipment and on-time delivery.
Certification
Our factory adopts 5S management, professional and strict inspection and testing process, each order will have an inspection record from materials checking, production progress, finished product to delivery and packing,.etc. Each system will have 4 times inspections, including materials come in, production process, testing, finished product inspection before shipping, our goal is to mostly control the quality to reduce the client's trouble even good after-sale!
Customized design
We can not only design the brewhouse as per the client's brewing requirement and beer types but also provide the CAD & 3D design drawing, including P&ID process, vessel drawing, piping connection, and brewery layout.
Quality assurance
Insist on high-end products line, adopts high Standard design and global brand components, etc., Our welding is all full welding by water, uniform dimpled jackets to ensure no leaking and long life, all welds undergo welds passivation! Our polishing is overall mirror polishing without any welds left.
One-stop purchase
Insist on high-end products line, adopts high Standard design and global brand components, etc., Our welding is all full welding by water, uniform dimpled jackets to ensure no leaking and long life, all welds undergo welds passivation!
How does Micet do quality control?
Micet will have at least 4 times inspections for each order, including materials come inspection, production process control, finished production inspection, and full line testing and inspection before shipping to ensure the final product will meet the client's requirements.
How to choose brewhouse equipment?
Brewhouse system selection for purchasing beer equipment there are about basically four types including 2 vessel brewhouse, 3 vessel brewhouse, and 4 vessel brewhouse. The combination type can be chosen depending on the client's budget, space size, local brewing process. We will also recommend according to old clients' experiences and different country brewing features.
How long is the delivery time?
1. The manufacturing time is 40 working days and will be enforced as soon as receiving the deposit.
2. The technical files (layout, drawings, etc) confirmation time shall not be included in the manufacturing time.
What is your payment term?
1. T/T transfer, 40% advance payment for start production, after paying 60% balance payment for shipping.
2. Paypal or trade assurance is available.
What is your warranty term?
Main machine guarantee for three years we'll provide free repairing. If anywhere goes wrong during. During this period accessories and electronic components will have a one-year free warranty. Anything is broken during the warranty. The replacements will be sent immediately and get within. Provide daily maintenance and technical services.
