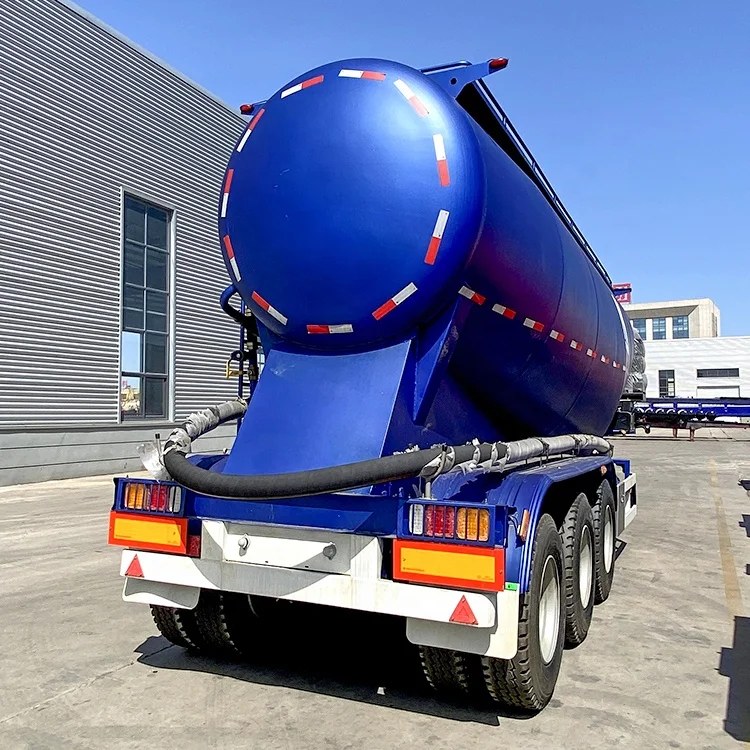

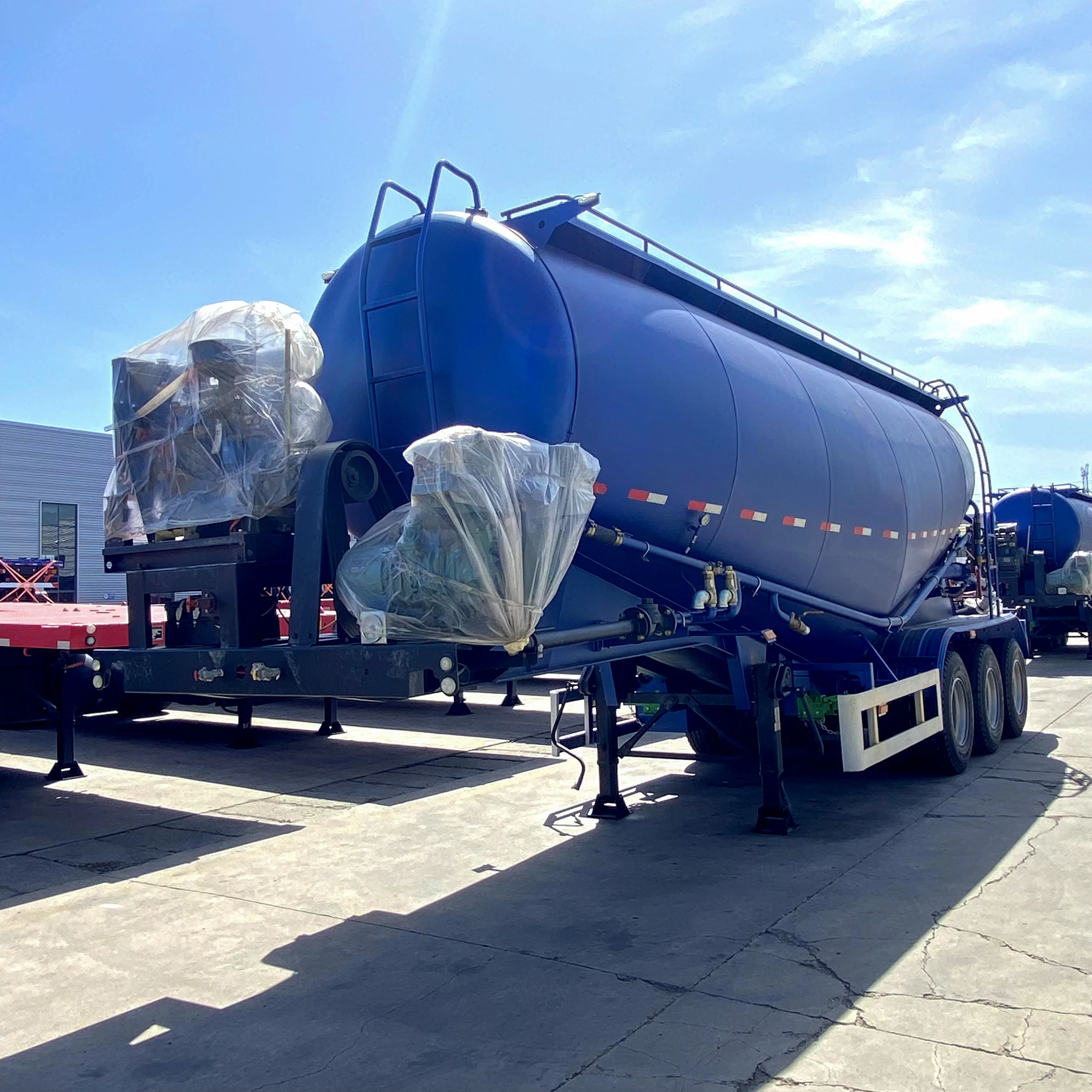

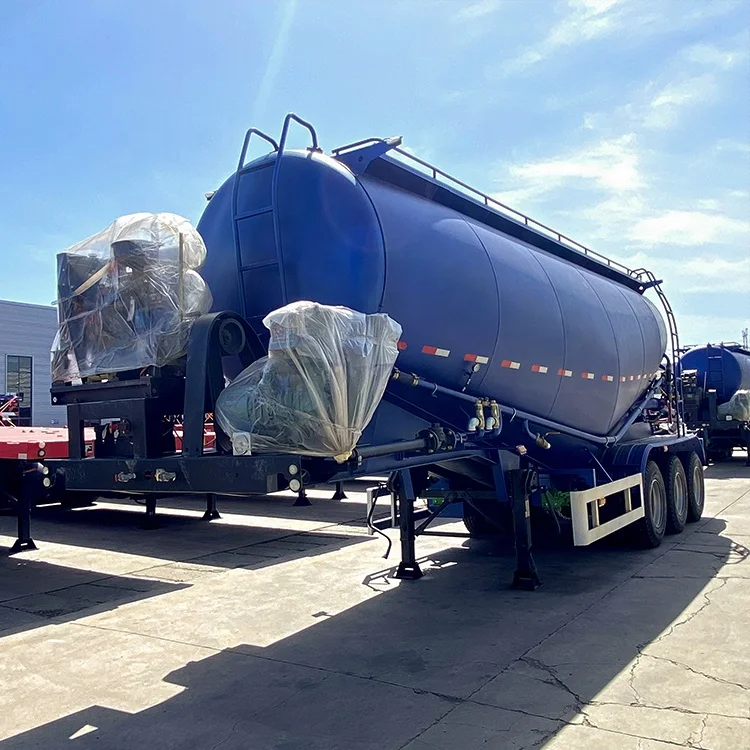

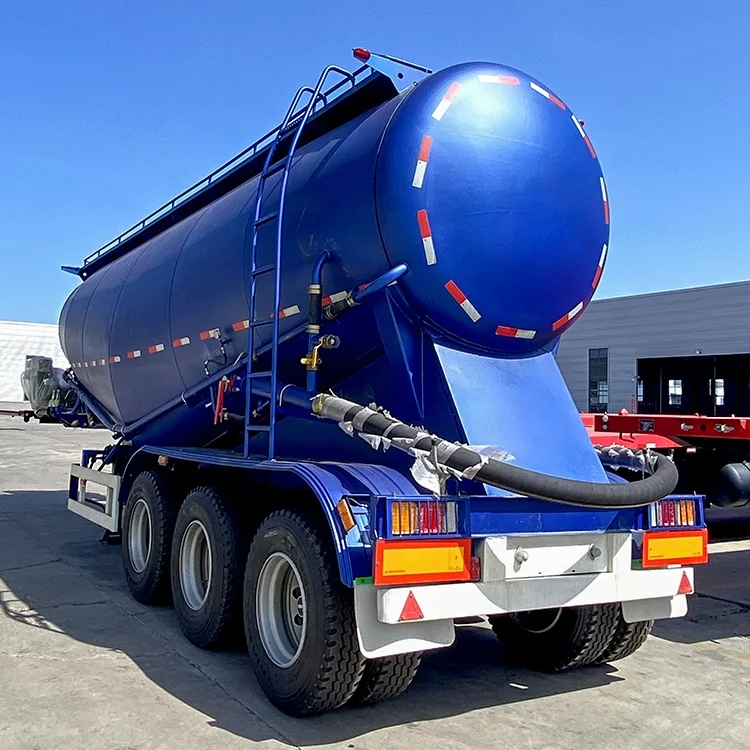

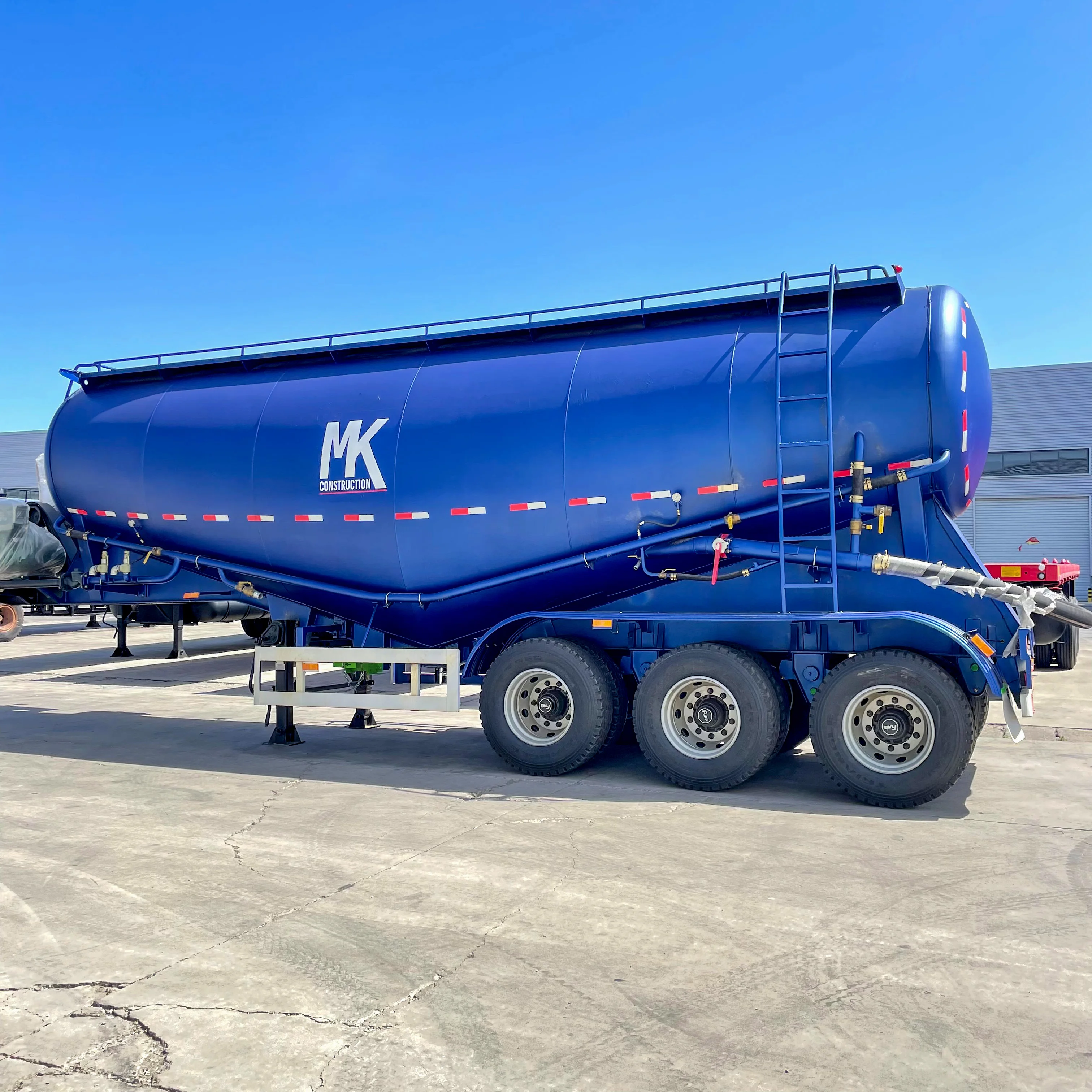

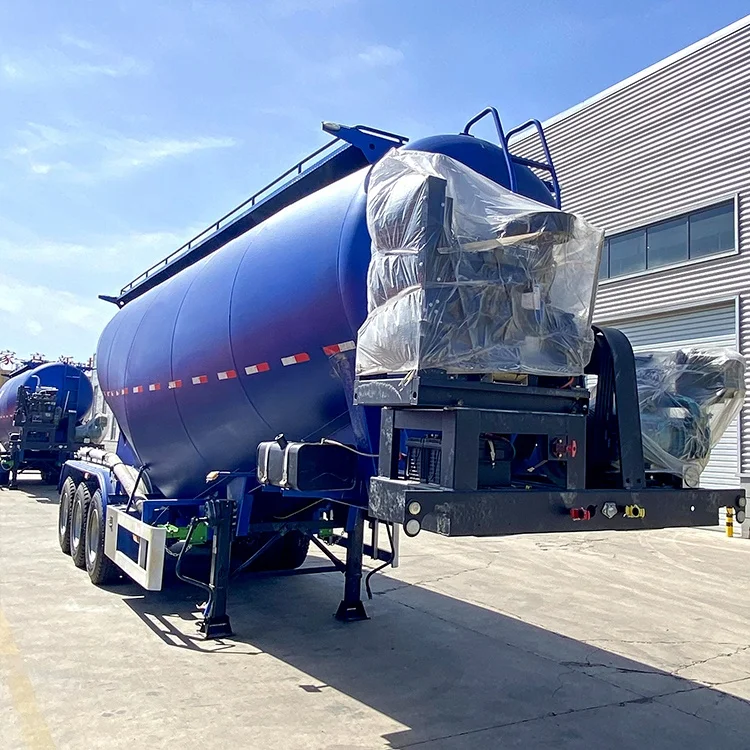

Low price bulk cement tanker trailer 30ton 40tons 50ton 3axles cement tank semi trailer
- Category: >>>
- Supplier: Shandong Luxing Special Purpose Vehicle Manufacturing Co. Ltd.
Share on (1600501103930):
Product Overview
Description
Product Description
Bulk cement tanker is a special transport vehicle for powder materials used to transport powder materials. It can store, transfer and unload solid powders such as fly ash, cement, lime powder, ore powder and grain, as well as granular goods.
MADE OF HIGH-QUALITY STEEL
RELIABLE STRUCTURE AND STABLE PERFORMANCE
V-SHAPED DESIGN
20 DEGREE FLUIDIZATION ANGLE, FAST UNLOADING SPEED AND LOWER RESIDUAL RATE
PRICE
Factory direct sales affordable price
QUALITY
Made of high quality steel solid and practical
SERVICE
Deliver goods on time no worries after sales
Product Paramenters
Flated semi trailer | ||||||
Manufacture | LUXING | |||||
Dimension(mm) | 10000x2500x3900 ( Exact size depends on the final design) | 40 Feet | 45 Feet | |||
Volume | 25 - 60 cbm | |||||
Tare Weight | 11800 - 13000 kg | Upper Plate : 16 mm | Upper Plate :16 mm | |||
Tanker Body | 4 mm or 5 mm/Q345 carbon steel, Full machine Welding design | Lower Plate : 18 mm | Lower Plate : 18 mm | |||
End Plate | 5 mm or 6 mm/Q345 carbon steel | Middle Plate : 10 mm | Middle Plate : 10 mm | |||
Compressor | BOHAI brand( 12m³-16m³ 37 KW,0.2Mpa. 1000r/Min(12m3/minute) | |||||
Manhole Cover | 500mm manhole cover, 3 sets with 1 breath valve | 12400x2500x 1570 | 13950x2500x 1600 | |||
Discharging Valve | 4/5 inch disc valve | 30 - 80 T | 30 - 80 T | |||
Discharging Pipe | 4” rubber hose, 2 pcs, 8m/each | 12 Sets | 12 Sets | |||
Air compressor | 12/14 m3, double-cylinder | |||||
Discharge valve box | Totally-enclosed | |||||
Engine | Weichai 4105/4102/4100# Engine(Optional) | |||||
Axle | 2/3 Axles, FUWA/BPW/Other | |||||
Suspension | Mechanical/Air suspension (American or German) | |||||
Leaf spring | 8/10/12/16 pieces | |||||
King Pin | 2"(50mm) or 3.5"(90mm) JOST | |||||
Landing Gear | 28 Tons, JOST/FUWA/Yahua, Two speed/Single speed | |||||
Rear ladder | Dismountable or Foldaway | |||||
Brake System | Dual line pneumatic brake, SAE hose and connector,optional ABS | |||||
Electrical System | 24V, 7 core socket,One set 7-core standard Cable,LED lights | |||||
Tire | 12R22.5 (8/12 Pieces) | |||||
Tool box | 1set standard tool box | |||||
Color | Customers Optional | |||||
*Above information is the standard Spec. if you need to change the Spec or know more details, please let us know. | ||||||
Details Images
PRODUCT DETAILS
PRODUCT DETAILS DETERMINE PRODUCT QUALITY

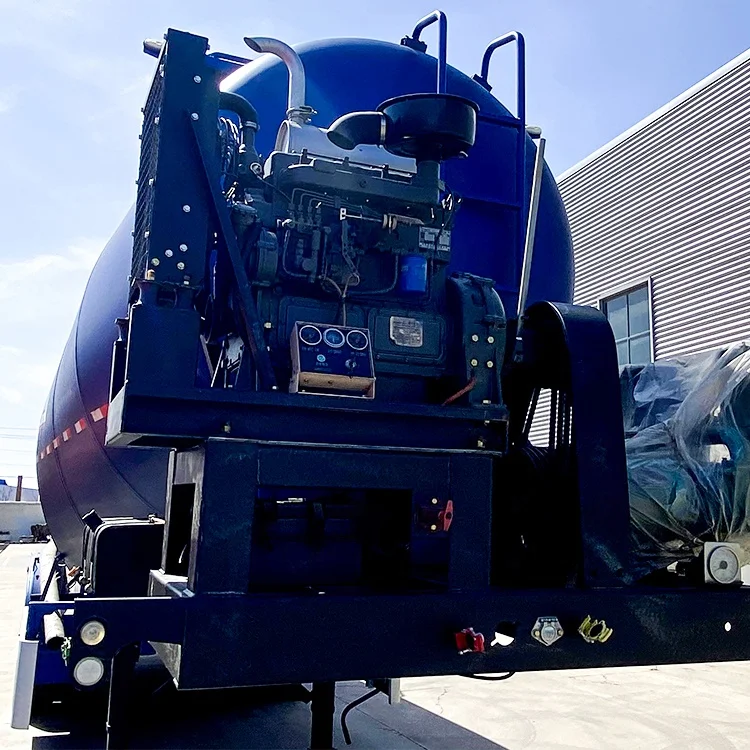

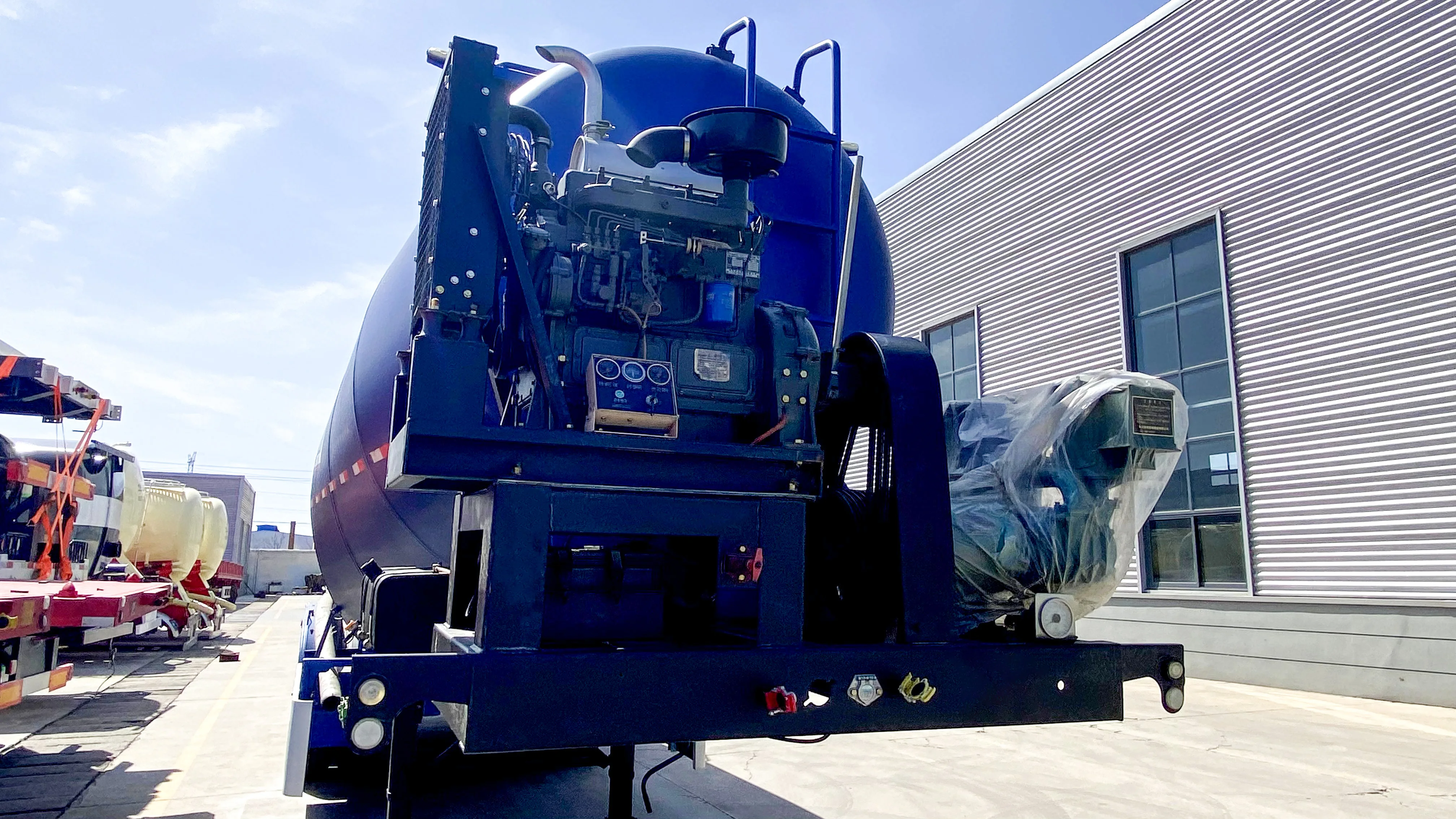

YUCHAI ENGINE
Provide sufficient power for the air compressor

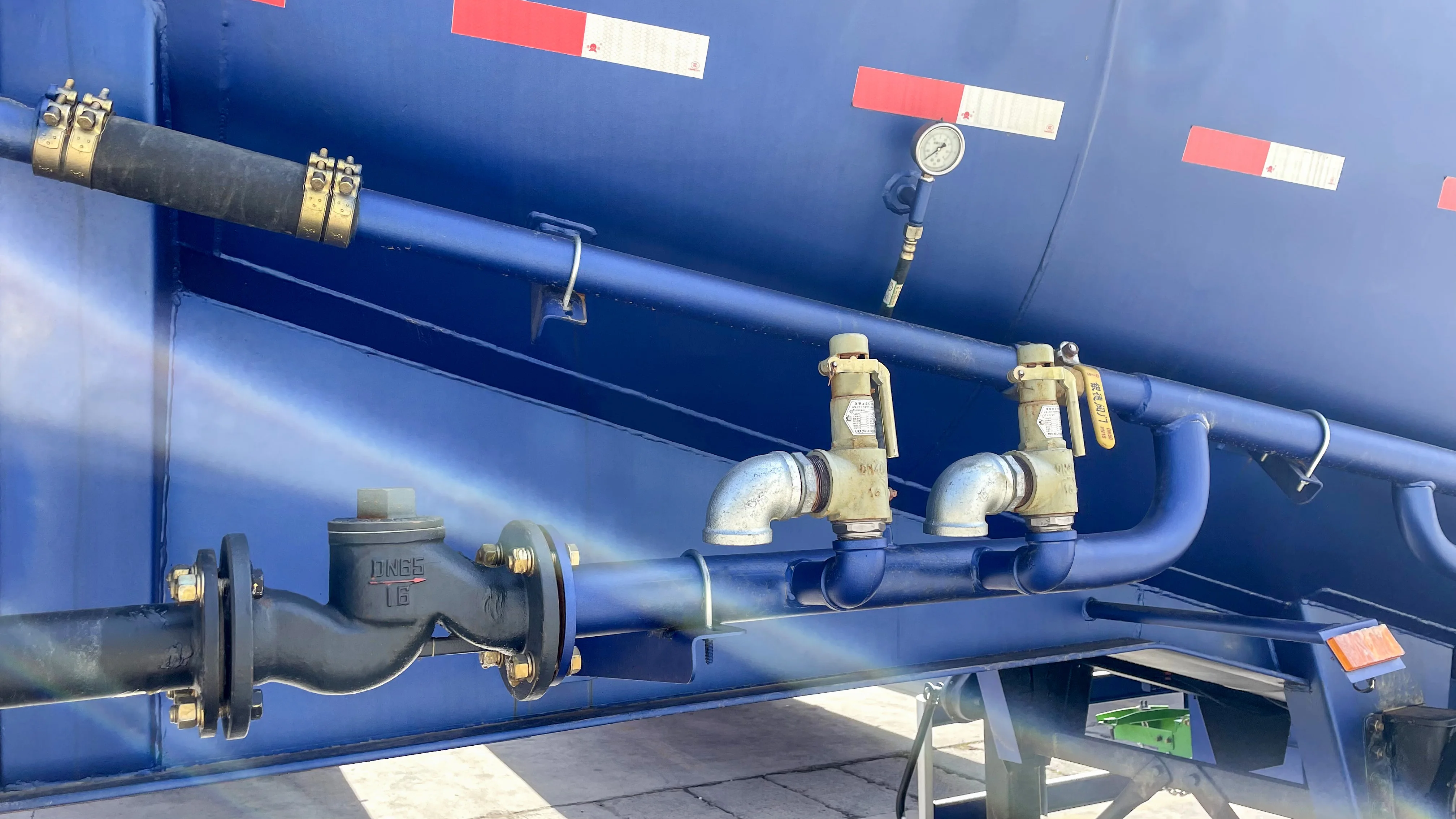

DOUBLE INLET VALVE
Double insurance, more assured, to ensure the safety of the tank

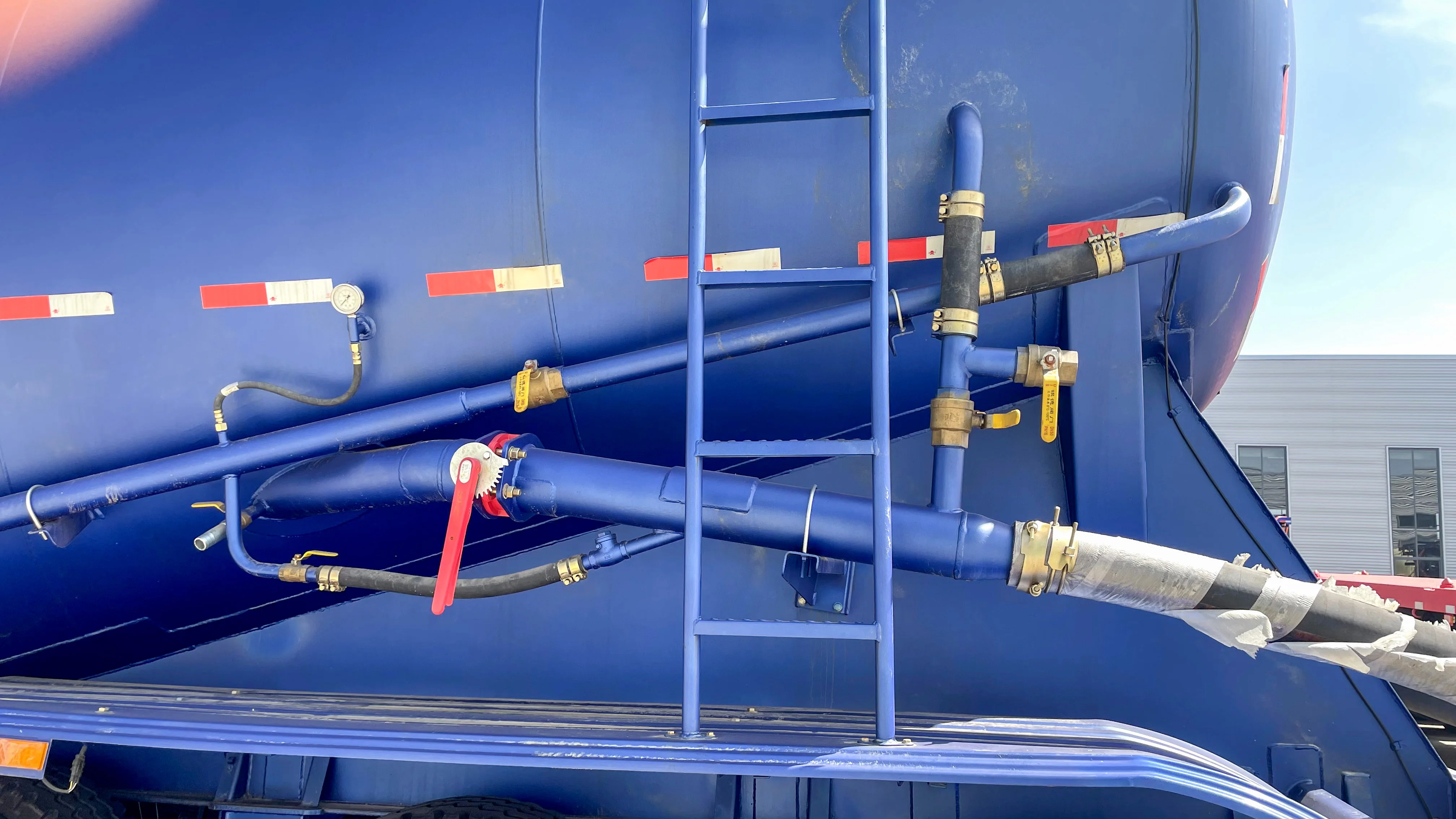

DISCHARGE VALVE
Secondary air supply, faster unloading
DISCHARGE PIPE
The discharge pipe is extended and the rubber hose is lighter
TYER
Special tires for trailers such as Chaoyang and Linglong are adopted

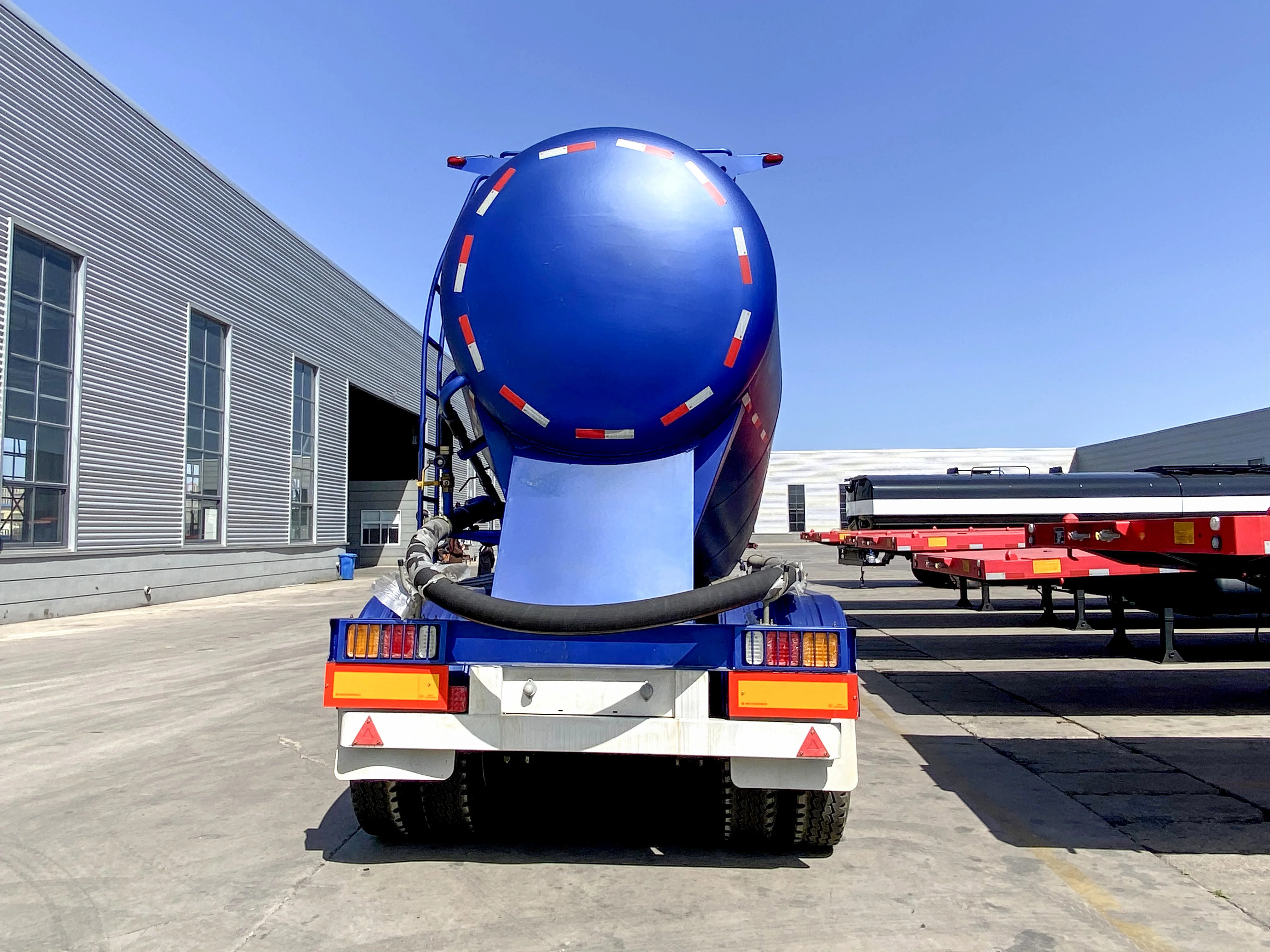

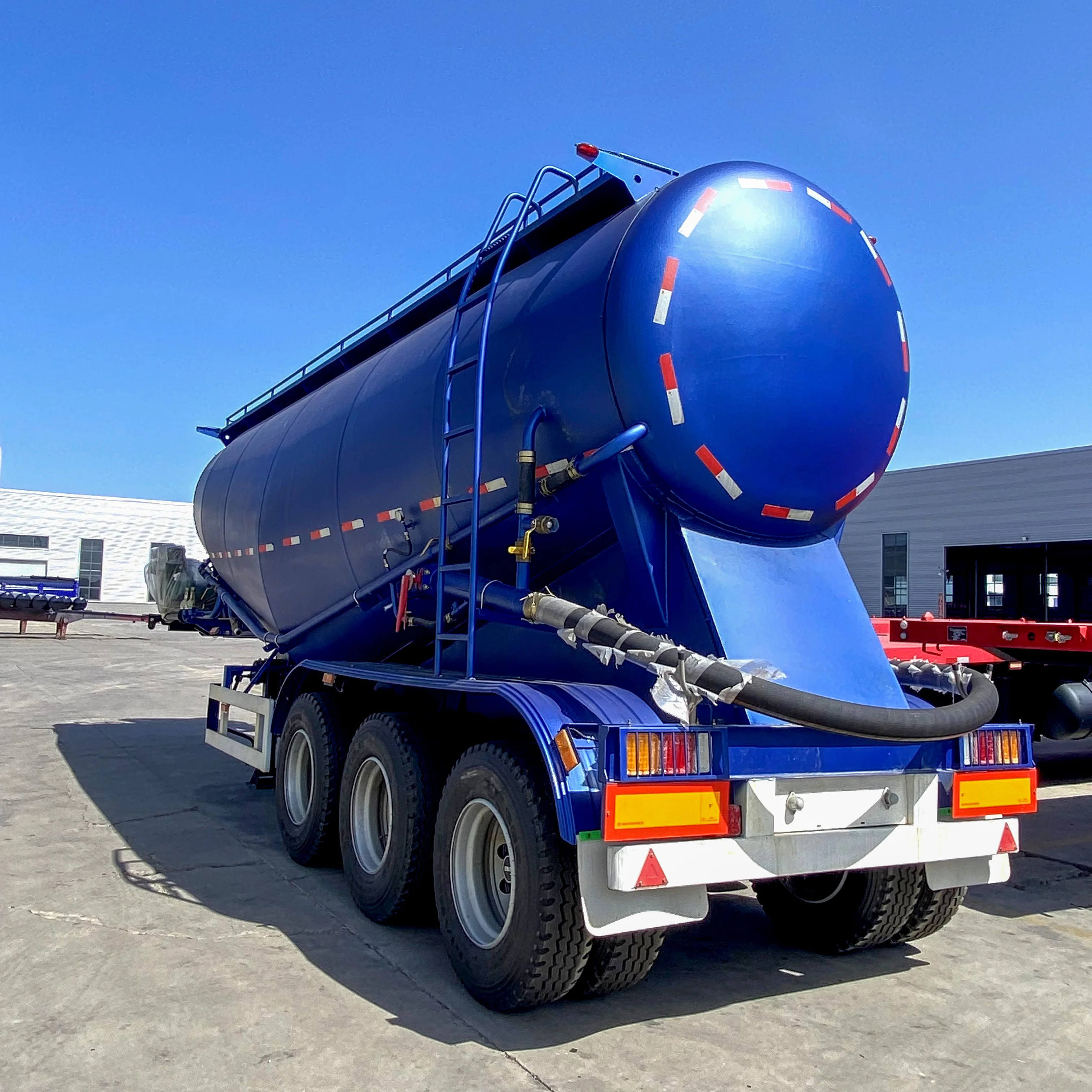

Tank
Ladder
Company Profile

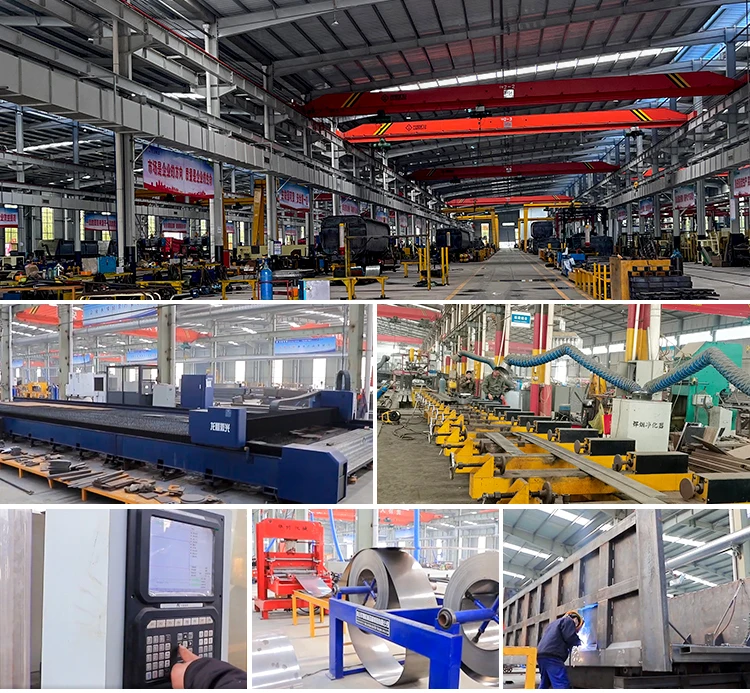

Shandong Luxing Special Purpose Vehicle Manufacturing Co., Ltd., integrating design, scientific research and development, production and sales, is a designated production enterprise of special purpose vehicles approved by the Ministry of industry and information technology of the people's Republic of China. Its leading products include light semi-trailer, bin type semi-trailer, fence semi-trailer, low flat semi-trailer, back dump, side dump, container frame car, spread wing semi-trailer, container frame car, rail semi-trailer, rail semi-trailer Side curtain semi trailer and other special vehicle series. The company has the flow line production tooling equipment with accurate flow line and strong production capacity, adopts advanced production technology and high-quality raw materials and parts, the products are listed in the "notice" management, and have passed the "3C" certification of China Quality Certification Center and ISO9001:2000 quality management system certification, and the products have been sold all over the world.
EXCELLENT SERVICE
Customers visit the factory and negotiate businessele
FAQ
Q Is your company a factory or a trading company?
A We are a factory with 15 years of experience in producing trailers and trailer accessories can accept OME services.
Q Does your company has your own factory?
A Yes,we have a factory ourself,which is in this business for few years in China.Our factory is very famous where is manufacturing various trailers in Shan Dong,China.
Q Can you satisfy my special requirement?
A Definitely!We can make the trailers or trucks based on your requirement.
Q What's your payment term?
A We accpet both T/T and L/C
T/T:30% deposit by T/T,70% balance should be paid before shipment.
L/C:100% irrevocable Credit of Letter.
Q How about your delivery time?
A Generally, it will take about 10 to 20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q Do you test all your goods before delivery?
A Yes, we have 100% test before delivery.
