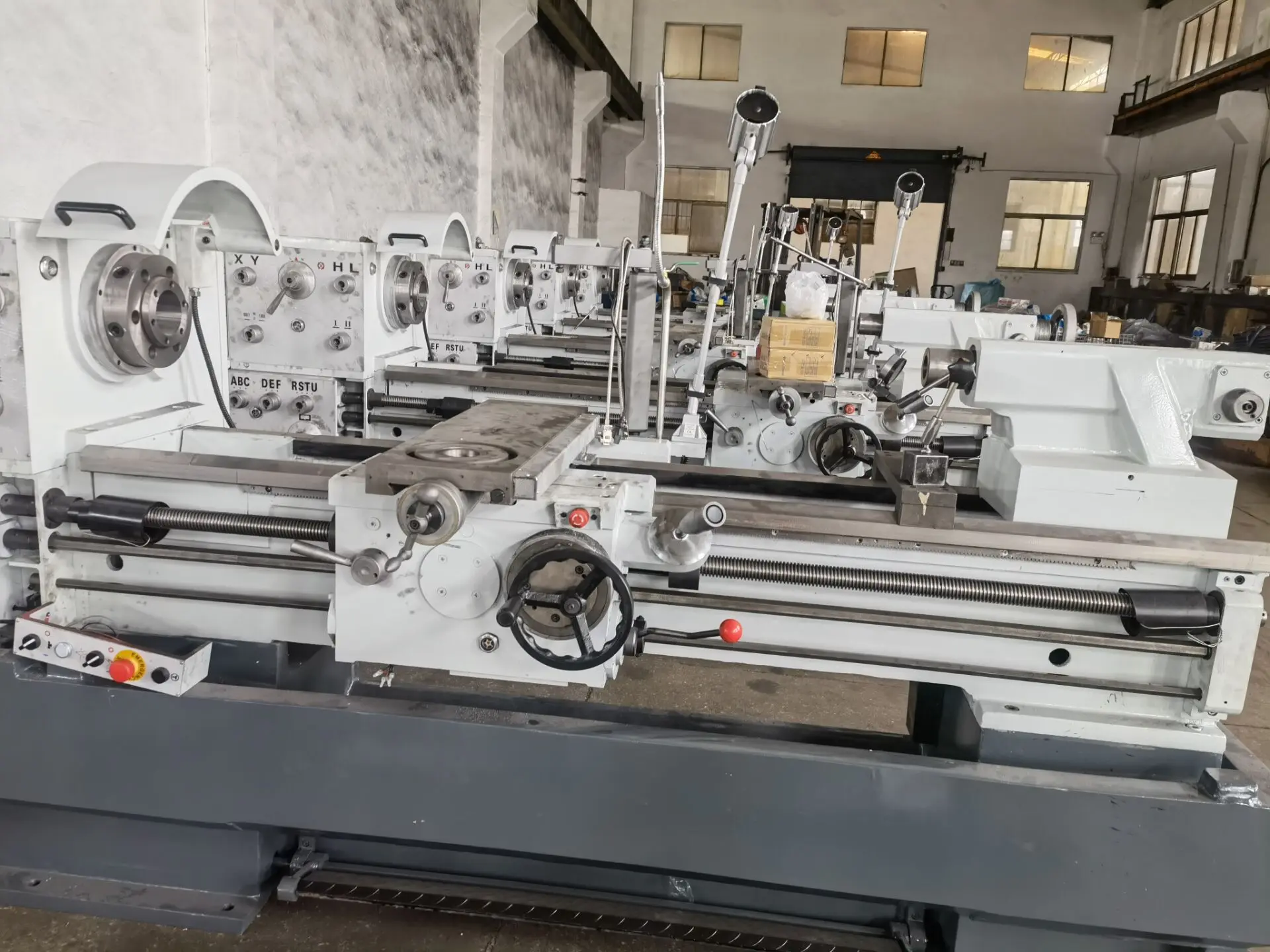

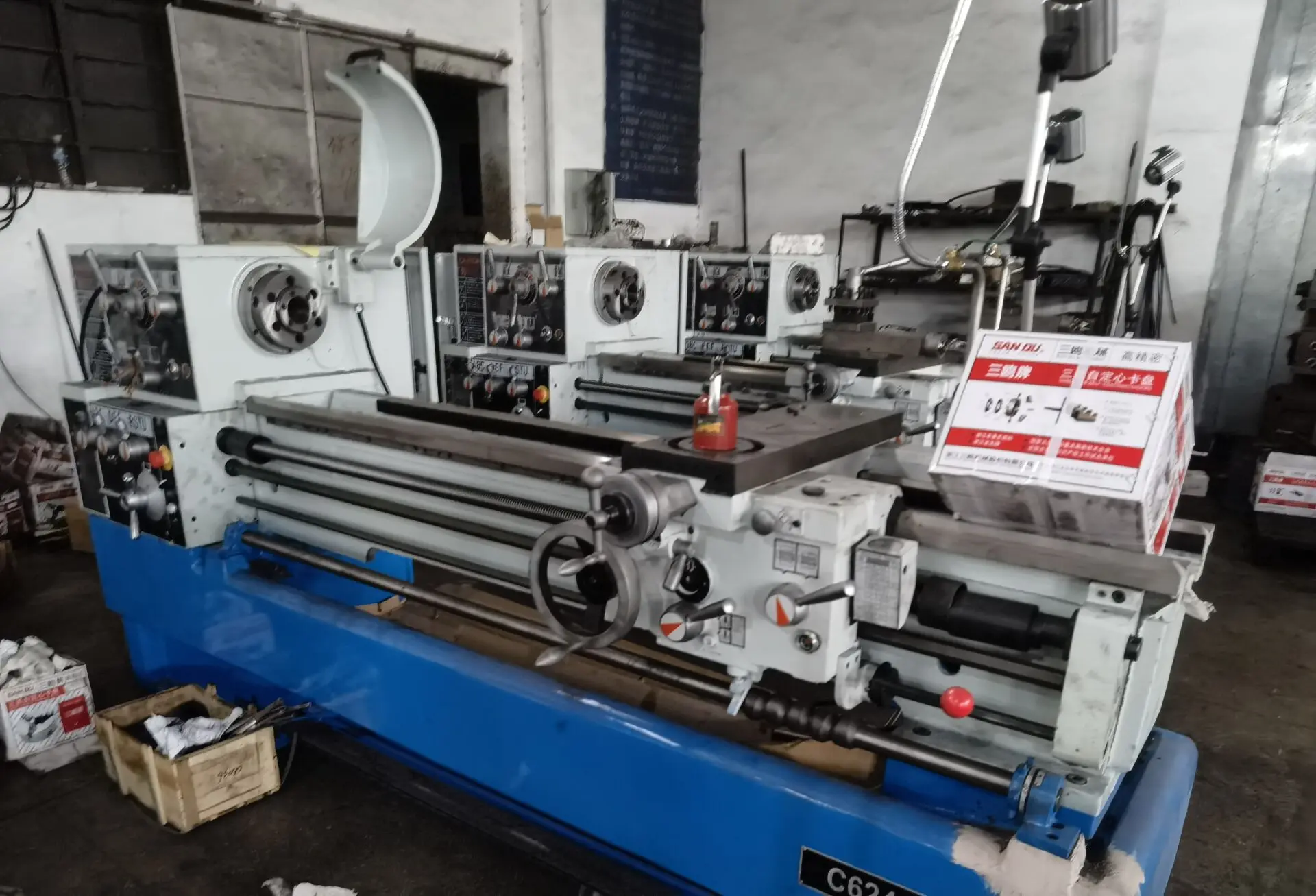

High Precision engine bench lathe machine C6246 with 82mm spindle bore
High Precision engine bench lathe machine C6246 with 82mm spindle bore
High Precision engine bench lathe machine C6246 with 82mm spindle bore
High Precision engine bench lathe machine C6246 with 82mm spindle bore
High Precision engine bench lathe machine C6246 with 82mm spindle bore

High Precision engine bench lathe machine C6246 with 82mm spindle bore

Share on (1600501133227):


Price:$6,600.00 - $7,000.00

Quantity:


Product Overview

Description



Product Description


Features
Precision ground and supersonic frequency hardened bed ways is designed in double wall structure ,giving super rigidity .The spindle system is high in rigidity and accuracy,The design of the main dribe is optimized and ghe geares in the headstock are precision ground .The noise of the machine is low

There is no need for change gears .The machine can turn about 200 kinds of metirc ,whitworth ,module and D.P. threads .And auotmatic stopping device is used to realize automatic stop for the machine of a certain length workpiece ,which is safe and eliable apedal braking device providing quick and effective stop while operating .


Model
C6246/1000
Max.swing over bed
460mm
CAPACITY
Max.swing over cross slide
274mm
Max.swing over gap
690mm
Effective length of gap
155mm
Center Distance
1000
Bed Width
300mm
HEADSTOCK
Spindle hole
82mm
Spindle nose
D1-6
Spindle taper
MT6
Spindle speed(Number)
(12steps)25-2000rpm
FEEDS
Longitudinal metric feeds
42kinds 0.031-1.7mm/rev
Longitudinal inch feeds
42kinds 0.0011-0.0633inc/rev
Cross metric feeds
42kinds 0.014-0.784mm/rev
Cross inch feeds
42kinds 0.00033-0.01873inc/rev
Metric threads range
41kinds 0.1-14mm
Inch threads range
60kinds 2-112T.P.I
Moudle threads range
34kinds 0.1-7M.P
Diametral threads range
50kinds 4-112D.P
CARRIAGE
Max.travel of top slide
120mm
Max.travel of cross slide
290mm
Max.size of toolshank
25*25m2
Dia.of tailstock sleeve
60mm
TAILSTOCK
Taper of tailstock sleeve
MT4
Max.travel of tailstock
128mm
MOTOR
Main drive motor
5.5KW
Coolant pump motor
90W
Center Distance(1000mm)
225*112*160cm
PACKING
Center Distance(1000mm)
1680/1980kg
WEIGHT


Standard accessores

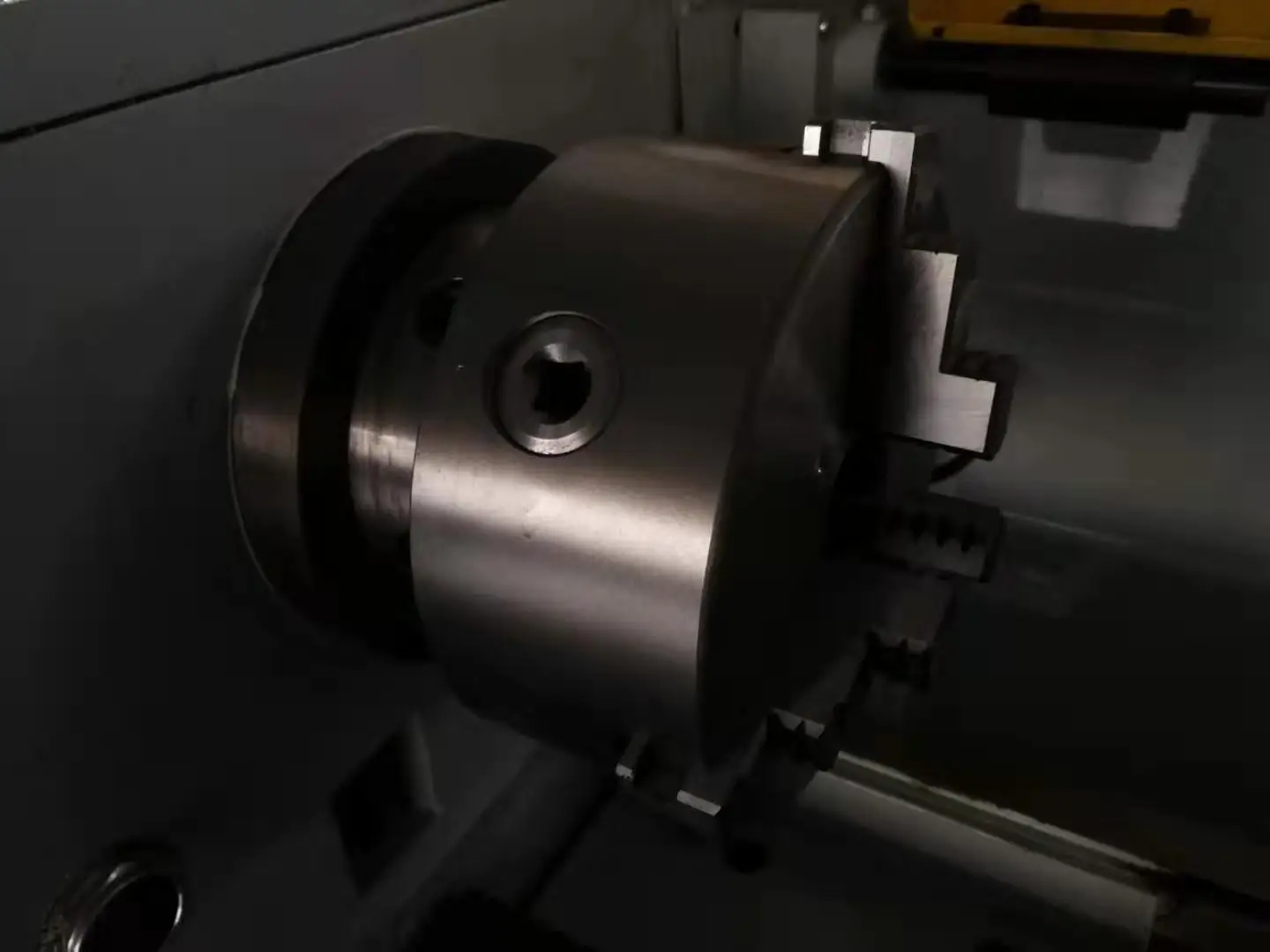

3 Jaw Chuck ,4 Jaw Chuck , Chnage gears Set , Face plate ,Chasing Dial indicator ,steady rest ,Follow rest ,Reduction Sleeve ,Dead
centers ,full length Splash Guard ,Coolant System ,Brake System ,working light and tools &tool box .






Packing&Shipping




Certifications

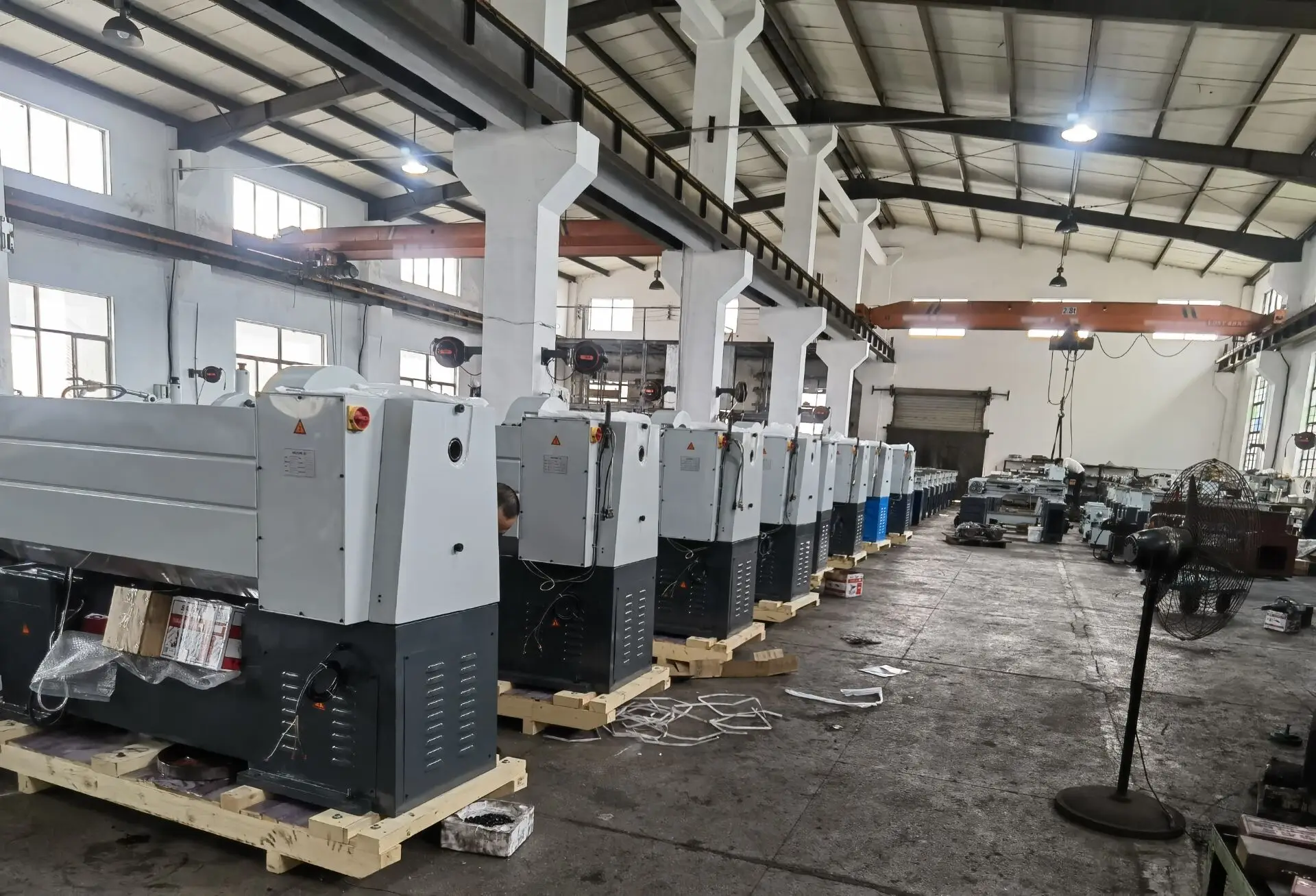

Our Workshop








We In Fairs




Our Service


Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.
