Heavy Duty Mechanical Power Press machine ALT 200T for cylinder deep drawing mold
Heavy Duty Mechanical Power Press machine ALT 200T for cylinder deep drawing mold
Heavy Duty Mechanical Power Press machine ALT 200T for cylinder deep drawing mold
Heavy Duty Mechanical Power Press machine ALT 200T for cylinder deep drawing mold
Heavy Duty Mechanical Power Press machine ALT 200T for cylinder deep drawing mold
Heavy Duty Mechanical Power Press machine ALT 200T for cylinder deep drawing mold
Heavy Duty Mechanical Power Press machine ALT 200T for cylinder deep drawing mold

Heavy Duty Mechanical Power Press machine ALT 200T for cylinder deep drawing mold

Share on (1600501151575):


Price:$58,000.00

Quantity:


Product Overview

Description

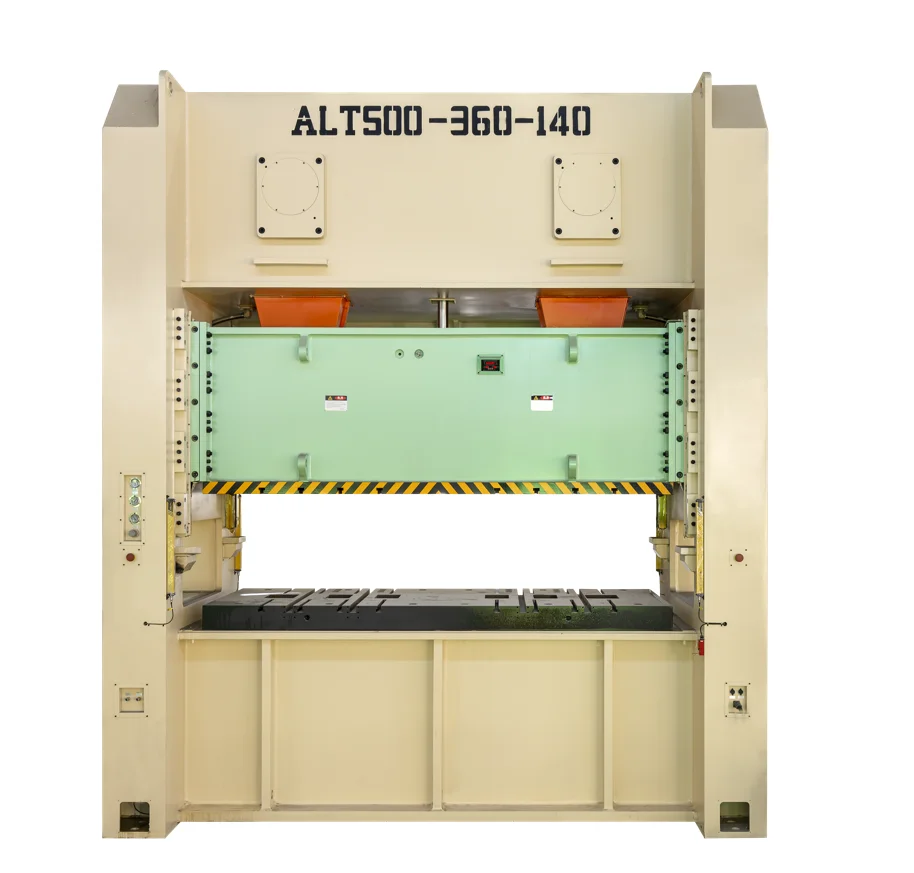

ALT Double Crank Integrated H Frame Press


Category: H (Straightside) Frame Crank Type Mechanical Stamping Press, Mechanical Power Press


The ALT series h type press machine is closed type double-point circulating thin oil lubrication. The ultra-long eight-sided guide rails can maintain good precision under a little eccentric load due to the two force points and large space. The crankshaft and the slider device are connected by a double-link transmission device; the double-link transmission device comprises two sets of synchronous connecting rods provided on the crankshaft. The synchronous connecting rod is connected with an adjusting screw sleeve which has fixed connection with the slider device.












ALT Feature

1.One-Piece Steel welded body, tempering treatment, accuracy and stability;
2.Vertical located crankshaft, compact structure;
3.The crankshaft undergoes grinding treatment after high frequency quenching;
4.Lengthened rectangular guideway with a surface of bronze plate;
5.Pneumatic dual balance cylinder, which balances the slide block and punch weight to reduce
   noise and impact;
6.PLC control and imported safety dual valve;
7.Wet clutch and hydraulic overload protector.























































































































Standard Accessories




Optional Accessories



1


PLC + HMI


1


Die cushion


2


Dry clutch or wet clutch as option


2


Quick die change
(Die lifter, die clamp, die arm etc.)



3


Miss feeding detector


3


Coil decoiling machine


4


Anti-vibration pads


4


Coil straightener


5


Auto grease lubrication


5


Coil servo feeder


6


Overrun protection device


6

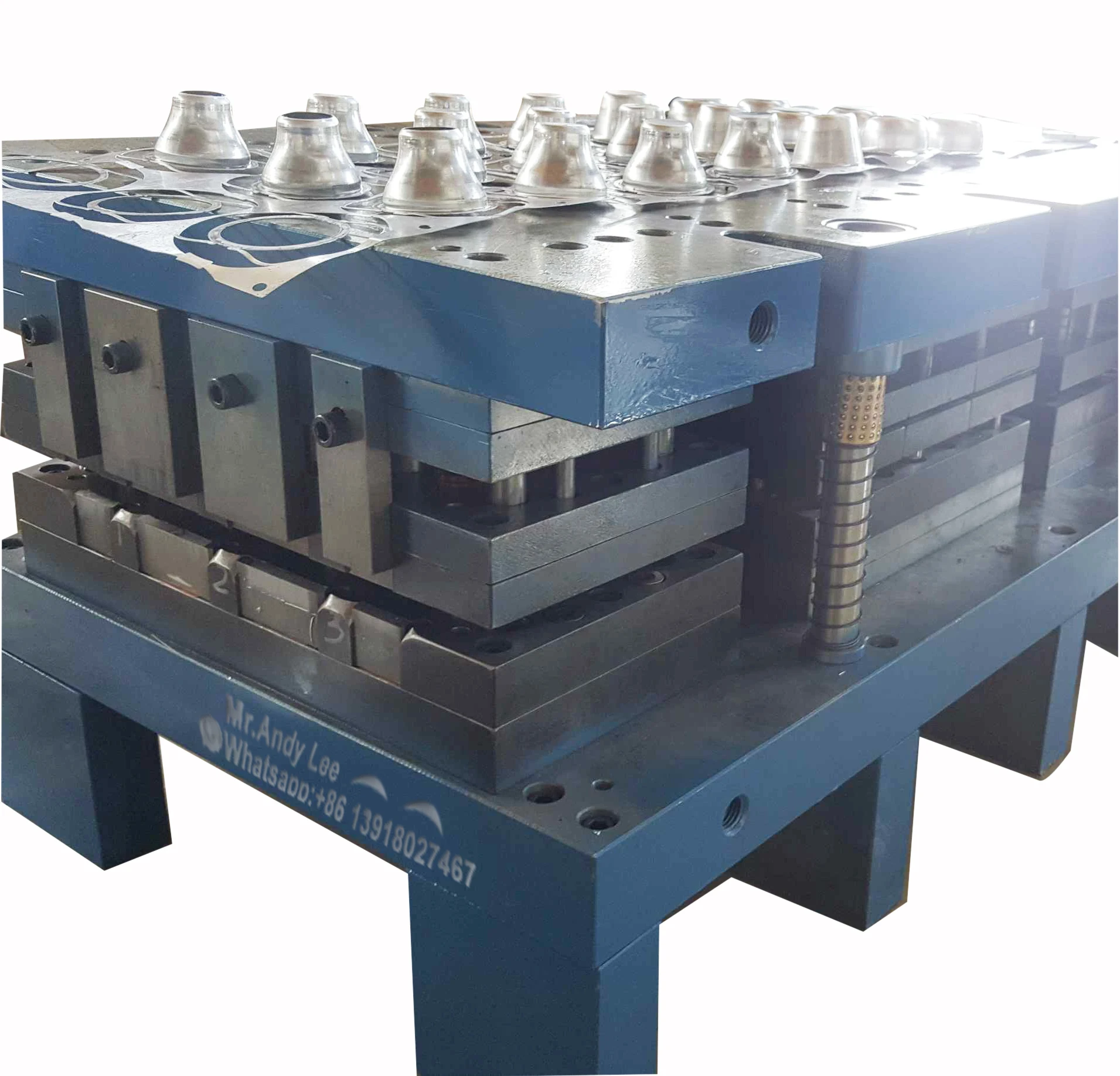

Stamping dies
(single stage die, progressive die, transfer die)



7


Photoelectric protection device/Light curtains


7


Automation/manipulator arms


8


Die height indicator



9


Motor inverter



10


Balancer



11


Cam switch



12


Knock-out device



13


Air ejector



14


Die light



15


Local voltage transformer



16


Maintenance tools and tool box

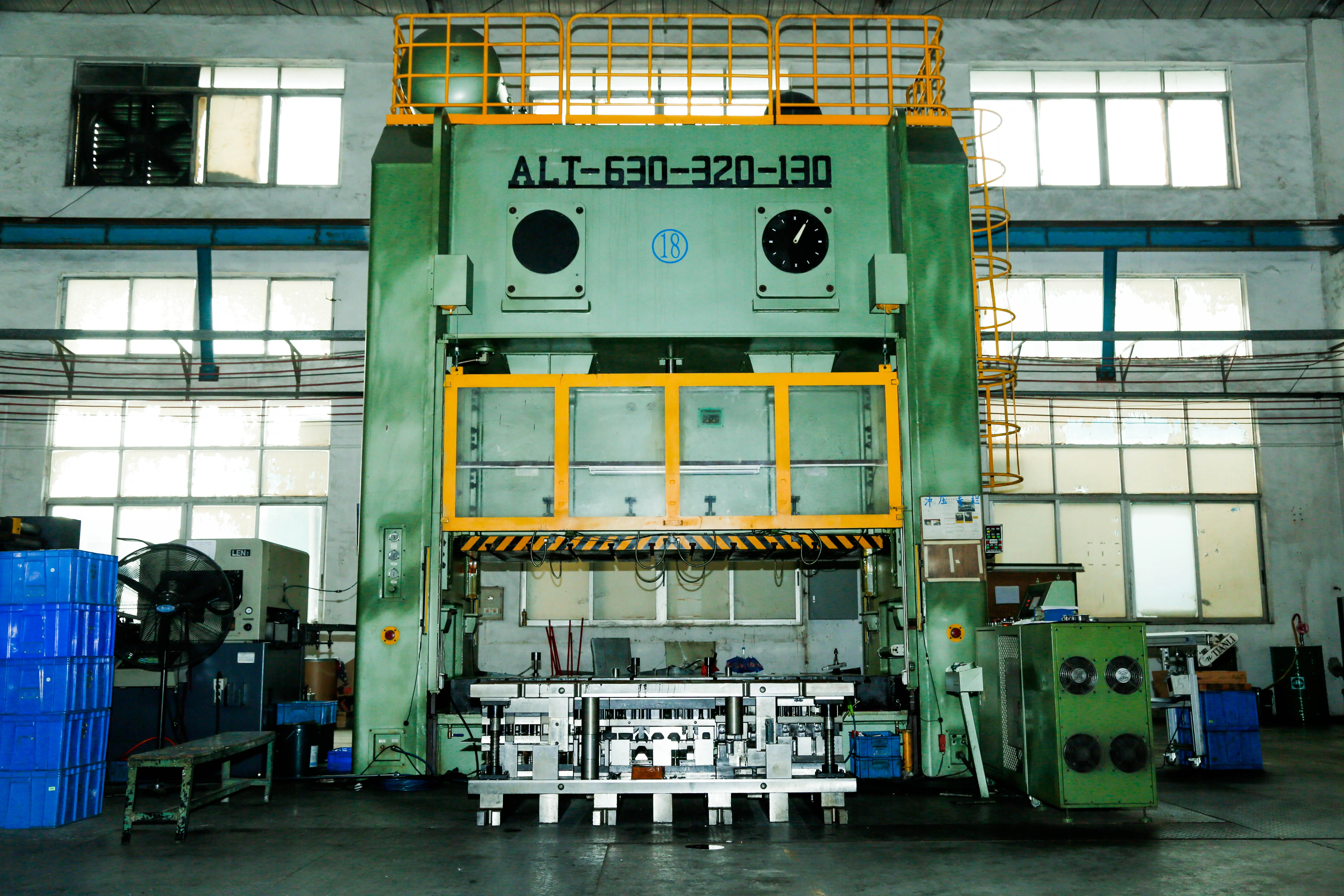

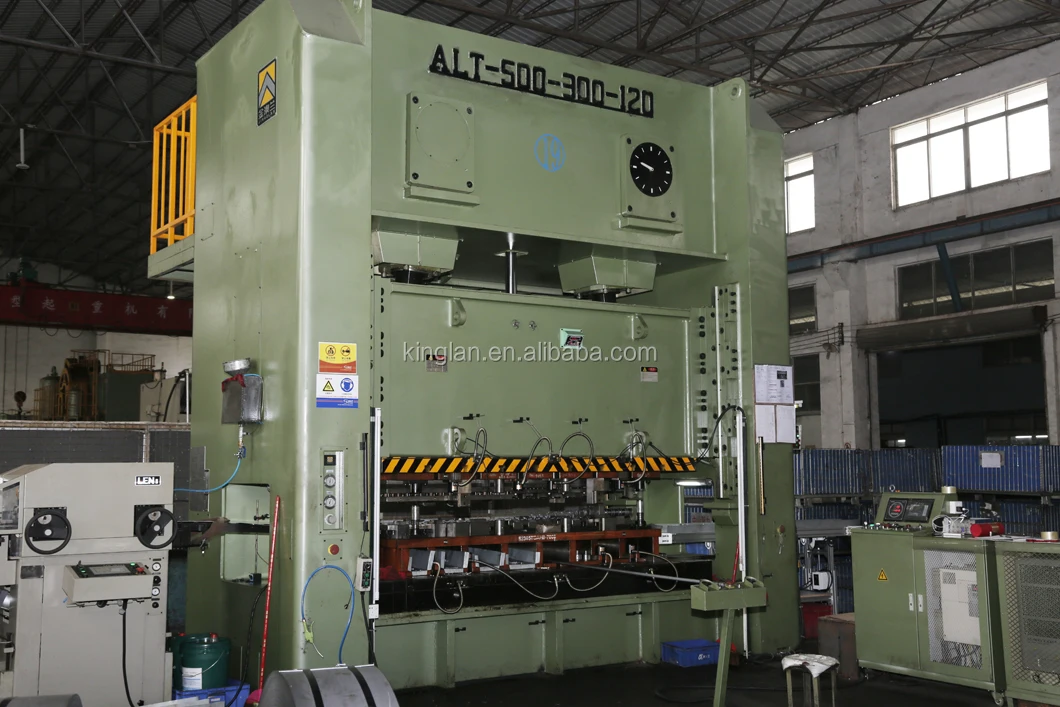

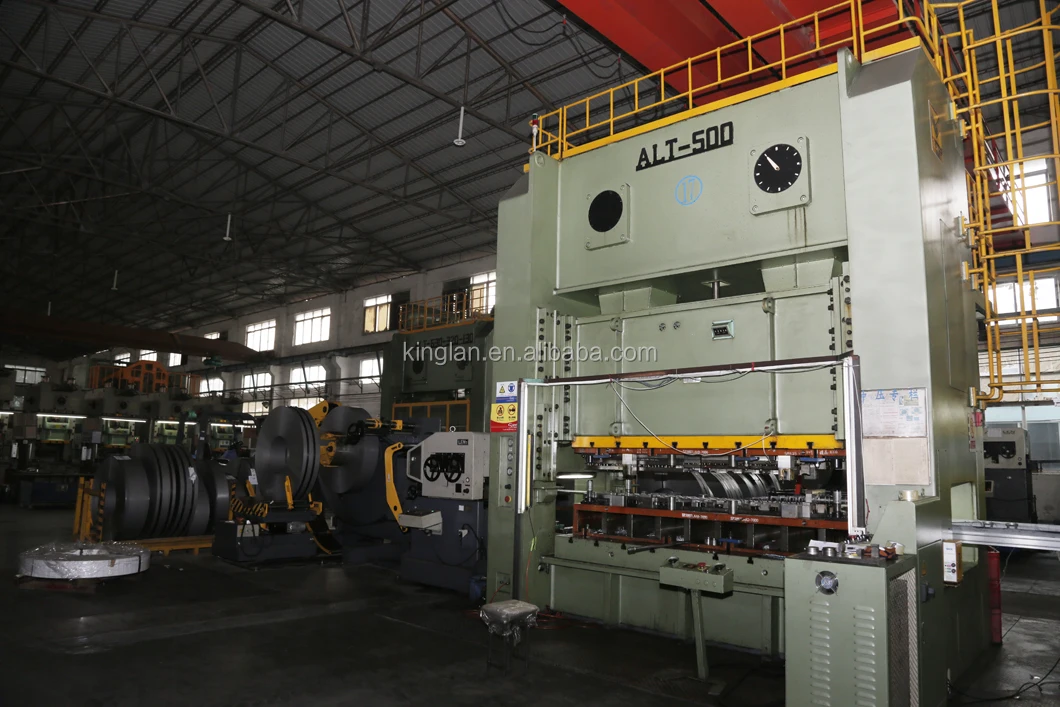

Machine Image

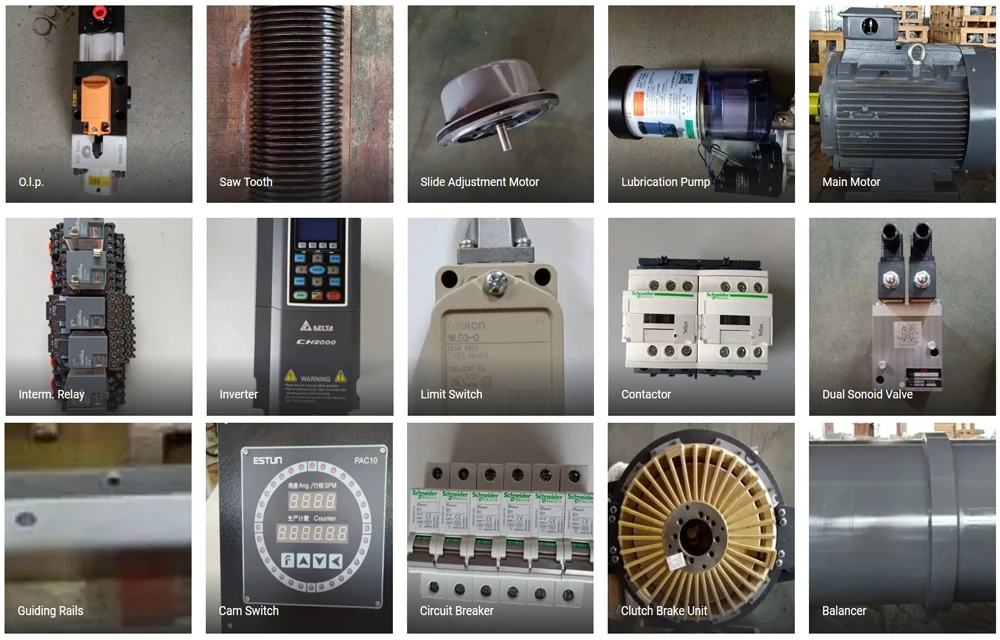

Spare parts3.jpg

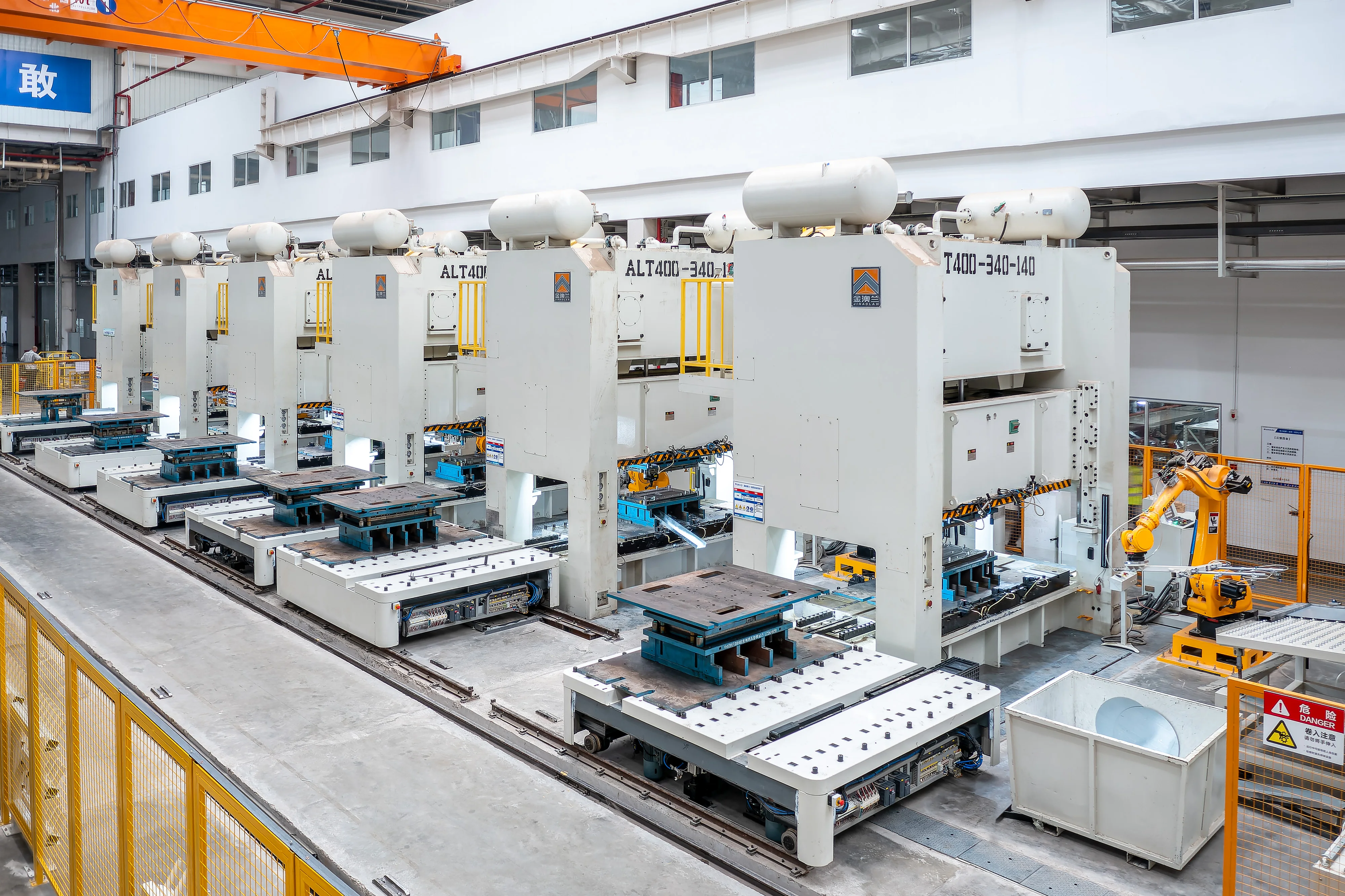

ALT 9947878.jpg




Relative Products


 All products.jpg

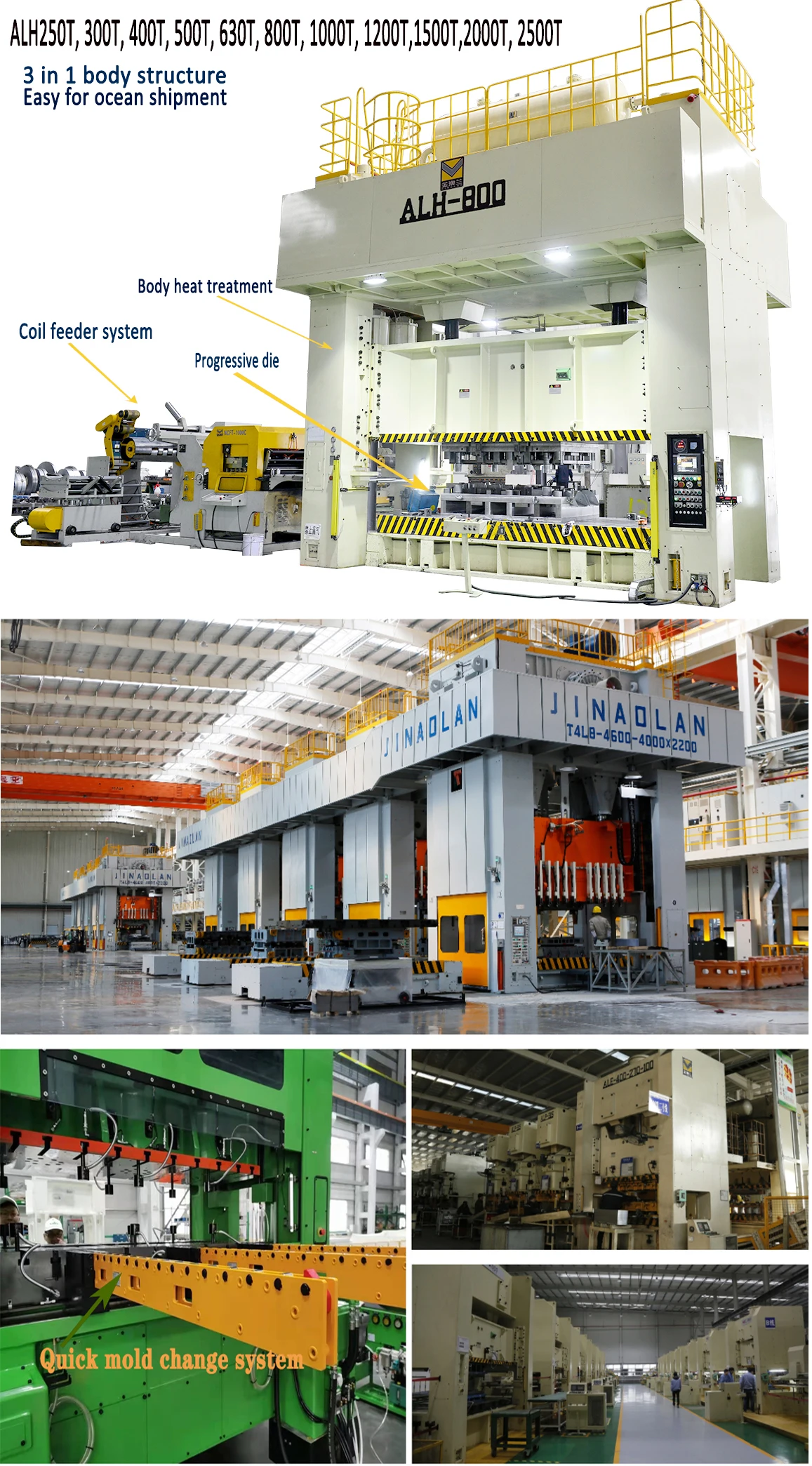

Success solution2-no lo.jpg

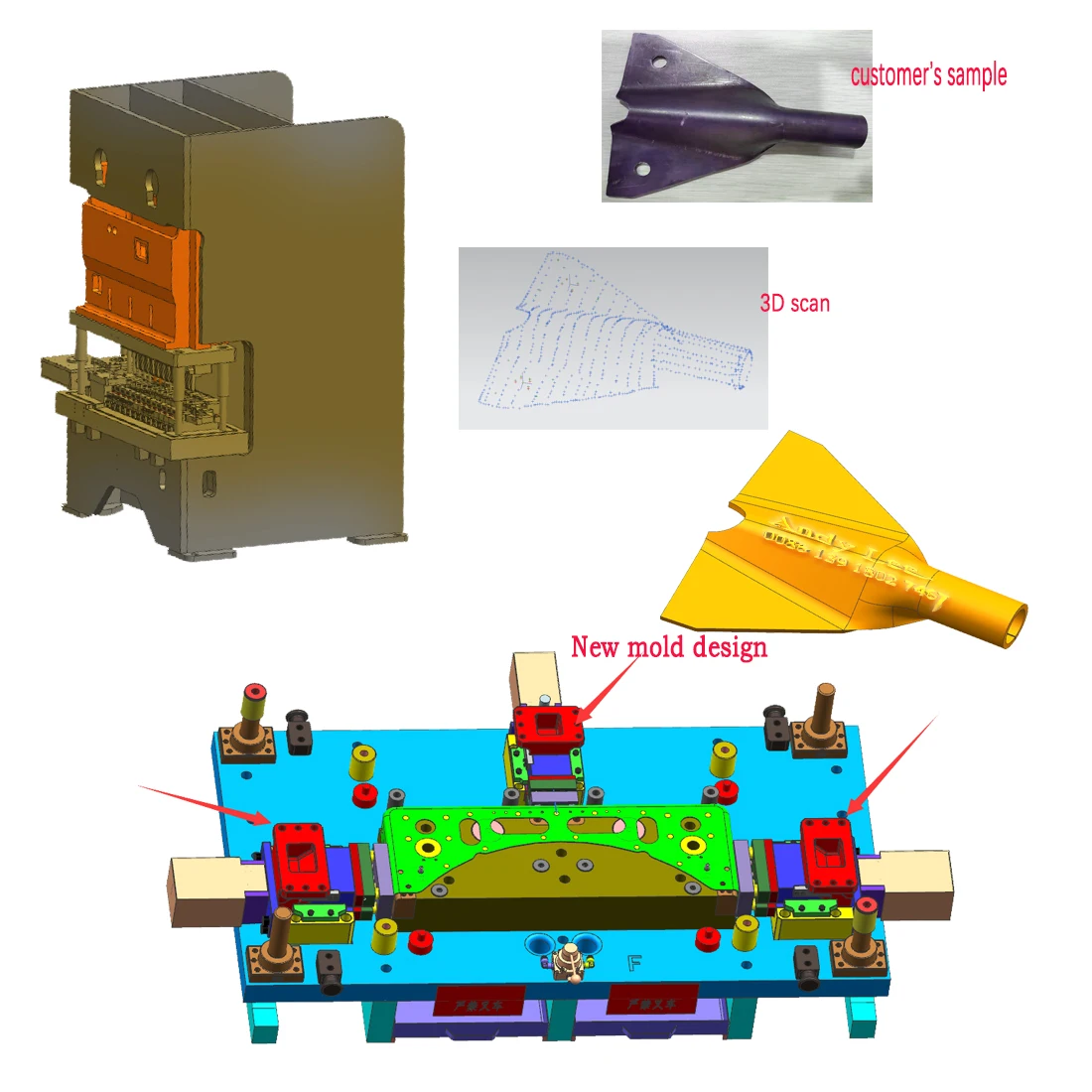

Mold
