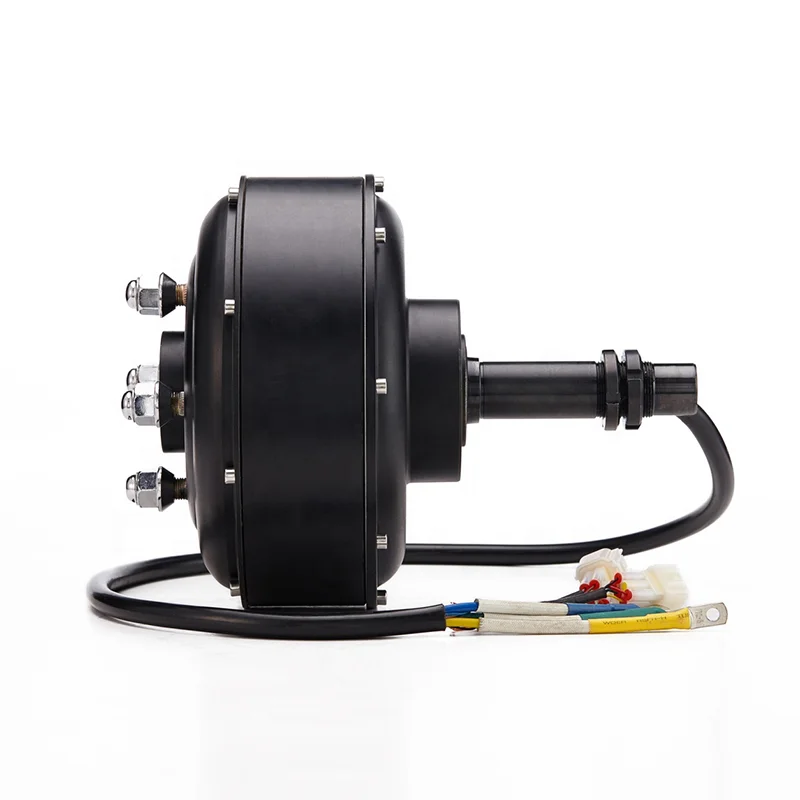

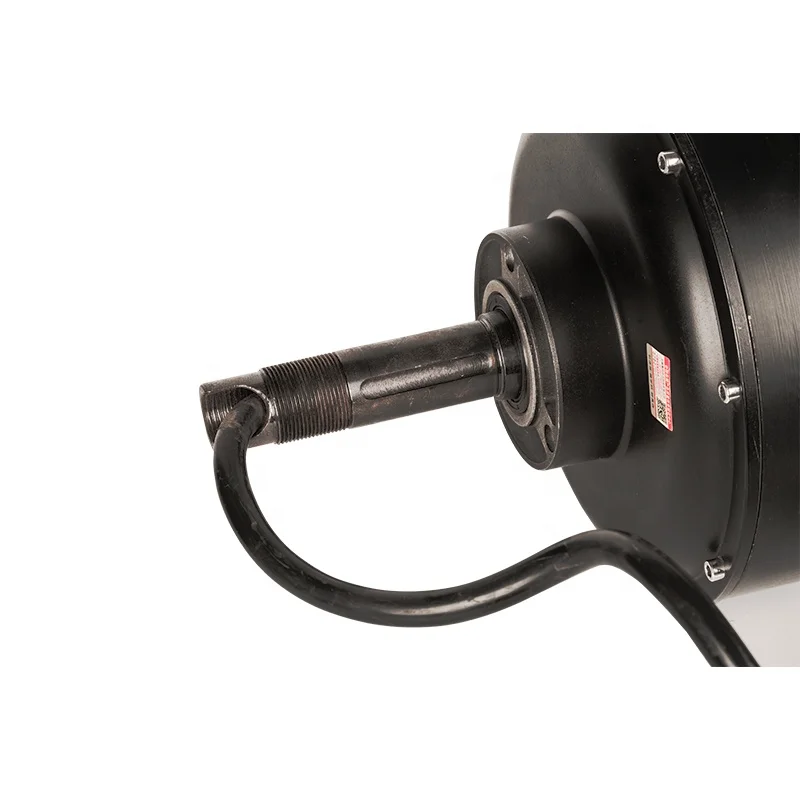

3000w 60kph 2wd Dual Hub Motor With 100A BLDC Controller Kits For Electric Atv Car
- Category: >>>
- Supplier: Wuxi Yuma Power Technology Co. Ltd.
Share on (1600501177377):
Product Overview
Description
3000w 60kph 2wd Dual Hub Motor With 100A BLDC Controller Kits For Electric Atv Car
One Kits Including:

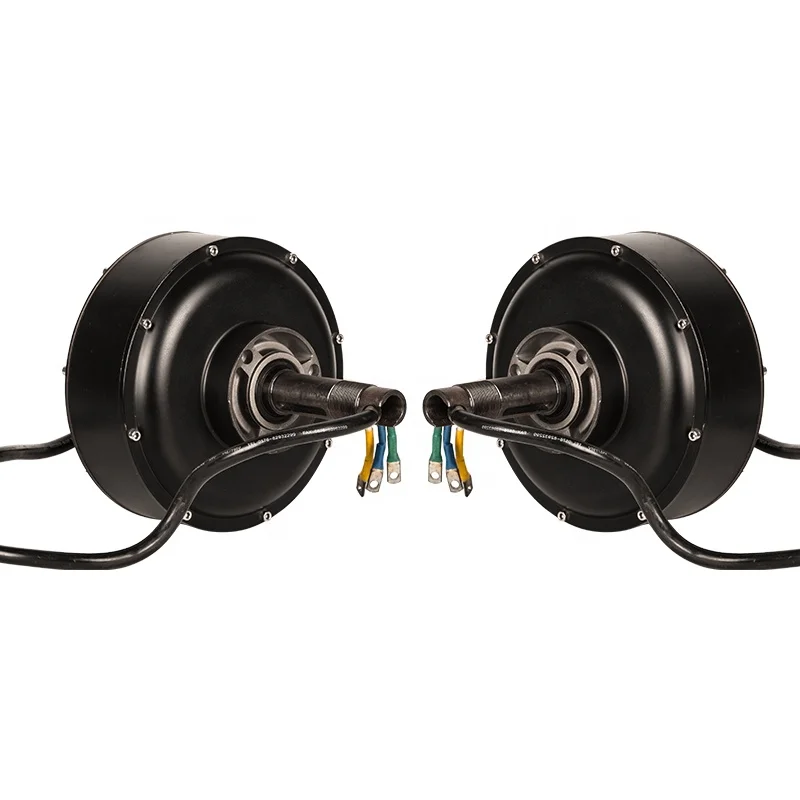

2pcs x 227 e-car hub motor 3000w V1 with 12x3.5inch rim

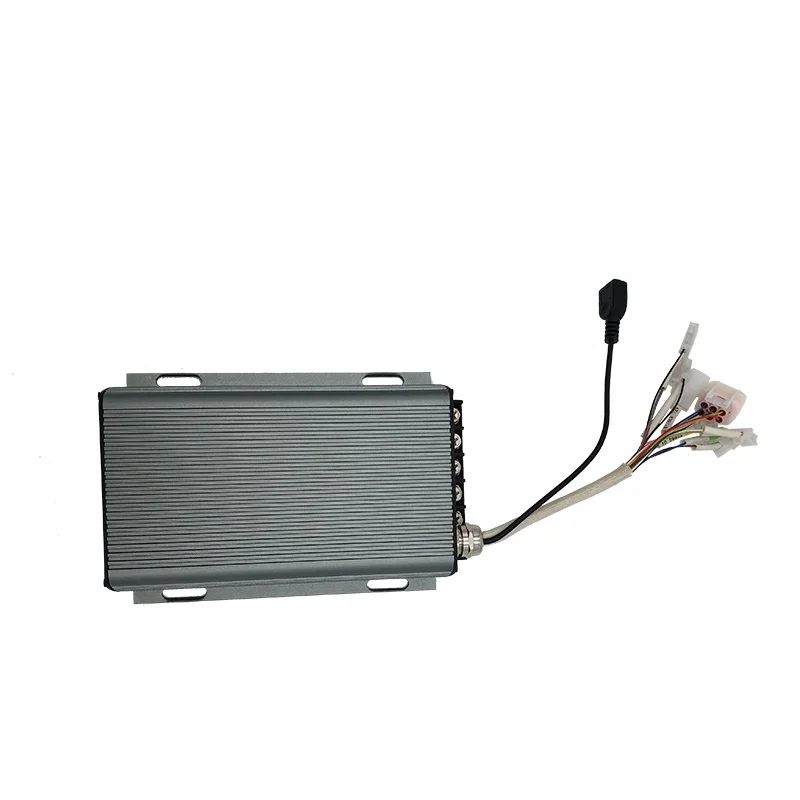

2pcs x Sabvoton SVMC72100 Sine wave FOC Controller

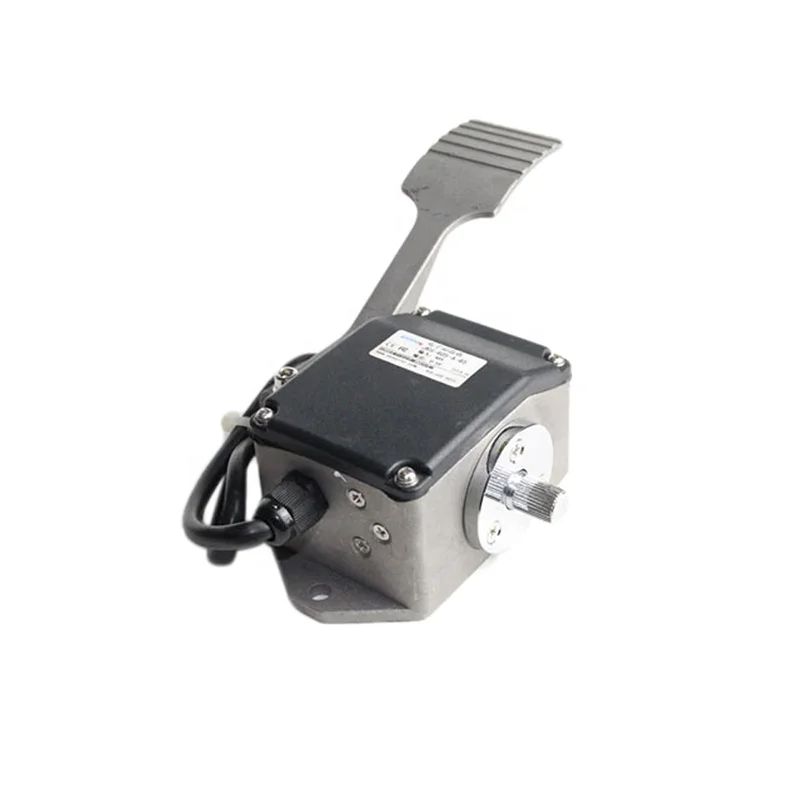

1pc x JKH 0-5v hall foot throttle
2pcs x Sabvoton SVMC72100 Sine wave FOC Controller
1pc x JKH 0-5v hall foot throttle
Specification
Motor Design | BLDC Outer Rotor In-Wheel Hub Motor With Hall Sensor | ||||||
Motor Brand | YUMA Motor, YMMotor | ||||||
Motor | 227 3000w V1 Electric Car Hub Motor with Single Shaft | ||||||
Rim Size | Can match with 10inch, 12inch, 13inch wheel rim | ||||||
Magnet Height | 50mm, 26 pole pairs | ||||||
Stator | Iron Core | ||||||
Rated Power | 3000W | ||||||
Peak Power | 6000W | ||||||
Speed | 25KPH-75KPH, it's customized. | ||||||
Work voltage range | 48V-72V | ||||||
Peak torque | 130-160N.m | ||||||
Thermic Probe | KTY84-130(as default, optional) | ||||||
Max Efficiency | 89.8% | ||||||
Brake type | Disc brake (as default), PCD3*80mm-M8, CB 58mm | ||||||
CB & PCD | 63cm, 4*100mm | ||||||
Hall | Dual Halls with waterproof connectors(One for spare) | ||||||
Waterproof Grade | IP65 | ||||||
Controller | Sabvoton SVMC72100 Controller, FOC sine wave bldc type | ||||||
Working Voltage | 48V/60V/72V, max. 88V | ||||||
Size & Weight | 249mm * 147mm * 62 mm, 2.5kg | ||||||
Current | DC 100A, Phase Current 250A | ||||||
Programmable | by PC or Phone | ||||||

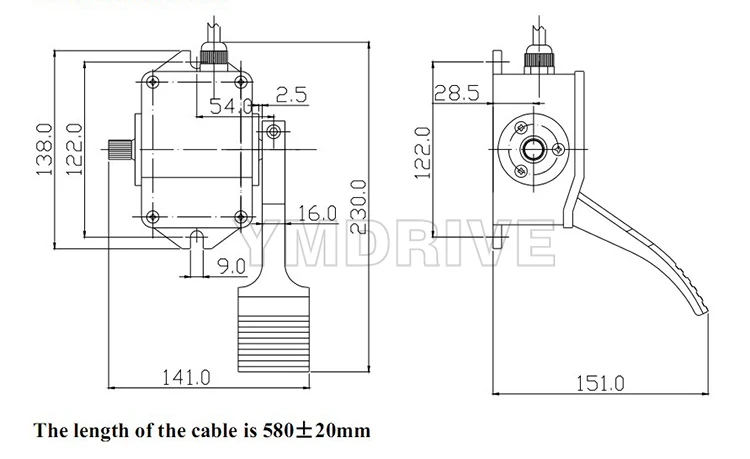

Foot Throttle | JKH model | ||||||
Input voltage | 5V 12V 15V 24V 36V 48V 60V 72V 84V 96V 120V | ||||||
Output voltage | 0.8V-4.2V, 0-5V, 5-0V, 0-10V, 2-1V | ||||||
Default | three wires out(cannot connect with switch), 5v input voltage(depends on controller design, for our matched controllers, you can choose 4.2v input voltage), 0.8-4.2v output voltage. | ||||||

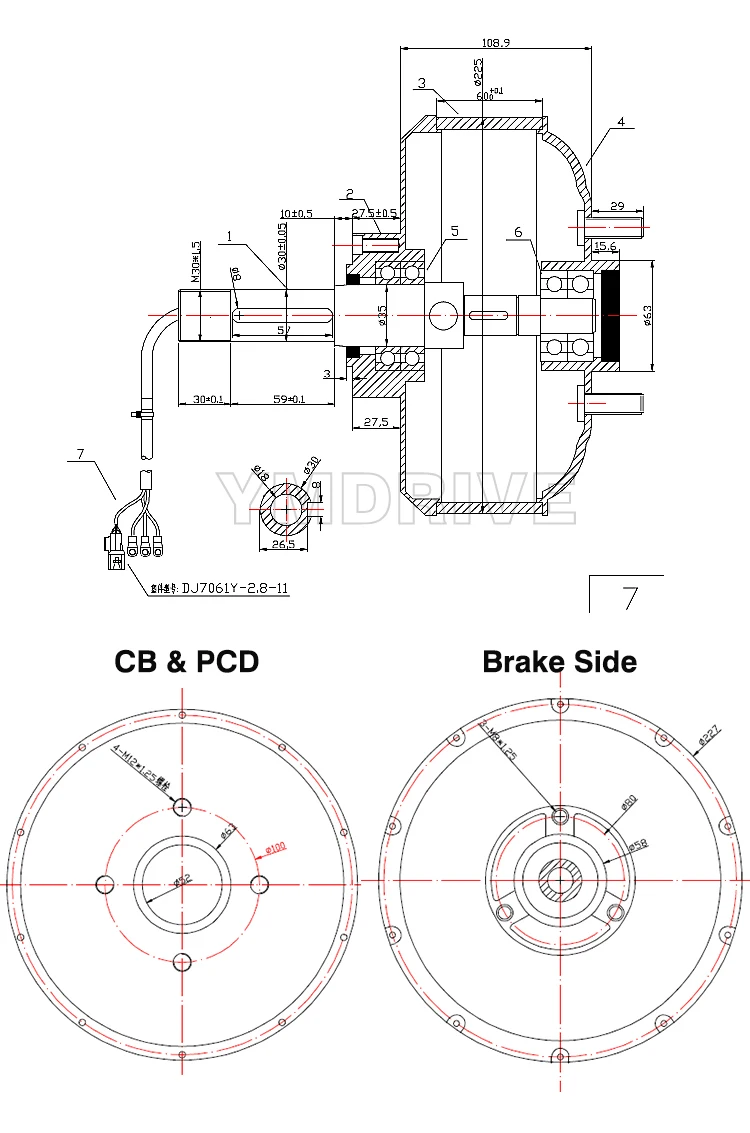

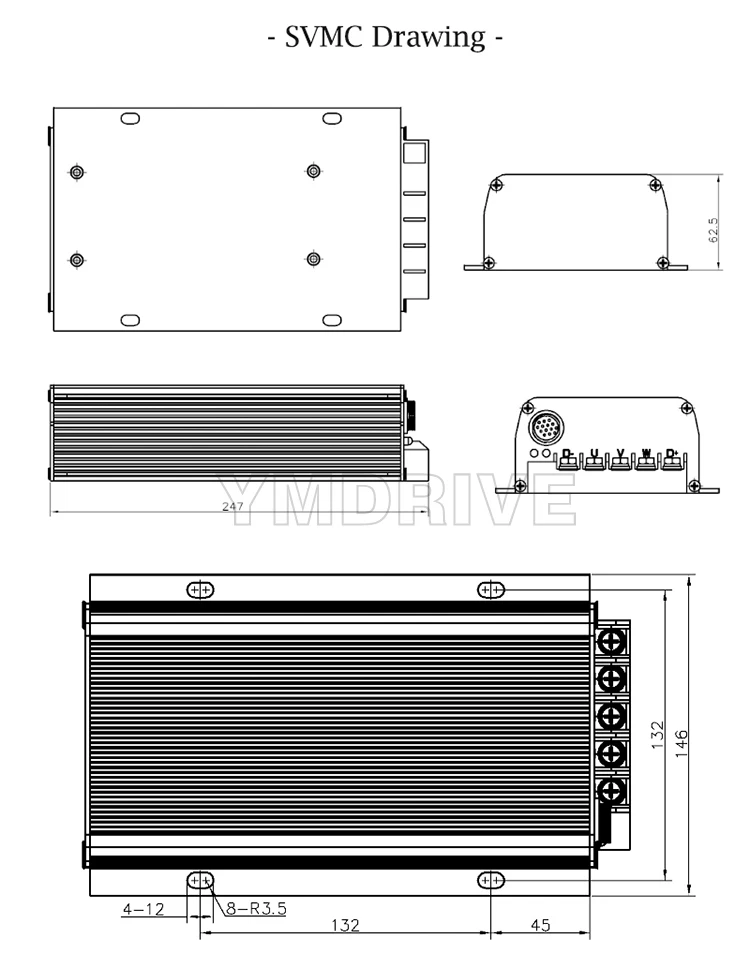

Drawing
Pls. contact with sales for more clear drawing for reference. Some dimensions can be customized.

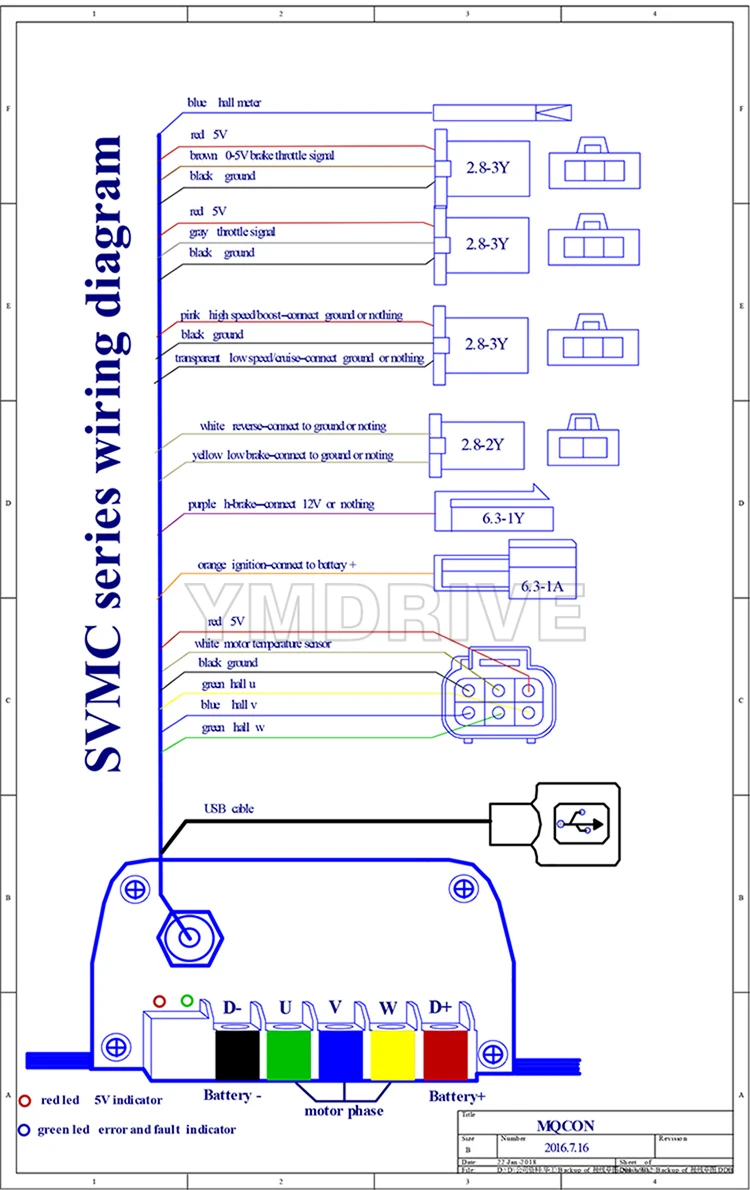

Wiring Definition

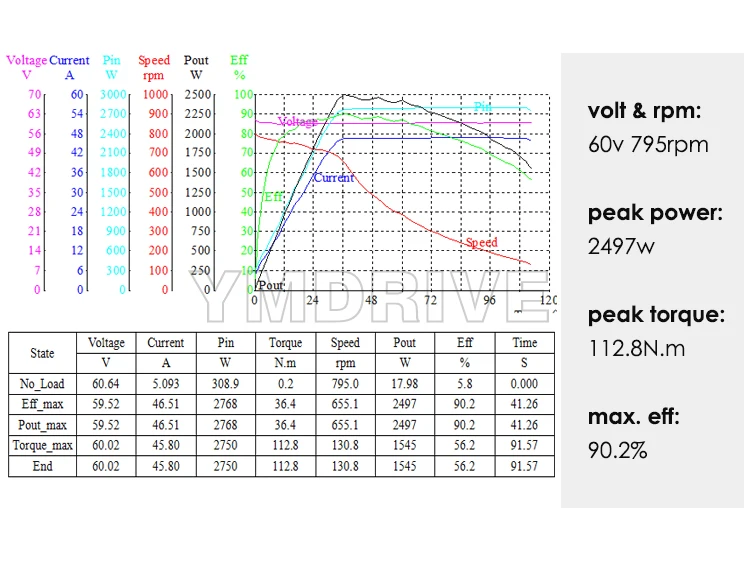

Test Report
This test report is for 45H 2500w motor, 50H 3000w motor comes with higher performance. Pls. contact with sales for full showing test report for check, if you want to customized voltage & rpm, it's also support even for sample order.
Q1. Are you trader or manufacture?
A: We're motor manufacture and also have professional export department.
Q2. What is your warranty policy?
15months for motors, other parts with 1 year warranty time.
Q3. Can I get some samples?
Yes, we offer sample for quality check, but we do not supply free sample. Moreover, some samples support to customized.
Q4. What is the delivery time?
It usually takes 10-15 days, but the exact delivery time might be different for customized products. Once we confirmed the all details of order, we will put all source into it.
Q5. What is your terms of payment?
For big order T/T 30% as deposit, and 70% before delivery, for small order pay by T/T or paypal 100% in advance.
Q6. Does your products with CE certification?
Yes, our motor with Certification (CE, CCC), and our factory with certification of ISO9001.
A: We're motor manufacture and also have professional export department.
Q2. What is your warranty policy?
15months for motors, other parts with 1 year warranty time.
Q3. Can I get some samples?
Yes, we offer sample for quality check, but we do not supply free sample. Moreover, some samples support to customized.
Q4. What is the delivery time?
It usually takes 10-15 days, but the exact delivery time might be different for customized products. Once we confirmed the all details of order, we will put all source into it.
Q5. What is your terms of payment?
For big order T/T 30% as deposit, and 70% before delivery, for small order pay by T/T or paypal 100% in advance.
Q6. Does your products with CE certification?
Yes, our motor with Certification (CE, CCC), and our factory with certification of ISO9001.
