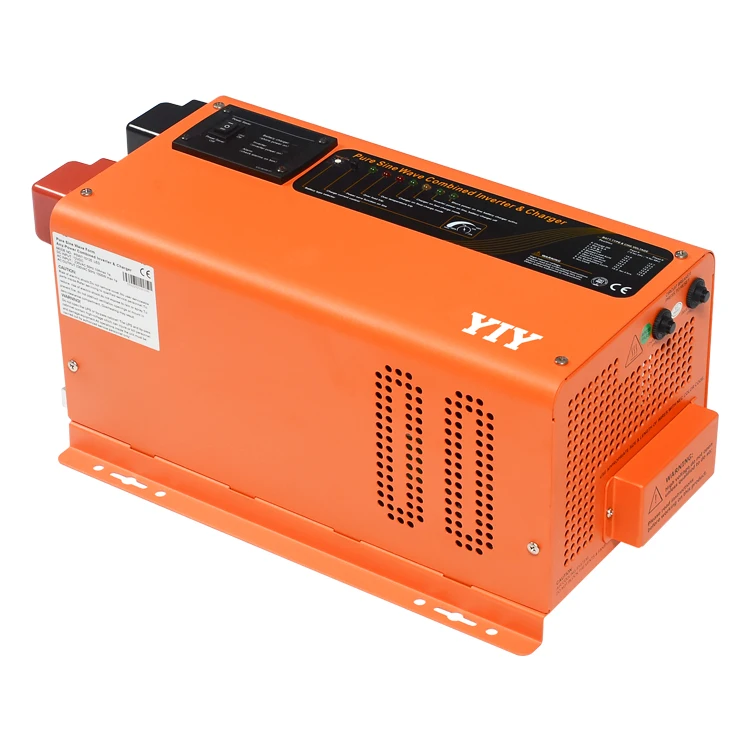

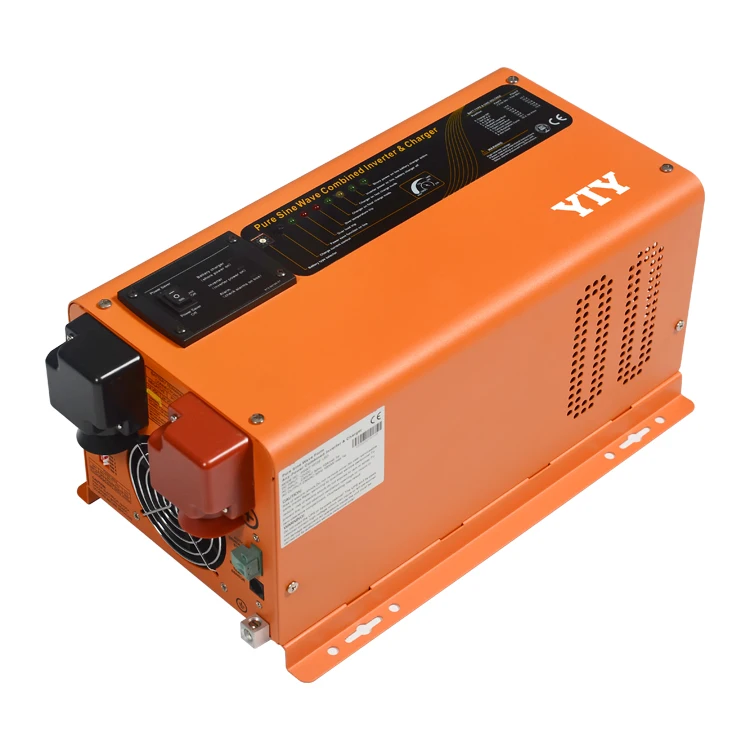

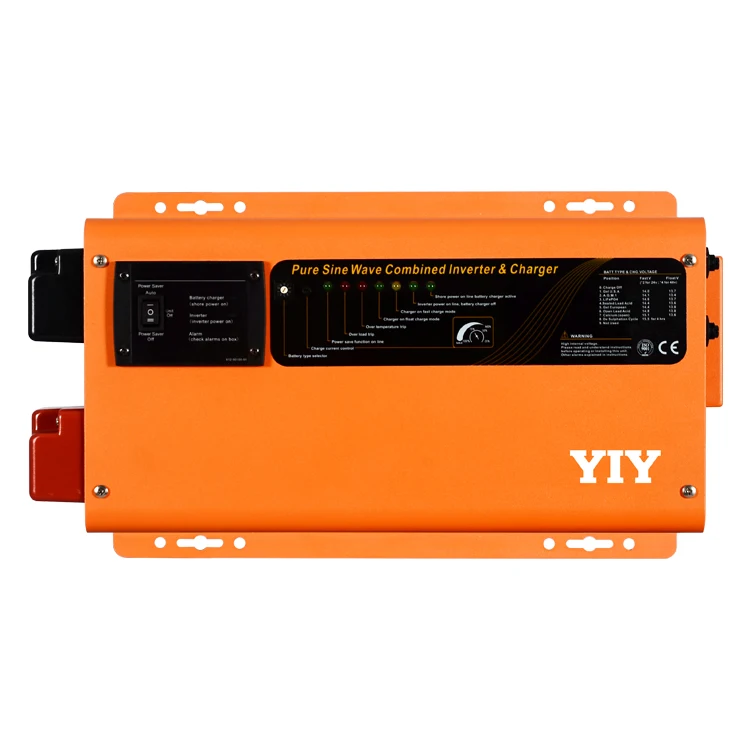

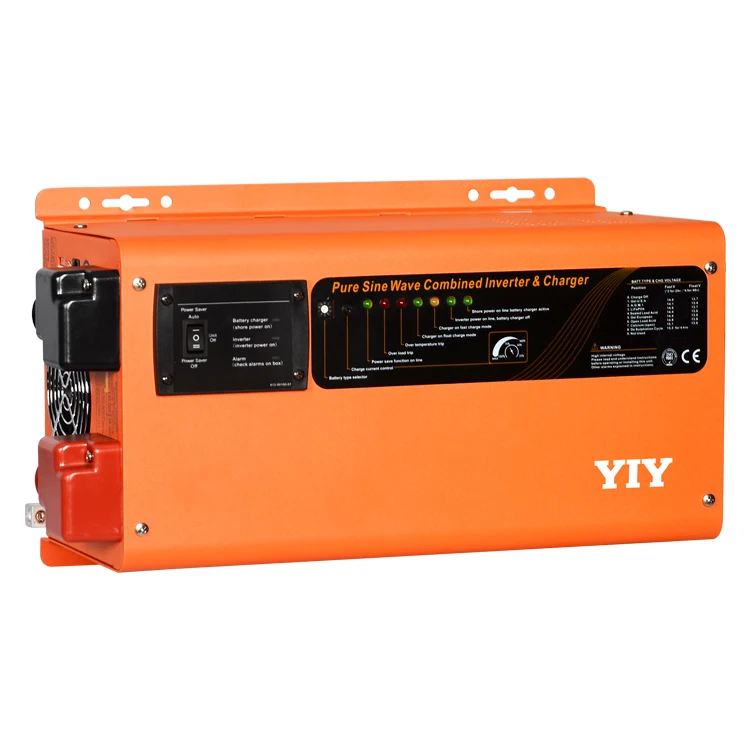

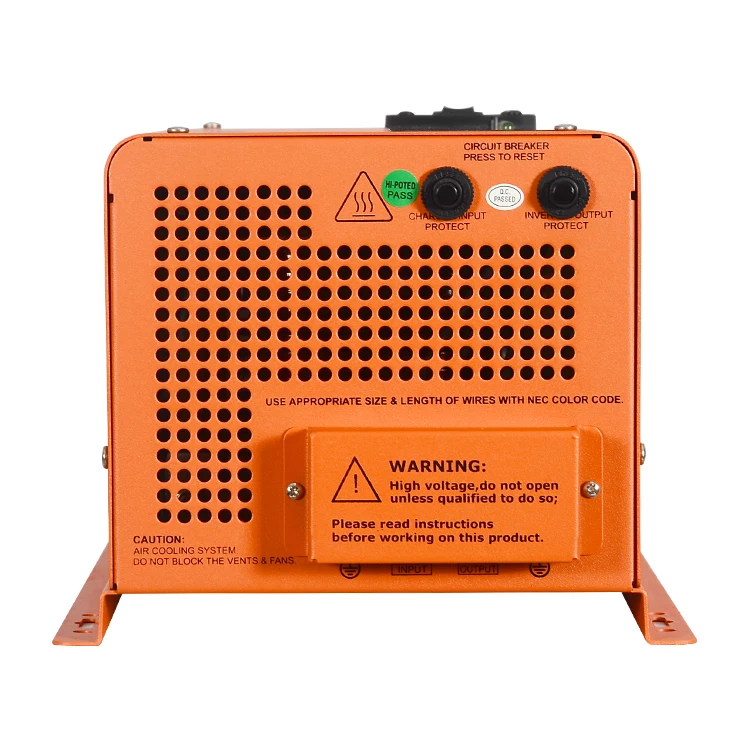

Power Star Inverter charger economic type 6000w 24v 230vac 50hz pure sine wave inverter charger
- Category: >>>
- Supplier: Yiyen Electric Technology Co. Ltd.
Share on (1600501225433):
Product Overview
Description
Low frequency inverter charger 6000W 24V single phase 220V/230V/240VAC 50HZ/60HZ power inverter

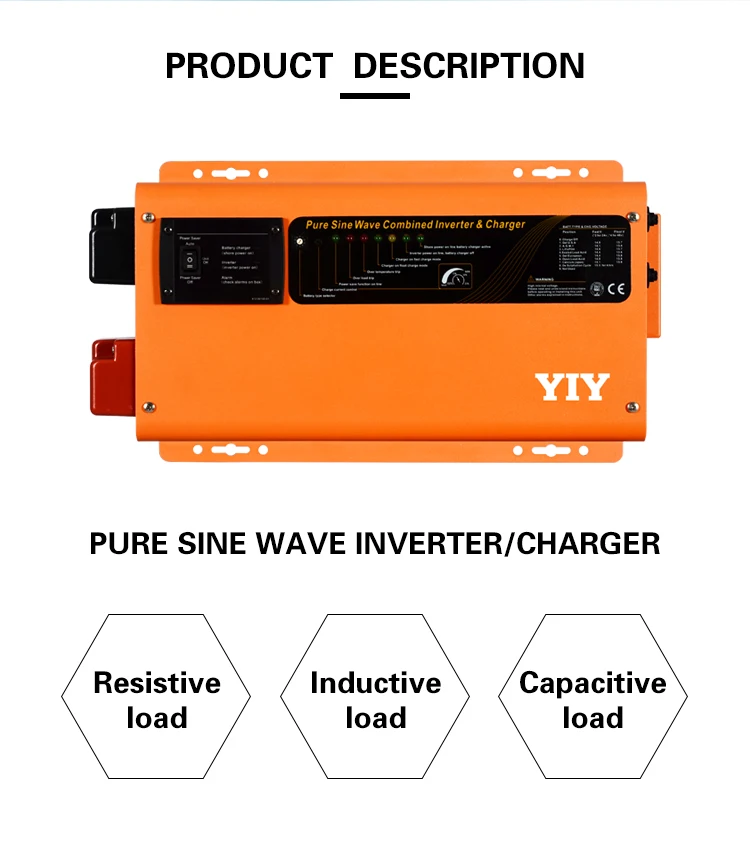

Product Description

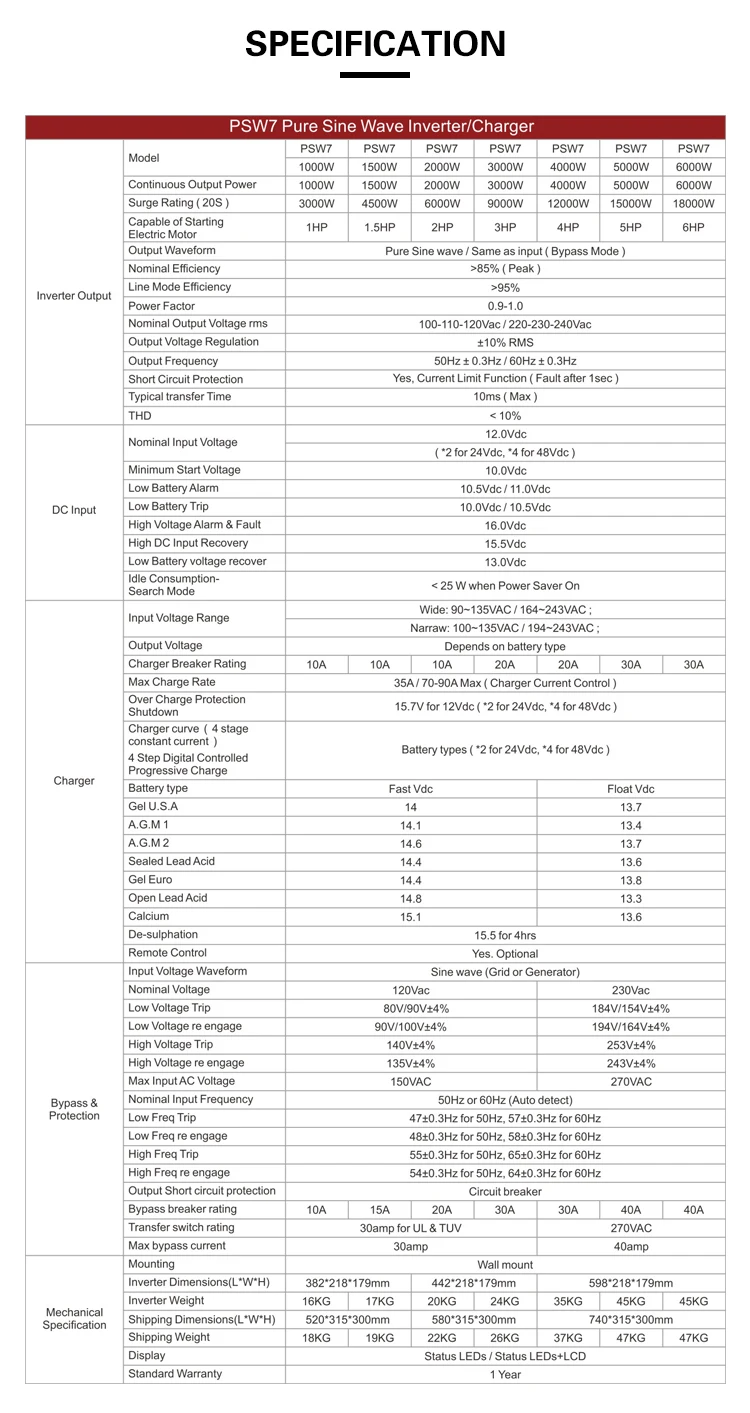

Model | PSW7 1000W | PSW7 1500W | PSW7 2000W | PSW7 3000W | PSW7 4000W | PSW7 5000W | PSW7 6000W | ||||||||||
continuous output power | 1000W | 1500W | 2000W | 3000W | 4000W | 5000W | 6000W | ||||||||||
surge rating (20s) | 3000W | 4500W | 6000W | 9000W | 12000W | 15000W | 18000W | ||||||||||
capable of starting electric motor | 1HP | 1.5HP | 2HP | 3HP | 4HP | 5HP | 6HP | ||||||||||
output waveform | pure sine wave/same as input (bypass mode) | ||||||||||||||||
nominal efficiency | >85%(peak) | ||||||||||||||||
line mode efficiency | >95% | ||||||||||||||||
power factor | 0.9-1.0 | ||||||||||||||||
nominal output voltage rms | 100-110-120vac/ 220-230-240vac | ||||||||||||||||
output votage regulation | ±10% RMS | ||||||||||||||||
short circuit protection | 50HZ±0.3HZ/60HZ±0.3HZ | ||||||||||||||||
typical transfer time | yes, current limit function (fault after 1sec | ||||||||||||||||
THD | 10ms (Max) | ||||||||||||||||
Nominal input voltage | 12.0vdc | ||||||||||||||||
*2 for 24vdc,*4 for 48vdc | |||||||||||||||||
minimum start voltage | 10.0vdc | ||||||||||||||||
low battery alarm | 10.5vdc/11vdc | ||||||||||||||||
low battery trip | 10.0vdc/10.5vdc | ||||||||||||||||
high voltage alarm & fault | 16.0vdc | ||||||||||||||||
high dc input recovery | 15.5vdc | ||||||||||||||||
low battery voltage recover | 13.0vdc | ||||||||||||||||
idle consumption-search mode | |||||||||||||||||
input voltage | wide: 90-135vac/ 164-243vac | ||||||||||||||||
narrow: 100-135vac/194-243vac | |||||||||||||||||
output voltage | depends on battery type | ||||||||||||||||
charger breaker rating | 10a | 10a | 10a | 20a | 20a | 30a | 30a | ||||||||||
max charge rate | 35A/70-90A max(charger current control) | ||||||||||||||||
over charge protection shutdown | 15.7v for 12vdc (*2 for 24vdc, *4 for 48vdc) | ||||||||||||||||
charger curve (4 stage constant current) 4 step digital controlled progressive charge | battery types (*2 for 24vdc, *4 for 48vdc) | ||||||||||||||||
battery type | fast vdc | float vdc | |||||||||||||||
GEL USA | 14 | 13.7 | |||||||||||||||
AGM 1 | 14.1 | 13.4 | |||||||||||||||
AGM 2 | 14.6 | 13.7 | |||||||||||||||
sealed lead acid | 14.4 | 13.6 | |||||||||||||||
gel Euro | 14.4 | 13.8 | |||||||||||||||
open lead acid | 14.8 | 13.3 | |||||||||||||||
calcuim | 15.1 | 13.6 | |||||||||||||||
de-sulphation | 15.5 for 4hrs | ||||||||||||||||
remote control | yes,optional | ||||||||||||||||
input voltage | sine wave (grid or generator) | ||||||||||||||||
nominal voltage | 120vac | 230vac | |||||||||||||||
low voltage trip | 80v/90v±4% | 184v/154v±4% | |||||||||||||||
low voltage re engage | 90v/100v±4% | 194v/164v±4% | |||||||||||||||
high voltage trip | 140v±4% | 253v±4% | |||||||||||||||
high voltage re engage | 135v±4% | 243v±4% | |||||||||||||||
max input AC voltage | 150vac | 270vac | |||||||||||||||
nominal input frequency | 50hzor 60hz (auto detect) | ||||||||||||||||
low freq trip | 47±0.3hz for 50hz, 57±0.3hz for 60hz | ||||||||||||||||
low freq re engage | 48±0.3hz for 50hz, 58±0.3hz for 60hz | ||||||||||||||||
output short circuit protection | circuit breaker | ||||||||||||||||
bypass breaker rating | 10a | 15a | 20a | 30a | 30a | 40a | 40a | ||||||||||
transfer switch rating | 30amp for UL&tTUV | 270VAC | |||||||||||||||
max bypass current | 30AMP | 40AMP | |||||||||||||||
mounting | wall mount | ||||||||||||||||
inverter dimension(L*W*H) | 382*219*179mm | 442*218*179mm | 598*218*179mm | ||||||||||||||
Inverter weight | 16kg | 17kg | 20kg | 24kg | 35kg | 45kg | 45kg | ||||||||||
shipping dimension(L*W*H) | 520*315*300mm | 580*315*300mm | 740*35*300mm | ||||||||||||||
Shipping weight | 18kg | 19kg | 22kg | 26kg | 37kg | 47kg | 47kg | ||||||||||
display | status LEDs/ status LEDs+LED | ||||||||||||||||
standard warranty | 1 year | ||||||||||||||||

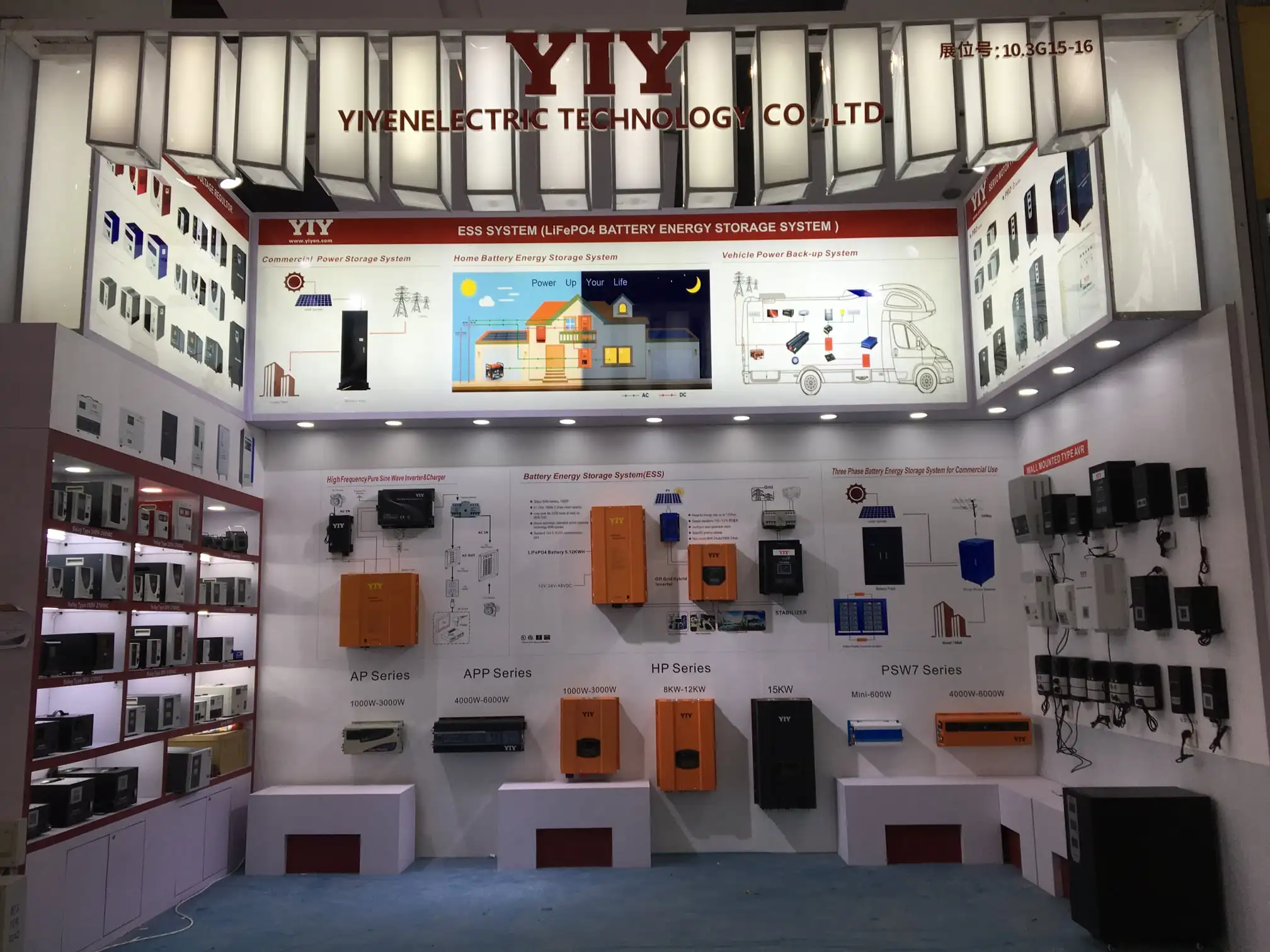

Company Profile

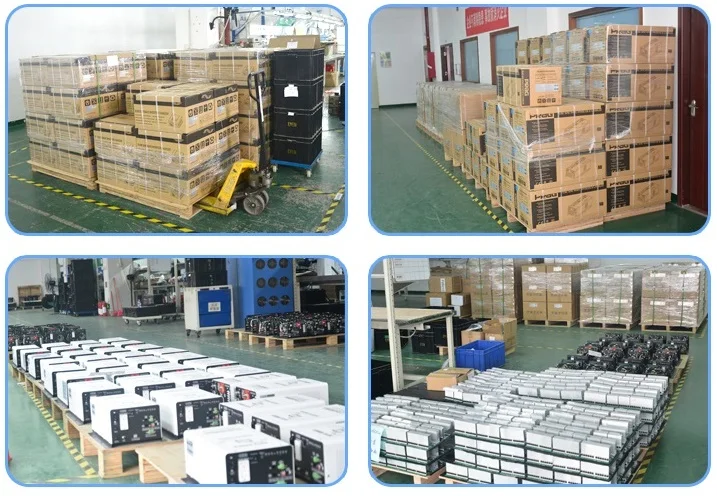

Integrating research & development, production and marketing, Zhejiang Yiyuan Electric Co., Ltd. is an enterprise specializing in manufacturing power supplies and bearings. Our company has a workshop covering more than 4000 square meters. We have more than 200 employees, including more than 20 experienced technicians.
