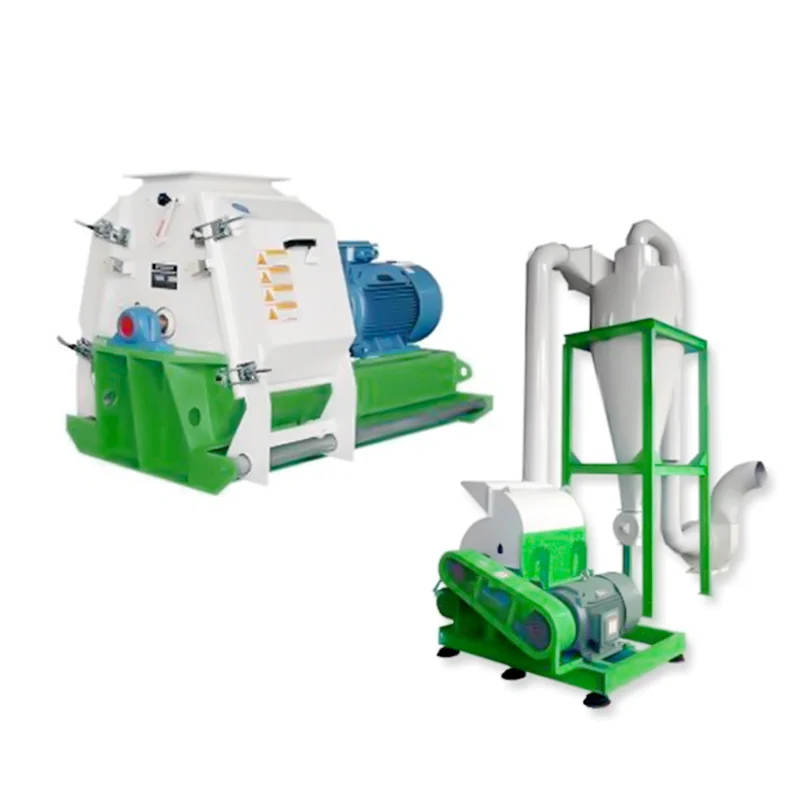

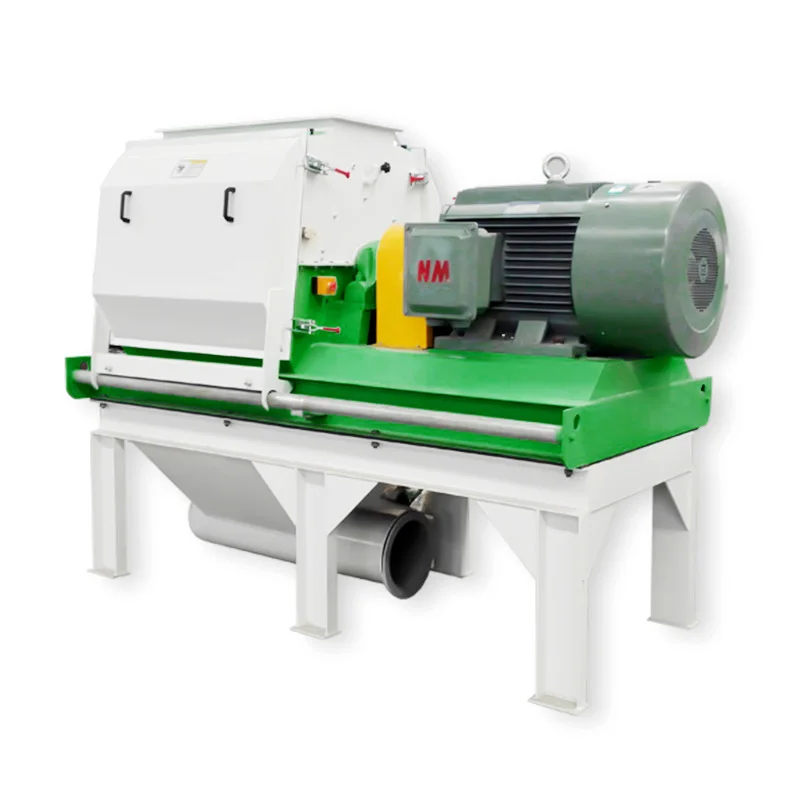

Multifunctional hammer mill 66*60 wood crusher wood chips hammer mills
- Category: >>>
- Supplier: Jiangsu Kingwood International Trading Co. Ltd.
Share on (1600501301901):
Product Overview
Description

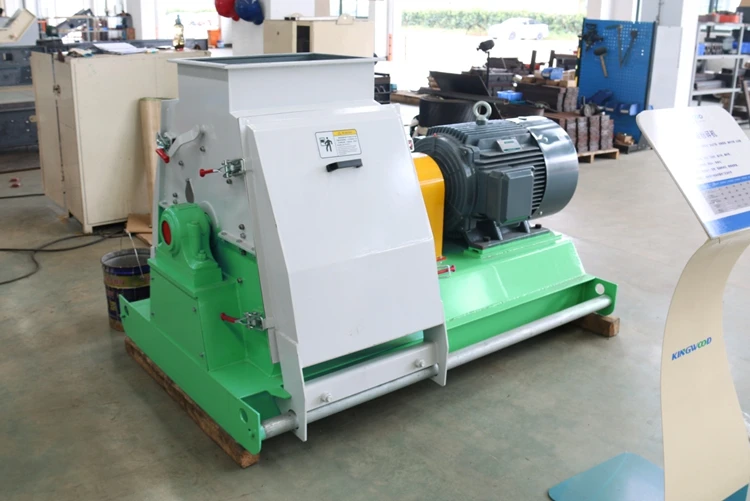

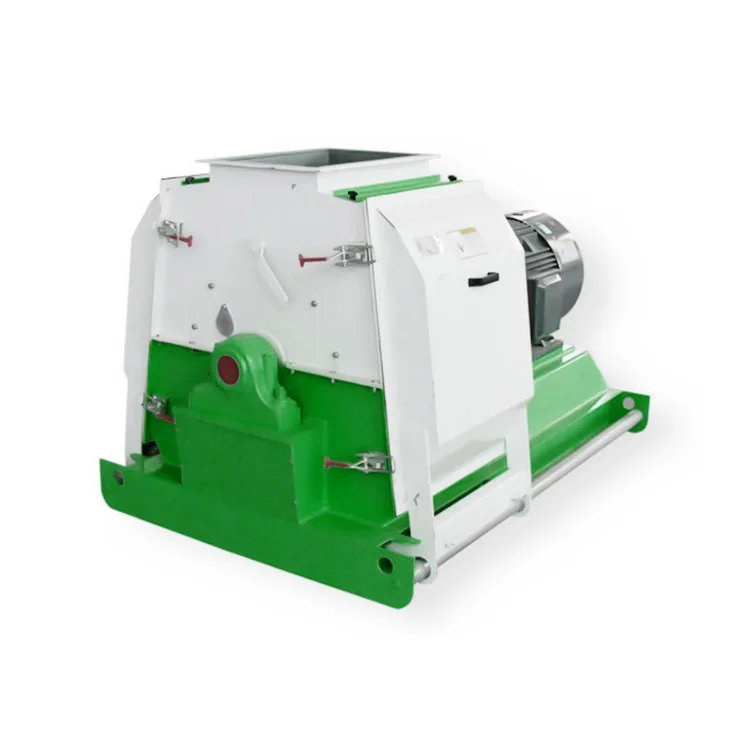

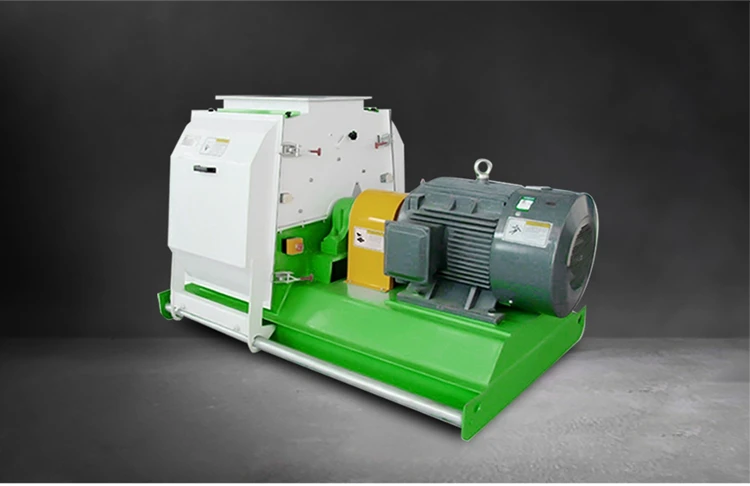

Multifunctional Hammer Mill
SFSP 66*60
Fastness and durability safety and reliability easy installation simple operation small vibration and high productivity
Specification
Item | Value |
Rotor Diameter(mm) | 660 |
Rotating speed(rpm) | 2970 |
Speed of hammer line(m/s) | 102 |
Width of grinding chamber(mm) | 600 |
Number of the hammer | 64 |
Power (Kw) | 55-75 |
Capacity(T/H) | 1.8-2.5 |
Dimension (mm) | 2060×2010×2220 |
Certification | CE,ISO |
Product Description

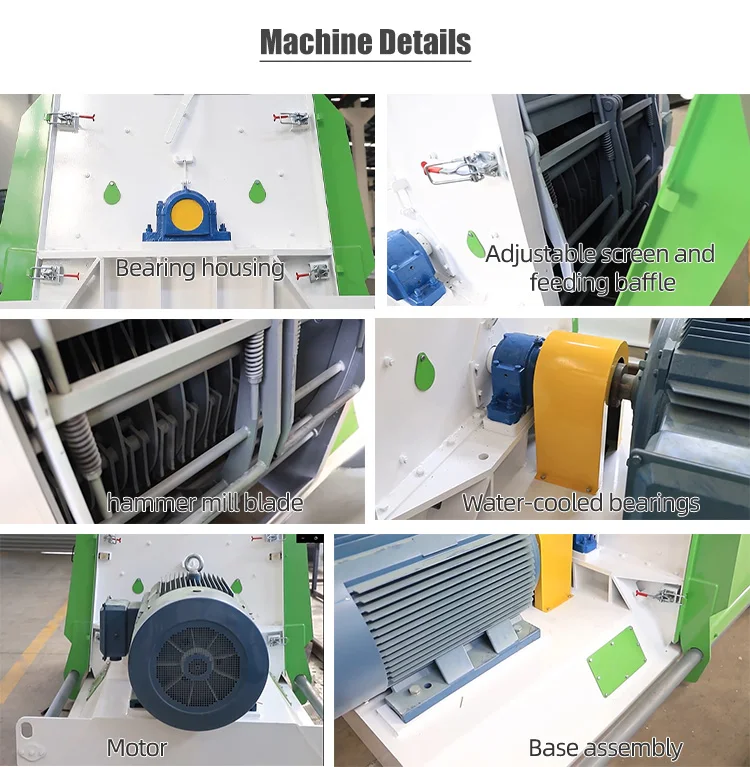

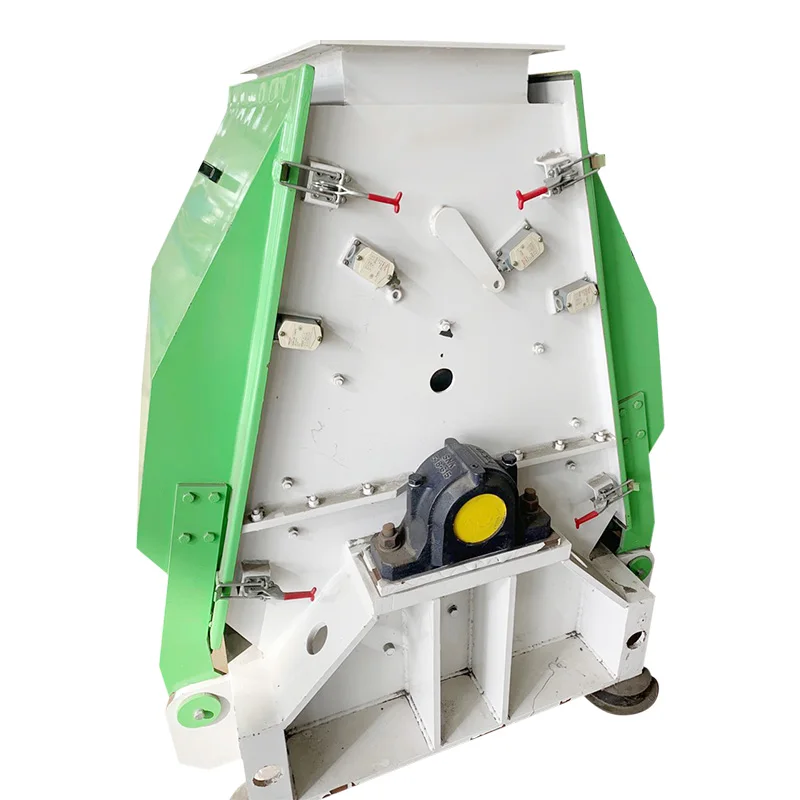

The advantages of SFSP 66*60
1. Adopting steel plate welding structure, the hammer mill rotor and the motor are mounted on the same base, and the serpentine spring coupling is directly connected to the transmission, and the transmission efficiency is high;
2. The base is welded with thick steel plate and reduces the center of gravity of the spindle to effectively improve the vibration phenomenon;
3. The rotor is dynamically balanced to make the rotor work smoothly and can work in forward and reverse directions to extend the service life of the wearing part;
4. The operation door has a safety interlock to ensure that the motor cannot be started when the operation door is opened, ensuring safety;
5. Replace the bearing with a larger load. Effectively improve the temperature rise of the bearing. Effectively extend bearing life;
6. Quick-open full-open mobile access door;
2. The base is welded with thick steel plate and reduces the center of gravity of the spindle to effectively improve the vibration phenomenon;
3. The rotor is dynamically balanced to make the rotor work smoothly and can work in forward and reverse directions to extend the service life of the wearing part;
4. The operation door has a safety interlock to ensure that the motor cannot be started when the operation door is opened, ensuring safety;
5. Replace the bearing with a larger load. Effectively improve the temperature rise of the bearing. Effectively extend bearing life;
6. Quick-open full-open mobile access door;
Product information | ||||||||
SFSP 66*60
Rotor Diameter(mm)
660
Rotating speed(rpm)
2970
Speed of hammer line(m/s)
102
Width of grinding chamber(mm)
600
Capacity(T/H)
1.8-2.5
More Models | ||||||||
SFSP 66*40
Rotor Diameter: 660 mm
Rotating speed: 2960 rpm
Production capacity: 1-1.5 t/h
Rotating speed: 2960 rpm
Production capacity: 1-1.5 t/h
SFSP 66*80
Rotor Diameter: 660 mm
Power of the main motor: 160/185 rpm
Production capacity: 2.8-3 t/h
Power of the main motor: 160/185 rpm
Production capacity: 2.8-3 t/h
SFSP 120*100
Rotor Diameter: 660 mm
Power of the main motor: 1450 rpm
Production capacity: 5.2-6 t/h
Power of the main motor: 1450 rpm
Production capacity: 5.2-6 t/h
Technical Parameters |
Parameter | SFSP 66*40 | SFSP 66*60 | SFSP 66*80 | SFSP 66*100 | SFSP 66*120 | SFSP 120*80 | SFSP 120*100 | SFSP 120*120 |
Rotor Diameter(mm) | 660 | 660 | 660 | 660 | 660 | 1200 | 1200 | 1200 |
Rotating speed(rpm) | 2960 | 2970 | 2970 | 2980 | 2980 | 1450 | 1450 | 1450 |
Speed of hammer line(m/s) | 102 | 102 | 102 | 102 | 102 | 91 | 91 | 91 |
Width of grinding chamber(mm) | 400 | 600 | 800 | 1000 | 1200 | 800 | 1000 | 1200 |
Number of the hammer(pec) | 40 | 64 | 84 | 116 | 136 | 96 | 128 | 144 |
Power (Kw) | 37-45 | 55-75 | 75-90 | 110 | 132-160 | 110-132 | 160-185 | 200-250 |
Capacity(T/H) | 1-1.5 | 1.8-2.5 | 2.8-3 | 3.5-4.3 | 5 | 3.6-4.4 | 5.2-6 | 6.6-8 |

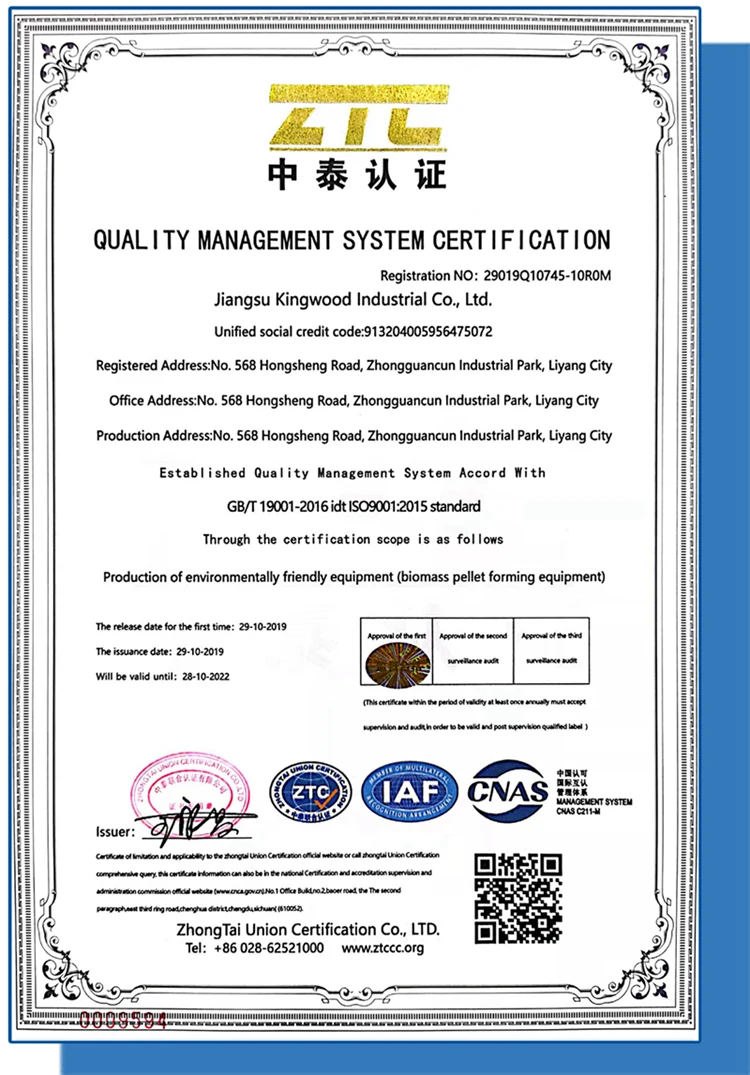

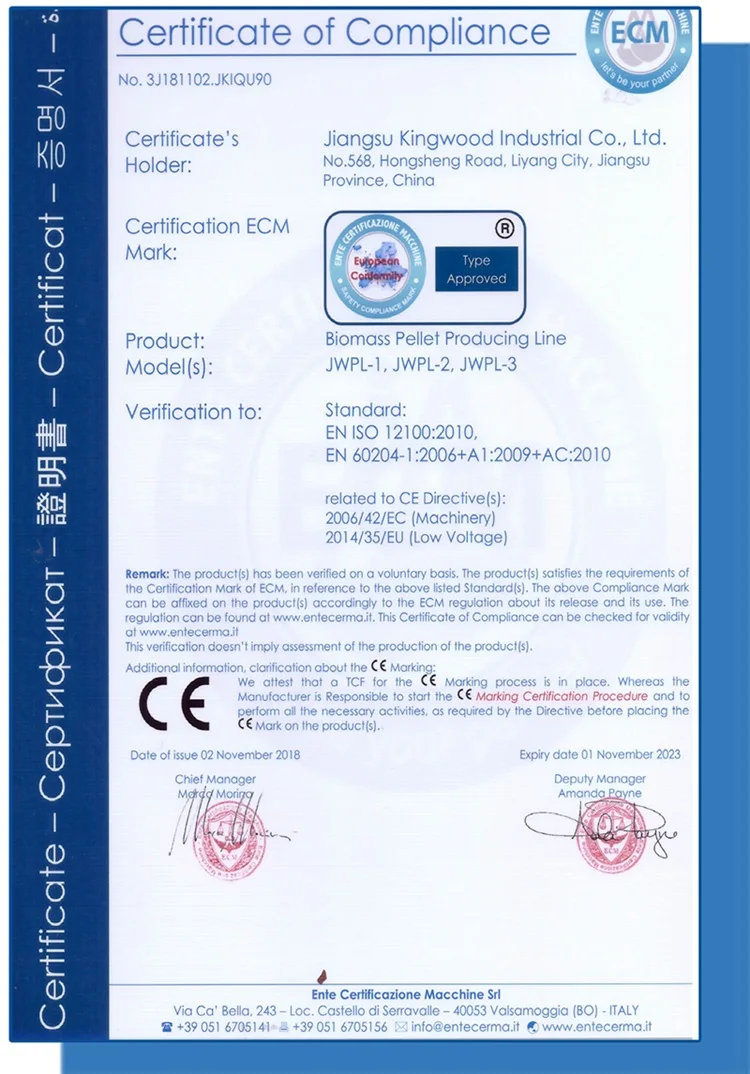

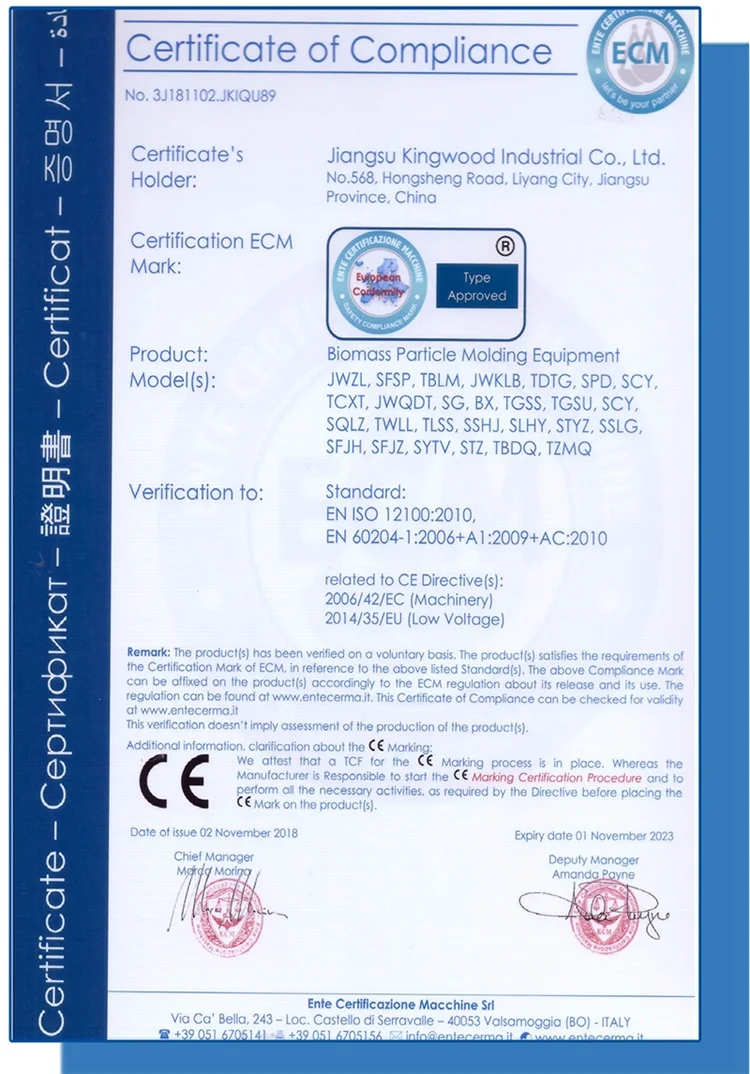

Quality Inspection Report Certificates |
1) Feed for livestock in large farms, easy to store and transport;
2) Civil heating and energy consumption, clean, pollution-free, easy to store and transport;
3) Industrial boiler and kiln fuel, instead of coal and gas, to solve environmental pollution;
4) It can be used as fuel for gasification power generation and thermal power generation to solve the shutdown problem of small thermal power plants.
2) Civil heating and energy consumption, clean, pollution-free, easy to store and transport;
3) Industrial boiler and kiln fuel, instead of coal and gas, to solve environmental pollution;
4) It can be used as fuel for gasification power generation and thermal power generation to solve the shutdown problem of small thermal power plants.

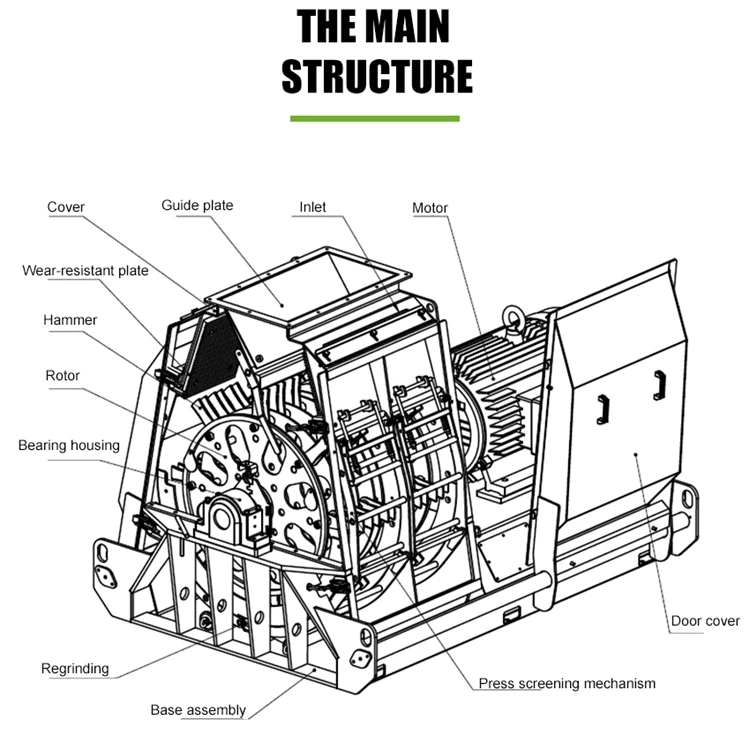

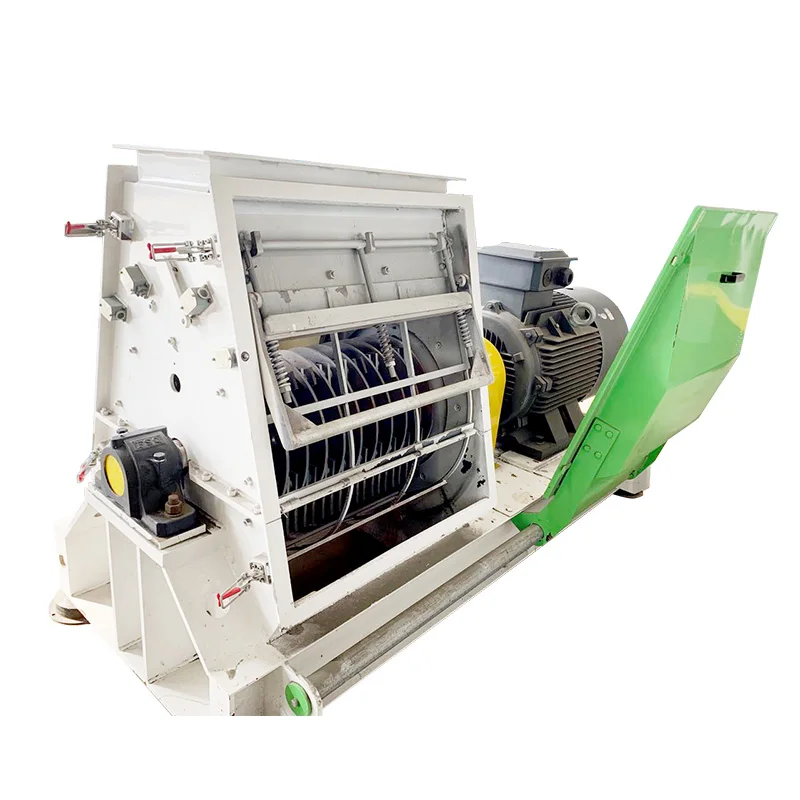

The main structure
Base：the heavy-duty base is used to connect and support various parts of the grinder, reduce vibration, increase reliability, and extend life. The grinded materials are discharged from the discharge port at the lower part of the base.

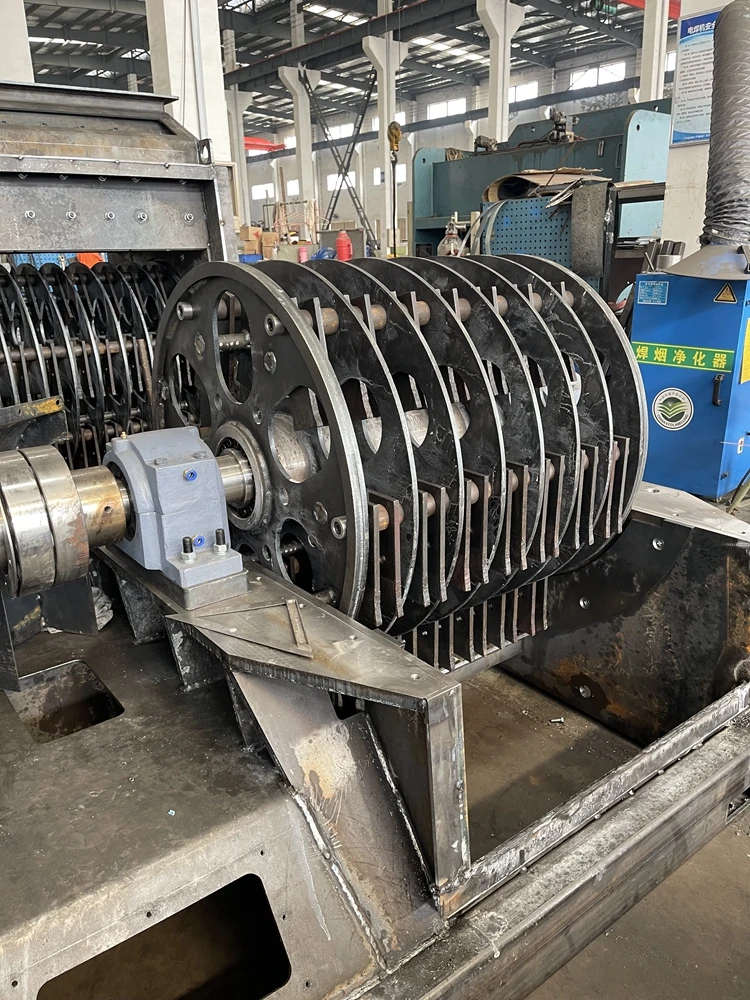

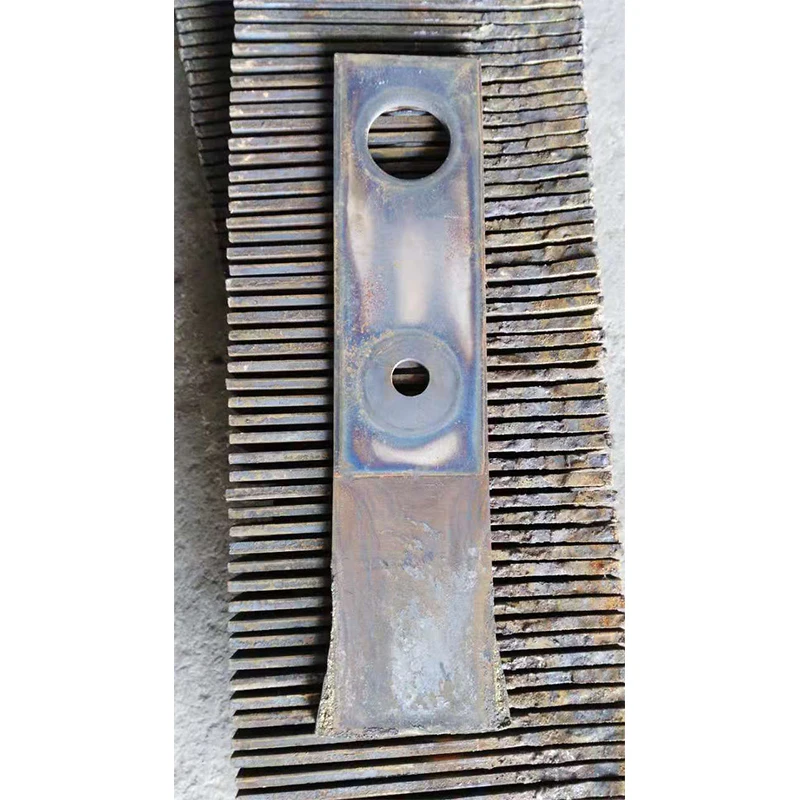

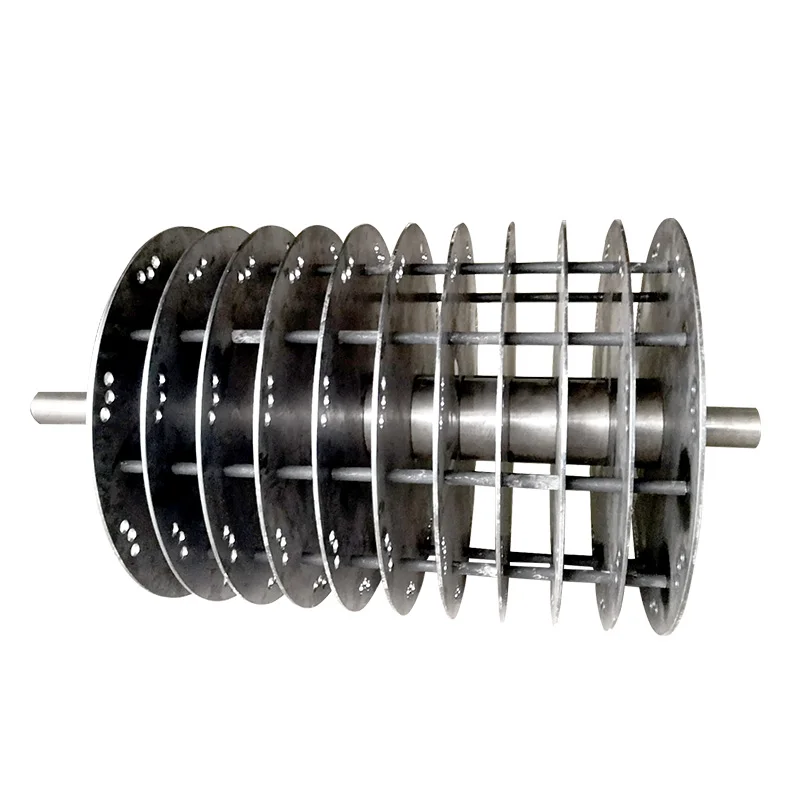

Rotor：it is composed of the main shift，hammer frame plate、pin roll、hammer、bearing、base the bearing, and other parts, it is the main moving part of the grinder, the rotor speed is too high, so that when the rotor is not in the working

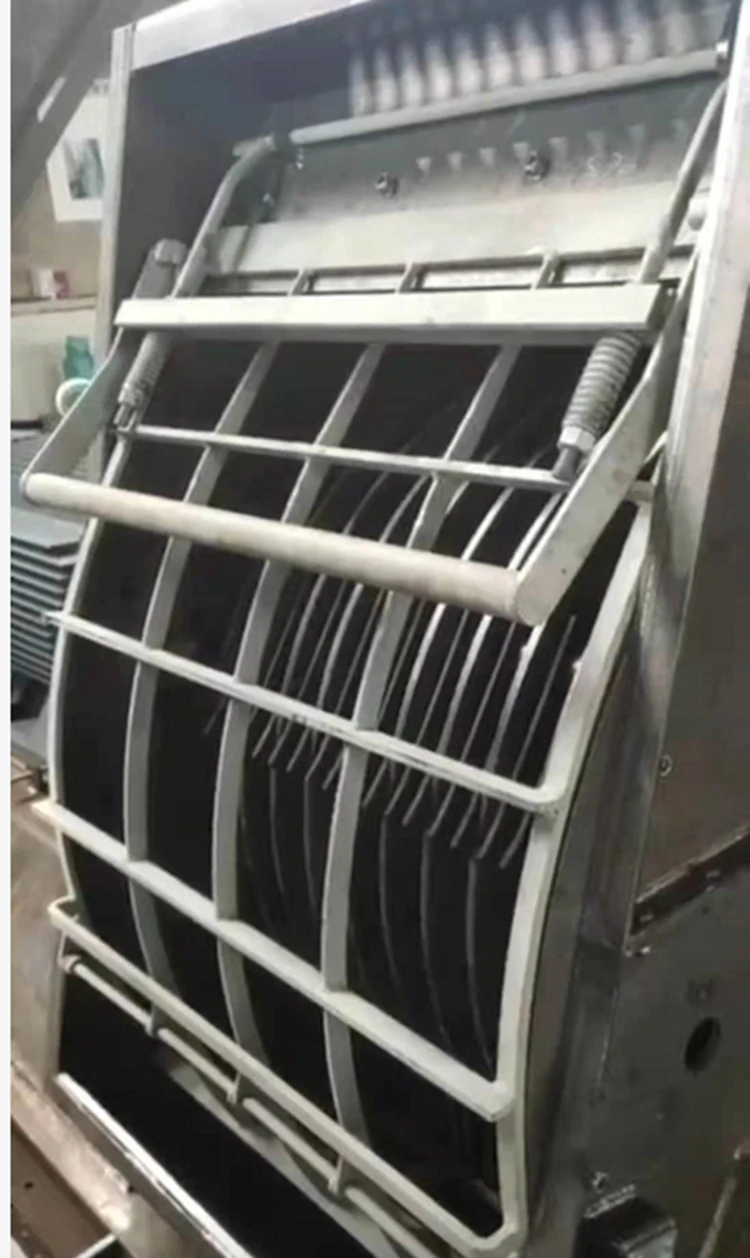

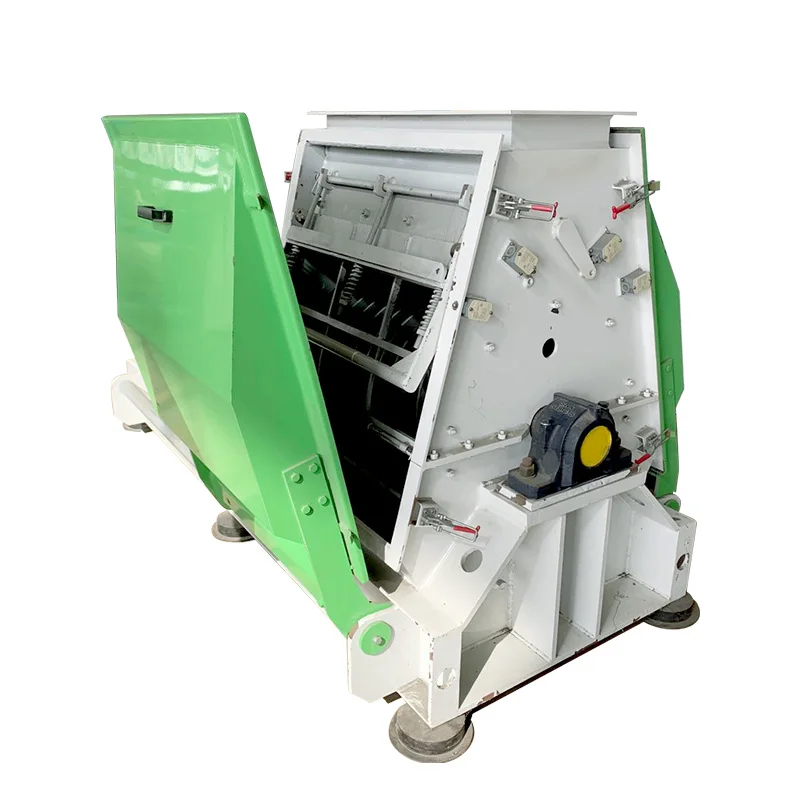

Operating door: The operating door needs to be opened when you replacing the sieve plate or hammer. There is a proprietary sieve pressing mechanism, which makes the replacement of the sieve plate very convenient and requires less operation time.
Wearing plate：The parts in the grinding chamber and contact with the material are wearing plate, All the wearing plates of the grinder are designed as replaceable parts. When worn to a certain degree, they must to be replaced to prevent damage, falling off, and accidents caused by entering the crushing chamber.
Upper cover：connect in wearing plate，keep the grinding chamber In a sealed environment when the operating door has been closed.
Rotor：it is composed of the main shift，hammer frame plate、pin roll、hammer、bearing、base the bearing, and other parts, it is the main moving part of the grinder, the rotor speed is too high, so that when the rotor is not in the working
Operating door: The operating door needs to be opened when you replacing the sieve plate or hammer. There is a proprietary sieve pressing mechanism, which makes the replacement of the sieve plate very convenient and requires less operation time.
Wearing plate：The parts in the grinding chamber and contact with the material are wearing plate, All the wearing plates of the grinder are designed as replaceable parts. When worn to a certain degree, they must to be replaced to prevent damage, falling off, and accidents caused by entering the crushing chamber.
Upper cover：connect in wearing plate，keep the grinding chamber In a sealed environment when the operating door has been closed.
Company Profile
ABOUT US
Jiangsu Kingwood Industrial Co., Ltd. (listed in National Equities Exchange and Quotations, stock code: 871765), located in Zhongguancun Industrial Park of Liyang City, Jiangsu Province, China. The company covers an area of more than 35,000㎡, with 30 million USD existing fixed assets. It is a high-tech enterprise which is dedicated to develop low-carbon, and renewable energy equipment and advanced feed mill industry. Established in 1999, Kingwood has been dedicated in providing one stop solution in biomass engineering, animal feed engineering and spare parts business for our valued customers, and these services are including: consultation, design, manufacture, logistic, installation, commissioning, training, and after-sales service for biomass/feed production line.
Jiangsu Kingwood Industrial Co., Ltd. (listed in National Equities Exchange and Quotations, stock code: 871765), located in Zhongguancun Industrial Park of Liyang City, Jiangsu Province, China. The company covers an area of more than 35,000㎡, with 30 million USD existing fixed assets. It is a high-tech enterprise which is dedicated to develop low-carbon, and renewable energy equipment and advanced feed mill industry. Established in 1999, Kingwood has been dedicated in providing one stop solution in biomass engineering, animal feed engineering and spare parts business for our valued customers, and these services are including: consultation, design, manufacture, logistic, installation, commissioning, training, and after-sales service for biomass/feed production line.
Core value:
Use "customer and supplier win-win" as the management principle, and "long-term development" as the business purpose, work with domestic and foreign customers to promote each other and create a win-win situation.
Our mission:
A"blue" innovative company researching future energy/feed technology, creating a "green" responsible company with low-carbon recycling and environmental protection.
Spirit:
Pioneering spirit of "Exploring and Enterprising" Inovative spirit of "Daring to be the first mover" Striving spirit of "Honest and Hard-working"
Q1: Are you a factory or trading company?
Q2: How you guarantee your product quality?
A1: We are special trading company owned by our factory. And our factory located in Changzhou, China, with nearly 100 workers in total. We have over 20 years’ experience in industries.
Q2: How you guarantee your product quality?
A2: Kingwood is always pay attention to the production quality and quality improvement, in order to achieve the high quality to meet high demand, we build the most advanced manufacturing equipment and strictly control every production point, not only from the procurement of the raw material, spare parts processing, welding, but also the assembly to finished product delivery. All quality controls in key production process is implemented strictly in Kingwood
Q3: How about the delivery date?
Q3: How about the delivery date?
A3: We build no storage management system, so before you place orders, please contact our sales team, they will give you professional delivery solution according to the product / production line lead time
Q4: How about the technical support from Kingwood?
Q4: How about the technical support from Kingwood?
A4: Kingwood has built the full service system from pre-sales, installation & commissioning and aftersales service including preventive maintenance, corrective maintenance and training process. According to customer’s requirement, we can provide service both online and in customer’s jobsite. And we also have oversea engineers in some countries in South East Asia / CIS/ East Europe and Latin America area that are available to service you at any time.
Q5: How about the guarantee period?
Q5: How about the guarantee period?
A5: One year after our product arrives customer’s jobsite but no longer than 18month from BL date.
