small pancake load cell for 5kg to 500kg electronic truck scale,track scale,hopper scales

Product Overview

Description

Description:

:

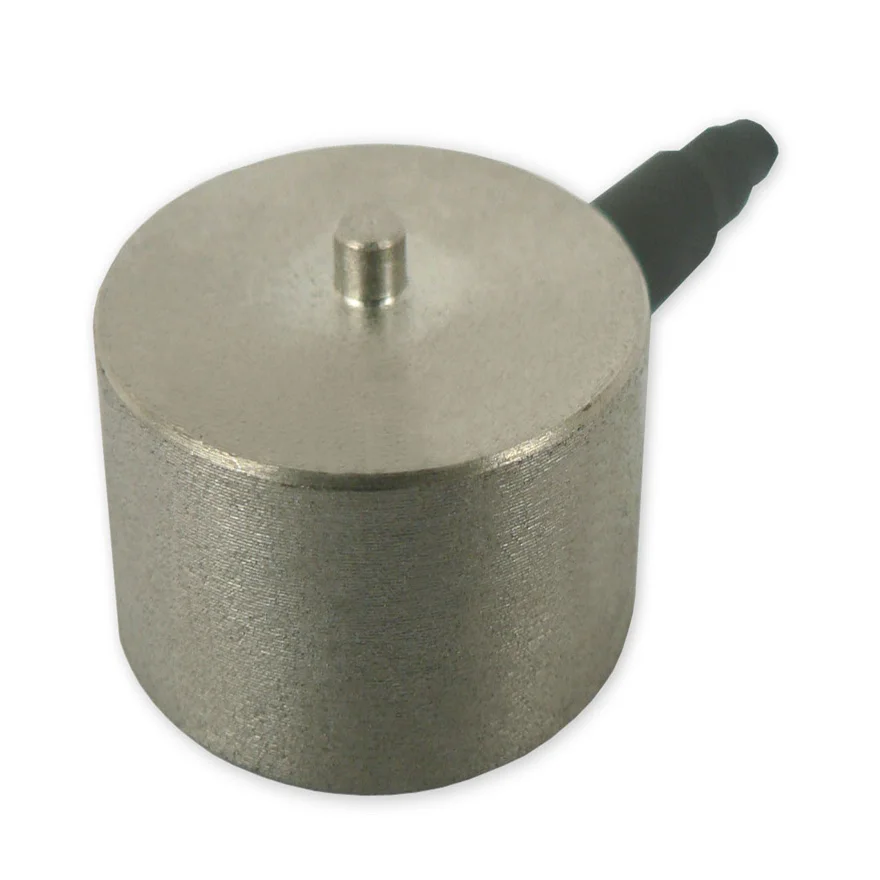

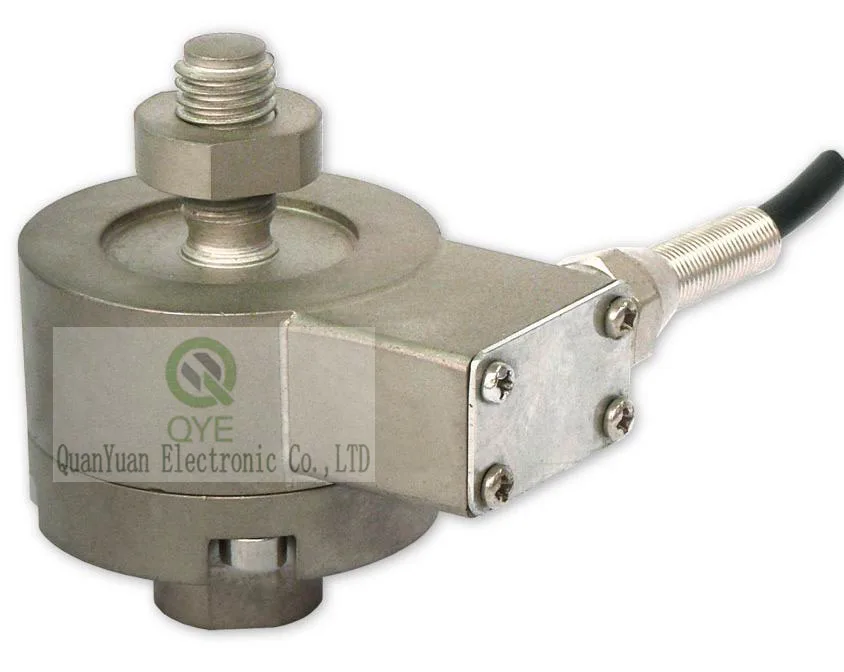

QH-62A load cells are available in the capacities from 5kg to 500kg.

Alloy.steel construction with spoke type. Tension and/or compression loading.

Silicon adhesive sealed, waterproof, anti-corrosion and suitable for all kinds of environment.

Integral structure and easy installation.

Suitable for electronic truck scale,track scale,hopper scales and other electronic weighing devices.



Features:





Capacity: 5kg to 500kg



IP Rating: IP66 ~ IP68



High accuracy.



Alloy steel, Integral installation



Easy installation. reliable performance.

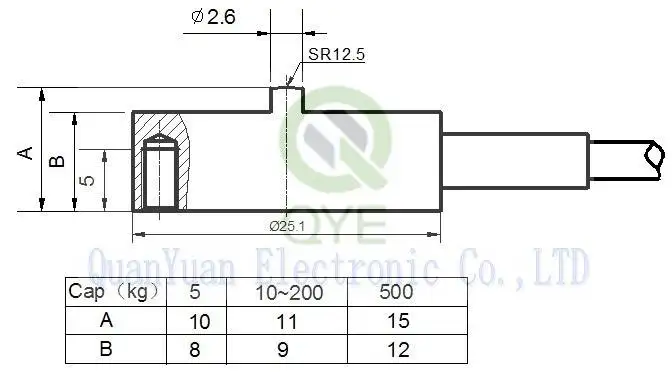

Electrical connection and Dimensions:







Specifications:

Specifications:
capacity	kg	5,10,50,100,200,300, 500
safe overload	%FS	120
ultimate overload	%FS	150
rated output	mV/V	1.0 ± 0.2
excitation voltage	Vdc	9-12v
combined error	%FS	± 0.2
zero unbalance	%FS	± 10
non-linearity	%FS	± 0.02
hysteresis	%FS	± 0.02
repeatability	%FS	± 0.01
creep	%FS/30min	± 0. 1
input resistance	Ω	350 ± 10 &700± 10
output resistance	Ω	350 ± 10 &700± 10
insulation resistance	M Ω	≥ 5000 @ 50 Vdc
operating temperature range	℃	-10 ~ +60
compensated temperature range	℃	-10 ~ +40
temperature coefficient of SPAN	%FS/10℃	± 0.02
temperature coefficient of ZERO	%FS/10℃	± 0.03
