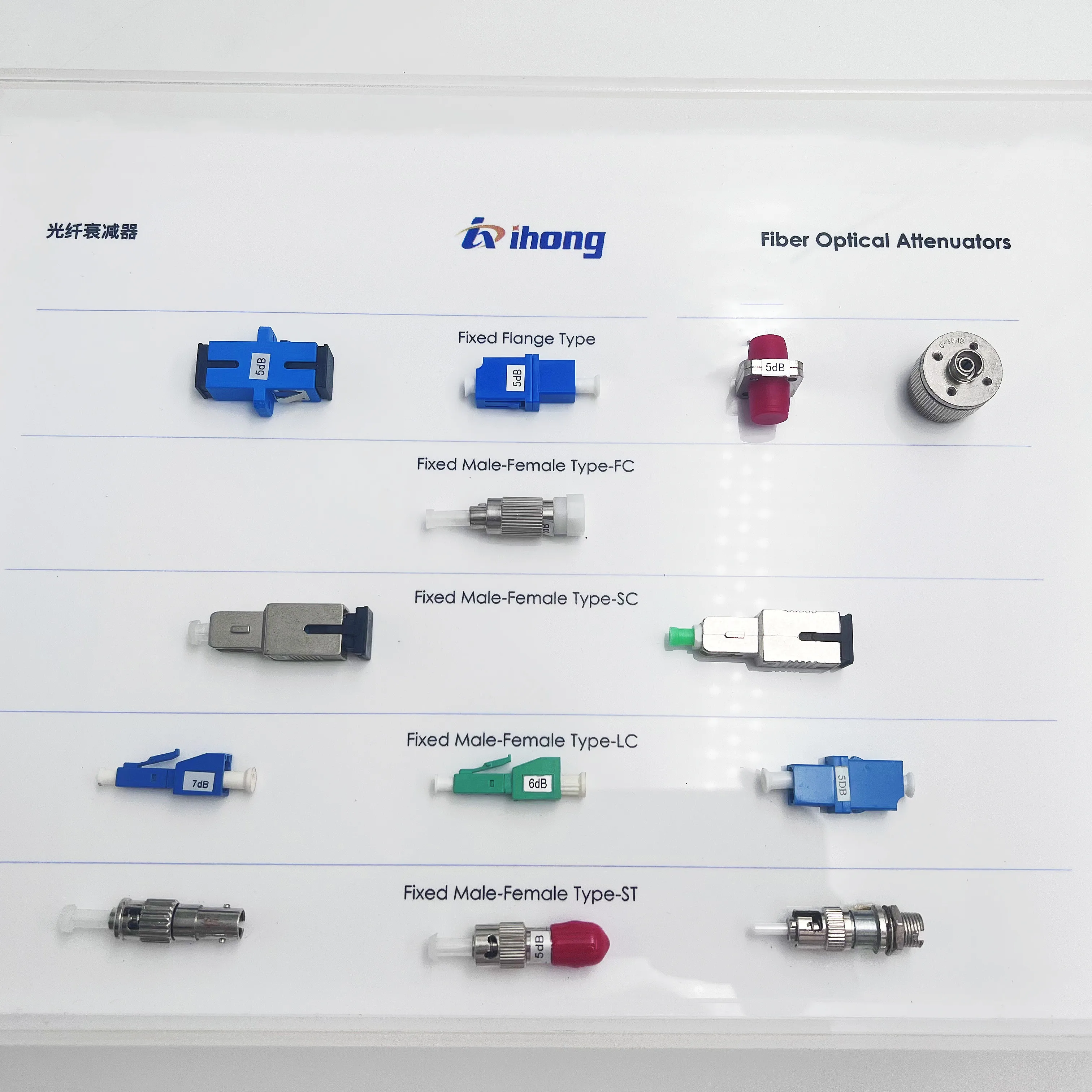

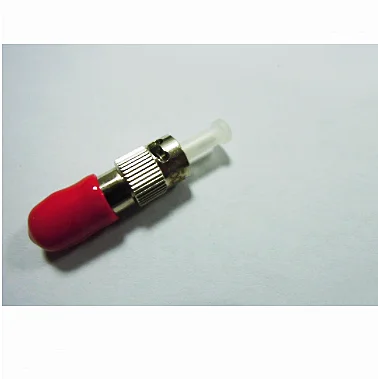

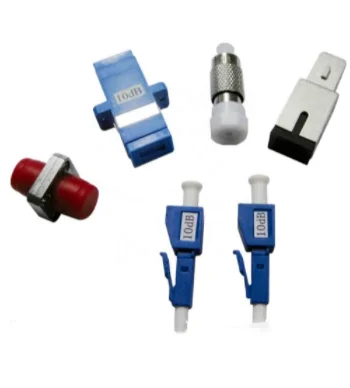

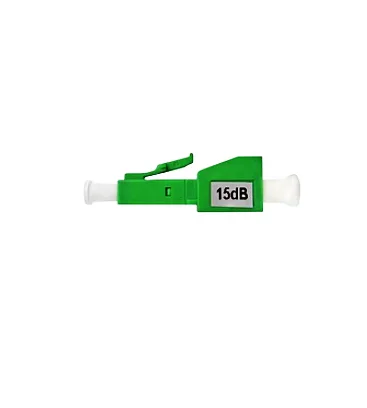

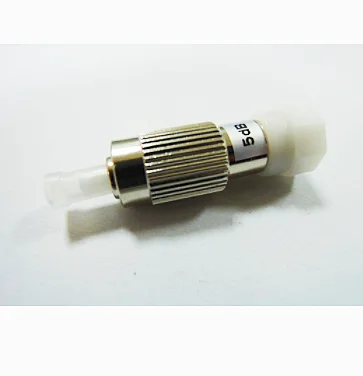

SC/LC/FC/ST type, Fixed Flanged type Fiber optic Attenuators
- Category: >>>
- Supplier: Shenzhen Ih Optics Co. Ltd.
Share on (1600501358216):
Product Overview
Description
Products Description
Fiber Optic Attenuator is a component installed in a fiber optic transmission system that reduces the power in the optical signal. It is often used to limit the optical power received by the photo detector to within the limits of the optical receiver.
-Meet the standard of GR-910-CORE;
-Low back reflection and Low PDL;
-High precision attenuation value;
-Precision control of attenuation range;
-Wide attenuation range;
-Precision ceramic ferrule;
-FC, SC, ST, LC … optional;
-Plastic or metal housing material.
Application
-Fiber optical telecommunication system ;
-Fiber optical CATV;
-Fiber optical sensor;
-Testing equipment.
Parameter | Unit | Description |
Insertion Loss | dB | ≤0.2 |
Return Loss | dB | PC≥45 UPC≥50 APC≥60 |
Mechanical endurance | dB | ≤0.2 |
Exchangeability | dB | ≤0.2 |
Operating temperature | ℃ | -40~75 |
storage temperature | ℃ | -40~75 |
