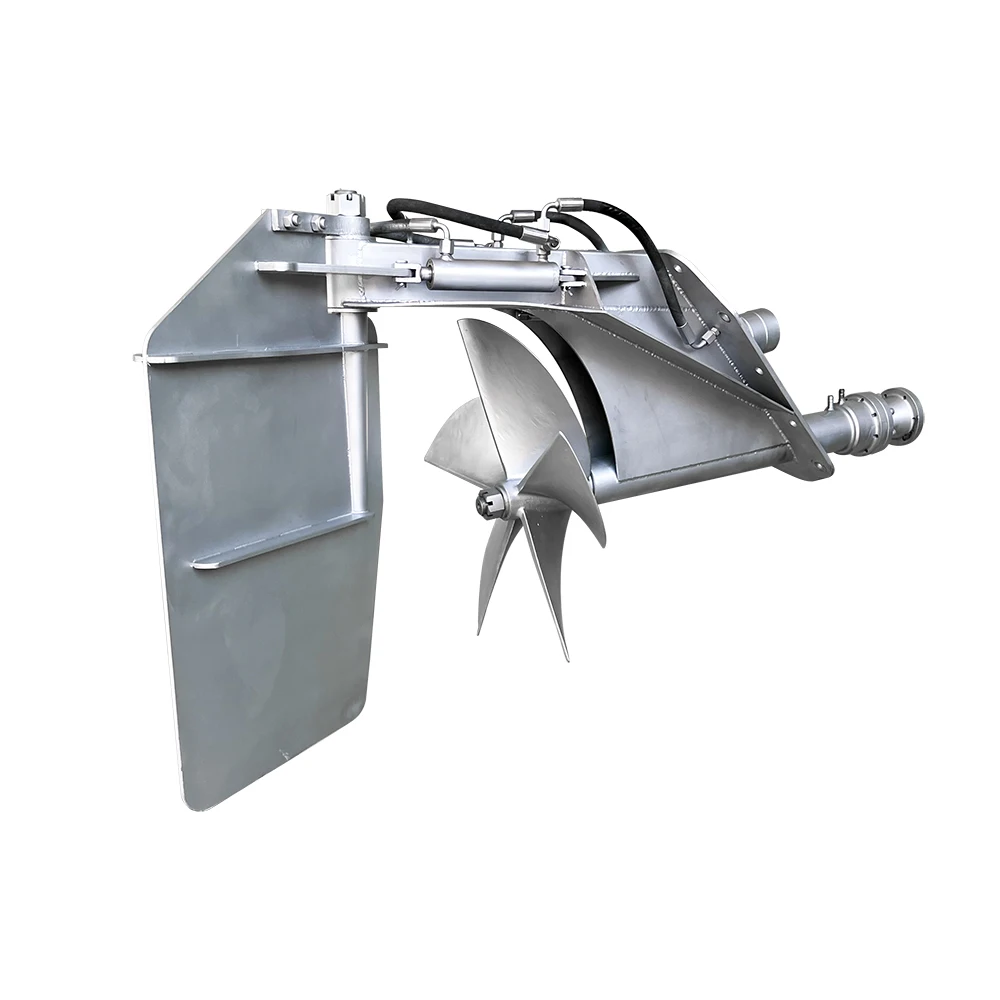

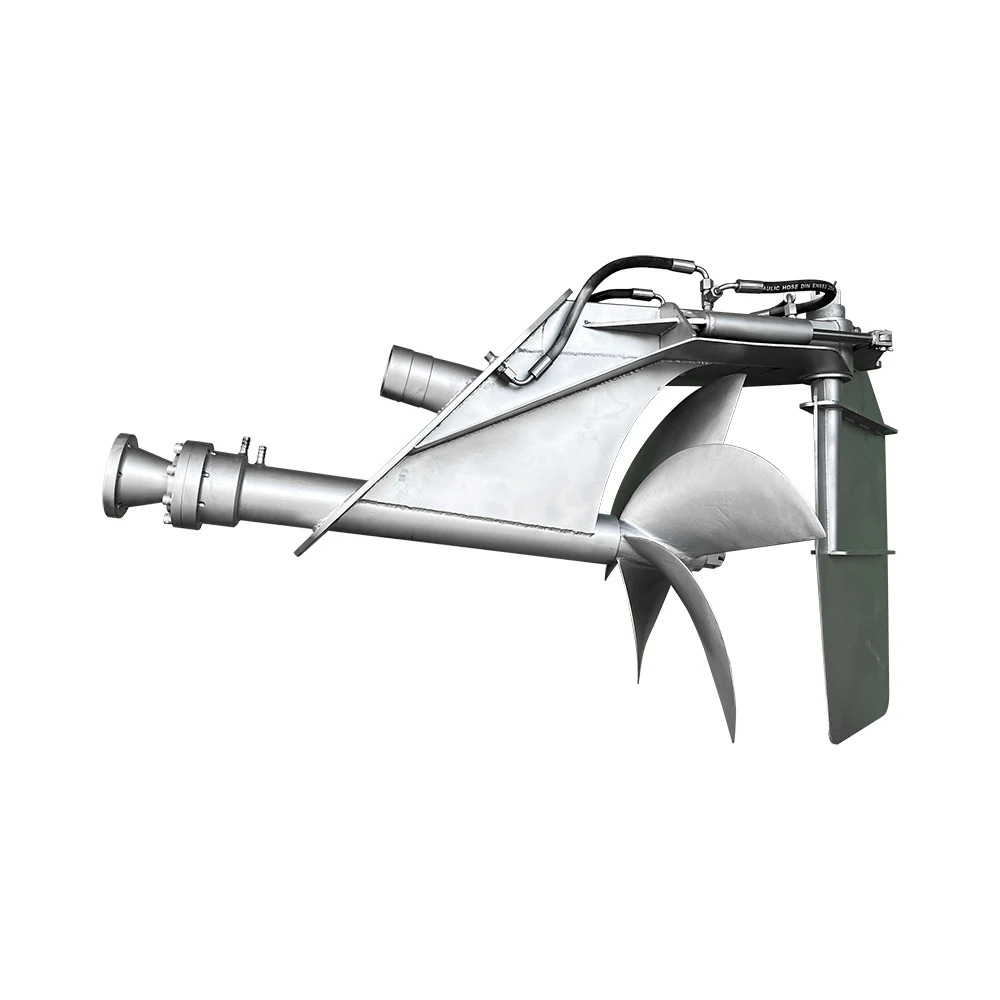

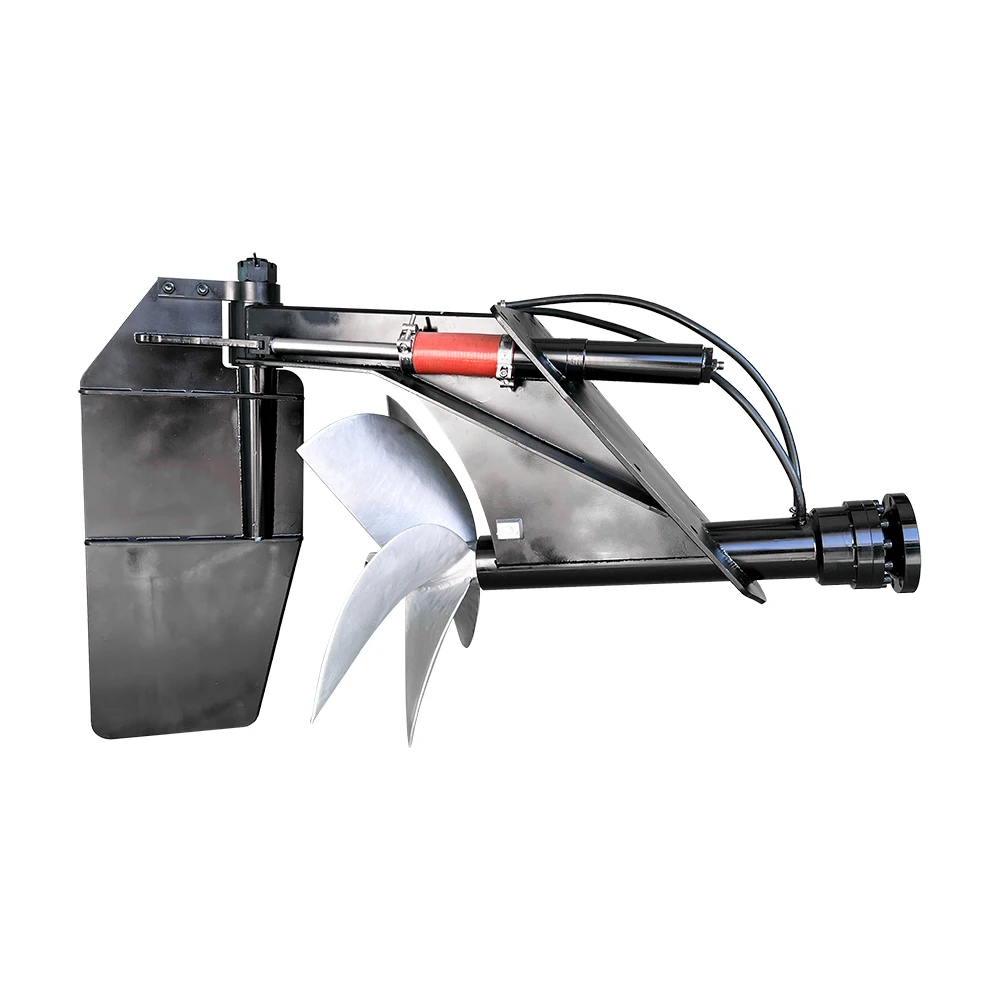

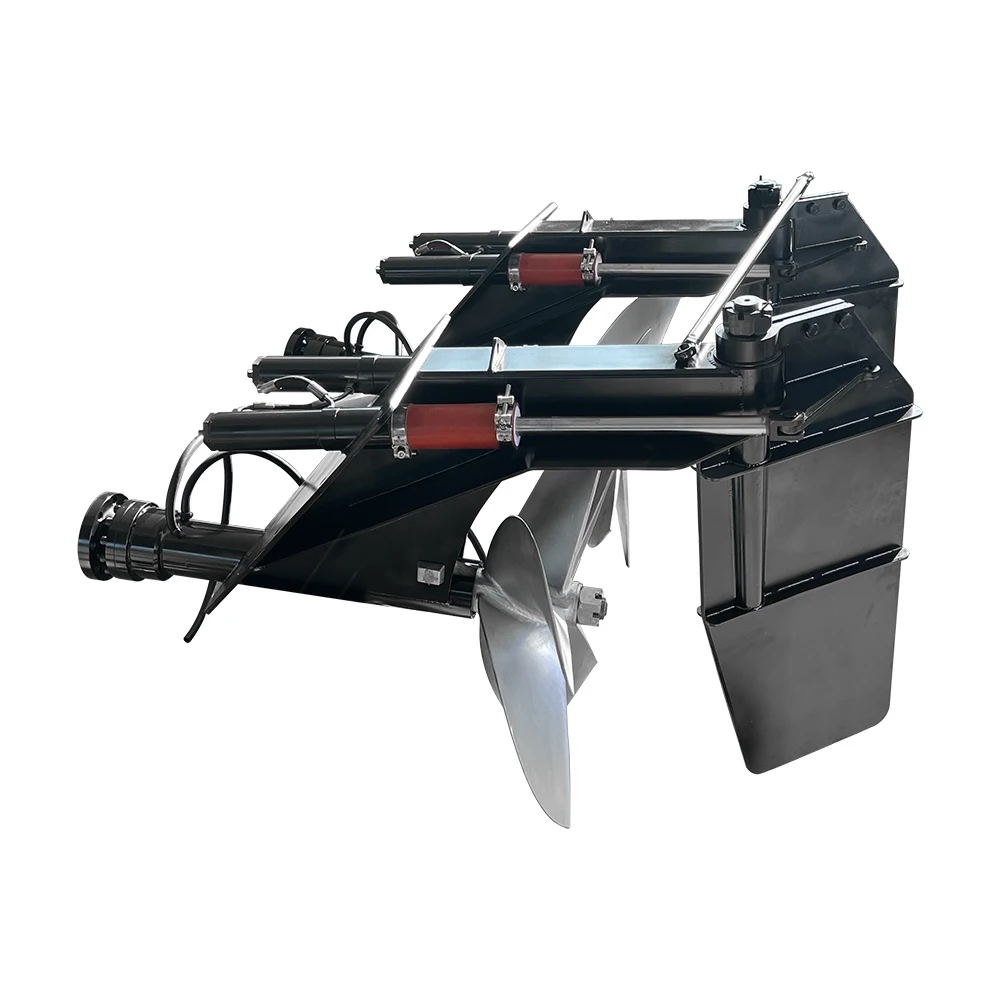

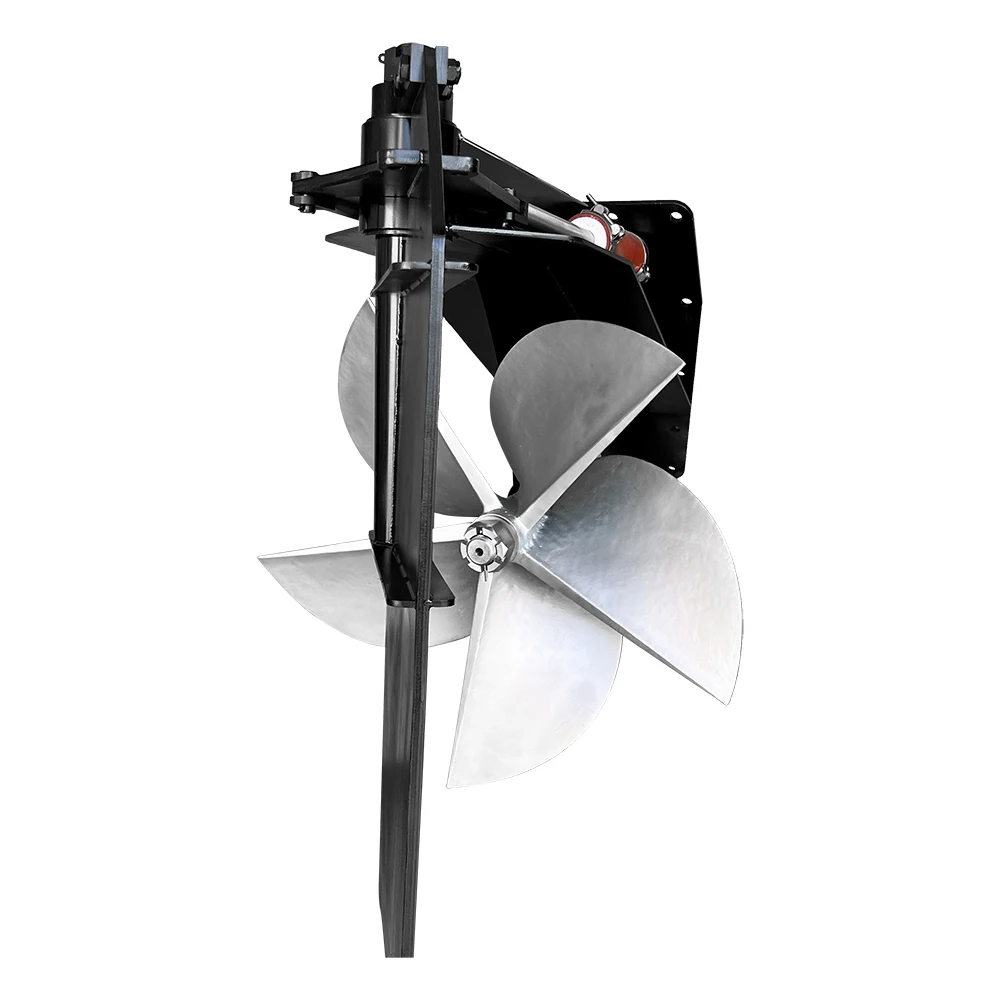

BG600 300Horsepower Surface Drive Propeller High Quality Surface Drive Props Water Jet Propulsion for Small Boat
- Category: >>>
- Supplier: Xiamen Tofoo Electronic Engineering Co. Ltd.
Share on (1600501361222):
Product Overview
Description
Product Description
The surface drive propulsion system (also known as semi-submerged propeller) independently developed by Tofoo Electronics Engineering Co., Ltd. for TSD type high-speed boats has been tested in Changsha, China, with a maximum measured speed of 78.9 km/h, which has been successfully used in high-speed boats. This technology has obtained a number of utility model patents and invention patents. The success of this test voyage fully demonstrated the maturity of the key technology and core technology of the high-speed surface propeller device, marking that the surface propeller device and surface propeller technology for domestic TSD high-speed boats have gradually matured, and the application direction of the product will be more mature. It is safe, efficient and cost-effective.
PRODUCT PARAMETERS
BG550 | BG600 | BG660 | BG750 | BG850 | |
Adaptable blade diameter | 500/550mm | 550/600mm | 660/660mm | 660/750mm | 800/820/850mm |
Number of adaptable blades | 4,5,6 | 4,5,6 | 4,5,6 | 4,5,6 | 4,5,6 |
| Adapted power | 100Hp-250Hp | 150Hp-350Hp | 250Hp-400Hp | 400Hp-650Hp | 600Hp-1200Hp |
Maximum input torque N.m | 1000N.m | 2000N.m | 3000N.m | 4500N.m | 7000N.m |
Single machine weight (KG) | 95KG | 108KG | 130KG | 163KG | 220KG |
Minimum intput speed of main engine r/min | 1000 | 1000 | 1000 | 1000 | 1000 |
Maximum intput speed of host r/min | 2800 | 2500 | 2200 | 2000 | 2000 |
Maximum suitable ship weight for single machine (T) | 2.8T | 4.5T | 6.5T | 8.5T | 15T |
Maximum suitable ship weight for dual engines (T) | 6T | 10T | 15T | 20T | 30T |
Standard accessories | Cardan shaft, rudder angle gauge | Cardan shaft, rudder angle gauge | Cardan shaft, rudder angle gauge | Cardan shaft, rudder angle gauge | Cardan shaft, rudder angle gauge |
