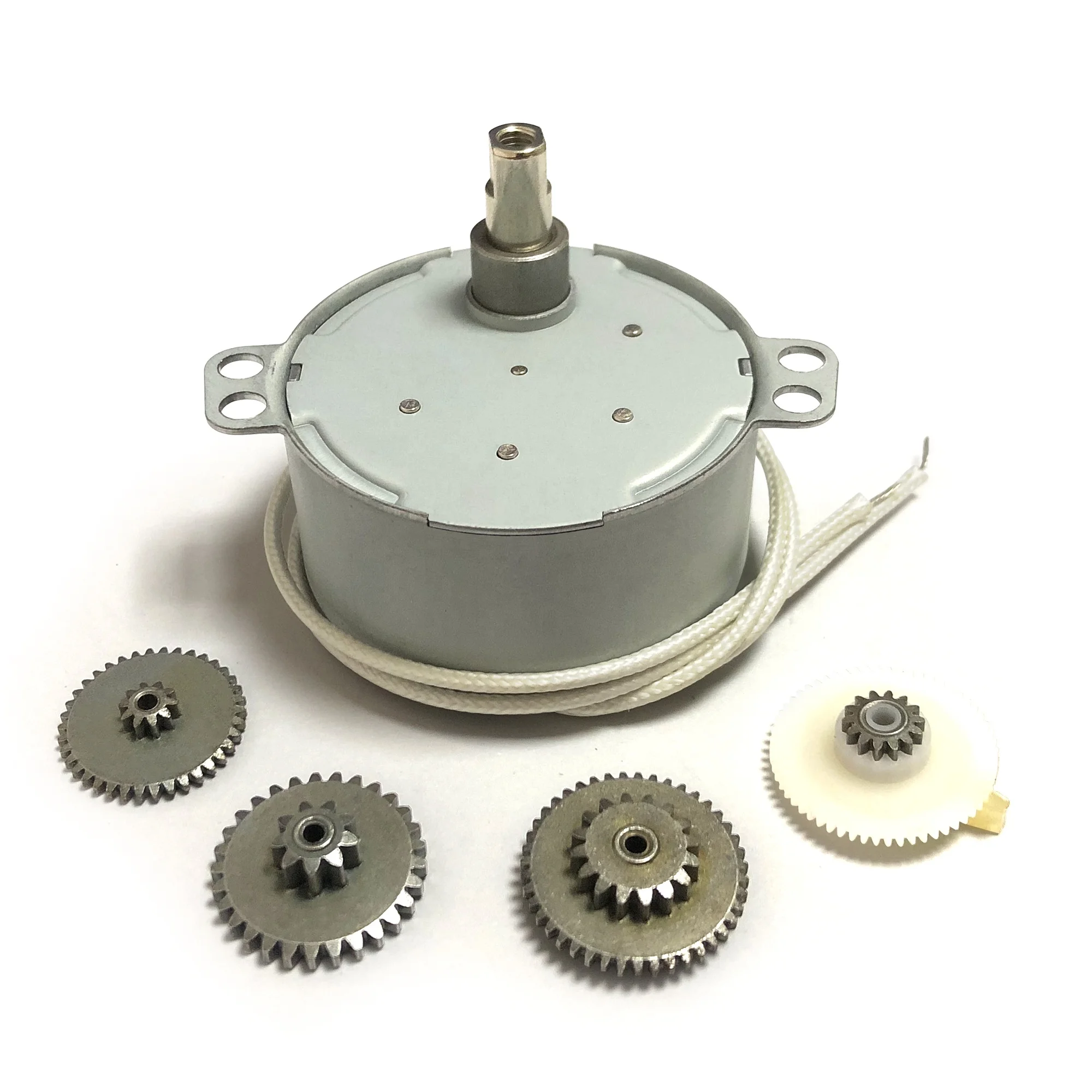

ty49 ty50 110V 120V 220V 240V ac gear synchronous motor 4W 2.5 3rpm High Torque micro Motor
- Category: >>>
- Supplier: Shenzhen Sijia Precision Technology Co. Ltd.
Share on (1600501369450):
Product Overview
Description
Product introduction
This product is integrated by a permanent magnet synchronous motor and reduction gearbox.
With features of low power consumption, high torque, low noise, small size, light weight, easy to use.
With features of low power consumption, high torque, low noise, small size, light weight, easy to use.
At rated frequency, motor speed is not affected by voltage.
If overload or stall when load, the motor coil will not burn!
If overload or stall when load, the motor coil will not burn!
There are three directions of rotation to choose from :CW,CCW, and CW/CCW
Note：
When the rotation direction is CW/CCW, the load reaches the rated torque, the electric machine will automatically reverse.
Note：
Please leave a message to tell us your choice of voltage, direction of rotation (CW / CCW;CW; CCW three type) and shaft type and size.
For example：
220v,50Hz（or 60Hz），4/4.8 RPM, CW, Type: TS
Note：
this motor is AC synchronous motor .
Please see the parameter table, for example you choose 4/4.8r/min.
If your country's frequency is 50Hz, the motor rotation speed is 4rpm/min.
If your country's frequency is 60Hz, the motor rotation speed is 4.8rpm/min
Customized Service
We can customize various shafts, terminal , speed, torque, lead，etc. according to your requirements. Please send an inquiry or TM to tell us.
Voltage | 6V | 12V | 24V | 100-127V | 110-120V | 220-240V | |||||||||||
Power Frequency | 50/60Hz | ||||||||||||||||
speed(r/min) | 1.1/1.2 | 1.5/1.8 | 2/2.5 | 2.5/3 | 3.3/4 | 4/4.8 | 5/6 | 6/7.2 | 8/10 | ||||||||
torque(kgf.cm) | ≥35 | ≥30 | ≥24 | ≥20 | ≥12 | ≥10 | ≥8 | ≥7 | ≥6 | ||||||||
speed(r/min) | 12/14 | The above torque is tested at 220V voltage, different voltage torque will be different. Torque can be customized according to demand. | |||||||||||||||
torque(kgf.cm) | ≥3 | ||||||||||||||||
Direction | CW | CCW | CW,CCW | ||||||||||||||
Input power | ≤4W | ||||||||||||||||
Noise | ＜45dB（at 30mm） | ||||||||||||||||
Insulation class | A/E/F | ||||||||||||||||
Insulation strength | AC1800V*1sec | ||||||||||||||||
Certification | TUV,UL,CCC,RoHS,CE,CB | ||||||||||||||||

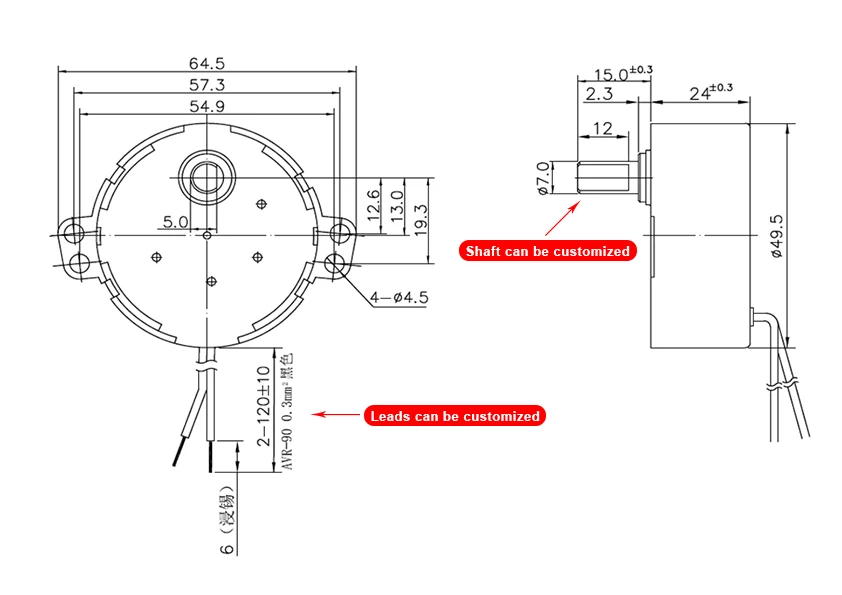

Drawings
Product show
Gear adopt POM material,PA66material metal
material, afterstrict screening, to ensure that every gear is smooth and
meticulous.
Make the motor run more stable,less noise, longer life, to ensure that there is no gear stuck.
Magnetic core
Effectively improve the motormagnetic field improve theperformance of the rotor, reduce the loss of the motor.
Adopt pure copper enameledwire, can withstand 150 degrees high temperature adoptautomatic winding equipment,uniform arrangement,
make the motor run more stable. Can provide long time operation with less loss, better heat dissipation effect.
make the motor run more stable. Can provide long time operation with less loss, better heat dissipation effect.
The shell
The whole shell is smooth without depression, and the special environmental protection technology is used for rust prevention
treatment, so that the motor can have a longer service life.
treatment, so that the motor can have a longer service life.
4 holes are fixed to meet various angles of installation.
TY-50A
Used for fans, coffee machines, air conditioners, ice machines, Christmas trees, rotating light box advertising, meat grinder,atmosphere lights, starry lights and other constant speed rotating products.
TY-50F
Used for oven, grill, electric heater, microwave oven, electric fireplace and other high temperature products.
TYK50
Used for curtain, projector, monitoring, awning, electric valve, medical bed, electric seat and other products that need to control the direction of rotation.
Product application
