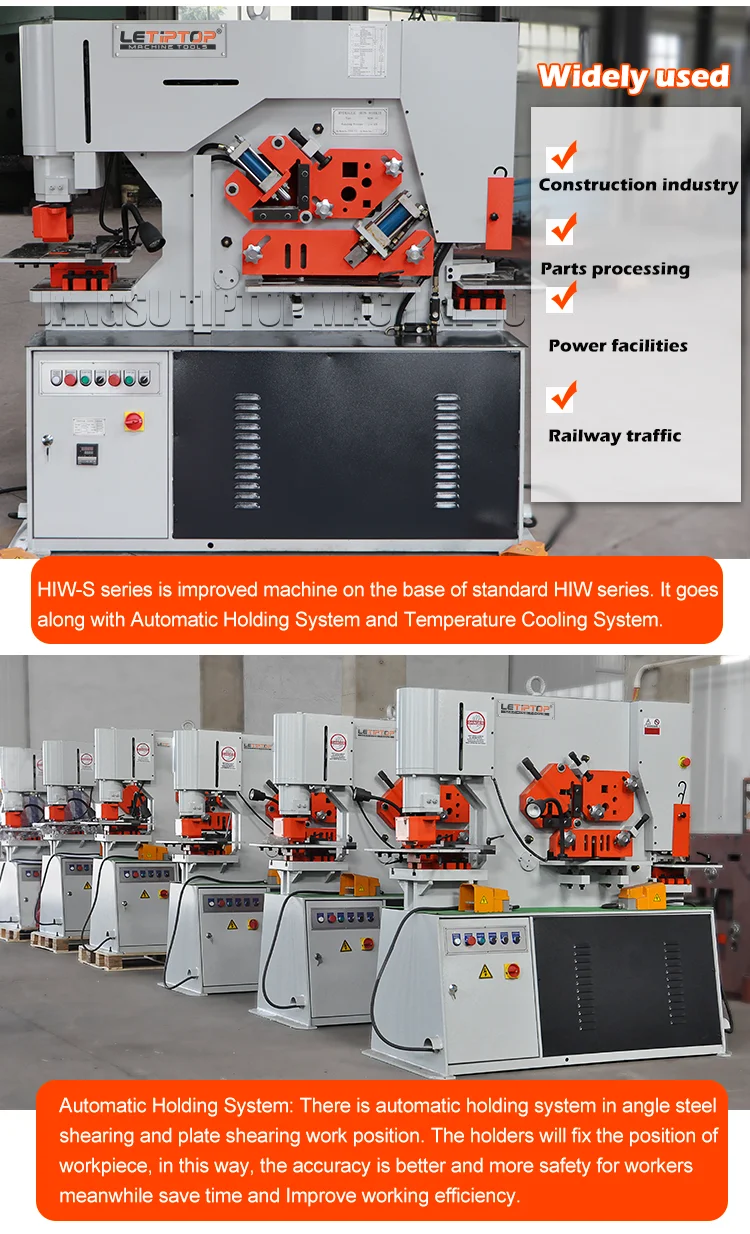

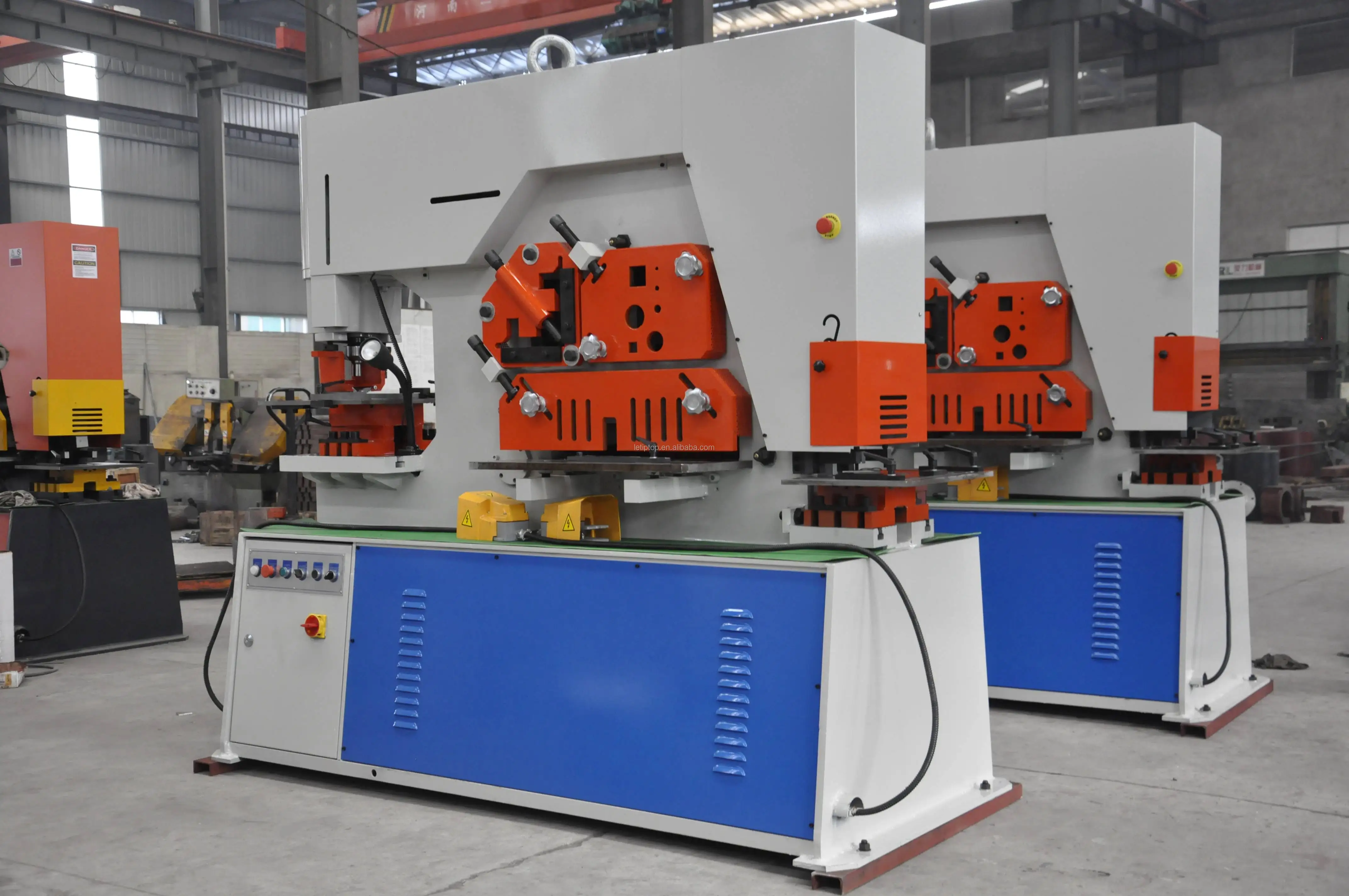

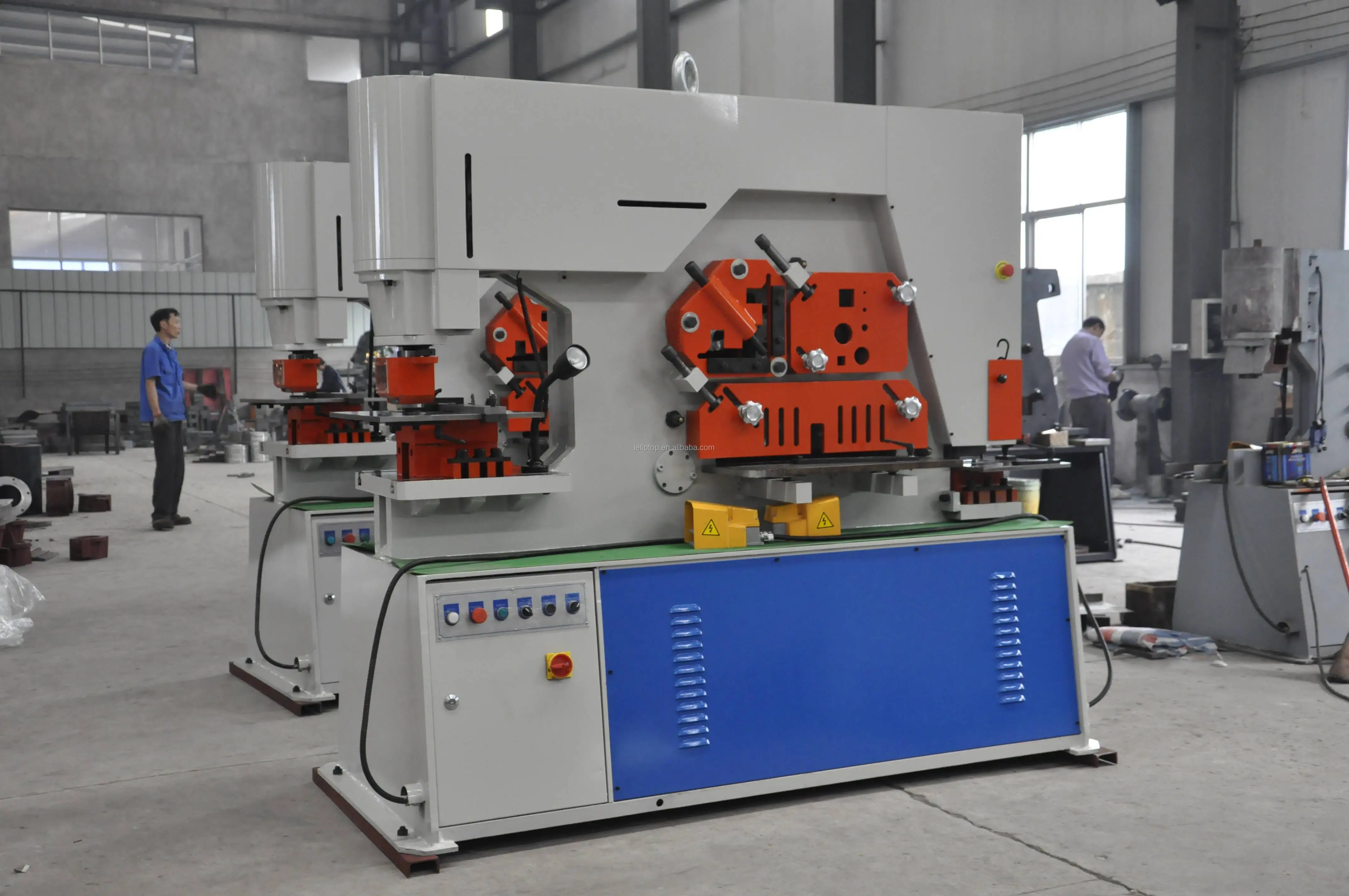

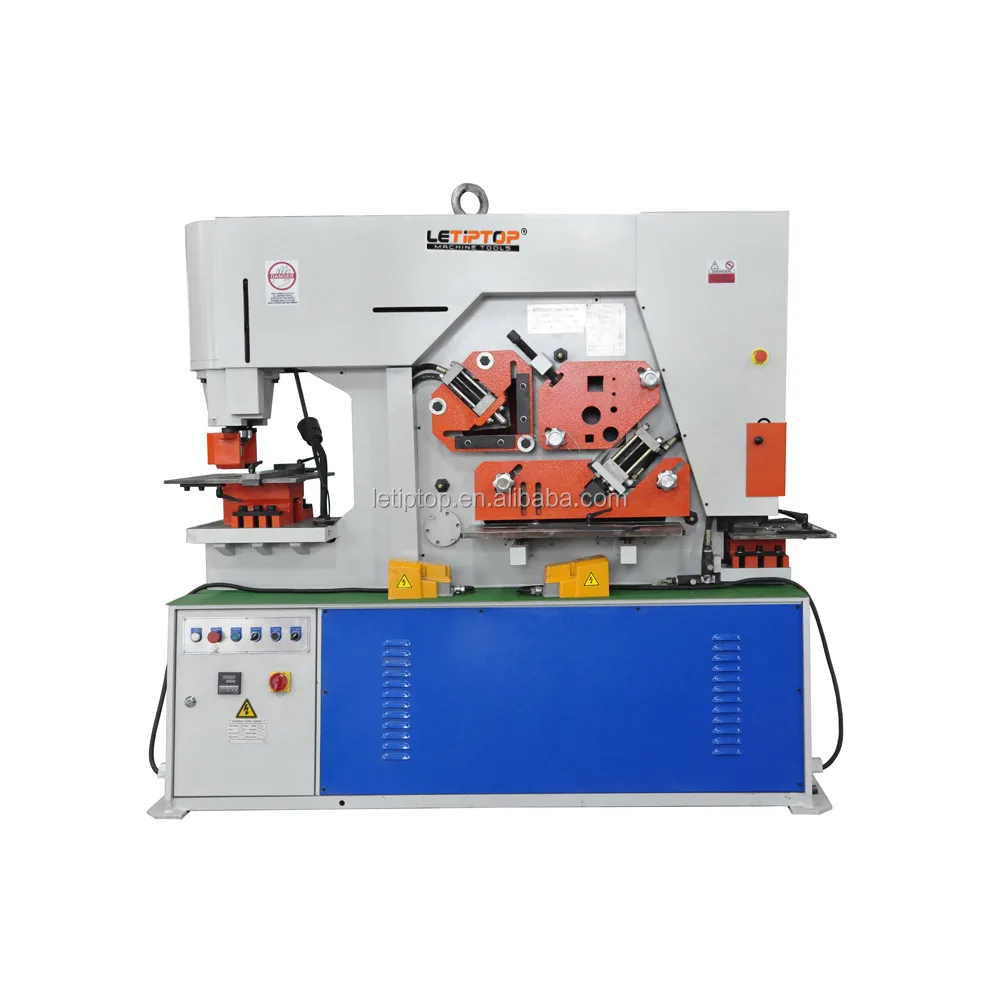

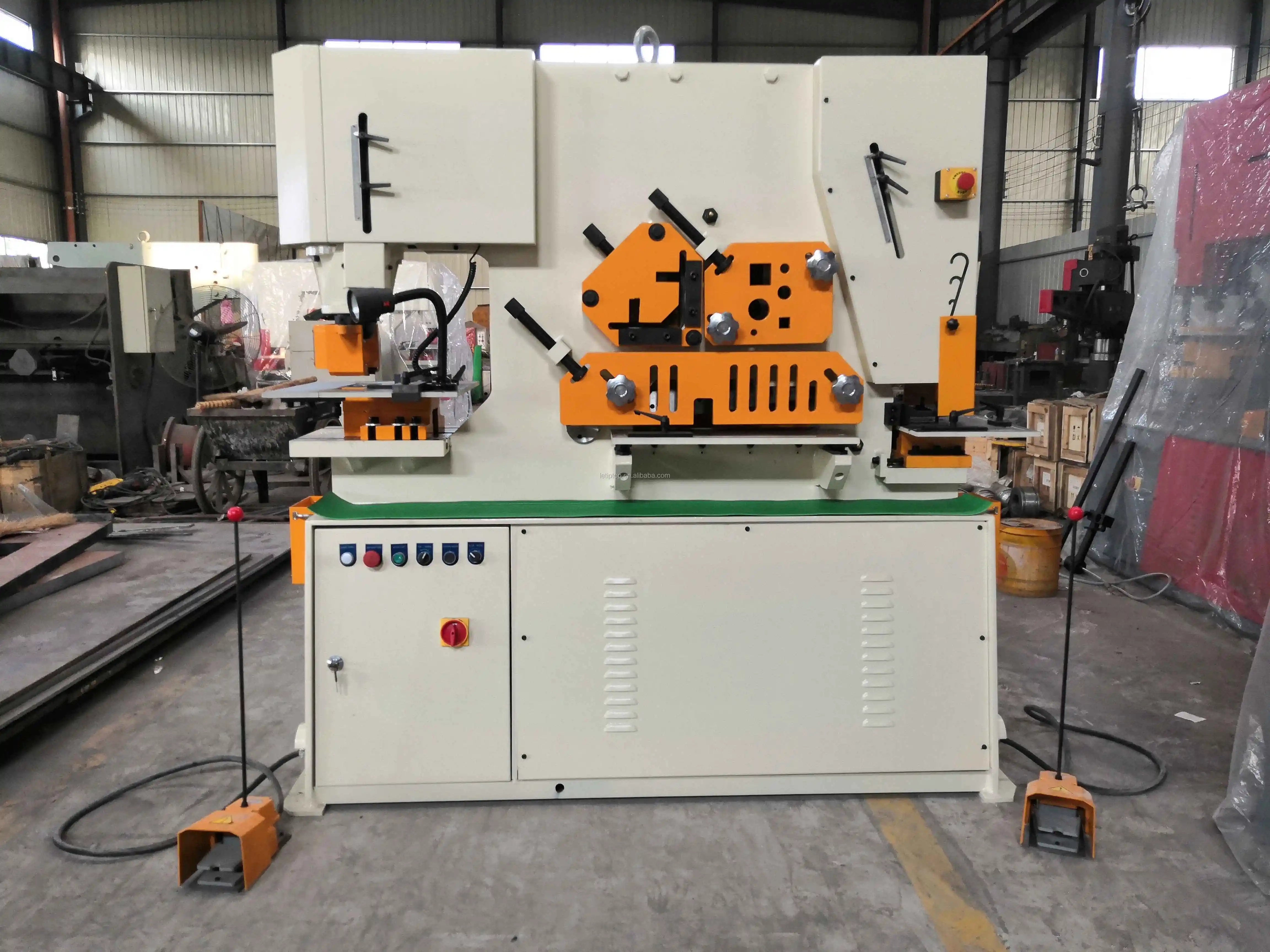

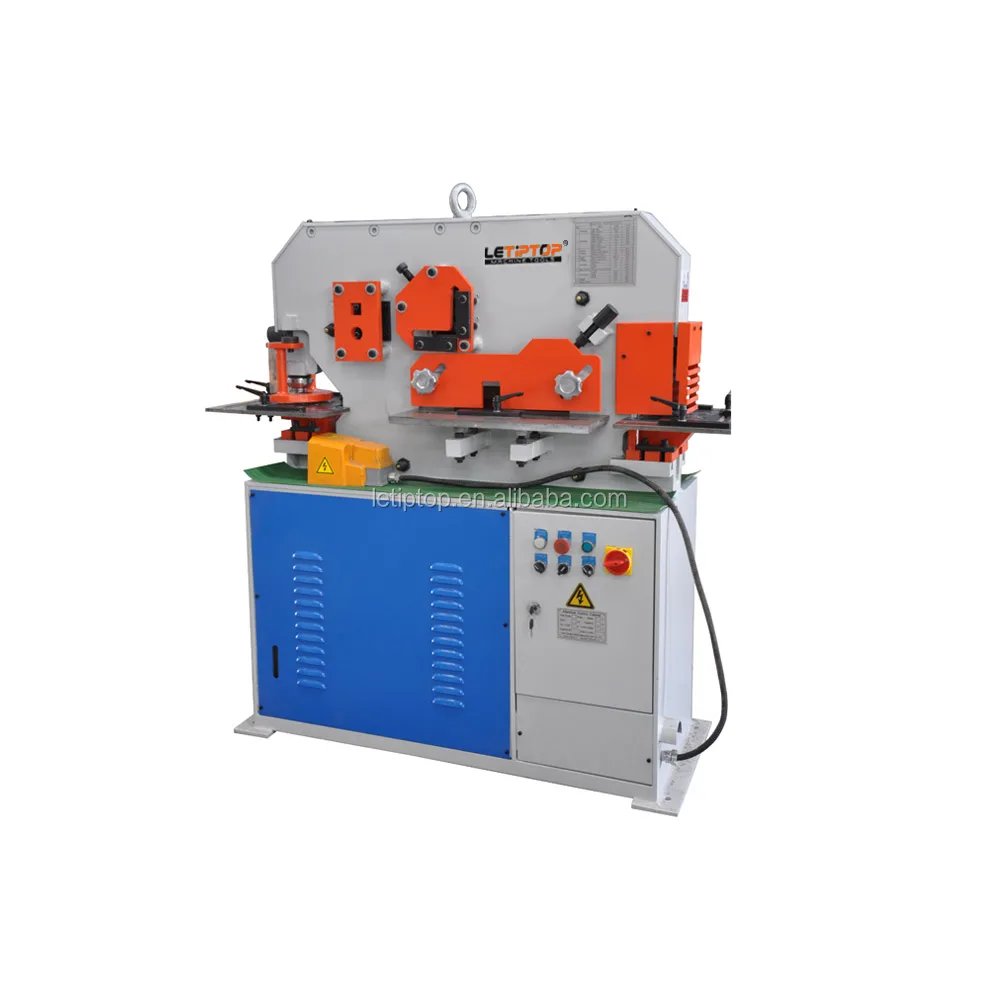

High rigidity machining frame China LETIPTOP universal type hydraulic ironworker
- Category: >>>
- Supplier: Jiangsu Tiptop Machine Tools Co. Ltd.
Share on (1600501371668):
Product Overview
Description
Model | HIW-45 | HIW-60 | HIW-90 | ||

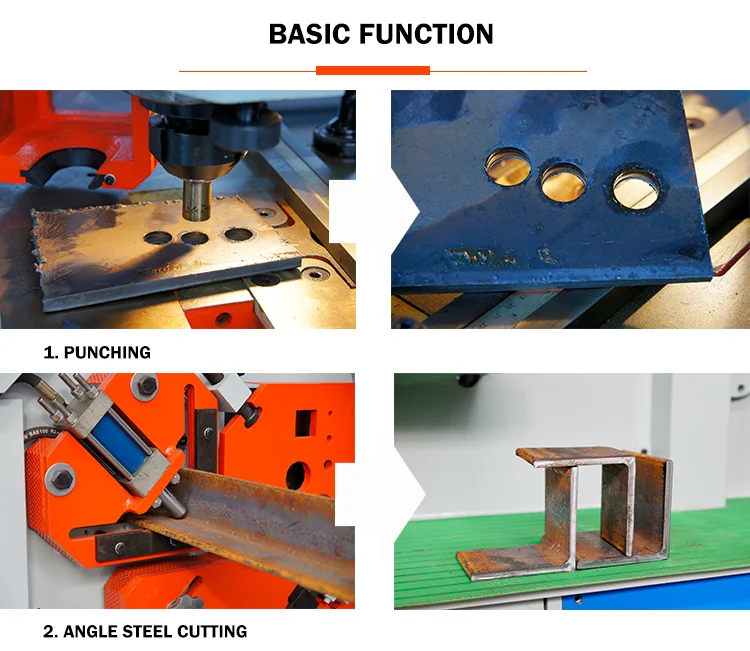

Hole Punching | Punching Pressure (KN) | 450KN | 600KN | 900KN | |
Max. Punching Capacity (D* T) | 22x15mm | Φ25*16mm | Φ30*20mm | ||
Depth of Throat | 175mm | 300mm | 355mm | ||
Ram Stroke | 50mm | 80mm | 80mm | ||
Number of Stroke(times/min) | 8-22 | 8-22 | 8-22 | ||
Flat-bar Shearing | Angle of Shear | 7° | 7° | 8° | |
Max. Shearing Thickness | 10mm | 16mm | 20mm | ||
200x15mm | 16×250mm | 20×330mm | |||
300x12mm | 8×400mm | 10×480mm | |||
Angle Steel Shearing | 90° shearing | 100x100x10mm | 120×10mm | 140×12mm | |
45° shearing | 70x70x6mm | 70x8mm | 70x10mm | ||

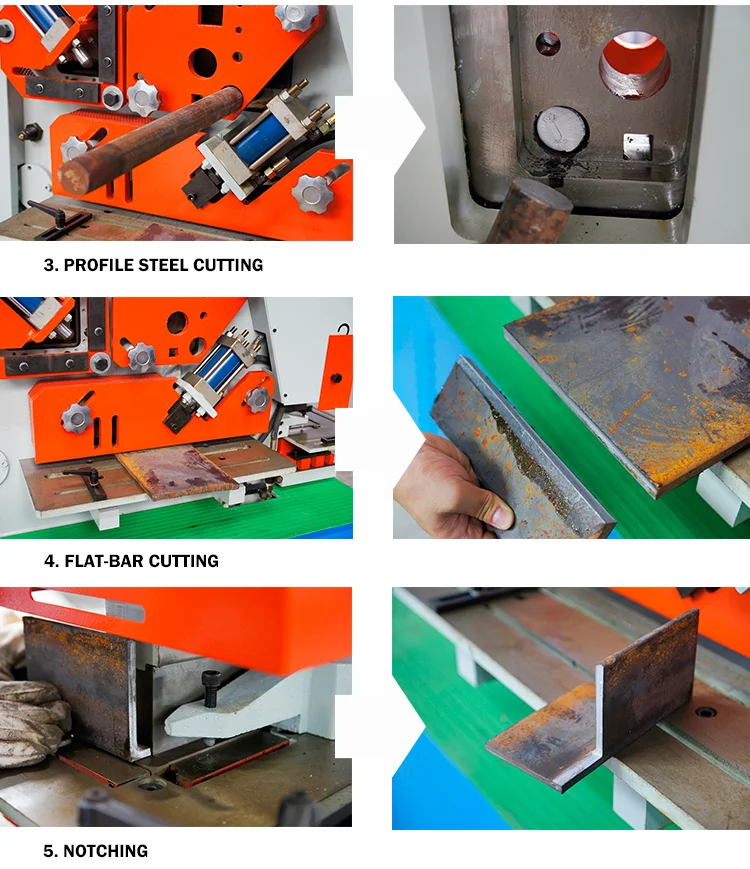

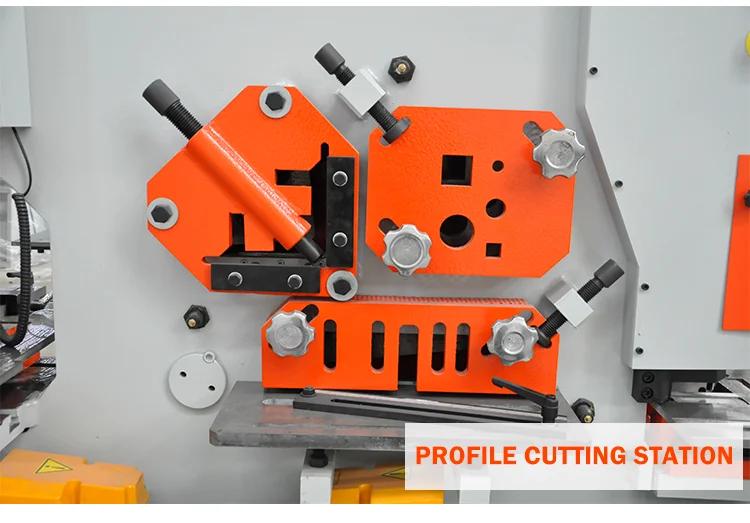

Profile Steel Shearing | Round Bar | 30mm | 45mm | 50mm | |
Square Bar | 30mm | 40mm | 45mm | ||
I-beam | 80x45mm | 126mm | 160mm | ||
C-channel | 80x45mm | 126mm | 160mm | ||

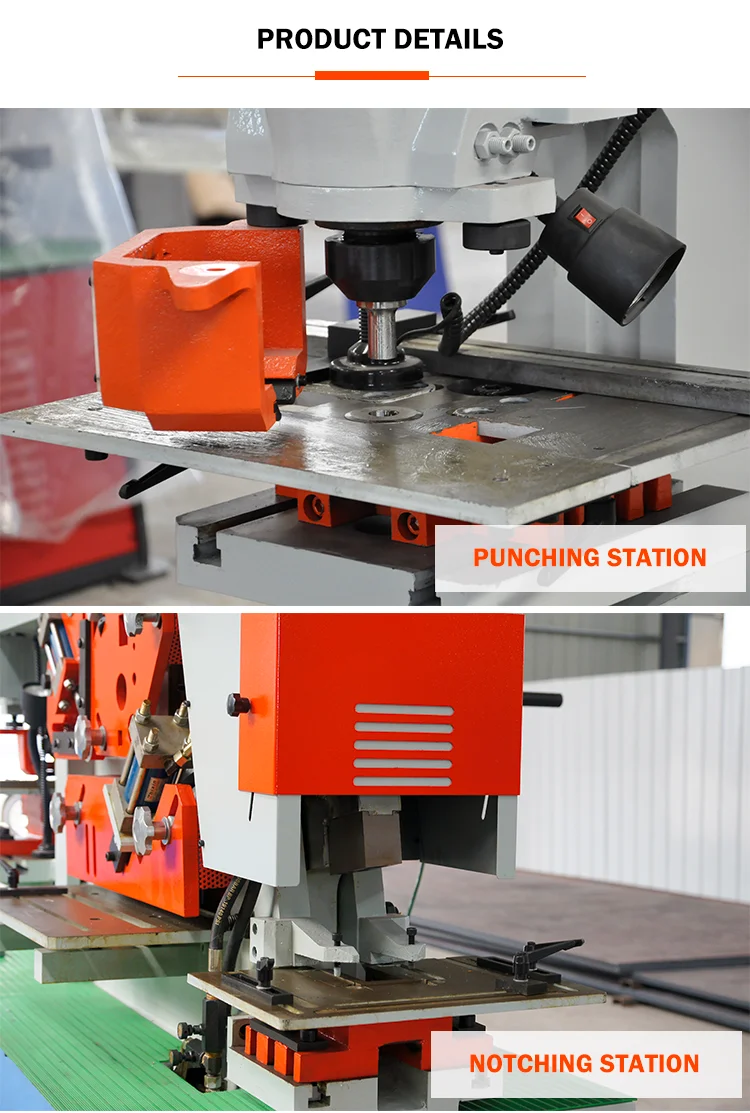

Notching | Thickness | 8mm | 10mm | 10mm | |
Width | 35mm | 80mm | 80mm | ||
Depth | 75mm | 100mm | 100mm | ||
Material Tensile Strength | 450 N/mm2 | 450N/mm2 | 450N/mm2 | ||
Motor Power | 3KW | 4KW | 5.5KW | ||
Overall Dimension(L×W×H)(mm) | 1450x590x1620 | 1650x800x1780 | 1950x900x1930 | ||
Gross Weight | 1100Kgs | 1800Kg | 2600Kg | ||
Model | HIW-120 | HIW-160 | HIW-200 | ||
Hole Punching | Punching Pressure (KN) | 1200KN | 1600KN | 2000KN | |
Max. Punching Capacity (D* T) | Φ35*25mm | Φ38*30mm | Φ40*35mm | ||
Depth of Throat | 400mm | 600mm | 560mm | ||
Ram Stroke | 80mm | 80mm | 100mm | ||
Number of Stroke(times/min) | 8-22 | 8-22 | 8-22 | ||
Flat-bar Shearing | Angle of Shear | 8° | 8° | 8° | |
Max. Shearing Thickness | 25mm | 30mm | 35mm | ||
25×330mm | 180×16mm | 35×400mm | |||
16×600mm | 20×600mm | 25×700mm | |||
Angle Steel Shearing | 90° shearing | 160×14mm | 120×10mm | 200×18mm | |
45° shearing | 80x7mm | 80x10mm | 80x10mm | ||
Profile Steel Shearing | Round Bar | 60mm | 65mm | 70mm | |
Square Bar | 50mm | 55mm | 60mm | ||
I-beam | 200mm | 280mm | 300mm | ||
C-channel | 200mm | 280mm | 300mm | ||
Notching | Thickness | 10mm | 10mm | 18mm | |
Width | 90mm | 90mm | 60mm | ||
Depth | 100mm | 100mm | 100mm | ||
Material Tensile Strength | 450 N/mm2 | 450N/mm2 | 450N/mm2 | ||
Motor Power | 7.5KW | 11KW | 15KW | ||
Overall Dimension(L×W×H)(mm) | 2350x980x2100 | 2680x1060x2380 | 2800x1260x2420 | ||
Gross Weight | 4800Kg | 6800Kg | 9200Kg | ||
