Hot Selling Wood Pulverizer Sawdust Machine Wood Hammer Mill Bamboo Straw Wood Sawdust Crusher
- Category: >>>
- Supplier: Jiangsu Kingwood International Trading Co. Ltd.
Share on (1600501372424):
Product Overview
Description
Multifunctional Hammer Mill
SFSP 66*40
Fastness and durability safety and reliability easy installation simple operation small vibration and high productivity
Specification
Item | Value |
Rotor Diameter(mm) | 660 |
Rotating speed(rpm) | 2960 |
Speed of hammer line(m/s) | 102 |
Width of grinding chamber(mm) | 400 |
Number of the hammer | 40 |
Power (Kw) | 37-45 |
Capacity(T/H) | 1-1.5 |
Dimension (mm) | 2060×2010×2220 |
Certification | CE,ISO |
Product Description
The advantages of SFSP 66*40
1. Adopting steel plate welding structure, the hammer mill rotor and the motor are mounted on the same base, and the serpentine spring coupling is directly connected to the transmission, and the transmission efficiency is high;
2. The base is welded with thick steel plate and reduces the center of gravity of the spindle to effectively improve the vibration phenomenon;
3. The rotor is dynamically balanced to make the rotor work smoothly and can work in forward and reverse directions to extend the service life of the wearing part;
4. The operation door has a safety interlock to ensure that the motor cannot be started when the operation door is opened, ensuring safety;
5. Replace the bearing with a larger load. Effectively improve the temperature rise of the bearing. Effectively extend bearing life;
6. Quick-open full-open mobile access door;
2. The base is welded with thick steel plate and reduces the center of gravity of the spindle to effectively improve the vibration phenomenon;
3. The rotor is dynamically balanced to make the rotor work smoothly and can work in forward and reverse directions to extend the service life of the wearing part;
4. The operation door has a safety interlock to ensure that the motor cannot be started when the operation door is opened, ensuring safety;
5. Replace the bearing with a larger load. Effectively improve the temperature rise of the bearing. Effectively extend bearing life;
6. Quick-open full-open mobile access door;
Product information | ||||||||
SFSP 66*40
Rotor Diameter(mm)
660
Rotating speed(rpm)
2960
Speed of hammer line(m/s)
102
Width of grinding chamber(mm)
400
Capacity(T/H)
1-1.5
More Models | ||||||||
SFSP 66*40
Rotor Diameter: 660 mm
Rotating speed: 2960 rpm
Production capacity: 1-1.5 t/h
Rotating speed: 2960 rpm
Production capacity: 1-1.5 t/h
SFSP 66*80
Rotor Diameter: 660 mm
Power of the main motor: 160/185 rpm
Production capacity: 2.8-3 t/h
Power of the main motor: 160/185 rpm
Production capacity: 2.8-3 t/h
SFSP 120*100
Rotor Diameter: 660 mm
Power of the main motor: 1450 rpm
Production capacity: 5.2-6 t/h
Power of the main motor: 1450 rpm
Production capacity: 5.2-6 t/h
Technical Parameters |
Parameter | SFSP 66*40 | SFSP 66*60 | SFSP 66*80 | SFSP 66*100 | SFSP 66*120 | SFSP 120*80 | SFSP 120*100 | SFSP 120*120 |
Rotor Diameter(mm) | 660 | 660 | 660 | 660 | 660 | 1200 | 1200 | 1200 |
Rotating speed(rpm) | 2960 | 2970 | 2970 | 2980 | 2980 | 1450 | 1450 | 1450 |
Speed of hammer line(m/s) | 102 | 102 | 102 | 102 | 102 | 91 | 91 | 91 |
Width of grinding chamber(mm) | 400 | 600 | 800 | 1000 | 1200 | 800 | 1000 | 1200 |
Number of the hammer(pec) | 40 | 64 | 84 | 116 | 136 | 96 | 128 | 144 |
Power (Kw) | 37-45 | 55-75 | 75-90 | 110 | 132-160 | 110-132 | 160-185 | 200-250 |
Capacity(T/H) | 1-1.5 | 1.8-2.5 | 2.8-3 | 3.5-4.3 | 5 | 3.6-4.4 | 5.2-6 | 6.6-8 |
Quality Inspection Report Certificates |
1) Feed for livestock in large farms, easy to store and transport;
2) Civil heating and energy consumption, clean, pollution-free, easy to store and transport;
3) Industrial boiler and kiln fuel, instead of coal and gas, to solve environmental pollution;
4) It can be used as fuel for gasification power generation and thermal power generation to solve the shutdown problem of small thermal power plants.
2) Civil heating and energy consumption, clean, pollution-free, easy to store and transport;
3) Industrial boiler and kiln fuel, instead of coal and gas, to solve environmental pollution;
4) It can be used as fuel for gasification power generation and thermal power generation to solve the shutdown problem of small thermal power plants.
The main structure
Base：the heavy-duty base is used to connect and support various parts of the grinder, reduce vibration, increase reliability, and extend life. The grinded materials are discharged from the discharge port at the lower part of the base.

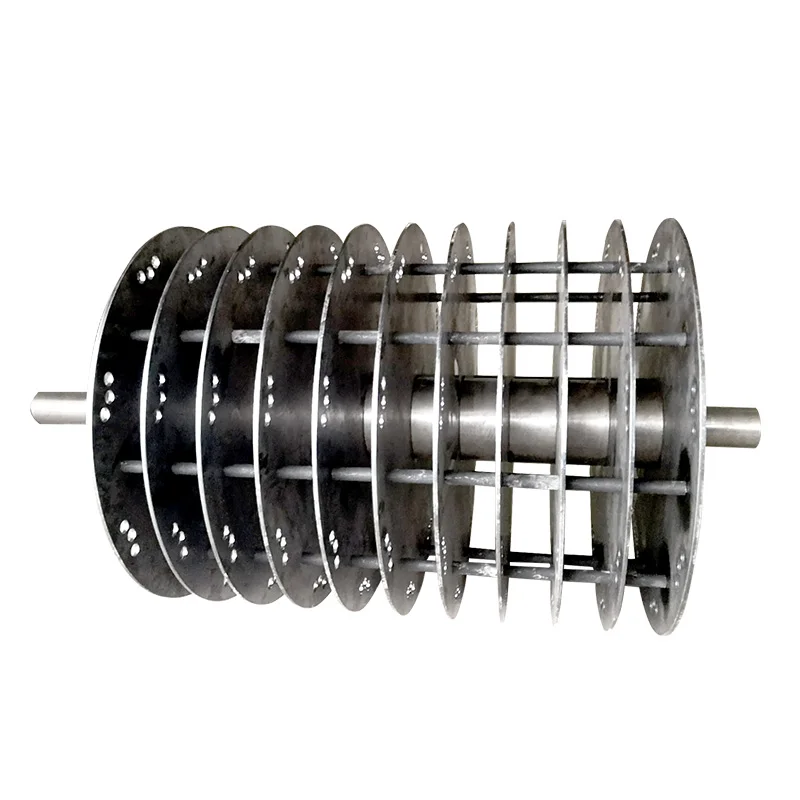

Rotor：it is composed of the main shift，hammer frame plate、pin roll、hammer、bearing、base the bearing, and other parts, it is the main moving part of the grinder, the rotor speed is too high, so that when the rotor is not in the working

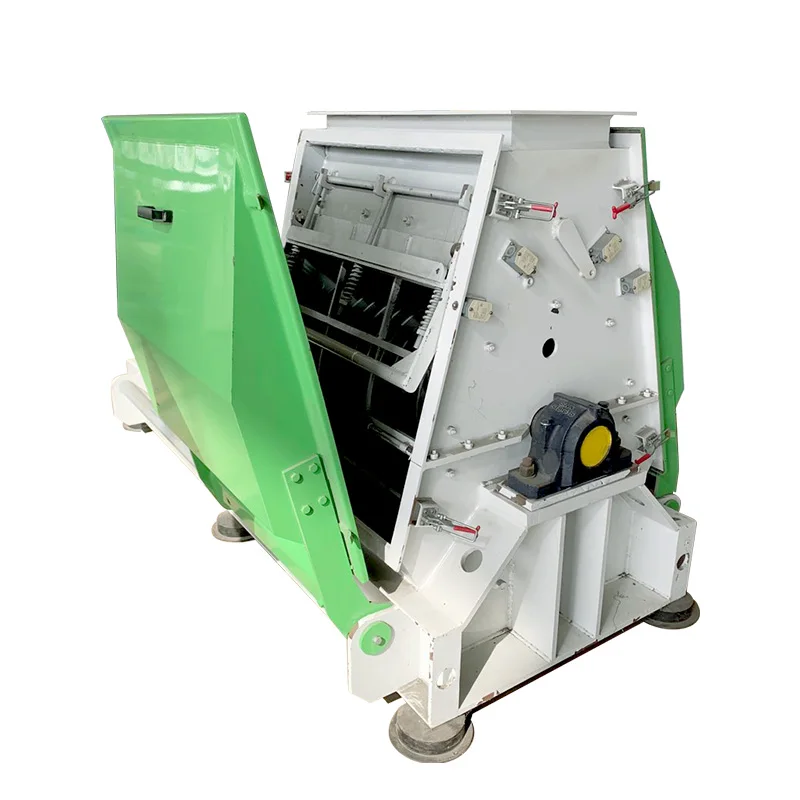

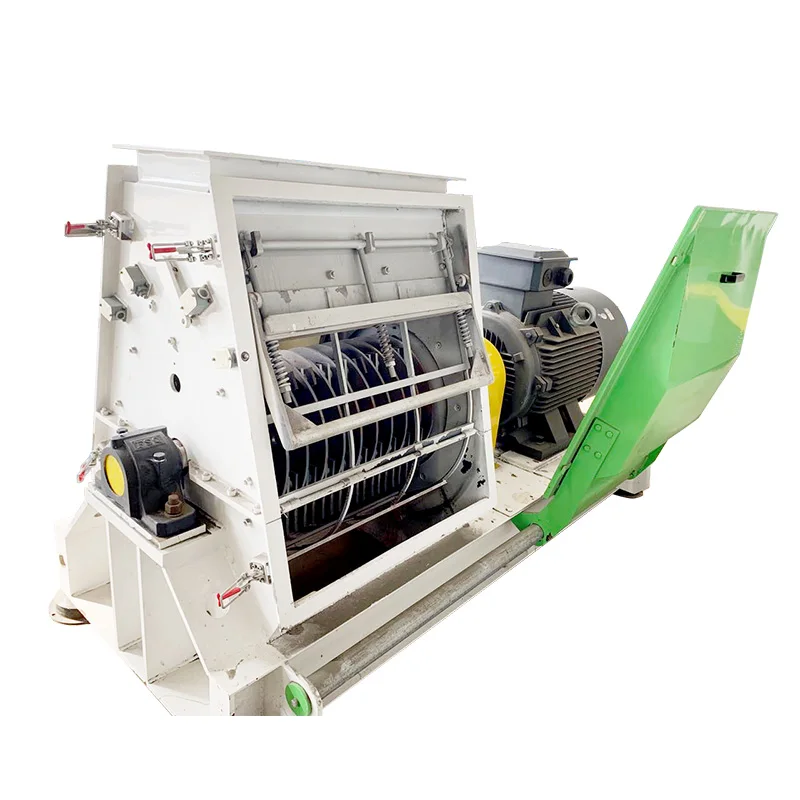

Operating door: The operating door needs to be opened when you replacing the sieve plate or hammer. There is a proprietary sieve pressing mechanism, which makes the replacement of the sieve plate very convenient and requires less operation time.
Wearing plate：The parts in the grinding chamber and contact with the material are wearing plate, All the wearing plates of the grinder are designed as replaceable parts. When worn to a certain degree, they must to be replaced to prevent damage, falling off, and accidents caused by entering the crushing chamber.
Upper cover：connect in wearing plate，keep the grinding chamber In a sealed environment when the operating door has been closed.
Rotor：it is composed of the main shift，hammer frame plate、pin roll、hammer、bearing、base the bearing, and other parts, it is the main moving part of the grinder, the rotor speed is too high, so that when the rotor is not in the working
Operating door: The operating door needs to be opened when you replacing the sieve plate or hammer. There is a proprietary sieve pressing mechanism, which makes the replacement of the sieve plate very convenient and requires less operation time.
Wearing plate：The parts in the grinding chamber and contact with the material are wearing plate, All the wearing plates of the grinder are designed as replaceable parts. When worn to a certain degree, they must to be replaced to prevent damage, falling off, and accidents caused by entering the crushing chamber.
Upper cover：connect in wearing plate，keep the grinding chamber In a sealed environment when the operating door has been closed.
