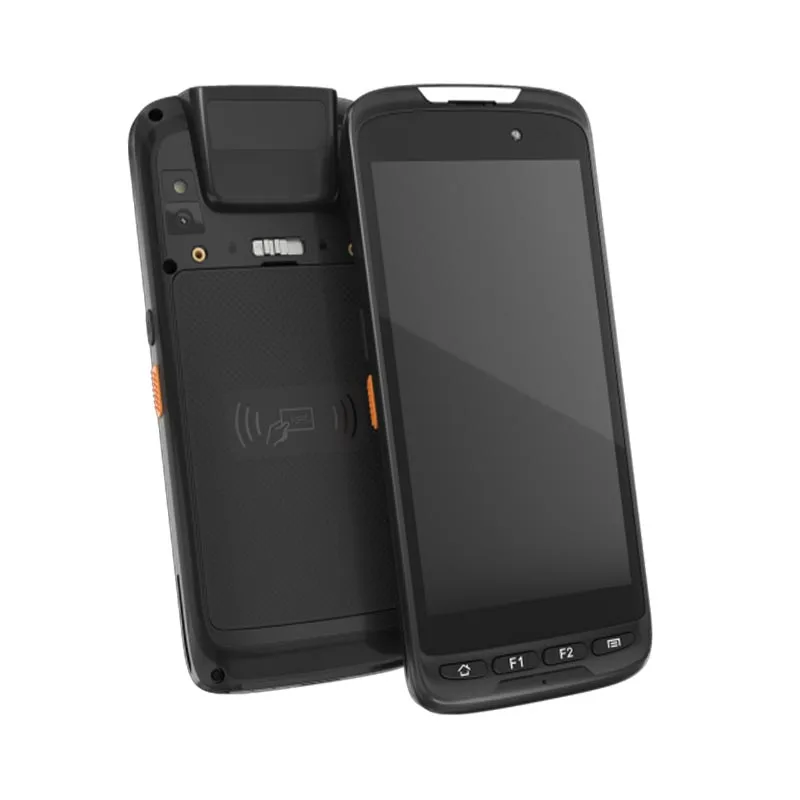

Cheap Factory Price Handheld Industrial Rugged Phone 4G RAM 64G ROM Data Collector Scanner Android PDA
- Category: >>>
- Supplier: Shenzhen Rugline Technology Co. Ltd.
Share on (1600501381920):
Product Overview
Description
Dear Customer,Please note:
The price shown on this page includes 1D/2D Barcode Scanner. Thanks.

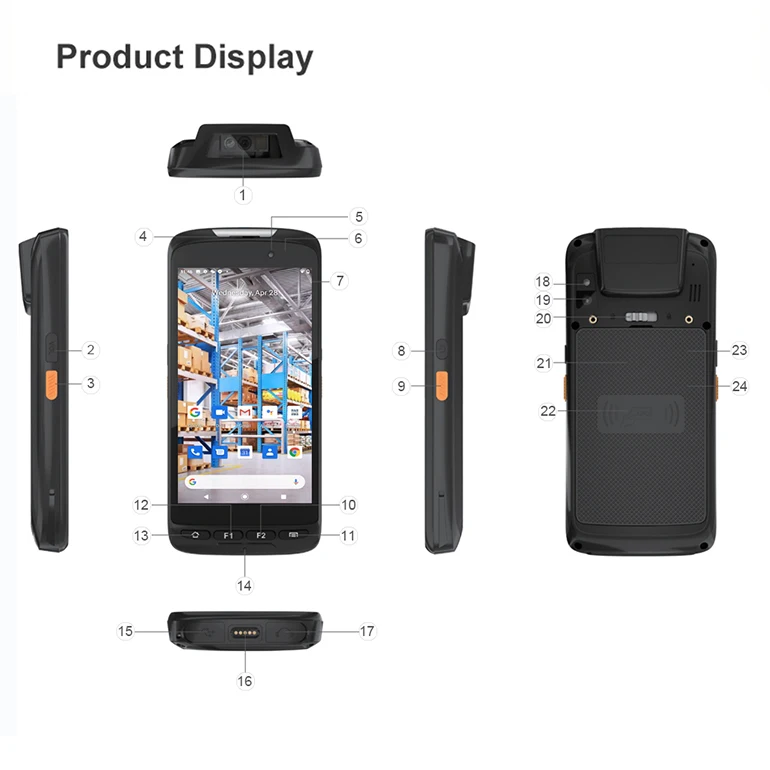

Appearance
1.1D/2D barcode scanner | 2.Volume button | 3.Scanning button | 4.Receiver |
5.Front camera | 6.Light sensor | 7.Corning gorilla glass panel | 8.Power on/off |
9.Scanning button | 10.Custom button | 11.Menu button | 12.Custom button |
13.Home button | 14.Microphone | 15.USB port | 16.Pogo pin interface |
17.Audio port | 18.Flashing light | 19.Rear camera | 20.Back cover lock |
21.Removable battery | 22.NFC Reader | 23.TF card slot | 24.SIM card slot(built-in) |
Products Description
Quick Details
--- IP 65 ruggedized design, better dust-/wafer-proof capability and 1.5m drop survival

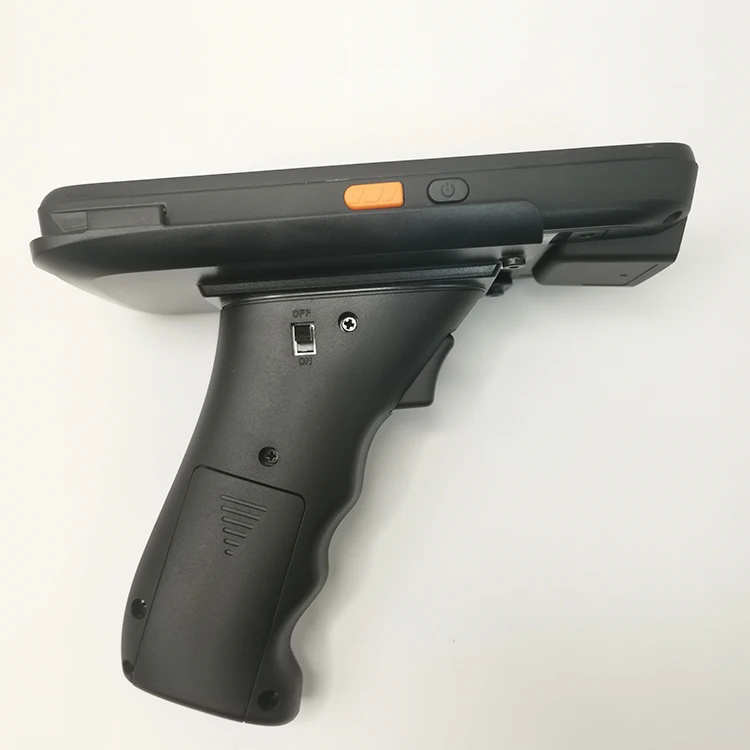

--- 1D/2D barcode reading capability integrated with hand-held computer, easy to carry with hold pistol grip

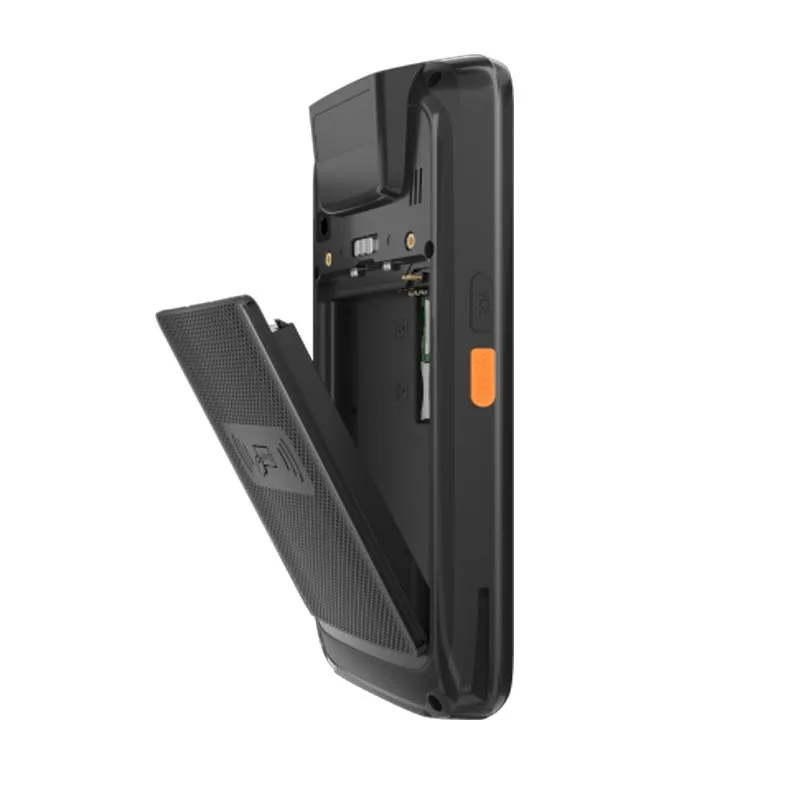

--- Support Zebra4710 1D&2DBarcode Scanner optional function flexible customization.
--- Integrated WiFi communications and optional 4G,Wi-Fi, BT communication allow easy transfer of data to a host computer

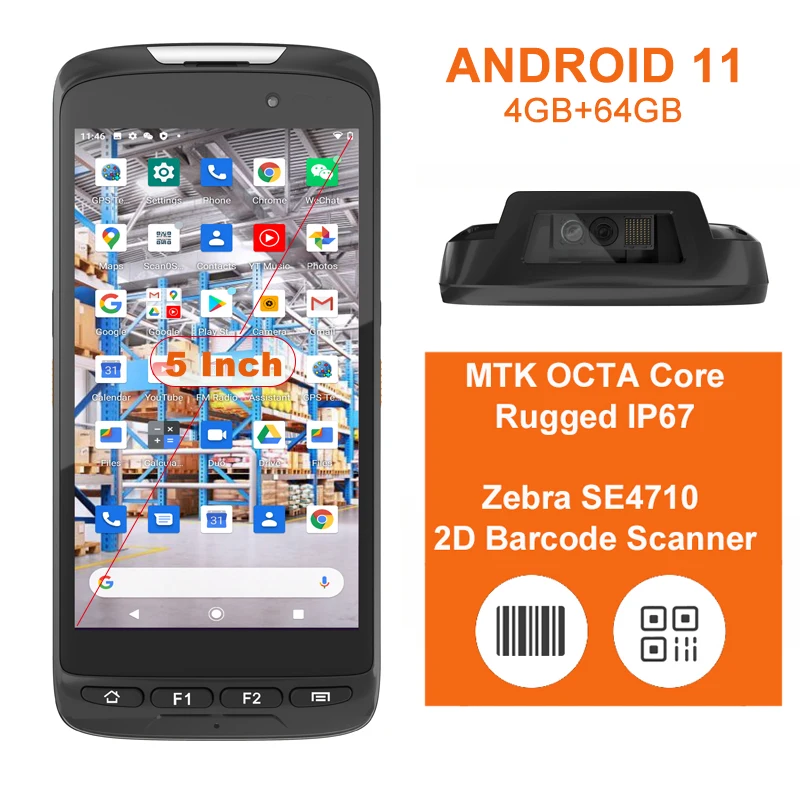

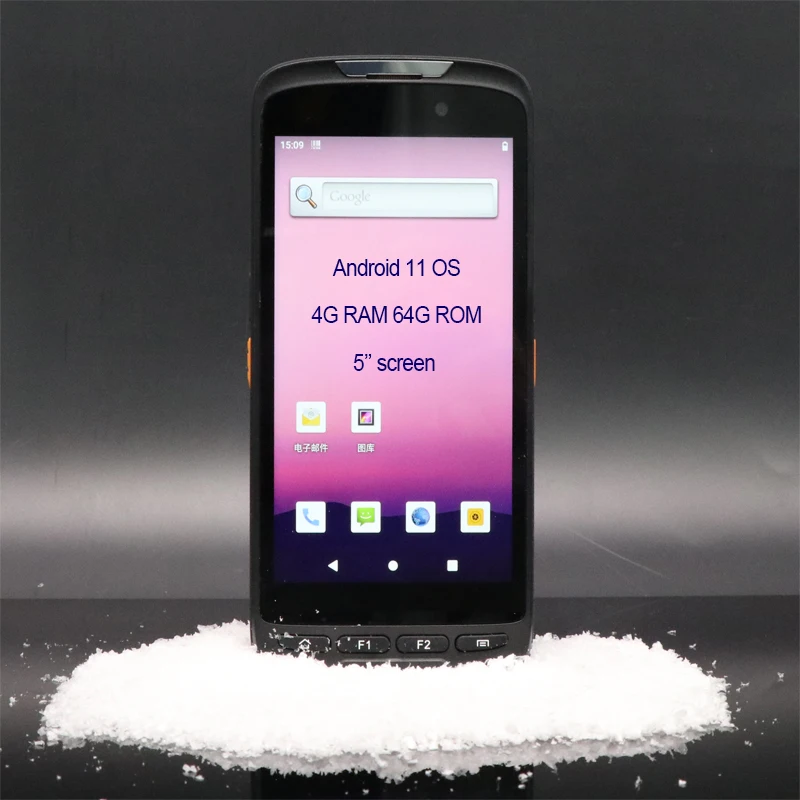

--- Android 11 operation system, 4GB RAM/64GB ROM.
--- 1D/2D barcode reading capability integrated with hand-held computer, easy to carry with hold pistol grip
--- Support Zebra4710 1D&2DBarcode Scanner optional function flexible customization.
--- Integrated WiFi communications and optional 4G,Wi-Fi, BT communication allow easy transfer of data to a host computer
--- Android 11 operation system, 4GB RAM/64GB ROM.
--- support NFC(13.56M）
--- Support GPS navigation；
--- Rugged IP65 protection level
--- free SDK are easily for Secondary Software Development
--- Front 5MP Rear Camera 13 MP, auto-focus with LED flash

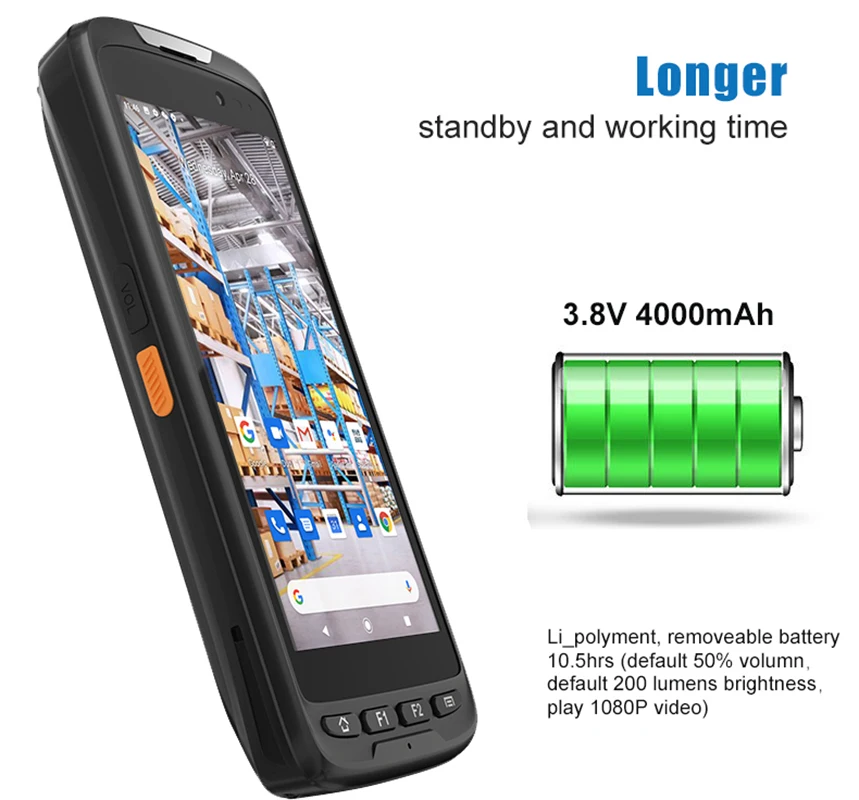

--- Rechargeable li-ion polymer, 3.8V, 4300mAh Battery
--- free SDK are easily for Secondary Software Development
--- Front 5MP Rear Camera 13 MP, auto-focus with LED flash
--- Rechargeable li-ion polymer, 3.8V, 4300mAh Battery
Product Paramenters
Flexible customization based on Customer Requirements
4 inch Touch Screen Android Data Collector Terminal support WIFI 4G GPS Camera and BT.
We can customized different functions according to customer requirements, 1D/2D Barcode Scanner,NFC RFID Reader
Specification | ||
CPU | MTK OCTA Core 2.0 GHz | |
OS | Andriod 11 | |
LCD | 5inch IPS 16:9，720*1280，300 Nit | |
RAM | 4G DDR3L | |
Flash | 64GB | |
Wi-Fi | WIFI 802.11(a/b/g/n) Frequency 2.4G+5.8G dual band WIFI, | |
Camera | Front 5.0MP+Back 13.0 MP with flash and auto-focus | |
BT | BT4.0(BLE) class1transmission distance：10m | |
Battery | 4300mAh/3.8V | |
Speaker | Built-in | |
Sensor | G-sensor | |
4G LTE module | CMCC 5M： LTE 1/3/7/20/38/39/40/41 WCDMA 1/2/5/8 TD-SCDMA 34/39 GSM 2/3/5/8 | |
GPS | Support GLONASS,QZSS,GPS | |
NFC | ISO/IEC 14443A, ISO/IEC 14443B PCD 106 kbit/s to 848 kbit/s ISO/IEC 14443A, ISO/IEC 14443B PICC 106 kbit/s to 424 kbit/s MIFARE reader encryption mechanism (MIFARE 1K/4K) Reading NFC Forum tags (MIFARE Ultralight, Jewel, FeliCa open tag, ISO/IEC 14443-4) Reading DESFire card ISO/IEC 15693/ICODE reader NFC-IP1 and NFC-IP2 protocols (ISO/IEC 18092 /ECMA 340 and ISO/IEC 21481/ECMA 352) 106 kbit/s to 424 kbit/s B’ and MIFARE card emulation | |
1D Barcode Scanner OPTIONAL | Honeywell N4313 | |
2D Barcode Scanner OPTIONAL | Zebra4710 1D&2D Scanner | |
TF Card | Support SDHC/SDXC | |
USB connector | SIM Card x 1 TF Card x 1 Charging function x 1 Φ3.5mm standard earphone jack x 1 | |
Earphone Jack | 3.5mm standard heaphone port | |
Optional | ||
Flash | 16G UP to 32G | |
Accsessory Optional | ||
Battery | 4300mAH removable battery | |
Scan Trigger | Optional | |

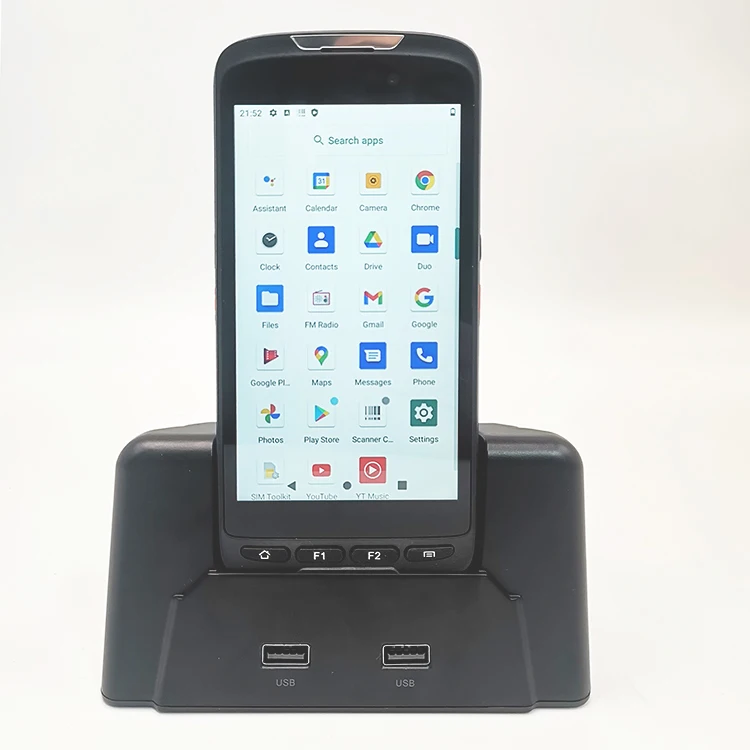

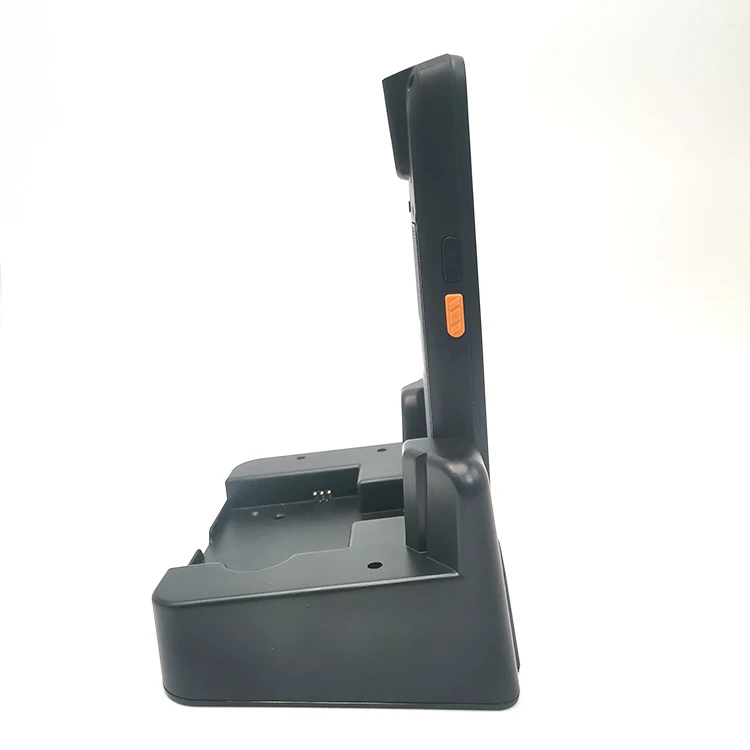

Docking | Charging docking 2*USB ,1* Ethernet | |

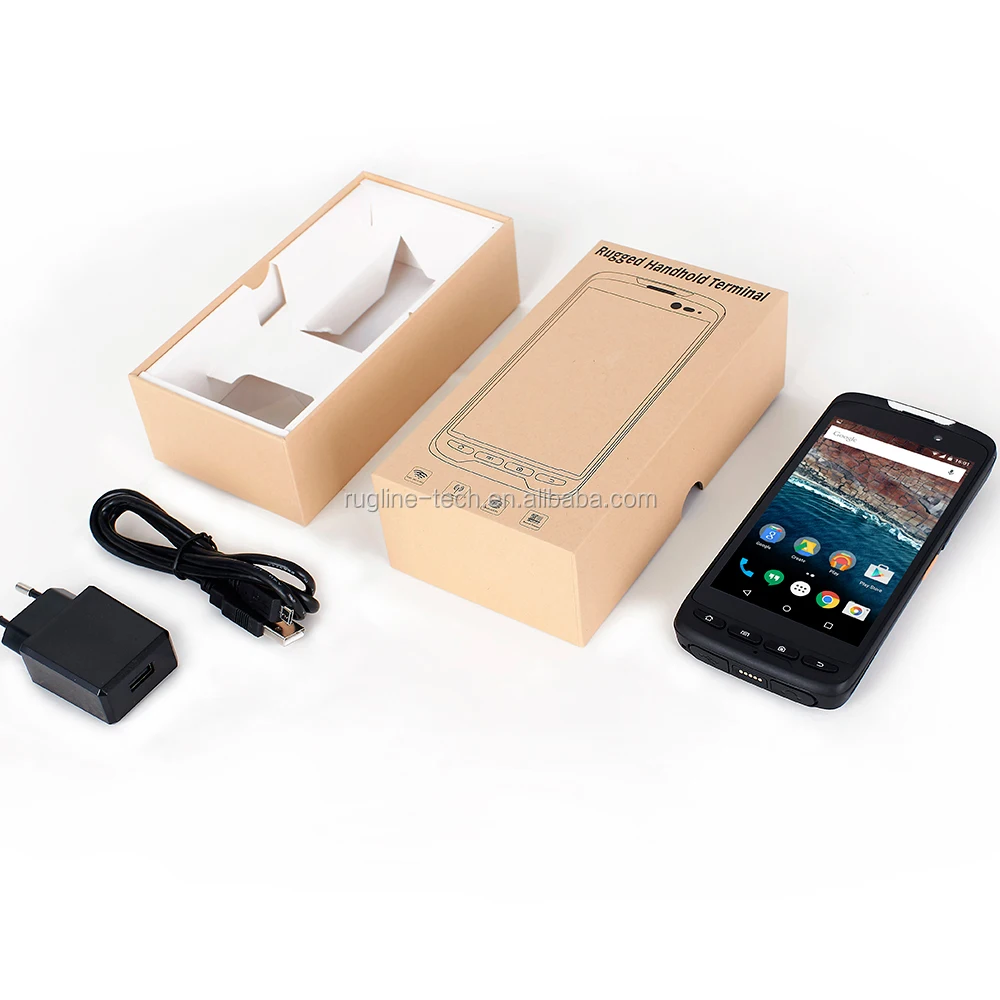

Packing and Shipping
contact
Jason | Sales Manager
Jason | Sales Manager
Shenzhen Rugline Technology Co., Ltd.
T:+86-0755-89221485;
M:+86-13713810467;
Skype: xcl.jason ;
Whatsapp: +86-13713810467;
E: jason@rugline-tech.com
T:+86-0755-89221485;
M:+86-13713810467;
Skype: xcl.jason ;
Whatsapp: +86-13713810467;
E: jason@rugline-tech.com
Certifications
Shipping & Payment

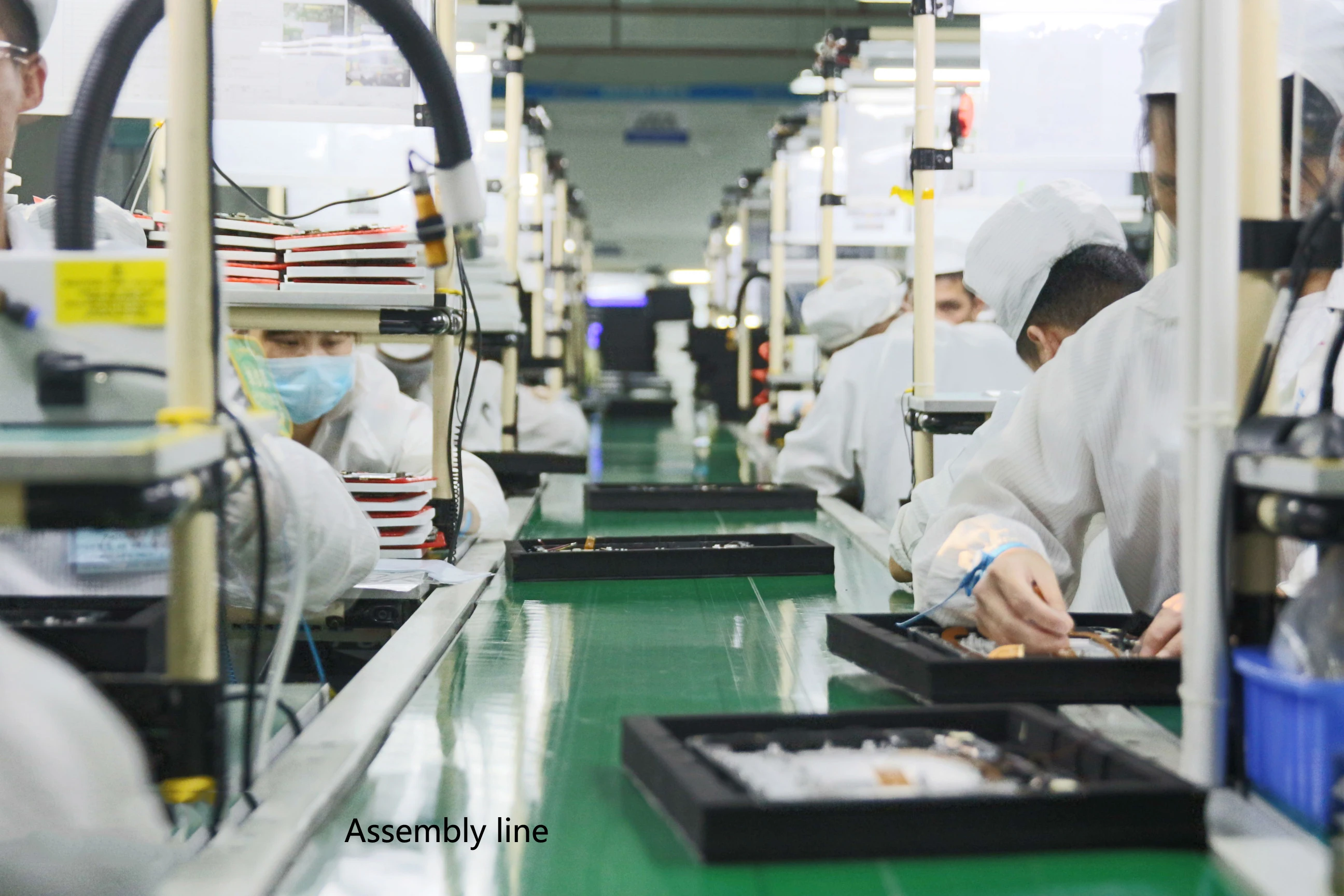

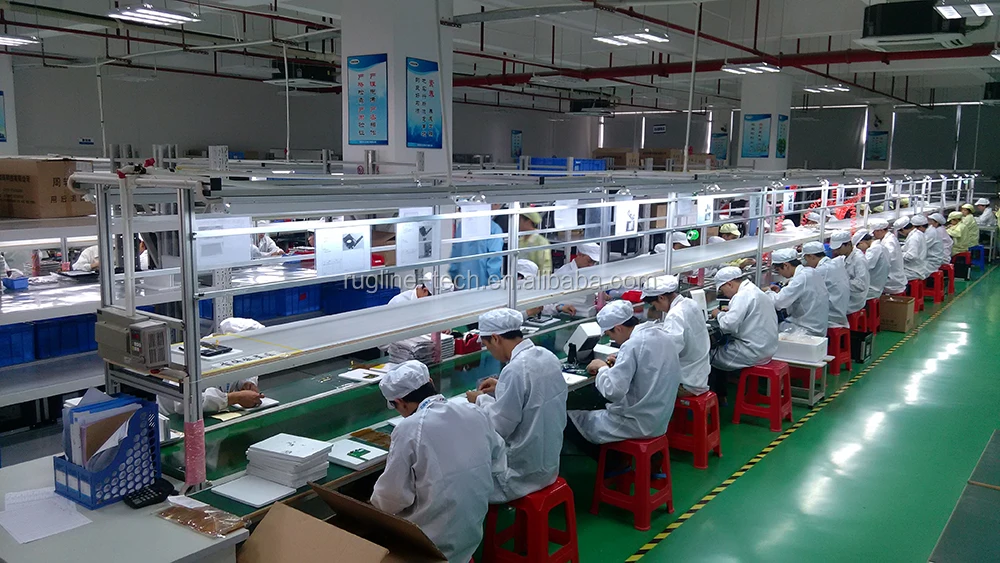

Company Profile
Shenzhen RuglineTechnology Co.,Ltd. is a high technology enterprise which is specialized in R&D and manufacturin RFID reader, handheld data collector ,mobile computer handheld barcode scanner,UHF RFID Reader,wireless intelligent terminal,Industrial rugged waterproof tablet pc,mobile POS payment terminal,Finger Vein Reader.All of our products comply with international quality standard and are greatly appreciated in a variety of different markets throughout the word.
Thank you for the interest about our products,we will handle the service after sale as following:
1).We offer 15 months warranty,any terminals with quality issue(Exclude human factors) can get repaired or replacement from us during this period.
2).If clients handle the service locally,we will free offer 2% LCD,Housing and keyboard.1% other spares.All the quality
issue terminals should take picture and be reported,we will supply it if our spare parts is not enough.
3).For the product assemblement and repairment,we will send the video for your reference.If necessary,we will send
technical staff to train client's repairer for free.
4).We will provide technical assistance for the whole life.In case clients would like to extend 1 year warranty
period in their market,we would suggest clients buy 2.5% terminals for replacement.And 2% LCD,Housing and
keyboard.1% other spares.
FAQ
Q :Are you manufacturer?
A: Yes, we are manufacturers.We can provide OEM / ODM customized service according to our customers’ various application and demands.All of our products are fully patented, ID/MD design, hardware and software,mold,assembly are done by our own team.
Q: Would you provide SDK for me?
A: Yes, we offer free SDK if you order sample.In addition, we also have support engineers to assist you with software development.
Q: What is the minimum order(MOQ)?
A: We accept one unit for standard products.we can even customized with your logo if needed. If require OEM, will see detailed requirements and confirm MOQ to you from our sales department.
Q: Can we get the free sample?
A: Sorry, generally we would not provide the free sample. If the customer confirm the specification and price, they can order the sample firstly for the testing and evaluation.
Q: Can i choose multiple function into 1 device?
A: Yes, you can choose multiple fuction into onedevice, Different functions depending on the product model,optional functions:RFID (LF/HF/UHF),Fingerprint/ Bar code scanner.
Q: How to order and pay?
A: We accept T/T (bank transfer), Alibaba online,Western Union,Paypal,Alipay,Trade Assurance and so on.
Q: What's Your Products Warranty?
A: We Offer 12 Months Warranty after shipment sent.
Q: Can I extend the warranty?
A: We offer a deferred warranty for up to 24/36 Months, and the price for the warranty extension is 10% up.
Q: How long it will take for delivery?
A: For production lead time around 3-10days depend on requirement, and shipping time by DHL/UPS/FEDEX/TNT, delivery time would around 3-5 working days. For some remote place, delivery time maybe a little bit longer.
Q:How to repair the device if any problem ?
A: We will provide technical support online to solve problem; If for the hardware problem , we could send the parts or components and teach customer to fit if they have technician or can also send back to us to fix it.
Q: Can you do customized and preload our software?
A:We are professional rugged device manufacture with 11 years experiences, support customize project and preload software.
A: Yes, we are manufacturers.We can provide OEM / ODM customized service according to our customers’ various application and demands.All of our products are fully patented, ID/MD design, hardware and software,mold,assembly are done by our own team.
Q: Would you provide SDK for me?
A: Yes, we offer free SDK if you order sample.In addition, we also have support engineers to assist you with software development.
Q: What is the minimum order(MOQ)?
A: We accept one unit for standard products.we can even customized with your logo if needed. If require OEM, will see detailed requirements and confirm MOQ to you from our sales department.
Q: Can we get the free sample?
A: Sorry, generally we would not provide the free sample. If the customer confirm the specification and price, they can order the sample firstly for the testing and evaluation.
Q: Can i choose multiple function into 1 device?
A: Yes, you can choose multiple fuction into onedevice, Different functions depending on the product model,optional functions:RFID (LF/HF/UHF),Fingerprint/ Bar code scanner.
Q: How to order and pay?
A: We accept T/T (bank transfer), Alibaba online,Western Union,Paypal,Alipay,Trade Assurance and so on.
Q: What's Your Products Warranty?
A: We Offer 12 Months Warranty after shipment sent.
Q: Can I extend the warranty?
A: We offer a deferred warranty for up to 24/36 Months, and the price for the warranty extension is 10% up.
Q: How long it will take for delivery?
A: For production lead time around 3-10days depend on requirement, and shipping time by DHL/UPS/FEDEX/TNT, delivery time would around 3-5 working days. For some remote place, delivery time maybe a little bit longer.
Q:How to repair the device if any problem ?
A: We will provide technical support online to solve problem; If for the hardware problem , we could send the parts or components and teach customer to fit if they have technician or can also send back to us to fix it.
Q: Can you do customized and preload our software?
A:We are professional rugged device manufacture with 11 years experiences, support customize project and preload software.
