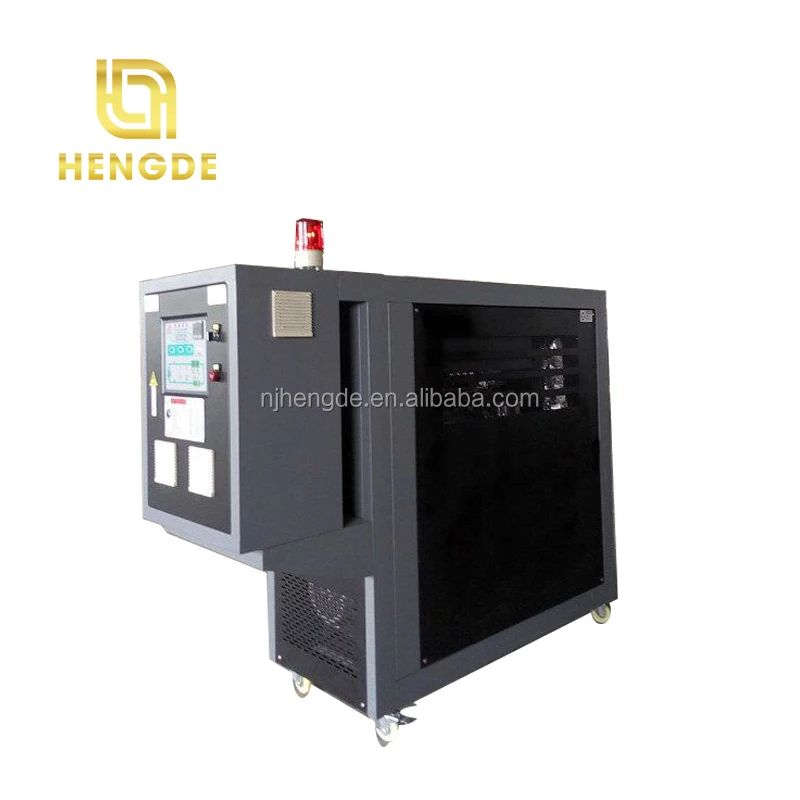

automatic industrial oil heater 400kw thermal oil heater price factory temperature controller for oil
- Category: >>>
- Supplier: Nanjing Hengde Electrical Equipment Co. Ltd.
Share on (1600501382928):
Product Overview
Description
Products Description

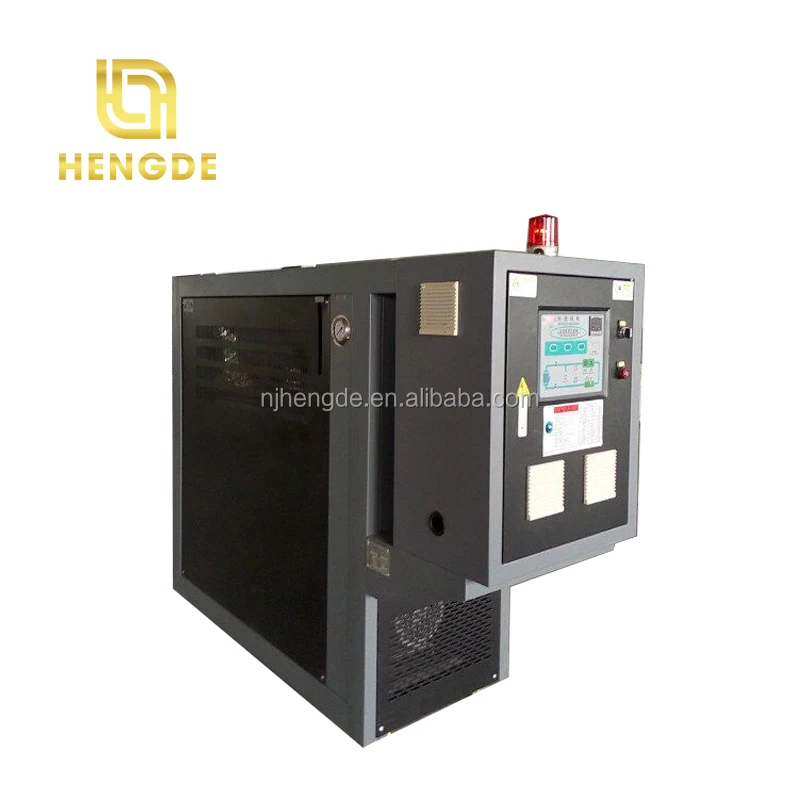

Oil temperature machine
Mold temperature machine with heat transfer oil as heat transfer medium. The oil temperature machine itself has an oil storage tank. When working, the heat transfer oil enters the system from the oil storage tank, and is driven into the mold or other equipment that needs temperature control through the circulating pump. After the heat transfer oil comes out of the temperature-controlled equipment, it returns to the system. Week by week. The heat transfer oil is heated up by the heater, and when the temperature of the medium detected by the temperature sensor reaches the set value, the heater stops working. When the temperature is lower than the set value, the heater starts to work, and when the temperature reaches the set value, it stops working. And so on and on.
Product Specifications
Model | Unit | HOS-05 | HOS-10 | HOS-20 | HOS-30 | HOS-50 | HOS-75 | ||||||
Temp Range | ℃ | Normal temperature-200℃ | |||||||||||
Temp.Control Accuracy | PID±1℃ | ||||||||||||
Power Supply | AC3∮380V 50HZ3P+E（5M） | ||||||||||||
Heat Transfer Medium | Heat Conducting Oil | ||||||||||||
Cooling Method | Indirect Cooling | ||||||||||||
Heating Capacity | KW | 6/9 | 9/12 | 18 | 24/36 | 48/60 | 75 | ||||||
Pump Power | KW | 0.375 | 0.75 | 1.5 | 2.2 | 4 | 5.5 | ||||||
Pump Flow | L/MIN | 98 | 150 | 235 | 315 | 367 | 424 | ||||||
Pump Pressure | KG/CM2 | 2 | 2 | 2.3 | 2.6 | 2.8 | 3 | ||||||
Max Power Consumption | KW | 6.5/10 | 10/13.5 | 20 | 27/39 | 52/64 | 81 | ||||||
Alert Function | Pump Reversal/Oil Shortage/Overheating/Overload/reverse turn | ||||||||||||
Cooling oil Pipe | INCH | 44563 | 44563 | 44563 | 44563 | 44624 | 44624 | ||||||
Circulation oil Pipe | INCH | 44563 | 1/2*2 | 1/2*2 | 1.2 | 1.5 | 2 | ||||||
Size(L*W*H) | MM | 750*325*680 | 750*325*680 | 1000*420*1000 | 1200*500*1100 | 1350*500*1200 | 1650*500*1250 | ||||||
Weight | KG | 65 | 80 | 150 | 180 | 220 | 280 | ||||||

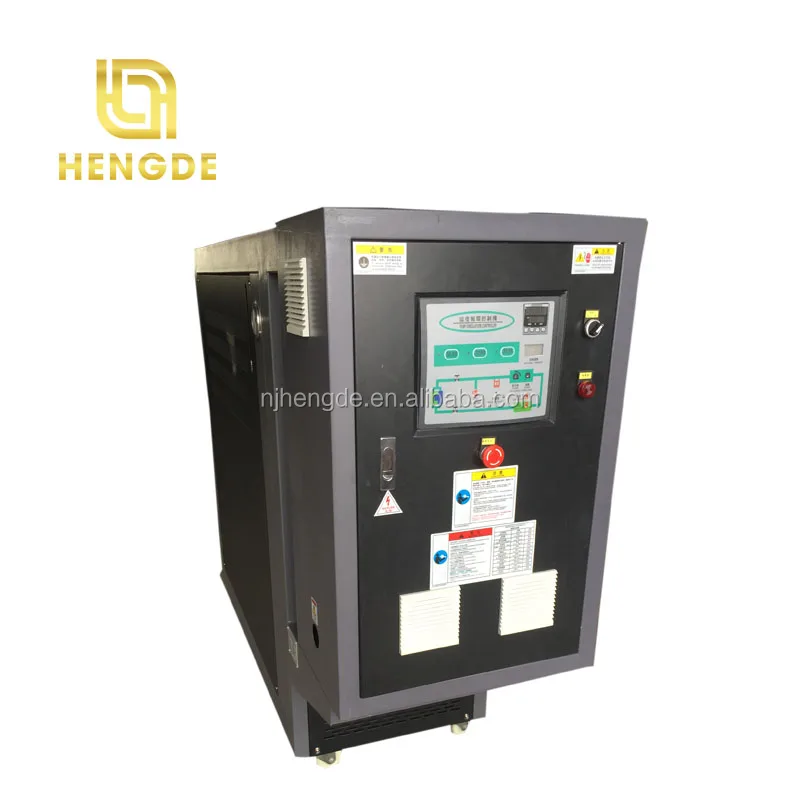

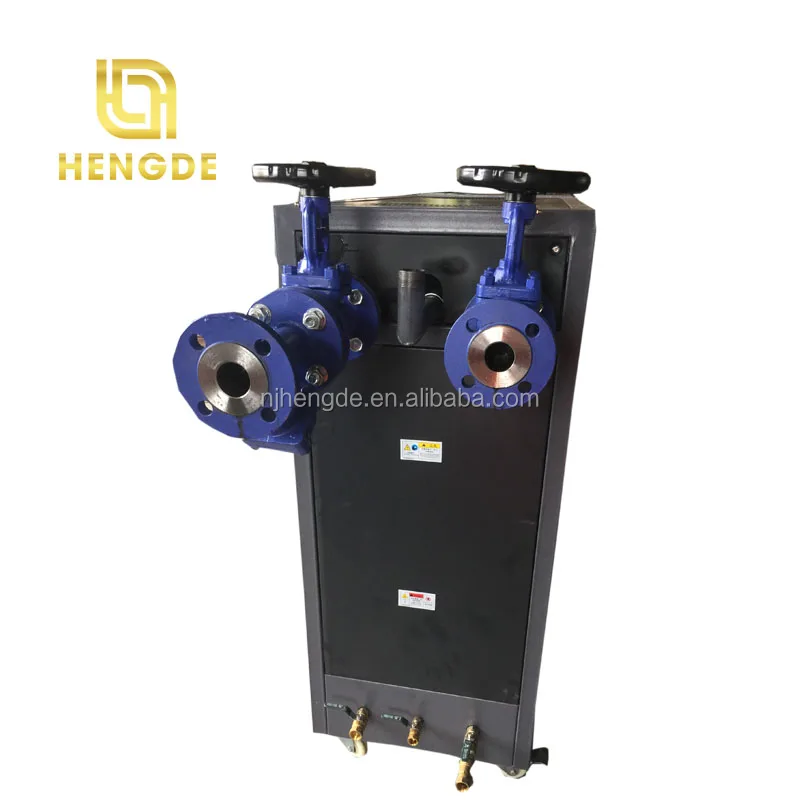

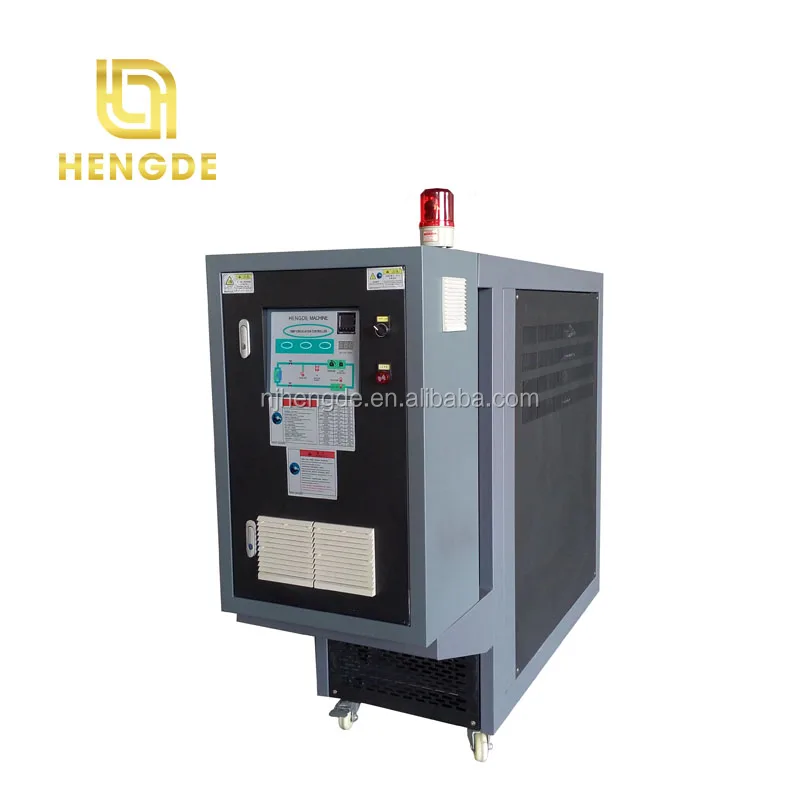

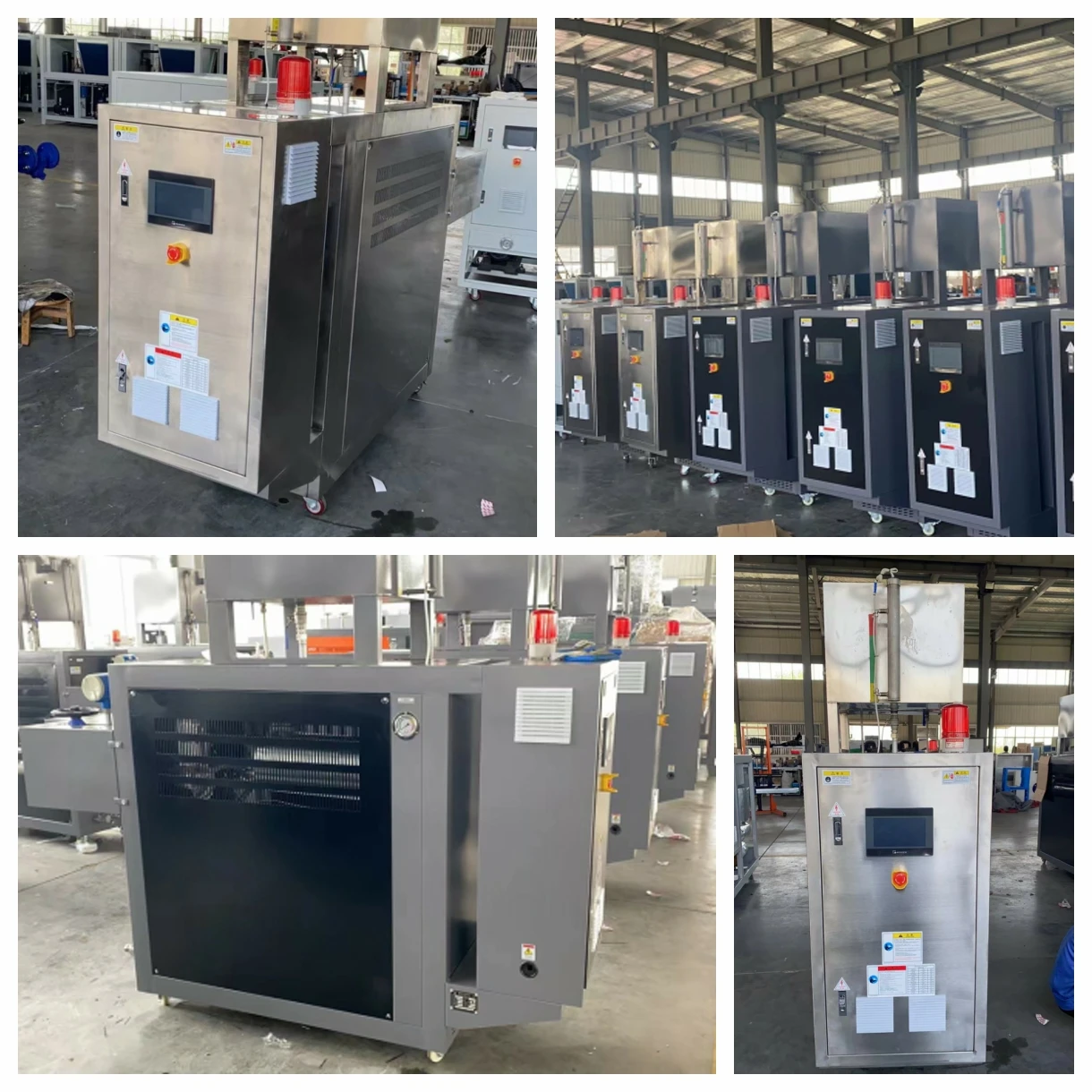

Product Real Pictures
Product Details

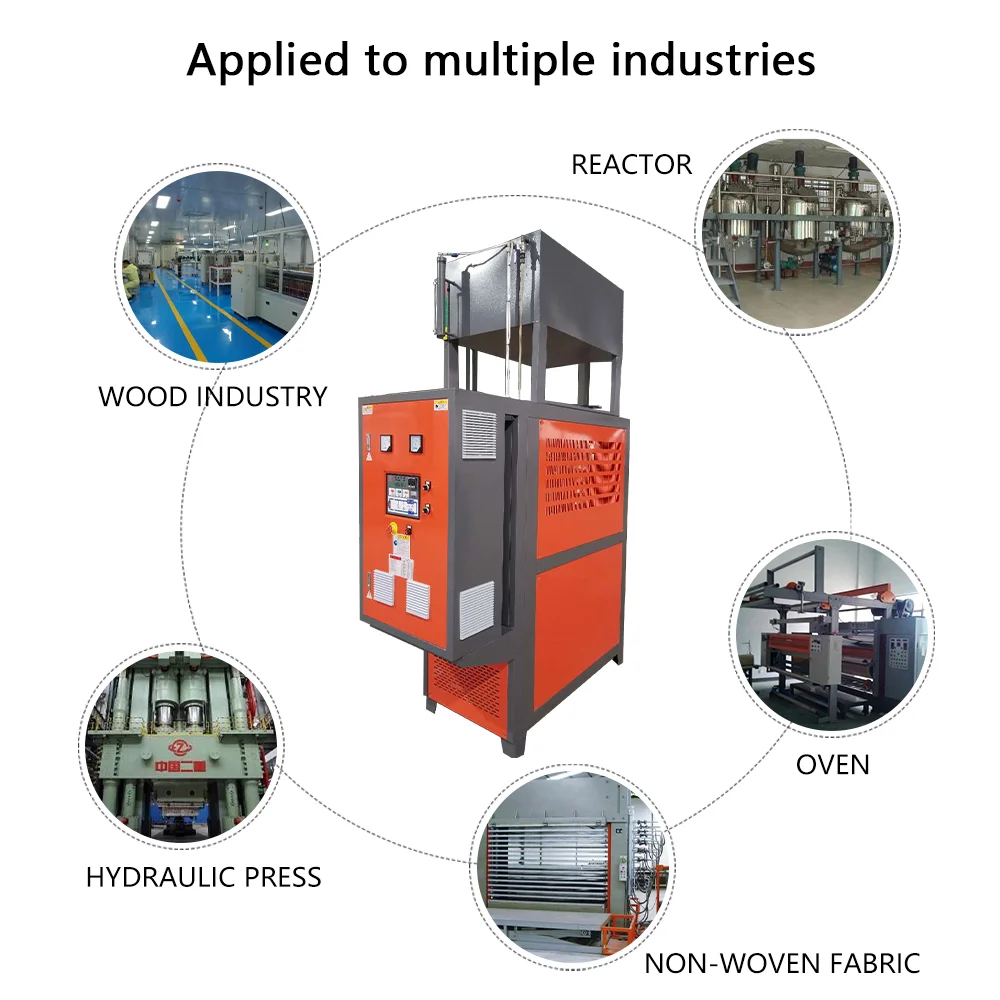

Scope Of Application
Widely used in various industries
Large-scale thermal oil temperature control equipment, the main features are that the normal temperature can be obtained to 350 ℃ under low operating pressure, the pump flow is large, and the heating power is high. It is widely used in petrochemical industry, calendering, banburying and vulcanization in plastics and rubber industry, heat setting and drying in textile printing and dyeing industry, compounding and laminating in printing industry, calendering heating in non-woven industry, etc. The company is a professional oil heater manufacturer, introducing advanced German technology, optimizing system design, and providing customers with low-cost and high-quality temperature control equipment.
Best Seller
About Us
Company Profile
Nanjing Hengde Electrical Equipment Co., Ltd. is one of the earliest productiontemperature control equipment of the professional manufacturers, engaged inplastic molding auxiliary equipment and industrial refrigeration equipmentdesign, manufacturing, sales and service.Over the years, by virtue of professional production technology,excellent product quality,Hengde wins ahigh reputation in temperature control equipment manufacturing industry athome and abroad, which is the first choice for many related enterprises.
Hengde has passed 1SO9001, CE,SGS and other related quality certificationsystems, and always been the pursuit of advanced international managementmode, increasingly innovative,which makes the company lead an advancedlevel of the domestic temperature control equipment manufacturing industry.
The company has always been aiming at the policy of professional quality andhigh-efficient service, which is stepping forward to the international moderntemperature equipment manufacturing enterprises at a high speed development pace.
Certificate display

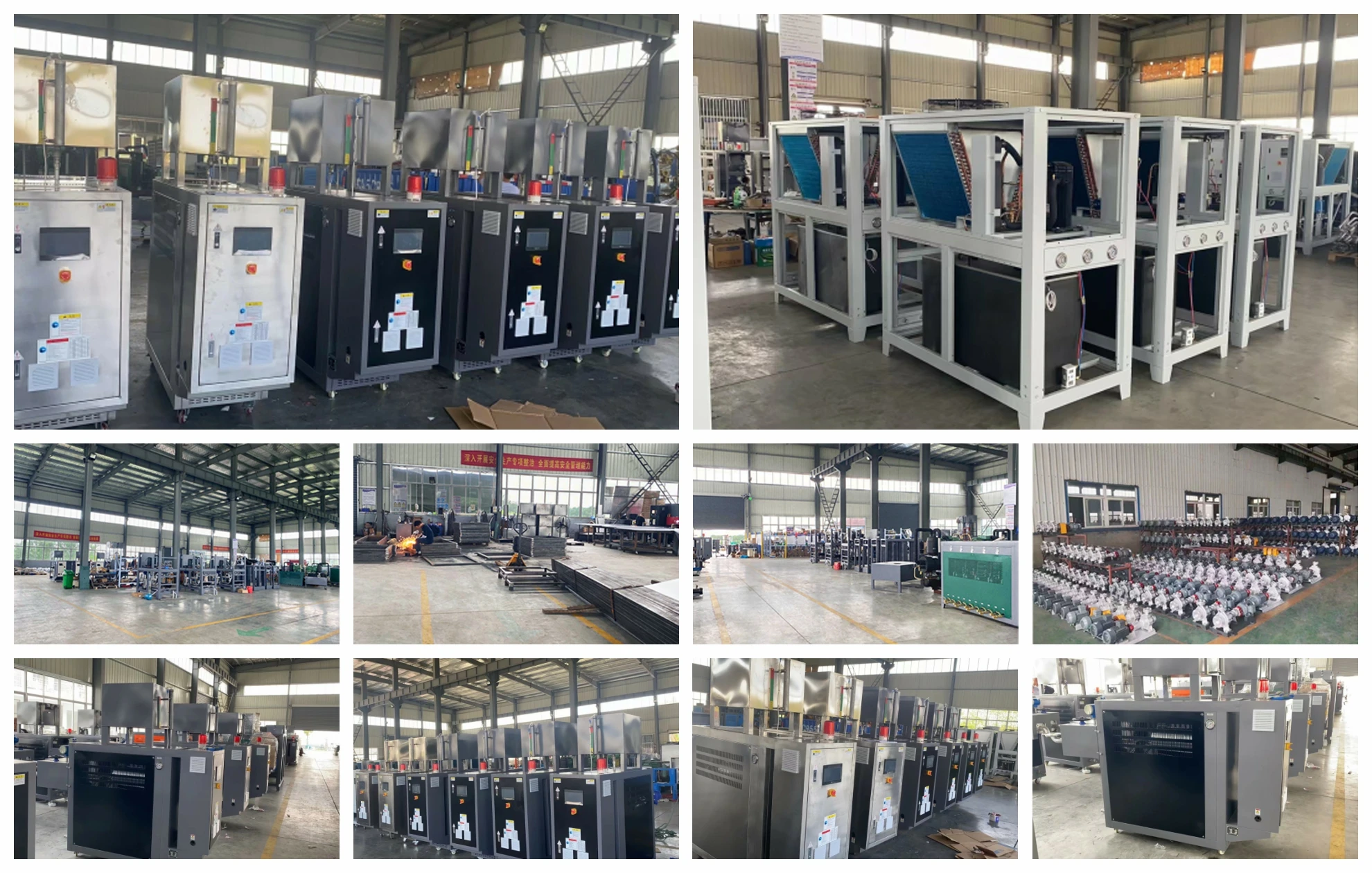

Factory Show
More than 10 years of experience, more than 4,000 square meters of factory buildings, integrating R&D, production and sales.
R & D team
10 people technical research and development team.
Exhibitions we participate in and customer visits
Photos of the various exhibitions we have participated in and the visits of customers from the United States, Egypt, Maldives, Portugal, Italy and other countries.
FAQ
A. Order service
C.After sale service
2. May I know the status of my order?
3.Can I use our own brand logo on the products?
4.What is your terms of delivery?
5. What is your payment terms?
6. What about warranty?
Inquiry-Quotation- Agreement- Order Confirm – Proforma Invoice – Deposit Payment- Production – Balance Payment- Delivery-Documents-Dispatch– Goods collection - Installation - Operation - Feedback.
B. Technical service
1, We calculate the capacity and recommend the best models.
2, We design and develop the new products according to your requirement besides our standard products.
3, We supply you the professional refrigeration technical support and electronic technical support for your installation,
debugging and operation.
4, We supply the spare parts and technical support in & after the warranty time.
5, We supply the training course to your workers at our factory if you need.
2, We design and develop the new products according to your requirement besides our standard products.
3, We supply you the professional refrigeration technical support and electronic technical support for your installation,
debugging and operation.
4, We supply the spare parts and technical support in & after the warranty time.
5, We supply the training course to your workers at our factory if you need.
C.After sale service
1. Technical support for your installation, operation and maintenance.
2, One year’s warranty, and you can pay for extended warranty.
3, Spare parts and technical support at most economic prices after the warranty.
4, Update you the latest products information and price adjustment every year.
5, Old customer discount will be available when you order the products again.
2, One year’s warranty, and you can pay for extended warranty.
3, Spare parts and technical support at most economic prices after the warranty.
4, Update you the latest products information and price adjustment every year.
5, Old customer discount will be available when you order the products again.
1. What makes you different with others?
1) Our Excellent Service For a quick, no hassle quote just send email to us We promise to reply with a price within 24 hours - sometimes even within the hour.
2)Our quick manufacturing time For Normal orders, we will promise to produce within 15-20 working days.
As a manufactory, we can ensure the delivery time according to the formal contract
2)Our quick manufacturing time For Normal orders, we will promise to produce within 15-20 working days.
As a manufactory, we can ensure the delivery time according to the formal contract
2. May I know the status of my order?
Yes .We will send you information and photos at different production stage of your order. You will get the latest information in time.
3.Can I use our own brand logo on the products?
Yes. We provide OEM/ODM service to our customers. Our professional engineers having rich experience in heat pump design and manufacture. Just tell us your ideas or provide the drawing, we can help you to carry out your ideas.
4.What is your terms of delivery?
We accept FOB, CFR, CIF, EXW etc. You can choose the one which is the most convenient or cost effective for you.
5. What is your payment terms?
1) T/T 40% deposit, T/T balance 60% paid before shipment;
2) T/T 40% deposit, balance 60% paid through irrevocable L/C at sight;
3) Other payment terms are negotiable.
2) T/T 40% deposit, balance 60% paid through irrevocable L/C at sight;
3) Other payment terms are negotiable.
6. What about warranty?
One year, all spare and accessory parts of products will be free.
