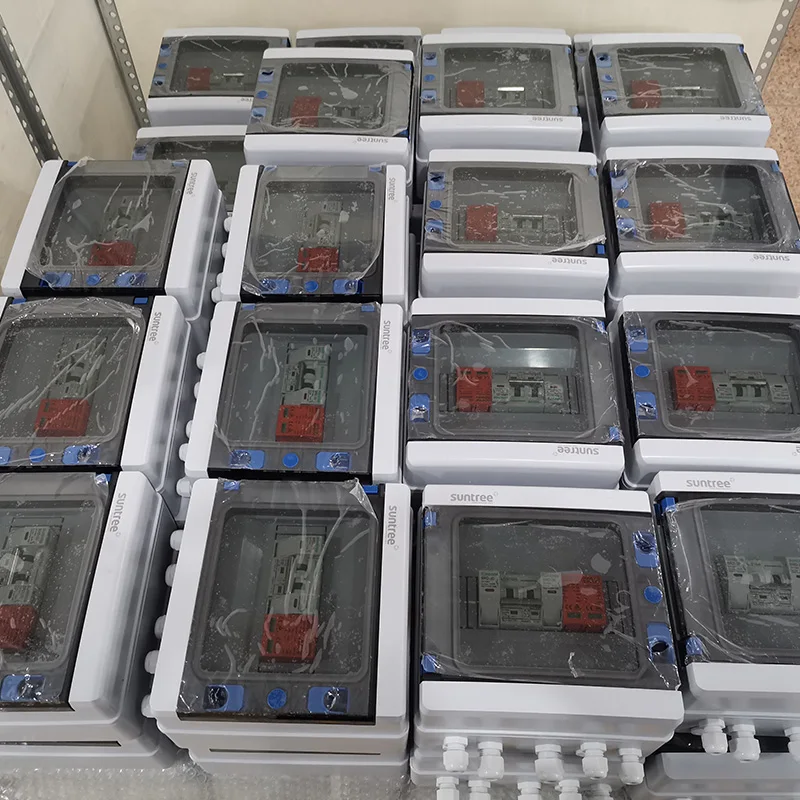

suntree 1 6 String lightning protection cabinet junction box pv combiner box with disconnecting switch
- Category: >>>
- Supplier: Wenzhou Xinchi International Trade Co. Ltd.
Share on (1600501394962):
Product Overview
Description

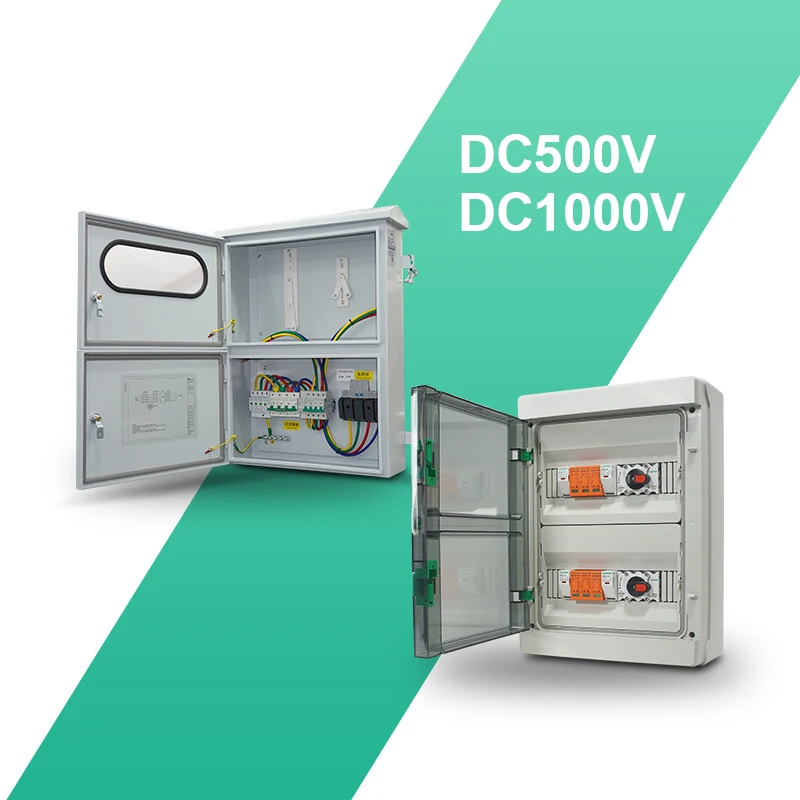

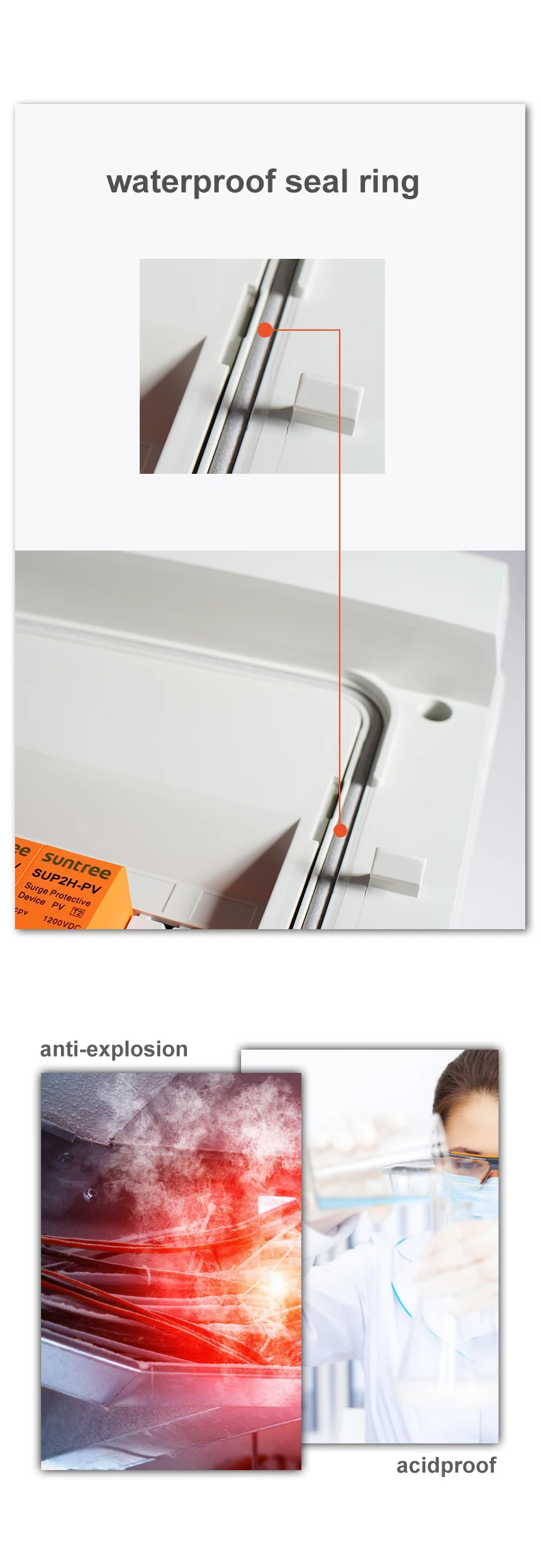

SHLX-PV4/2 combiner box is suitable for inverter (MAX input voltage DC550V/DC1000V,4PV input channel, 2 output channel, single MPPT inverter). Box body is made of PVC engineering materials,with test for fire retardant, Temperture rise,anti impact, anti ultraviolet, and other testing. IP65 protection grade.
Design and configuration strictly accordance with the "Technical specification for photo-voltaic junction equipment'' CGC/GF 037:2014
Provide users with a safe, brief, beautiful and applicable photo-voltaic system products.
Product Parameters
Name | SHLX-PV4/2 | ||
System maximum dc voltage | 550 | 1000 | |
Maximum input current for each string | 15A | ||
Maximum input strings | 4 | ||
Maximum output switch current | 20A/32A | ||
Number of inverter MPPT | 2 | ||
Number of output strings | 2 | ||
Category of test | ‖ grade protection | ||
Nominal discharge current | 20ka | ||
Maximum discharge current | 40ka | ||
Voltage protection level | 2.8kv | 3.8kv | |
Maximum continuous operating voltage Uc | 630V | 1050V | |
Poles | 2P | 3P | |
Structure characteristic | Plug-push module | ||
Protection grade | IP65 | ||

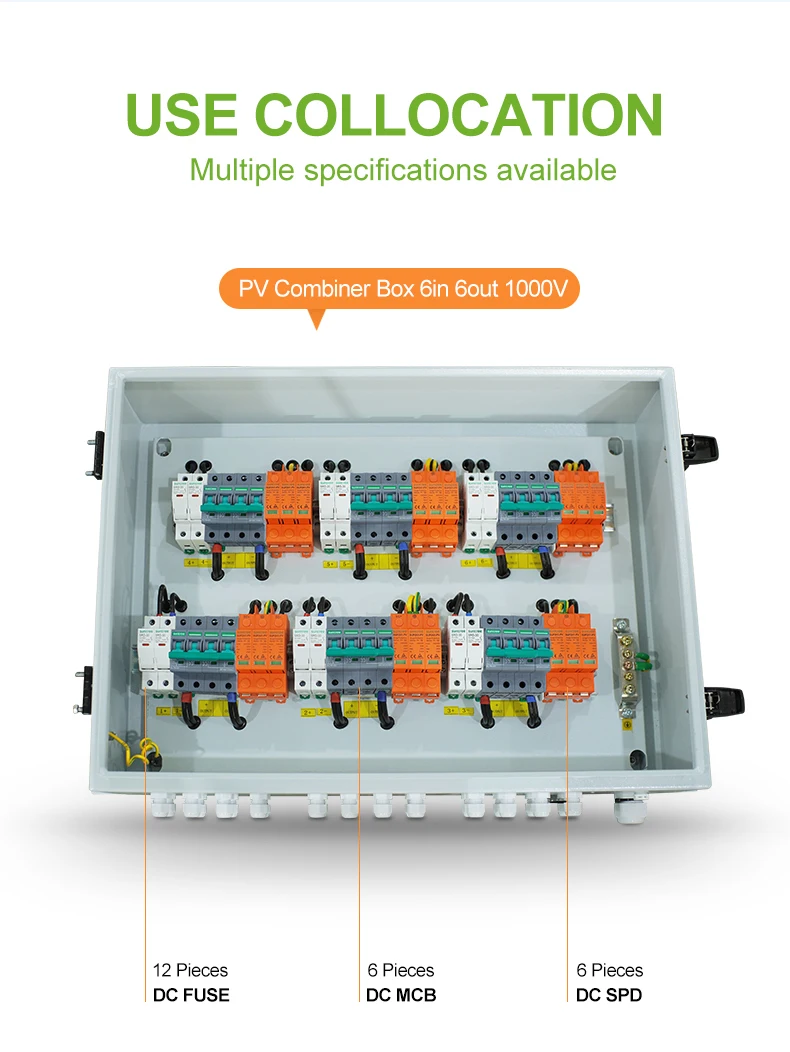

Output switch | DC isolation switch(standard)/DC circuit breaker(optional) | ||

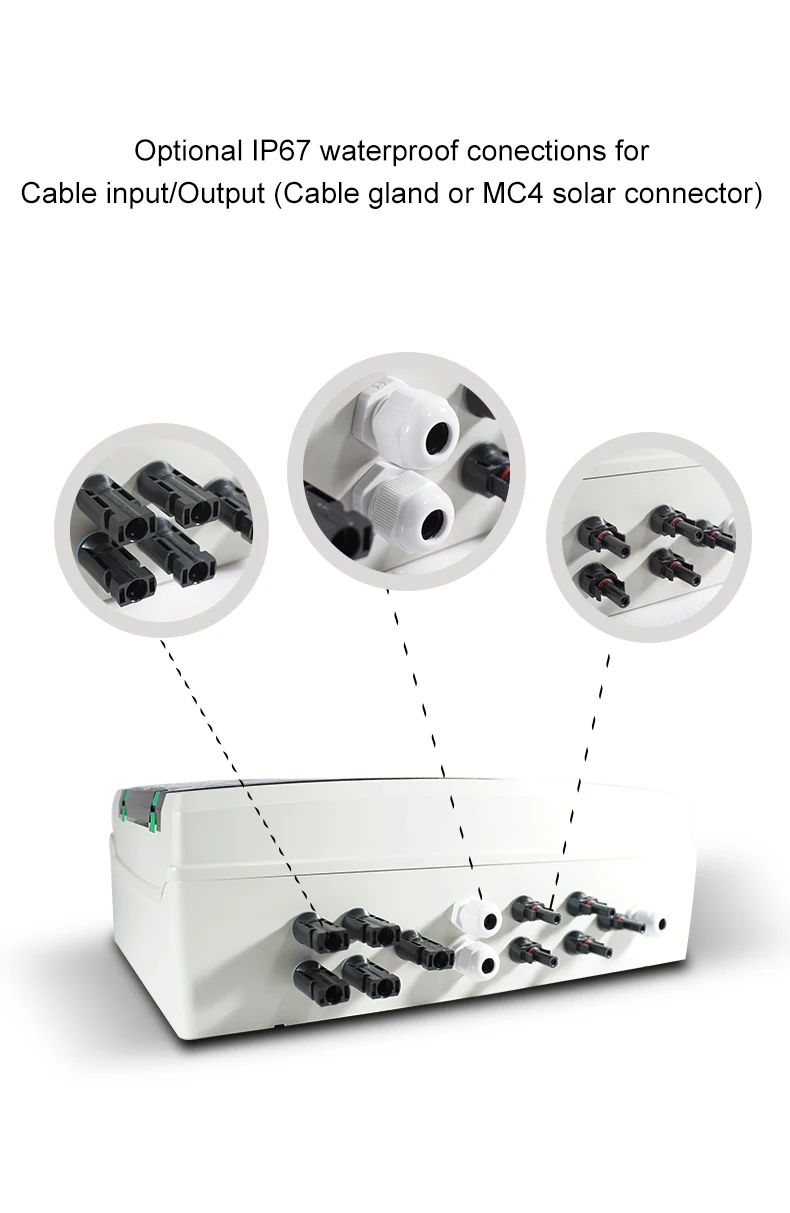

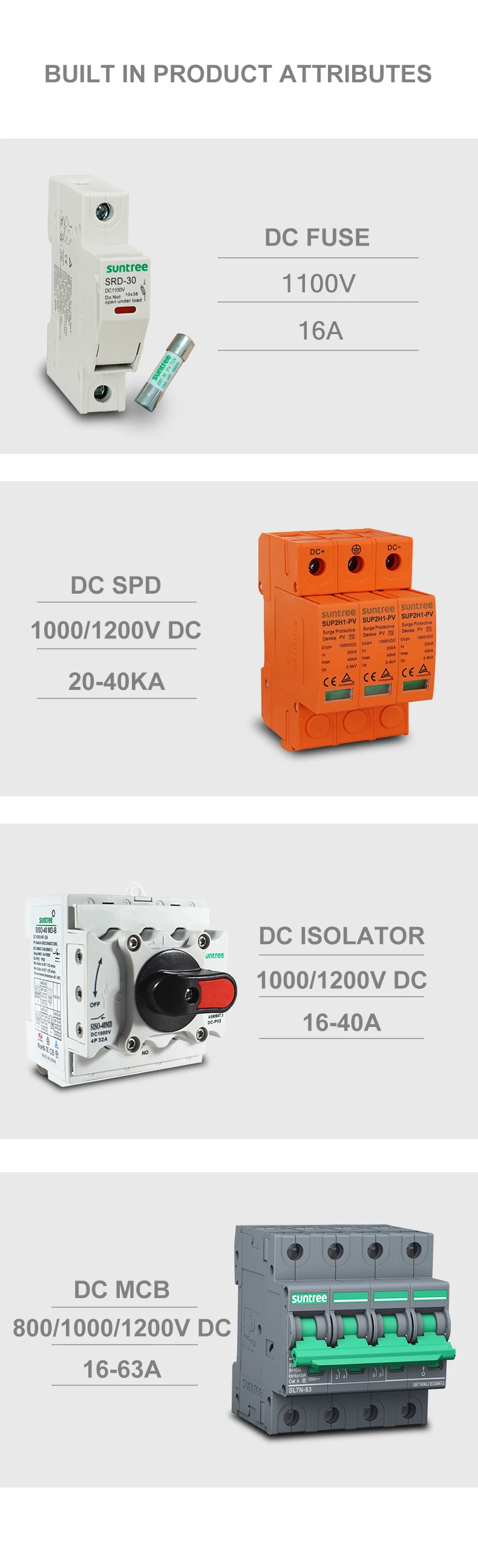

SMC4 Connectors/dc fuse/dc surge protector | Standard | ||
Monitoring module/Preventing diode | Optional | ||
Box material | Plastic | ||
Installation method | Wall mounting type | ||

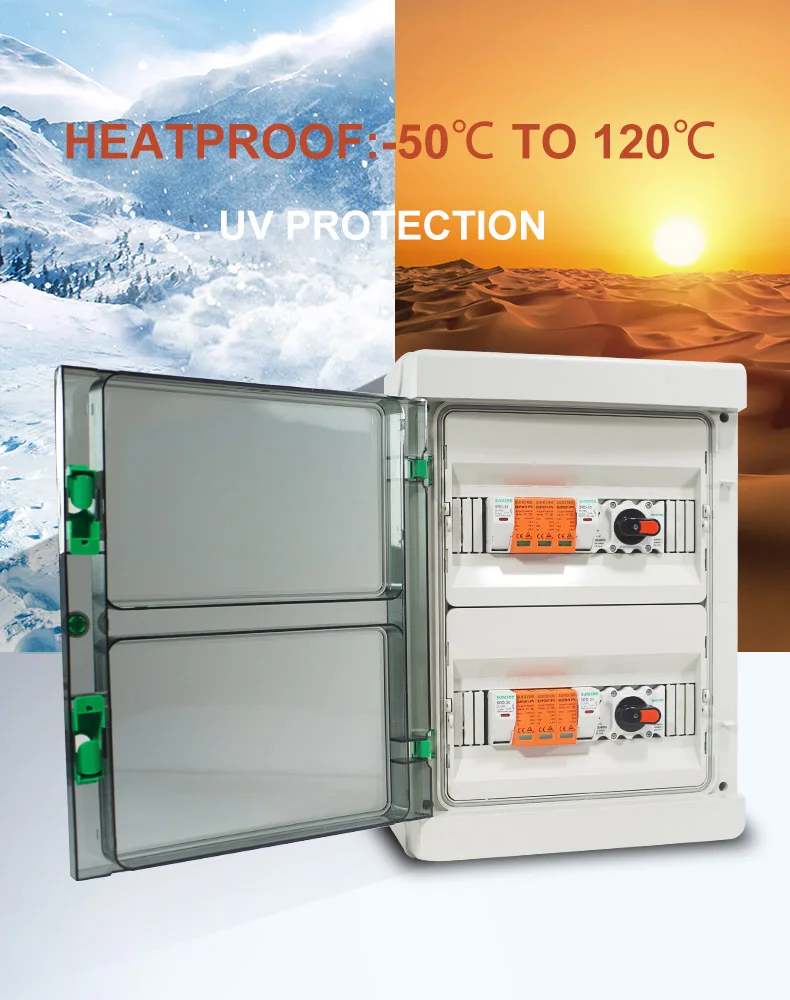

Operating Temperature | -25℃--+55℃ | ||
Elevation of temperature | 2km | ||
Permissible relative humidity | 0-95%, no condensation | ||
FAQ
Q:When I can receive quotation and detail information after send the enquiry?
A: Reply will be sent in 24hours.
Q:What's the difference between you and other suppliers?
A: Components inside of combiner box are manufactured by ourselves and approved SAA, TUV, CE, IEC, CE certificate.
Q:Can I get a sample for test before place order?
A:Of course!
Q:How's the delivery?Because I really need them is urgently?
A: Samples cost 5-7 days. Bulk order cost 12-15 days.
Q:How's the warranty of combiner box?
A:18 month.
Q: What's your shipment method?
A: We ship by Express, by air, by sea, by train.
Q: If i want to release order, what's the payment method you accept ?
A: We accept T/T, Paypal, Western union, L/C, Trade Assurance.
