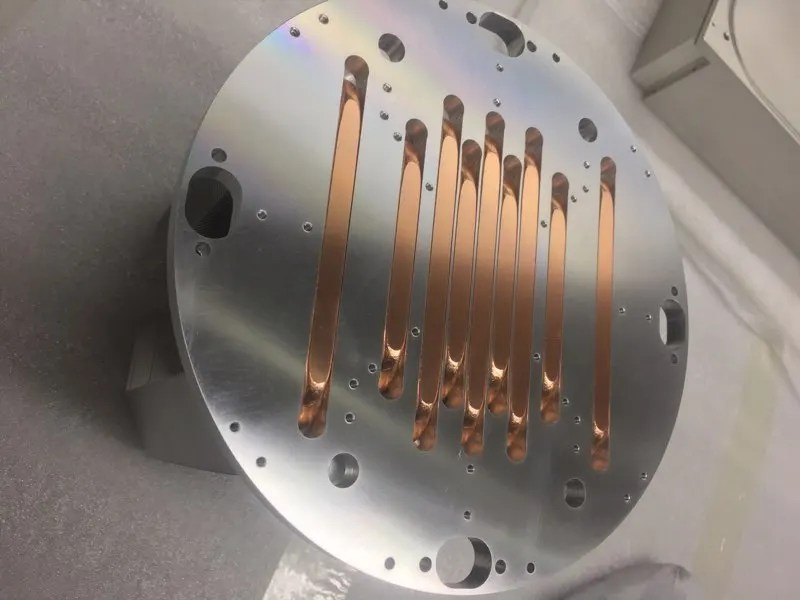

FM free sample custom 500w 600w copper pipe aluminum heatsink heat sink for LED light fixture stage industrial
- Category: Fans & Cooling >>>
- Supplier: Dongguan,Formal,Precision,Metal,Parts,Co.,Ltd.
Share on:
Product Overview
Description
A heat pipe is a sealed copper tube that is in a vacuum to quickly transfer heat away from the source. High thermal conductivity enables heat pipes to transfer and dissipate heat to more convenient locations through capillary action. The effect is similar to putting a tissue in coffee and watching the liquid rise from the tissue. Heat pipes come in all shapes and sizes. Can be flat or round and can be formed to fit most contours.
Heat pipes are constructed using metal tubes that are sealed under partial vacuum. The copper heat pipe has a core liner inside, which can be used as a capillary material for small amounts of fluid. When heat is applied to the surface of the heat pipe in the evaporator area, the fluid is heated and, since it is in a vacuum, it is easier to turn it into steam. This phase change from fluid to vapor creates pressure. As the pressure increases, the steam will naturally flow into the cooler part of the heat pipe. Heat is then released as the vapor condenses back into the fluid. The fluid will then flow back to the warmer area, where the cycle will repeat while heat is applied to that part.
Many fluids can be used as phase transitions in heat pipes. In most applications, deionized water is chosen as the working fluid due to its high latent heat, surface tension, thermal conductivity, and boiling temperature. The negative vacuum pressure inside the heat pipe causes the water to boil and turn into steam at a lower temperature than normal. The inner wick can vary depending on the application and orientation of the cooling unit.
Our processing capabilities
FM has a smart engineering team that will greatly help our partners simplify product design and reduce manufacturing costs.
FM can finish the most complex die casting tooling within 3 weeks, stamping tooling and extrusion tooling in 2 weeks.
Free samples are available. Sampling time we can short to 3 days. No matter how big volume of the order, our lead time will not exceed 1 month.
Free samples are available. Sampling time we can short to 3 days. No matter how big volume of the order, our lead time will not exceed 1 month.
cnc machined heatsink
copper pipe life: 7 years
max machining size: 2500mm
min machining accuracy: 0.01mm
min surface roughness：0.05mm
max machining size: 2500mm
min machining accuracy: 0.01mm
min surface roughness：0.05mm
stamped fin heatsink
copper pipe life: 7 years
lowest fin tooling invests
different surface treatment option
lowest fin tooling invests
different surface treatment option
skived heatsink
min fin thickness: 0.1mm
max fin height: copper 70mm, aluminum 130mm
max width: 1000mm
max fin height: copper 70mm, aluminum 130mm
max width: 1000mm
extruded heatsink
our extrusion machine size ranges from 450T~9000T,
can meet various size extrusion demands.
can meet various size extrusion demands.
cold forging heatsink
our max cold forging machine is 5000T,
can make various type of heat sink as per demands.
can make various type of heat sink as per demands.

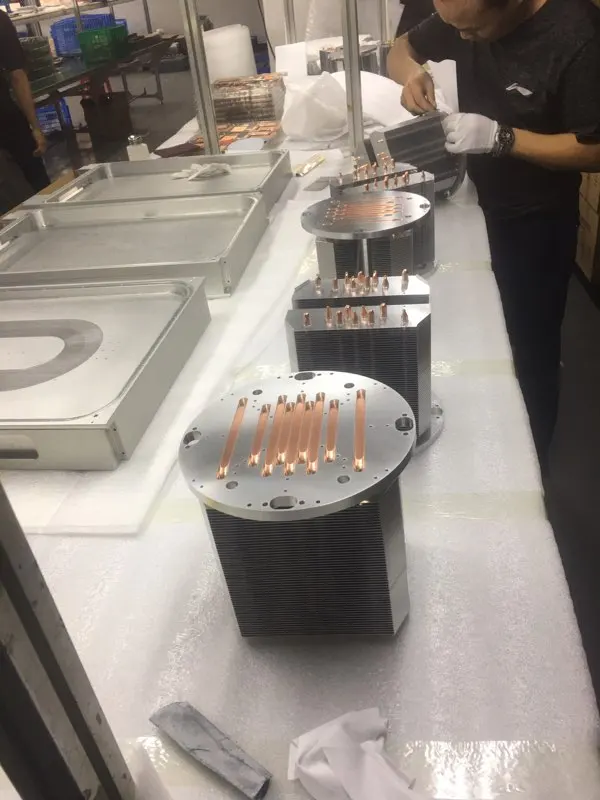

heatpipe heatsink
copper pipe life: 7 years
lowest fin tooling invests
different surface treatment option
lowest fin tooling invests
different surface treatment option
Specification
Item Type | custom heat sink |
Material | Aluminum, Copper |
Size | Standard or customized size |
Colors | silver, black , blue, wood color, RAL powder coating color, and so on |
Shape | Round, Square, Flat, or customized |
Thickness | 0.4mm-20mm or Customized |
Application | LED Lighting, Inverter, Welding Machine, Communication Device, Power Supply Equipment, Electronic Industry, Thermoelectric Coolers/Generator, IGBT/UPS Cooling Systems, etc. |
Production Process | Profiles Extruding—Cutting—CNC Machining(Milling, Drilling, Tapping)—Deburring— Cleaning— Inspecting–Packing |
Finish | Anodizing, Mill finish, Electroplating, Polishing, Sandblasted, Powder coating, Silver plating, Brushed, Painted, PVDF, etc. |
Deep process | CNC,drilling,milling,cutting,stamping,welding,bending,assembling,Custom Aluminum Fabrication |
Tolerance | ±0.01mm |
Length | customized length |
MOQ | Low MOQ |
Packaging | standard export packaging or as discussed |
OEM & ODM | Available. our engineer can check and discuss your design, great help! |
Delivery time | 15-20 days after sample confirmed & down payment, or negotiated |
1.How can I get the price?
"-We usually quote within 24-48 hours after we get your inquiry(Except weekend and holidays).
-If you are very urgent to get the price, please email us
or contact us in other ways so that we can offer you a quote."
2. Can I buy samples placing orders?
-Yes.Please feel free to contact us.
3.What is your lead time?
-It depends on the order quantity and the season you place the order.
4.What is your payment term?
T/T,Letter of Credit or Paypal.This is negotiable.
5.What is the shipping method?
"-It could be shipped by sea,by sea or by express(EMS,UPS,DHL,TNT,FEDEX and ect).
Please confirm with us before placing orders."
6.How do you make our business long-term and good relationship?
"-1. We keep good quality and competitive price to ensure our customers benefit ;
-2. We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from."
"-We usually quote within 24-48 hours after we get your inquiry(Except weekend and holidays).
-If you are very urgent to get the price, please email us
or contact us in other ways so that we can offer you a quote."
2. Can I buy samples placing orders?
-Yes.Please feel free to contact us.
3.What is your lead time?
-It depends on the order quantity and the season you place the order.
4.What is your payment term?
T/T,Letter of Credit or Paypal.This is negotiable.
5.What is the shipping method?
"-It could be shipped by sea,by sea or by express(EMS,UPS,DHL,TNT,FEDEX and ect).
Please confirm with us before placing orders."
6.How do you make our business long-term and good relationship?
"-1. We keep good quality and competitive price to ensure our customers benefit ;
-2. We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from."

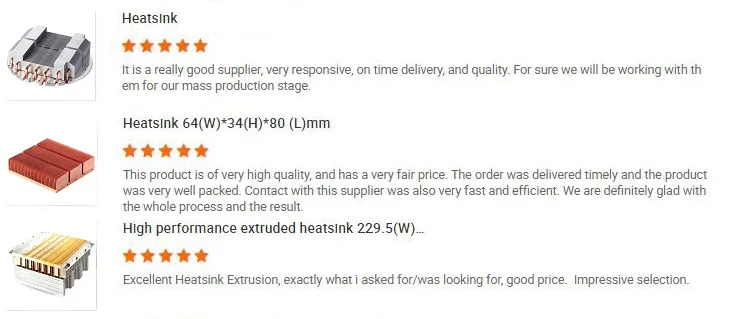

Customer Reviews
