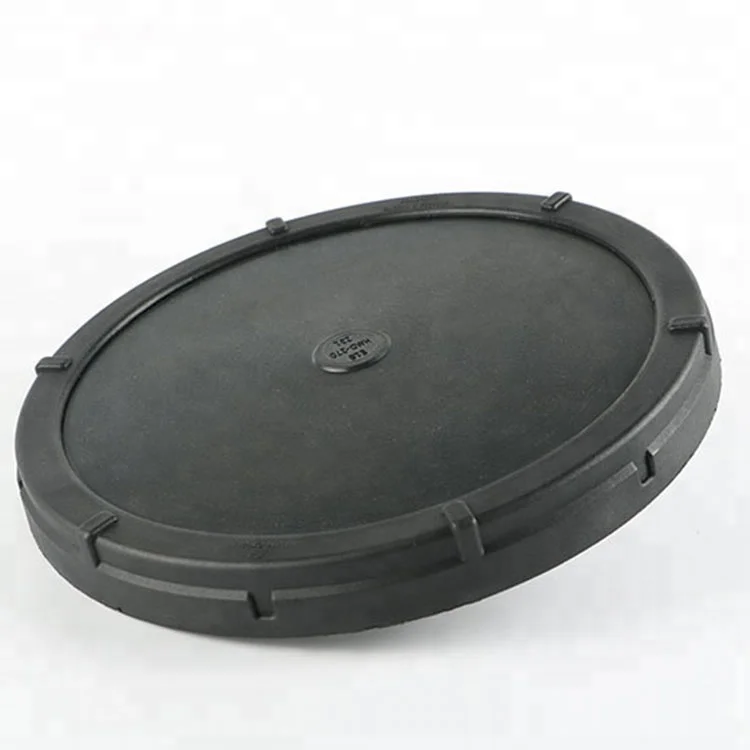

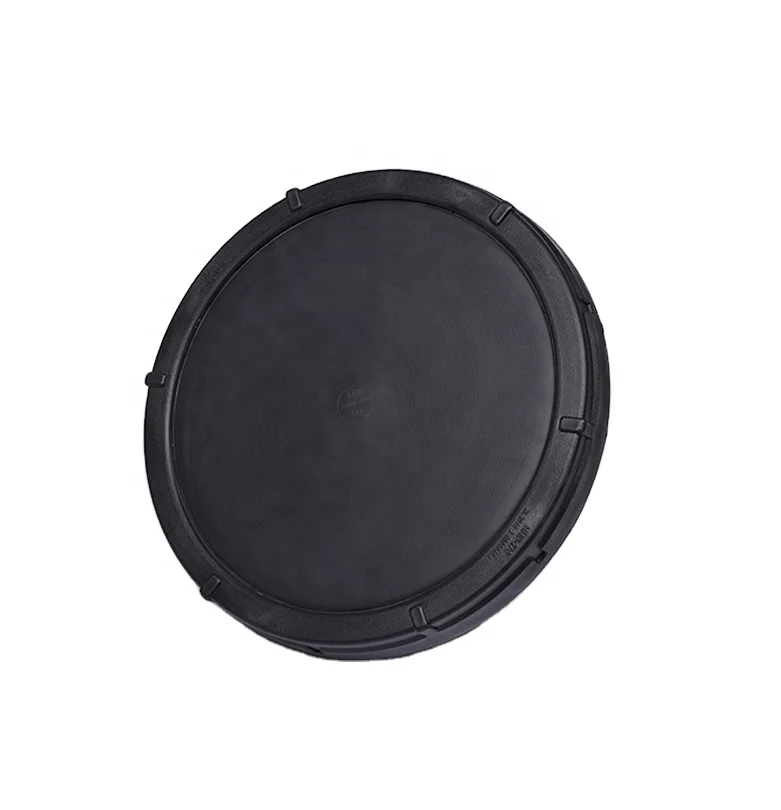

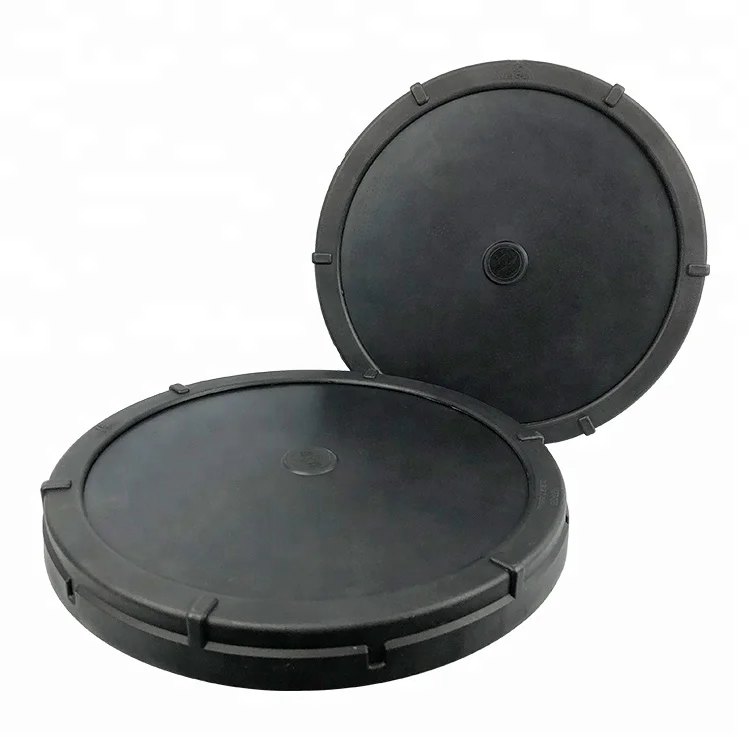

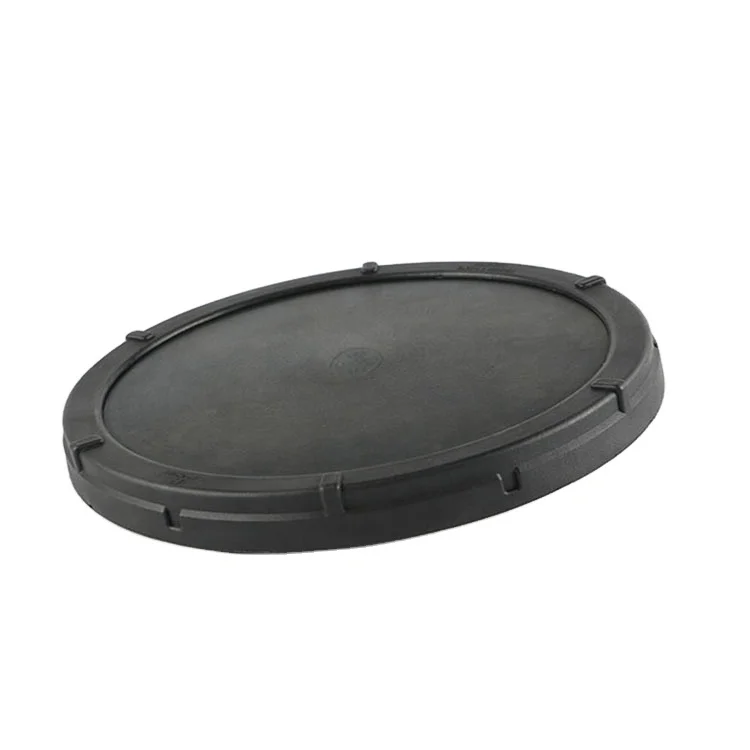

Disk Diffuser Diffuser Aerator Fine Bubble Disk Diffuser Aerator
- Category: >>>
- Supplier: Jiangsu Huanchuan Environment Engineering Co. Ltd.
Share on (1600501437786):
Product Overview
Description
Microbubble membrane plate bubble disc fine bubble epdm membrane disc diffusers for water treatment
Product Details
HMD | Diameter 200mm | Diameter 275mm | Diameter 340mm |
Service area | 0.15-0.6m2 | 0.25-0.8m2 | 0.4-1.3m2 |
Air flow | 1-3.8 m³/h | 1.5-5.5 m³/h | 0.4-1.3m2 |
Oxygen utilization | 27%-38% | 27%-38% | 27%-38% |
Resistance loss | 1700-2500 pa | 1600-2700 pa | 1500-3000 pa |
Temperature | 0-80℃ | 0-80℃ | 0-80℃ |
Membrane thickness | 2±0.1mm | 2±0.1mm | 2±0.1mm |
Perforation quantity | 4400 | 6600 | 11440 |
Perforation size | 1mm | 1mm | 1mm |
Bubble size | 1-2mm | 1-2 mm | 1-2 mm |
Product Paramenters
1. Six “L” clamping strips are designed on the outside of the diffuser cover, which can prevent the diffuser from falling off the membrane caused by the creep of the plastic cover due to the long time of bearing the expansion of the diaphragm and the external tension pressure.
2. Check valve design. There is a convex check ring around air vent of the supporting plate, and a round bulge on the central inner side of the rubber membrane. When the fine bubble diffuser stops. The membrane firmly covers the check ring under the action of its own rebound and water depth pressure. At the same time, the convex on the membrane is stuck inside of the plate check ring. Effectively preventing the backflow of mud water.
3. HMD disc diffuser is equipped with anti-deformation strengthening structure, thicken reinforcement structure and anti-falling seal bars to ensure the stability of the product under high strength and long-term operating conditions and prevent the membrane from falling off.
4. Strength the screw root of fine bubble disc diffuser to prevent the thread fracture.

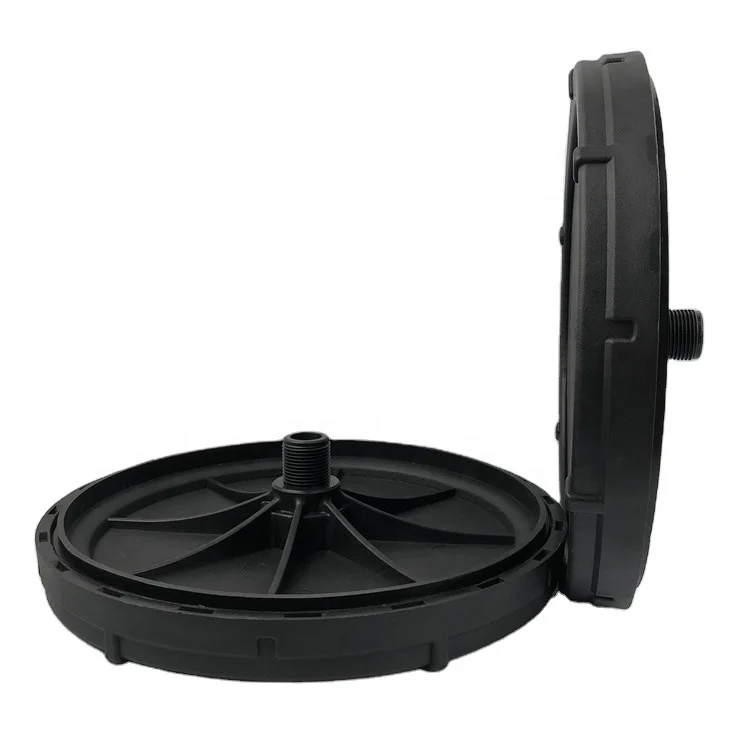

5. Special air flow channel design. Optimize the flow pattern of air flow. Reduce the loss of resistance along the path.
2. Check valve design. There is a convex check ring around air vent of the supporting plate, and a round bulge on the central inner side of the rubber membrane. When the fine bubble diffuser stops. The membrane firmly covers the check ring under the action of its own rebound and water depth pressure. At the same time, the convex on the membrane is stuck inside of the plate check ring. Effectively preventing the backflow of mud water.
3. HMD disc diffuser is equipped with anti-deformation strengthening structure, thicken reinforcement structure and anti-falling seal bars to ensure the stability of the product under high strength and long-term operating conditions and prevent the membrane from falling off.
4. Strength the screw root of fine bubble disc diffuser to prevent the thread fracture.
5. Special air flow channel design. Optimize the flow pattern of air flow. Reduce the loss of resistance along the path.
Product Advantages
Advantage 1: Membrane material
1. Membrane using imported formula and material. Its good rubber elasticity, ant-shrinking, anti-hardening and anti-aging ability extending the membrane service life.
2. Membrane elasticity and blasting test.
Advantage 2:Two special membrane reinforced structure design
Compared to others
Know The Products
Method1:
1.Tap the rubber saddle into the vent opening.
2.Screw the fine bubble disc diffuser into the rubber saddle internal thread.
2.Screw the fine bubble disc diffuser into the rubber saddle internal thread.
Method2:
1.Tap the rubber saddle into the vent opening.
2.Fix the fixed adapter outside of the rubber saddle.
3.Screw the fine bubble disc diffuser into the rubber saddle internal thread.
2.Fix the fixed adapter outside of the rubber saddle.
3.Screw the fine bubble disc diffuser into the rubber saddle internal thread.
Engineering Design
Fine bubble diffuser is the only product that we do because we want to be concentration and profession. Besides of manufacturing product, we also do aerobic plant calculation and project design. Also, we make construction in domestic market. With projects feedback, we improve product continuously to solve different problems.
Company Profile
Jiangsu Huanchuan Environment Engineering Co., Ltd. is a specialist supplier of fine bubble diffuser for waste water treatment. Based in Jiangsu Taizhou and supplying products across the world, yearly wastewater treatment project experience helps us to improve product persistently.
-Concentrate on fine bubble diffuser only.
-Our founder has over 10 years experience in rubber.
-As manufacturer, we have strong control in product quality and without middle man price.
-Philosophy of right product first, then right price.
-Concentrate on fine bubble diffuser only.
-Our founder has over 10 years experience in rubber.
-As manufacturer, we have strong control in product quality and without middle man price.
-Philosophy of right product first, then right price.
