Independent Intel CPU ITX Mother Board Chipset H61 / H81 / H110 / HM87 / H510
- Category: >>>
- Supplier: Shanghai Mengxun Technology Co. Ltd.
Share on (1600501442316):
Product Overview
Description
ABOUT US:
Shanghai Mengxun Technology Co., Ltd specializes in manufacturing and selling different kinds of laptop-related products. We are main laptop/PC supplier in Shenzhen.And we have our own R&D and provide products with best quality.

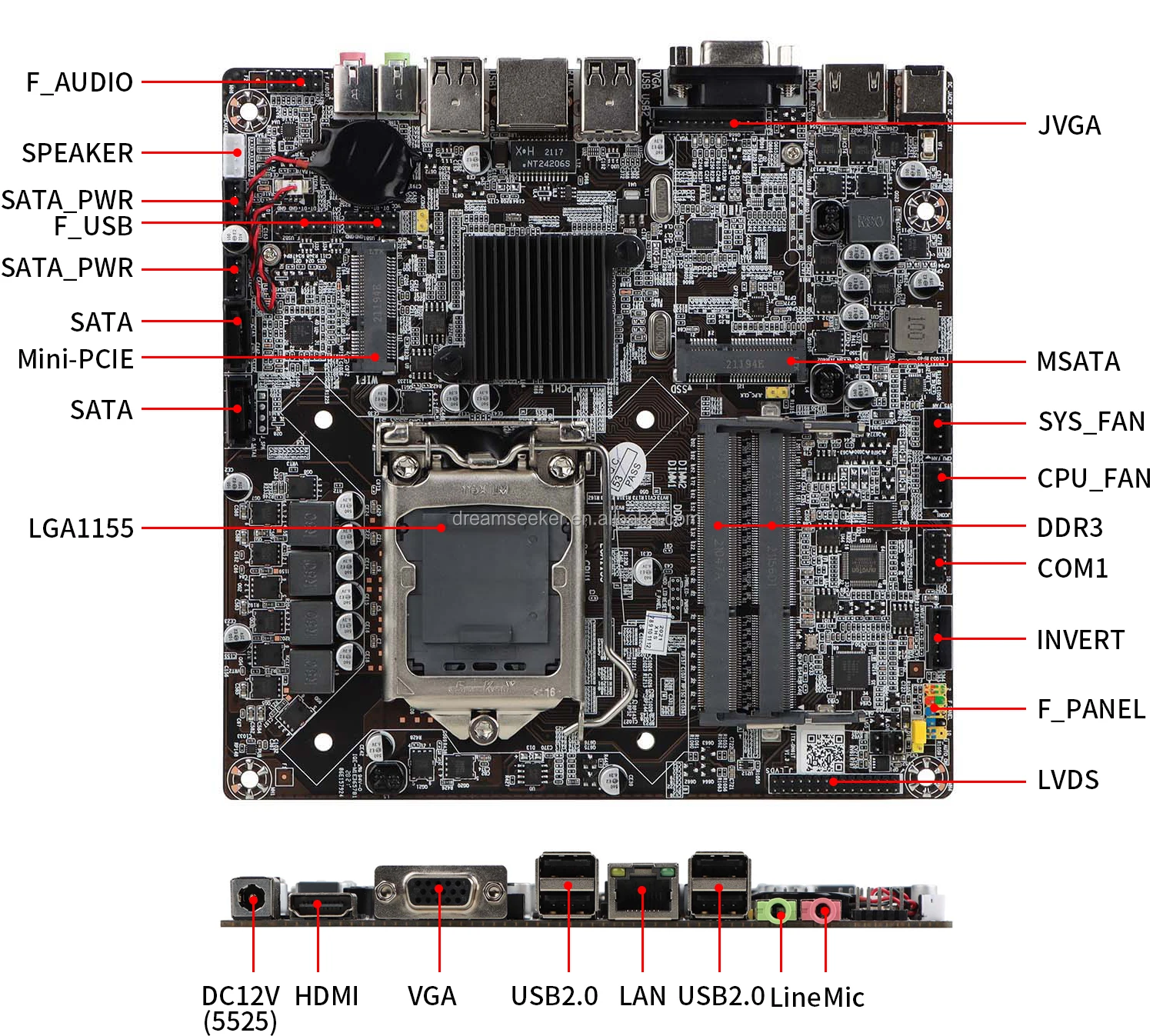

H61DD3-ITX
H61DD3-ITX Series Motherboard Specification | |
CPU | LGA1155 supports Intel2/3 generation processors |
Memory | 2*DDR3 SO-DIMM sockets, supporting up to 16 GB of system memory. Support 1.35V DDR2 1333/1600 MHz |
Storage Interface | 2*SATA 1*MSATA |
Audio | Built in with Realtek ALC662 HD Audio Controller Supporting High Definition Audio Supporting 2/4/5.1 channel * To configure (Through HDMI) |
Network | Built in Realtek RTL8105E network card |
Expansion Slots | 1*Mini-PCIE |
Back Panel Connectors | 1*HDMI 1*VGA 4*USB2.0 1*LAN 1*Line out 1*Mic in 1*DC 12V(5525) |
Internal I/O Connectors | 1*LVDS 1*INVERT 2*SATA_PWR 2*F_USB2.0 1*F_AUDIO 1*F_PANEL 1*COM 1*SPEAKER |
Fan interface | 1*CPU FAN 4Pin 1*SYS FAN 4pin |
BIOS | AMI 64Mb Flash ROM |
Power Supply | 12V adapter |
Form Factor | 170mm*170mm |

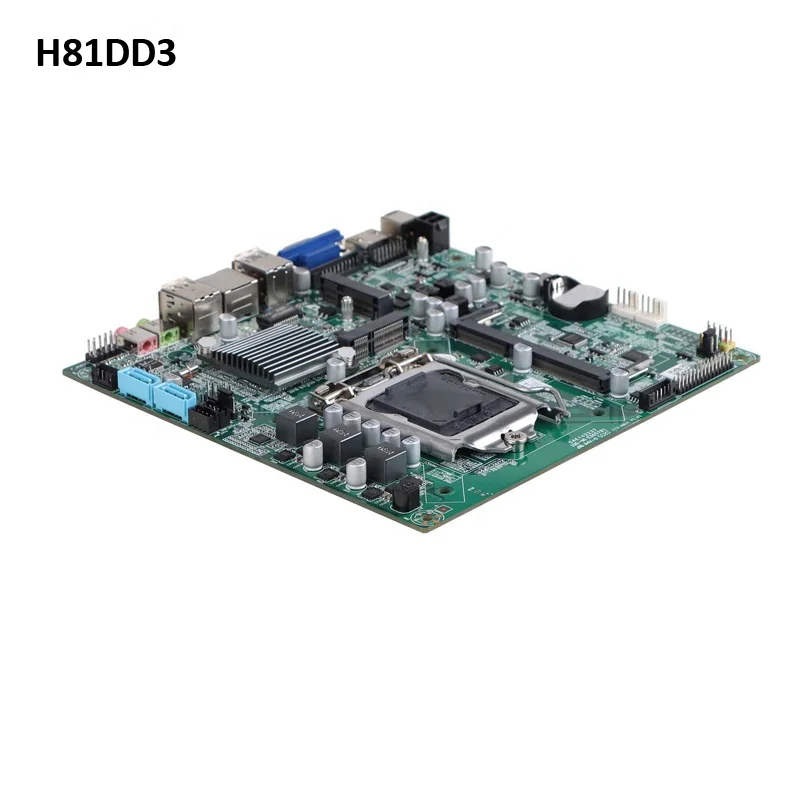

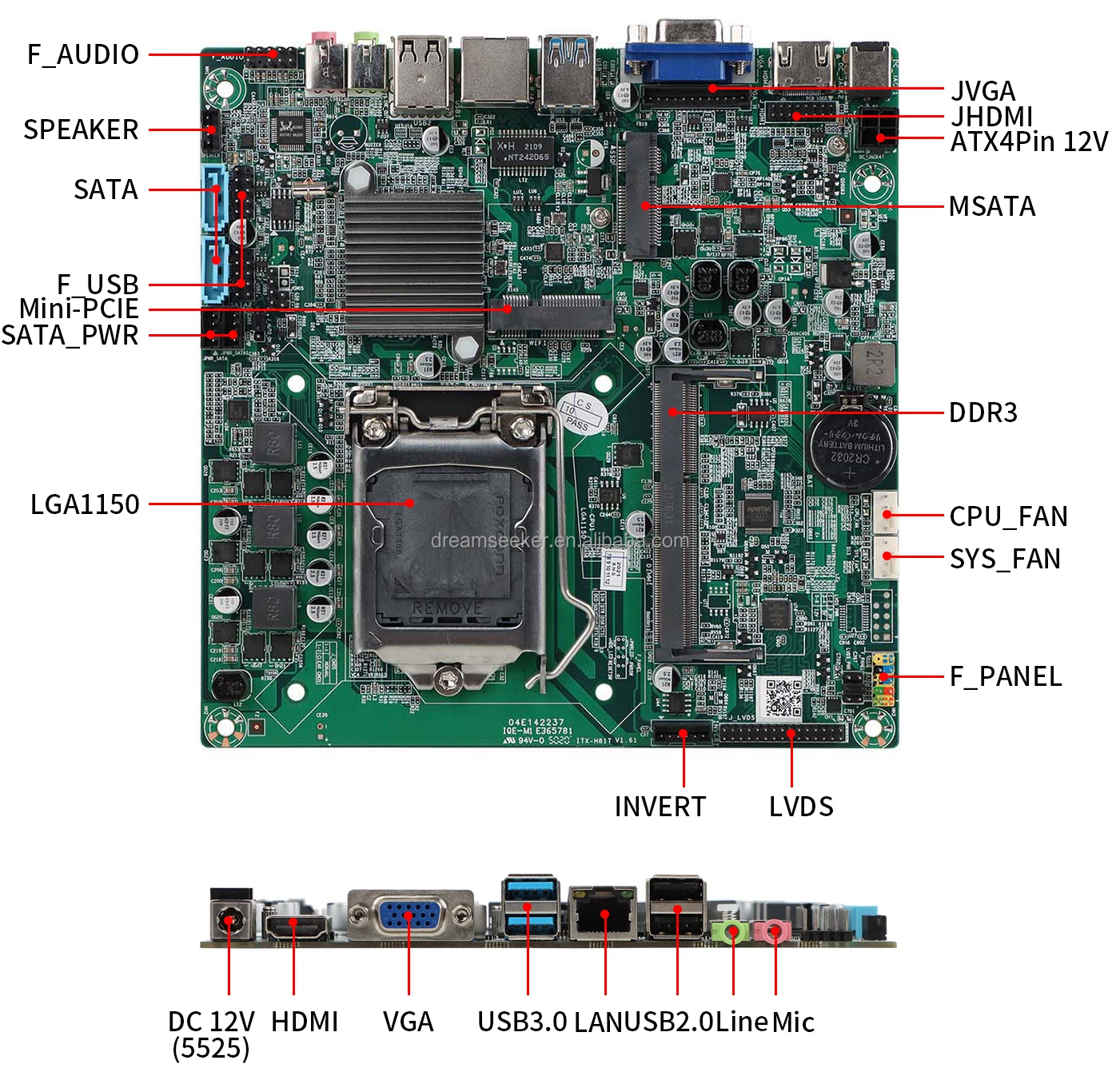

H81DD3-ITX
H81DD3-ITX Series Motherboard Specification | |
CPU | LGA1150 supports Intel 4/5 generation processors |
Memory | 1*DDR3 SO-DIMM sockets, supporting up to 8 GB of system memory. Support 1.35V DDR2 1333/1600 MHz |
Storage Interface | 2*SATA 1*MSATA |
Audio | Built in with Realtek ALC883 HD Audio Controller Supporting High Definition Audio Supporting 2/4/5.1 channel * To configure (Through HDMI) |
Network | Built in Realtek RTL8106E network card |
Expansion Slots | 1*Mini-PCIE |
Back Panel Connectors | 1*HDMI 1*VGA 2*USB3.0 2*USB2.0 1*LAN 1*Line out 1*Mic in 1*DC 12V(5525) |
Internal I/O Connectors | 1*LVDS 1*INVERT 2*SATA_PWR 2*F_USB2.0 1*F_AUDIO 1*F_PANEL 1*SPEAKER 1*JHDMI 1*JVGA |
Fan interface | 1*CPU FAN 4Pin 1*SYS FAN 4pin |
BIOS | AMI 64Mb Flash ROM |
Power Supply | 12V adapter |
Form Factor | 170mm*170mm |

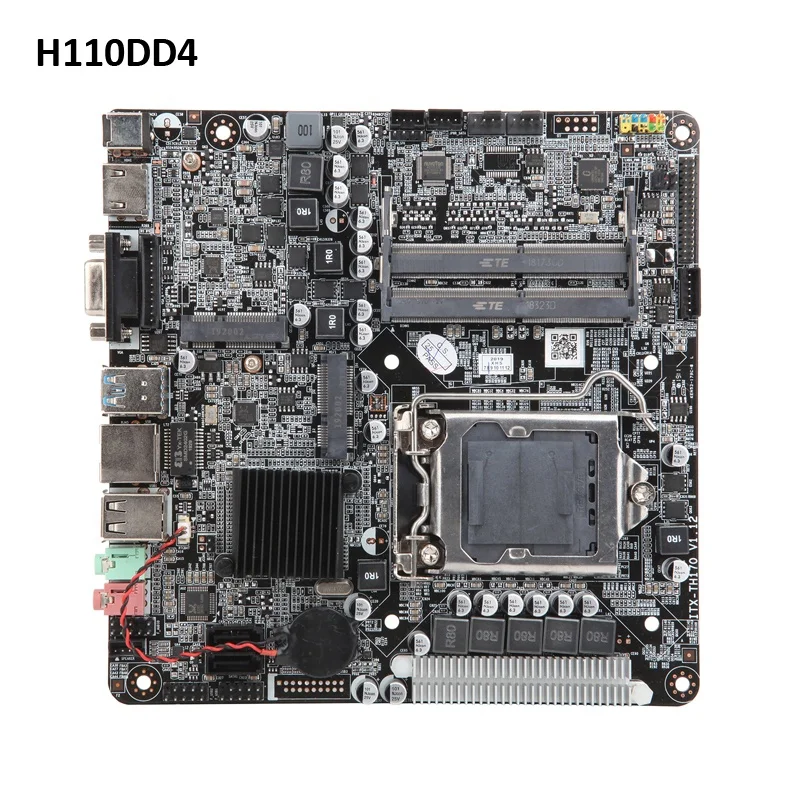

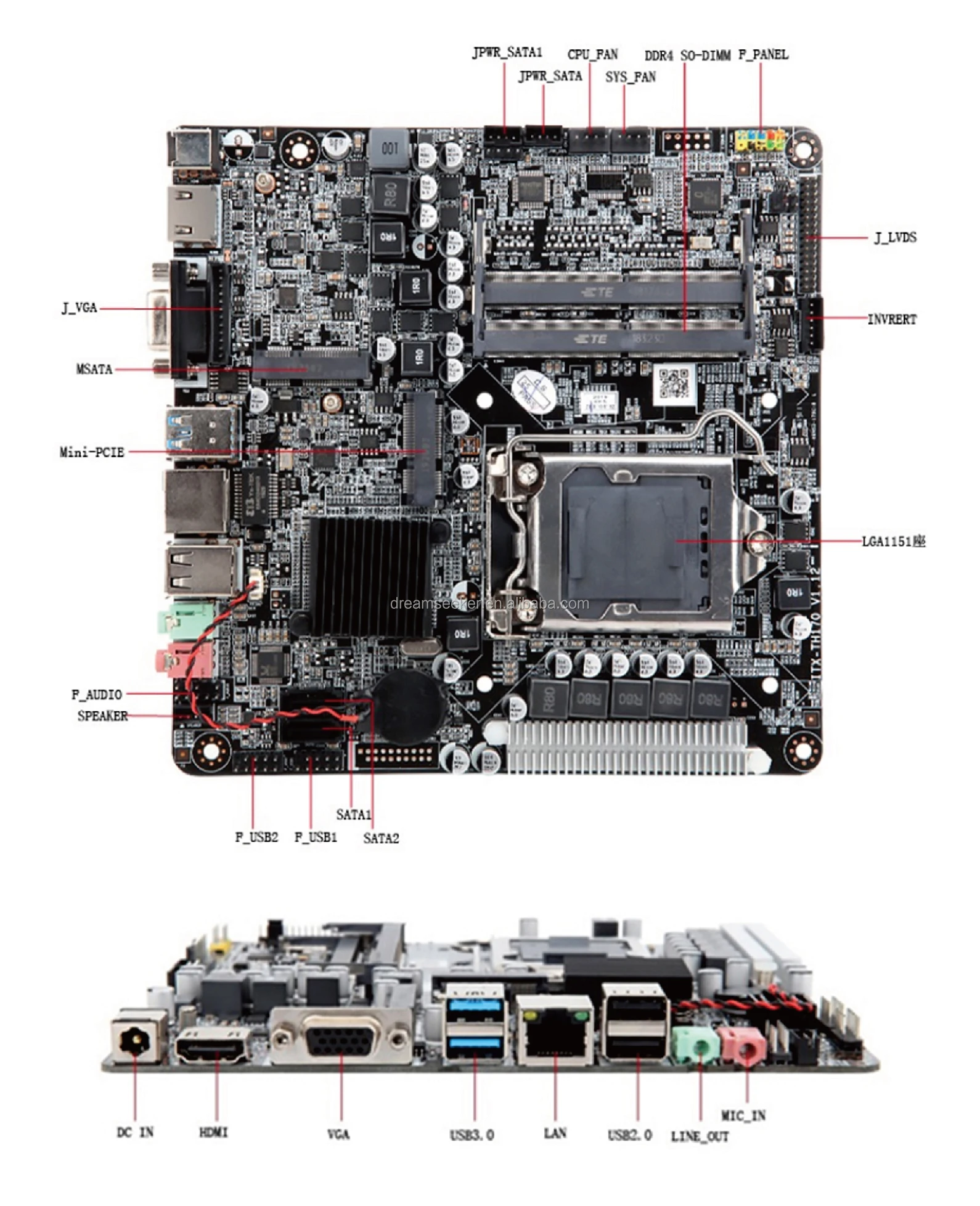

H110DD4-ITX
H110DD4-ITX Series Motherboard Specification | |
CPU | LGA1151 Support for Intel LGA1150 Pin 6/7/8 CPU processors（Maximum support to 8400） |
Chipset | Intel H110 |
Memory | 2*DDR4 SO-DIMM sockets, supporting up to 32 GB of system memory Support 1.2V DDR4 2133/2400 MHz |
Storage Interface | 1*MSATA 2*SATA |
Audio | Built in with Realtek ALC662 HD Audio Controller Support High Definition Audio Supporting 2/4/5.1 channel * To configure (Through HDMI) |
Network | Built in Realtek RTL8111F network card |
Expansion Slots | 1*Mini-PCIE(WIFI/Bluetooth is not supported) |
Back Panel Connectors | 1*HDMI 1*VGA 1*LAN 2*USB2.0 2*USB3.0 1*Line out 1*Mic 1*12V DC_JACK（5525） |
Internal I/O Connectors | 1*LVDS 1*INVERT 1*JVGA 2*F_USB 2.0 1*F_AUDIO 1*SPAKER 1*F_PANEL 2*SATA_PWR |
Fan interface | 1*CPU FAN 1*SYS FAN |
BIOS | AMI 64Mb Flash ROM |
Power Supply | 12V adapter |
Form Factor | 170mm*170mm |

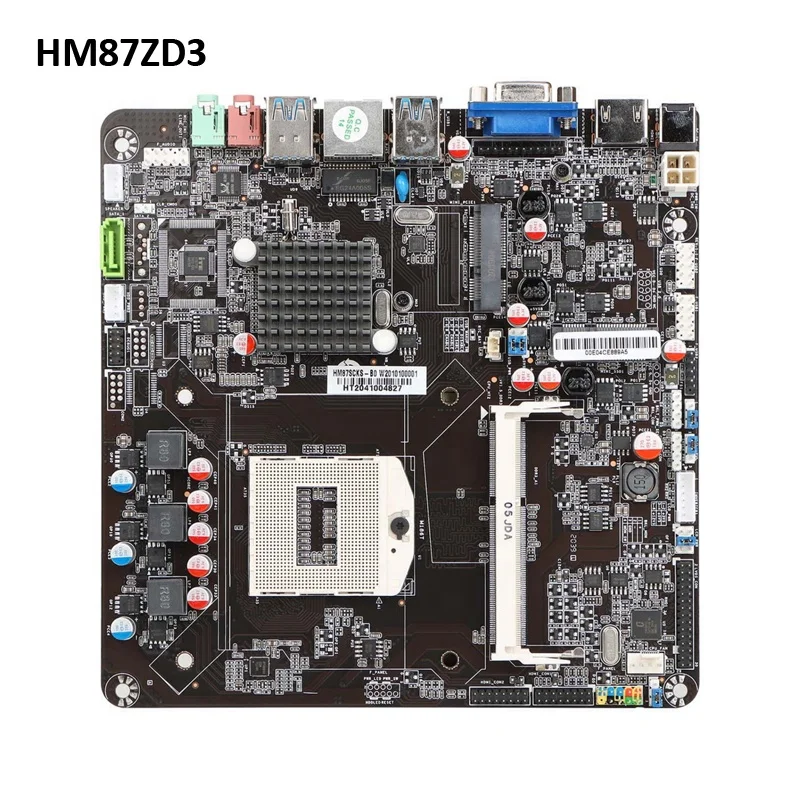

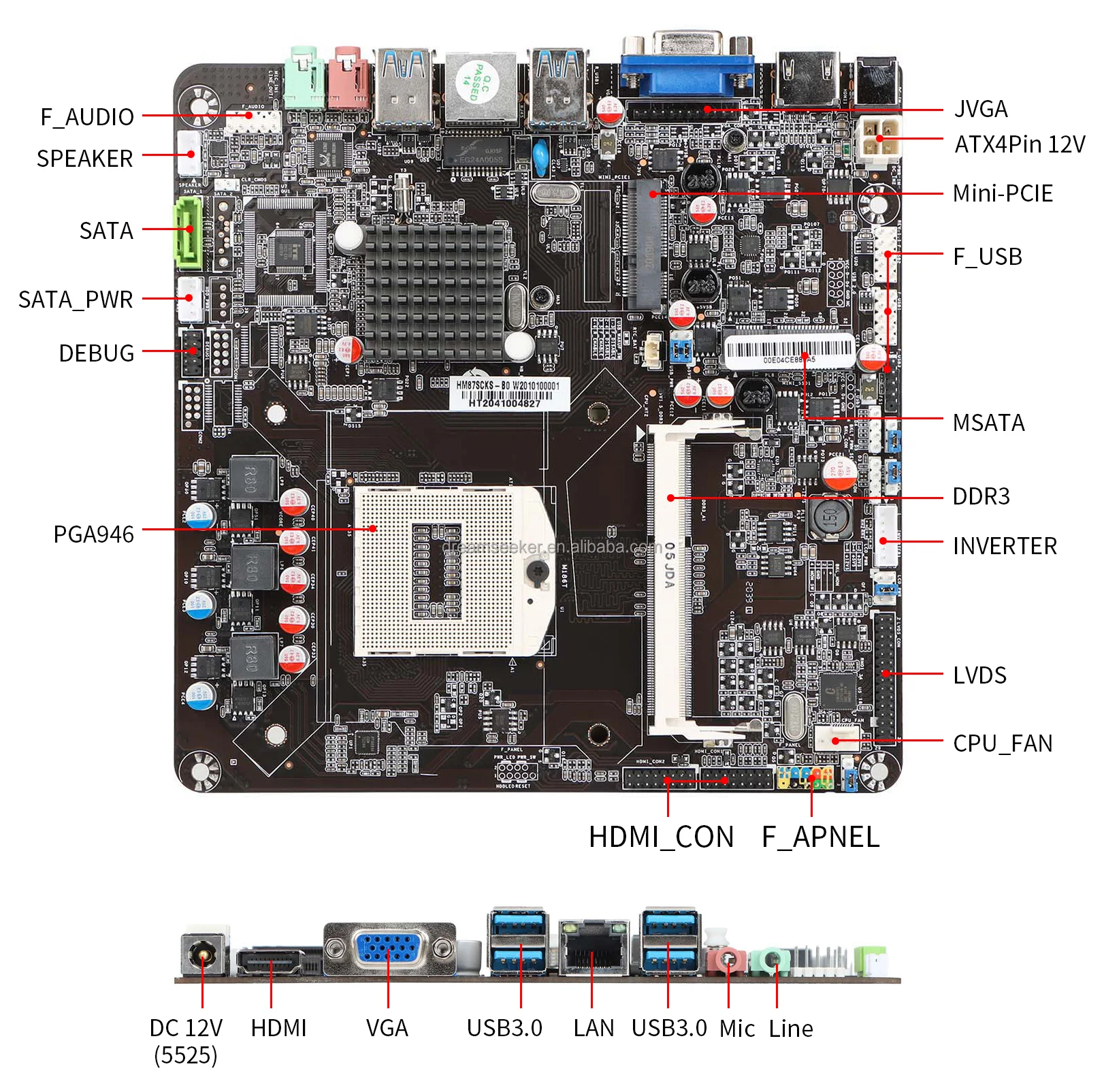

HM87ZD3-ITX
HM87ZD3-ITX Series Motherboard Specification | |
CPU | PGA946 supports Intel 4 generation processors |
Memory | 1*DDR3 SO-DIMM sockets, supporting up to 8 GB of system memory. Support 1.35V DDR2 1332/1600 MHz |
Storage Interface | 1*SATA 1*MSATA |
Audio | Built in with Realtek ALC662 HD Audio Controller Supporting High Definition Audio Supporting 2/4/5.1 channel * To configure (Through HDMI) |
Network | Built in Realtek RTL8111H network card |
Expansion Slots | 1*Mini-PCIE |
Back Panel Connectors | 1*HDMI 1*VGA 4*USB3.0 1*LAN 1*Line out 1*Mic in 1*DC 12V(5525) |
Internal I/O Connectors | 1*LVDS 1*INVERTER 1*SATA_PWR 3*F_USB2.0 1*F_AUDIO 1*F_PANEL 1*ATX_12V 1*SPEAKER 1*JVGA 2*HDMI_CON 1*DEBUG |
Fan interface | 1*CPU FAN 4Pin |
BIOS | AMI 64Mb Flash ROM |
Power Supply | 12V adapter |
Form Factor | 170mm*170mm |

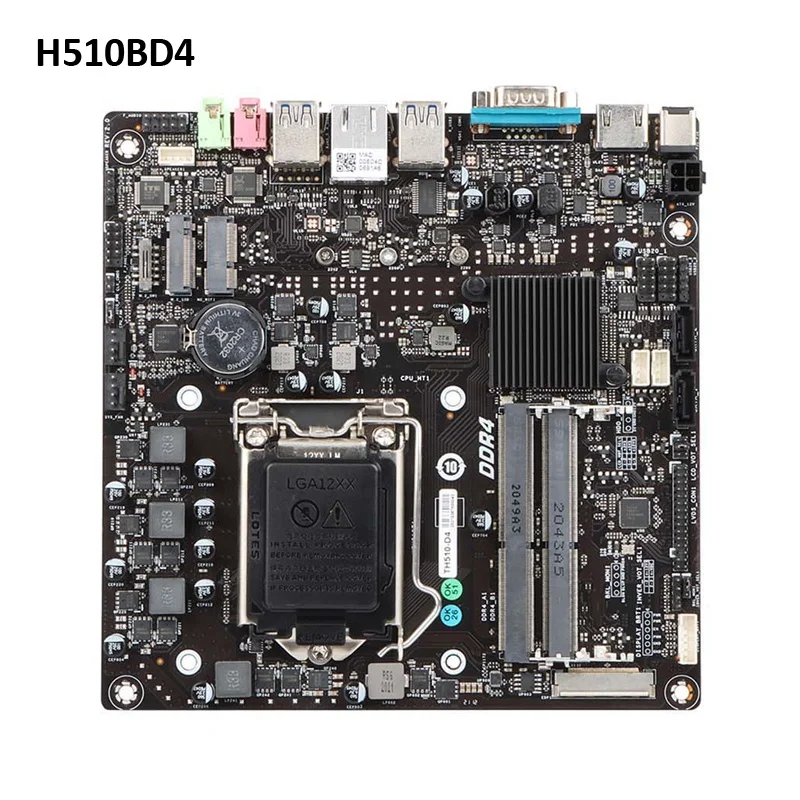

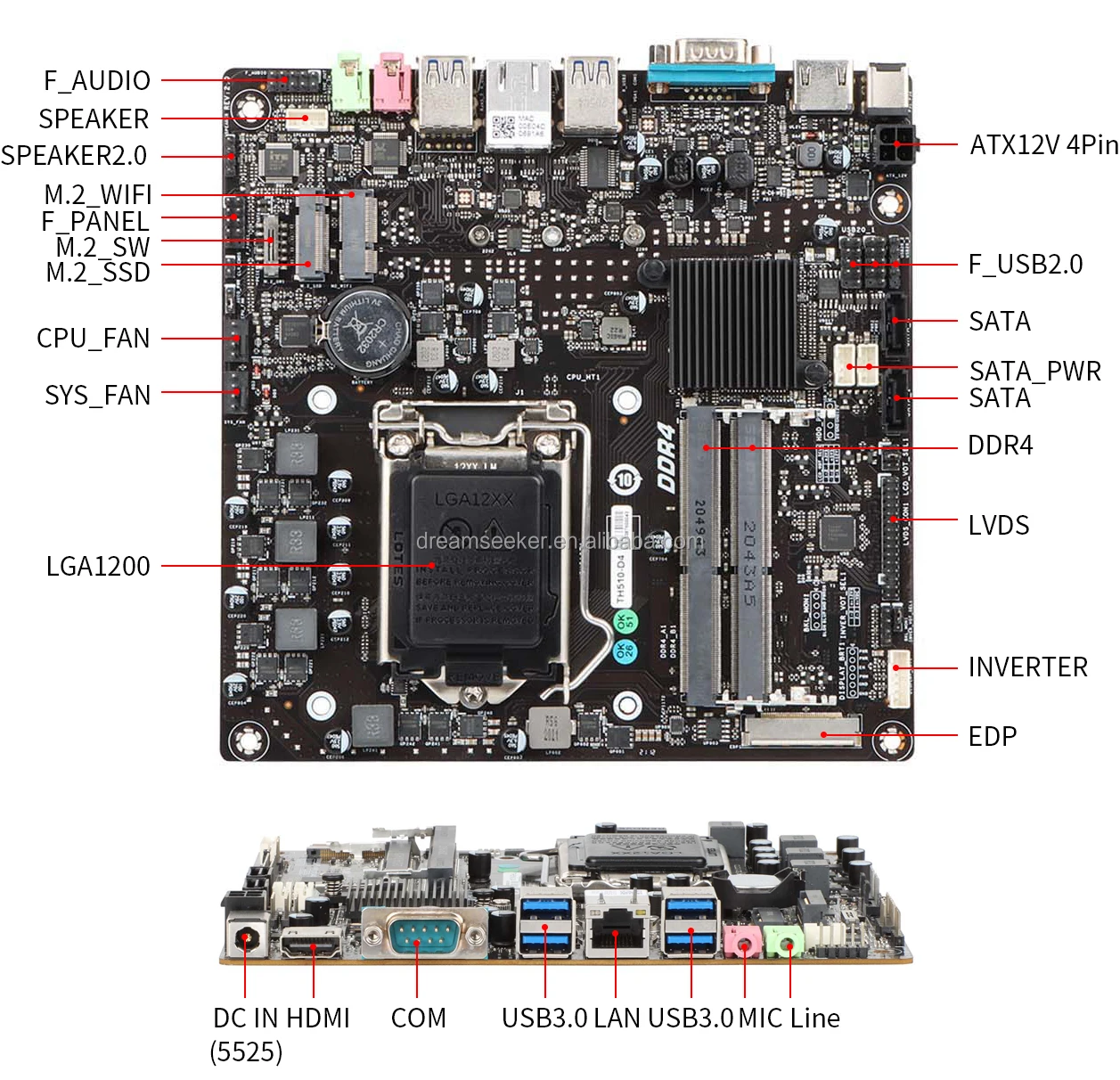

H510BD4-ITX
H510BD4-ITX Series Motherboard Specification | |
CPU | LGA1200 supports Intel 10/11 generation processors |
Memory | 2*DDR5 SO-DIMM sockets, supporting up to 64 GB of system memory. Support 1.25V DDR2 2133/2400/2666 MHz |
Storage Interface | 2*SATA 1*M.2_SSD(Support for Nvme and SATA protocol) |
Audio | Built in with Realtek ALC897 HD Audio Controller Supporting High Definition Audio Supporting 2/4/5.1 channel * To configure (Through HDMI) |
Network | Built in Intel i218-V/i219-V network card |
Expansion Slots | 1*M.2_WIFI |
Back Panel Connectors | 1*HDMI 1*COM 4*USB3.0 1*LAN 1*Line out 1*Mic in 1*DC 12/19V(5525) |
Internal I/O Connectors | 1* F_AUDIO 3* F_USB 2.0 2* SATA_PWR 1* LVDS 1* COM 1* F_PANEL 1* ATX12V 4Pin 1* INVERT 1* SPEAKER 1* SPEAKER2.0 1* EDP 1* M.2_SW(Switch nvme and SATA protocols) |
Fan interface | 1*CPU FAN 4Pin 1*SYS FAN 4pin |
BIOS | AMI 64Mb Flash ROM |
Power Supply | 12/19V adapter |
Form Factor | 170mm*170mm |
