Tabletop Small Automatic Fish Oil Soft Gelatin Capsule Tablet Counting Bottling Machine For Tablets Pill Capsules
- Category: >>>
- Supplier: ZHEJIANG CAPSULCN IMP&EXP CO. LTD
Share on (1600501449430):
Product Overview
Description
Why Choose Us
Pre-sale service
1. Support product customization, any requirements you need can be customized according to your requirements.
2. Sample test on our counting line.
3. Provide business consulting and technical support, as well as a free professional packaging solution
4. Make a machine layout for customers based on customers' factories.
3. Online support, or face-to-face online communications, are available.
4. The engineer overseas services, are available. The tickets, visa, traffic, living, and eating, are for customers.
5. During the warranty year, without human-being broken, we will replace a new one for you.
2. Sample test on our counting line.
3. Provide business consulting and technical support, as well as a free professional packaging solution
4. Make a machine layout for customers based on customers' factories.
After-sales service
1. Manual book.
2. Videos of installation, adjusting, setting, and maintenance, are available for you.3. Online support, or face-to-face online communications, are available.
4. The engineer overseas services, are available. The tickets, visa, traffic, living, and eating, are for customers.
5. During the warranty year, without human-being broken, we will replace a new one for you.
Products Description
Model | BotCN-Cot 8 | BotCN-Cot 16 | |
Counting speed | 10~30 bottles/min | 10-70 bottles/min | |
Dimensions | 1350*1400*1650(mm) | 1560*1530*1700 (mm) | |
Weight | 300kg | 480Kg | |
Common type | Pills, tablets, soft and hard capsules and other solid tablets | ||

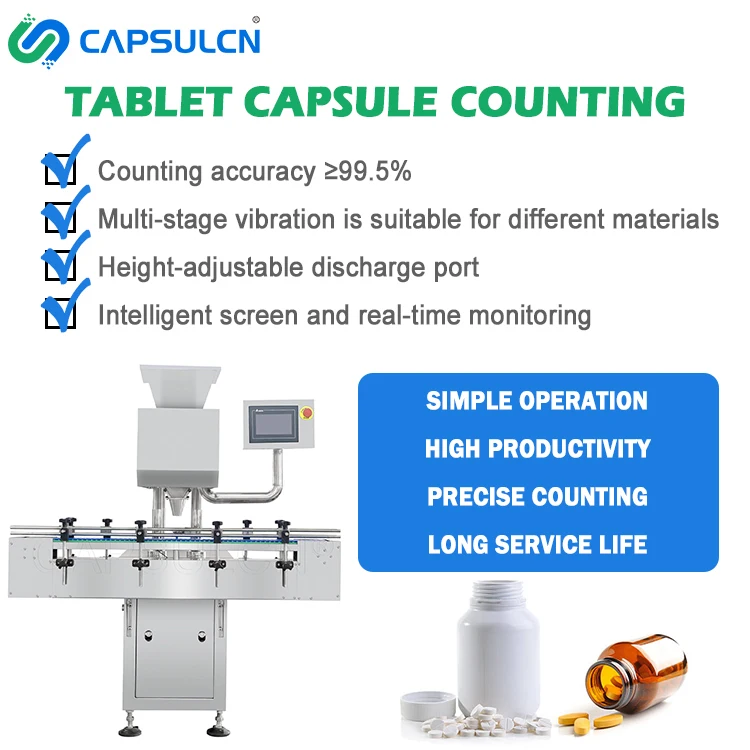

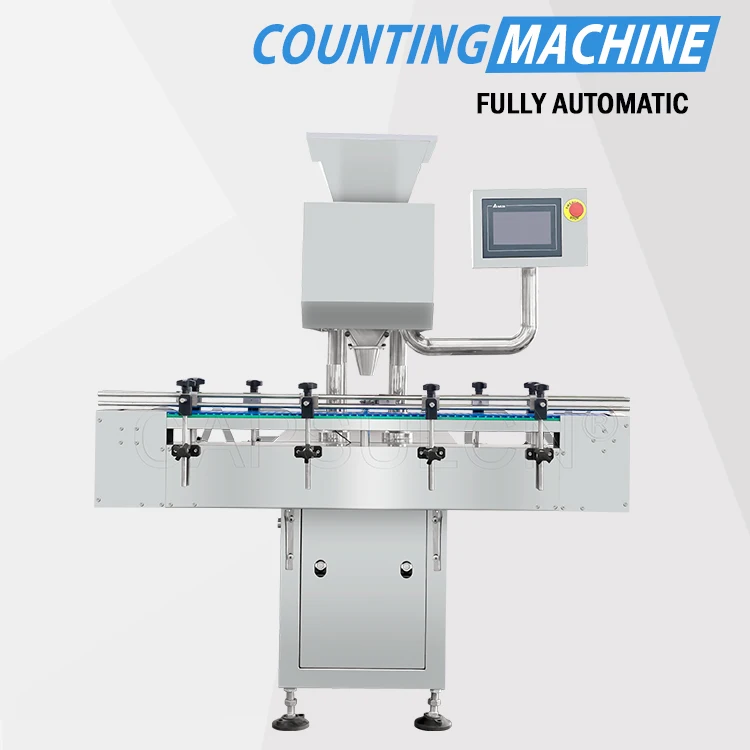

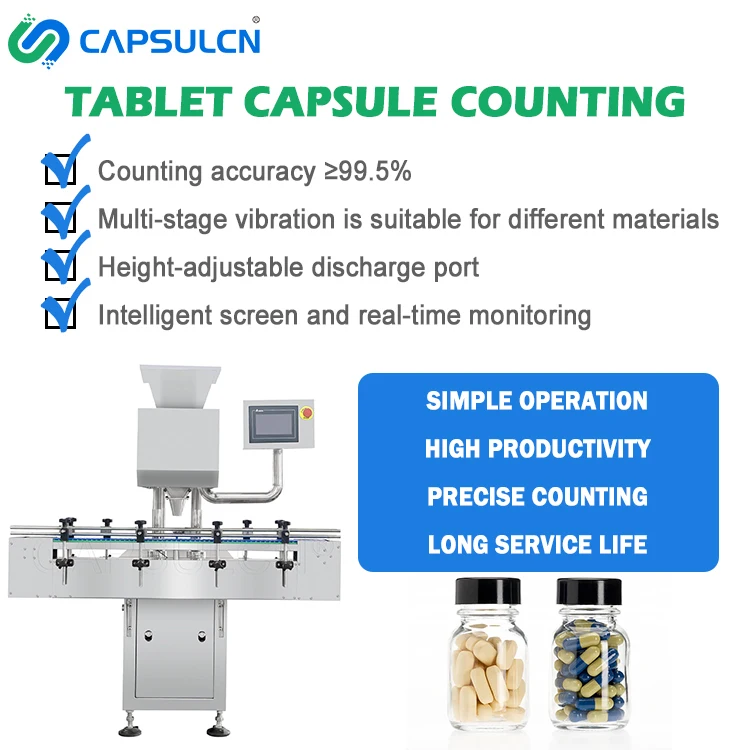

8 Channel Automatic Vibrating Pill Capsule Tablet Counting Machine
8S photoelectric counting machine adopts internationally advanced vibrating multi-channel blanking, computer control, dynamic scanning counting, automatic bottle feeding, photoelectric sensor control and other advanced technologies. It is designed according to GMP standards, and the operation interface is displayed in LCD English. Equipped with system self-checking, error prompting, fault alarm automatic shutdown and other safety protection intelligent devices, It is a high-tech material counting and filling equipment integrating photoelectricity.
This machine can be widely used for fast counting and bottling of various shapes and sizes of tablets, capsules, pills and other medicines or food, health care products and other materials. The counting and bottling speed and accuracy rate have reached the advanced level of similar products at home and abroad.
This machine can be widely used for fast counting and bottling of various shapes and sizes of tablets, capsules, pills and other medicines or food, health care products and other materials. The counting and bottling speed and accuracy rate have reached the advanced level of similar products at home and abroad.
Suitable for counting

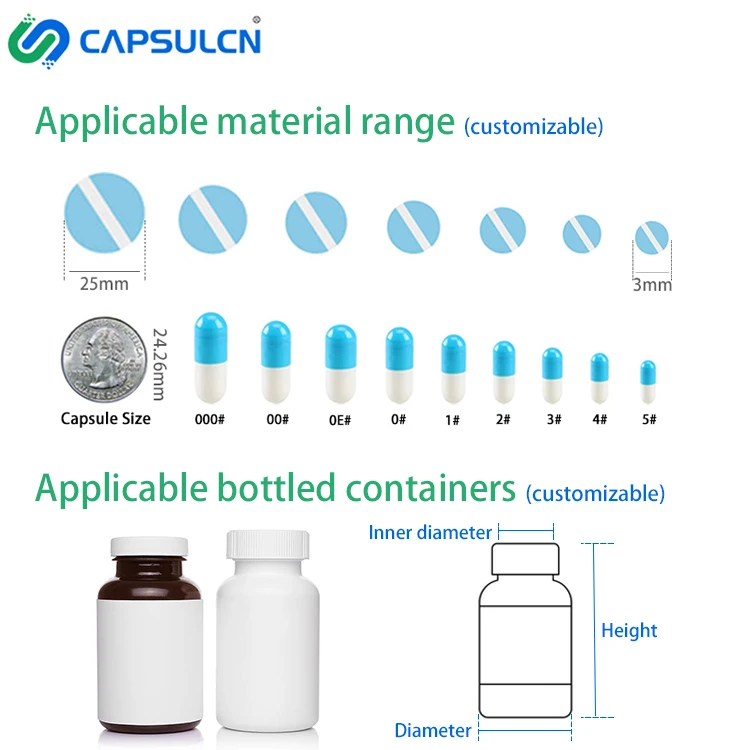

Applicable material range (customizable)
Applicable bottled containers (customizable)
Details Images
Main features
1.Three-stage vibrators：With 8-channel vibration, materials are distributed more evenly.
2.Reliable operation：It runs stably and smoothly with low noise.
3.High dust resistance：It adopts unique anti-dust photoelectric sensor.
4.Accurate counting：Due to photoelectric sensor detection and imported large PLC counting, bottle-filling error meets the international standard.
5.Optional function：If special components are added, it can possess functions such as rejecting unqualified capsules or tablets and photoelectric detection alarming for lack of bottles or bottles being blocked.
6.Simple operation：With intelligent design, various operating parameters can be set in advance, including at most 15 sets in memory.
7.Easy maintenance：The operator only requires simple training as the disassemble, cleaning and replacement of parts are easy to carry out without the need of tools.
8.Sealed and dustproof：It is equipped with a dust box to reduce dust pollution.
9.The platform height can be adjusted according to the bottle height.
10.The machine is equipped with a power supply voltage stabilizing system, so it can still work normally in areas with unstable power supply.
2.Reliable operation：It runs stably and smoothly with low noise.
3.High dust resistance：It adopts unique anti-dust photoelectric sensor.
4.Accurate counting：Due to photoelectric sensor detection and imported large PLC counting, bottle-filling error meets the international standard.
5.Optional function：If special components are added, it can possess functions such as rejecting unqualified capsules or tablets and photoelectric detection alarming for lack of bottles or bottles being blocked.
6.Simple operation：With intelligent design, various operating parameters can be set in advance, including at most 15 sets in memory.
7.Easy maintenance：The operator only requires simple training as the disassemble, cleaning and replacement of parts are easy to carry out without the need of tools.
8.Sealed and dustproof：It is equipped with a dust box to reduce dust pollution.
9.The platform height can be adjusted according to the bottle height.
10.The machine is equipped with a power supply voltage stabilizing system, so it can still work normally in areas with unstable power supply.
Capsule or tablet feeding unit
It consists of the hopper, the three-stage vibrator, the vibrating plate and the anti-dust cover.
Three-stage vibrators
With 8-channel vibration, materials are distributed more evenly.
Counting & filling unit
It consists of filling pipes, counting sensor, hopper, etc.
Bottle-conveying unit
composed of the drive system, the conveyer belt, the bottle-pause cylinder, bottle-intercepting cylinder, bottle illuminating sensor, etc.
Electrical control system(Control panel)
This part includes HMI, PLC and the power amplifier.
Machine frame
It consists of the electrical cabinet and supporting legs.
Product Paramenters
Model | BotCN-Cot 8 |
Rate of production | 10~30 bottles/min |
Single bottling capacity | 2-9999 pcs/bottle |
Common type | Pills, tablets, soft and hard capsules and other solid tablets |
Pharmaceutical specifications | φ3~φ20mm solid granules, 0~5# hard capsules, soft capsules, other solid granules |
Bottle diameter | φ20~φ100mm |
Bottle height | 40~240mm |
Power supply | AC220V50/60Hz |
Air pressure and consumption | 0.6~0.8 MPa, 3.5 L/min |
Power | 0.8 kW |
Overall dimension (L*W*H) | 1350mm*1400mm*1650mm (Level 2) 1650mm*1400mm*1650mm (Level 3) |
Machine weight | About 250kg/300kg |
Related Products
Let the machine work for you!
Dear customer,
Maybe you have only bought one of our machines, but you shall know about our company’s complete production line,which will definitely satisfy you.

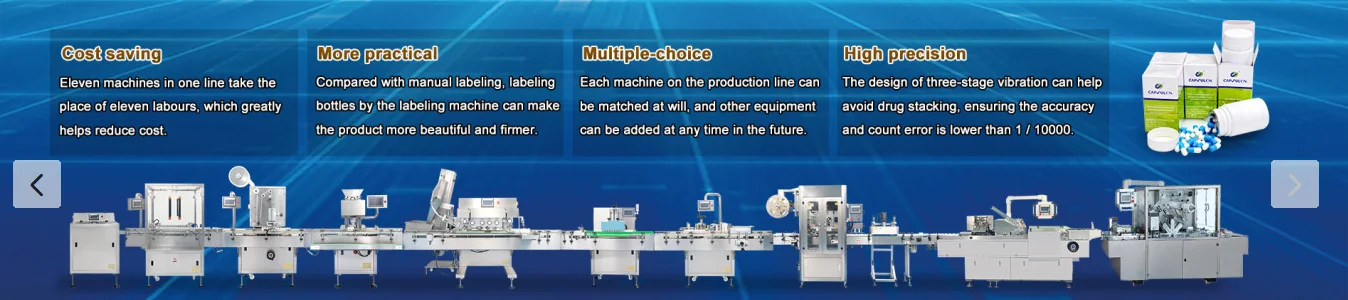

Eleven machines cooperate perfectly
* You can choose the complete line or just several machines of it, which is based on your own needs.
* As each machine cooperates perfectly in order, it greatly improves not only the efficiency but also the quality and grade of product packaging.
* As each machine cooperates perfectly in order, it greatly improves not only the efficiency but also the quality and grade of product packaging.
If you have any questions, please contact us at any time.
Company Profile

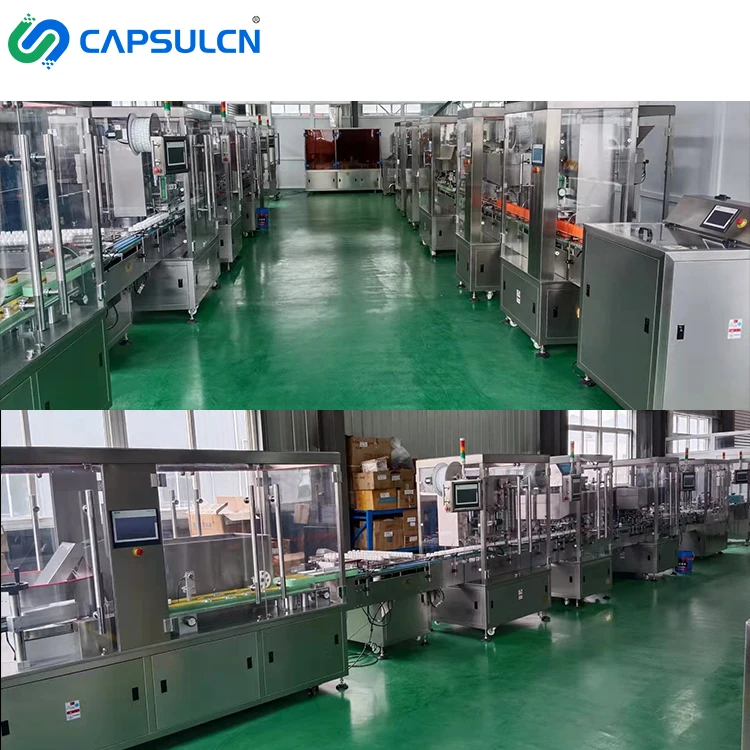

WORKSHOP
Each workshop performs its own duties
EXHIBITION
Customer-oriented, enthusiastic to serve customers, to provide customers with the best machines, believe HUADA
Certifications
FAQ
Q: Where is your factory? Can I visit your factory?
A: Our factory is located In Rui 'an Zhejiang province. We warmly welcome you to visit our factory if you have a travel plan.
Q: How can I know your machine is suitable for you product?
A: If possible, you can send us samples and we will test on machines.So can we will take videos and pictures for you. We can also show you on-line by video chatting.
Q: How can I trust you for the first-time business?
A: You can check our business license and certificates. And we suggest using Alibaba Trade Assurance Service for all transactions to protect your money rights and interests.
Q: How about the after service and guarantee period?
A: A: We offer 3 years warranty since the arrival of the machine. Technical support is available 24/7. CapsulCN highly recommends that you keep all of your original packaging. This is precautionary to ensure that you have the wooden box or carton if the machine has to be sent for repair. We have professional after-sale team with experienced technician to do the best after service to assure the machine whole life usage.
Q:How to contact you?
A: Please leave messages and click "send" to send us inquiries.
A: Our factory is located In Rui 'an Zhejiang province. We warmly welcome you to visit our factory if you have a travel plan.
Q: How can I know your machine is suitable for you product?
A: If possible, you can send us samples and we will test on machines.So can we will take videos and pictures for you. We can also show you on-line by video chatting.
Q: How can I trust you for the first-time business?
A: You can check our business license and certificates. And we suggest using Alibaba Trade Assurance Service for all transactions to protect your money rights and interests.
Q: How about the after service and guarantee period?
A: A: We offer 3 years warranty since the arrival of the machine. Technical support is available 24/7. CapsulCN highly recommends that you keep all of your original packaging. This is precautionary to ensure that you have the wooden box or carton if the machine has to be sent for repair. We have professional after-sale team with experienced technician to do the best after service to assure the machine whole life usage.
Q:How to contact you?
A: Please leave messages and click "send" to send us inquiries.
