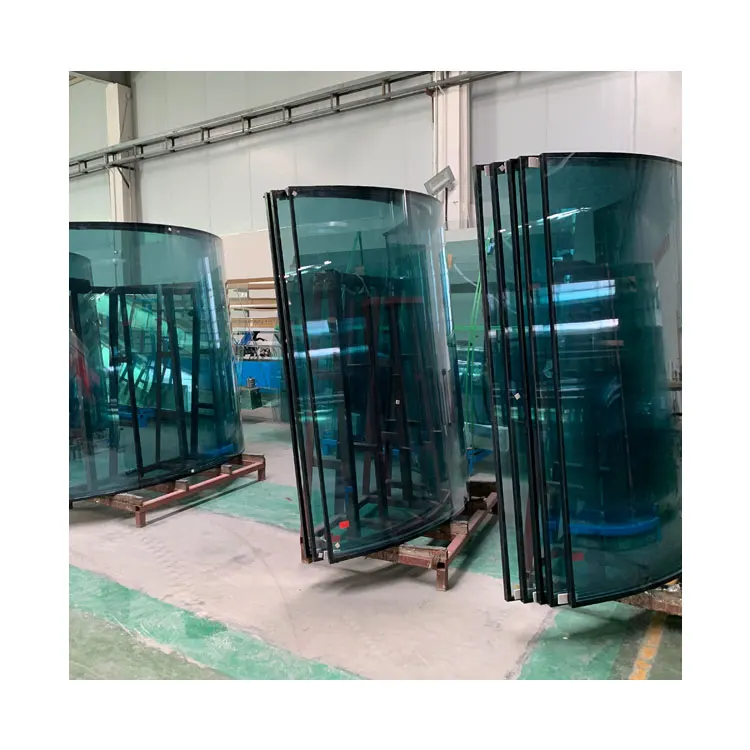

Good Quality Low E Bent Curved Tempered Laminated Insulated Glass for Building Curtain Wall Facade
- Category: >>>
- Supplier: Shenzhen Dayang Special Glass Co. Ltd.
Share on (1600501457787):
Product Overview
Description
Products Description

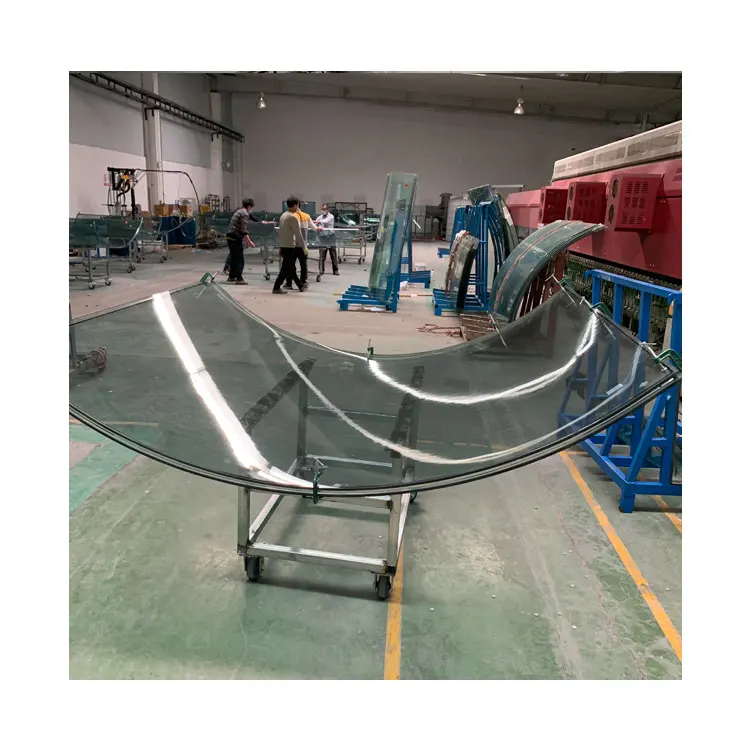

Curved tempered glass is available for different shape, but also can meet the stress requirement which makes different building design possible. It is an attractive and competitive price 4-19mm curved tempered glass for building and furniture.It’s used in curtain wall with curved structure, skylight, sightseeing elevator, Hyperboloid and taper shape buildings.
Tempered Line 1：
1. Horizontal shaft tempered line
Maximum size：Arc length 2500*Height 2500mm
Minimum size：Arc length 400 *Height 300mm
Minimum radius：900mm
Thickness：4-25mm
2. Vertical shaft tempered line
Maximum size：Arc length2440*Height6200mm
Minimum size：Arc length500*Height300mm
Minimum radius：1000mm
Unlimited maximum radius.
Thickness：6-25mm
Tempered Line 2 (Multi-curve tempering)
Maximum size：Arc length2440mm*Height5000mm
Minimum size:Arc length400mm*Height400mm
Thickness: 6-15mm
Any shape is available. Maximum arc height：360mm
Tempered Line 3 （ Horizontal shaft curved line ）：
Maximum size:Arc length1200*Height2850mm
Minimum size:Arc length400*Height300mm
Minimum radius: 420mm
Unlimited maximum radius.
Thickness:3-15mm
1. Horizontal shaft tempered line
Maximum size：Arc length 2500*Height 2500mm
Minimum size：Arc length 400 *Height 300mm
Minimum radius：900mm
Thickness：4-25mm
2. Vertical shaft tempered line
Maximum size：Arc length2440*Height6200mm
Minimum size：Arc length500*Height300mm
Minimum radius：1000mm
Unlimited maximum radius.
Thickness：6-25mm
Tempered Line 2 (Multi-curve tempering)
Maximum size：Arc length2440mm*Height5000mm
Minimum size:Arc length400mm*Height400mm
Thickness: 6-15mm
Any shape is available. Maximum arc height：360mm
Tempered Line 3 （ Horizontal shaft curved line ）：
Maximum size:Arc length1200*Height2850mm
Minimum size:Arc length400*Height300mm
Minimum radius: 420mm
Unlimited maximum radius.
Thickness:3-15mm

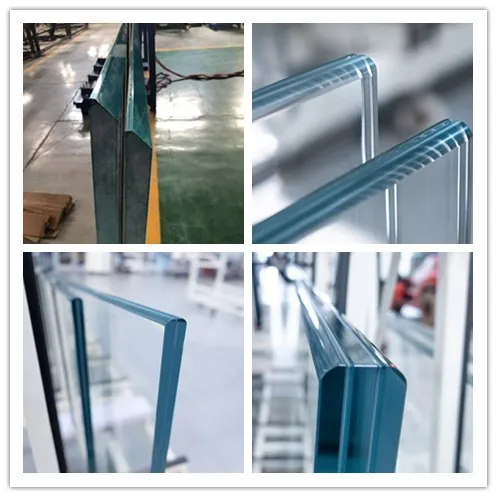

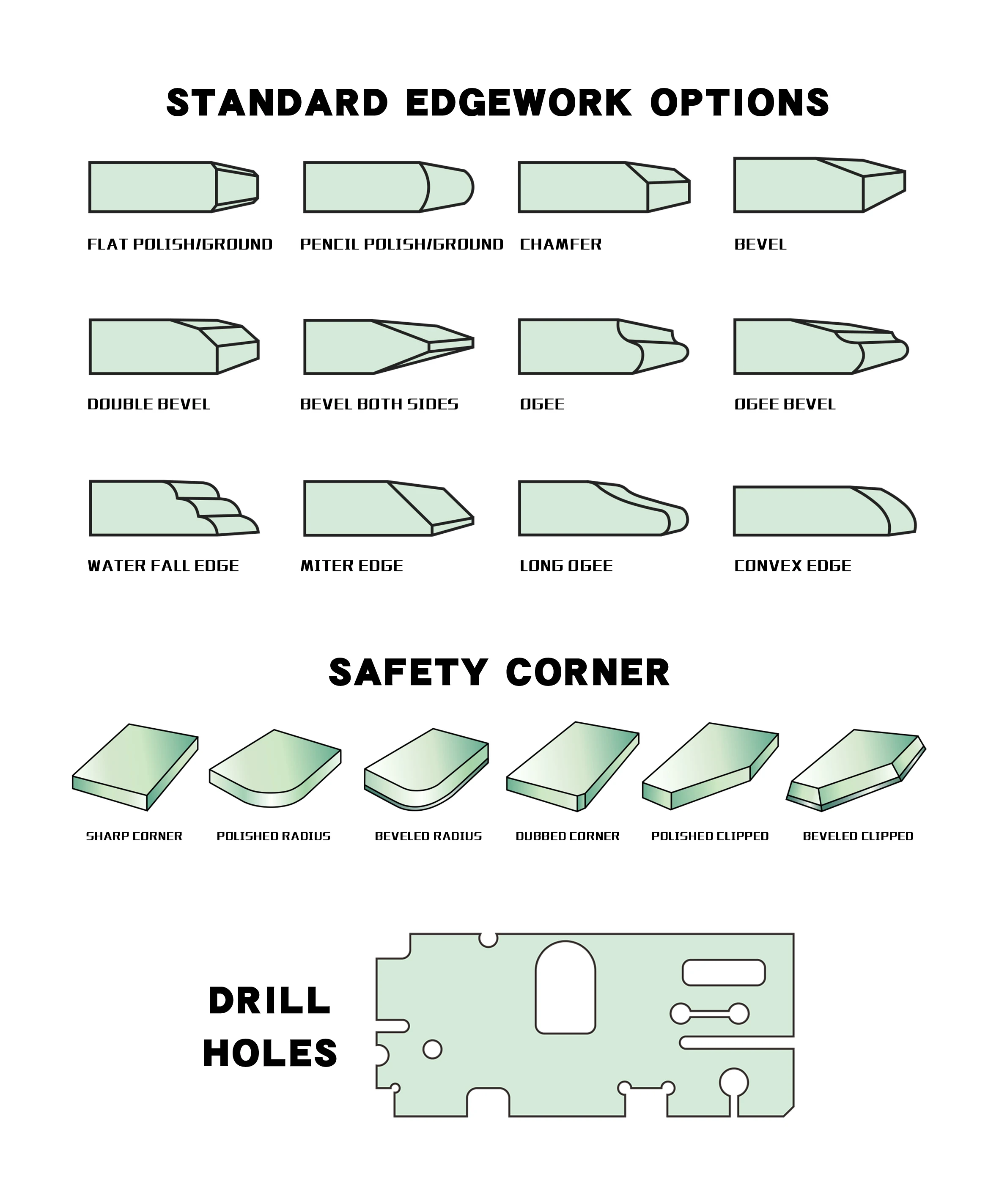

Edges We Can Do

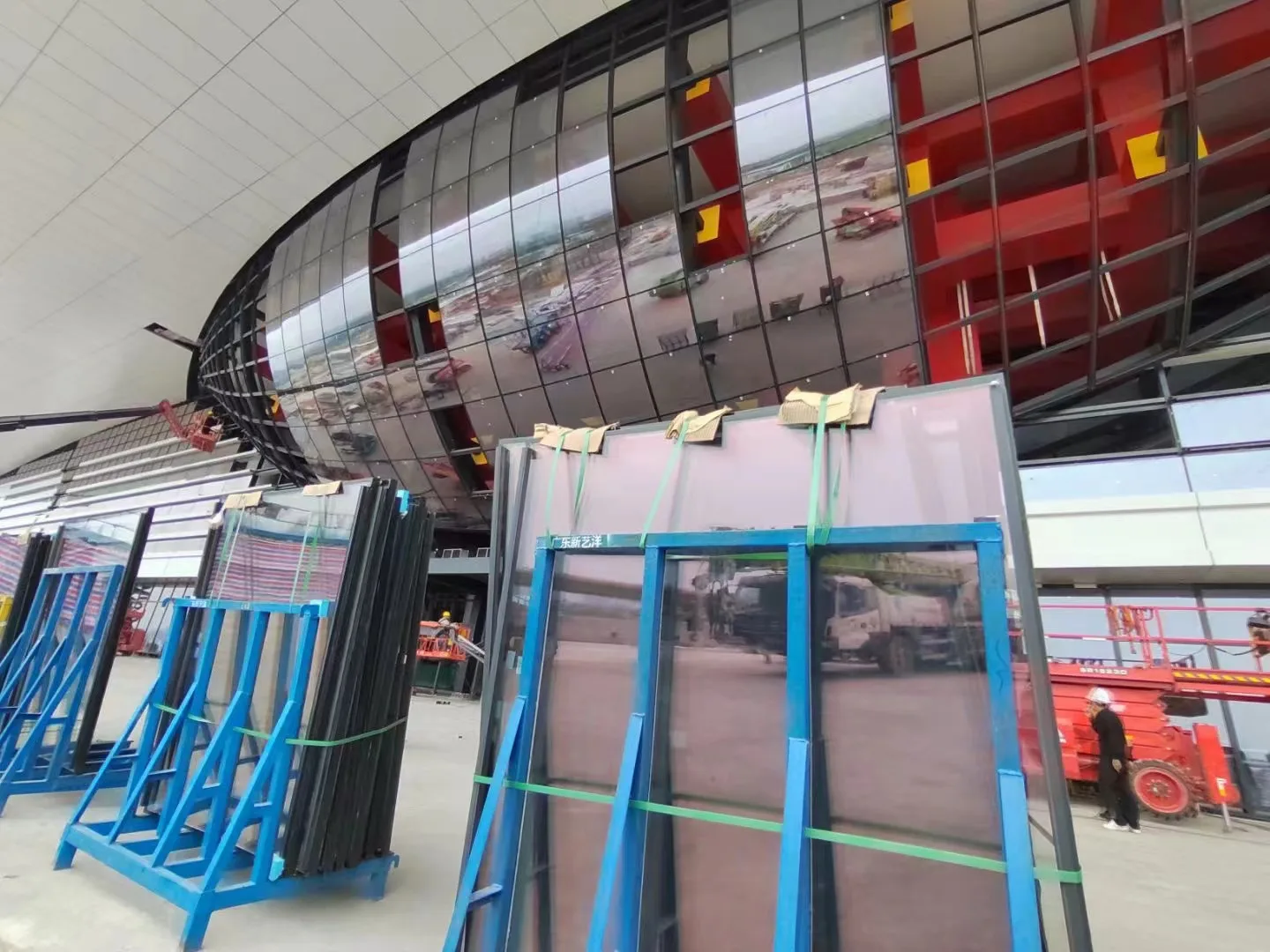

Product packaging

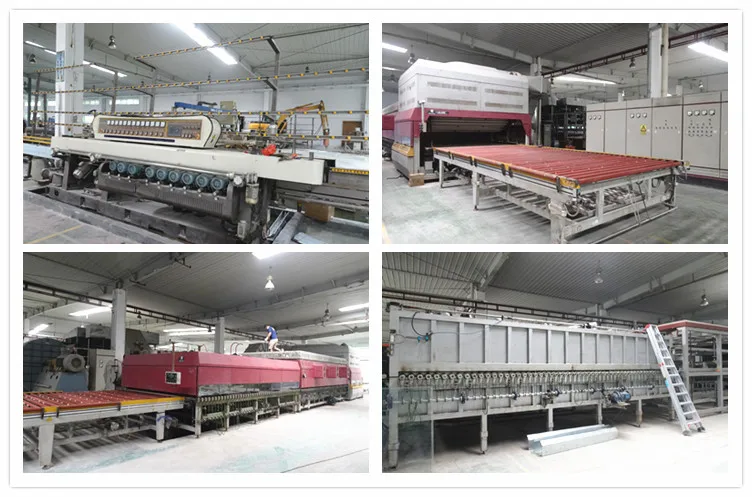

Production Process
Our Advantages
The curved tempered glass produced by Dayang Glass has good safety, good impact strength performance, high thermal stability, wind pressure resistance and deflection performance.
Curved tempered glass also has the following advantages same as tempered glass:
High strength: the strength is 4-5 times that of ordinary glass;
Large deflection: 3-4 times the deflection resistance of ordinary glass
Thermal stability: has good thermal stability, can withstand the temperature difference of 200 ℃

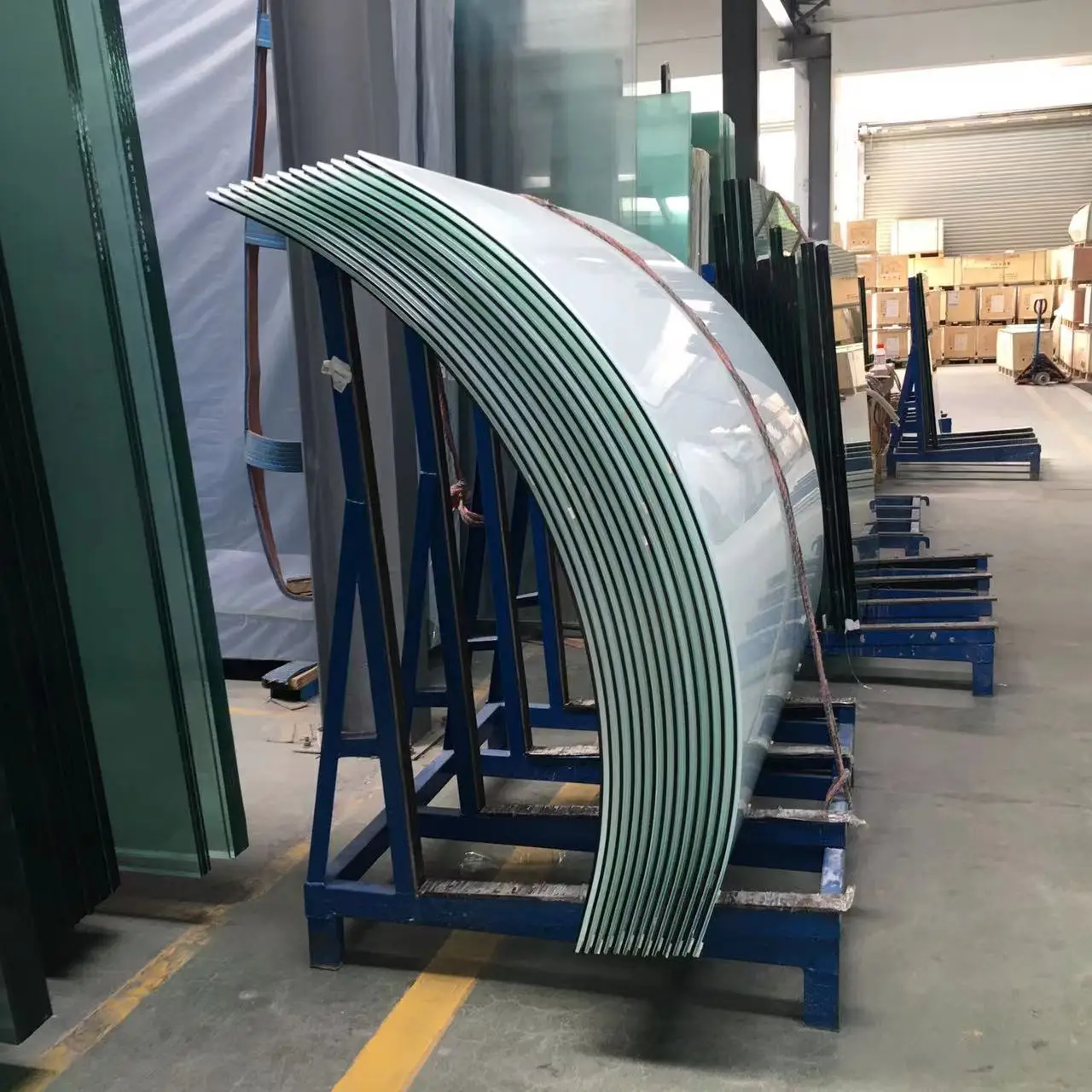

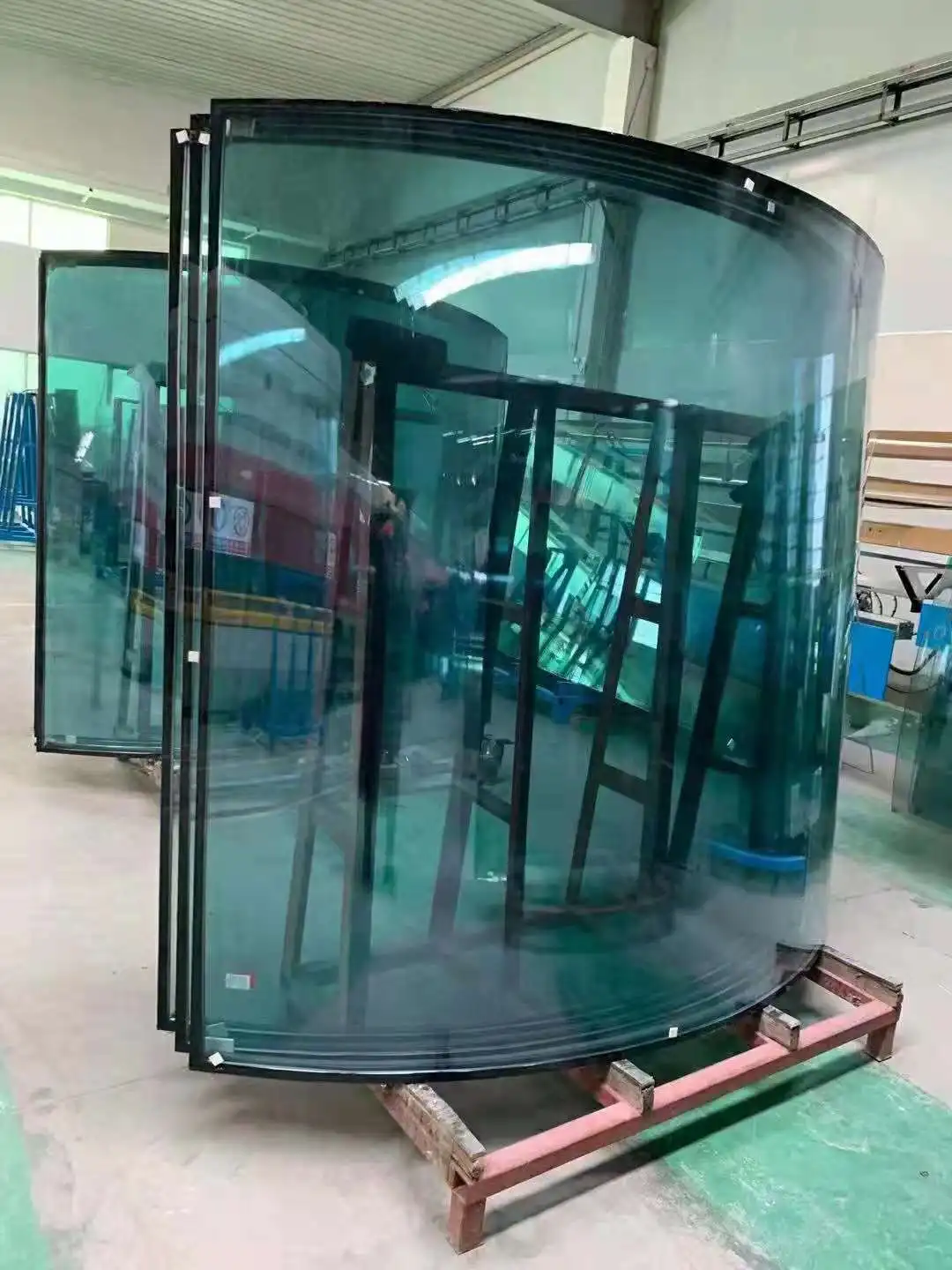

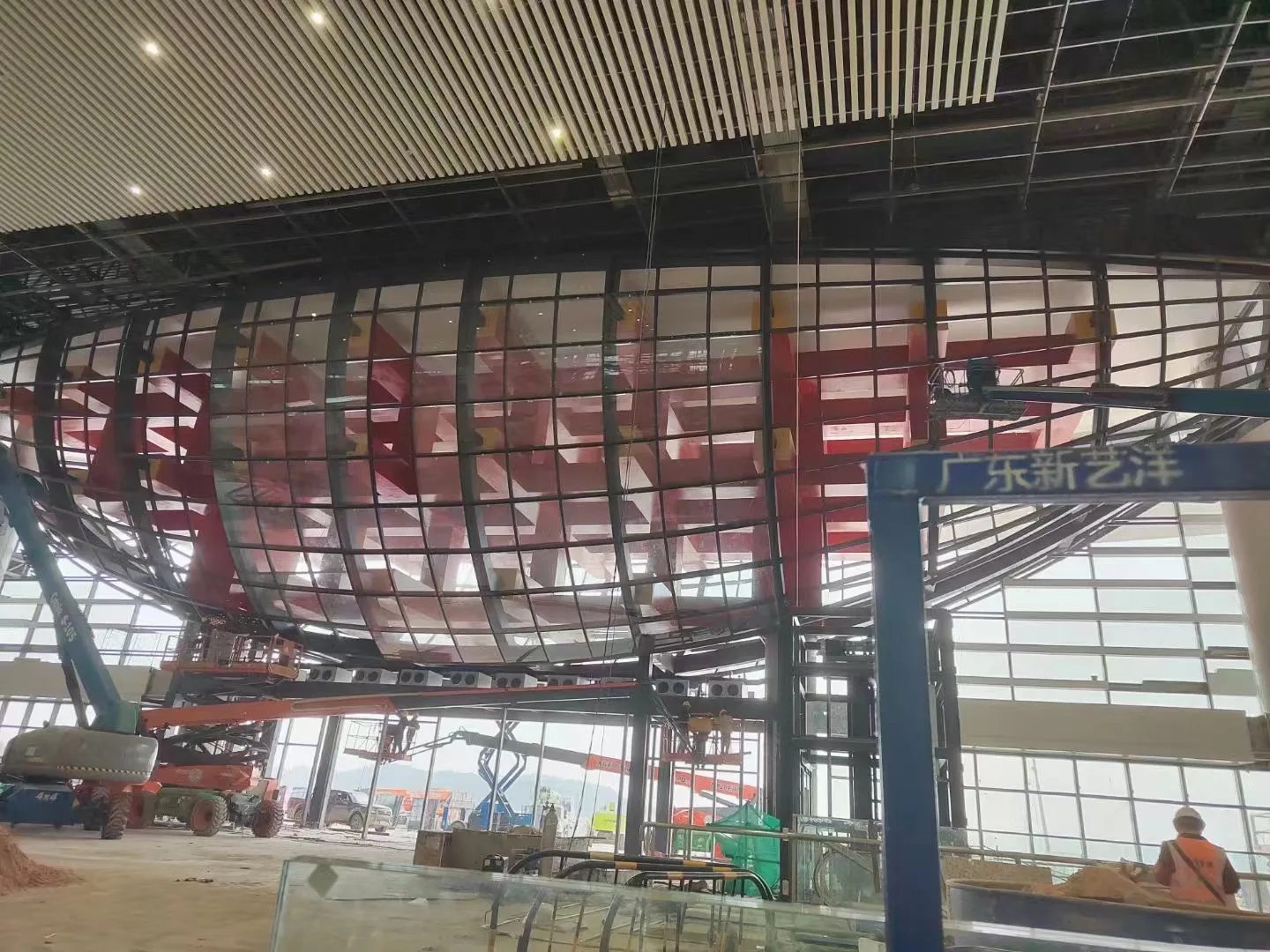

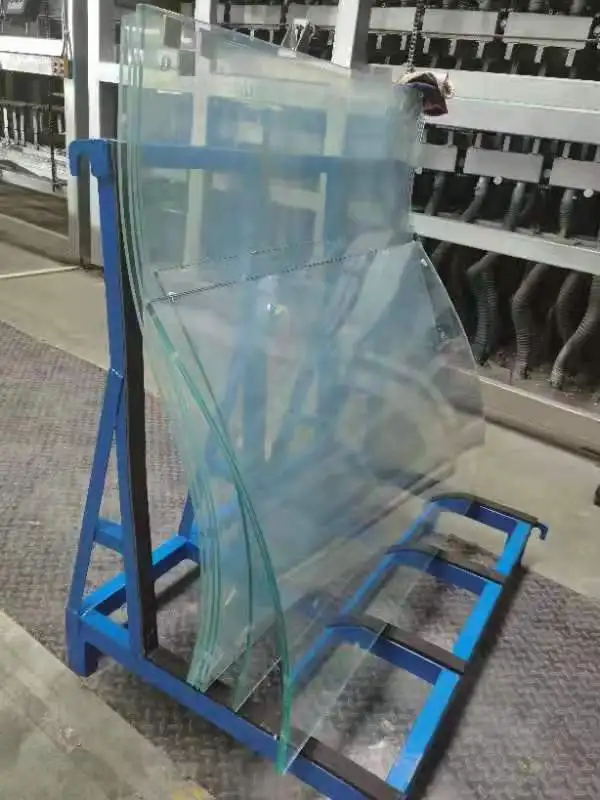

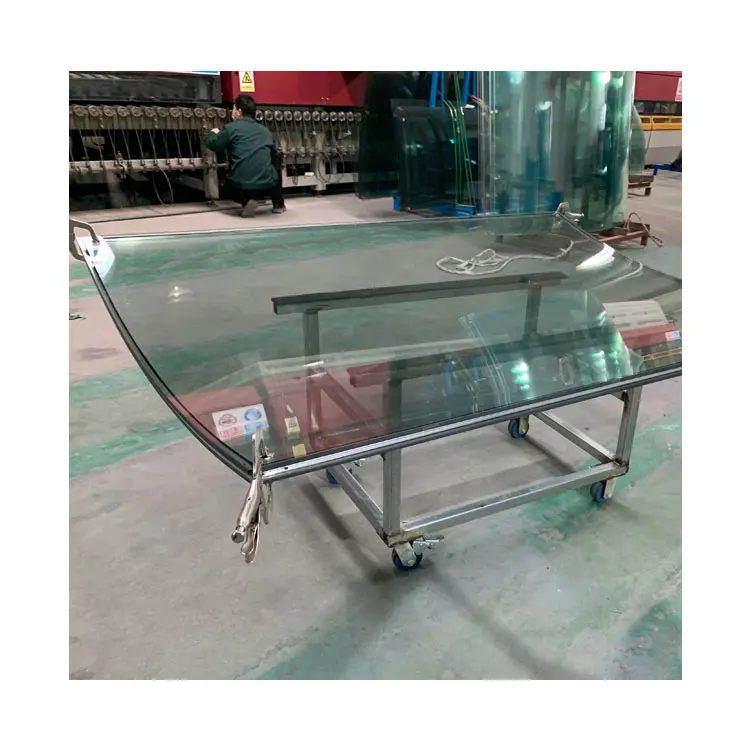

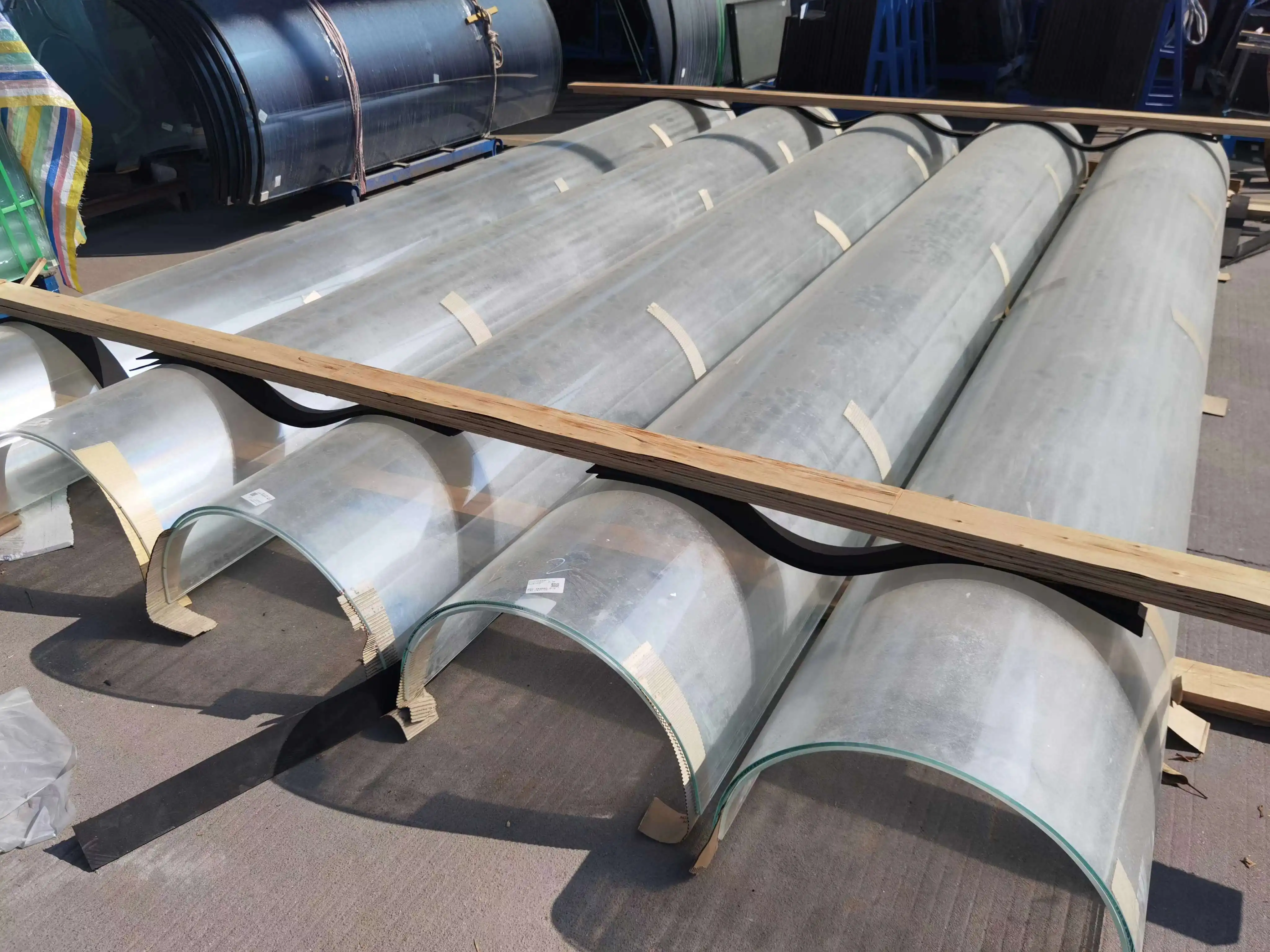

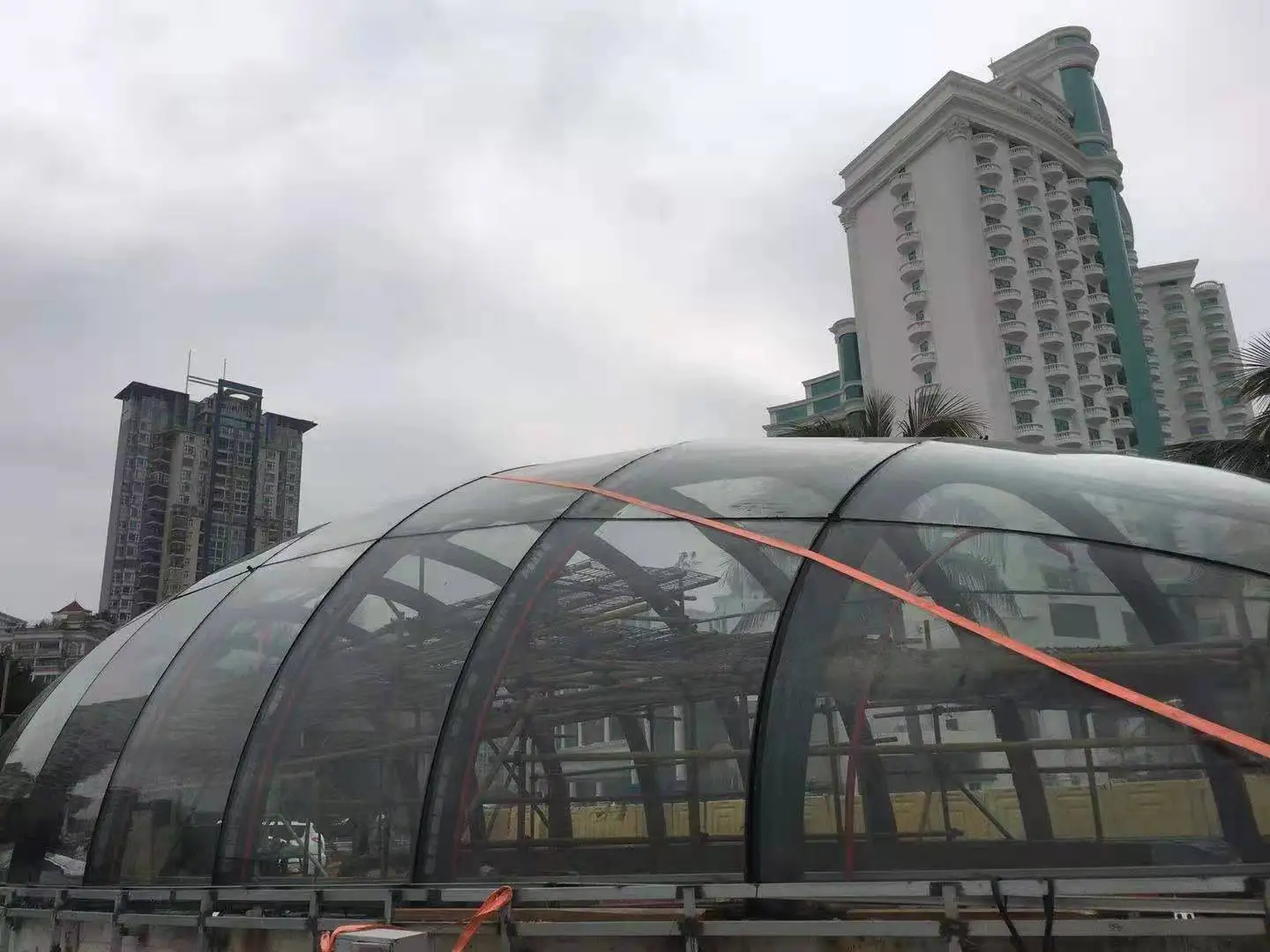

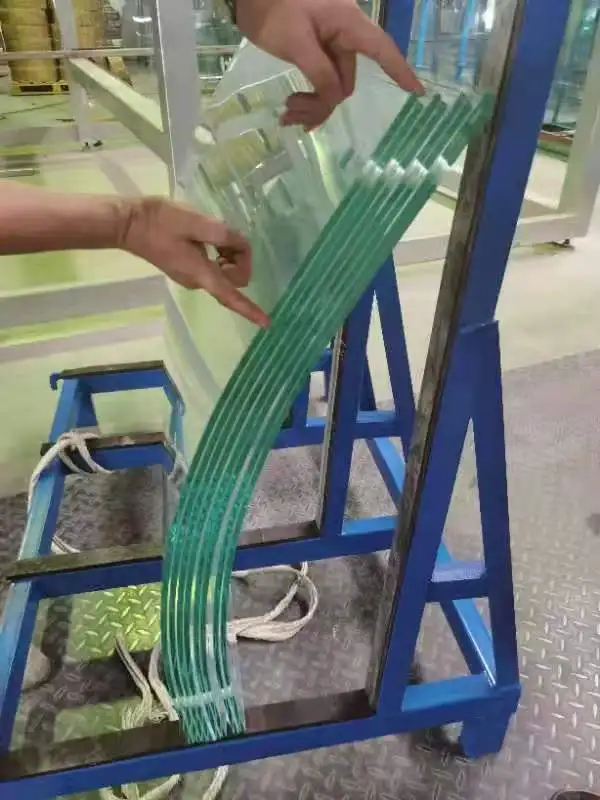

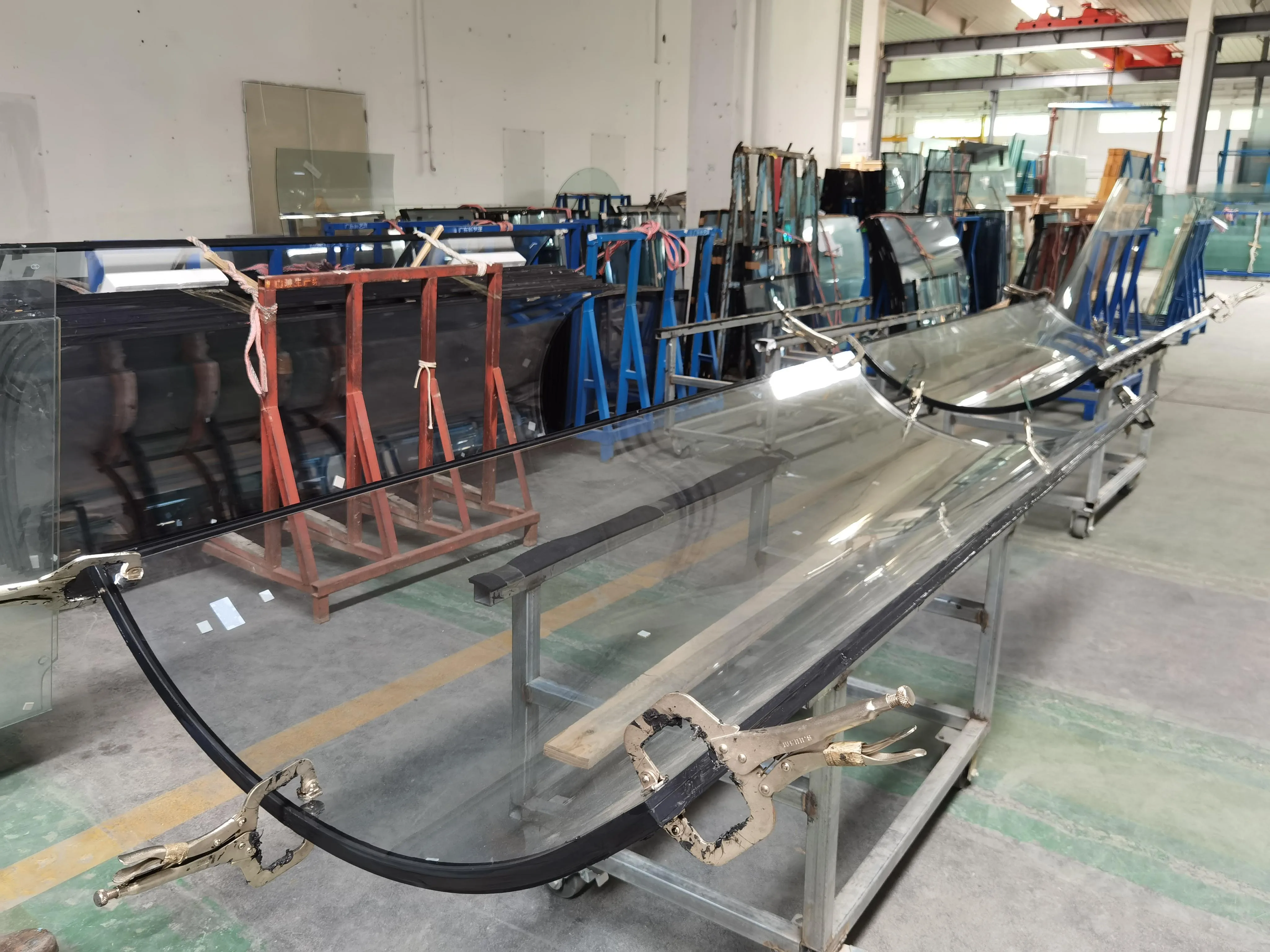

Here are some curved tempered glass we have produced:
Curved tempered glass also has the following advantages same as tempered glass:
High strength: the strength is 4-5 times that of ordinary glass;
Large deflection: 3-4 times the deflection resistance of ordinary glass
Thermal stability: has good thermal stability, can withstand the temperature difference of 200 ℃
Here are some curved tempered glass we have produced:

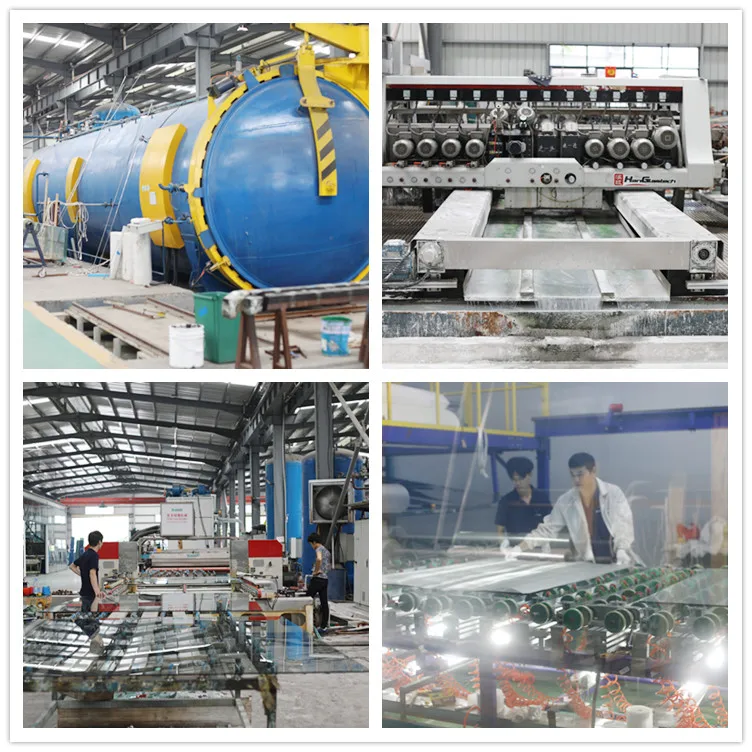

Our Factory
Shenzhen Dayang Special Glass Co., Ltd engaged in the research, development, sale and service of building glass such as tempered glass, laminated glass, curved glass, insulated glass, energy-saving glass, complex glass, ceramic frit glass, art stained glass, magic switchable glass and film, etc.. Locating in Shenzhen (near by Hongkong) which has convenient transportation access. Dedicated to strict quality control and thoughtful customer service, we are able to fulfill your demands and ensure full customer satisfaction.
