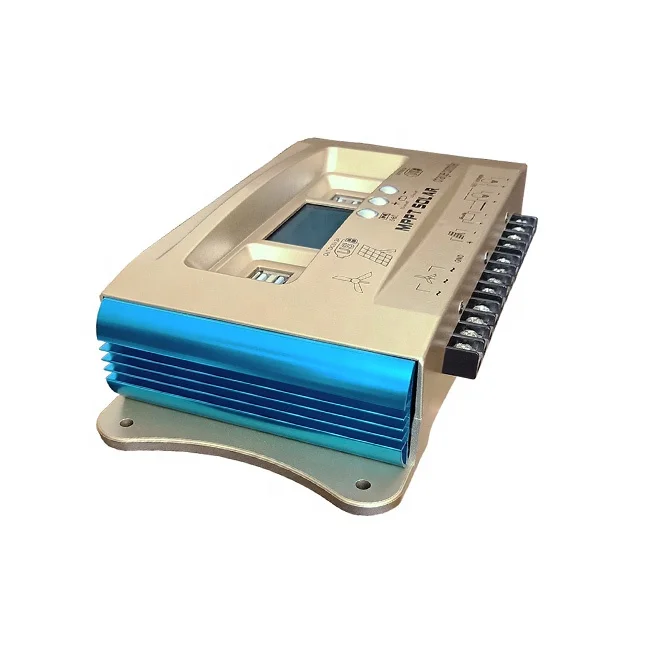

Manufacturer OEM MPPT 12V/24V/48V 30A Intelligent Solar Charge Controller
- Category: >>>
- Supplier: Hefei Better Security Technology Co. Ltd.
Share on (1600501464879):
Product Overview
Description
Product Description
Product Name | MPPT Solar Charge Controller |
Work Time (h) | 24H |
Max PV Power | 1200W/2400W |
Max PV Voltage | 24V |
Material | ROHS+ABS |
Rated charging current | 30A /40A / 50A/ 60A / 100A |
Rated discharge current | 10A / 10A / 20A / 20A / 30A |
Solar photovoltaic voltage | 12V battery with 18V solar panel, 24V battery with 36 solar panel |
Full Voltage Value | B01 Lithium Battery (37V/49V) / B02 Colloidal Battery (42V/56V) / B03 Open Cell (44V/58V) |
12V Floating Charge Voltage | 14.2 V ( default, Adjustable ) 12.0V-15.0V |
12V Discharge cut-off voltage | 10.7 V ( default, adjustable ) 9.0V-11.5V |
12V Discharge recovery voltage | 12.5 V ( default, adjustable ) 11.0V-13.0V |
24V Floating Charge Voltage | 28.4 V ( default, Adjustable ) 24.0V-29.0V |
24V Discharge cut-off voltage | 19.0 V ( default, Adjustable ) 18.0V-22.0V |
24V Discharge recovery voltage | 22.0 V ( default, adjustable ) 22.0V-26.0V |
36V Floating Charge Voltage | 42.0 V ( default, adjustable ) 36.0V-45.0V |
36V Discharge cut-off voltage | 30.0 V ( default, adjustable ) 27.0V-33.0V |
36V Discharge recovery voltage | 38.0 V ( default, adjustable ) 36.0V-42.0V |
48V Floating Charge Voltage | 56.0 V ( default, adjustable ) 48.0V-60.0V |
48V Discharge cut-off voltage | 40.0 V ( default, adjustable ) 36.0V-44.0V |
48V Discharge recovery voltage | 50.0 V ( default, adjustable ) 48.0V-56.0V |
60V Floating Charge Voltage | 71.0 V ( default, adjustable ) 60.0V-75.0V |
60V Discharge cut-off voltage | 50.0 V ( default, adjustable ) 45.0V-55.0V |
60V Discharge recovery voltage | 63.0 V ( default, adjustable ) 60.0V-70.0V |
Standby current | <10mA |
USB Output | 5V / 2A MAX |
Operating temperature | -10℃ ~+60℃ |

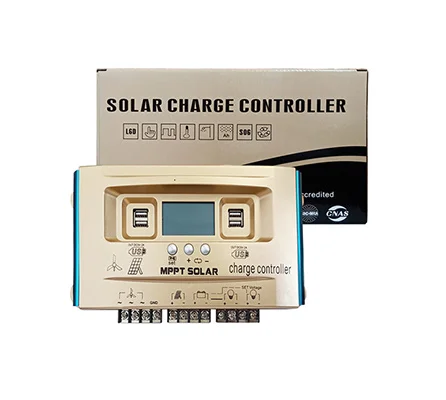

MPPT SOLAR CHARGE CONTROLLER
”Maximum Power Point Tracking“ solar charge controller :
The built-in maximum power tracking algorithm can significantly improve the energy utilization efficiency of the photovoltaic system, which is about 15%-20% higher than the traditional PWM charging efficiency
Details Images

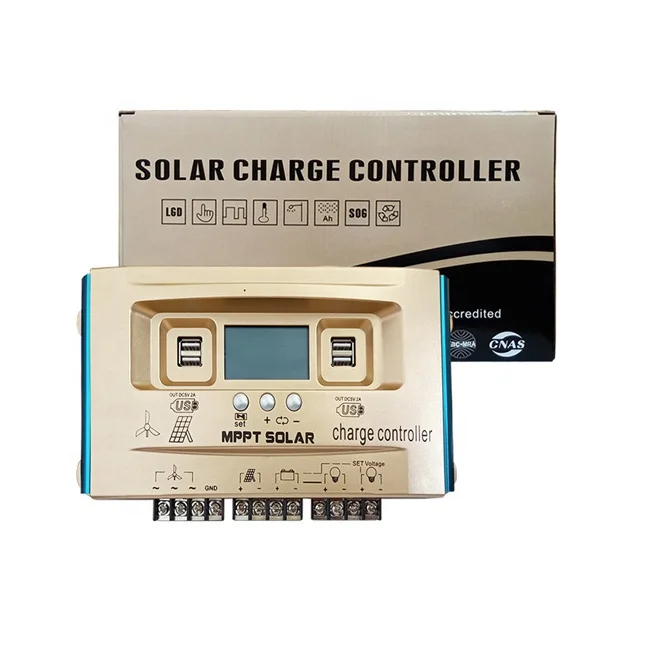

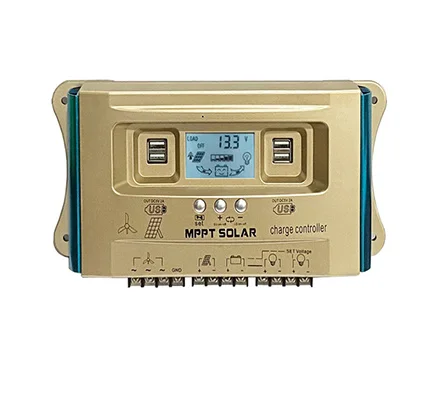

Smart large screen console
LCD display, adjustable charging and discharging parameters, more convenient
Take care of the battery
Complete 3-stage charging management, effectively protect the battery, the battery is more durable
Features
Bidirectional MOS tube anti-backflow circuit, high-power charging mode, ultra-low heat generation
Product Usage
Technical parameters of product

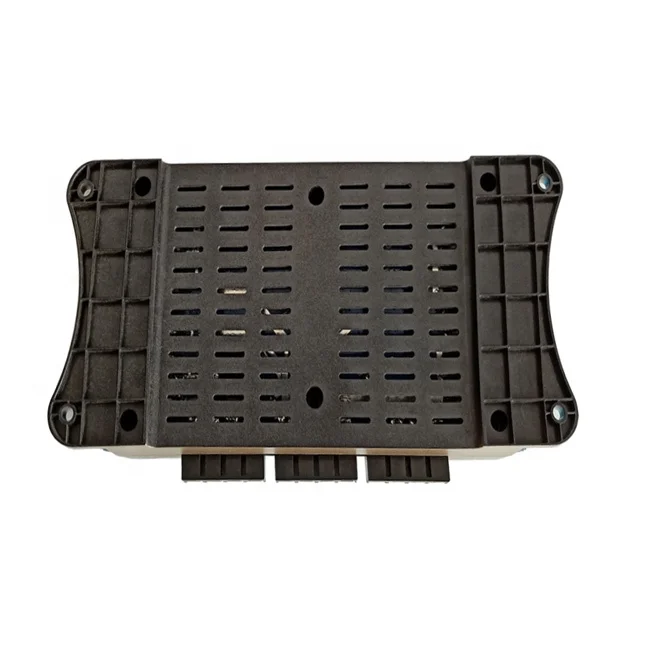

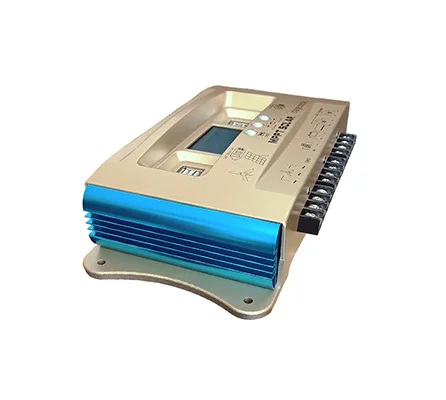

1. Phoenix wing type, zinc alloy heat dissipation.

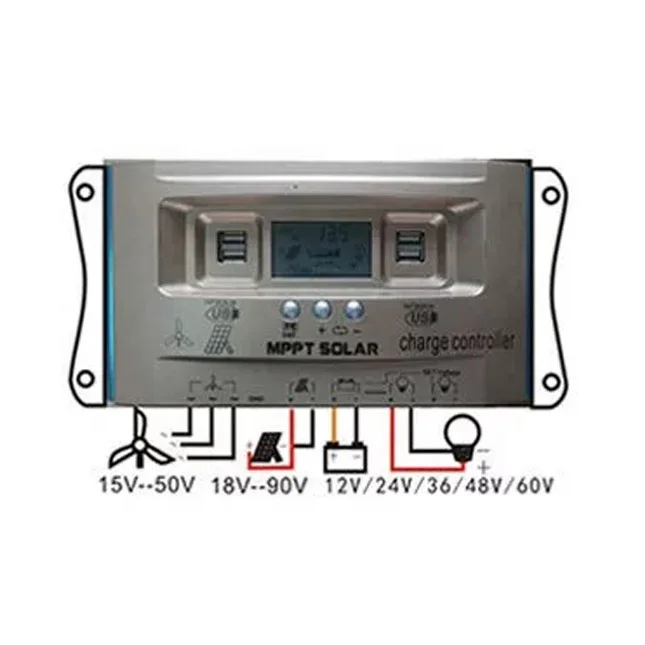

2. Complementary wind energy and light energy, dual interface input for power generation.
3.Intelligent focus, meet a variety of equipment, compatible with multiple batteries, intelligent control system.
Note: Before installing the product, please read the manual carefully！
1. Short circuit protection
2. Open circuit protection
3. Overcurrent Protection
4. Overcharge protection
5. Over discharge protection
6. Reverse polarity protection
When the fault is cleared, the controller automatically recovers without damaging the equipment
Related Products
Packing&Shipping
Company Introduction

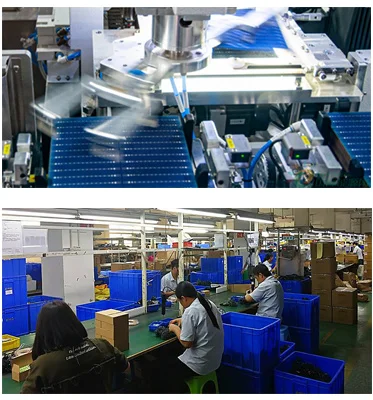

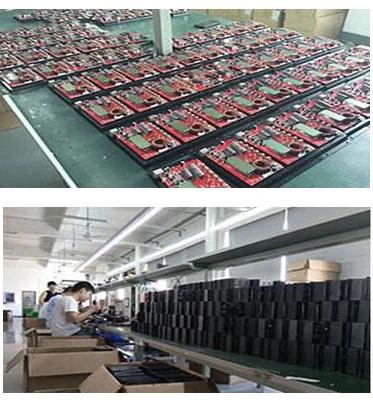

Heifei Better Security Technology Co.,ltd is a company engaged in pet products ,solar products and small home appliances.we have two manufacturing base(located in Anhui province and Zhejiang province) with 18000 square meters, over 800 staff, has several international advanced modern production lines.All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the word.The company provides the customized products and OEM service.Various new collections and design are coming out each month with the current styles .
